Z-Wave PST02-B Service Manual

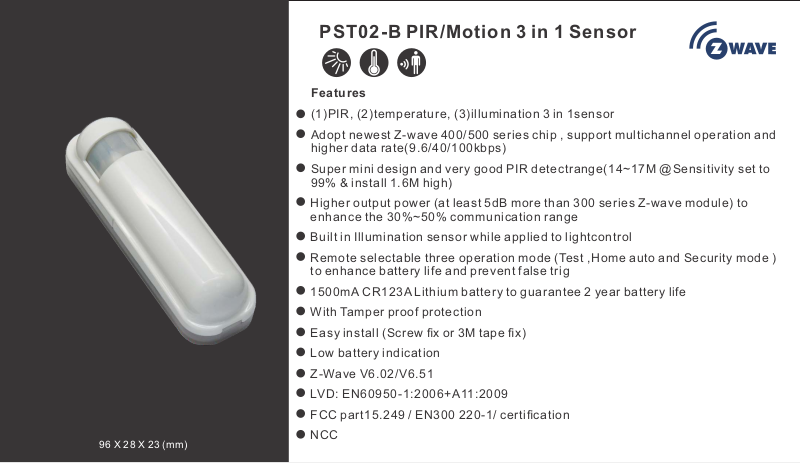

PST02-B PIR/Motion 3 in 1 Sensor

Fe a tu r e s

(1)PIR, (2)temperature, (3)illumination 3 in 1sensor

Adopt newest Z-wave 400/500 series chip , support multichannel operation and
higher data rate(9.6/40/100kbps)

Super mini design and very good PIR detectrange(14~17M @Sensitivity set to
99% & install 1.6M high)

Higher output power (at least 5dB more than 300 series Z-wave module) to
enhance the 30%~50% communication range

Built in Illumination sensor while applied to lightcontrol

Remote selectable three operation mode (Test ,Home auto and Security mode )
to enhance battery life and prevent false trig

1500mA CR123A Lithium battery to guarantee 2 year battery life

With Tamper proof protection

96 X 28 X 23 (mm)

Easy install (Screw fix or 3M tape fix)

Low battery indication

Z-Wave V6.02/V6.51

LVD: EN60950-1:2006+A11:2009

FCC part15.249 / EN300 220-1/ certification

NCC
