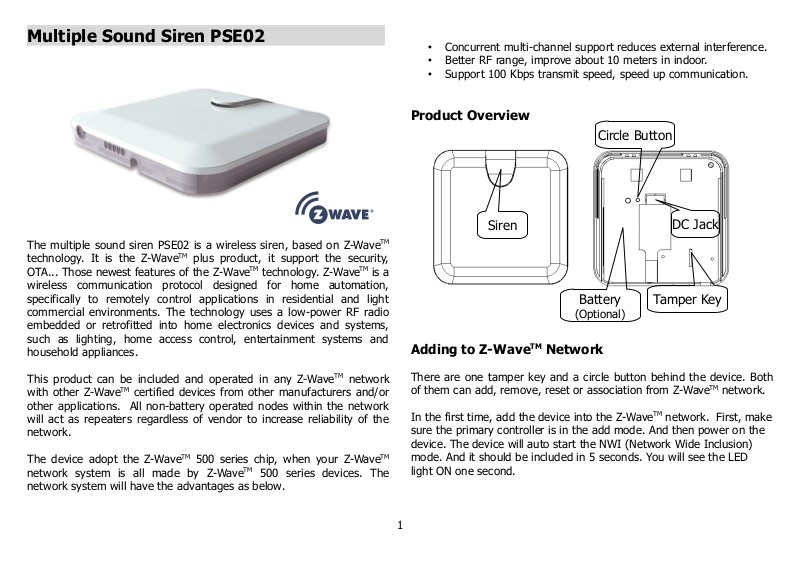

Multiple Sound Siren PSE02
The multiple sound siren PSE02 is a wireless siren, based on Z-Wave
TM
technology. It is the Z-WaveTM plus product, it support the security,
OTA... Those newest features of the Z-WaveTM technology. Z-WaveTM is a
wireless communication protocol designed for home automation,
specifically to remotely control applications in residential and light
commercial environments. The technology uses a low-power RF radio
embedded or retrofitted into home electronics devices and systems,
such as lighting, home access control, entertainment systems and
household appliances.
This product can be included and operated in any Z-WaveTM network
with other Z-WaveTM certified devices from other manufacturers and/or
other applications. All non-battery operated nodes within the network
will act as repeaters regardless of vendor to increase reliability of the
network.
The device adopt the Z-WaveTM 500 series chip, when your Z-Wave
TM
network system is all made by Z-WaveTM 500 series devices. The
network system will have the advantages as below.
• Concurrent multi-channel support reduces external interference.
• Better RF range, improve about 10 meters in indoor.
• Support 100 Kbps transmit speed, speed up communication.

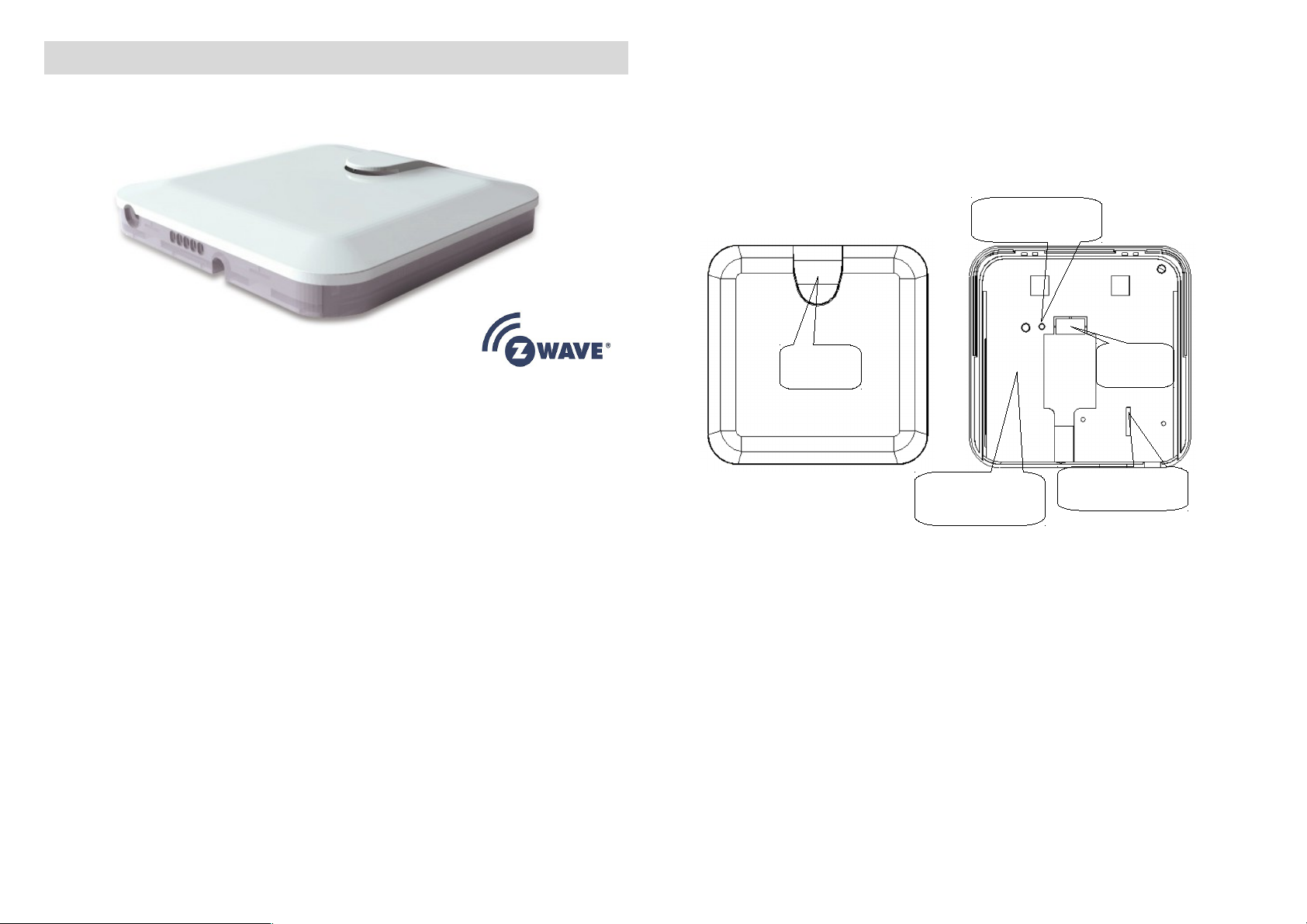

Product Overview
Adding to Z-WaveTM Network
There are one tamper key and a circle button behind the device. Both
of them can add, remove, reset or association from Z-WaveTM network.
In the first time, add the device into the Z-WaveTM network. First, make
sure the primary controller is in the add mode. And then power on the
device. The device will auto start the NWI (Network Wide Inclusion)
mode. And it should be included in 5 seconds. You will see the LED
light ON one second.
1
Siren
Tamper Key
Circle Button
Battery
(Optional)
DC Jack
Page 2
Notice: Including a node ID allocated by Z-WaveTM Controller means
“Add” or “Inclusion”. Excluding a node ID allocated by Z-WaveTM
Controller means “Remove” or “Exclusion”.
Function
Description
Add
1. Have Z-WaveTM Controller entered inclusion mode.
2. Pressing tamper key three times within 1.5 seconds
to enter the inclusion mode.
3. After add successful, the LED will light ON 1 second
Remove
1. Have Z-WaveTM Controller entered exclusion mode.
2. Pressing tamper key three times within 1.5 seconds
to enter the exclusion mode.
Node ID has been excluded.
Reset
Notice: Use this procedure only in the event
that the primary controller is lost or
otherwise inoperable.
1. Pressing tamper key four times within 1.5 seconds
and do not release the tamper key in the 4th
pressed, and the LED will light ON.
2. After 3 seconds the LED will turn OFF, after that
within 2 seconds, release the tamper key. If
successful, the LED will light ON one second.
Otherwise, the LED will flash once.
3. IDs are excluded and all settings will reset to
factory default.
Association
1. Have Z-WaveTM Controller entered association
mode.
2. Pressing tamper key three times within 1.5 seconds
will enter association mode.
Note: The device support 1 group.
The group 1 is for receiving the report message, like
tamper event. And the group support 8 nodes
maximum.
• Failed or success in including/excluding the node ID can be
viewed from Z-WaveTM Controller.
Notice 1: Always RESET a Z-WaveTM device before trying to add it to a
Z-WaveTM network.
Notice 2: When the device into NWI mode, the device functionality will
useless. The NWI mode will timeout after 3 minutes. You can press the
tamper key (or the circle button) 3 times to abort the NWI mode.
Z-WaveTM Message Report
In default the device will using Notification Report to represent the
trigger event, it can be changed to Sensor Binary Report by setting the
configuration NO. 7 Bit4 to 1.
* Tamper Report:
When the tamper key is pressed over 5 seconds. The device will into
the alarm state. In that state, if the tamper key be released, the device
will unsolicited to send the report to the nodes in the group 1.
Notification Report (V4)
Notification Type: Home Security (0x07)
Event: Tampering. Product covering removed (0x03)
Sensor Binary Report (V2)
Sensor Type: Tamper (0x08)
Sensor Value: 0xFF
Siren State Report
When the siren start playing or stop the alarm sounds, the device will
unsolicited to send the “Sensor Binary Report” to the nodes in the
group 1.
Sensor Type: General Purpose (0x01)
Sensor Value: 0xFF (Start play), or 0x00 (Stop play)
2
Page 3
Power Up Procedure
* NWI
When the device power on, the device will check is it already adding to
the network? If doesn't, it will auto start the NWI mode. The LED will
flash in every second and continue 3 minutes. Until timeout or the
device successful to inclusion by controller. The use can presses the
tamper key (or the circle button) 3 times to abort the NWI mode.
Play Sound
Using the SWITCH_BINARY_SET to play the siren, 0xFF will play the
emergency sound, 0x00 will stop to play.
The device also supports to receive the NOTIFICATION_REPORT to play
the different sound.
Notification Type Event Sound
Smoke Alarm (0x01) Any Fire Alert
Access Control (0x06)
Window/Door
Open (0x16)
Door Chime
Home Security (0x07) Any Emergency
Emergency Alarm (0x0A)
Contact Police
(0x01)
Police Car Sound
Emergency Alarm (0x0A)
Contact Fire
Service (0x02)
Fire Alert
Emergency Alarm (0x0A)
Contact Medical
Service (0x03)
Ambulance Sound
Over The Air (OTA) Firmware Update
The device support the Z-Wave firmware update via OTA.
Before starting the procedure, please remove the back cover of the
device. Otherwise the hardware check will be failed.
Let the controller into the firmware update mode, and then press the
front tamper key once to start the update.
After finish the firmware download, the LED will start flash in every 0.5
second. At that time,
please don't cut off the power
, otherwise it
will cause the firmware broken, and the device will no function.
After the LED stop flash, it is recommended that the user power up the
device. Caution: After power off the device, please wait about 30
seconds, and then re-plug the power line.
Security Network
The device support the security function. When the device included
with a security controller, the device will auto switch to the security
mode. In the security mode, the follow commands need using Security
CC wrapped to communicate, otherwise it will not response.
COMMAND_CLASS_NOTIFICATION_V4
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_CONFIGURATION
COMMAND_CLASS_SENSOR_BINARY_V2
COMMAND_CLASS_SWITCH_BINARY
COMMAND_CLASS_BASIC
Manual Battery Shutdown
When the DC power is dropped. The system will auto switch to use the
battery power. If you want to really shutdown the system, please follow
instructions as below.
1. Press and hold the circle button.
2. Click the tamper 3 times in 1.5 seconds.
3. Release the circle button.
4. If shutdown successful, the LED will flash 3 times.
After the battery shutdown, the system won't work anymore, unless the
3
Page 4
DC power recovery.
Z-Wave Configuration Settings
Notice:
* All of the configuration, the data size is 1.
* The configuration mark with star(*), means after the remove the setting
still keep, don't reset to factory default. Unless the user execute the
“RESET” procedure.
* The reserve bit or not supported bit is allowed any value, but no effect.
NO. Name Def. Valid Description
7
(*)
Customer
Function
0 All
Customer function switch, using bit
control.
0 Bit0: Reserve.
0 Bit1: Reserve.
0 Bit2: Reserve.
0 Bit3: Reserve.
0
Bit4: Notification Type,
0: Using Notification Report.
1: Using Sensor Binary Report.
0 Bit5: Reserve.
0 Bit6: Reserve.
0 Bit7: Reserve.
29 Disable Alarm 0 0,1
Disable the alarm function.
1: Disable Alarm, 0: Enable Alarm.
Caution: After the power up, this
configuration always be 0.
31 Alarm Duration 6 0~127 Play alarm sound duration, 1 tick is 30
seconds. Default is 3 minutes, maximum
is 63.5 minutes
0: means never auto stop.
Z-Wave Supported Command Class
COMMAND_CLASS_ZWAVEPLUS_INFO_V2
COMMAND_CLASS_BASIC
COMMAND_CLASS_SWITCH_BINARY
COMMAND_CLASS_NOTIFICATION_V4
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_CONFIGURATION
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
COMMAND_CLASS_VERSION_V2
COMMAND_CLASS_SENSOR_BINARY_V2
COMMAND_CLASS_ASSOCIATION_GRP_INFO
COMMAND_CLASS_POWERLEVEL
COMMAND_CLASS_DEVICE_RESET_LOCALLY
COMMAND_CLASS_SECURITY
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2
Specifications
Power by DC 5V, and support backup lithium battery (Optional).
Signal (Frequency):
868.40 MHz, 869.85 MHz(EU),
908.40 MHz, 916.00 MHz(US),
922~927 MHz(JP/TW),
921.40 MHz, 919.80 MHz(ANZ),
869.00 MHz(RU),
865.20 MHz(IN),
916.00 MHz(IL),
4
Page 5
Range:
Minimum 30 meters indoor,
70 meters outdoor line of sight.
Operating Temperature: -10oC ~ 40oC
For indoor use only.
Specifications subject to change without notice due to continuing
product improvement.
FCC ID: RHHPSE02
FCC Interference Statement
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to
operate this equipment.
This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
Warning
Do not dispose of electrical appliances as unsorted municipal waste,
use separate collection facilities. Contact your local government for
information regarding the collection systems available. If electrical
appliances are disposed of in landfills or dumps, hazardous substances
can leak into the groundwater and get into the food chain, damaging
your health and well-being.
When replacing old appliances with new once, the retailer is legally
obligated to take back your old appliance for disposal at least for free
of charge.
5
