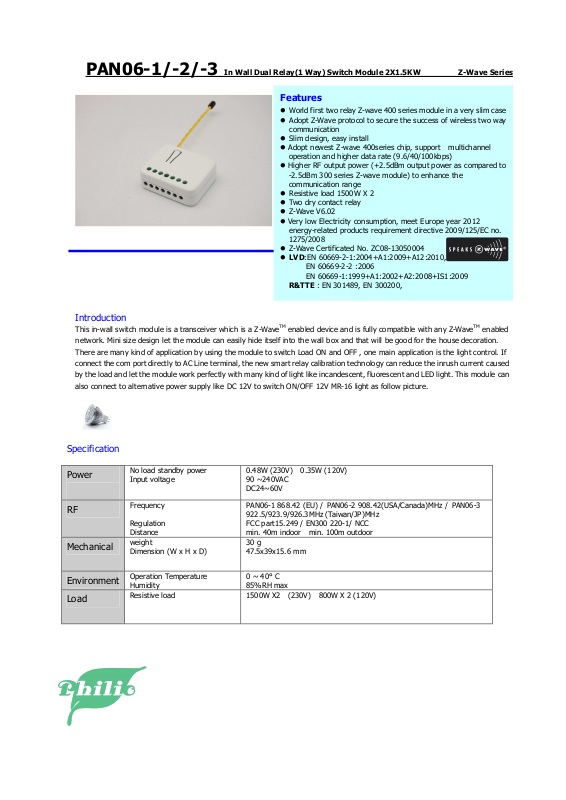

Z-Wave PAN06 Service Manual

PAN06-1/-2/-3

Introduction

In Wall Dual Relay(1 Way) Switch Module 2X1.5KW Z-Wave Series

Features

 World first two relay Z-wave 400 series module in a very slim case
 Adopt Z-Wave protocol to secure the success of wireless two way

communication

 Slim design, easy install
 Adopt newest Z-wave 400series chip, support multichannel

operation and higher data rate (9.6/40/100kbps)

 Higher RF output power (+2.5dBm output power as compared to

-2.5dBm 300 series Z-wave module) to enhance the
communication range

 Resistive load 1500W X 2
 Two dry contact relay
 Z-Wave V6.02
 Very low Electricity consumption, meet Europe year 2012

energy-related products requirement directive 2009/125/EC no.
1275/2008

 Z-Wave Certificated No. ZC08-13050004
 LVD:EN 60669-2-1:2004+A1:2009+A12:2010,

EN 60669-2-2 :2006
EN 60669-1:1999+A1:2002+A2:2008+IS1:2009

R&TTE : EN 301489, EN 300200,

This in-wall switch module is a transceiver which is a Z-WaveTM enabled device and is fully compatible with any Z-WaveTM enabled
network. Mini size design let the module can easily hide itself into the wall box and that will be good for the house decoration.
There are many kind of application by using the module to switch Load ON and OFF , one main application is the light control. If
connect the com port directly to AC Line terminal, the new smart relay calibration technology can reduce the inrush current caused
by the load and let the module work perfectly with many kind of light like incandescent, fluorescent and LED light. This module can
also connect to alternative power supply like DC 12V to switch ON/OFF 12V MR-16 light as follow picture.

Specification

Power

RF

Mechanical

Environment

Load

No load standby power
Input voltage

Frequency

Regulation
Distance
weight
Dimension (W x H x D)

Operation Temperature
Humidity
Resistive load

0.48W (230V) 0.35W (120V)
90 ~240VAC
DC24~60V

PAN06-1 868.42 (EU) / PAN06-2 908.42(USA/Canada)MHz / PAN06-3

922.5/923.9/926.3MHz (Taiwan/JP)MHz
FCC part15.249 / EN300 220-1/ NCC
min. 40m indoor min. 100m outdoor
30 g

47.5x39x15.6 mm

0 ~ 40° C
85%RH max
1500W X2 (230V) 800W X 2 (120V)

1

Application

PAN06-1/-2/-3

Dimension (unit: mm)

Application:

Home Automation
Energy Saving

Philio Technology Corporation
www.philio-tech.com

2
