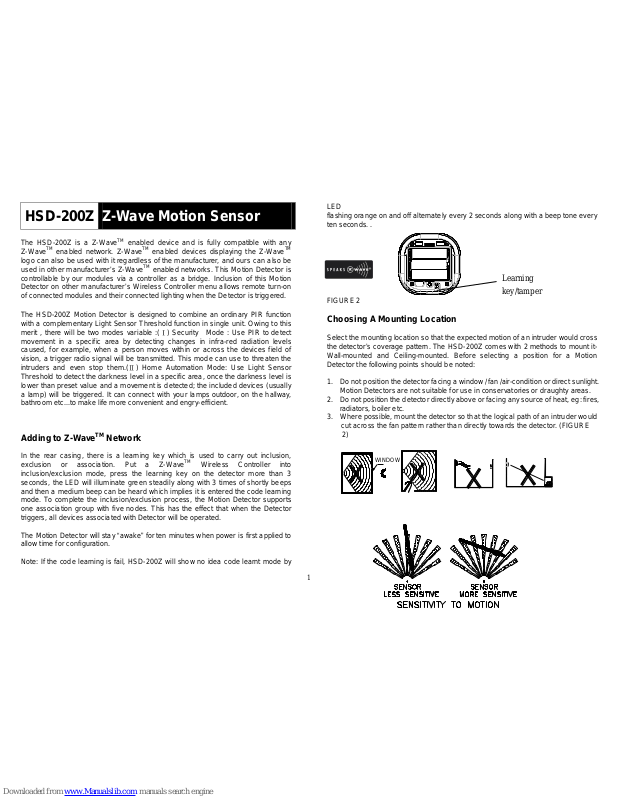

HSD-200Z
Z-Wave Motion Sensor
The HSD-200Z is a Z-WaveTM enabled device and is fully compatible with any
Z-WaveTM enabled network. Z-WaveTM enabled devices displaying the Z-WaveTM
logo can also be used with it regardless of the manufacturer, and ours can also be
used in other manufacturer’s Z-WaveTM enabled networks. This Motion Detector is
controllable by our modules via a controller as a bridge. Inclusion of this Motion
Detector on other manufacturer’s Wireless Controller menu allows remote turn-on
of connected modules and their connected lighting when the Detector is triggered.
The HSD-200Z Motion Detector is designed to combine an ordinary PIR function
with a complementary Light Sensor Threshold function in single unit. Owing to this
merit , there will be two modes variable :(Ⅰ) Security Mode : Use PIR to detect
movement in a specific area by detecting changes in infra-red radiation levels
caused, for example, when a person moves within or across the devices field of
vision, a trigger radio signal will be transmitted. This mode can use to threaten the
intruders and even stop them.(Ⅱ) Home Automation Mode: Use Light Sensor
Threshold to detect the darkness level in a specific area, once the darkness level is
lower than preset value and a movement is detected; the included devices (usually
a lamp) will be triggered. It can connect with your lamps outdoor, on the hallway,
bathroom etc...to make life more convenient and engry-efficient.
Adding to Z-WaveTM Network
In the rear casing, there is a learning key which is used to carry out inclusion,
exclusion or association. Put a Z-WaveTM Wireless Controller into
inclusion/exclusion mode, press the learning key on the detector more than 3
seconds, the LED will illuminate green steadily along with 3 times of shortly beeps
and then a medium beep can be heard which implies it is entered the code learning
mode. To complete the inclusion/exclusion process, the Motion Detector supports
one association group with five nodes. This has the effect that when the Detector
triggers, all devices associated with Detector will be operated.
The Motion Detector will stay “awake” for ten minutes when power is first applied to
allow time for configuration.
Note: If the code learning is fail, HSD-200Z will show no idea code learnt mode by
LED
flashing orange on and off alternately every 2 seconds along with a beep tone every
ten seconds. .
FIGURE 2
Choosing A Mounting Location
Select the mounting location so that the expected motion of an intruder would cross
the detector’s coverage pattern. The HSD-200Z comes with 2 methods to mount itWall-mounted and Ceiling-mounted. Before selecting a position for a Motion
Detector the following points should be noted:
1. Do not position the detector facing a window /fan /air-condition or direct sunlight.
Motion Detectors are not suitable for use in conservatories or draughty areas.
2. Do not position the detector directly above or facing any source of heat, eg: fires,
radiators, boiler etc.
3. Where possible, mount the detector so that the logical path of an intruder would
cut across the fan pattern rather than directly towards the detector. (FIGURE
2)
Learning
key/tamper
WINDOW
2
Installation
Front Cover
LED indicator
PIR Sensor
Learning key/Tamper
Light Sensor
Wall-Mounted
The recommended position for wall-mounted detection is in the corner of a room,
mount the detection at the height of 1.8m from the floor. At this height, the optimum
detect range is up to 10m (32.81 ft). (FIGURE 3a) Also, in this position, the 110
degrees fan-shaped detection pattern can normally offer greater protection than
mounting on a flat wall.
FIGURE 3a
1. Use a screwdriver to undo the bracket.
2. Insert 3 AA-size 1.5V alkaline batteries to the battery compartment, ensuring
that correct polarity is put.
3. Hold the bracket in position and mark the two mounting holes. Drill the holes,
insert the plastic wall plugs and screw the bracket to the wall using the screws
supplied.
4. Engage the HSD-200Z detector to the bracket firmly.
(FIGURE 3b.)
FIGURE 3b
Ceiling-Mounted
The factory setting of HSD-200Z is to be wall-mounted. However ceiling-mounted is
a thoughtful option Everspring provides. Simply remove the Wall-PIR (FIGURE 4b)
then reload the Ceiling-PIR. (FIGURE 4c) and follow the instruction below.
The optimum detect range for ceiling-mounted detection is at the height of 2.5M (8.2
ft), which can provide the coverage range of 5m (16.4ft) X 360 degree (FIGURE 4a).
FIGURE 4a
○
1
○
4
○
2
○
3
○
5
