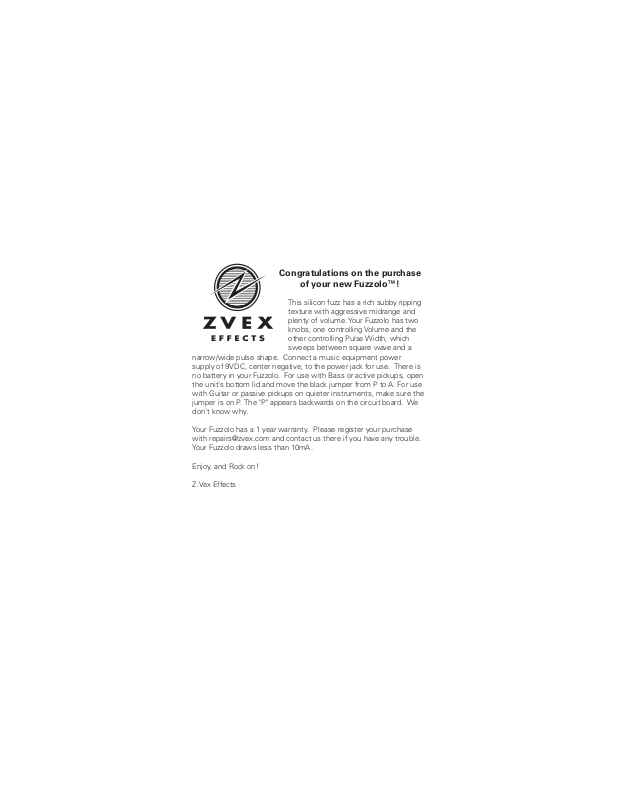

Congratulations on the purchase
of your new Fuzzolo™!
This silicon fuzz has a rich subby ripping
texture with aggressive midrange and
plenty of volume. Your Fuzzolo has two
knobs, one controlling Volume and the
other controlling Pulse Width, which
narrow/wide pulse shape. Connect a music equipment power
supply of 9VDC, center negative, to the power jack for use. There is
no battery in your Fuzzolo. For use with Bass or active pickups, open
the unit's bottom lid and move the black jumper from P to A. For use
with Guitar or passive pickups on quieter instruments, make sure the
jumper is on P. The "P" appears backwards on the circuit board. We
don't know why.
Your Fuzzolo has a 1 year warranty. Please register your purchase
with repairs@zvex.com and contact us there if you have any trouble.
Your Fuzzolo draws less than 10mA.
Enjoy, and Rock on!
Z.Vex Effects
sweeps between square wave and a
