Operating instructions
Noblesse | Noblesse eco
Refrigerator/freezer
Thank you for choosing to buy one of our products. Your appliance is made to high
standards and is easy to use. Nevertheless, please take the time to read these operating
instructions in order to familiarize yourself with the appliance and get the best use out of
it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appliance at the
time these operating instructions went to press. The right to make technical modifications
for the purpose of the further development of the appliances is reserved.
Validity
The model number corresponds to the first alphanumerics on the identification plate.
These operating instructions apply to:
Model designation Model number Size system
Noblesse 51046 SMS 55 / Euro 60
Noblesse eco 51068 SMS 55 / Euro 60
Variations depending on the model are noted in the text.
© V-ZUG Ltd, CH-6302 Zug, 2019
2
Contents
1 Safety precautions 4
1.1 Symbols used......................................................... 4
1.2 General safety precautions.................................. 4
1.3 Appliance-specific safety precautions ............... 5
1.4 Appliance installation............................................ 5
1.5 Instructions for use................................................ 5
2 Using for the first time 8
3 Appliance description 8
3.1 Structure .................................................................. 8
3.2 Operating and display elements......................... 9
4 Operation 9
5 Special functions 11
5.1 Fast cooling .......................................................... 11
5.2 Fast freezing .........................................................12
5.3 Holiday mode ....................................................... 12
5.4 Sabbath mode......................................................12
6 Glass shelves and door trays 13
6.1 Positioning door trays.........................................13
6.2 Positioning glass shelves................................... 13
7 Bottle drawer 14
8 Tips and tricks 15
8.1 General information on using the appliance ..15
8.2 Storing food ..........................................................16
8.3 Notes on refrigerating and freezing food........16
8.4 Notes on saving energy ..................................... 17
9 Care and maintenance 17
9.1 Cleaning ................................................................17
9.2 Defrosting.............................................................. 18
9.3 Changing the LED lighting.................................19
10 Noises and alarms 20
10.1 Operating noise ...................................................20
10.2 Warning and alarm signals................................ 20
11 Trouble-shooting 21
12 Technical data 22
12.1 Temperature measurement ...............................22
12.2 Note for testing institutes ....................................22
13 Disposal 23
14 Index 24
15 Service & Support 27
3
1 Safety precautions

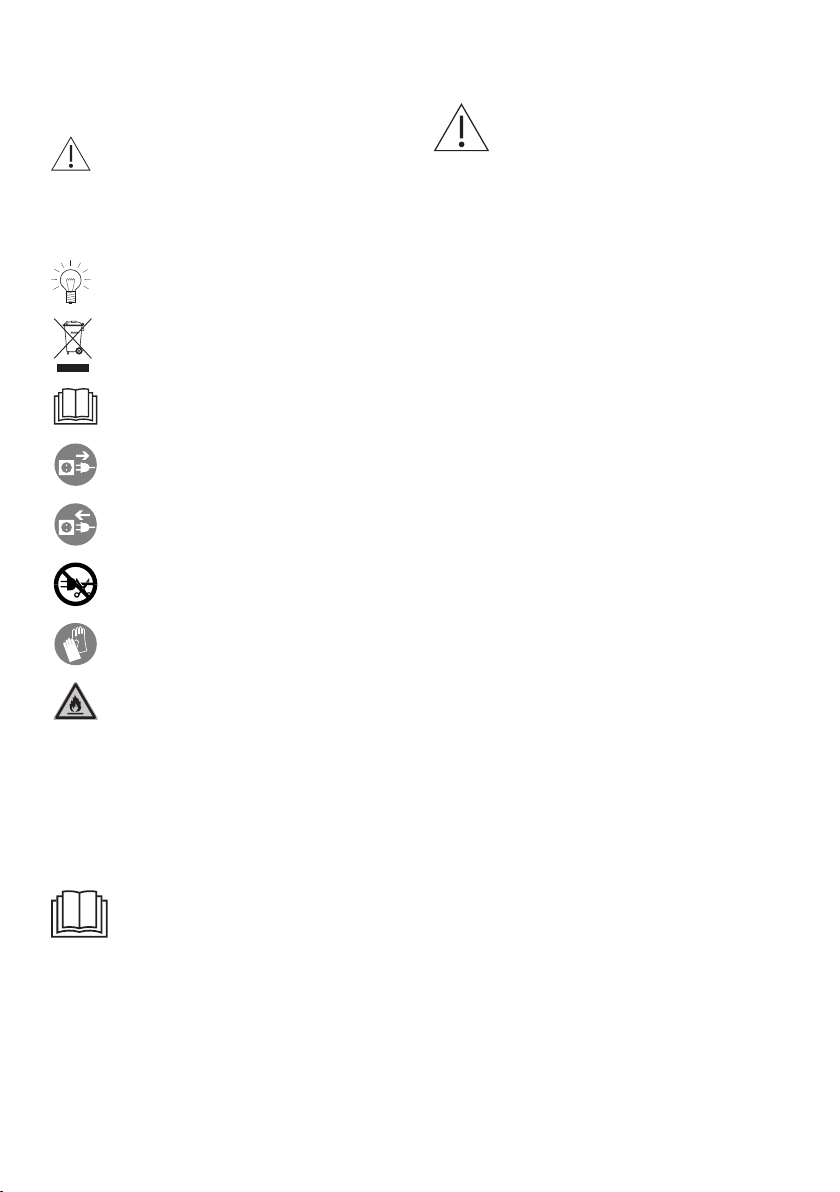

1.1 Symbols used
Denotes important safety precautions.
Failure to observe said precautions
can result in injury or in damage to
the appliance or fittings!
Information and precautions that
should be observed.
Information on disposal
Information about the Operating Instructions
Remove plug from mains socket /
disconnect power supply
Insert plug into mains socket / connect power supply
Do not cut off or modify mains plug
Wear protective gloves
Symbol ISO 7010 W021
WARNING: Risk of fire / flammable
materials
▸ Indicates step-by-step instructions.
– Describes how the appliance reacts
to the steps taken.
▪ Indicates a list.
1.2 General safety precautions
▪ Read the operating instruc-
tions before using the appliance for the first time!
▪ This appliance can be used
by children aged 8 and above
and by persons with reduced
physical, sensory or mental
capabilities, or lack of experience and/or knowledge,
provided they are supervised
or have been instructed on
the safe use of the appliance
and have understood the hazards involved. Children shall
not play with the appliance.
Cleaning and user maintenance shall not be undertaken
by children without supervision.
▪ If an appliance is not
equipped with a mains cable
and a plug or other means for
disconnecting from the mains
with a contact opening on
each pole complying with the
conditions of overvoltage category III for full isolation, an
isolating device must be incorporated into the permanently installed electrical installation in accordance with the
installation regulations.
▪ If the mains cable of this ap-
pliance is damaged, it must
be replaced by the manufac-
4
turer or its Customer Services
or a similarly qualified person
in order to avoid hazard.
1.3 Appliance-specific safety precautions
▪ Children aged from 3 to 8
years are allowed to load and
unload refrigerating appliances.
1.4 Appliance installation
▪ The appliance must be installed by
qualified personnel only.
▪ Each step must be carried out and
checked in full in the order specified.
▪ Electrical connections must be carried
out by qualified personnel in accordance with the guidelines and standards
for low-voltage installations and the specifications of the local electricity supply
companies.
▪ A plug-in appliance may only be con-
nected to a socket outlet with earthing
contact, installed according to specifications. An all-pole mains isolating device
with 3mm contact opening should be
provided in the house wiring system.
Switches, plug and socket devices, circuit breakers and fusible cut-outs which
are accessible after installation and
which have all-poles switching are permissible as isolating devices. Effective
earthing and separately installed neutral
and earth conductors ensure safe and
fault-free operation. After installation,
live parts and cables with basic insulation must not be accessible. Check old
installations.
1 Safety precautions
▪ Refer to the identification plate for in-
formation on the required mains
voltage, current type and fuse protection.
▪ All plastering, plasterboarding, wall pa-
pering or painting work is to be carried
out prior to installing the appliance.
▪ Efficient repairs can only be guaranteed
if it is possible to de-install the complete
appliance at any time without causing
any damage.
▪ Allow a 200cm² ventilation opening/
niche both top and bottom to ensure
ideal ventilation.
▪ The direction of the door opening can
be changed. This requires the corresponding hinge and panel covers (depending on model). Thickness of wood
of door leaf: 16–20mm. Use the hinge
bolts supplied if the door leaf thickness
>19mm. This restricts the opening
angle to 90°.
1.5 Instructions for use
Before using for the first time
▪ The appliance must be installed and
connected to the electricity supply in
accordance with the separate installation instructions. Have a qualified fitter/
electrician carry out the necessary
work.
▪ Electrical safety (protection against con-
tact) must be ensured by the installation.
▪ If the appliance is visibly damaged, do
not use it. Contact our Customer Services. Do not use the appliance if the
cold circuit is damaged.
▪ WARNING: The required room volume
for the appliance is at least 1m3per
8g refrigerant (isobutane R600a). In
rooms that are too small, a leak can
produce a flammable air-gas mixture.
The filled volume of the refrigerant is
shown on the identification plate.
▪ WARNING: When installing the appli-
ance, ensure the mains cable is not
trapped or damaged.
5
1 Safety precautions
▪ WARNING: Do not locate multiple port-
able socket-outlets or portable power
supplies at the rear of the appliance.
▪ Avoid using extension cables.
▪ When installed, it is important to ensure
that the air inlets and vent openings are
not covered or blocked.
▪ Retain these operating instructions for
future reference.
▪ Operating instructions for the appliance
can be downloaded from
www.vzug.com.
▪ Dispose of the packaging material in
accordance with local regulations.
Correct use
▪ The appliance is designed for use in
the home for cooling and storing food.
The appliance must only be used as described in the operating instructions.
▪ This appliance is intended for use in the
home and similar settings such as: in
staff kitchens in shops, offices and
other commercial establishments; in agricultural establishments; by guests in
hotels, motels and other accommodation establishments; in bed and breakfast establishments. This appliance is
not intended for use in the professional
sector.
▪ The appliance corresponds to recog-
nized technology standards and the relevant safety regulations. Proper use of
the appliance is essential to avoid damage and accidents. Please therefore follow the precautions given in these operating instructions.
▪ No liability is assumed for any damage
caused by improper or incorrect use or
by repairs carried out by an unqualified
person. In this case any warranty or
other liability claims are deemed null
and void.
▪ Any repairs, modifications or manipula-
tions to the appliance, especially any
electrically live parts, may only be carried out by the manufacturer, its Customer Services or a similarly qualified
person. Repairs if carried out incorrectly
may cause serious injury, damage to
the appliance and fittings, as well as affect the functioning of the appliance. If
the appliance is not working properly or
in case a repair is needed, follow the instructions given in the «Service & Support» section. Contact our Customer
Services if necessary.
▪ Use original spare parts only.
Note on use
▪ Do not operate any electrical devices
inside the refrigerator compartment
and/or freezer compartment.
▪ High-proof alcohol should only be
stored tightly sealed and standing upright. Do not store explosive materials
or aerosol cans in the appliance.
Danger of explosion!
▪ This appliance is CFC- and FC-free and
contains small quantities of the environmentally friendly, but flammable refrigerant isobutane (R600a). When handling
the appliance take care not to damage
the cooling circuit. Any refrigerant that
escapes can ignite. If it were to become
damaged, avoid open flames and other
ignition sources as isobutane is flammable. Ventilate the room well for a few
minutes. Switch the appliance off and
disconnect from the power supply. Do
not turn on any power supplies. Notify
our Customer Services.
Caution: Risk of injury!
▪ Be careful not to put fingers in the door
hinges. as there is otherwise a risk of
injury if the appliance door is moved.
Particular care should be taken when
children are around.
▪ Cut the power going to the appliance
before cleaning. Pull out the mains plug
or switch off the fuse. Never pull the
mains plug out of the mains socket by
the cable or with wet hands. Hold the
mains plug and pull it straight out of the
mains socket.
6
▪ Avoid prolonged skin contact with
frozen food. Never consume frozen
food or ice cubes that are straight out
of the freezer compartment or too cold.
Risk of burns from freezing!
▪ Do not remove the evaporation tray on
the compressor. Fire hazard!
▪ Do not place bottles or cans of drink in
the freezer compartment. Especially
those containing carbonated drinks can
burst during freezing.
Caution: Risk to life!
▪ Packaging materials, e.g. plastic film
and polystyrene, can be dangerous for
children. Danger of suffocation! Keep
packaging material away from children.
▪ When carrying out maintenance work
on the appliance, including replacing
light bulbs (if how to remove them is
described in the Operating instructions),
cut off the electricity supply to the appliance: remove the screw fuse from the
holder or switch the circuit breaker off,
or unplug from the mains socket.
How to avoid damaging the appliance
▪ Clean the appliance just with water or a
mild soapy solution (water and washingup liquid).
▪ Do not use pointed or sharp objects to
remove layers of ice or frozen-on food.
▪ No mechanical or artificial means other
than those recommended may be used
to accelerate defrosting.
▪ Store oils and fats upright in closed
containers. They must not come into
contact with the plastic parts or the
door seal.
1 Safety precautions
7
2 Using for the first time
1
3
2
4
5
6
7
8
9
10
12
11
13
14
Before operating the newly installed appliance for the first time, the following steps
should be taken:
▸ Remove packaging and transport materials as well as any protective film from the in-
terior.
▸ Clean the interior and accessories with lukewarm water or a mild soapy solution (wa-
ter and washing-up liquid) and dry thoroughly.
▸ Check that all appliance door seals are completely dry and dry them if necessary.
▸ If the appliance was transported in a horizontal position, wait an hour before switching
it on.
3 Appliance description

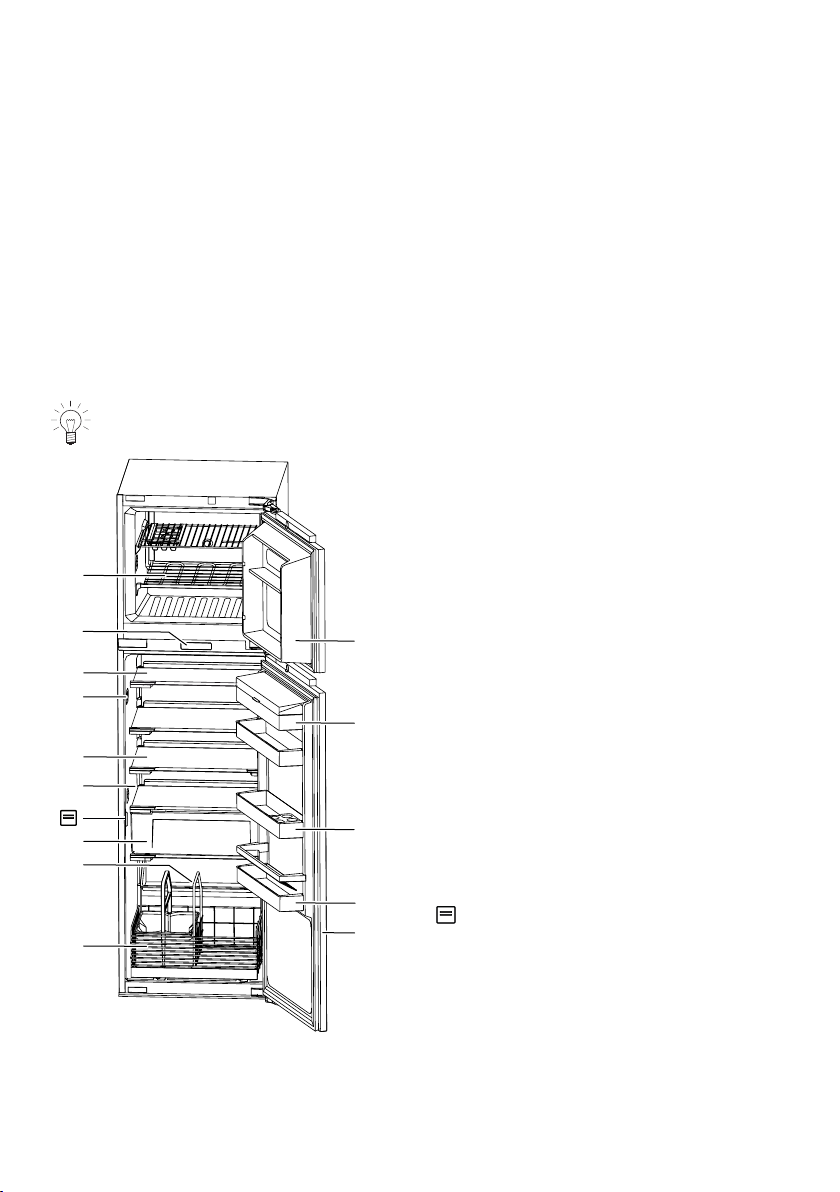

3.1 Structure
The direction in which the door opens can be changed. Please contact our Customer Services if necessary.
Freezer compartment door
1
Door tray with cover
2
Egg tray
3
Door tray with bottle holder
4
(bottles up to max. 1.5 litres)
Refrigerator compartment door
5
Bottle drawer
6
Defrost drainage channel
7
Vegetable drawer
8
Temperature sensor
9
Shelf
10
LED light
11
Half-shelf
12
Operating and display elements
13
Freezer compartment shelf
14
Identification plate with serial number (SN)
8

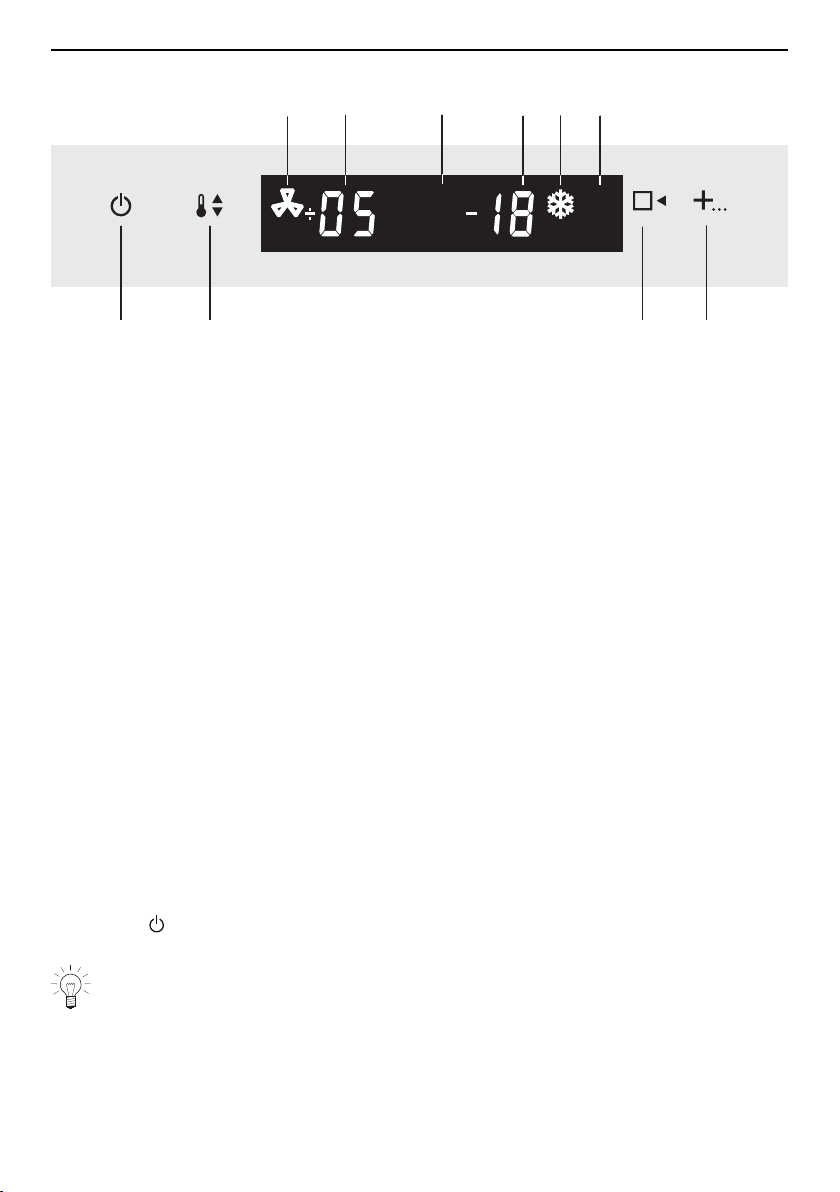

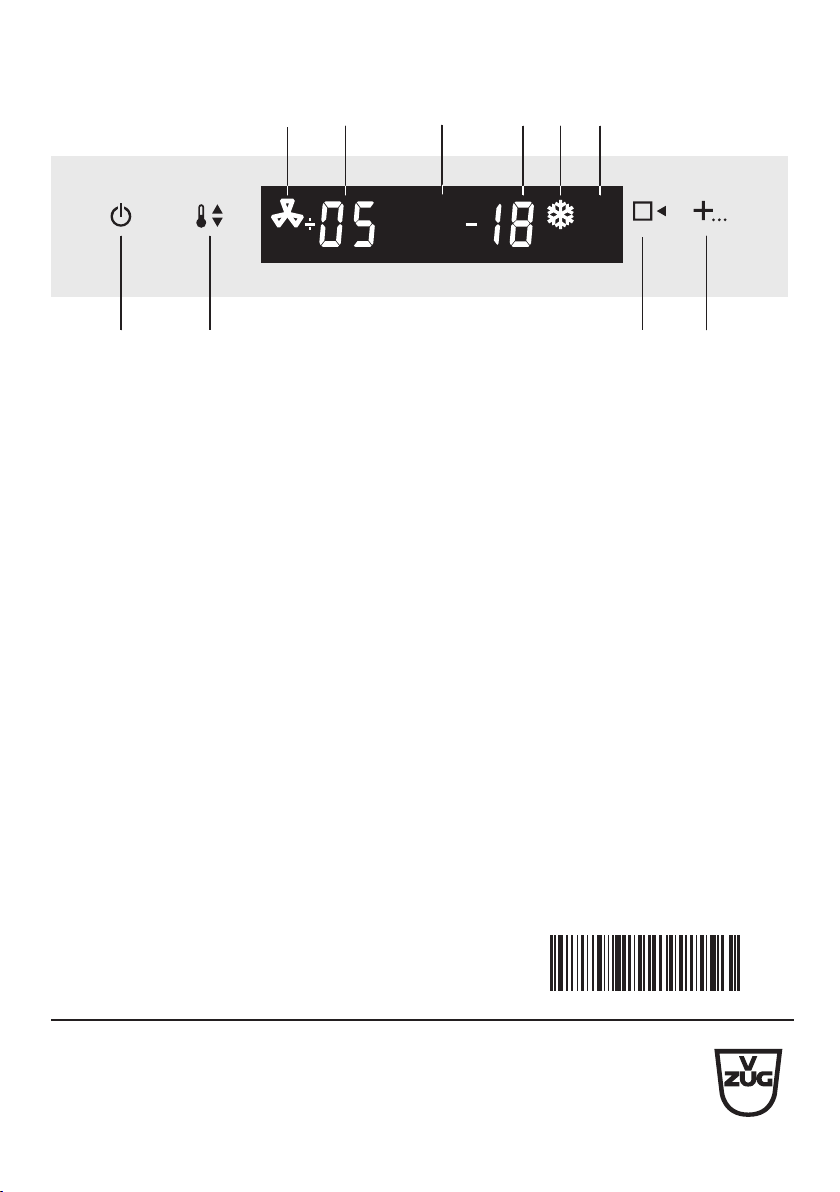

3.2 Operating and display elements
o
FDB EA C
1 2 43
Display
Fast cooling
A
Refrigerator compartment temperature display
B
Display
C
Freezer compartment temperature display
D
Fast freezing
E
Appliance switched off
F
Buttons
ON/OFF
1
Temperature setting, confirming a setting
2
Preselection
3
Select special functions
4
4 Operation
4 Operation
Switching the appliance on
▸ Plug in the appliance at the mains.
– «off» is shown on the right-hand side of the display for 30 seconds.
– «off» is shown in the digital display for 30 seconds when the appliance door is
opened or a button is pressed.
▸ Hold the button depressed for 3 seconds.
– The appliance is switched on.
An appliance that has been started up for the first time takes around 15 hours
(with food inside) to reach its normal operating temperatures.
9
4 Operation
Setting the temperature in the cooling compartment
The temperature can be set between 2°C and 9°C.
When the refrigerator compartment temperature is 5°C, the temperature of the freezer
zone is about -18°C.
▸ Depress the button for 3 seconds.
– The cooling compartment temperature display flashes in the display.
▸ Touch the button repeatedly until the desired temperature flashes.
– If no further settings are made after 5 seconds, the temperature set is accepted
and the temperature display stops flashing.
– The set temperature will be reached after a few hours.
The effective temperature may at times be different from the selected set value if
the door is open for an extended period of time or if warm foods have been
placed inside.
If the button is pressed without having pressed the button beforehand, a
double acoustic signal is emitted.
Setting the temperature in the freezer compartment
The temperature can be set between -24°C and -14°C.
▸ Depress the button for 3 seconds.
– The cooling compartment temperature display flashes in the display.
▸ Touch the button again.
– The freezer compartment temperature display flashes in the display.
▸ Touch the button repeatedly until the desired temperature flashes.
– If no further settings are made after 5 seconds, the temperature set is accepted
and the temperature display stops flashing.
– The set temperature will be reached after a few hours.
The effective temperature may at times be different from the selected set value if
the door is open for an extended period of time or if warm foods have been
placed inside.
Switching the appliance off
▸ Hold the button depressed for 3 seconds.
– The appliance switches off.
– «off» is shown in the digital display for 30 seconds.
– «off» is shown in the digital display for 30 seconds when the appliance door is
opened or a button is pressed.
If the appliance is being taken out of operation, e.g. for repair work or disposal:
▸ Remove the mains plug from the mains socket.
▸ When not in use for an extended period of time: Clear out, defrost and clean the appli-
ance, and leave the cooling compartment door and freezer compartment door open.
10
5 Special functions
Switching the special function on

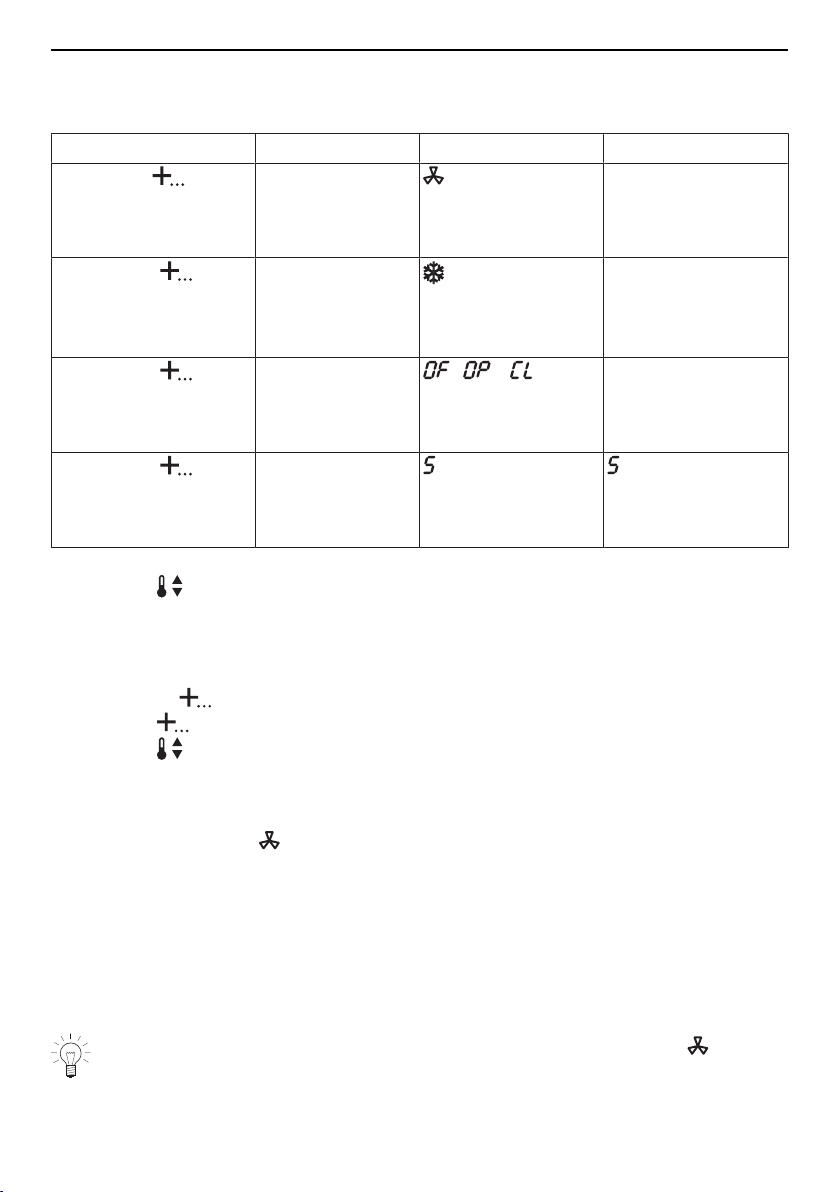

Special function Symbol Remarks
▸ Hold the button
depressed for
3seconds.
▸ Press the button
again.
▸ Press the button
again.
▸ Press the button
again.
– The corresponding symbol flashes in the display.
▸ Press the button.
– The special function is activated.
– The corresponding symbol is illuminated in the display.
Fast cooling
Fast freezing
Holiday mode
Sabbath mode
next to the temperature display for
the refrigerator compartment.
next to the temperature display for
the freezer compartment
/ / in the
temperature display
for the refrigerator
compartment.
in the temperature
display for the refrigerator compartment.
5 Special functions
Symbol type depends on model
is illuminated for
30 seconds after activation
Switching the special function off (early)
▸ Depress the button for 3 seconds.
▸ Press the button repeatedly until the desired special function is reached.
▸ Press the button.
– The special function is deactivated.
5.1 Fast cooling
The fast cooling function allows large quantities of food, e.g. after a shopping trip, to
be cooled more quickly. The temperature of the cooling compartment is controlled at
2 °C for 24 hours.
During the fast cooling process, the compressor operates at a higher cooling output,
which increases the noise level to a level that is above the normal operating noise. The
compressor output is increased until the temperature in the cooling compartment
reaches the set temperature or the maximum time period has elapsed. The set temperature for the refrigerator compartment is reset to the previously set temperature after
24hours.
Immediately before putting food in the cooling compartment, switch on to prevent food that is already in the refrigerator from warming up.
11
5 Special functions
5.2 Fast freezing
The fast freezing function allows large quantities of food, e.g. after a shopping trip, to
be frozen more quickly. The function lowers the set temperature of the freezer compartment to the coldest set temperature (-24°C) for 24hours.
The compressor operates at a higher cooling output, which increases the noise level
above the normal operating noise level. The compressor output is increased until the
temperature in the freezer compartment reaches the set temperature or the maximum
time period has elapsed. The set temperature for the freezer compartment is restored to
the previous set temperature after 24hours.
Immediately prior to putting goods in the freezer, switch on to prevent food that
is already in the freezer from defrosting.
5.3 Holiday mode
The holiday mode function is dependent on the model.
When or is shown on the cooling compartment temperature display:
Only the freezer compartment operates when holiday mode is activated. This setting is
retained until it is deactivated manually, even after a power failure.
Leave the cooling compartment door open to prevent odours from developing.
When is shown on the cooling compartment temperature display:
When holiday mode is activated, the appliance runs in the most energy-saving way possible: only the freezer compartment is cooled to the set temperature. The cooling compartment is not switched off; instead, it runs at a higher temperature to prevent odours
from developing. However, the cooling compartment temperature is not sufficient for storing foods.
Holiday mode is retained until it is deactivated manually, even after a power failure.
When holiday mode is activated, the cooling compartment door must remain
closed. Do not store any foods in the cooling compartment.
The cooling compartment continues to run for hygiene reasons, but it is not cooled
to the normal temperature.
5.4 Sabbath mode
In Sabbath mode, the lighting and displays are switched off for 28hours.
12
6 Glass shelves and door trays
6 Glass shelves and door trays
The height of the glass shelves in the refrigerator compartment and the door trays on the
inside of the refrigerator compartment door can be adjusted.
The glass half-shelf enables you to store taller vessels in an upright position. Position the glass half-shelf at the top to ensure that the air circulates well.

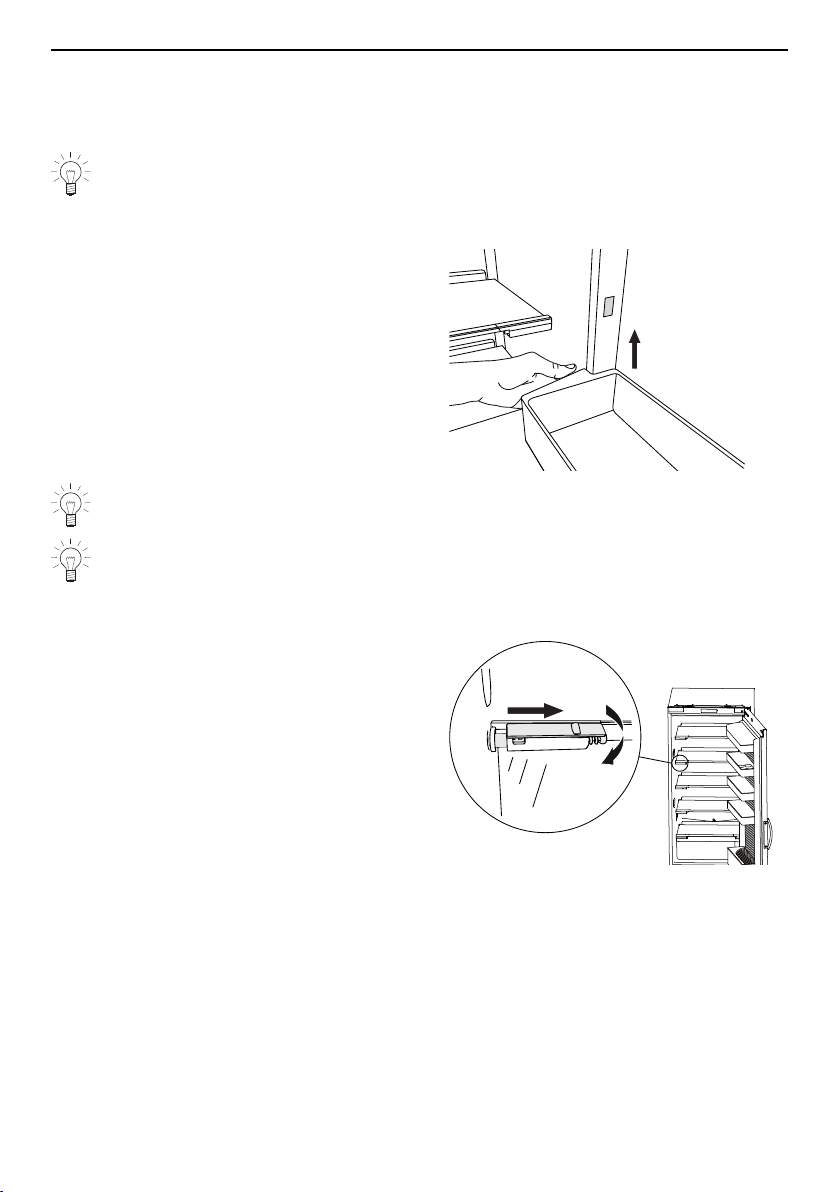

6.1 Positioning door trays
▸ Push the door tray up and remove it.
▸ Select the desired height.
▸ Hang the door tray in the openings in the
door frame.
▸ Push the door tray down as far as it will
go.
The top door tray with the cover is not adjustable.
When the appliance is new, it may require a little more effort to take out the door
trays.
6.2 Positioning glass shelves
▸ On both sides, push the slide bar in-
wards and downwards.
– The slide bar engages and stays in
this position.
▸ Pull the glass shelf out of the rear guide
and insert into desired position.
▸ To fix the glass shelf in place, turn the
slide bar upwards and release it.
– The slide bar engages.
13
7 Bottle drawer
7 Bottle drawer
The temperature in the bottle drawer is about 4–5°C higher than in the rest of the refrigerator compartment. Beverages can be chilled at a pleasant drinking temperature in the
bottle drawer. The temperatures are also ideal for refrigerating citrus and tropical fruits
(e.g. pineapples, mangoes) as well as fruit vegetables (e.g. cucumbers, aubergines, tomatoes, courgettes, sweet peppers).
For longer storage periods and better quality: Store fruit and vegetable in its original packaging or wrapped in the bottle drawer.

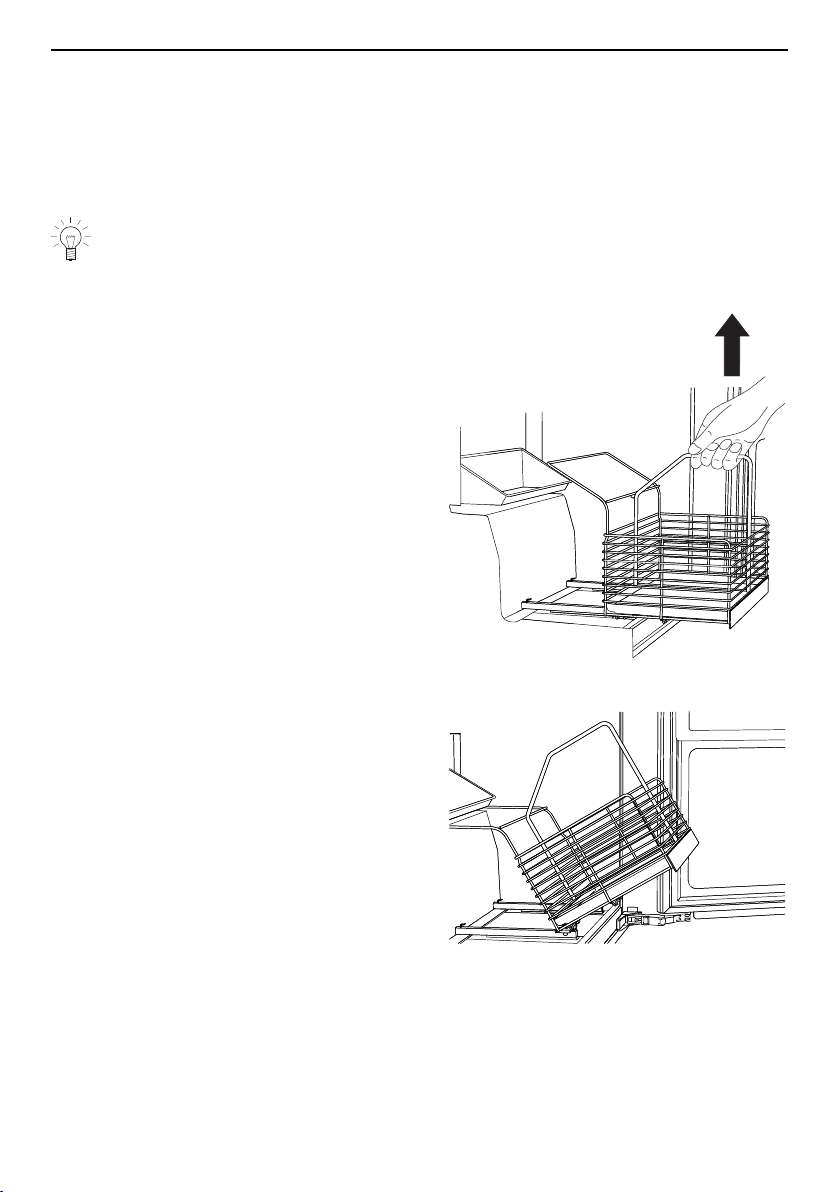

Removing the bottle drawer
▸ Pull the bottle drawer out as far as it will
go.
▸ Pull upwards sharply by the handle.
Inserting the bottle drawer
▸ Tip the bottle drawer back slightly and
place the back edge in the guides.
▸ Push the guides and bottle drawer in as
far as they will go.
▸ Push the handle down so that the front
part of the bottle drawer engages.
14
8 Tips and tricks
8 Tips and tricks
8.1 General information on using the appliance
▪ When closing an appliance door make sure that it forms a proper seal all the way
round. The self-closing hinges help keep it closed: as the appliance doors close automatically if the opening angle is between 20–30°.
▪ The electronic controller defrosts the refrigerator compartment once a day. A visible
layer of snow and ice on the rear wall of the refrigerator compartment is therefore normal.
▪ At high ambient temperatures, a significant amount of ice may form on the rear wall.
This is normal: due to the high humidity, more water condenses in the appliance and
ices up. Defrost the appliance manually if necessary.
▪ The food must not come into contact with the rear wall of the refrigerator compartment
or it may freeze. Additionally, when defrosting the appliance, water may enter the refrigerator compartment.
▪ It can take several hours for food and beverages to cool down from room temperature
to the temperature of the refrigerator compartment.
▪ Opening the door for long periods can cause a significant increase of the temperature
in the compartments of the appliance.
▪ Make sure that food or food items on the glass shelves do not tip over when the appli-
ance door is closed or prevent it from closing properly.
▪ Clean regularly surfaces that can come in contact with food and accessible drainage
systems.
▪ Changing the temperature setting has no effect on the cooling rate. The fast cooling/
freezing functions (depending on model) increase the cooling rate.
▪ Placing very warm or very cold items (e.g. warm, bottled sauces or frozen food for de-
frosting) directly in front of the temperature sensor can affect the temperature regulation of the appliance adversely: it may cool too little or too much.
15
8 Tips and tricks
8.2 Storing food

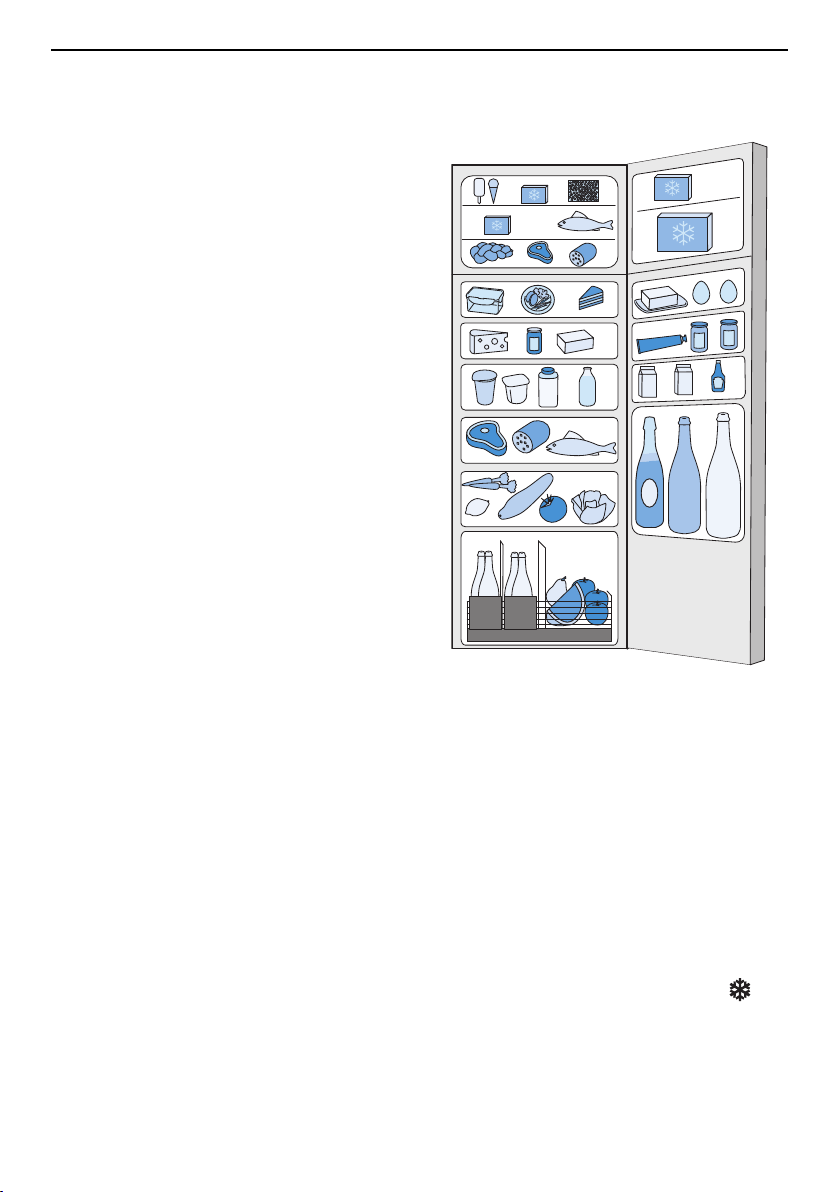

The example arrangement (from top to bottom) shows the zones and areas in the appliance that are generally suitable for certain food and food items.
In the freezer compartment:
Freezing and storing food and making ice
On the glass shelves:
▪ Bakery products
▪ Ready meals
▪ Dairy products
▪ Meat, sausages and fish
In the vegetable drawer:
Vegetables, fruit and salad
In the door trays:
▪ Butter and cheese
▪ Tubes and eggs
▪ Small tins
▪ Smaller bottles and Tetra Pak containers
▪ Large bottles (up to max. 1.5 litres)
In the bottle drawer:
Beverages and cold-sensitive food
8.3 Notes on refrigerating and freezing food
▪ Activate the fast cooling/freezing function (depending on model) before putting the
food or food items in the appliance (e.g. before going shopping).
▪ High-protein and high-fat foods are delicate/perishable and have a relatively short
storage life.
▪ Observe best-before and use-by dates.
▪ Wrap or cover food in the refrigerator compartment to prevent it from drying out and
flavours from transferring.
▪ Transfer the contents of opened tins to sealable containers.
▪ Store raw meat and fish in suitable containers in the refrigerator, so that it is not in
contact with or drip onto other food.
▪ For freezing large quantities (see the identification plate for max. freezing capacity).
Place the food in the middle of the freezer compartment. If there is frozen food already
in it, distribute it between the other compartments. Activate the special function im-
mediately before loading the food.
▪ There is a risk that freezing fresh food could cause food that is already frozen to par-
tially thaw. Freeze smaller quantities and avoid contact with food that has already
been frozen.
16
9 Care and maintenance
▪ Depending on the product, the following packaging materials are suitable: freezer
bags, aluminium foil or plastic boxes. Freezer burn can be avoided by making the
food packaging as airtight as possible.
▪ Do not refreeze food once defrosted! Only after being prepared (through cooking or
frying) can it be refrozen.
▪ Blanch vegetables before freezing. Aubergines, sweet peppers, courgettes, mush-
rooms, asparagus and herbs do not have to be blanched.
▪ The following products are not suitable for freezing: radishes, lettuces, cucumbers,
raw unshelled eggs, boiled eggs, dairy products such as yogurt, cream cheese, curd
cheese and mayonnaise.
▪ Do not defrost frozen food at room temperature or on the heating. Food defrosts
slowly in the fridge. As a quick alternative, defrost in a microwave or steam cooker.
8.4 Notes on saving energy
▪ Leave the drawers, glass shelves and door trays as far as possible in the positions
that they were in upon delivery. These ensure ideal temperature distribution and efficiency.
▪ Only open the appliance doors when necessary and keep them open for as short a
time as possible.
▪ Allow hot or warm food to cool down before putting it in the appliance.
▪ Store food that releases moisture in closed containers or covered in the refrigerator
compartment. Moisture can cause the rear wall of the refrigerator to ice up more
quickly and reduce its cooling capacity.
▪ For ideal air circulation: Do not store food and food items too close to each other.
9 Care and maintenance
9.1 Cleaning
For hygienic storage of food and meals, the interior should always be kept clean.
Do not use any abrasive cleaning agents or scouring cloths to clean the appliance.
Take care not to press too hard when cleaning the plastic surfaces.
Risk of causing damage to the appliance.
▸ Condensation can form in the vegetable drawers and on the glass shelves, depending
on the kind and quantity of food being stored. Regularly wipe condensation away with
a dry cloth.
▸ Clean the interior at regular intervals with a mild soapy solution and wipe dry thor-
oughly.
▸ Clean the operating and display elements just with a damp cloth.
▸ Regularly check the door seals and if dirty clean using a soft brush and clean water.
Wipe dry.
▸ If the appliance is not to be used for a while, switch it off. Clear out, defrost and clean
the appliance. Leave the refrigerator and freezer compartment doors open.
Ensure that no cleaning water runs through the defrost drainage channel into the
evaporation tray.
Risk of causing damage to the appliance.
17
9 Care and maintenance
9.2 Defrosting
Defrosting the cooling compartment
The cooling compartment defrosts once a day automatically.
During defrosting, the temperature inside
the cooling compartment increases so that
the ice on the rear wall melts. The water
created when the ice melts collects in the
defrost channel, flows through the drain
hole and evaporates outside the appliance
in the evaporation tray.
When defrosting is complete, the temperature is lowered back down to the set target
temperature.
Keep the collection channel and the drain pipe clean so that the water can flow
freely.

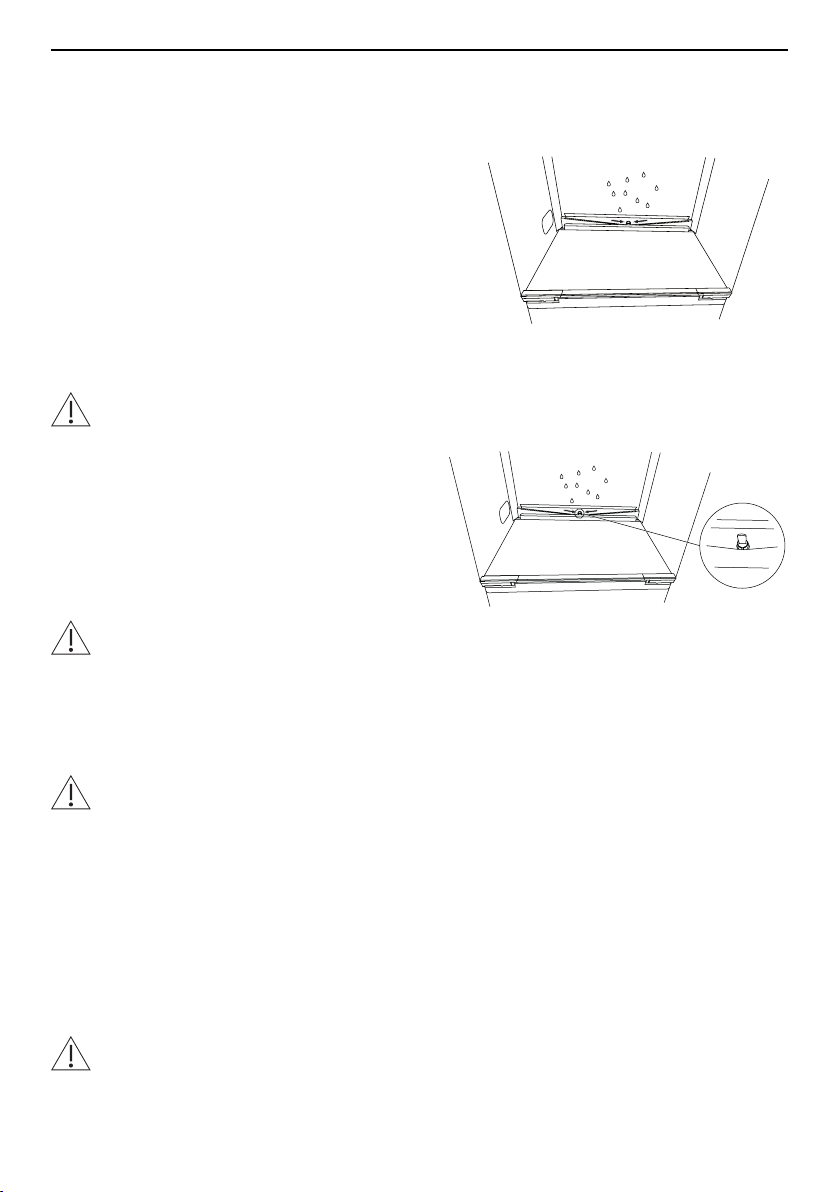

▸ Clean the defrost drainage channel with
the green cleaner that is in it with an upand-down and circular motion.
If milk has been spilt accidentally and has ended up in the defrost drainage channel:
► Push some kitchen towel into the drain hole and try to absorb as much liquid
as possible.
► If more than 1dl has flowed into the defrost drainage channel and/or a strong
odour develops after a while: call Customer Services.
If any foreign objects get into the defrost drainage channel:
► Carefully insert a flexible plastic object (such as a cable tie) into the drain hole
and try to remove any foreign objects.
► Do not use hard or sharp objects, or the defrost drainage channel and sur-
rounding components could get damaged.
Defrosting the freezer compartment
A thick layer of ice will prevent the cold from being transferred to the frozen food. Therefore, the freezer compartment should be defrosted if a lot of ice has formed. When defrosting, keep frozen food as cold and insulated as possible, e.g. by wrapping it in newspaper.
Do not use pointed objects to remove ice or food that has frozen on solid. Do not
use electrical heaters or naked flames for defrosting.
18
9 Care and maintenance
1
▸ Switch the appliance «off» using the button.
▸ Absorb the water created when the ice melts with a sponge.
▸ After defrosting, clean the interior and dry thoroughly.
▸ Start the appliance again using the button.

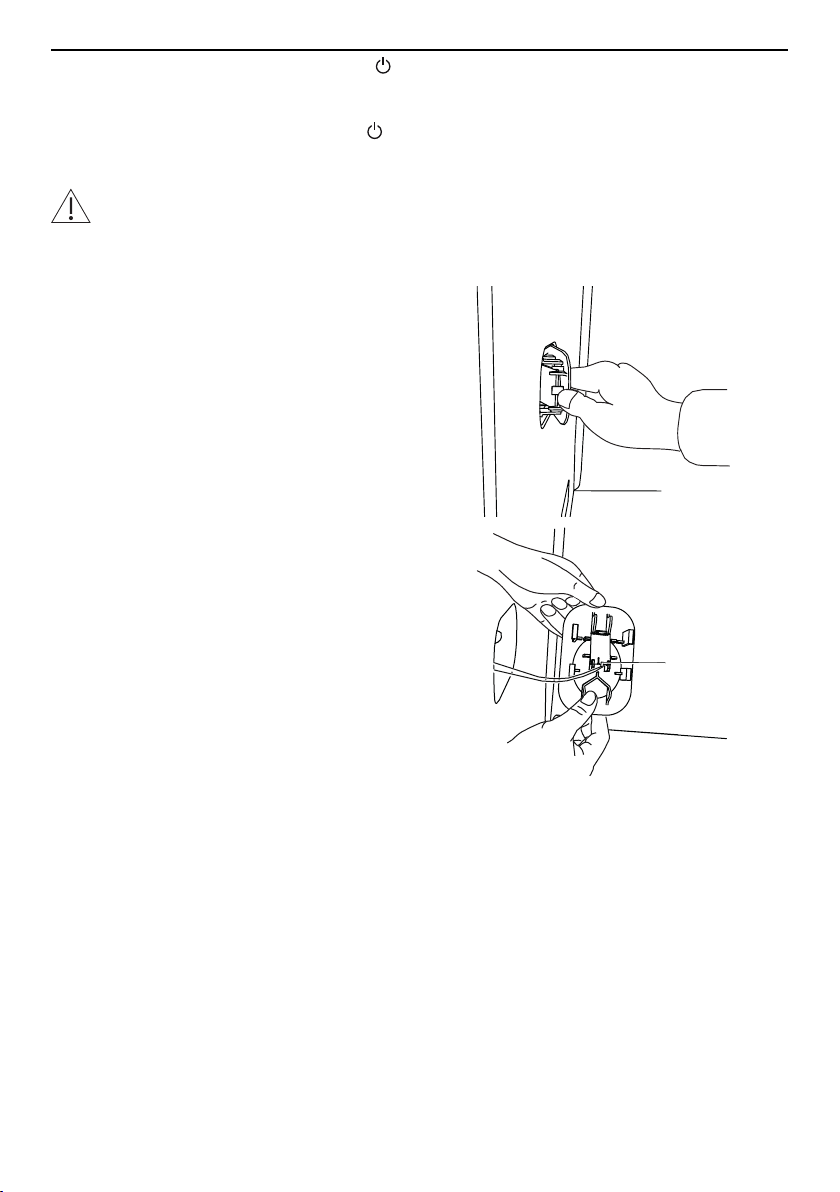

9.3 Changing the LED lighting
Use original LED lights from the manufacturer only.
▸ Disconnect the power supply to the appliance: Pull out the mains plug or switch off
the fuse.
▸ Click off the LED light cover.
▸ Disconnect the plug connection 1 for the
LED light.
▸ Reverse this procedure to insert the new
LED light.
19
10 Noises and alarms
10 Noises and alarms
10.1 Operating noise
The appliance can make various noises during operation. Although the appliance is
noise-optimized, some noise cannot be eliminated completely. This noise depends on
the size of the appliance, how it is installed and the cooling requirements (e.g. fast cooling), the ambient temperature and the installation conditions. Operating noises are particularly audible immediately after switching on the compressor; however, these noises become quieter as the appliance runs.
Unusual noises are often caused by improper installation. The appliance must be installed on a level and stable surface. In open kitchens or in the case of appliances installed in partitioned areas, normal operating noises may seem louder. This is not a fault
but rather an effect of the design/architecture.
Keyword Cause Remarks
Buzzing Cooling unit Normal operating noise made by the cooling
unit; volume depends on the size of the appliance and the load-dependent speed of the compressor motor.
Gurgling, bubbling, hissing
Fizzling Cooling circuit Normal operating noise caused by the injection
Rattling Glass shelves, bas-
Creaking Housing Normal, temperature-dependent stress-strain of
Clicking Valve Normal switching noise of the switching valve.
Cooling circuit Normal operating noise caused by the flow of
refrigerant through the cold circuit.
of refrigerant into the evaporator.
Arrange the parts in the interior so that they are
kets, door trays, contents, etc.
fixed in place and are not touching.
the materials, e.g. plastics, insulation.
10.2 Warning and alarm signals
Warnings when the appliance doors are open
If the cooling compartment or freezer compartment door is open for several minutes, the
following alarm signals occur:
After 2 minutes LEDs flash every 15 seconds.
After 3 minutes LEDs flash every 5 seconds.
After 4 minutes LEDs flash rhythmically every second.
After 10 minutes An acoustic alarm sounds for 3 minutes. The acoustic alarm
repeats every 30minutes.
Temperature alarm
An acoustic signal sounds if the cooling compartment temperature rises 10°C above
the selected temperature value or if the freezer compartment temperature is more than
-9°C.
20
11 Trouble-shooting
Cancelling alarm
▸ Touch any button.
▸ Resolve problem, see Trouble-shooting.
When the Sabbath mode is activated, there are no visual warning signals.
11 Trouble-shooting
This section lists faults that can be solved simply by following the instructions given. If
the fault cannot be remedied, please contact Customer Services. Before contacting Customer Services:
▸ please note down the serial number (SN), which is shown on the identification plate,
as well as
▸ the sequence of events that led to the fault.
Malfunction Possible cause Solution
Appliance is not
working.
Illumination is not
working.
Illumination is flashing
Malfunction Possible cause Solution
Error display
Error display
▪ An interruption in the power
supply.
▸ Check the power supply.
▸ Change the fuse.
▸ Reset the automatic circuit
breaker.
▪ The fuse or circuit breaker
▸ Contact Customer Services.
keeps blowing.
▪ Appliance is faulty. ▸ Contact Customer Services.
▪ LED light bulb is defective. ▸ Replace the LED light bulb.
▪ Appliance door has been
▸ Close the appliance door.
standing open for more
than 2minutes.
▪ Appliance door was not
closed properly.
▪ Various situations can lead
▸ Contact Customer Services.
to an «F» message.
▪ Temperature sensor in the
refrigerator compartment is
defective.
▸ Contact Customer Services.
– The appliance enters the emer-
gency mode. The refrigerator
compartment is cooled at the
same output level as before
the temperature sensor malfunction.
21
12 Technical data
Malfunction Possible cause Solution
Error display
Malfunction Possible cause Solution
Temperature display
is flashing.
▪ Temperature sensor in the
freezer compartment is defective.
▪ The refrigerator compart-
ment temperature is 10°C
higher than the set temperature or the freezer compartment temperature is
above -9°C.
▪ There has been a power
failure. The flashing temperature display shows the
temperature when the appliance is put back into
service.
▸ Contact Customer Services.
– The appliance enters the emer-
gency mode. The freezer compartment is cooled at the same
output level as before the temperature sensor malfunction.
▸ Do not place warm foods right
next to the temperature sensor.
▸ If there is no warm food in the
appliance: call Customer Services.
▸ Touch any button.
– The set temperature is shown
in the temperature display.
▸ Check any refrigerated or frozen
food and discard if spoiled.
12 Technical data
Product data
▸ See the identification plate, energy label and www.vzug.com.
External dimensions
▸ See installation instructions
Electrical connection
▸ See identification plate
12.1 Temperature measurement
The refrigerator and freezer compartment temperature are measured in accordance with
an internationally recognized standard. Own measurements can be imprecise and are
not suitable for checking the accuracy of the temperature.
12.2 Note for testing institutes
To freeze the maximum quantity (see identification plate), the goods must be placed in
the middle of the freezer compartment. The special function must be activated imme-
diately before putting the food in the freezer.
22
13 Disposal
13 Disposal
13.1 Packaging
Never allow children to play with packaging material due to the danger of injury or
suffocation. Store the packaging material in a safe location or dispose of it in an
environmentally-friendly way.
13.2 Safety
Render the appliance unusable to prevent accidents caused by improper use (e.g.
through children playing):
▸ Disconnect the appliance from the mains. With a fixed appliance, this is to be carried
out by a qualified electrician. Then cut the mains cable off flush with the appliance.
13.3 Disposal
▪ The «crossed‐out wheeled bin» symbol requires the separate collection of waste
electrical and electronic equipment (WEEE). Such equipment can contain hazardous,
environmentally harmful materials.
▪ These appliances are to be handed over to a designated collection point for the recyc-
ling of electrical and electronic equipment and must not be disposed of with unsorted
household waste. And in this way, you will be helping to protect resources and the environment.
▪ For more information, please contact the local authorities.
23
14 Index
A
Alarm.................................................................. 20
Appliance disposal .......................................... 23
Appliance installation ......................................... 5
B
Bottle drawer .................................................... 14
C
Care and maintenance ................................... 17
Cleaning............................................................. 17
Construction......................................................... 8
D
Defrost drainage channel............................... 18
Defrosting .......................................................... 18
Disposal............................................................. 23
Door trays.......................................................... 13
E
Electrical connection....................................... 22
Error display
Appliance is not working............................ 21
F ...................................................................... 21
F1.................................................................... 21
F2.................................................................... 22
Illumination is flashing ................................ 21
Illumination is not working ......................... 21
Temperature display is flashing................ 22
F
Fast cooling ...................................................... 11
Fast freezing ..................................................... 12
Freezer compartment temperature display
................................................................. 9, 28
G
Glass shelves ................................................... 13
H
Holiday mode ................................................... 12
I
Identification plate..................................... 22, 27
Initial set-up..................................................... 5, 8
Instructions for use ............................................. 5
M
Model designation .............................................. 2
Model number ..................................................... 2
N
Noises ................................................................ 20
Notes.................................................................. 26
O
ON/OFF ......................................................... 9, 28
Operating and display elements...................... 9
Operating the appliance.................................... 9
P
Preselection .................................................. 9, 28
Product data ..................................................... 22
Q
Queries .............................................................. 27
R
Refrigerator compartment temperature display
................................................................. 9, 28
S
Sabbath mode.................................................. 12
Safety precautions
General ............................................................. 4
Safety warnings
Appliance installation.....................................5
Appliance-specific .......................................... 5
Correct use ...................................................... 6
Service & Support............................................ 27
Service agreement........................................... 27
Setting temperature
Cooling compartment ................................. 10
Setting the temperature
Freezer compartment.................................. 10
Special functions.......................................... 9, 28
Switching on ................................................. 11
Switching appliance on...................................... 9
Switching on ........................................................ 9
Symbols................................................................ 4
T
Technical data .................................................. 22
Temperature measurement............................ 22
Temperature setting .................................... 9, 28
Testing institutes .............................................. 22
Tips ..................................................................... 15
Trouble-shooting .............................................. 21
Type....................................................................... 2
Typenschild.......................................................... 8
24
U
Using for the first time................................... 5, 8
V
Validity................................................................... 2
W
Warning signal.................................................. 20
14 Index
25
Notes
26
15 Service & Support
The «Trouble-shooting» section gives you valuable tips on how to deal with minor
malfunctions yourself, saving you the time and trouble of calling out a service technician and any cost that goes along with it.
Information on the V-ZUG warranty can be found at www.vzug.com →Service
→Warranty information. Please read this information carefully.
Please register your V-ZUG appliance straightaway:
▪ online at www.vzug.com →Service →Online warranty registration or
▪ using the enclosed registration card.
This will allow you to take advantage of the best possible support in the event of a fault
in the appliance during the guarantee period. You will require the serial number (SN) and
appliance designation to register your appliance. You will find them on the identification
plate of your appliance.
My appliance information:
SN: __________________________ Appliance: ________________________________
Please have this appliance information to hand when contacting V-ZUG. Thank you.

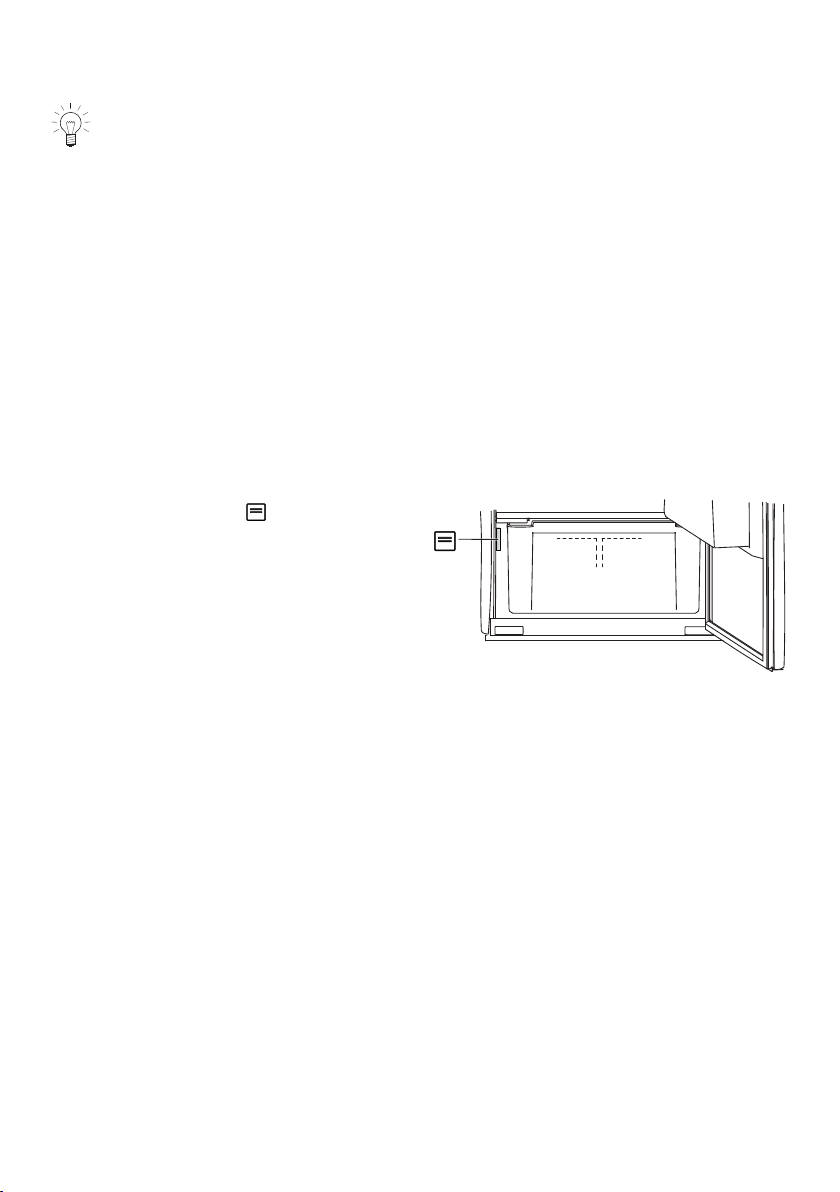

The identification plate is located to
the left of the vegetable drawer.
Your repair order
Call the free service number 0800 850 850 to contact your nearest
V-ZUG service centre. You can arrange an on-site visit by us by phone if you wish.
General queries, accessories and service agreement
V-ZUG will be happy to help you with any general administrative or technical queries, to
accept your orders for accessories and spare parts and to inform you about our progressive service agreements. You can contact us by calling tel. +41 58 767 67 67 or by
going to our website at www.vzug.com.
27
Quick instructions
o
FDB EA C
1 2 43
1010864-R04
Display
Fast cooling
A
Refrigerator compartment temperature display
B
Display
C
Freezer compartment temperature display
D
Fast freezing
E
Appliance switched off
F
Buttons
ON/OFF
1
Temperature setting, confirming a setting
2
Preselection
3
Select special functions
4
V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug
Tel. +41 58 767 67 67, Fax +41 58 767 61 61
info@vzug.com, www.vzug.com
Service Centre: Tel. 0800 850 850
Loading...
