Operating instructions
DWQS 6/7/9 - DIQS 10
Range hood
Thank you for choosing to buy one of our products. Your appliance is made to
high standards and is easy to use. Nevertheless, please take the time to read
these operating instructions in order to familiarise yourself with the appliance
and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appliance
at the time these operating instructions went to press. The right to make technical modifications for the purpose of the further development of the appliance
is reserved.
Validity
The product family (model number) corresponds to the first alphanumerics on
the identification plate. These operating instructions apply to:
Type Product
family
Size
system
Type Product
family
Size
system
DWQS6 62011 60 DIQS10 63011 100
DWQS7 62012 70
DWQS9 62013 90
Variations depending on the model are noted in the text.
© V-ZUG AG, CH-6301 Zug, 2016
2
Contents
1 Safety precautions 5
1.1
1.2
1.3
1.4
1.5
1.6
2 Disposal 10
3 Appliance description 11
3.1
3.2
3.3
3.4
3.5
3.6
4 Operating the appliance 15
4.1
4.2
4.3
4.4
4.5
4.6
Symbols used .............................................................................................5
General safety precautions ...................................................................... 6
Before using for the first time ..................................................................7
Correct use..................................................................................................7
Children in the home ................................................................................. 7
Note on use................................................................................................. 8
Appliance description............................................................................. 11
Extraction model...................................................................................... 11
Recirculation model ................................................................................ 11
Equipment................................................................................................. 12
Construction ............................................................................................. 13
Operating and display elements .......................................................... 14
Using for the first time ............................................................................ 15
Operation .................................................................................................. 16
Intensive level........................................................................................... 17
After-running time .................................................................................... 17
Illumination................................................................................................ 17
Saturation indicator................................................................................. 18
2
5 Care and maintenance 19
5.1
5.2
5.3
5.4
6 Trouble-shooting 25
6.1
7 Accessories and spare parts 27
8 Technical data 28
8.1
Cleaning the housing ............................................................................. 19
Cleaning the grease filters..................................................................... 19
Cleaning the long-life activated charcoal filter................................... 22
Replacing the LEDs ................................................................................ 24
What to do if … ........................................................................................ 25
Product fiche ............................................................................................ 28
3
9 Index 30
10 Notes 32
11 Service & Support 35
4
1 Safety precautions
1.1 Symbols used
Denotes important safety precautions.
Failure to observe said precautions can result in injury or in damage to the appliance or fittings!
Information and precautions that should be observed.
Information on disposal
Information about the operating instructions
▸ Indicates step-by-step instructions.
– Describes how the appliance reacts to the steps taken.
▪ Indicates a list.
5
1 Safety precautions
1.2 General safety precautions
▪ Read the operating instructions before using the appliance for
the first time!
▪ This appliance can be used by children aged 8 and above
and by persons with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge, provided
they are supervised or have been instructed on the safe use
of the appliance and have understood the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be undertaken by children without supervision.
▪ If an appliance is not equipped with a mains cable and a plug
or other means for disconnecting from the mains with a contact opening on each pole complying with the conditions of
overvoltage category III for full isolation, an isolating device
must be incorporated into the permanently installed electrical
installation in accordance with the installation regulations.
▪ If the mains cable of this appliance is damaged, it must be re-
placed by the manufacturer or its Customer Services or a similarly qualified person in order to avoid hazard.
6
1 Safety precautions
1.3 Before using for the first time
▪ The appliance must be installed and connected to the electricity supply in
accordance with the separate installation instructions. Have a qualified fitter/
electrician carry out the necessary work.
▪ Dispose of the packaging material in accordance with local regulations.
1.4 Correct use
▪ The appliance is designed for use in the home for extracting cooking
odours from above a cooking area.
▪ Any repairs, modifications or manipulations to the appliance, especially any
electrically live parts, may only be carried out by the manufacturer, its Customer Services or a similarly qualified person. Repairs if carried out incorrectly could cause serious injury or damage to the appliance and fittings as
well as affect the functioning of the appliance. If the appliance is not working properly or in case of a repair order, follow the instructions given in the
'Service & Support' section. If necessary, please contact our Customer Services.
▪ Use original spare parts only.
▪ Retain these operating instructions for future reference. If you sell the appli-
ance or pass it on to a third party, please ensure these operating instructions accompany the appliance, together with the instructions on installation.
In this way, the new owner can inform themselves about how to use the appliance correctly and read the pertinent safety precautions.
1.5 Children in the home
▪ Packaging material, e.g. plastic film and polystyrene, can be dangerous for
children. Danger of suffocation! Keep packaging material away from children.
▪ The appliance is designed for use by adults who are familiar with these op-
erating instructions. Children are often unable to recognize the danger of
electrical appliances. Ensure proper supervision and do not allow children
to play with the appliance – there is a danger that children could hurt themselves.
7
1 Safety precautions
1.6 Note on use
▪ If the appliance is visibly damaged, do not use it. Contact our Customer
Services.
▪ If the appliance is not functioning properly, disconnect it from the power
supply immediately.
▪ If the mains cable of the appliance is damaged, it must be replaced by Cus-
tomer Services in order to avoid hazard.
▪ Caution: Accessible parts may become hot when used with cooking appli-
ances.
▪ Do not flambé food underneath the appliance. Metal grease filters if laden
with grease could catch fire.
▪ When frying on the cooking surface, do not leave the appliance unattended.
The cooking oil in the frying appliance could overheat and catch fire. Constantly monitor the temperature of the cooking oil, keeping it below the temperature at which it can catch fire. Change the cooking oil regularly – dirty
oil catches fire more easily than clean oil.
▪ Observe the cleaning intervals. Failure to do so can increase the fire hazard
due to the build-up of grease in the metal grease filters.
▪ Do not operate the individual cooking zones of the cooking surface without
a pan on them or with an empty pan on them so as to avoid damaging the
appliance or the kitchen fittings through a build-up of heat. Avoid open fires
with oil, gas, wood and coal fired cookers.
▪ Ensure there is adequate ventilation when the extractor fan is on so as to
avoid creating a disturbing underpressure in the kitchen and to achieve optimal air extraction.
▪ Avoid a cross-current of air, which could blow the cooking vapours over the
cooking area.
▪ If other appliances – fuelled by gas or other fuels – are being used at the
same time, ensure that there is a sufficient supply of fresh air. This does not
apply to air recirculation appliances.
▪ If other firing systems are being used at the same time (e.g. wood, gas, oil
or coal fired heating appliances), safe operation is only possible providing a
room negative pressure of 4Pa (0.04mbar) is not exceeded at the location
of the appliance. Risk of toxic fumes! An adequate flow of fresh air must be
guaranteed e.g. via non-closable openings in doors or windows and in combination with an air-intake/exhaust-air wall box or by other technical means.
8
1 Safety precautions
▪ When carrying out maintenance work on the appliance, including replacing
the light bulb, cut off the electricity supply to the appliance: remove the
screw fuse from the holder or switch the circuit breaker off, or disconnect
from the mains supply.
▪ When cleaning the appliance make sure no water gets inside the appliance.
Use a moderately damp cloth. Do not spray the inside or outside of the appliance with water. Do not use a steam cleaner. If water gets inside the appliance, it can cause damage.
9
2 Disposal
Packaging
▪ All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS))
are marked and should, if possible, be collected for recycling and disposed
of in an environmentally friendly way.
Disconnection
▪ Disconnect the appliance from the mains. With a fixed appliance, this is to
be carried out by a qualified electrician!
Safety
▪ Disable the appliance to prevent accidents caused by improper use, espe-
cially through children playing.
▪ Pull the plug out of the mains socket or have the appliance disconnected
from the mains by an electrician. Then cut the mains cable off flush with the
appliance.
Disposal
▪ The old appliance should not be discarded as worthless rubbish. If dis-
posed of correctly, the raw materials can be recovered for recycling.
▪ The symbol on the identification plate warns that the appliance may not
be disposed of in normal household waste.
▪ The appliance must be disposed of in accordance with local regulations on
waste disposal. For more information on the handling, disposal and recycling of the product, please contact the local authorities, the local recycling
facilities for household waste or the retailer from whom you purchased the
appliance.
10
3 Appliance description
3.1 Appliance description
The appliance is designed for use in the home for extracting cooking fumes
and smells from above the cooking surface.
The model can be used to extract or recirculate air.
3.2 Extraction model
A fan draws cooking fumes and smells from above the cooking area. The
metal grease filters clean the extracted air, which is passed through a connecting pipe fitted with an integrated non-return valve and through the air duct to
the outside.
When in use, ensure there is a sufficient supply of fresh air to replace the
air that is being extracted.
3.3 Recirculation model
After being filtered through the metal grease filter, the cooking fumes and
smells above the cooking area are passed through a long-life activated charcoal filter. The filtered air is then circulated back into the room through the
side openings.
If long-life activated charcoal filters are not supplied with the appliance,
these should be ordered and installed before using the appliance for the
first time.
The saturation indicator for the long-life activated charcoal filter must be
activated.
Moisture is not filtered out of the air.
11
3 Appliance description
3.4 Equipment
▪ 1extractor fan with 4 power levels:
▪ 1 = low, 2 = medium, 3 = high, and intensive level.
▪ Power levels 1–3 are suitable for continuous operation.
▪ The intensive level is used for short bursts of intensive extraction of cooking
fumes and smells, e.g. when searing meat. The intensive level runs for 5
minutes.
▪ Illumination
▪ 2 - 3 metal grease filters
▪ 1 long-life activated charcoal filter (only for recirculation mode, not included
in the scope of delivery)
12
3 Appliance description
2
3
1
4
3.5 Construction
Operating and display elements
1
Metal grease filter
2
Illumination
3
Return air in recirculation model
4
If your appliance has lateral ventilation slits (see no. 4 in the figure) then
it is a recirculation model.
13
3 Appliance description

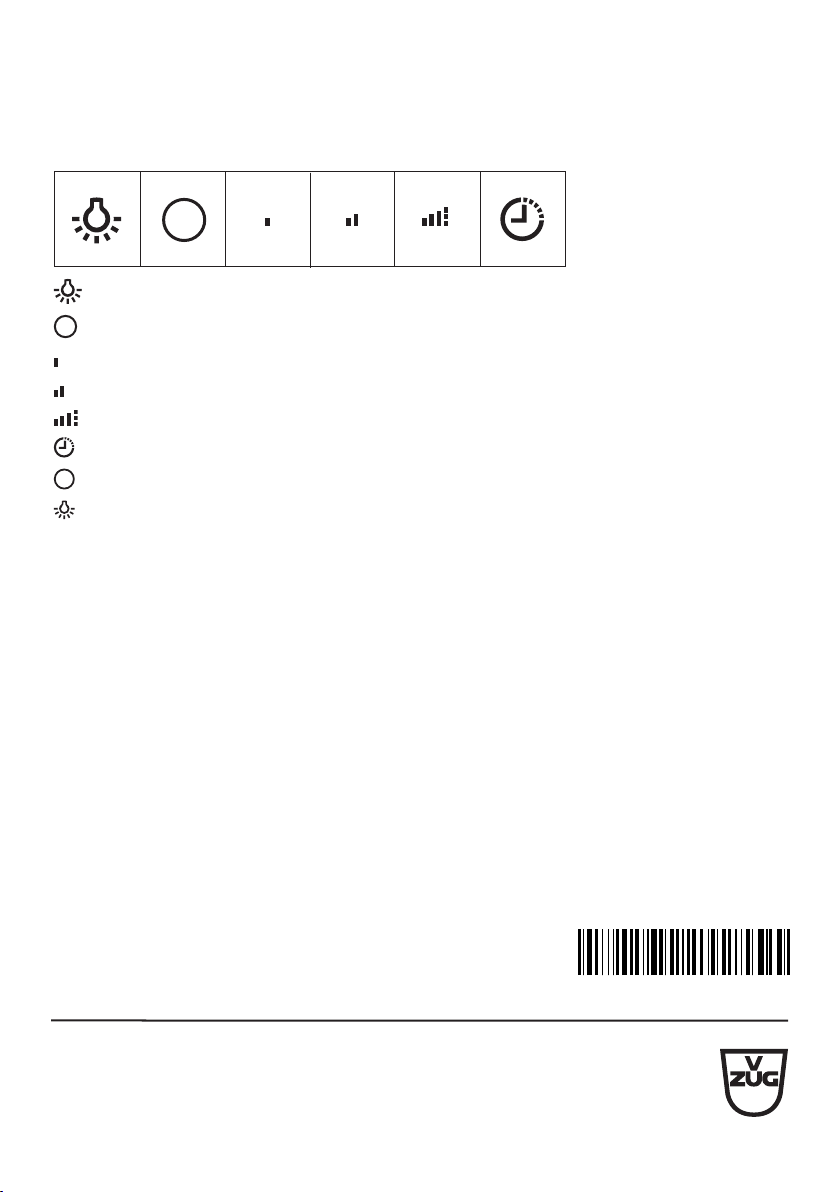

3.6 Operating and display elements
Switch illumination on/off
Switch off
Power level 1
Power level 2
Power level 3 and intensive level
After-running time
Flashing Clean metal grease filters
Flashing Reactivate/replace long-life activated charcoal filter
Depending on the model and features, the specification of the appliance may partly differ in individual details from the standard specification described.
14
4 Operating the appliance
4.1 Using for the first time
Configuring the appliance
The model can be used to extract or recirculate air. The appliance is set up as
a recirculation hood ex-factory. With this setting, the service life of the long-life
activated charcoal filter is 120operating hours.
If the appliance is to be operated as an extraction model, the saturation
indicator for the long-life activated charcoal filter must be deactivated.
Activating the saturation indicator for the long-life activated charcoal filter
▸ Switch the appliance off.
▸ Hold the button depressed for three seconds.
– The and buttons flash.
To activate the saturation indicator:
▸ press the button.
– The setting selected will be automatically accepted after five seconds.
The appliance is now set up as a recirculation model.
Deactivating the saturation indicator for the long-life activated charcoal filter
▸ Switch the appliance off.
▸ Depress the button for three seconds.
– The and buttons flash.
To deactivate the saturation indicator:
▸ press the button.
– The setting selected will be automatically accepted after five seconds.
The appliance is now set up as an extraction model.
15
4 Operating the appliance
Checking the settings
▸ Switch the appliance off.
▸ Depress the button for three seconds.
– If the and buttons flash, the appliance is set up as an extraction
model.
– If the and buttons flash, the appliance is set up as a recirculation
model.
▸ To exit Check settings, no action is necessary as the display will switch it-
self off.
4.2 Operation
Switching the appliance on
▸ Press the / or button.
– The appliance switches on at the corresponding power level.
– The button illuminates to show the current power level.
– The button flashes when the «intensive» power level is selected.
We recommend switching the appliance on at power level 1 some five
minutes before starting to cook. Use a low power level for normal cooking smells and a higher power level for very strong cooking fumes and
smells.
Switching the appliance off
▸ Pressing the button switches the appliance off.
After you have finished cooking, allow the appliance to run for another 15
minutes so that the cooking fumes and smells can be extracted.
16
4 Operating the appliance
4.3 Intensive level
To select the intensive level, the appliance has to be switched on.
▸ Hold the button depressed for two seconds.
– The button flashes.
After five minutes, the appliance switches back to power level .
▸ Press the button to stop the intensive level before the five minutes
has elapsed.
– The appliance switches to the newly selected power level.
4.4 After-running time
▸ Switch the appliance on.
▸ Select the desired power level by pressing the corresponding button.
▸ Press the button to activate after-running time.
With the after-running time function, the appliance keeps running according to
the following table and then switches off automatically.
Button After-running time
20 minutes
15 minutes
10 minutes
Flashing 5 minutes
4.5 Illumination
▸ Press the button to switch the illumination on.
▸ Press the button again to switch the illumination off.
17
4 Operating the appliance
4.6 Saturation indicator
Saturation indicator for metal grease filters
The display flashes after 20 operating hours. The saturation level has been
reached and the metal grease filters must be cleaned.
Saturation indicator for the long-life activated charcoal filter
The button flashes after 120 operating hours. The saturation level has
been reached and the long-life activated charcoal filters must be regenerated.
18
5 Care and maintenance
5.1 Cleaning the housing
Take care that no water gets into the housing of the appliance! If
water gets into the housing, it can cause damage.
Do not use abrasive cleaners, scouring pads, steel wool, etc. for
cleaning, as they can damage the surface.
Remove the screw fuse or switch off the circuit breaker.
Cleaning the outside/inside
▸ Clean the outside using a slightly damp cloth – and detergent if necessary
– and wipe dry.
Grease and condensate water can build up on the inside next to the metal
grease filters.
▸ Clean using a slightly damp cloth – and detergent if necessary – and wipe
dry.
5.2 Cleaning the grease filters
The metal grease filters must be cleaned at least once a month with normal
use or whenever the button flashes. If properly cared for, the metal grease
filters should provide unlimited years of service.
The saturation indicator is visible when the appliance or a power level
is running.
19
5 Care and maintenance
1
2
Removing the metal grease filters
▸ Push the grip 2 on the metal grease
filter 1 back.
▸ Carefully pull the metal grease filter
down and out of the fixture.
Do not damage the grease filter.
20
5 Care and maintenance
Cleaning
▸ Clean the metal grease filters in the dishwasher.
▸ Select an «intensive» or «heavy» wash programme with a warm prewash.
Cleaning may cause the metal grease filters to become discoloured.
However, this will not affect the functioning of the filters in any way.
If no dishwasher is available:
▸ Clean the metal grease filters in the sink with hot water and washing-up de-
tergent.
▸ Soak the metal grease filters in the sink in hot water and washing-up deter-
gent for about two hours and then clean with a washing-up brush. Rinse
well with clean cold water.
Fitting the grease filters
▸ Insert the metal grease filters into the slots at the back.
▸ Push the grip back.
▸ Swing metal grease filters up and engage in position.
▸ With the appliance switched off, hold the button depressed for
5seconds to reset the saturation indicator.
▸ The flashing display goes out.
21
5 Care and maintenance
5.3 Cleaning the long-life activated charcoal filter
Long-life activated charcoal filters are only used in the recirculation
model.
The long-life activated charcoal filter can be cleaned and reactivated. The longlife activated charcoal filter should be cleaned bimonthly with normal use or
whenever the indicator light flashes.
▸ Clean the long-life activated charcoal filter in the dishwasher.
▸ Select an «intensive» or «heavy» wash programme with a warm prewash.
Wash separately so that no food debris can become stuck to the filter.
If no dishwasher is available:
▸ Clean the long-life activated charcoal filter in the sink with hot water and
standard washing-up liquid.
▸ Soak the long-life activated charcoal filter in the sink in hot water and wash-
ing-up detergent for one hour. Afterwards, rinse well.
▸ To reactivate the activated charcoal, dry the long-life activated charcoal filter
without the frame in the oven.
▸ Select top/bottom heat or hot air and set the temperature to 100°C. Place
the activated charcoal filter on the wire shelf and allow to dry for one hour.
After about three years the long-life activated charcoal filter must be replaced because its ability to absorb odours will be reduced. The spent
long-life activated charcoal filter can be disposed of in the household
waste.
22
5 Care and maintenance
3
4
5
3
1
2
6
6

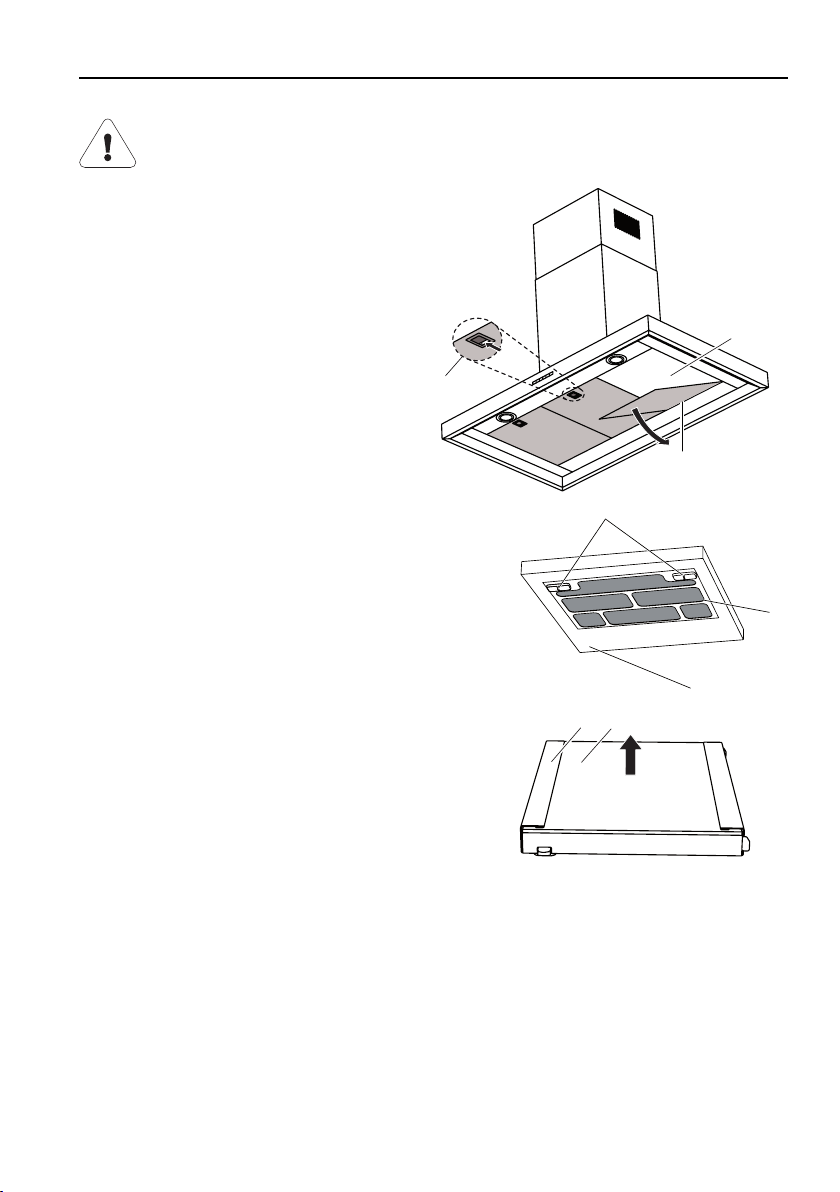

Removing the long-life activated charcoal filter
Switch off the circuit breaker or remove the screw fuse.
▸ Cover over the hob to protect it
from getting damaged.
▸ Pull the grip 2 on the metal grease
filter 1 down.
▸ Remove and clean the metal grease
filters 1.
▸ Open the safety catch 5 and re-
move the metal holder 3 from the
housing 6.
▸ Take the long-life activated charcoal
filter 4 out of the metal holder3.
23
5 Care and maintenance
3
4
1
2
5
3
6
6

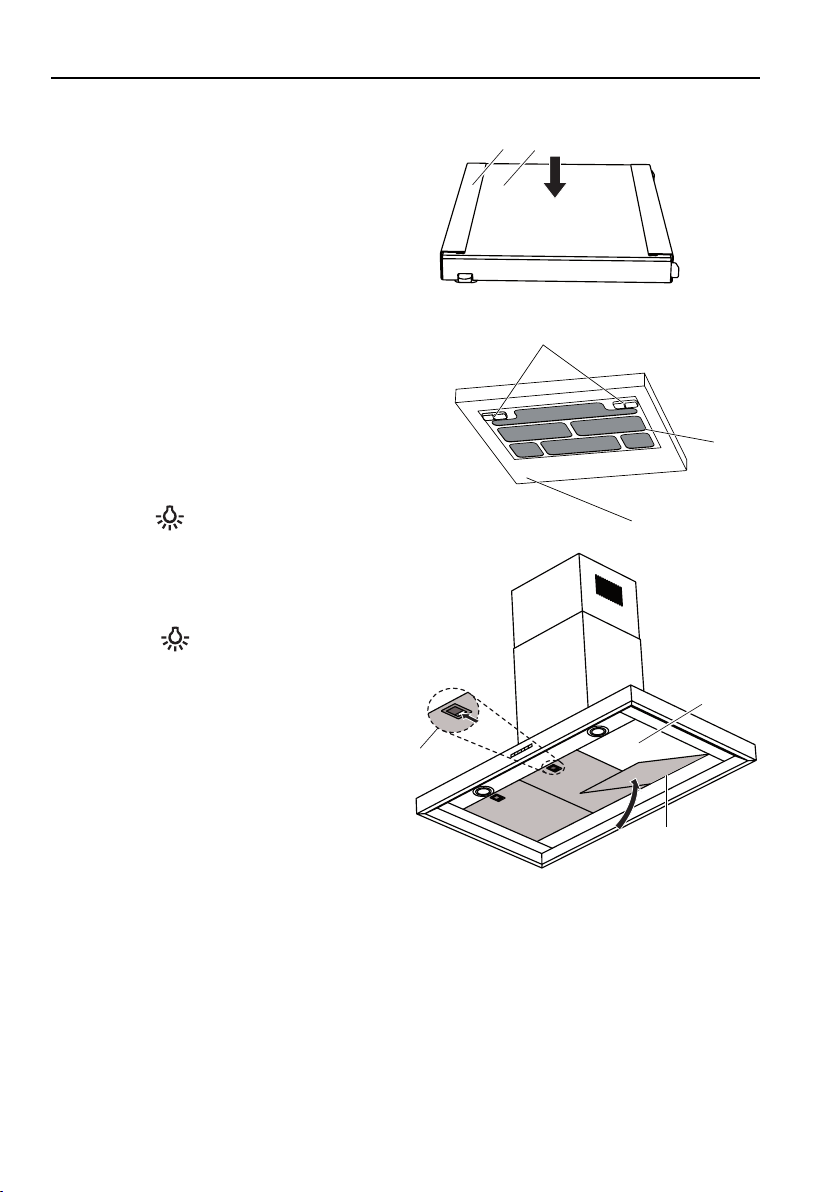

Installing the long-life activated charcoal filter
▸ Insert the long-life activated char-
coal filter 4 into the metal holder 3.
▸ Insert the metal holder 3 into the
housing 6 and close the safety
catch 5.
▸ Insert the metal grease filters 1 into
the slots.
▸ Pull the grip 2 down.
▸ Swing the metal grease filters 1 up
and engage in position.
▸ Switch the fuse on.
▸ With the appliance switched off,
hold the button depressed for
five seconds.
– The saturation indicator is re-
set.
– The button no longer
flashes.
5.4 Replacing the LEDs
For safety reasons, the LEDs must be replaced by our Customer Services.
24
6 Trouble-shooting
6.1 What to do if …
… the illumination is not working
Possible cause Solution
▪ Fuse or automatic circuit
breaker for electrical installations in the home is
defective.
▪ An interruption in the
power supply.
▪ LED is defective.
… the appliance is not extracting enough air
Possible cause Solution
▪ The metal grease filters
are dirty.
▪ Only for recirculation
model: The long-life activated charcoal filters are
saturated.
▪ Only for extraction model:
The fresh air intake is insufficient.
▸ Replace the fuse.
▸ Reset the automatic circuit breaker.
▸ Check the power supply.
▸ Inform Customer Services.
▸ Clean the metal grease filters.
▸ Reactivate/replace the long-life activated
charcoal filter.
▸ Ensure the fresh air intake is sufficient.
25
6 Trouble-shooting
… Saturation indicator illuminates
Possible cause Solution
▪ Metal grease filter is dirty.
▸ Clean the metal grease filters.
▸ After cleaning, hold the button de-
pressed for at least five seconds.
– The display goes out.
▪ The long-life activated
charcoal filter is dirty.
▸ Reactivate/replace the long-life activated
charcoal filter.
▸ After cleaning, hold the button de-
pressed for at least five seconds.
– The display goes out.
26
7 Accessories and spare parts
Please give model number of the appliance and exact designation of the accessory or spare part when ordering parts.
Metal grease filter
Long-life activated charcoal filter
27
8 Technical data
Electrical connection
▸ See identification plate.
▸ Remove the metal grease filters.
– The identification plate is located on the inside of the appliance.
8.1 Product fiche
Description Abbrevi-
Unit Value
ations
Brand S - V-ZUG Ltd
Model identifier M - 62011/63011
Annual energy consump-
AEC
hood
kWh/a 46.5 / 47.8
tion
Energy Efficiency Index EEI
hood
- 54.7 / 54.8
Energy efficiency class EEC - A / A
Fluid Dynamic Efficiency FDE
Fluid Dynamic Efficiency
FDEC - A / A
hood
- 28.3 / 28.6
Class
Lighting Efficiency LE
hood
lux/W 45.0 / 30.0
Lighting Efficiency Class LEC - A / A
Grease Filtering Efficiency GFE
Grease Filtering Efficiency
GFEC - B / B
hood
% 86.0 / 86.0
Class
Air flow at minimum
Q
min
m3/h 266 / 286
speed
Air flow at maximum
Q
max
m3/h 537 / 564
speed (intensive or boost
excluded)
Air flow at intensive or
Q
boost
m3/h 665 / 679
boost setting
28
8 Technical data
Airborne acoustical A-
SPE
min
dBA 46 / 48
weighted Sound Power
Emissions at minimum
speed
Airborne acoustical A-
SPE
max
dBA 62 / 63
weighted Sound Power
Emissions at maximum
speed
Airborne acoustical A-
SPE
boost
dBA 67 / 68
weighted Sound Power
Emissions at intensive or
boost setting
Measured power con-
P
0
W - / -
sumption of off mode
Measured power con-
P
s
W 0.99 / 0.99
sumption of standby
mode
Time increase factor f - 1.0 / 1.0
Measured air flow rate at
Q
BEP
m3/h 344.1 / 367.6
the best efficiency point
Measured air pressure at
P
BEP
PA 348.0 / 344.0
the best efficiency point
Measured value of the
W
BEP
W 123.7 / 126.6
electric power input at the
best efficiency point
Nominal power consump-
W
L
W 3.0 / 4.0
tion of the lighting system
Average illumination of
E
middle
lux 135 / 120
the lighting system on the
cooking surface
Sound power level L
wa
dBA 62.0 / 47.8
29
9 Index
A
Accessories .............................................. 27
After-running time..................................... 17
Appliance description ............................. 11
C
Care............................................................ 19
Children in the home.................................. 7
Cleaning
Grease filter ........................................ 19
Housing ............................................... 19
Configuring
Appliance............................................ 15
Construction.............................................. 13
D
Disconnection........................................... 10
Display elements............................... 13, 14
Disposal..................................................... 10
E
Electrical connection ............................... 28
Extraction model ...................................... 11
F
Features..................................................... 12
Removing............................................ 23
Replacing............................................ 22
Saturation indicator.................... 15, 18
M
Malfunction
Illumination not working ................... 25
Metal grease filter
Saturation indicator........................... 18
Model number ............................................. 2
N
Notes.......................................................... 32
O
Operating elements .......................... 13, 14
Operating the appliance......................... 15
Operation................................................... 16
P
Packaging ................................................. 10
Product family.............................................. 2
Product fiche............................................. 29
Q
Queries ...................................................... 35
G
Grease filter
Cleaning.............................................. 19
I
Identification plate.................................... 28
Illumination ......................................... 13, 17
Intensive level ........................................... 17
L
LED
Replacing............................................ 24
Long-life activated charcoal filter
Cleaning.............................................. 22
Installing .............................................. 24
30
R
Recirculation model................................. 11
S
Safety ......................................................... 10
Safety precautions
Before using for the first time ............7
Children in the home ...........................7
Correct use............................................7
General...................................................6
Note on use...........................................8
Saturation indicator.................................. 18
Long-life activated charcoal filter
................................................ 15, 18
Metal grease filter.............................. 18
9 Index
Saturation indicator illuminates ............. 26
Service & Support.................................... 35
Service agreement................................... 35
Settings
Checking............................................. 16
Spare parts ............................................... 27
Symbols ........................................................ 5
T
Technical data .......................................... 28
Trouble-shooting ...................................... 25
Type............................................................... 2
V
Validity........................................................... 2
W
What to do if
The appliance is not extracting
enough air.................................... 25
The illumination is not working ....... 25
31
10 Notes
32
33
34
11 Service & Support
The «Troubleshooting» section provides valuable tips for dealing with minor oper-
ating faults. This saves you the time, effort and potential cost of having to call out
a service technician.
Information on the V-ZUG warranty can be found at www.vzug.com →Service →Warranty in-
formation. Please read this information carefully.
Please register your V-ZUG appliance immediately:
▪ online via www.vzug.com→Service→Warranty registration, or
▪ using the enclosed registration card.
This will allow you to take advantage of the best possible support in the event of a fault in
the appliance during the guarantee period. You will require the serial number (FN) and ap-
pliance designation to complete the registration process. This information can be found on
the identification plate for your appliance.
My appliance information:
FN: ___________________ Appliance: _____________________
Always have this appliance information to hand when you contact V-ZUG. Thank you.
▸ Remove the metal grease filter.
– The identification plate is located on the inside of the appliance.
Your repair order
Call the free service number 0800 850 850 to contact your nearest
V-ZUG service centre. You can arrange an onsite visit by us by phone if you wish.
General queries, accessories and service agreement
V-ZUG will be happy to help you with any general administrative or technical queries, to
accept your orders for accessories and spare parts and to inform you about our progress-
ive service agreements. You can contact us by calling Tel. + 41 58 767 67 67 or by going
to our website at www.vzug.com.
35
Quick instructions
Please first read the safety precautions in the operating instructions!
Switch illumination on/off
Switch off
Power level 1
Power level 2
Power level 3 and intensive level
After-running time
Flashing Clean metal grease filters
Flashing Reactivate/replace long-life activated charcoal filter
V-ZUG Ltd, Industriestrasse 66, CH-6301 Zug
Tel. +41 58 767 67 67, Fax +41 58 767 61 61
info@vzug.com, www.vzug.com
Service Centre: Tel. 0800 850 850
1012210-R04
Loading...
