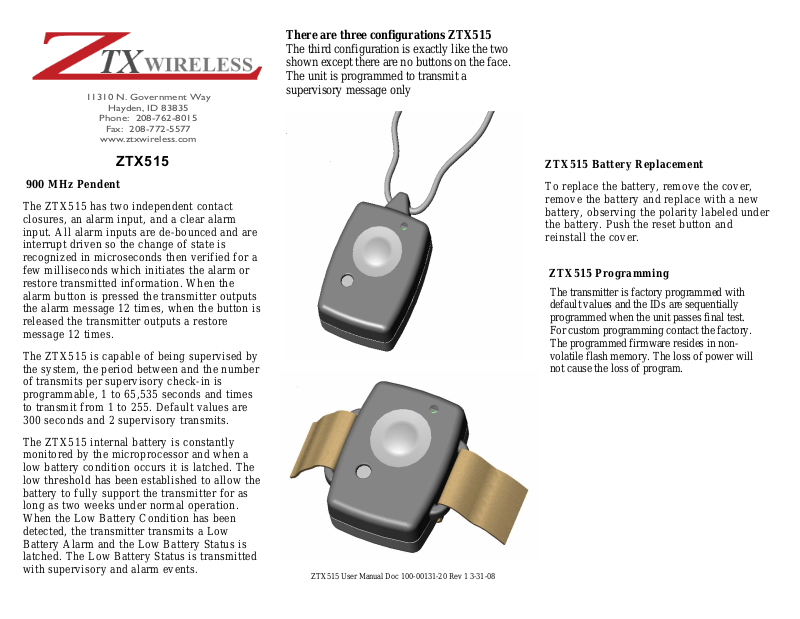

ZTX WIRELESS ZTX515 Users Manual

11310 N. Government Way

Hayden, ID 83835

Phone: [phone]

Fax: [phone]

www.ztxwireless.com

There are three configurations ZTX515

The third configuration is exactly like the two
shown except there are no buttons on the face.
The unit is programmed to transmit a
supervisory message only

ZTX515

900 MHz Pendent

The ZTX515 has two independent contact
closures, an alarm input, and a clear alarm
input. All alarm inputs are de-bounced and are
interrupt driven so the change of state is
recognized in microseconds then verified for a
few milliseconds which initiates the alarm or
restore transmitted information. When the
alarm button is pressed the transmitter outputs
the alarm message 12 times, when the button is
released the transmitter outputs a restore
message 12 times.

The ZTX515 is capable of being supervised by
the system, the period between and the number
of transmits per supervisory check-in is
programmable, 1 to 65,535 seconds and times
to transmit from 1 to 255. Default values are
300 seconds and 2 supervisory transmits.

The ZTX515 internal battery is constantly
monitored by the microprocessor and when a
low battery condition occurs it is latched. The
low threshold has been established to allow the
battery to fully support the transmitter for as
long as two weeks under normal operation.
When the Low Battery Condition has been
detected, the transmitter transmits a Low
Battery Alarm and the Low Battery Status is
latched. The Low Battery Status is transmitted
with supervisory and alarm events

.

ZTX515 Battery Replacement

To replace the battery, remove the cover,
remove the battery and replace with a new
battery, observing the polarity labeled under
the battery. Push the reset button and
reinstall the cover.

ZTX515 Programming

The transmitter is factory programmed with
default values and the IDs are sequentially
programmed when the unit passes final test.
For custom programming contact the factory.
The programmed firmware resides in non­volatile flash memory. The loss of power will
not cause the loss of program.

ZTX515 User Manual Doc 100-00131-20 Rev 1 3-31-08

Warranty & Disclaimer

ZTX Wireless, Inc. (“ZTX Wireless”) warrants its products (“Product” or “Products”) to conform to its own specifications and to be free of defects in materials and workmanship under normal
use for a period of twelve (12) months from the date of manufacture. Within the warranty period ZTX Wireless will repair or replace, at its option, all or any part of the warranted products.
ZTX Wireless will not be responsible for dismantling and/or reinstallation charges. To exercise the warranty, the User (“User”, “Installer” or “Consumer” must be given a Return Material
Authorization (“RMA”) Number by ZTX Wireless. Details of shipment will be arranged at that time.

This warranty does not apply in cases of improper installation, misuse, failure to follow installation and operating instructions, alteration, abuse, accident or tampering, and repair by anyone
other than ZTX Wireless.

This warranty is exclusive and expressly in lieu of all other warranties, obligations or liabilities, whether written, oral, express, or implied, including any warranty of merchantability or fitness
for a particular purpose. ZTX Wireless will not be liable to anyone for any consequentia l or incidental damages for breach of this warranty or any other warranties.

This warranty shall not be modified, varied or extended. ZTX Wireless does not authorize any person to act on its behalf to modify, vary or extend this warranty. This warranty will apply to
ZTX Wireless products only. All other products, accessories or attachments used in conjunctio n with ZTX Wireless equipment, including batteries, will be covered solely by their own
warranty, if any. ZTX Wireless will not be liable for any direct, incidental or consequential damage or loss whatsoever, caused by the malfunction of Products due to products, accessories,
or attachments of other manufacturers, including batteries, used in conjunction with ZTX Wireless Products. This warranty does not warrant the replacement of batteries that are used to
power ZTX Wireless Products.

The User recognized that properly installed and maintained emergency call system may only reduce the risk of events such as personal injury, robbery, burglary or fire. It does not insure
or guarantee that there will be no death, personal damage and/or damage to property as a result. ZTX Wireless does not claim that the Product may not be compromised and/or
circumvented, or that the Product will prevent any death, personal and/or bodily injury and/or damage to property resulting from burglary, robbery, fire or otherwise, or that the Product will
in all cases provide adequate warning or protection.

ZTX Wireless shall have no liability for any death, injur y or damage, however incurred, based on a claim that ZTX Wireless Products failed to function. However, if ZTX Wireless is held
liable, directly or indirectly, for any loss or damage arising under this limited warranty or otherwise, regardless of cause or origin, ZTX Wireless’ maxim um lia bility will not in any case
exceed the purchase price of the Product, which will be fixed as liquidated damages and not as a penalty, and will be the complete and exclusive remedy against ZTX Wireless.

►Warning: The User should follow all installation, operation and maintenance instructions. The User is strongly adv ised to conduct Product and systems tests at least once each week.
Changes in environmental conditions, electric or electronic disruptions and tampering, may cause the Product to not perform as expected.

►Warning: ZTX Wireless warrants its Product to the User. The User is responsible for exercising all due prudence and taking necessary precautions for the safety a nd protection of lives
and property wherever ZTX Wireless products are installed.

►Warning: The Manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the

user’s authority to operate this equipment.

ZTX515 User Manual Doc 100-00131-20 Rev 1 3-31-08
