ZTE V71A Users Manual

1

Smart Tab 7

User Manual

2

LEGAL INFORMATION
Copyright © 2011 ZTE CORPORATION.
All rights reserved.

No part of this publication may be excerpted, reproduced, translated or
utilized in any form or by any means, electronic or mechanical, including
photocopying and microfilm, without the prior written permission of ZTE
Corporation.

The manual is published by ZTE Corporation. We reserve the right to
make modifications on print errors or update specifications without prior
notice.

Version No. : R1.0
Edition Time : June 2011

3

Contents

For Your Safety....................................................................... 13

Product Safety Information........................................................ 13

RF Exposure ................................ .................................................. 15

General Statement on RF Energy ................................ ............. 15

Specific Absorption Rate (SAR) ................................ ................ 16

Body-worn Operation ................................ ................................ 21

Limiting Exposure to Radio Frequency (RF) Fields ................... 22

Regulatory Information ................................ .............................. 22

Distraction ...................................................................................... 23

Driving ................................ ................................ ...................... 23

Operating Machinery................................................................ . 23

Product Handling............................................................................ 24

General Statement on Handling and Use .................................. 24

Small Children .......................................................................... 25

Demagnetization ................................ ................................ ....... 26

Electrostatic Discharge (ESD) ................................................... 26

4

Air Bags ................................ ................................ .................... 26

Seizures/Blackouts ................................ ................................ ... 26

Repetitive Motion Injuries ................................ .......................... 27

Emergency Calls....................................................................... 27

Loud Noise ................................ ................................ ............... 27

Device Heating ......................................................................... 28

Electrical Safety ............................................................................. 28

Accessories .............................................................................. 28

Connection to a Car ................................ ................................ .. 28

Faulty and Damaged Products .................................................. 29

Interference.................................................................................... 29

General Statement on Interferen ce ................................ ........... 29

Pacemakers................................ ................................ .............. 29

Hearing Aids ................................ ............................................. 30

Medical Devices........................................................................ 30

Hospitals................................................................................... 31

Aircraft ...................................................................................... 31

Interference in Cars ................................ ................................ .. 31

5

Explosive Environments ................................................................ . 32

Petrol Stations and Explosive Atmospheres .............................. 32

Blasting Caps and Areas ................................ ........................... 32

Getting Started .......................................................................33

Overview ................................ ........................................................ 33

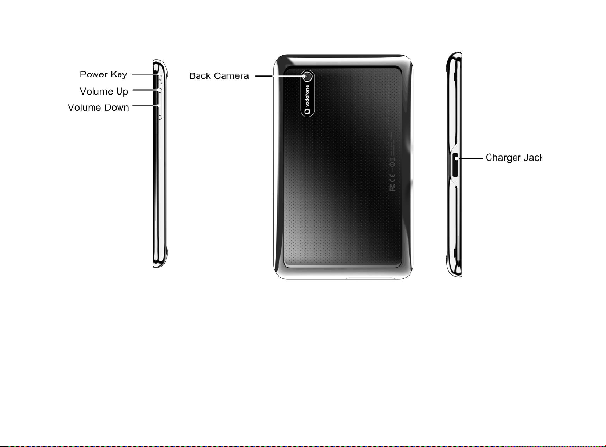

Key Definition................................................................ ................. 35

Starting up...................................................................................... 35

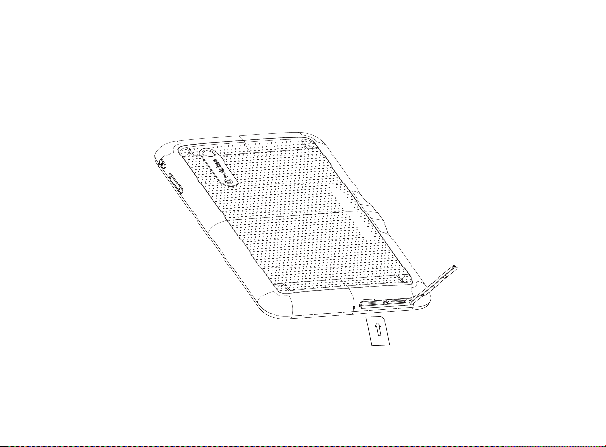

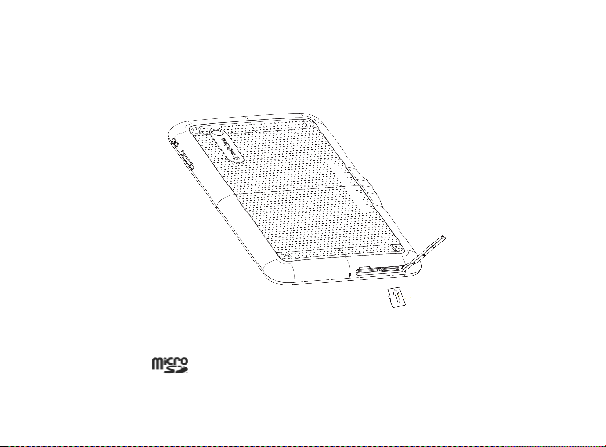

How to slot your SIM/memory card ................................ ........... 35

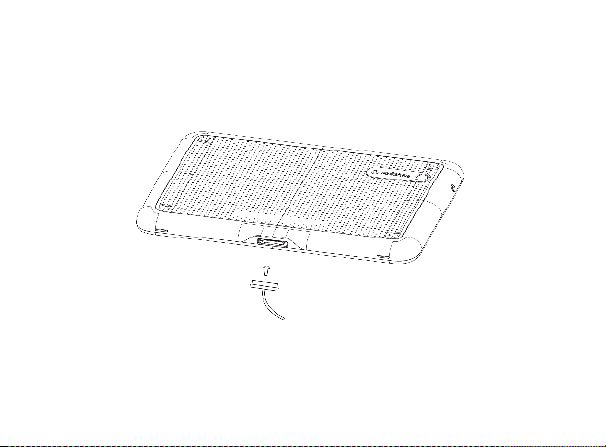

How to charge your Tablet........................................................ 38

Powering On/Off Your Device......................................................... 39

How to power on/off your device ............................................... 39

Setting Up Your Tablet for the First Time ................................ .. 39

How to switch your device to sleep mode................................ .. 41

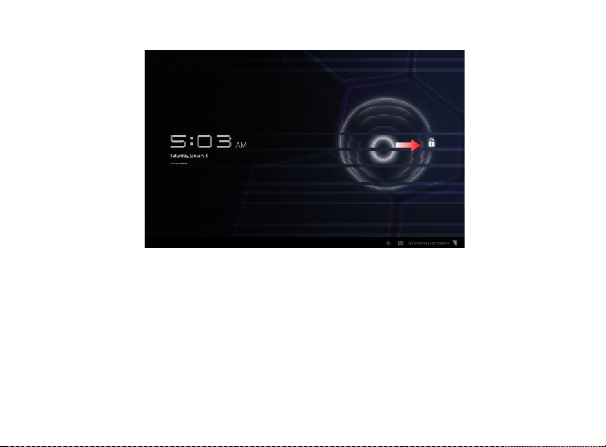

How to wake up your device from sleep mode .......................... 41

Getting Around Your Device ........................................................... 43

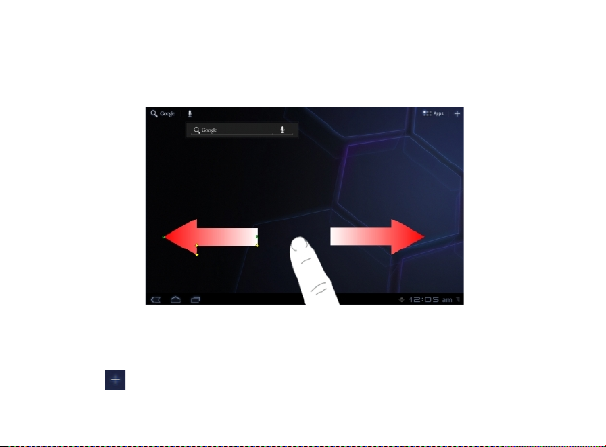

Using Finger Gestures .............................................................. 43

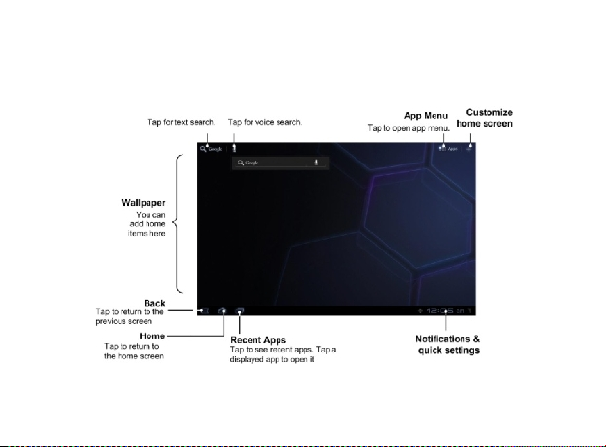

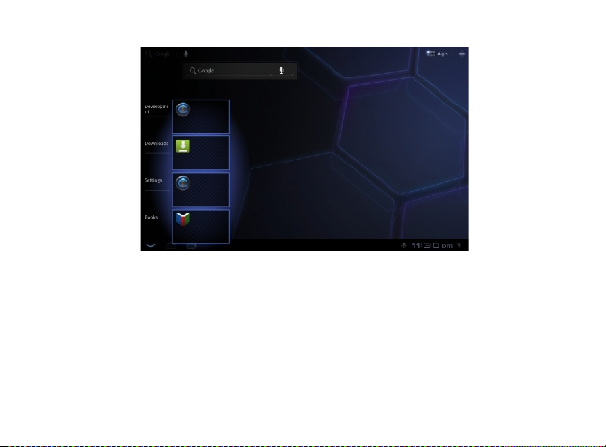

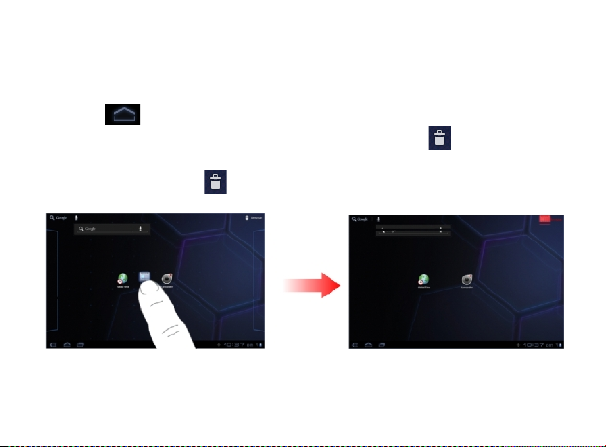

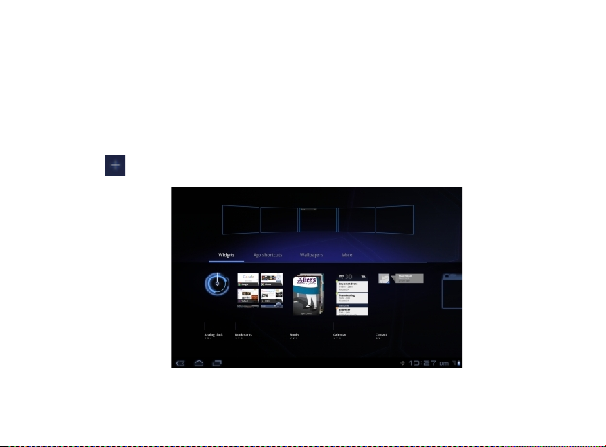

Home Screen................................ ............................................ 44

6

Applications and Settings Preview ............................................ 48

Contacts................................ .................................................. 56

Starting to use Contacts ................................................................ . 56

Managing Contacts ................................................................ ........ 57

Importing/Exporting Contacts ................................ .................... 57

Creating a Contact .................................................................... 58

Searching for a Contact ............................................................ 58

Editing a Contact ................................ ................................ ...... 59

Deleting Contacts................................ ................................ ...... 59

Synchronize Contacts................................ ............................ 59

Entering Text ................................................................ ..........61

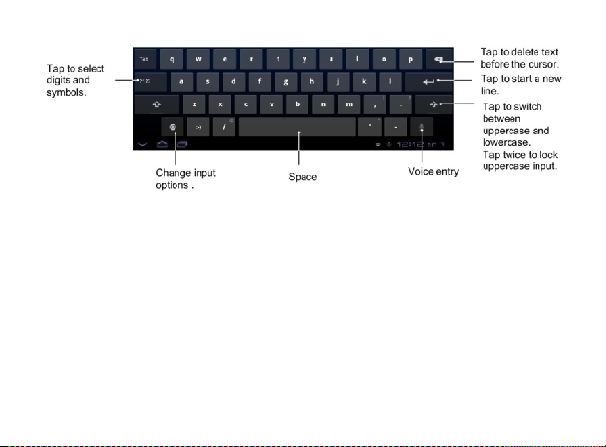

Using the On-screen Keyboard ...................................................... 61

Input Options................................ ................................ .................. 63

Touch Input Settings ................................ ...................................... 63

Messaging............................................................................... 65

Exchanging Messages ................................ ................................ ... 65

7

Composing an SMS ................................ ................................ .. 65

Composing an MMS ................................ ................................. 66

Managing Messages and Messages T hreads ........................... 68

Message Settings ..................................................................... 69

Using Email.................................................................................... 70

Creating an Email account ........................................................ 71

Composing and sending an Email ............................................. 72

Reply to or Forward an Email ................................ .................... 73

Email Settings........................................................................... 73

Getting Connected ................................ ................................. 75

Connecting to the Internet ................................ .............................. 75

Ways of Connecting to the Interne t ................................ ........... 75

GPRS/3G/EDGE....................................................................... 75

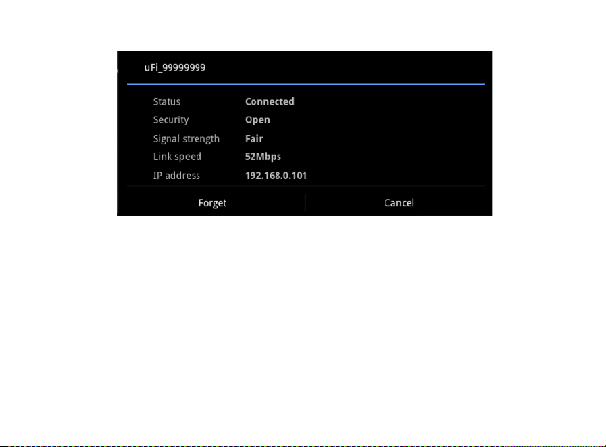

Wi-Fi ................................ ................................ ......................... 77

Using the Tablet as a Modem ................................ ......................... 79

Enabling the Tablet as a Modem............................................... 80

Disabling the Modem Function .................................................. 81

8

Using the Tablet as a Wi-Fi Hotspot ................................ ............... 81

Enabling the Wi-Fi Hotspot ................................ ....................... 82

Disabling the Wi-Fi Hotspot....................................................... 83

Using Browser................................................................................ 83

Opening Browser ................................................................ ...... 83

Opening Web Pages ................................................................. 84

Browsing Options...................................................................... 84

Using Bookmarks...................................................................... 87

Browser Settings....................................................................... 89

Bluetooth........................................................................................ 92

Turning on/off Bluetooth............................................................ 92

Making your device visible ........................................................ 93

Change your device name ........................................................ 94

Pair with another Bluetooth device ............................................ 94

Experiencing Multimedia ....................................................... 96

Camera .......................................................................................... 96

Opening Camera ................................ ................................ ...... 96

9

Taking Pictures ......................................................................... 96

Camera Settings ....................................................................... 97

Camcorder ..................................................................................... 98

Opening Camcorder.................................................................. 98

Shooting Videos........................................................................ 98

Camera Settings ....................................................................... 99

Music ............................................................................................. 99

Opening Music........................................................................ 100

Playing Music.......................................................................... 100

Creating Playlists ................................................................ .... 100

Managing Your Playlists ................................ .......................... 101

Gallery ......................................................................................... 102

Sound Recorder ........................................................................... 102

Opening Sound Recorder ................................ ............................. 102

Record Your Memo ................................ ................................ . 103

Google Applications............................................................. 104

Signing In to Your Google Account ................................ ............... 104

10

Using Gmail ................................ ................................................. 104

Open Gmail ............................................................................ 105

Creating and sending an gmail................................ ................ 105

Using Google Calendar ................................................................ 105

Using Google Talk........................................................................ 106

Opening Google Talk ................................ .............................. 106

Adding a new friend ................................................................ 106

Viewing and accepting an invitation ................................ ........ 107

Starting a chat................................ ................................ ......... 107

Settings ................................................................ ................. 108

Basic Settings ................................ ................................ .............. 108

Setting the Time and Date ................................ ...................... 108

Screen Settings ...................................................................... 109

Sound Settings ....................................................................... 110

Language Settings .................................................................. 113

Mobile Network Services ................................ ......................... 113

Security Settings ................................ .......................................... 115

11

Protecting Your Tablet with a Screen Lock.............................. 115

Protecting Your SIM Card with a PIN ...................................... 118

Setting Up Credential Storage................................................. 119

Managing Memory................................ ................................ ........ 121

Managing Your Memory Card ................................................. 121

Managing Internal Storage................................ ...................... 122

Reset to factory settings ................................ .......................... 122

Application Settings ................................ ................................ ...... 122

Managing Applications ................................ ............................ 122

Removing an Application ........................................................ 123

Moving an Application to or from the Memory Card ................. 124

Other Settings .............................................................................. 125

Speech Synthesis Settings ................................ ..................... 125

Other Applications ................................ ............................... 126

Alarming....................................................................................... 126

Set alarms ................................ ................................ .............. 126

Global Time................................................................ .................. 126

12

Calculator................................................................ ..................... 127

Maps................................ ................................ ............................ 128

Places ................................ .......................................................... 129

Navigation .................................................................................... 130

Latitude ........................................................................................ 130

Specifications ....................................................................... 132

13

For Your Safety

Product Safety Information

Read the Safety
Information section of this
user guide on this page

Do not use while
re-fuelling

Do not use hand-held
while driving

This device may produce
a bright or flashing light

Small parts may cause a
choking hazard

Do not dispose of it in a
fire

14

This device may produce
a loud sound

Avoid contact with
magnetic media

Keep away from
pacemakers and other
personal medical devices

Avoid Extreme
Temperatures

Switch off when
instructed in hospitals
and medical facilities

Avoid any contact with
liquid, keep it dry

Switch off when instructed
in aircrafts and airports

Do not attempt to
disassemble

15

Switch off in explosive
environments

Do not rely on this device
for emergency
communications

Only use approved
accessories

RF Exposure

General Statement on RF Energy

Your mobile device contains a transmitter and a receiver. When it is ON,
it receives and transmits RF energy. When you communicate with your
device, the system handling your call controls the power level at which
your device transmits.

16

Specific Absorption Rate (SAR)

Your mobile device is a radio transmitter and receiver. It is designed not
to exceed the limits for exposure to radio waves recommended by
international guidelines. These guidelines were developed by the indep endent
scientific organization ICNIRP and include safety margins designed to
assure the protection of all persons, regardless of age and health.

The guidelines use a unit of measurement known as Specific Absorption
Rate, or SAR. The SAR limit for mo bile devices is 2 W/kg and the highest
SAR value for this device was 1.14 W/kg. As mobile devices offer a range
of functions, they can be used in other positions, such as on the body as
described in this user guide**.

As SAR is measured utilizing the device's hig hest transmitting power, the
actual SAR of this device while operating is typically below that indicated
above. This is due to automatic changes to the power level of the device
to ensure it only uses the minimum power required to communicate with
the network.

* The tests are carried out in accordance with EN 62311, EN 62209-1,

17

IEC 62209-2.
** Please see body worn operation.
This mobile tablet meets the government ’s requirements for exposure to

radio waves.
This tablet is designed and manufactured not to ex ceed the emission

limits for exposure to radio frequency (RF) energy set by the Federal
Communications Commission of the U.S. Government.

The exposure standard for wireless mobile devices employs a unit of
measurement known as the Specific Absorption Ra te, or SAR. The
SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted
using standard operating positions accepted by the FCC with the device
transmitting at its highest certified power level in all tested frequency
bands. Although the SAR is determined at the highest certified power
level, the actual SAR level of the device while operating can be well
below the maximum value. This is because the device is designed to
operate at multiple power levels so as to use only the poser required to

18

reach the network. In general, the closer you are to a wireless base
station antenna, the lower the power output.

The highest SAR value for the model device as reported to the FCC
when worn on the body, as described in this user guide, is 1.15 W/kg
(Body-worn measurements differ among device models, depending upon
available accessories and FCC requirements.)

While there may be differences between the SAR levels of various
devices and at various positions, they all meet the government
requirement.

The FCC has granted an Equipment Authorization for this model device
with all reported SAR levels evaluated as in compliance with the FCC RF
exposure guidelines. SAR information on this model device is on file
with the FCC and can be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on FCC ID: Q78-V71A.

19

For body worn operation, this device has been tested and meets the FCC
RF exposure guidelines for use with an accessory that contains no metal
and the positions the handset a minimum of 0 cm from the body. Use of
other accessories may not ensure compliance with FCC RF exposure
guidelines. If you do not use a body-worn accessory and are not
holding the device at the ear, position the handset a minimum of 0 cm
from your body when the device is switched on.

FCC Regulations:

This mobile device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.

This mobile device has been tested and found to comply with the limits

20

for a Class B digital device, pursuant to Part 15 of the FCC Rule s. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation . This equipment generates, uses
and can radiated radio frequency energy and, if not installed and used in
accordance with the instructi ons, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation If this equipment does cause harmful
interference to radio or television reception, which can be deter mined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party

responsible for compliance could void the user‘s authority to operate the

21

equipment.

-The antenna(s) used for this transmitter must not be co -located or
operating in conjunction with any other antenna or transmitter .

NOTE:THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY
RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED
MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS
COULD VOID THE USER’S AUTHORITY TO OPERATE THE
EQUIPMENT.

Body-worn Operation

Important safety information regarding radio frequency radi ation (RF)
exposure:

Failure to observe these instructions could result in your RF exposure
exceeding the relevant guideline limits.

22

Limiting Exposure to Radio Frequency (RF) Fields

For individuals concerned about limiting their exposure to RF fields, the
World Health Organization (WHO) provides the following advice:

Precautionary measures: Present scientific information does not indicate
the need for any special precautions for the use of mobil e devices. If
individuals are concerned, they might choose to limit their own or their
children’s RF exposure by limiting the length of calls, or using
‘hands-free’ devices to keep mobile devices away from the head and
body.

Further information on this subject can be obtained online from the WHO
fact sheet N°193 at http://www.who.int/mediacentre/factsheets/fs193/en/

Regulatory Information

The following approvals and notices apply in specific regions as noted.
Please find the Declaration of RoHS Compliance, and EC Declaration of

Conformity in Appendix.

23

Distraction

Driving

Full attention must be given to driving at all times in order to reduce the
risk of an accident. Using a mobile device while driving (even with a hands
free kit) can cause distraction and lead to an accident. You must comply
with local laws and regulations restricting the use of wireless devices while
driving.

Operating Machinery

Full attention must be given to operating the machinery in order to reduce
the risk of an accident.

24

Product Handling

General Statement on Handling and Use

You alone are responsible for how you use your mobile device and any
consequences of its use.

You must always switch off your mobile device wherever the use of a
phone is prohibited. Use of your device is subject to safety measures
designed to protect users and their environment.

• Always treat your device and its accessories with care and keep it in a
clean and dust-free place.

• Do not expose your device or its accessories to open flames or lit
tobacco products.

• Do not expose your device or its accessories to liquid, moisture or
high humidity.

• Do not drop, throw or try to bend your device or its accessories.

25

• Do not use harsh chemicals, cleaning solvents, or aerosol s to clean
the device or its accessories.

• Do not paint your device or its accessories.

• Do not attempt to disassemble your device or its accessories, only

authorized personnel should do so.

• Do not expose your device or its accessories to extreme temperature s,
minimum - [5] and maximum + [50] degrees Celsius.

• Please check local regulations for disposal of electronic products.

• Do not carry your mobile device in your back pocket as it could break

when you sit down.

Small Children

Do not leave your mobile device and its accessories within the reach of
small children or allow them to play with it.

They could hurt themselves or others, or could accidentally damage the
device.

26

Your mobile device contains small parts with sharp edges that may cause
an injury or may become detached and create a choking hazard.

Demagnetization

To avoid the risk of demagnetization, do not allow electronic devices or
magnetic media close to your device for a long time.

Electrostatic Discharge (ESD)

Do not touch the SIM card’s metal connectors.

Air Bags

Do not place the device in the area over an air bag or in the air bag
deployment area.

Store the device safely before driving your vehicle.

Seizures/Blackouts

The device can produce a bright or flashing light.

27

Repetitive Motion Injuries

To minimize the risk of RSI when texting or playing games with your device:

• Do not grip the device too tightly.

• Press the buttons lightly.

• Use the special features which are designed to minimize the times of

pressing buttons, such as Message Templates and Predictive Text.

• Take lots of breaks to stretch and relax.

Emergency Calls

This mobile device, like any wireless device, operates using radio signals,
which cannot guarantee connection in all conditions. Therefore, you must
never rely solely on any wireless device for emergency communications.

Loud Noise

This mobile device is capable of producing loud noises, which may
damage your hearing. Turn down the volume before using headphones,

28

Bluetooth stereo headsets or other audio devices.

Device Heating

Your device may become warm during charging and during normal use.

Electrical Safety

Accessories

Use only approved accessories.
Do not connect with incompatible products or accessories.
Take care not to touch or allow metal objects, such as coins or key rings,

to contact or short-circuit the battery terminals.

Connection to a Car

Seek professional advice when connecting a mobile device interface to
the vehicle electrical system.

29

Faulty and Damaged Products

Do not attempt to disassemble the device or its accessory.
Only qualified personnel should servi ce or repair the device or its

accessory.
If your device or its accessory has been submerged in water, punctured,

or subjected to a severe fall, do not use it until you have taken it to be
checked at an authorized service center.

Interference

General Statement on Interference

Care must be taken when using the mobile device in close proximity to
personal medical devices, such as pacemakers and hearing aids.

Pacemakers

Pacemaker manufacturers recommend that a minimum separation of 15

30

cm be maintained between a mobile device and a pacemaker to avoid
potential interference with the pacemaker. To achieve this, use the
mobile device on the opposite ear to your pacemaker and do not carry it
in a breast pocket.

Hearing Aids

People with hearing aids or other cochlear implants may experience
interfering noises when using wireless devices o r when one is nearby.

The level of interference will depend on the type of hearing device and
the distance from the interference source, increasing the separation
between them may reduce the interference. You may also consult your
hearing aid manufacturer to discuss alternatives.

Medical Devices

Please consult your doctor and the device manufacturer to determine if
operation of your mobile device may interfere with the operation of your
medical device.

31

Hospitals

Switch off your wireless device when requested to do so in hospitals,
clinics or health care facilities. These requests are designed to prevent
possible interference with sensitive medical equipment.

Aircraft

Switch off your wireless device whenever you are instructed to do so by
airport or airline staff.

Consult the airline staff about the use of wireless devices on board the
aircraft, if your device offers a ‘flight mode’ this must be enabled prior to
boarding an aircraft.

Interference in Cars

Please note that because of possible interference to electronic equipment,
some vehicle manufacturers forbid the use of mobile devices in their vehicles
unless a hands-free kit with an external antenna is included in the installation.

32

Explosive Environments

Petrol Stations and Explosive Atm ospheres

In locations with potentially explosive atmospheres, obey all posted signs
to turn off wireless devices such as your tablet or other radio equipment.

Areas with potentially explosive atmospheres include fuelling areas,
below decks on boats, fuel or chemical transfer or storage facilities, areas
where the air contains chemicals or particles, such as grain, dust, or
metal powders.

Blasting Caps and Areas

Power off your tablet or wireless device when in a blasting area or in
areas posted power off “two-way radios” or “electronic devices” to avoid
interfering with blasting operations.

33

Getting Started

Overview

34

35

Key Definition

Key

Function

Power Key

Press and hold to power on your Tablet.
Press to switch to sleep mode.
Press to wake up your Tablet.

Volume Keys

Use to control the volume Up or Down.

Starting up

How to slot your SIM/memory card

Power off your LIGHT before installing or replacing the battery, SIM card,
or memory card.

36

1. Open the cover of SIM slot, and i nsert your SIM card into the SIM slot .
There is a diagram showing the

correct orientation of the card printed above the SIM slot.

37

2. Insert your memory card into the memory card slot. There is a
diagram showing the correct orientation of the card printed above the
memory card slot.

Notes:

microSD logo ( ) is a trade mark of SD Card Association.

38

How to charge your Tablet

The new battery is not fully charg ed. To charge the battery, you need to:
Connect the adapter to the charger jack.

3. Connect the charger to a standard AC wall outlet.

4. Disconnect the charger when the battery is fully charged.

39

Notes:

Use only the charger that came with your tablet when charg ing your
tablet. Do Not attempt to connect a charger to the USB port. The USB
port is used for data transfer only, NOT for charging .

Powering On/Off Your Device

How to power on/off your device

1. Make sure your SIM card and the battery are inserted.

2. Press and hold the Power Key to power on your device.

3. To switch it off, hold Power Key to get the tablet options. Select

Power off, and then tap OK.

Setting Up Your Tablet for the First Time

When you first power on your Tablet after you purchase it or reset it to
factory settings (see Sorting out Your Tablet Settings – Privacy: Reset to

40

Factory Settings), you need to do some settings before using it.

1. Select language and tap Start.

2. Select Google’s location service and press Next.

3. Configure the date and time options, and tap Next.

4. Create a Google Account or sign in your account.

41

You can also tap Skip to set up an account later.

How to switch your device to sleep mode

Press the Power Key.
Sleep Mode suspends your device to a low-power-consumption state while

the display is off to save battery power. Your device also goes into Sleep
Mode automatically when you leave it idle after a certain period of time.

How to wake up your device from sleep mode

If your device is switched to sleep mode, you need to wake it up:

1. Press the Power Key to activate your screen display.

2. Press the icon and move it to .

42

Notes:

If you have set an unlock pattern for your device (refer to Settings ->
Location & security -> Set up screen lock -> Pattern), you need to draw

the pattern to unlock your screen.

43

Getting Around Your Device

Using Finger Gestures

You can use finger gestures to control your device. The controls on your
touch screen change dynamically depending on the tasks you are performing.

1. Tap the buttons, icons, or applications to select items or to open
applications.

2. Hold a certain item to get available options.

3. Slide on the screen, you can scroll up/down. From Home Screen, you
can also slide left/right to browse the extended Home Screen.

4. Drag a certain item to move it or to do some other corresponding
operations.

Tips:

Besides using finger gestures to control your device, you can also switch
your device screens (such as text input screen, gallery screen, etc.) between
portrait or landscape mode by holding the device upright or sideways.

44

Home Screen

You can add or remove home items in your Home Screen.

How to extend the Home Screen

45

Beyond the screen width, the Home Screen extends to provide more
space for adding items. Slide your finger t o the left or right to get the
extended Home Screen.

Customize the Home Screen Wallpaper

To change the wallpaper

1. Tap to open Customize home screen.

46

2. Tap Wallpaper to open the wallpaper menu.

3. Select the wallpaper you want to use from Gallery, Live wallpapers,
or Wallpapers.

4. Tap Save or Set wallpaper.

To add a Home Screen item

1. Tap open Customize home screen.

47

2. Tap Widgets, App shortcut or More to select an item. And move the
item to Home Screen.

To remove a Home Screen item

1. Tap to return to Home Screen.

2. Tap and hold the item you want to delete until the icon appears
on the screen.

3. Drag the item into .

48

How to open the notification s and quick settings panel

From the Notifications and quick settings panel, you can get the
information of tablet status, app notification, and quick settings from the
Notification Panel.

To see a specific notification, touch the icon. To open a panel, touch the
digital clock.

Applications and Settings Preview

Programs Preview

Your Tablet has lots of functions. Tap to get the following

49

programs that are pre-installed on your device.

Applications

Description

Books

Enables you to view books.
Browser

Enables you to browse the internet.
Calculator

Enables you to perform the calculation.
Calendar

Enables you to schedule appointments, including
meetings and other events.

Camcorder

Enables you to enter camcorder and shoot the
video clips you like.

Camera

Enables you to enter the camera screen directly and
use the camera features.

Clock

Set alarms.

Contacts

Enables you to manage the information of your
friends and colleagues.

Downloads

Access useful applications and fun games to download.

50

Applications

Description

Email

Enables you to enter the Email screen, where you
can setup Email, send or receive Emails.

Gallery

Enables you to organize and manage your
multimedia files.

Global Time

Enables you to view the global time.
Gmail

Enables you to access your Gmail account and
check your email on your mobile device.

Latitude

See your friends’ locations and share yours with them.

Maps

Enables you to track your current location, view
real-time traffic situations, and receive deta iled
directions to your destination.

Market

Enables you to access to useful applications and
fun games which you can download and install on
your device.

Messaging

Enables you to enter the Messages screen, where

51

Applications

Description

you can send and receive SMS and MMS messages.
Movie Studio

Make movie.
Music

Enables you to browse your audio files and listen to
them in the Music player.

Navigation

Enables you to use Google Maps Navigation.
Places

Enables you to find restaurants, ATMs, and other
places of interest near you .

Search

Enables you to searching by typing.
Settings

Enables you to adjust the device settings.
Sound Recorder

Enables you to record audio clips.

Talk

Enables you to send and receive instant messages
and voice over internet protocol (VOIP), offered by
Google Inc.

Voice Search

Enables you to searching or dialing by voice instead

52

Applications

Description

of typing.
YouTube

Enables you to watch YouTube videos and upload
your own.

Settings Preview

You can adjust the device settings. Tap the > Settings to view
all the settings on your device.

Wireless &
networks

Enables you to configure and manage your device’s
wireless connections, such as Wi -Fi, Bluetooth,
mobile networks, and Virtual Private Networks. You
can also enable the Airplane mode.

Sound

Enables you to set sound settings, such as
ringtones, notifications and so on.

Screen

Enables you to set display settings such as screen

53

brightness and so on.

Location & security

Enables you to set the Lock screen, Encryption.
You can also select the sources to use when
determining locations from My Location.

Applications

Enables you to manage applications and installation
of new programs.

Account & sync

Enables you to manage your account and configure
general sync settings.

Privacy

Enables you to configure privacy settings, su ch as
back up settings, and Personal data.

Storage

Enables you to check the available memory of the
external card and the internal storage.

Search

Enables you to set the search options.

Language & input

Enables you to set the locale (operating system
language and region), and text input options.
Enables you to configure the text -to-speech settings

54

if you have installed a text -to-speech (voice data)
application.

Accessibility

Enables you to manage accessibility options.

Date & time

Enables you to set the date, time, time zone, and
date/time format. If the network supports, you can
also enable automatic time update.

About tablet

Enables you to view the device status, battery level,
and legal information and you can make system
updates.

How to open recently used applications

1. Tap from any screen until the following recently used
applications interface appears.

55

2. Tap the application you want to open.

56

Contacts

Starting to use Contacts

You can add new contacts along with their information. Setting up
communication information for the contact w ill allow you to call the
person quickly or browse the contact's information. Contacts are saved in
the internal memory or in the SIM card. If you store the information in the
SIM card, you can fill the name and a number. If you store the information
in the internal memory, you can also fill out more information including
Email, Postal address, pictures, Nickname, website, etc.

Tap the > > Contacts to enter the Contacts Screen.

57

Managing Contacts

Importing/Exporting Contacts

You can import/export contacts from/to you SIM card or microSD card.

Import/export contacts from/to SIM card

1. Tap > Import/Export from the Contacts Screen.

2. Select to import or export contacts from/to your SIM card.
Your tablet will automatically read the contacts.

3. Select the contacts you want to import/export.

Tips:

 If you want to import/export all contacts, tap the > Select all.

4. Tap Done.

Import/export contacts from/to memory card

1. Tap the > Import/Export from the Contacts Screen.

58

2. Select to import or export contacts from/to microSD card.
If you want to import contacts from microSD card, you should have

vCard files saved in the microSD card. If there is more than one vCard
file, you need to select the vCard file.

3. Tap OK.

Creating a Contact

1. Tap New from the Contacts Screen.

2. Enter the name and phone numbers. You can also set the Group,
Email addresses, IM addresses, Postal addresses, Organizations etc.
if you select to create a phone contact.

3. Tap Done to save the contact.

Searching for a Contact

1. Tap Find contacts from the Contacts Screen.

2. Input the contact name you want to search for.

59

The contacts matched will be listed.

Editing a Contact

1. Select the contact you want to edit from the Contacts Screen.

2. Tap .

3. Edit the contact and tap Done.

Deleting Contacts

1. Tap > Delete contacts.

2. Select the contacts you want to delete.

3. Tap Done.

Synchronize Contacts

All your contacts from your email and social networking accounts are
automatically synched and backed up. When you change a contact for
one account, your tablet updates you other accounts.

60

61

Entering Text

Using the On-screen Keyboard

Tap any text field to open the touch keypad. To close keypad keyboard,
tap Back .

Android Keyboard is a keyboard layout similar to a desktop computer
keyboard. You can choose to use the landscape orientation of the
on-screen keyboard, by turning the Tablet sideways.

62

Tips:

• If you want to use the landscape keyboard, you need to select the

Auto-rotate screen check box in Settings > Screen.

• Hold and select the text, tap Cut or Copy.

• Tap location to paste, then touch Paste. You can paste the cut or

copied text.

63

Input Options

To change input options, tap and you can select Input languages
or Android keyboard settings.

Input languages
Under Android keyboard, select Use system language. Or deselect

Use system language and select an active input method.
Android keyboard settings
General setting: Auto-capitalization, vibrate on keypress or sound

on keypress.
Text correction settings: Auto correction or show correction

suggestions.

Touch Input Settings

You can configure the touch input settings by tapping the >

> Settings > Language & input.

64

Language settings

• Select language

• User dictionary:

Voice input

• Voice recognizer settings

Voice output

• Text-to speech settings

Keyboard settings

• Current input method : Enables vibration feedback as you touch on
the keyboard.

• Input method selector: Enables the sound feedback as you touch on
the keyboard.

• Configure input methods: Select the check box to capitalize the fist
letter of each sentence automatically.

65

Messaging

Messaging is where all of your SMS and MMS accounts are located.
To access your message accounts, tap the > >

Messaging.

Exchanging Messages

From Messages, you can receive and send an SMS or MMS.
When you receive a new message, you can open it from the Notifications

Panel, or from Messages Screen. Simply tap on the new message to
read it.

The device will alert you for the unread message(s) with the icon in
the status bar.

Composing an SMS

1. Tap the > > Messaging.

66

2. Tap New message.

3. Tap To field and enter the recipient’s number. In Android keyboard
input method, you can also enter the first letter of the recipient; the
contact which matches the first letter of the recipient name is listed,
and then you can select a recipient from the list.

4. Tap Type to compose field and enter the message.

5. Tap Send to send your SMS.

Composing an MMS

1. Tap the > > Messaging.

2. Tap New message.

3. Tap To field and enter the recipient’s number. In Android keyboard
input method, you can also enter the first letter of the reci pient, the
contact which match the first letter of the recipient name is listed, and
then select a recipient from the list.

4. Tap the > Add subject to enter the subject of your MMS.

67

5. Tap Type to compose field and enter the message.

6. Tap the > Attach to add an attachment to your MMS:

Pictures: Select a picture to add to your MMS.
Capture picture: Take a photo and add to your MMS.
Videos: Select a video clip to attach to your MMS.
Capture video: Shoot a video clip and add to your MMS.
Audio: Select an audio file to add to your MMS.
Record audio: Record an audio file and add to your MMS.
Slideshow: Edit a sildeshow and add to your MMS.

7. Tap Send to send your MMS.

Tips:

• If you add a subject or an attachment to your SMS, the SMS will be
converted to an MMS automatically.

• If you remove the subject and attachment of your MMS, the MMS will
be converted to an SMS automatically.

68

Managing Messages and Messages Threads

SMS and MMS messages which are sent to and received are grouped
into message threads in the Messages screen. Threaded messages
show you exchanged messages (similar to a chat program) with a specific
contact on the screen. Message threads are sorted by the time when you
received them, with the latest one on the top.

Reply to a message

1. Tap the message you want to reply to from the Messages Screen.

2. Tap Type to compose and enter the contents of your message.

3. Tap Send.

Delete a thread

1. Tap the thread you want to delete from the Messages Screen.

2. Tap the > Delete thread from the Messages Screen.

3. Tap Delete.

69

Message Settings

Tap the > Settings from the Messages Screen. You can configure
your message settings.

Storage settings

• Delete old messages: Select to delete old messages as limits are
reached.

• Text message limit: Set the maximum number of text messages
allowed in a single thread.

• Multimedia message limit: Set the maximum number of multimedia
messages allowed in a single thread.

Text message (SMS) settings

• Delivery reports: Request a delivery report for each SMS message
you send.

• Manage SIM card messages: Manage messages stored on your
SIM card.

70

Multimedia message (MMS) settings

• Delivery reports: Request a delivery report for each MMS message
you send.

• Read reports: Request a read report for each MMS message you send.

• Auto-retrieve: Select to retrieve MMS messages automatically.

• Roaming auto-retrieve: Select to retrieve MMS messages

automatically when you are roaming.

Notifications settings

• Notifications: Select to display message notifications in the status bar.

• Select ringtone: Select a ringtone for your incoming messages.

• Vibrate: Select to make your LIGHT vibrate when receiving a new

message.

Using Email

Tap the > > Email. You can enter the Email Screen to setup

71

your Email account and exchange Emails.

Creating an Email account

1. Enter your Email address and password, then tap Next when you
enter the Email Screen for the first time.

2. Select the type of your account and tap Next.

3. Edit the incoming server settings and then tap Next/Next[Check].
If you tap Next[Check], your device will check the incoming server

settings and finish the setup automatically. If you are notified that
setup could not be finished, you might need to correct some settings
to finish it. If there is any problem, please contact your mobile service
provider and Email service provider.

4. Edit the outgoing server settings and tap Next/Next[Check].
If you tap Next[Check], your device will check the outgoing server

settings and finish the setup automatically.

72

5. Set the Email checking frequency, select whether to use this account
by default or be notified when Email arrives, and then tap Next.

6. Give your account a name and set a name displayed on outgoing
message, and then tap Done.

Composing and sending an Email

After creating an Email account, y ou can compose and send Email
messages.

1. Tap the from the Email Screen.

2. Tap the To field and enter the recipient’s address.
When you enter the address, the matching addresses saved in your

Contacts will be displayed. You can tap the recipient from the lis t.
Tips:

You can also tap the > Add Cc/Bcc to add recipients.

3. Enter the subject and the content of your Email.

4. Tap Send.

73

Reply to or Forward an Email

1. Open the Email you want to reply to or forward from Email Scr een.

2. Enter your response in the text box at the bottom. To forward a text
message, tap and hold the message in the conversation, then touch

Forward message.

Email Settings

Tap the account you want to set from the Email Screen a nd tap the >
Account settings. You can get the Email settings.

General settings

• Account name: Set your account name.

• Your name: Set the name displayed on outgoing message.

• Email address: View or edit the email address.

• Use signature: Select to use signature.

• Signature: Edit your signature.

74

• Email check frequency: Set the email checking frequency.

• Power-saving mode: Enable the email synchronization time

intelligent adjustment.

• Default account: Select the check box to send email from this
account by default.

• Sync deleted message :

Notification settings

• Email notifications: Select to be notified in status bar when Email
arrives.

• Select ringtone: Select the ringtone for incoming Email notification.

• Vibrate: Select to be notified by vibration with ringtones when Email

arrives.

Server settings

• Incoming settings: Set the incoming server settings.

• Outgoing settings: Set the outgoing server settings.

75

Getting Connected

Connecting to the Internet

Your device’s networking capabilities allow you to access the Internet or
your corporate network.

Ways of Connecting to the Int ernet

You can use the default connection settings to connect to the Internet
through your mobile network (GPRS/3G/EDGE), or Wi -Fi.

GPRS/3G/EDGE

Use GPRS/3G/EDGE to connect to the Internet and to send and receive
MMS/Email messages on your Tablet. You will need a data plan to use
your wireless service provider’s GPRS/3G/EDGE network. Check with
your wireless service provider for GPRS/3G/EDGE rates. If the
GPRS/3G/EDGE settings are not pre-configured on your device, contact
your operator for the parameters. Do not change the settings as this may

76

cause services to stop working.

Add a new GPRS/3G/EDGE connection

Before you begin, get the following information from your service
provider:

• Access Point Name (APN)

• Your user name and password if needed.

• Server IP and the port number if the network uses a proxy server.

1. Tap the > > Settings > Wireless & networks > Mobile
networks > Access Point Names.

2. Tap the > New APN.

3. Tap Name to enter you APN name (You can name it as you like).

4. Tap APN to enter the APN you want to add.

5. Tap Proxy and Port to enter the Server IP and port if the network
uses a proxy server.

6. Tap and enter Username and Password (If there is no User name

77

and Password, leave them blank).

7. Tap and enter APN type if needed.

8. After finish the setting, press .

Notes:
If you want to set the APN to default settings, tap the > Reset to

default.

Wi-Fi

Wi-Fi provides wireless Internet access over distances of up to 300 feet
(100 meters).

Turn on Wi-Fi

1. Tap the > > Settings > Wireless & networks.

2. Select the Wi-Fi check box to turn Wi-Fi on.

78

Add a Wi-Fi network

1. Tap the > > Settings > Wireless & networ ks > Wi-Fi
settings.

The Wi-Fi network names and security settings (open network or
secured network) of detected Wi -Fi networks are displayed in the
Wi-Fi networks section.

2. Tap a network to connect.

 If you select an open network, you will be automatically connected

to the network.

 If you select a secured network, you will need to input the wireless

password.

Check the Wi-Fi network status

You can check the Wi-Fi network status from the wireless controls.
Tap the > > Settings > Wireless & networks > Wi -Fi

settings, then tap the wireless network that the device is currently
connected to.

79

You can check the network status from the pop -up window.

Using the Tablet as a Modem

You can access the Internet on your PC via your tablet as a modem. Note
the function may result in data charges from your mobile device carrier.
Please contact them for detail.

80

Enabling the Tablet as a Modem

TIPS:

• Make sure that USB storage is turned off before enabling the modem

function. To turn off USB storage, flick down the notification panel and
tap Turn off USB storage > Turn off USB storage .

• The PC accesses the Internet via the tablet’s mobile network.

Therefore, set up the GPRS/EDGE/3G connection correctly before you
try to use the tablet as a modem.

1. When you connect your tablet to your PC with the provided USB cable
for the first time, a window will pop up and prompt you to install the
driver.

2. Double click the executable file (.exe) in the window and follow the
prompt to finish the driver installation.

NOTES: If the window doesn’t pop up automatically for some reason,
please open the new CD-ROM drive on your PC manually and find
the executable file to run it.

81

3. Tap on the tablet > > Settings > Wireless & networks
> Tethering & portable hotspot and tick the USB tethering check
box. A new network connection will be created on your PC.

4. Go to Control Panel > Network on your PC to enable the new
network connection.

Now you can launch the Internet browser on your PC and start
surfing.

Disabling the Modem Function

Tap > > Settings > Wireless & networks > Tethering &
portable hotspot and clear the USB tethering check box.

You can also just pull out the USB cable.

Using the Tablet as a Wi-Fi Hotspot

You can use the tablet as a portable WLAN router, providing Wi -Fi
connection for one or multiple PC or other devices. The function need
data connection on a mobile network and may result in data charges.

82

TIPS:

• The PC accesses the Inte rnet via the tablet’s mobile network.

Therefore, set up the GPRS/EDGE/3G connection correctly before you
try to use the tablet as a Wi-Fi hotspot.

• When the portable Wi-Fi hotspot function is enabled, you cannot

access the internet with any application on y our tablet via its Wi-Fi
connection.

Enabling the Wi-Fi Hotspot

5. Tap > > Settings > Wireless & networks > Tethering
& portable hotspot and tick the Portable Wi-Fi hotspot check box.

6. Tap Portable Wi-Fi hotspot settings > Configure Wi -Fi hotspot.

7. Change the name of the hotspot and its security setting, if necessary.
The default hotspot is set as an open one. You can tap Open and

choose WPA2 PSK to set up a password. The password must have at
least 8 characters.

83

8. Tap Save. Now you can find the hotspot on ot her devices and
connect to it.

Disabling the Wi-Fi Hotspot

Tap > > Settings > Wireless & networks > Tethering &
portable hotspot and clear the Portable Wi-Fi hotspot check box.

Using Browser

You can use your Browser to browse most of the websites. Some web pages
may not be displayed properly as some specific web page technologies,
such as Flash, are not supported by the browser. Your LIGHT will
automatically create an EDGE or GPRS/3G connection for you while
browsing web pages.

Opening Browser

Tap the > > Browser to start this function.

84

Opening Web Pages

In Browser, you can open web pages through the follow ing ways.

1. Tap the address bar to enter the website you want to browse, and tap
Go.

2. Tap the to enter bookmarks screen and select an item to open.

3. Select an item from History tab of bookmarks screen.

Browsing Options

When browsing web pages, you can do some operations.

1. Tap the to refresh the page.

2. Tap the > New tab to open a new tab in the same browser
window.

3. Tap the > New incognito tab to open a new blank tab in the
browser window to prevent the browser from storing information about
your browsing session.

85

4. Tap the > Find on page to enter the search item to view the
search result.

5. Tap the > Share page to send the page by Bluetooth, Email,
Gmail, or Messages.

6. Tap the > Save page to save the page.

7. Tap the > Page info to view the page information.

8. Tap the > Downloads to view and manage the download
information.

9. Tap the > Settings to set the browser.

10.Rotate your device sideways to view the landscape Browser Screen if
you select the Auto-rotate screen check box in Screen settings by
tapping > > Settings > Display.

Open a new browser window

1. Tap the > New tab to open a new browser window in browser.

2. Tap the address bar to enter the website you want to browse.

86

Switch between different browser tab

You can open several web pages in the same window to multiply your
web surfing fun. Touch to open a new tab. To see a web page, just
touch its tab. Touch on the tab to close it.

Open links in web pages

1. Open a web page that contains a link.

2. Tap a link to open the page.
You can also hold on the link to open the shortcut menu:

 Open: Open the web page.
 Open in new tab: Open the web page in a new tab.
 Save link: Download the linked web page to your LIGHT.
 Copy link URL: Copy the link to the clipboard.
 Select text: Select text to copy, share, find web search or select all.

87

Download applications from web pages

1. Open a web page that contains an application link.

2. Tap the link or hold on the link and select Save link to download the
application to your Tablet.

Notes:

Downloaded applications are saved in your microSD card.

Using Bookmarks

You can save your frequently-used pages as bookmarks on your Tablet.

Add a new bookmark

1. Open a web page.

2. Tap the .

3. Enter a name of the bookmark and tap OK.

88

Edit a bookmark

1. Open a Browser window.

2. Tap the .

3. Select an item you want to edit and hold on it until the shortcut menu
pops up.

4. Select Edit bookmark.

5. Edit the name or location, and then tap OK to save it.

Delete a bookmark

1. Open a Browser window.

2. Tap the .

3. Select an item you want to delete and hold on it until the shortcut
menu pops up.

4. Select Delete bookmark and tap OK to confirm the deletion.

89

Browser Settings

You can set the Browser text size, home pag e etc. by tapping the >
Settings from a browser window.

General
Set homepage: Select to edit the home page web site.
Sync with Google Chrome: Share bookmarks & other data between

Android browser and Google Chrome.

Form auto-fill: fill out web forms in a single click.
Auto-fill data: Enter and save data for auto-filling web from fields.
Privacy & security
Page content settings
Privacy & security

• Clear cache: Delete all the cached page contents.

• Clear history: Clear the browser navigation history.

90

• Show security warnings: Select to show warnings if there is a
problem with a site’s security.

• Accept cookies: Select to allow sites to save and read cookies.

• Clear all cookie data: Clear the browser cookies.

• Remember form data: Select to remember the data you type in

forms for later use.

• Clear form data: Clear the saved form data.

• Enable location: Select to allow sites to request access to your location.

• Clear location access: Select to clear access for all websites.

• Remember passwords : Select to save usernames and passwords

for web sites.

• Clear passwords: Clear the saved passwords.

Advanced settings

• Set search engine: Select a search engine.

91

• Open in background: Select to open new windows behind the
current one.

• Enable JavaScript: Select to enable JavaScript.

• Enable plug-ins: Select to enable plug -ins.

• Website settings: Advanced settings for individual websites.

• Text size: Adjust the browser text size.

• Default zoom: Set the browser default zoom.

• Open pages in overview : Select to show overview of newly opened

pages.

• Auto-fit pages: Select to format the web pages to fit the screen.

• Block pop-up: Select to block pop-up windows.

• Load images: Select to show the images of web pages.

• Text encoding: Select a text encoding type.

• Reset to default: Clear all browser data and reset all settings to

default.

92

Labs

• Quick controls: Swipe thumb from left or right edge to access quick
controls and hide application and URL bars.

• Most-visited homepage: Your homepage displays your most -visited
webpages.

• Google Instant: Use Google Instant when you use Google Search.

Bluetooth

Bluetooth is a short-range wireless communication technology. Wireless
devices with Bluetooth capabilities can exchange information within a
distance of about 10 meters without any physical connection. The
Bluetooth devices must be paired before the communication is
performed.

Turning on/off Bluetooth

1. Tap the > > Settings > Wireless & networks.

93

2. Select the Bluetooth chec
k box to turn Bluetooth on.

The icon will be displayed in the status bar. If you want to turn
Bluetooth off, clear the Bluetooth check box.

Notes:

By default, Bluetooth is turned off. If you turn it on, and then turn off your
device, Bluetooth is also turned off. When you turn on your device again,
Bluetooth turns on automatically.

Making your device visible

Other devices with Bluetooth capabilities can detect your LIGHT,
establish a partnership, or use a Bluetooth service.

1. Tap the > > Settings > Wireless & networks >

Bluetooth settings.

2. Select the Bluetooth check box if needed.

3. Select the Discoverable check box to make your device visible.

94

4. Select the Discoverable timeout to set how long device will be
discoverable.

Change your device name

1. Tap the > > Settings > Wireless & netw orks >
Bluetooth settings.

2. Select the Bluetooth check box if needed.

3. Tap Device name.

4. Enter the name and tap OK.

Pair with another Bluetooth device

You can pair your device with another device that has Bluet ooth
capabilities. Once you do this, the two devices must have Bluetooth
turned on but do not need to be visible for you to exchange information
between them.

95

1. Tap the > > Settings > Wireless & networks >

Bluetooth settings.

2. Tap Find nearby devices.
Your Tablet will display all reachable Bluetooth devices in the Found

devices section.

3. Tap the device you want to pair with.

4. If necessary, type your PIN to pair and tap OK.

Tips: The same PIN should be entered on the other device.

96

Experiencing Multimedia

Camera

Your Tablet comes with a 3.2–megapixel camera that lets you capture
sharp pictures.

Opening Camera

Tap the > > Camera to open the camera.
Notes:

You can switch from the camera to the camcorder quickly: Drag the

switch up.

Tap to change to front camera or back camera.

Taking Pictures

Aim the camera at the subject and then tap to take the shot.

97

After you take the photo, tap the picture at the bottom of right corner
(portrait mode) of your Camera Screen to open the gallery. Tap the photo
to open it.

• Tap to start a slideshow.

• Tap to send the photo in a messaging, transfer it using Bluetoo th

wireless, or post it online.

• Tap to delete the photo.

• Tap to see details, rotate, crop or set as a contact photo or

wallpaper.

Camera Settings

Tap to adjust the camera settings, like picture size.
Tap to select the scene mode.
Tap to select color effect.
Tap to adjust the white balance.
Tap / to zoom in or zoom out the image.

98

Camcorder

Camcorder enables you to shoot video clips.

Opening Camcorder

Tap the > > Camcorder to open the camcorder.
Notes:

You can switch from the camcorder to the camera quickly:

 Drag the switch down.

Shooting Videos

1. Tap to start shooting.

2. Tap to stop shooting.

After you take the photo, tap the picture at the bottom of right corner
(portrait mode) of your Camera Screen to open the gallery. Tap the photo
to open it.

99

• Tap to start a slideshow.

• Tap to send the photo in a messaging, transfer it usi ng Bluetooth

wireless, or post it online.

• Tap to delete the photo.

• Tap to see details.

Camera Settings

Tap to adjust the camera settings, like video duration.
Tap to set video quality.
Tap to select color effect.
Tap to adjust the white balance.
Tap / to zoom in or zoom out the image.

Music

You can play digital audio files from your memory card in Music.

100

Opening Music

You need to copy the audio files you want to play to your memory card
first.

1. Tap the > > Music to open Music Screen.

2. Select a file to open.

Playing Music

1. Tap the list heading to see your music grouped your way -like by
Artist, by Albums, or Songs.

2. Tap a song from the list to start playing.

Notes:
Press the Volume Keys to adjust the volume.

Creating Playlists

You can create some playlists to organize your music files.
