Zte Roamer User Manual

1

Roamer

User Manual

2

3

Contents

For Your Safety ...................................................... 10

General Safety .............................................................. 10

Radio Frequency (RF) Energy ...................................... 11

FCC Compliance ........................................................... 13

Distraction ..................................................................... 17

Driving ..................................................................... 17

Operating Machinery ............................................... 17

Product Handling .......................................................... 17

General Statement on Handling and Use ................ 17

Small Children ......................................................... 18

Demagnetization ..................................................... 19

Electrostatic Discharge (ESD) ................................. 19

Antenna ................................................................... 19

Normal Use Position ................................................ 20

Air Bags ................................................................... 20

Seizures/ Blackouts ................................................. 21

Repetitive Motion Injuries ........................................ 21

Emergency Calls ..................................................... 21

Loud Noise .............................................................. 21

Phone Heating ......................................................... 22

Electrical Safety ............................................................ 22

Accessories ............................................................. 22

Connection to a Car ................................................ 22

Faulty and Damaged Products ................................ 22

Interference ................................................................... 23

4

General Statement on Interface ............................... 23

Pacemakers ............................................................. 23

Hearing Aids ............................................................ 23

Medical Devices ....................................................... 23

Hospitals .................................................................. 24

Aircraft ...................................................................... 24

Interference in Cars ................................................. 24

Explosive Environments ................................................ 25

Petrol Stations and Explosive Atmospheres ............ 25

Blasting Caps and Areas ......................................... 25

Overview ........................................................................ 26

Keys Explained .............................................................. 27

Starting up ..................................................................... 28

Installing the SIM/microSD Card and Battery .......... 28

Removing the Battery and SIM/microSD Card ........ 30

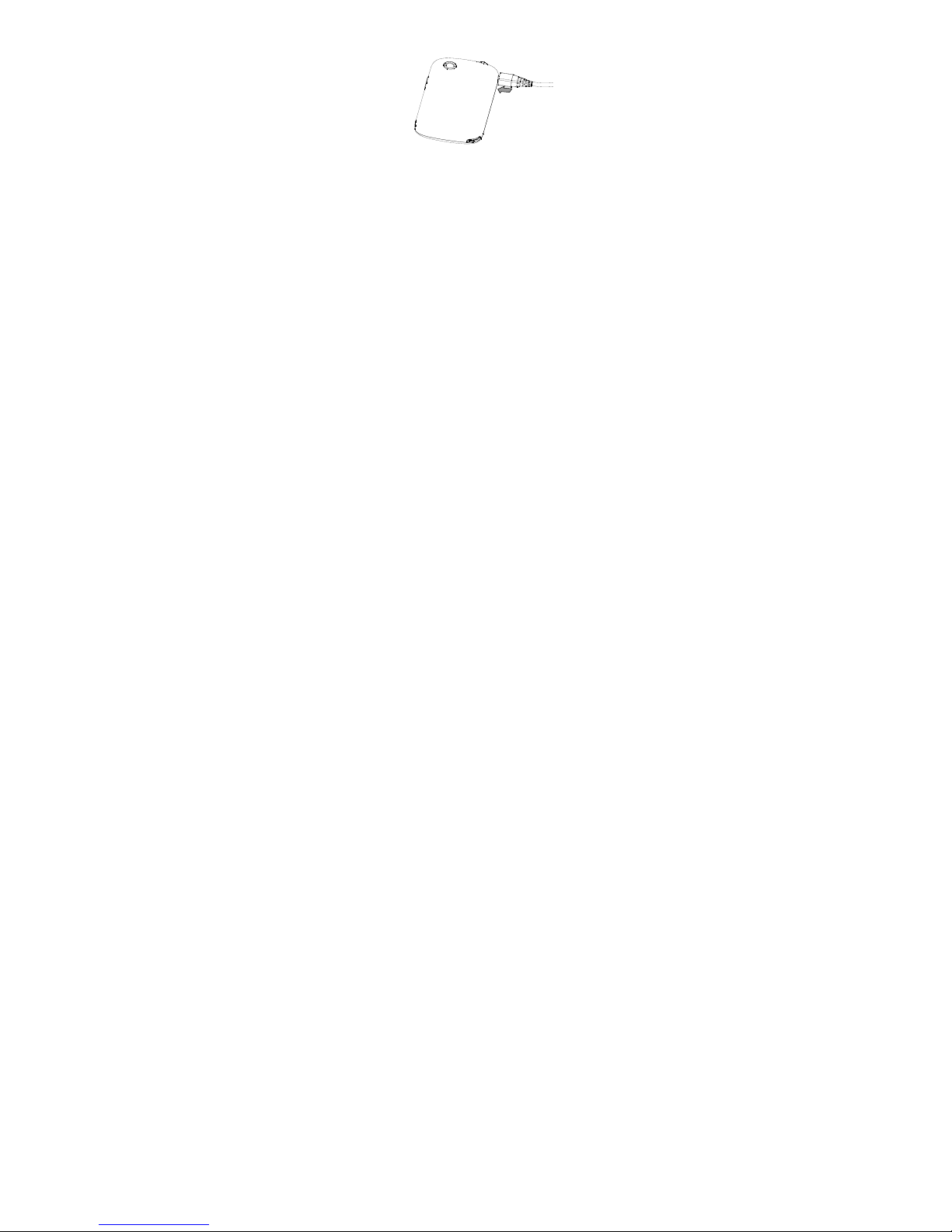

Charging the Battery ................................................ 30

Switching Your Phone On/Off ........................................ 31

Setting Up Your Phone for the First Time ................ 31

Switching to Sleep Mode ......................................... 32

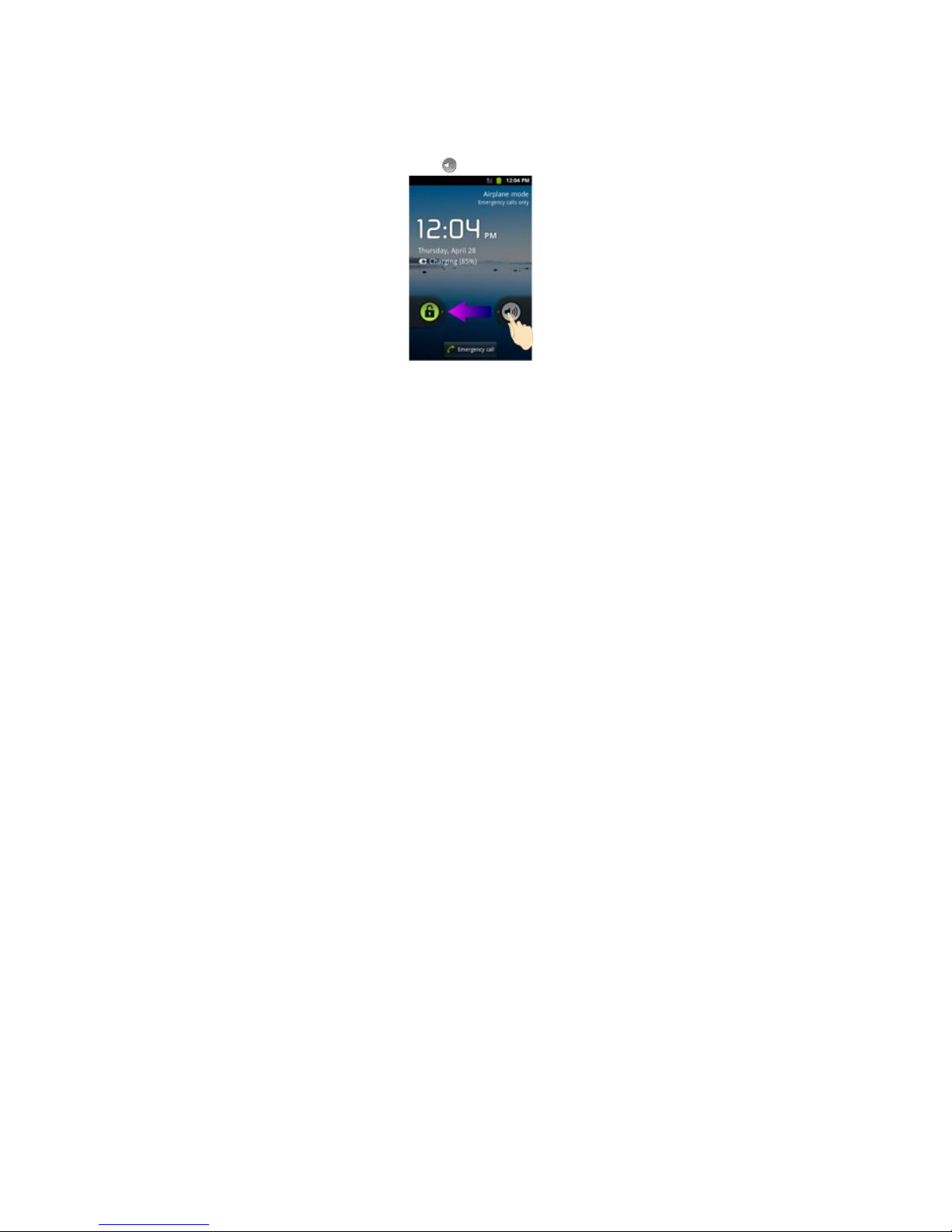

Waking up Your Phone ............................................ 32

Getting Around .............................................................. 33

Touch Control .......................................................... 33

Home Screen ........................................................... 34

Status and Notification Icons ................................... 36

5

Phone Calls ............................................................ 40

How to Make Calls ........................................................ 40

Calling from the Dialer ............................................. 40

Calling from Your Contacts ..................................... 40

Calling from Your Call History ................................. 40

Calling from a Text Message ................................... 41

Using Speed Dial ..................................................... 41

How to Receive Calls .................................................... 42

Answering a Call ..................................................... 42

Rejecting a Call ....................................................... 42

Muting a Call ........................................................... 42

Putting a Call on Hold .............................................. 42

Turning the Speakerphone On/Off .......................... 43

Ending a Call ........................................................... 43

Adjusting Your Call Settings ......................................... 43

Contacts ................................................................. 45

Importing and Exporting Contacts ................................. 45

Import Contacts from the SIM Card or Export to the

Card ......................................................................... 45

Import Contacts from the microSD Card or Export to

the Card ................................................................... 46

Sharing Contacts Information ....................................... 46

Creating a Contact ........................................................ 46

Adding a Contact to Favorites ....................................... 47

Searching for a Contact ................................................ 47

Creating a New Group .................................................. 47

6

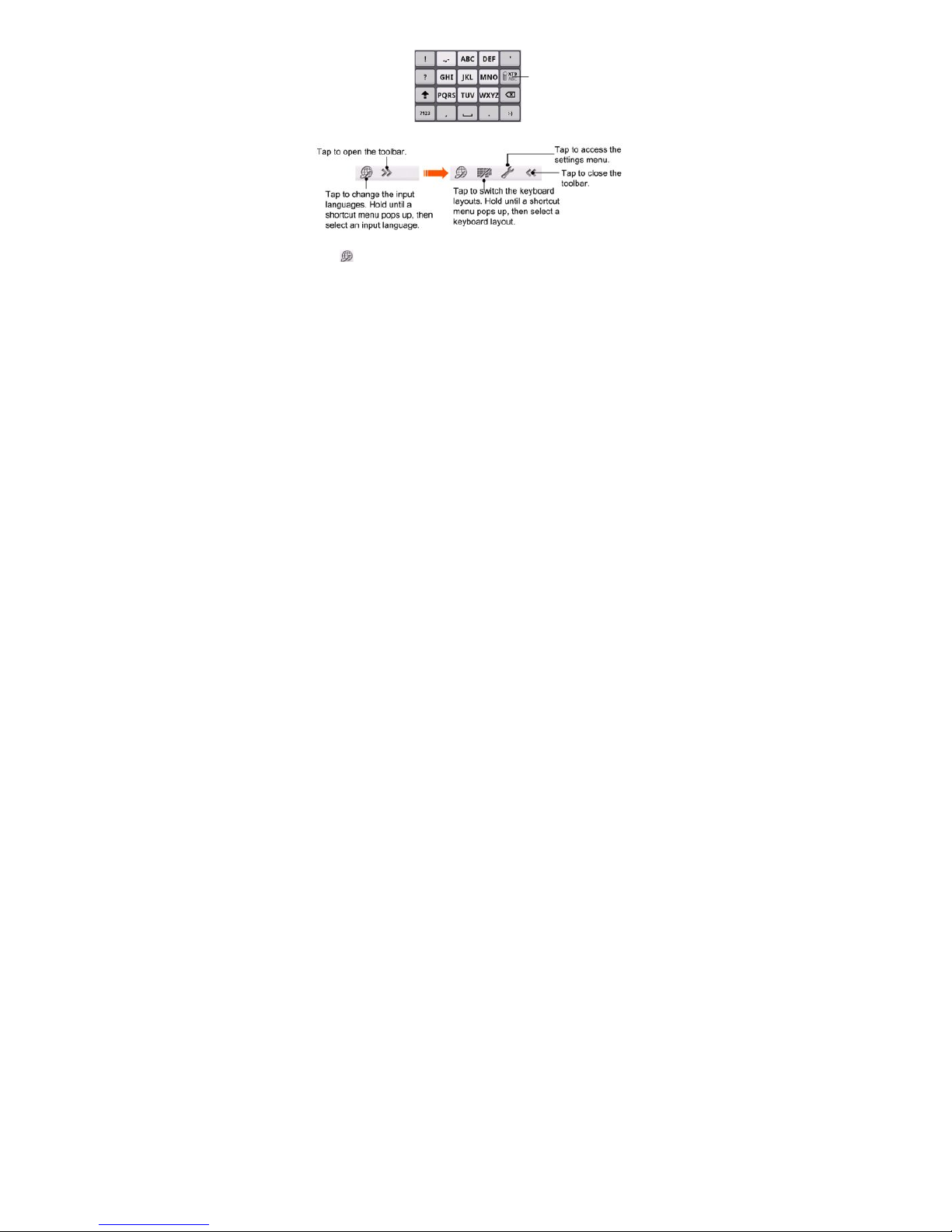

Android Keyboard .......................................................... 49

XT9 Text Input ............................................................... 50

Choosing Touch Input Settings ..................................... 53

The Message Box .......................................................... 54

Sending an Message ..................................................... 54

Changing Message Settings .......................................... 55

Creating an Email account ............................................ 57

Receiving Emails ........................................................... 58

Composing and sending an Email ................................. 58

Replying to or Forwarding an Email .............................. 59

Deleting an Account ...................................................... 59

Email Settings ................................................................ 59

Adding a New GPRS/EDGE/3G Connection ................. 61

Turning on Wi-Fi ............................................................ 62

Connecting to a Wi-Fi Network ...................................... 62

Checking the Wi-Fi Network Status ............................... 62

Using the Phone as a Modem ....................................... 63

Enabling the Phone as a Modem ............................. 63

Disabling the Modem Function ................................ 64

Using the Phone as a Wi-Fi Hotspot ............................. 64

Enabling the Wi-Fi Hotspot ...................................... 65

7

Disabling the Wi-Fi Hotspot ..................................... 65

Browsing the Internet ............................................ 66

Browsing Options .......................................................... 66

Using Bookmarks .......................................................... 67

Editing a Bookmark ................................................. 67

Deleting a Bookmark ............................................... 67

Changing Browser Settings .......................................... 68

Bluetooth® .............................................................. 69

Using Bluetooth ............................................................. 69

Making the Most of Multimedia ............................ 70

Taking Pictures with Your Camera ............................... 70

Adjusting Camera Settings ...................................... 70

Shooting Video with Your Camcorder ........................... 70

Adjusting Your Video Settings ................................. 71

Playing Your Music ....................................................... 71

Creating Playlists ..................................................... 72

Managing Playlists .................................................. 72

Setting a Song as Ringtone ..................................... 73

Playing Your Videos ...................................................... 73

Opening Your Gallery ................................................... 74

Making Memorable Memos ........................................... 74

Using Your Google™ Applications ...................... 76

Gmail ............................................................................. 76

Using Google Calendar ................................................. 77

Using Google Talk ........................................................ 77

8

Opening Google Talk ............................................... 77

Adding a New Friend ............................................... 77

Changing Your Online Status .................................. 78

Starting a Chat ......................................................... 78

Places ............................................................................ 78

Latitude .......................................................................... 79

Setting Time and Date ................................................... 80

Changing Display Settings ............................................ 80

Sound Settings .............................................................. 80

Language Settings ......................................................... 81

Mobile Network Services ............................................... 82

Security Settings ............................................................ 82

Protecting Your Phone with a Screen Unlock Pattern

................................................................................. 82

Protecting Your Phone with a PIN or Password ...... 83

Disabling Screen Unlock Security ............................ 84

Protecting Your SIM with a PIN ............................... 84

Setting up Credential Storage .................................. 85

Managing Your Device Memory .................................... 86

Privacy: Reset to Factory Settings ................................ 86

Managing Applications .................................................. 87

How to Install an Application .................................... 87

Managing Other Settings ............................................... 88

Search Settings ........................................................ 88

Voice Interaction ...................................................... 88

9

Accessibility ............................................................. 89

AT&T Software Update ........................................... 89

About phone ............................................................ 89

Other Applications ................................................ 90

Alarms ........................................................................... 90

Docs To Go ................................................................... 90

Note Pad ....................................................................... 90

Calculator ...................................................................... 90

SIM Toolkit .................................................................... 91

Task Manager ............................................................... 91

Stopwatch ..................................................................... 91

AT&T Mobile Care ........................................................ 92

Specifications ........................................................ 93

10

Don’t make or receive
handheld calls while
driving. And never text
while driving.

Don’t use at petrol
stations.

Keep your phone at
least 15mm away from
your ear or body while
making calls.

Your phone may produce
a bright or flashing light.

Small parts may cause
a choking.

Don’t dispose of your
phone in fire.

Your phone can
produce a loud sound.

Avoid contact with
anything magnetic.

Keep away from
pacemakers and other
electronic medical
devices.

Avoid extreme
temperatures.

Switch off when asked
to in hospitals and
medical facilities.

Avoid contact with
liquids. Keep your phone
dry.

Switch off when told to
in aircrafts and airports.

Don’t take your phone
apart.

11

Switch off when near
explosive materials or
liquids.

Only use approved
accessories.

Don’t rely on your phone for emergency communications.

Radio Frequency (RF) Energy

This model phone meets the government’s requirements for
exposure to radio waves.

This phone is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy
set by the Federal Communications Commission of the U.S.
Government:

The exposure standard for wireless mobile phones employs
a unit of measurement known as the Specific Absorption
Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.
*Tests for SAR are conducted using standard operating
positions accepted by the FCC with the phone transmitting at
its highest certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified
power level, the actual SAR level of the phone while
operating can be well below the maximum value. This is
because the phone is designed to operate at multiple power
levels so as to use only the poser required to reach the
network. In general, the closer you are to a wireless base

12

13

FCC Compliance

This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.

Caution: Changes or modifications not expressly approved
by the manufacturer could void the user’s authority to
operate the equipment.

NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and

receiver.

14

from that to which the receiver is connected.

for help.

15

compatible with their hearing devices. Not
all phones have been rated. Phones that
have been rated have a label on the box.
Your F450 has been tested for hearing aid
device compatibility and has an M3 and/or
T3 rating.
These ratings are not guaranteed. Results
will vary, depending on the level of immunity
of your hearing device and the degree of
your hearing loss. If your hearing device
happens to be vulnerable to interference,
you may not be able to use a rated phone
successfully. Trying out the phone with your
hearing device is the best way to evaluate it
for your personal needs.
M-Ratings: Phones rated M3 or M4 meet
FCC requirements and are likely to generate
less interference with hearing devices than
phones that are not labeled. M4 is the
better/higher of the two ratings.

16

17

telecommunications services, please go to
www.fcc.gov/cgb/dro.

Distraction

Driving

Full attention must be given to driving at all times in order to
reduce the risk of an accident. Using a phone while driving
(even with a hands free kit) can cause distraction and lead to
an accident. You must comply with local laws and
regulations restricting the use of wireless devices while
driving.

Operating Machinery

Full attention must be given to operating the machinery in
order to reduce the risk of an accident.

Product Handling

General Statement on Handling and Use

You alone are responsible for how you use your phone and
any consequences of its use.

You must always switch off your phone wherever the use of a
phone is prohibited. Use of your phone is subject to safety

18

and keep it in a clean and dust-free place.

19

They could hurt themselves or others, or could accidentally
damage the phone.

Your phone contains small parts with sharp edges that may
cause an injury or may become detached and create a
choking hazard.

Demagnetization

To avoid the risk of demagnetization, do not allow electronic
devices or magnetic media close to your phone for a long
time.

Electrostatic Discharge (ESD)

Do not touch the SIM card’s metal connectors.

Antenna

Do not touch the antenna unnecessarily.

GPS antenna

Bluetooth antenna

Antenna

20

21

Seizures/ Blackouts

The phone can produce a bright or flashing light.

Repetitive Motion Injuries

To minimize the risk of RSI when texting or playing games
with your phone:

Do not grip the phone too tightly.

Press the buttons lightly.

Use the special features which are designed to minimize the
times of pressing buttons, such as Message Templates and
Predictive Text.

Take lots of breaks to stretch and relax.

Emergency Calls

This phone, like any wireless phone, operates using radio
signals, which cannot guarantee connection in all conditions.
Therefore, you must never rely solely on any wireless phone
for emergency communications.

Loud Noise

This phone is capable of producing loud noises, which may
damage your hearing. Turn down the volume before using
headphones, Bluetooth stereo headsets or other audio
devices.

22

23

Interference

General Statement on Interface

Care must be taken when using the phone in close
proximity to personal medical devices, such as pacemakers
and hearing aids.

Pacemakers

Pacemaker manufacturers recommend that a minimum
separation of 15 cm be maintained between a mobile phone
and a pacemaker to avoid potential interference with the
pacemaker. To achieve this, use the phone on the opposite
ear to your pacemaker and do not carry it in a breast pocket.

Hearing Aids

People with hearing aids or other cochlear implants may
experience interfering noises when using wireless devices or
when one is nearby.

The level of interference will depend on the type of hearing
device and the distance from the interference source,
increasing the separation between them may reduce the
interference. You may also consult your hearing aid
manufacturer to discuss alternatives.

Medical Devices

Please consult your doctor and the device manufacturer

24

25

Explosive Environments

Petrol Stations and Explosive Atmospheres

In locations with potentially explosive atmospheres, obey all
posted signs to turn off wireless devices such as your phone
or other radio equipment.

Areas with potentially explosive atmospheres include fuelling
areas, below decks on boats, fuel or chemical transfer or
storage facilities, areas where the air contains chemicals or
particles, such as grain, dust, or metal powders.

Blasting Caps and Areas

Power off your mobile phone or wireless device when in a
blasting area or in areas posted power off “two-way radios”
or “electronic devices” to avoid interfering with blasting
operations.

26

Volume +

Volume -

Headset Jack

Power Key

Touch
Screen

Earpiece

Back Key

Menu Key

Home Key

Speaker

27

Keys Explained

Key

Function

Power Key

Hold to turn on or off Silent or Airplane mode,
or to power off.
Press to switch your phone to Sleep mode.
Press to wake up your phone.

Home Key

Press to return to the Home Screen from any

Charger/
USB Jack

Camera

Back
Cover

Thumb
catch

28

Key

Function

application or screen.
Hold to see recently used applications.

Menu Key

Press to get the options for the current
screen.

Back Key

Press to go to the previous screen.

Volume Keys

Press Volume + to turn the volume up.
Press Volume - to turn the volume down.

29

slip it into the card holder.

3. Open the microSD card holder, hold your microSD card
by the cut corner end and slide it in.

microSD logo is a trade mark of the SD Card
Association.

4. Insert the battery by aligning the gold contacts on the

30

battery with the gold contacts in the battery compartment.
Gently push down on the battery until it clicks into place.

1

2

click.

down gently and remove it.

adapter is inserted with the correct orientation. Do not

31

force the connector into the charger jack.

2. Connect the charger to a standard AC wall outlet.

3. Disconnect the charger when the battery is fully charged.

Switching Your Phone On/Off

Make sure the SIM is in your device and the battery is
charged.

• Hold Power Key to switch on your phone.

• To switch it off, hold Power Key to get the phone options.

Select Power off, and then tap OK.

Setting Up Your Phone for the First Time

When you first power on your phone after you purchase it or
reset it to factory settings (see Sorting out Your Phone
Settings – Privacy: Reset to Factory Settings), you need to
do some settings before using it.

1. Tap Change language to change the language you want

32

to use, if needed.

You can also tap Skip to set up an account later.

icon to the right.

33

Getting Around

Touch Control

You can use finger gestures to control your phone. The
controls on your touch screen change dynamically
depending on the tasks you’re performing.

1. Tap the buttons, icons, or applications to select items or
to open applications.

2. Keep your finger on an item to see the available options.

3. Flick the screen to scroll up, down, left or right.

4. Point, drag and drop to move particular items across the
screen.

5. Pinch with two fingers, or double-tap the screen, to zoom
in/out on a web page or an image.

NOTE: You can view the phone screen in portrait or
landscape orientation simply by holding it upright or turning it
on its side.

34

Status &
Notifications

Widget

Tap to open

the dialer.

Tap to open the
main menu.

Tap to open the
web browser.

Wallpaper

Shortcut

35

Choosing Your Wallpaper

6. Tap Home Key to return to the Home Screen.

7. Tap Menu Key and select Wallpaper.

8. Tap Gallery, Live wallpapers, or Wallpapers and
choose the image or animation you want to use as
the wallpaper. Some cropping may be needed for
Gallery images.

9. Tap Save or Set wallpaper.

Adding Things to Your Home Screen

1. Tap Home Key to return to the Home Screen.

2. Slide left or right to find a part of the Home Screen with
free space.

3. Tap Menu Key and select Add.

You can also tap and hold the blank area of the Home
Screen to get the Add to Home screen menu.

4. Select a category, either shortcuts, widgets, or folders.

5. Choose the item you want to add to the Home Screen.

Removing Things from Your Home Screen

1. Tap Home Key to return to the Home Screen.

2. Tap and hold the item you want to delete until the
icon appears on the screen.

3. Drag the item to and release your finger when the
item turns red.

36

GPRS connected

No signal

GPRS in use

Signal strength

EDGE connected

Roaming

EDGE in use

Phone speaker off

3G connected

Phone microphone off

37

3G in use

No SIM installed

USB connected

GPS on

Battery flat

Recording phone call

Battery very low

microSD card removed

Battery low

Preparing microSD card

Battery partially
drained

Connected to a Wi-Fi network

Battery full

Alarm set

Battery charging

Wired microphone headset

Syncing

Bluetooth on

Vibrate mode

Speaker on
Airplane mode

Problem with SMS/MMS delivery

38

New mail

New instant message

New SMS/MMS/
voicemail

Upcoming event

New Gmail message

Song is playing

Missed call

Downloading data

Call in progress

Content downloaded and
installed successfully

Call on hold

Sending data

Call forwarding

USB tethering is on

More (not displayed)
notifications

Portable Wi-Fi hotspot is on

Error or warning

New Wi-Fi network detected

39

Using the Notification Panel

Flick the status bar downwards from across the top of the
screen to open the Notification Panel, where you can see
your calendar events, new messages, and current settings
– such as call forwarding or call status. From here you can
also open new messages, reminders, etc.

TIPS: You can also open the Notification Panel by tapping
Menu Key > Notifications from the Home Screen.

Re-open Recently-used Applications

1. Hold Home Key from any screen. The phone will display
icons of applications you used recently.

2. Tap the application you want to open.

40

Screen.

Tap to delete wrong digits.

contact you want to call.

You can search for a contact by tapping Menu Key >
Search and entering the contact name.

41

2. Tap next to the number you want to call.

Calling from a Text Message

If a text message contains a phone number that you want to
call, you can make the call while viewing the text message.

1. Tap Home Key > > Messaging.

2. Tap the conversation and then the message that contains
the phone number you need.

3. Tap the number.

4. Tap .

Using Speed Dial

Press and hold 1 - 9 key from the dialer to call the
corresponding speed dial number.

The number key 1 is reserved to speed dial your voicemail.

Assigning a speed dial key:

1. Tap Menu Key > Settings > Call settings > Speed dial

from the Home Screen.

2. Tap a speed dial key.

3. Enter a phone number or tap to select one from the

contact list.

4. Tap OK.

42

43

Key > Swap calls to switch between the two callers.

Turning the Speakerphone On/Off

Tap Speaker during a call to turn the speakerphone on. This
icon will appear in the status bar. Tap Speaker again to
turn off the speakerphone.

Ending a Call

Tap to finish a call.

Adjusting Your Call Settings

From the Home Screen, you can open the call settings menu
by going from Menu Key > Settings > Call settings.

Fixed dialing
numbers

Restrict outgoing calls to a fixed set of numbers.
To do this you must know your SIM’s PIN2 code.

Voicemail service

Select a voicemail service provider.

Voicemail settings

Specify a voicemail number.

TTY mode

Set up TTY mode for users with hearing or
speech difficulties.

Hearing aids

Turn on or off hearing aid compatibility.

Speed dial

Set speed dialing keys and numbers.

Call barring
settings

Forbid certain types of calls.

44

Call forwarding

Forward your incoming calls to a different
number. And choose when to forward: Always

forward; Forward when busy; Forward when
unanswered, or Forward when unreachable.

Additional settings

Caller ID

Choose whether people you call
can see your number.

Call waiting

See new incoming calls while
you’re on another call.

Accounts

Set up Internet calling (SIP) accounts.

Use Internet
calling

Choose when to use the Internet calling function.

45

Contacts

You can add contacts on your phone and synchronize them with
the contacts in your Google account or other accounts that
support contact syncing.

To see your contacts, tap Home Key > > Contacts.
From there, you can tap the tabs on the top to quickly switch
to dialer, call log, favorite contacts, or contact groups.

Importing and Exporting Contacts

You can import or export contacts from/to your SIM card or
microSD card. This is especially useful when you need to
transfer contacts between different devices.

Import Contacts from the SIM Card or Export
to the Card

1. Tap Menu Key > Import/Export from the Contacts
Screen.

2. Choose to import or export contacts. Your phone will
automatically display the contacts.

3. Tap the contacts you want to import or export. Or, just tap
Menu Key > Select all.

4. Tap OK.

46

Screen.

• For export, the phone will prompt you with the name of

the vCard file. Tap OK to create the file in the microSD
card.

• For import, you should have vCard files saved in the
microSD card. If there’s more than one vCard file, you
need to select the vCard file and tap OK.

contacts from the Contacts Screen. Your phone will
export all information of the contacts in the Contact
Screen to a temporary vCard file.

either send it via Bluetooth to another device, or as an
attachment in an MMS, an Email or a Gmail message.

Screen.

47

2. Tap Contact type to choose where to save the contact.

3. Enter the contact name and phone numbers, emails, IM
accounts, postal addresses, etc.

4. Tap Done to save the contact.

Adding a Contact to Favorites

1. In the Contact Screen, tap and hold the contact you want to
add to Favorites.

2. Tap Add to favorites from the pop-up menu.

TIPS: You can also tap a contact and then tap next to
the contact’s name to add it to Favorites.

Searching for a Contact

1. Tap at the bottom of the Contacts Screen.

2. Input the contact name you want to search for.

The contacts matched will be listed.

Creating a New Group

3. Tap the Groups tab from the Contacts Screen.

4. Tap the Add Group icon at the bottom of the screen.

5. Enter the group name and tap OK.

6. Tap the new group and tap to add group members.

7. Tick the check boxes next to the contacts you want. Then

48

tap OK.

49

Entering Text

When you enter a field that needs text or numbers, a
keyboard automatically appears on the screen. Hold the input
box and select Input method from the pop-up menu to
change input method.

Android Keyboard

The Android Keyboard provides a layout similar to a desktop
computer keyboard. Turn the phone sideways and the
keyboard will change from portrait to landscape.

To use the landscape keyboard, just tick the Auto-rotate
screen check box in Settings > Display. (The landscape
QWERTY keyboard is not supported in all applications.)

• Tap the alphabetic keys to enter letters. Tap and hold the
keys to enter associated accented letters or numbers. For
example, to enter è, tap and hold and the available
accented letters and number 3 appear. Then slide to

50

choose è.

changes to indicate the current case you are using:
for lowercase, for uppercase, and when locked
in uppercase.

tap to find more. Also, often used symbols are
displayed on top of the keyboard. Flick left or right to find
the one you need and tap to enter.

to choose more emoticons.

keyboard.

51

• Keyboard

Move your finger from letter to letter to trace a word without
lifting the finger until you reach the end of the word.

The trace feature is also available in the Reduced keyboard
layout and Phone keypad layout.

• Reduced keyboard

Tap to switch between
uppercase and
lowercase. Tap twice to
lock on uppercase.

Tap to select digits
and symbols.

Tap or hold to input
emoticons.

Delete text before
the cursor.

Move your finger on
the letters without
lifting it up.

Start of the word

End of the word

Hold to switch between
multi-tap and predictive
text input.

52

for you automatically.

automatically when you begin to trace the next word.

Hold to switch between
multi-tap and predictive
text input.

53

Choosing Touch Input Settings

Choose the touch input settings by tapping Menu Key >
Settings > Language & keyboard from Home Screen.

In the Keyboard settings section, you can choose the
settings for Android keyboard and XT9.

54

matching contacts will appear. Tap a suggested contact
to add as a recipient.

• Tap Menu Key to insert Quick Text, signature, smiley,

or contact.

55

• If you are sending an MMS, tap Menu Key to attach

pictures, videos, audio, or slideshows.

5. Tap Send to send your text.

NOTE: Add an attachment to text message and it will be
converted into an MMS automatically. Likewise if you remove
all attachments from an MMS, it’ll automatically become a
text message.

Changing Message Settings

The phone’s message settings are pre-configured for you to
use immediately. To change them, tap Menu Key > Settings
from the Messages Screen.

Storage settings:

Delete old messages: Select to delete old messages when

your storage limits are reached.

Text message limit: Set the maximum number of text
messages allowed in a single thread.

Multimedia message limit: Set the maximum number of
multimedia messages allowed in a single thread.

Text message (SMS) settings:

Manage SIM card messages: Manage the messages saved

in your SIM card.

Service Center: Enables you to view and edit the service
center number.

56

57

Email

Tap Home Key > > Email. You can enter the Email
Screen to setup your Email account and exchange Emails.

Creating an Email account

1. When you open Email for the first time, enter your Email
address and password. Then tap Next.

2. Select the type of your account and tap Next.

3. Edit the settings for incoming server and outgoing server.
Then tap Next or Next [Check].

Press Next [Check], and your phone will connect to the
Internet and verify the settings before proceeding to the
next step. Please contact your mobile service provider and
Email service provider for more help.

NOTE: Your phone knows the client settings for lots of
Email service providers. If the Email you use is from those
providers, the phone will automatically configure the
incoming and outgoing settings after you enter your Email
address and password.

4. Set the Email checking frequency, download options,
account name and other settings. Tap Done when you
finish.

Your phone will show the inbox of the Email account and
start to download Email messages.

58

When you enter the address, matching contacts on the
phone will be displayed. Separate each recipient with a
comma.

TIPS: You can also tap Menu Key > Add Cc/Bcc to add
more recipients.

necessary, change the email priority.

Tap Menu Key > More > Add attachment to add files to
the Email.

59

Replying to or Forwarding an Email

1. Open the Email you want to reply to or forward from Inbox
Screen.

2. Tap Reply or Menu Key > Forward to reply to/forward
the Email.

You can also tap Reply all to reply to all recipients of the
Email.

3. Enter the contents/recipients of your Email.

4. Tap Send.

Deleting an Account

1. Open the Email application. If there is only one account,
tap Menu Key > More > Accounts to get the Accounts
list.

2. Tap and hold the account you want to delete and select
Remove account from the pop-up menu.

3. Tap OK to confirm. All Email messages in the account will
be deleted.

Email Settings

Tap the account you want to set from the Accounts Screen and
tap Menu Key > More > Account settings. You can get the
settings for the Email account. You can also tap Menu Key >
More > System setting to set up storage, exchange and other

60

61

Getting Connected to the Internet

Your phone’s impressive networking capabilities allow you to
access the Internet or your corporate network with ease.

You can use default connection settings to connect to the
web via your mobile network (GPRS/EDGE/3G), or Wi-Fi.

The GPRS/EDGE/3G connection can be enabled/disabled
manually. Just select > Settings > Wireless &

networks > Mobile networks from the Home Screen and
tick or clear the Data enabled check box.

Adding a New GPRS/EDGE/3G
Connection

To get connected via GPRS/EDGE/3G you need a data plan
with your service provider. Also if the GPRS/EDGE/3G
settings are not pre-configured on your phone, please
contact your provider to get the necessary information.

1. Tap Home Key > > Settings > Wireless &
networks > Mobile networks > Access Point Names.

2. Tap Menu Key > New APN.

3. Tap each item to enter the information you get from your
provider.

4. Tap Menu Key > Save to complete.

TIPS: To set the APN to default settings, tap Menu Key >
Reset to default.

62

networks.

networks > Wi-Fi settings.

The Wi-Fi access points, or “hotspots”, that your phone
has detected are displayed with their names and
security settings.

63

Using the Phone as a Modem

You can access the Internet on your PC via your phone as a
modem. Note the function may result in data charges from
your mobile phone carrier. Please contact them for detail.

Enabling the Phone as a Modem

TIPS:

• Make sure that USB storage is turned off before enabling

the modem function. To turn off USB storage, flick down
the notification panel and tap Turn off USB storage >
Turn off USB storage.

• The PC accesses the Internet via the phone’s mobile

network. Therefore, set up the GPRS/EDGE/3G
connection correctly before you try to use the phone as a
modem.

1. When you connect your phone to your PC with the
provided USB cable for the first time, a window will pop up
and prompt you to install the driver.

2. Double click the executable file (.exe) in the window and
follow the prompt to finish the driver installation.

NOTES: If the window doesn’t pop up automatically for
some reason, please open the new CD-ROM drive on
your PC manually and find the executable file to run it.

3. Tap on the phone Home Key > Menu Key > Settings >
Wireless & networks > Tethering & portable hotspot

64

and tick the USB tethering check box. A new network
connection will be created on your PC.

new network connection.

Now you can launch the Internet browser on your PC and
start surfing.

network. Therefore, set up the GPRS/EDGE/3G
connection correctly before you try to use the phone as a
Wi-Fi hotspot.

cannot access the internet with any application on your
phone via its Wi-Fi connection.

65

Enabling the Wi-Fi Hotspot

1. Tap Home Key > Menu Key > Settings > Wireless &
networks > Tethering & portable hotspot and tick the
Portable Wi-Fi hotspot check box.

2. Tap Portable Wi-Fi hotspot settings > Configure Wi-Fi
hotspot.

3. Change the name of the hotspot and its security setting, if
necessary.

The default hotspot is set as an open one. You can tap
Open and choose WPA/WPA2 PSK to set up a password.
The password must have at least 8 characters.

4. Tap Save. Now you can find the hotspot on other devices
and connect to it.

Disabling the Wi-Fi Hotspot

Tap Home Key > Menu Key > Settings > Wireless &
networks > Tethering & portable hotspot and clear the
Portable Wi-Fi hotspot check box.

66

67

search for and select text, share page URL, check page info
or download history, or configure browser settings.

Tap a URL link in a web page to open, bookmark, save,
share the link, or to copy the link URL.

Using Bookmarks

To bookmark a web page, open it and tap or Menu Key >
Bookmarks. Then tap Add or Add bookmark. Give the
bookmark a name and tap OK.

TIPS: You can press Menu Key > List view/Thumbnail
view to change how you view bookmarks on your phone

screen.

Editing a Bookmark

1. Open a Browser window.

2. Tap or Menu Key > Bookmarks.

3. Select an item you want to edit and hold on it until the

shortcut menu pops up.

4. Select Edit bookmark.

5. Edit the name or location, and then tap OK to save it.

Deleting a Bookmark

1. Open a Browser window.

2. Tap or Menu Key > Bookmarks.

3. Select an item you want to delete and hold on it until the

68

69

Bluetooth®

Bluetooth® is a short-range wireless communication
technology. Phones or other devices with Bluetooth
capabilities can exchange information wirelessly within a
distance of about 10 meters. The Bluetooth devices must be
paired before the communication is performed.

Using Bluetooth

1. Tap Home Key > > Settings > Wireless &
networks and tap the check box by Bluetooth to turn on

Bluetooth.

When Bluetooth is on, the icon will appear in the status
bar.

2. Tap Bluetooth settings > Scan for devices. Your
phone will show all visible Bluetooth devices in range.

3. Tap the device you want to pair with and, if required, enter
your PIN and tap OK.

If a PIN is required, the same PIN should be entered on
the other device. Refer to the document for the other
Bluetooth device for information on pairing mode and
PIN.

Tick the Discoverable check box if the other device tries to
pair with your phone.

70

71

stop. Select the picture in the right corner of the screen to
view the video you’ve just shot. Or tap Menu Key > Gallery
to see all your video clips.

Adjusting Your Video Settings

From the Camcorder Screen, tap to adjust color effect,
video quality, video/audio encoder, video duration, and
camcorder reset.

Tap to change white balance setting.

Tap High/Low/MMS/YouTube/ to change video quality,
video/audio encoder, and video duration together.

Playing Your Music

You can play digital audio files from your phone’s memory
card in Music.

1. Tap Home Key > > Music to open the Music
Screen.

2. Select Artists/Albums/Songs/Playlists to find the songs
you want to play.

3. Tap an item from the list to start playing.

4. Adjust the volume with Volume Keys.

72

Information (artist,
album and title) of
the track. Tap and
hold to search for
related information.

Tap to play the
previous track.

Drag or tap to jump to
any part of the track.

Tap to pause or
resume the track.

Tap to play the
next track.

Tap to choose
repeating mode
(repeat off,
repeat all, repeat
the current track)

Tap to turn on/off
shuffle.

Tap to view the
Now playing list.

73

2. Hold on the playlist you want to play or edit until a
shortcut menu pops up.

3. Tap Play, Delete or Rename.

Adding a Song to a Playlist

1. Open Music and find the song you need under Artists,
Albums, Songs, or Playlists.

2. Hold on the song until a shortcut menu pops up.

3. Select Add to playlist.

4. Select a playlist.

Setting a Song as Ringtone

1. Find the music file under Artists, Albums, Songs, or
Playlists.

2. Hold on the song until a shortcut menu pops up.

3. Select Use as phone ringtone.

Playing Your Videos

To play a video file, tap Home Key > > Videos. This will
open the Videos Screen and show the video files saved in
your memory card. Tap a video file to start playing.

74

Tap to return
to Gallery.

Tap to return to the
previous folder

Show the number of
pictures in the folder

Tap to zoom

Tap to view
pictures in
the folder in
a slideshow

75

2. Tap to start recording.

3. Tap to stop recording.

4. Tap to play back the voice recording.

5. Tap OK to save the voice recording, or tap Discard to
delete the recording.

TIPS: You can find your recordings in Home Key > >
Music > Playlists > My recordings.

76

such as Market.

user name and password. Then tap Sign in. (Or tap

Create if you don’t have a Google account.)

setup.

77

the ‘To’ field. If you’re sending the email to several people,
separate the email addresses with commas. You can add
as many recipients as you want.

4. Enter the email subject, and then write your email.

5. Tap Menu Key > Send.

Using Google Calendar

Tap Home Key > > Calendar to use Google Calendar,
Google’s time management application. You can use the
calendar to schedule appointments, including meetings and
other events. Your appointments will be displayed on the
screen as are scheduled. You can also synchronize
appointments to your Google account, which enables you to
manage your schedule online on your PC.

Using Google Talk

Google Talk is Google’s instant messaging program, which
enables you to communicate with other people who also use
it.

Opening Google Talk

Tap Home Key > > Talk.

Adding a New Friend

You can only add people who have a Google Account.

78

message in the text box.

and tick the Use GPS satellites or Use wireless
networks check box.

located. Your location, when found, is shown at the
bottom of the screen.

79

type of business near you will be displayed.
You can also use the Find places search box on the top
to find the business you need.
NOTES: Tap Add to add new business categories.

4. Tap a result you are interested in and check out the
details and reviews about that place. You can also see
the place on Google Maps, find out how to get there, or
give that business a call.

Latitude

Google’s Latitude service is a social tool for sharing your
location information with selected friends.

Tap Home Key > > Latitude to enable Latitude service.

Each time you launch Maps application, your location will be
determined using GPS or the phone network, and your
Latitude status will be updated. You can tap Menu Key >

Latitude in Maps or Home Key > > Latitude to see
your status as well as that of your selected friends.

In Latitude, tap Menu Key to refresh friends status, see them
on Maps, add new friends, or change privacy settings.

You can also turn off Latitude service by tapping Sign out of
Latitude in Privacy settings of Latitude.

80

and date by yourself.

rotate the phone.

automatically turn off.

81

locking the screen.

• Turn to forbid phone ring: Mute the incoming call

ringtone when flip the phone over.

• Phone ringtone / Notification ringtone: Select the

default ringtones for incoming calls and notifications.

• Haptic feedback: Vibrate when pressing soft keys or on

certain user interface interactions.

To quickly switch to silent mode, press Volume - or, if the
screen is locked, drag to the left.

Language Settings

You can change the language of your phone system in two

82

keyboard > Select language.

> Set up screen lock > Pattern.

83

4. With a finger, draw your own pattern and tap Continue.

5. Draw the pattern again and tap Confirm.

6. Press Power Key to lock the screen.

TIPS: Clear the Use visible pattern box if you want to hide
the pattern as you draw it on the screen.

Unlocking the Screen with Your Pattern

1. Press Power Key to wake up the screen.

2. Draw the pattern you set to unlock the screen.

If you make a mistake, your phone will ask you to try again.

Cannot recall your screen unlock pattern?

You have up to five attempts to unlock your phone. If you still
cannot recall the screen unlock pattern, you can tap Forgot
pattern? and enter your Google account user name and
password to reset the screen unlock pattern.

IMPORTANT: You must sign in or create a Google
account on your phone before using the following
method to reset the pattern.

Protecting Your Phone with a PIN or
Password

Creating a PIN or Password

1. Tap Home Key > > Settings > Location & security
> Set up screen lock.

2. Tap PIN or Password.

84

Continue.

icon to the right.

> Change screen lock.

password you have created.

> Set up SIM card lock.

85

2. Tick the Lock SIM card check box.

3. Enter the PIN you’ve been given and tap OK.

Changing Your SIM PIN

You can change the PIN you’ve been given to one easier for
you to remember and harder for others to guess.

1. Tap Home Key > > Settings > Location & security
> Set up SIM card lock.

2. Make sure you already tick the Lock SIM card check box.

3. Tap Change SIM PIN.

4. Enter the old PIN and tap OK.

5. Enter your new PIN and tap OK.

6. Enter the new PIN again and tap OK.

Restoring a Locked SIM Card

Put all your confidential passwords in a safe place for future
use. If you enter the wrong SIM PIN more times than allowed,
your SIM card will be locked and you cannot access the
mobile phone network. Contact your operator for a PIN
Unlock Key (PUK) to restore the SIM card.

Setting up Credential Storage

This lets you select applications to access secure certificates
and other credentials.

Enabling Secure Credentials

1. Tap Home Key > > Settings > Location &

86

security.

credential storage.

security.

remove it without switching the phone off.

87

downloaded applications on your phone will be erased
after the resetting.

Managing Applications

Tap Home Key > > Settings > Applications.

• Manage applications: Manage or remove installed
applications.

• Running services: Check currently running services and
stop them if needed.

• Storage use: View storage used by applications.

• Development: Set options for application development.

Tick the Unknown sources check box if you want to
installed applications from sources other than the Android
Market. Note that you may risk your phone and personal data
by installing such applications.

How to Install an Application

You can install an application from the Android Market
(Home Key > > Market) by selecting the item you want

to download and tapping Install.

You can also install a non-Marketing application if you have
allowed the installation of it. Make sure that you select an
application developed for your device and processor type
before installing it.

1. Copy the application file to the microSD memory card and

88

install the card on your phone.

the application file is.

application and follow it to complete the setup.

89

Accessibility

Configure accessibility options for accessibility-related
applications.

AT&T Software Update

Update the firmware of your phone to the latest available
version. Please pay attention to notes that appear in each
step during the update process.

About phone

Check system updates, phone status and battery use, or
view legal information and software versions.

90

alarm, tap Menu Key > Add alarm.

Repeat, Snooze, Duration, Vibrate, Ringtone, Volume,
Volume crescendo, and Delay.

91

TIPS: Tap Menu Key > Advanced panel to use scientific
calculation.

SIM Toolkit

SIM Toolkit will only appear on the screen if your SIM

provides this function. To use SIM services, insert your SIM
in the phone first.

Tap Home Key > > SIM Toolkit.

Task Manager

Tap Home Key > and select Task Manager to view or
stop applications.

Tap a task in the Task tab to switch to its screen, abort it, or
see its detail. Tap Resource to view real-time allocation of
system resources.

Stopwatch

1. Tap Home Key > > Stopwatch.

2. Tap Start to start timing, Pause to pause time, and
Resume to continue.

3. Reset will take the stopwatch back to 00:00.0.

92

93

Specifications

Dimensions

Approx. 116 mm " 62.5 mm "

12.6 mm

Weight

Approx. 128g (with battery)

Bearer

GSM/WCDMA support

Main display dimension,
resolution

3.5 inches 320*480 (HVGA)

Back
Camera

Sensor type

CMOS

Still image
capture
resolution

5M Pixels with auto focus
Internal memory

ROM: 512MB, RAM: 512MB

Removable memory card

Support microSD card, max.
capacity 32GB

Battery

Capacity

1500mAh

Standby time

Approx. 390 hours (subject to
network status)

Voice talk time

Approx. 170 min (subject to
network status)

WAP browser version

WAP2.0
