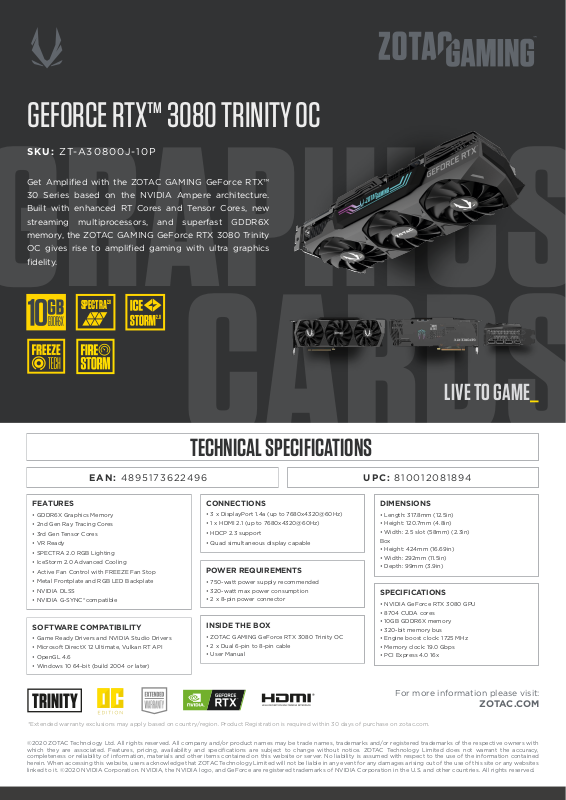

Zotac RTX 3080 Trinity OC User Manual

CARDS

GEFORCE RTX™ 3080 TRINITY OC

SKU: ZT-A30800J-10P

Get Amplified with the ZOTAC GAMING GeForce RTX™
30 Series based on the NVIDIA Ampere architecture.
Built with enhanced RT Cores and Tensor Cores, new
streaming multiprocessors, and superfast GDDR6X
memory, the ZOTAC GAMING GeForce RTX 3080 Trinity
OC gives rise to amplified gaming with ultra graphics
fidelity.

2.0

SPECTRA

6

2.0

EAN: 4895173622496

FEATURES

• GDDR6X Graphics Memory

• 2nd Gen Ray Tracing Cores

• 3rd Gen Tensor Cores

• VR Ready

• SPECTRA 2.0 RGB Lighting

• IceStorm 2.0 Advanced Cooling

• Active Fan Control with FREEZE Fan Stop

• Metal Frontplate and RGB LED Backplate

• NVIDIA DLSS

• NVIDIA G-SYNC®

SOFTWARE COMPATIBILITY

• Game Ready Drivers and NVIDIA Studio Drivers

• Microsoft DirectX 12 Ultimate, Vulkan RT API

• OpenGL 4.6

• Windows 10 64-bit (build 2004 or later)

compatible

TECHNICAL SPECIFICATIONS

UPC: 810012081894

CONNECTIONS

• 3 x DisplayPort 1.4a (up to 7680x4320@60Hz)

• 1 x HDMI 2.1 (up to 7680x4320@60Hz)

• HDCP 2.3 support

• Quad simultaneous display capable

POWER REQUIREMENTS

• 750-watt power supply recommended

• 320-watt max power consumption

• 2 x 8-pin power connector

INSIDE THE BOX

• ZOTAC GAMING GeForce RTX 3080 Trinity OC

• 2 x Dual 6-pin to 8-pin cable

• User Manual

LIVE TO GAME

DIMENSIONS

• Length: 317.8mm (12.5in)

• Height: 120.7mm (4.8in)

• Width: 2.5 slot (58mm) (2.3in)
Box

• Height: 424mm (16.69in)

• Width: 292mm (11.5in)

• Depth: 99mm (3.9in)

SPECIFICATIONS

• NVIDIA GeForce RTX 3080 GPU

• 8704 CUDA cores

• 10GB GDDR6X memory

• 320-bit memory bus

• Engine boost clock: 1725 MHz

• Memory clock: 19.0 Gbps

• PCI Express 4.0 16x

_

®

TRINITY
