Zotac NM70ITX user manual

Electronic Emission Notices

WARNING!

Federal Communications Commission (FCC) Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with instructions
contained in this manual, may cause harmful interference to radio and television communications.
However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

- REORIENT OR RELOCATE THE RECEIVING ANTENNA

- INCREASE THE SEPARATION BETWEEN THE EQUIPMENT AND THE RECEIVER

- CONNECT THE EQUIPMENT INTO AN OUTLET ON A CIRCUIT DIFFERENT FROM
THAT OF THE RECEIVER

- CONSULT THE DEALER OR AN EXPERIENCED AUDIO/TELEVISION TECHNICIAN

NOTE:

Connecting this device to peripheral devices that do not comply with Class B requirements, or
using an unshielded peripheral data cable, could also result in harmful interference to radio or
television reception.

The user is cautioned that any changes or modications not expressly approved by the party

responsible for compliance could void the user’s authority to operate this equipment.

To ensure that the use of this product does not contribute to interference, it is necessary to use
shielded I/O cables.

Copyright

This manual is copyrighted with all rights reserved. No portion of this manual may be copied or
reproduced by any means.

While every precaution has been taken in the preparation of this manual, no responsibility for
errors or omissions is assumed. Neither is any liability assumed for damages resulting from the
use of the information contained herein.

Trademarks

All brand names, logos and registered trademarks mentioned are property of their respective
owners.

CAUTION:

Risk of explosion if the battery is replaced with an incorrect type. Batteries should be recycled

where possible. Disposal of used batteries must be in accordance with local environmental
regulations.

1

Intel NM70-ITX series Motherboard

Table of Contents

Motherboard Specications ---------------------------------------------------------------------------------4
Motherboard Layout--------------------------------------------------------------------------------------------6
Hardware Installation ------------------------------------------------------------------------------------------8

Safety Instructions-------------------------------------------------------------------------------------------8
Installing Memory Modules--------------------------------------------------------------------------------8
Installing the Motherboard --------------------------------------------------------------------------------9

Installing the I/O Shield -------------------------------------------------------------------------------9
Securing the Motherboard into the Chassis ----------------------------------------------------- 9

Connecting Cables and Setting Switches -------------------------------------------------------------10

24-pin ATX Power Connector-PW1 ----------------------------------------------------------------11
4-pin ATX_12V power Connector-PWR2 ---------------------------------------------------------11
LPT Header-CN9 ---------------------------------------------------------------------------------------11
SPDIF-Out Header-CN5------------------------------------------------------------------------------12
COM Header-CN3 -------------------------------------------------------------------------------------12
Front Panel Header-FP1 -----------------------------------------------------------------------------12
USB Headers-FP_U1/2 -------------------------------------------------------------------------------13
Front Pannel Audio Header-FP_S1 ---------------------------------------------------------------13
Speaker Header-SPK1 -------------------------------------------------------------------------------14
Serial-ATA (SATA) Connectors (SATA1~3) ------------------------------------------------------14
Fan Connectors-----------------------------------------------------------------------------------------14
Expansion Slots ----------------------------------------------------------------------------------------15
Jumper Settings ----------------------------------------------------------------------------------------16

Conguring the BIOS ------------------------------------------------------------------------------------------17

Enter BIOS Setup -------------------------------------------------------------------------------------------17

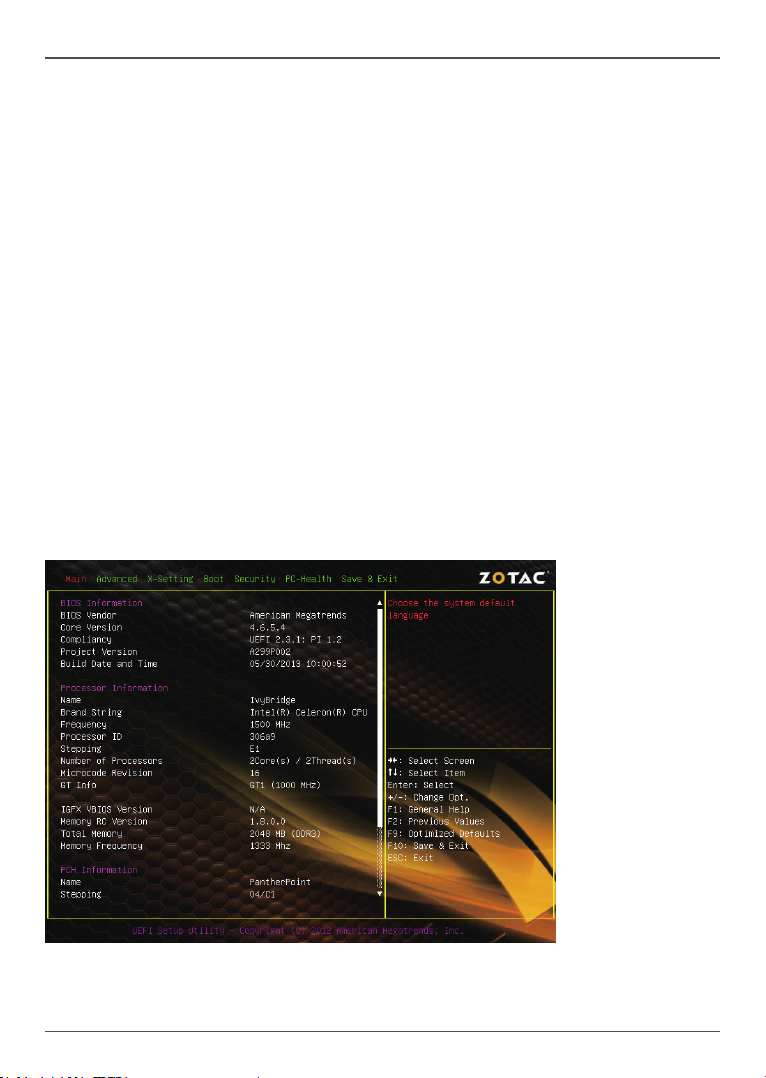

Main Menu ----------------------------------------------------------------------------------------------------17

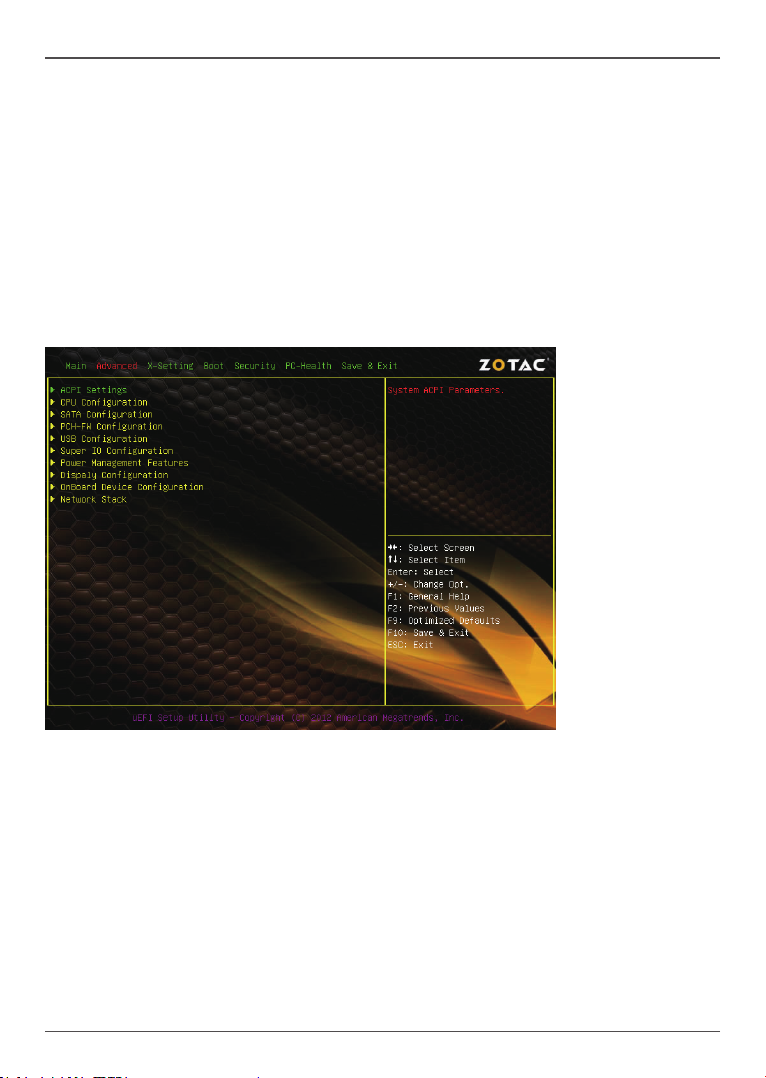

Advanced Menu----------------------------------------------------------------------------------------------18

ACPI Conguration ------------------------------------------------------------------------------------18
CPU Conguration -------------------------------------------------------------------------------------19
SATA Conguration ------------------------------------------------------------------------------------19
PCH-FW Conguration -------------------------------------------------------------------------------19
USB Conguration -------------------------------------------------------------------------------------19
Super IO Conguration -------------------------------------------------------------------------------20

Power Management Features ----------------------------------------------------------------------20

Display Conguration ---------------------------------------------------------------------------------20
OnBoard Device Conguration ---------------------------------------------------------------------20

Network Stack -------------------------------------------------------------------------------------------21
X-Setting Menu-----------------------------------------------------------------------------------------------21
Boot Menu -----------------------------------------------------------------------------------------------------22

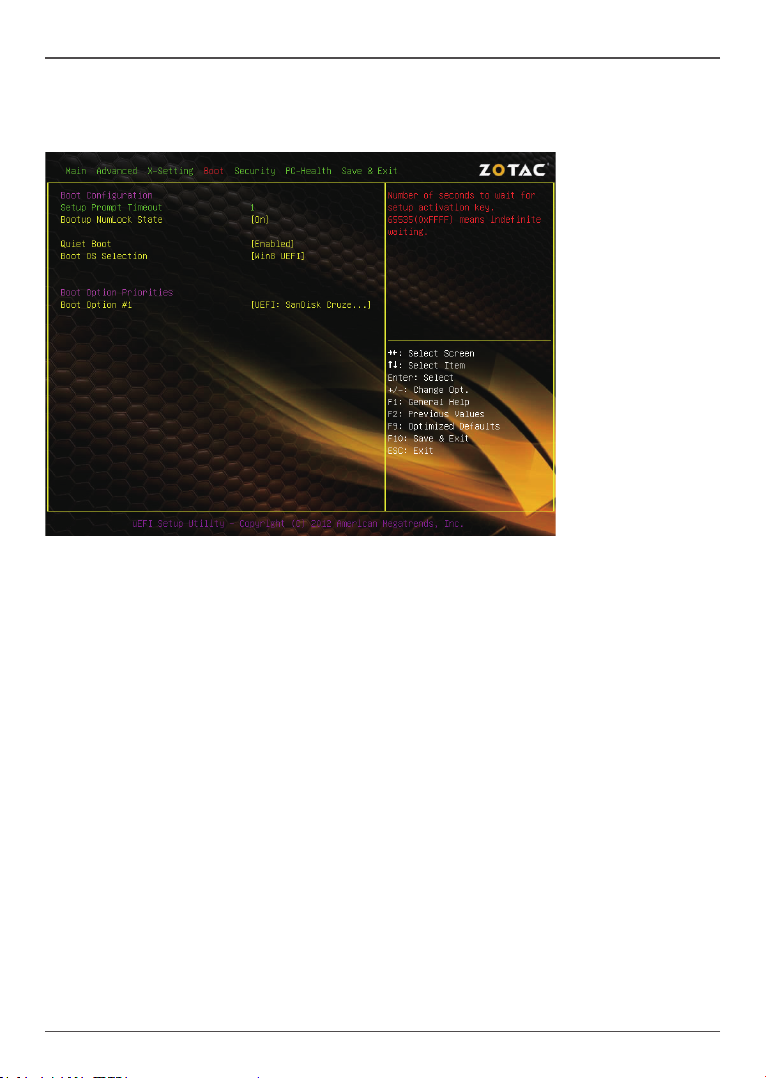

Boot Conguration -------------------------------------------------------------------------------------22

2

Table of Contents

Security Menu ------------------------------------------------------------------------------------------------23
PC Health Menu ---------------------------------------------------------------------------------------------24

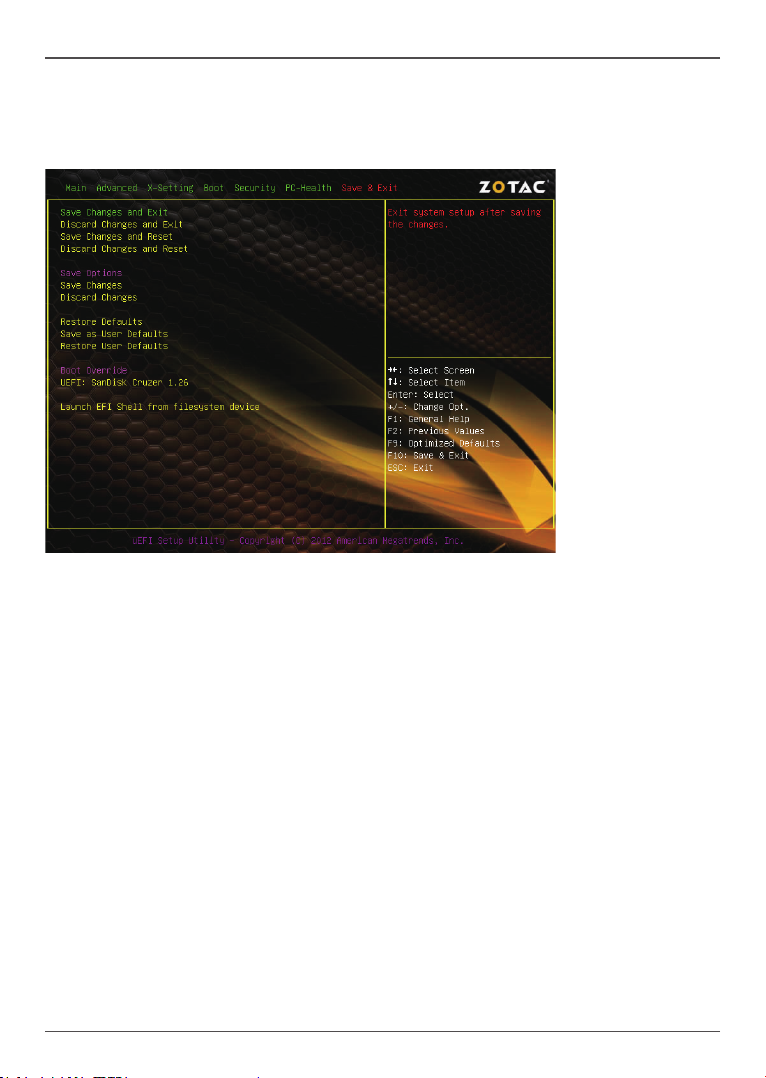

Exit Menu ------------------------------------------------------------------------------------------------------25

Save Changes and Exit-------------------------------------------------------------------------------25

Discard Changes and Exit ---------------------------------------------------------------------------25

Save Changes and Reset ----------------------------------------------------------------------------25

Discard Changes and Reset ------------------------------------------------------------------------25

Save Changes ------------------------------------------------------------------------------------------26

Discard Changes ---------------------------------------------------------------------------------------26

Restore Defaults----------------------------------------------------------------------------------------26

Save as User Defaults --------------------------------------------------------------------------------26

Restore User Defaults --------------------------------------------------------------------------------26

Launch EFI Shell from lesystem device --------------------------------------------------------26
Flash Update Procedure ----------------------------------------------------------------------------------26

Installing Drivers and Software ----------------------------------------------------------------------------27

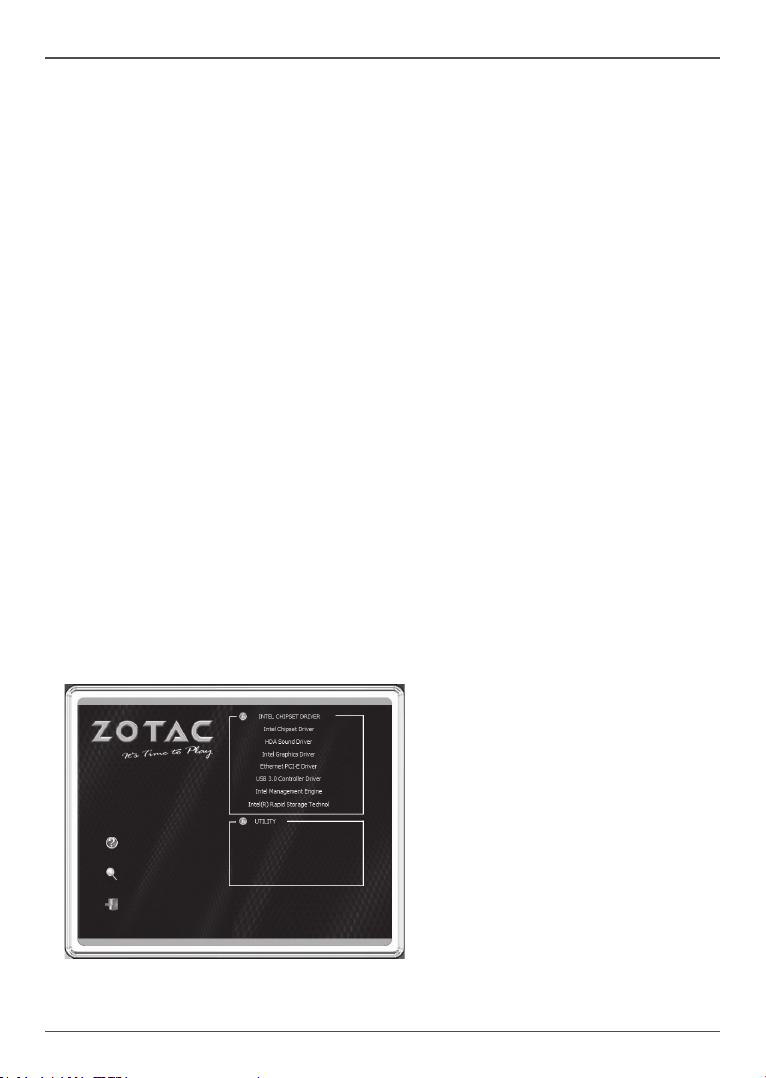

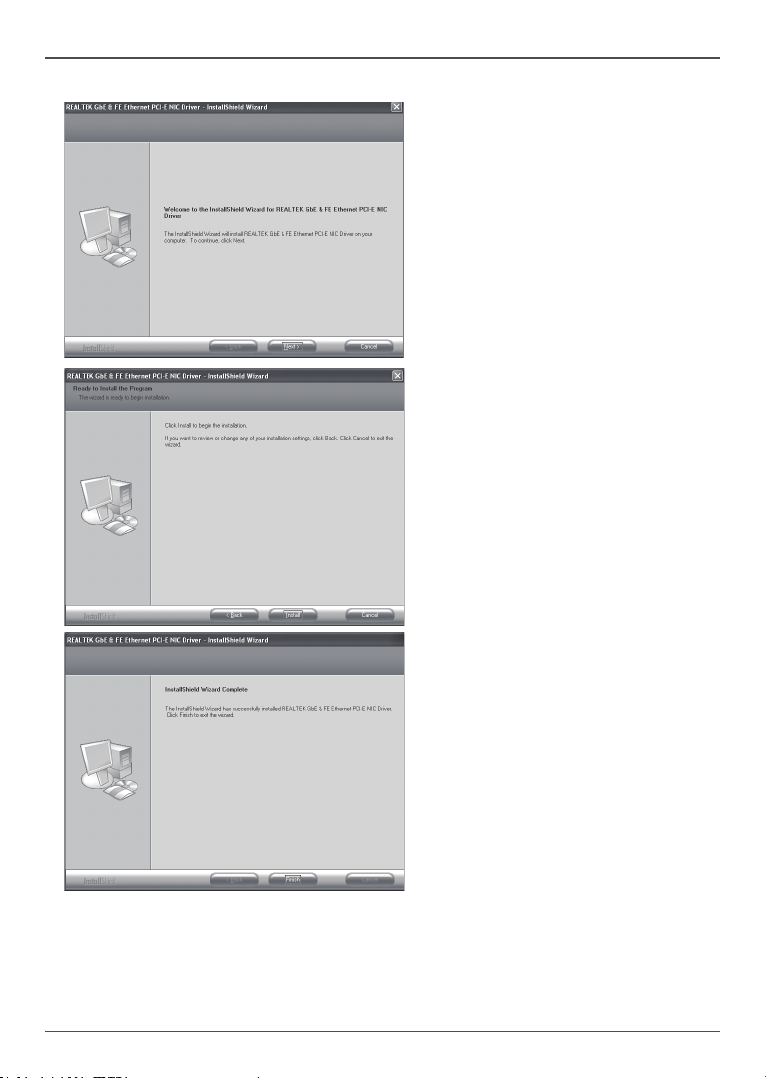

Drivers Installation ------------------------------------------------------------------------------------------27
Realtek HD Audio Driver Setup -------------------------------------------------------------------------34

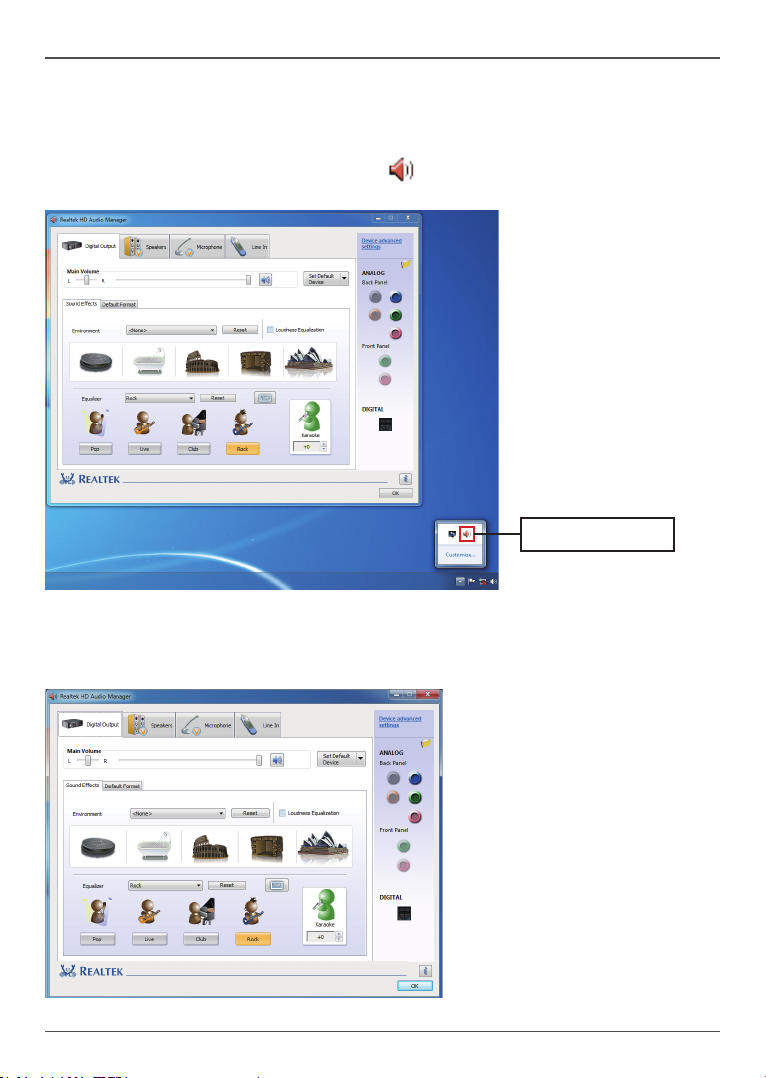

Getting Started ------------------------------------------------------------------------------------------34
Digital Output --------------------------------------------------------------------------------------------34

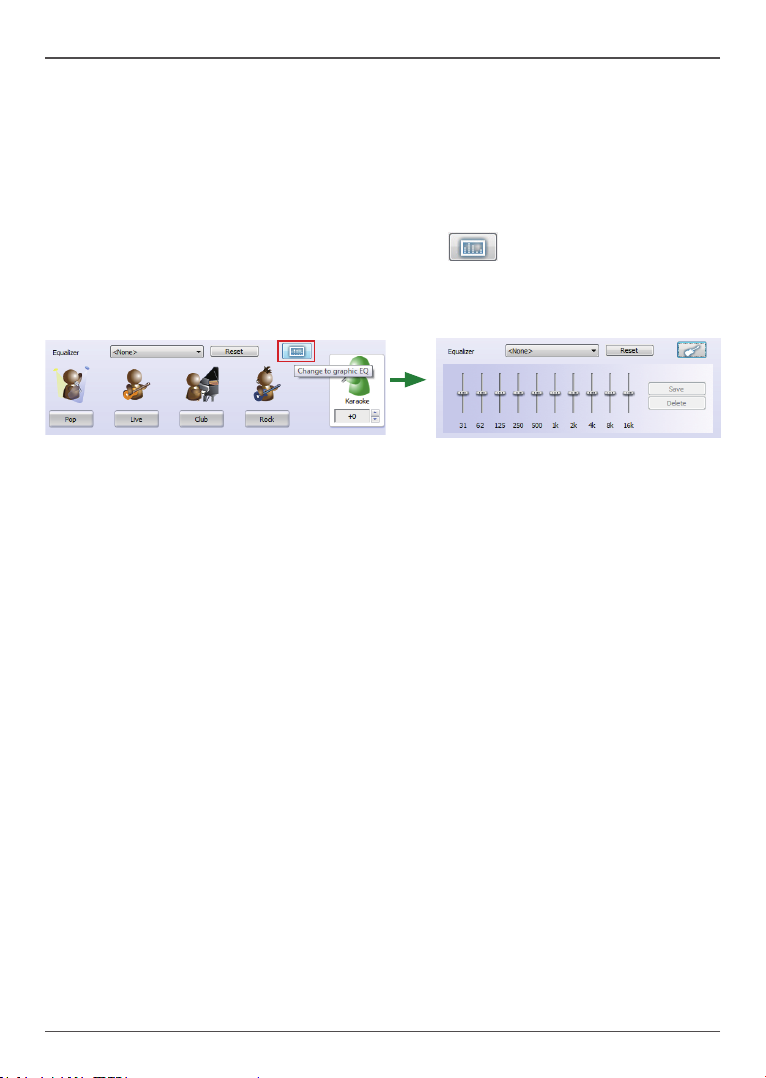

Speakers --------------------------------------------------------------------------------------------------36

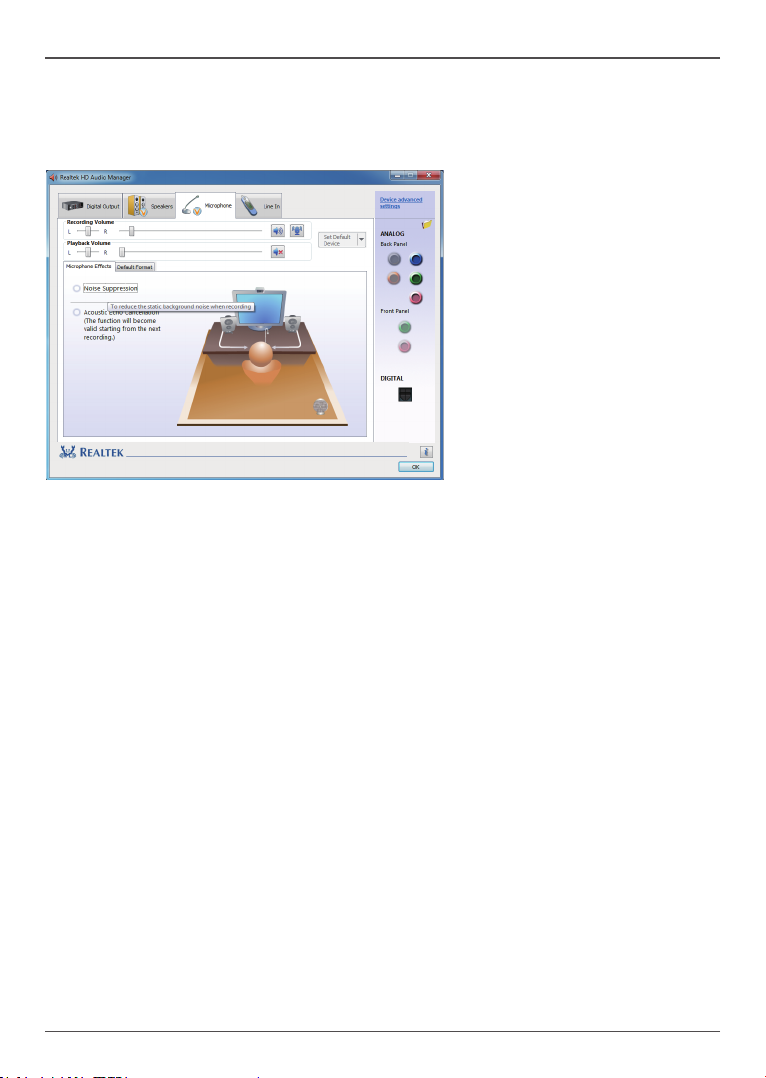

Microphone -----------------------------------------------------------------------------------------------37

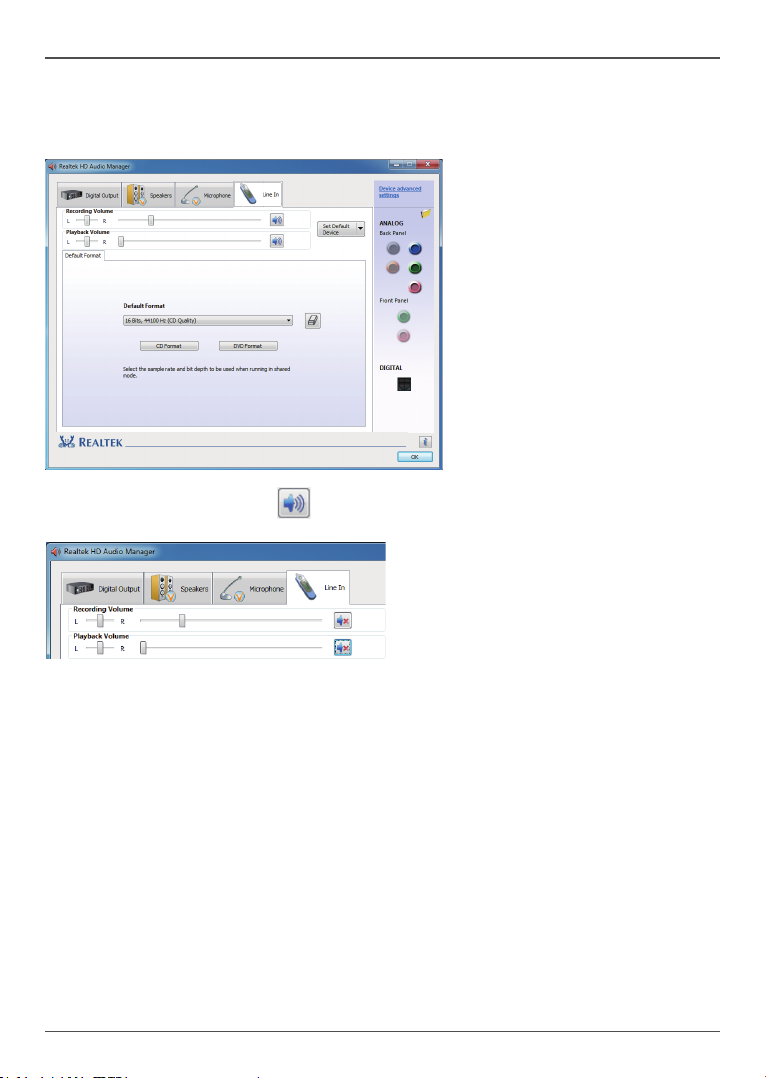

Line In -----------------------------------------------------------------------------------------------------38

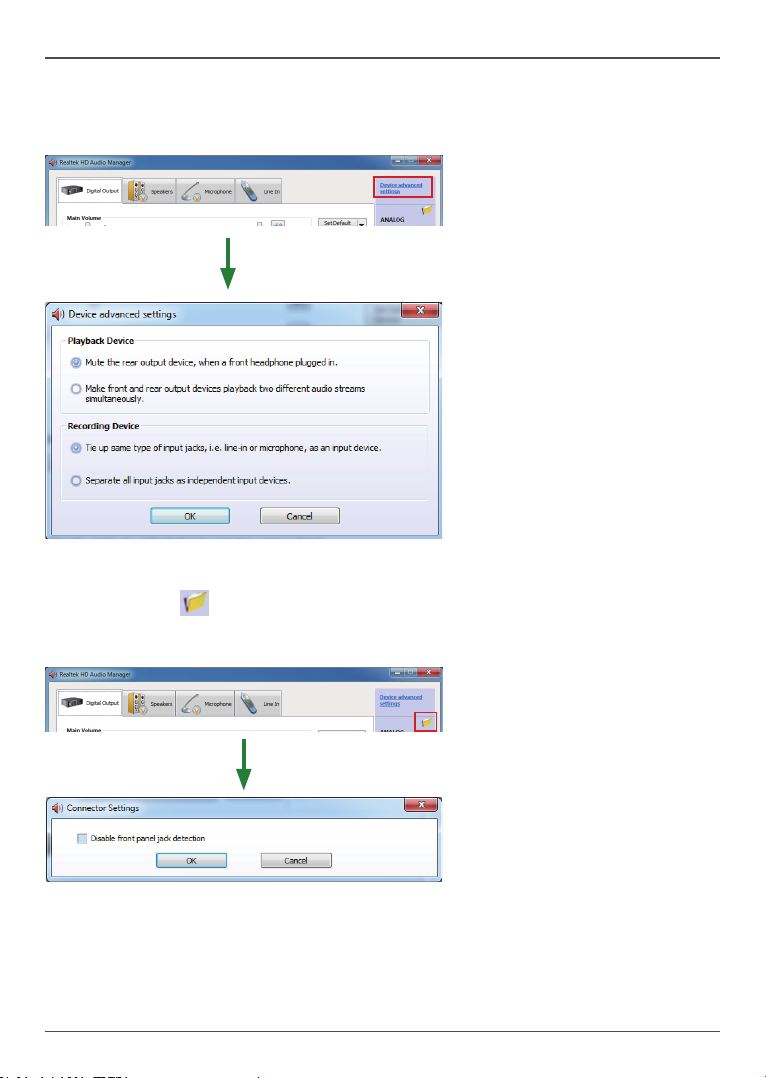

Device Adavanced Settings --------------------------------------------------------------------------39
Connector Settings -------------------------------------------------------------------------------------39
Information -----------------------------------------------------------------------------------------------40

3

Intel NM70-ITX series Motherboard

Motherboard Specications

q Chipset

v Intel NM70

q Size

v Mini ITX form factor of 6.7 X 6.7 inch

q Microprocessor support

v Intel 1007U (dual core, 1.5GHz)

q Operating systems

v Windows 7 & Windows 8

v 32-bit and 64-bit support

q System Memory

v Two 240-pin DIMMs DDR3-1600/1333

v Maximum memory size: 16 GB

q USB 2.0 ports

v Supports hot plug and play

v Six USB 2.0 ports (two ports on the back panel, four via internal pin headers)

v Supports USB 2.0 protocol up to 480 Mbps transmission rate

q USB 3.0 ports

v Supports hot plug and play

v Two USB 3.0 ports on the back panel

v Backwards compatible with USB 2.0 and 1.1 specications

q Onboard Serial ATA ports

v Two SATA 2.0 ports (3.0 Gb/s) and one SATA 3.0 port (6.0 Gb/s)

q Onboard Dual LAN

v Support Full Duplex ow control (IEEE802.3x)

v 10/100/1000 BASE-T IEEE 802.3 compliant

v Wake On LAN (WOL) power management support

q Audio

v 6 channel High Denition Audio (including one optical SPDIF output port)

v All DACs support 192k/96k/48k/44.1kHz sample rate

4

q Graphics Features

v VGA & HDMI outputs

v Support up to 2560x1600 resolution

q Expansion slots

v One PCI slot

Motherboard Specications

5

Intel NM70-ITX series Motherboard

PCI1

FP_U2

13

JP2

18

HDMI

LAN/USB2.0

SD2

PW1

FP1

SPK1

SATA3

FP_S1

VGA/COM

5

JP1

SATA2

SATA1

CN5

4

1

3

6

810

11

12

Chipset

CPU

FP_U1

9

7

ESATA

LAN/USB3.0

CN3

SW2

K/B

14

JP5

15

CN9

16 17

PWR2

19

SYSFAN1

CPUFAN1

20 21

DDRIII1

DDRIII2

2

Motherboard Layout

Figure 1 shows the motherboard and Figure 2 shows the back panel connectors.

240

240

120

120

1.5V

1.5V

+

121

121

Figure 1. Board Layout

1. 24-pin ATX Power Connector-PW1

2. Serial-ATA (SATA) Connectors (SATA2~3)

3. Front Panel Header-FP1

4. Speaker Header-SPK1

5. SATA DOM (SATA-disk Module) Connector­SATA 1

6. Clear CMOS Jumper-JP1

7. ChipsetPCI Express x16 Slot-PCIE1

8. USB 2.0 Headers (FP_U1~FP_U2)

9. PCI Slot-PCI1

10. Front Pannel Audio Header-FP_S1

11. SPDIF-Out Header-CN5

6

Figure 1

12. Backpanel Connectors

13. COM Header-CN3

14. Case Open Jumper-JP5

15. Keyboard Power Selection for
Wakeup-JP2

16. LPT Header-CN9

17. 4-pin ATX_12V power connector-PWR2

18. CPU Socket

19. SYS Fan Connector-SYSFAN1

20. CPU Fan Connector-CPUFAN1

21. DDRIII DIMM Sockets-DDRIII1~2

9

8

11

3

5 6

7

10

Figure 2. Backpanel connectors

Rear panel

5

6

10

15

11

2

1

1. PS2 Keyboard Port 2. Clear CMOS Button

3. HDMI Port 4. VGA Port

5. USB 3.0 Port 6. USB 2.0 Port

7. eSATA Port

8. Port 2-Channel 4-Channel 6-Channel

Blue Line-In Rear Speaker Out Rear Speaker Out

Green Line-Out Front Speaker Out Front Speaker Out

Pink Mic I n Mic In Center/Subwoofer

9. LAN port LED indicators

Speed LED Activity LED

10. COM Port

11. PS2 Mouse Port

4

Speed LED

Status Description
Off Speed: 10 Mbps

Green Speed: 100 Mbps

Orange Speed: 1000 Mbps

Activity LED

Status Descritption
Off No link

Orange Linked

Blinking Data activity

7

Intel NM70-ITX series Motherboard

Hardware Installation

This section will guide you through the installation of the motherboard. The topics covered in this
section are:

q Installing Memory Modules

q Installing the Motherboard

q Connecting Cables and Setting Switches

Safety Instructions

To reduce the risk of re, electric shock, and injury, always follow basic safety precautions.

Remember to remove power from your computer by disconnecting the AC main source before
removing or installing any equipment from/to the computer chassis.

Installing Memory Modules

Your new motherboard has two 1.5V 240-pin slots for DDR3 memory. These slots support 1

GB/2 GB/4 GB/8 GB DDR3 devices. There must be at least one memory bank populated to

ensure normal operation. Refer to the following recommendations to install memory modules.

240

240

120

120

DDRIII1

DDRIII2

1.5V

+

1.5V

121

121

Note that a memory module has a notch, so it can only t in one direction. Refer to the following

procedure to install memory modules into the slots on the motherboard.

1. Unlock a DIMM slot by pressing the module clips outward.

2. Align the memory module to the DIMM slot, and insert the module vertically into the

slot. The plastic clips at both sides of the slot automatically lock the DIMM into the

connector.

8

Hardware Installation

Installing the Motherboard

The sequence of installing the motherboard into the chassis depends on the chassis you are using

and if you are replacing an existing motherboard or working with an empty chassis. Determine if

it would be easier to make all the connections prior to this step or to secure the motherboard and

then make all the connections. It is normally easier to secure the motherboard rst.

Use the following procedure to install the I/O shield and secure the motherboard into the chassis.

Note: Be sure that the CPU fan assembly has enough clearance for the chassis covers

to lock into place and for the expansion cards. Also make sure the CPU Fan assembly is

aligned with the vents on the covers.

Installing the I/O Shield

The motherboard kit comes with an I/O shield that is used to block radio frequency transmissions,

protects internal components from dust and foreign objects, and promotes correct airow within

the chassis.

Before installing the motherboard, install the I/O shield from the inside of the chassis. Press the

I/O shield into place and make sure it ts securely. If the I/O shield does not t into the chassis,

you would need to obtain the proper size from the chassis supplier.

Securing the Motherboard into the Chassis

Most computer chassis have a base with mounting studs or spacers to allow the motherboard to

be secured to the chassis and help to prevent short circuits. If there are studs that do not align

with a mounting hole on the motherboard, it is recommended that you remove the stud to prevent

the possibility of a short circuit. In most cases, it is recommended to secure the motherboard

with spacers.

1. Carefully place the motherboard onto the studs/spacers located inside the chassis.

2. Align the mounting holes with the studs/spacers.

3. Align the connectors to the I/O shield.

4. Ensure that the fan assembly is aligned with the chassis vents according to the fan assembly

instruction.

5. Secure the motherboard with screws.

9

Intel NM70-ITX series Motherboard

Connecting Cables and Setting Switches

This section takes you through all the connectors and switch settings necessary on the

motherboard. This will include:
q Power Connectors
v 24-pin ATX Power Connector-PW1

v 4-pin ATX_12V Power Connector-PWR2
q Internal Headers/Connectors
v SPDIF-Out Header-CN5
v COM Header-CN3
v Front Panel Header-FP1
v USB 2.0 Headers (FP_U1/2)
v Front Pannel Audio Header-FP_S1
v Speaker Header-SPK1

v LPT Header-CN9

q Serial-ATA (SATA) Connectors (SATA1~3)
q Fan Connectors
q Expansion Slots
q CMOS Jumper Settings

See Figure 1 to locate the connectors and jumpers referenced in the following procedure.

10

Hardware Installation

24-pin ATX Power Connector-PW1

PW1 is the main power supply connector. Make sure that the power supply cable and pins are

properly aligned with the connector on the motherboard. Firmly plug the power supply cable into

the connector and make sure it is secure.

CN9

1

PWR2

1

240

240

120

120

PW1

12

1.5V

+

1.5V

121

121

1

PW1-Pin Denition

Pin Signal Pin Signal

1 +3.3V 13 +3.3V

2 +3.3V 14 -12V

3 GND 15 GND
4 +5V 16 PS_ON
5 GND 17 GND
6 +5V 18 GND

24

7 GND 19 GND
8 PWROK 20 -5V

9 +5V_AUX 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 GND

13

4-pin ATX_12V Power
Connector-PWR2

PWR2, the 4-pin ATX 12V power

connector, is used to provide

power to the CPU. Align the pins

to the connector and press rmly

until seated.

PWR2-Pin Denition

Pin Signal

1 GND

2 GND

3 +12V
4 +12V

LPT Header-CN9

LPT - Pin Denition

1 STROBE
2 ALF*
3 PD0
4 ERR*
5 PD1
6 INIT*
7 PD2
8 SCLTIN*
9 PD3

10 GND
11 PD4
12 GND
13 PD5
14 GND
15 PD6
16 GND
17 PD7
18 GND

19 ACK*
20 GND
21 BUSY
22 GND
23 PE
24 GND
25 SLCT
26 NC

11

Intel NM70-ITX series Motherboard

SPDIF-Out Header-CN5

This header provides a S/PDIF (Sony/Philips Digital Interface) output to digital multimedia

devices via coaxial connector.

COM Header-CN3

CN3 - Pin Denition

Pin Signal Pin Signal

1 DCD 2 RXD

3 TXD 4 DTR

5 GND 6 DSR

CN5 - Pin Denition

Pin Signal

1 GND

2 SPDIF-out

3 VCC

CN3

1

7 RTS 8 CTS
9 RI 10 Key

240

240

120

120

Front Panel Header-FP1

The front panel header on this motherboard is

one connector used to connect the following four

cables :

+

FP1-Pin Denition

Pin Signal Pin Signal

1 HDD_LED+ 2 PW_LED+

CN5
3 HDD_LED- 4 PW_LED­5 GND 6 PWR_SW
7 RESET 8 GND
9 NC 10 KEY

q PWRLED

Attach the front panel power LED cable to these two pins of the connector. The Power LED

indicates the system’s status.

q PWR SW

Attach the power button cable from the case to these two pins. Pressing the power button

on the front panel turns the system on and off rather than using the power supply button.

q HDD LED

Attach the hard disk drive indicator LED cable to these two pins. The HDD indicator LED

indicates the activity status of the hard disks.

q RST SW

Attach the Reset switch cable from the front panel of the case to these two pins. The system

restarts when the RESET switch is pressed.

Note: Some chassis do not have all four cables. Be sure to match the name on the

connectors to the corresponding pins.

1.5V

1.5V

121

121

FP1

1

12

Hardware Installation

USB Headers-FP_U1/2

This motherboard contains two USB 2.0 and two USB 3.0 ports that are exposed on the rear panel

of the chassis. The motherboard also contains two 10-pin internal USB 2.0 headers onboard.

Note: Secure the bracket to either the

front or rear panel of your chassis (not

all chassis are equipped with the front

panel option).

FP_U1~FP_U2-Pin Denition

PIN Assignment PIN Assignment

1 VCC 2 VCC
3 USBP0- 4 USBP1­5 USBP0+ 6 USBP1+
7 GND 8 GND
9 KEY 10 NC

FP_S1

240

240

120

120

1.5V

+

1.5V

121

121

1

1

1

FP_U2
FP_U1

Front Panel Audio Header-FP_S1

The audio connector supports the HD audio standard and provides two kinds of audio output

choices: the front Audio, the rear Audio. The front audio supports retasking function.

Note: In order to utilize the front audio header, your chassis must have a front audio

connector. Also please make sure the pin assignment on the cable is the same as the pin

assignment on the mainboard header. To nd out if the chassis you are buying supports

a front audio connector, please contact your dealer.

FP_S1-Pin Denition

PIN Assignment PIN Assignment

1 MIC2(L) 2 GND

3 MIC(R) 4 -ACZ-DET

5 Front Audio(R) 6 Reserved

7 FAVDIO-JD 8 Key(No pin)

9 Front Audio(L) 10 Reserved

13

Intel NM70-ITX series Motherboard

240

240

120

120

GND

+12V

Sense

Control

1.5V

+

1.5V

SYSFAN1

GND
+12V

Sense

Control

CPUFAN1

Speaker Header-SPK1

SPK1-Pin Denition

PIN Assignment

1 VCC
2 NC
3 NC
4 SPK-

SATA 3

SATA 2

SATA 1

121

121

1

SPK1

Serial-ATA (SATA) Connectors (SATA1~3)

The Serial ATA connector is used to connect the Serial ATA device to the motherboard. These

connectors support the thin Serial ATA cables for primary storage devices. The motherboard

incorporates two SATA II ports (SATA2/3) with maximum transfer rate up to 3.0 Gb/s each and

one SATA III port (SATA1 has power pin +5V/GND) with maximum tranansfer rate up to 6.0

Gb/s each.

SATA-Pin Denition

Pin Signal

1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND

Fan Connectors

There are two fan connectors on the motherboard, including system fan connector-SYSFAN1

and CPU fan connector-CPUFAN1.

14

Hardware Installation

Expansion Slots

The motherboard contains one PCI slot.

240

240

120

120

1.5V

+

PCI1

PCI Slot-PCI1

The PCI slot supports cards such as a LAN card, USB card, SCSI card and other cards that

comply with PCI specications.

1.5V

121

121

15

Intel NM70-ITX series Motherboard

Jumper Settings

This section explains how to congure the motherboard’s hardware. Before using your
computer, make sure all jumpers and DRAM modules are set correctly. Refer to this section

whenever in doubt.

CMOS Clear Jumper-JP1

JP1 Selection

1

1-2* Normal*

1

2-3 CMOS Clear

Keyboard Power Selection for Wakeup-JP2

JP2 Selection

1

1-2 Power off in S3/S4/S5

1

2-3* Power on in any state*

Case Open Jumper-JP5

JP5 Selection

Open Case close
Short Case open

Close Open * = Default setting.

If you want to clear the system conguration, use the JP1 (Clear CMOS Jumper) to clear data.

Notice:

1. Be sure to save the CMOS setting when exit the CMOS.

2. If the CPU is frequency multiplier locked, no CPU speed change will be seen even if the
frequency multiplier setting in CMOS setup is changed.

16

Conguring the BIOS

Conguring the BIOS

This section discusses how to change the system settings through the BIOS Setup
menus. Detailed descriptions of the BIOS parameters are also provided.

Enter BIOS Setup

The BIOS is the communication bridge between hardware and software. Correctly
setting the BIOS parameters is critical to maintain optimal system performance.

Refer to the following procedure to verify/change BIOS settings.

1. Power on the computer.

2. Press the Del key when the following message briey displays at the bottom of
the screen during the Power On Self Test (POST).

Pressing Del takes you to the BIOS Setup Utility.

Note: 1. We reserve the right to update the BIOS version presented in the manual. The
BIOS pictures shown in this section are for reference only.

2. It is strongly recommended that you do not change the default BIOS settings.
Changing some settings could damage your system.

Main Menu

This menu gives you an overview of the general system specications. The BIOS

automatically detects the items in this menu.

Note: Users please note that the data in gray is non-changeable, and the others are for selection.

q BIOS Information

Displays the auto-detected BIOS information.

17

Intel NM70-ITX series Motherboard

q Processor Information

Displays the auto-detected processor information.

q PCH Information

Displays the auto-detected PCH information.

q System Language

Choose the system default language.

q System Date/Time

Allows you to set the system date/time.

Advanced Menu

The Advanced menu items allow you to change the setting for the CPU and other

system devices. Press <enter> to display the conguration options:

ACPI Conguration

The items in this menu allow you to set or change the ACPI congurations. Press
<enter> to display the conguration options:

q Enable ACPI Auto Conguration

Enable or disable ACPI Auto Conguration.

q Enable Hibernation

Enable or disable hibernation function.

q ACPI Sleep State

Select the highest ACPI sleep state, the system will enter when the SUSPEND
button is pressed.

q Lock Legacy Resources

Enable or diable Lock Legacy Resources.

18

Conguring the BIOS

q S3 Video Repost

This item allows you to enable or disable Repost Video on S3 Resume function.
The default setting is [Disabled].

CPU Conguration

The items in this menu show the CPU-related information that the BIOS automatically

detects. Press <enter>to display the conguration options:

q EIST

This item allows you to enable or disable Enhanced Intel SpeedStep Technology
support.

q CPU C3/C6/C7 Report

This item allows you to enable or disable CPU C3/C6/C7 Report.

SATA Conguration

The items in this menu allow you to set or change the SATA congurations. Press
<enter> to display the conguration options:

q SATA Controller(s)

Allows you to congure SATA controller.

q SATA Mode Selection

Allows you to choose SATA mode, including IDE Mode, AHCI Mode and RAID
Mode.

PCH-FW Conguration

The items in this menu allow you to set or change the PCH-FW congurations. Press
<enter> to display the conguration options:

q Me FW Image Re-Flash

This item allows you to enable or disable ME FW Image Re-Flash.

USB Conguration

The items in this menu allow you to change the USB-related features. Press <enter>

To display the conguration options:

q Legacy USB Support

Allows you to enable or disable support for USB devices on legacy operating
systems.

q USB3.0 Support

Allows you to enable or disable support for USB3.0 devices.

q XHCI/EHCI Hand-Off

Allows you to enable support for operating systems without an XHCI/EHCI hand­off feature.

q USB Mass Storage Driver Support

Enable or disable USB Mass Storage Driver Support function

q USB transfer time-out

Allows you to set USB transfer time-out.

19

Intel NM70-ITX series Motherboard

q Device reset time-out

Allows you to set device reset time-out.

q Device power-up delay

Allows you to set device power-up delay.

Super IO Conguration

The items in this menu allow you to congure NCT5577D Super IO Chipset.

q Serial Port 0/1 Conguration

Allows you to set parameters of Serial Port 0/1 (C0MA).

q Parallel Port Conguration

Allows you to set parallel port (LPT/LPTE).

Power Management Features

The items in this menu allow you to control the system power management. Press

<Enter> to display the conguration options:

q Deep S5

When enabled, wake up from S5 can only be done by power button.

q Restore AC Power Loss

This item allows you to congure how the system board responds to a power

failure.

q Wake Up by USB KB/Mouse from S3

Enable or disable wake up by USB/PS2 KB/Mouse from S3.

q Wake Up by PS2 KB/Mouse from S3/S4/S5

Enable or disable wake up by PS2 KB/Mouse from S3/S4/S5.

q Wake Up on Alarm

Enable or disable wake up on alarm.

q Wake Up by PCIE Device from S3/S4/S5

Enable or disable wake up by PCIE device from S3/S4/S5.

Display Conguration

The items in this menu allow you to set display Conguration.

q Aperture Size

This item allows you to set the aperture size, options: 64MB/128MB/256MB.

q DVMT Pre-Allocated

This item allows you to set DVMT pre-allocated size.

q DVMT Total Gfx Mem

This item allows you to set DVMT total Gfx mem size.

OnBoard Device Conguration

The items allow you to congure onboard device, including HD Audio, LAN and so on.

q LAN1/2 Controller

Enable or disable onboard LAN1/2 controller.

20

Conguring the BIOS

q USB 3.0/2.0 Controller

Enable or disable USB 3.0/2.0 controller.

q HD Audio Controller

Enable or disable HD Audio controller.

Network Stack

The item in this menu allows you to set network stack.

q Network stack

This item allows you to enable or disable UEFI network stack.

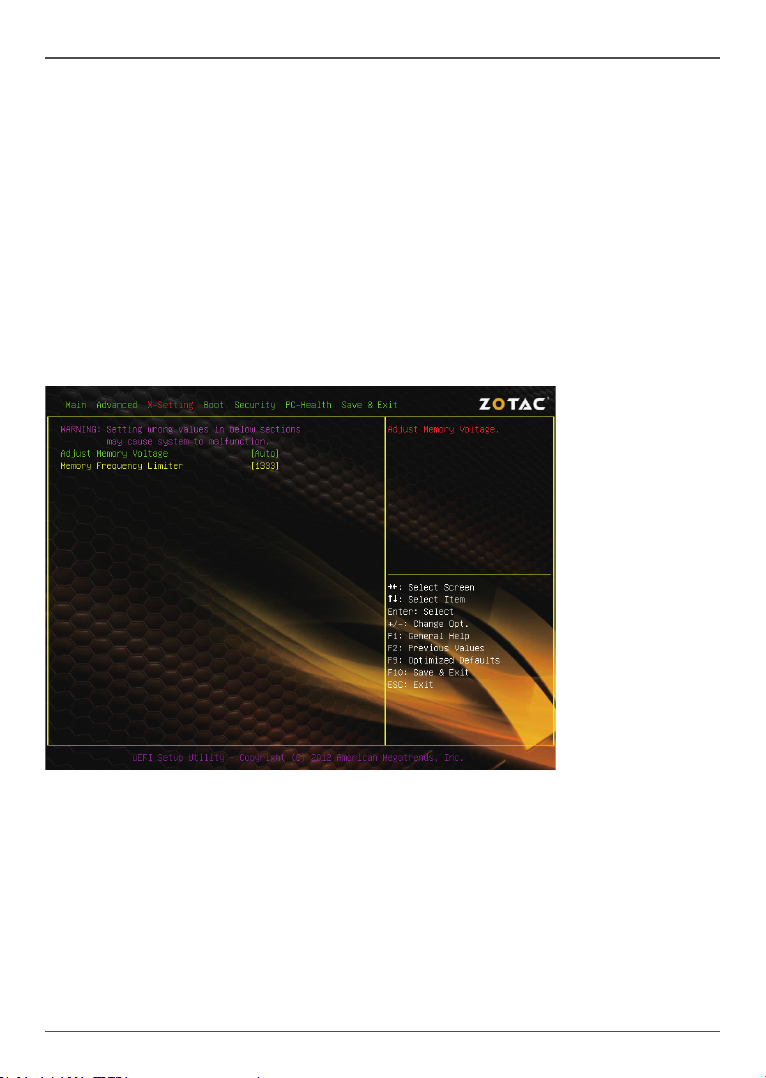

X-Setting Menu

The X-Setting menu items show the settings of CPU, memory and so on. Press

<enter> to display the conguration options:

q Adjust Memory Voltage

Use this item to adjust memory voltage.

q Memory Frequency Limiter

Use this item to adjust memory frequency.

21

Intel NM70-ITX series Motherboard

Boot Menu

The Boot menu items allow you to change the system boot options. Press <enter> to

display the conguration options:

Boot Conguration

The items allow you to congure Boot settings. Press <enter> To display the
conguration options:

q Setup Prompt Timeout

This item shows the number of seconds to wait for setup activation key.

q Bootup NumLock State

Use this item to select the keyboard NumLock state: [On] or [Off].

q Quiet Boot
When set to [Disabled], displays normal POST message. When set to [Enabled],
displays OEM Logo instead of POST messages.

q Boot OS Selection

Use this item to select the OS type supported: [Legacy OS] or [UEFI OS]. The
UEFI OS is only for Win 7 64bit and Win8 64bit.

22

Conguring the BIOS

Security Menu

The security menu items allow you to change the system security settings. Press

<enter> to display the conguration options:

q Administrator Password

Select this item to set Setup Administrator Password.

q User Password

Select this item to set the user password.

23

Intel NM70-ITX series Motherboard

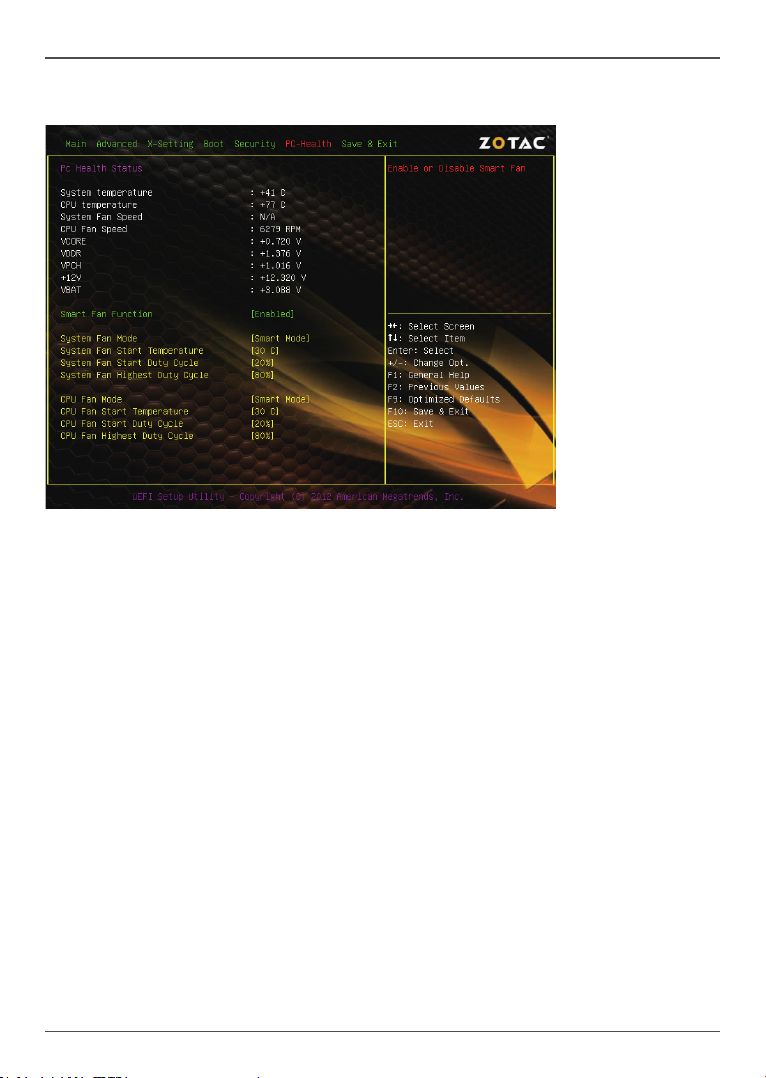

PC Health Menu

Select PC Health from the BIOS Setup Utility menu to display the System menu.

q Smart Fan Function

Use this item to enable or disable smart fan function.

q System/CPU Fan Mode

Use this item to select system/CPU fan mode.

q System/CPU Fan Start Temperature

Use this item to select the system/CPU fan start temperature.

q System/CPU Fan Start Duty Cycle

Use this item to select the system/CPU start fan duty cycle.

q System/CPU Highest Fan Duty Cycle

Use this item to select the system/CPU highest fan dutycycle.

24

Conguring the BIOS

Exit Menu

The exit menu items allow you to load the option or failsafe default values for the BIOS

items, and save or discard your changes to the BIOS items. Press <enter> to display
the sub-menu:

Save Changes and Exit

Select this item and press <Enter> to save the changes that you have made in the

BIOS Setup and exit the BIOS Setup. When the diolog box [Save conguration and
exit?] appears, select [Yes] to save and exit, or select [No] to return to the main menu.

Discard Changes and Exit

Select this option only if you do not want to save the changes that you have made

to the setup program. If you made changes to elds other than system date, system
time, and password, the BIOS asks for a conrmation before exiting.

Save Changes and Reset

Select this item and press <Enter> to reset the system after saving the changes.

When the diolog box [Save conguration and reset?] appears, select [Yes] to save

and reset, or select [No] to return to the main menu.

Discard Changes and Reset

Select this item and press <Enter> to reset system setup without saving any changes.

When the diolog box [Reset without saving?] appears, select [Yes] to discard and

reset, or select [No] to return to the main menu.

25

Intel NM70-ITX series Motherboard

Save Changes

Select this item and press <Enter> to save the changes that you have made in the

BIOS Setup and exit the BIOS Setup. When the diolog box [Save conguration?]

appears, select [Yes] to save changes, or select [No] to return to the main menu.

Discard Changes

This option allows you to discard the selections you have made and restore the

previously saved values. When the dialog box [Load Previous Values?] appears,

select [Yes] to discard any change and load the previously saved values.

Restore Defaults

Use this item to restore/load default values for all the setup options.

Save as User Defaults

Use this item to save the changes as User Defaults.

Restore User Defaults

Use this item to restore the User Defaults to all the setup options.

Launch EFI Shell from lesystem device

Use this item to launch EFI Shell application (Shellx64.e) from one of the available
lesystem devices.

FLASH Update Procedure

The program EFUDOS.exe is included in the driver disk (X:\Utility\EFUDOS.exe). Please follow
the recommended procedure to update the ash BIOS, as listed below.

(X: your driver disk letter).

1. Create a DOS-bootable oppy diskette. Copy the new BIOS le (just obtained or downloaded)
and the utility program EFUDOS.exe to the diskette.

2. Allow the PC system to boot from the DOS diskette.

3. At the DOS prompt, type

EFUDOS XX.ROM /P /B /R /N /X <ENTER>

Note: XX (the BIOS le name) can be dened by users.

4. Wait until the ash-update is complete.

5. Restart the PC.

Warning: - Do not turn off or RESET the computer during the ash process.

- If you are not sure how to upgrade the BIOS, please take your computer to an
Authorized Service Center and have a trained technician do the work for you.

26

Installing Drivers And Software

Installing Drivers and Software

Note:

1. It is important to remember that before installing the driver disk that is shipped in
the kit, you need to load your operating system. The motherboard supports
Windows 7 32bit/64bit and Windows 8 32bit/64bit.

2. We reserve the right to update the driver version presented in the manual. The
driver installation pictures shown in this section are for reference only.

The kit comes with a driver disk that contains utility drivers and additional software.

The driver disk that has been shipped with your motherboard contains the following software
and drivers:

q Intel Chipset Driver

q HDA Sound Driver

q Intel Graphics Driver

q Ethernet PCI-E Driver

q USB3.0 Controller Driver

q Intel Management Engine

q Intel(R) Rapid Storage Technol

Drivers Installation

1. Insert the driver disk into the drive after loading your operating system, and then you can see

the interface below.

27

Intel NM70-ITX series Motherboard

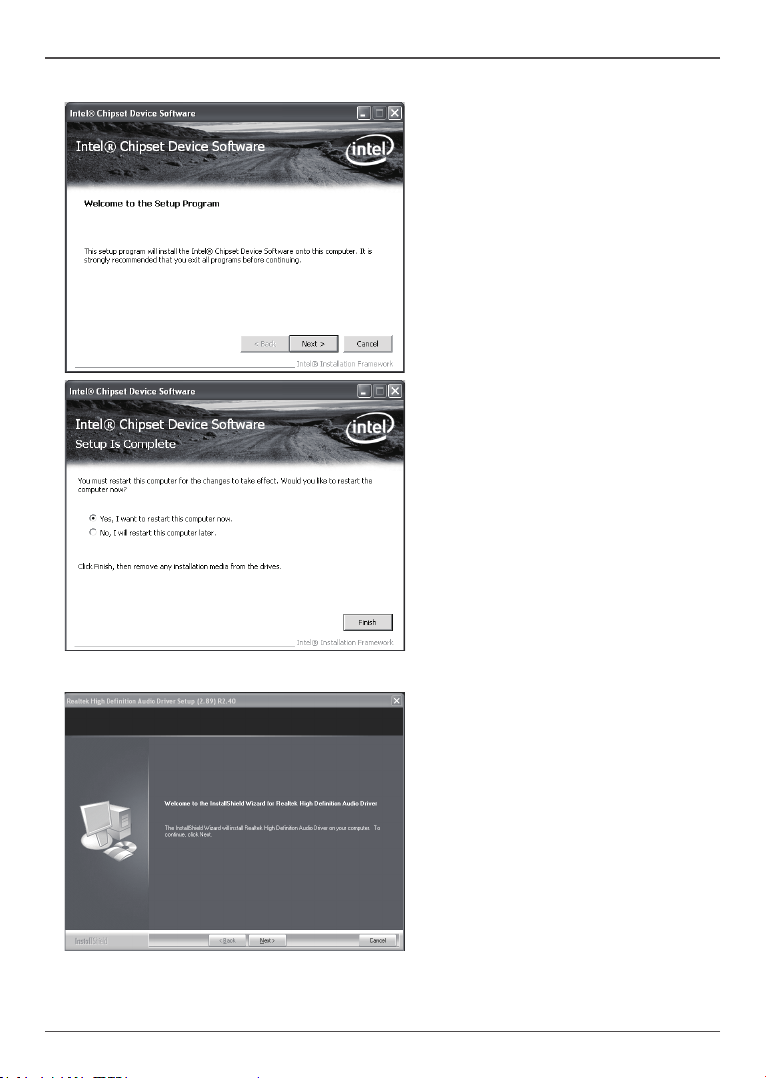

2. Left-click Intel Chipset Driver, begin loading

3. Left-click HDA Sound Driver, begin loading

28

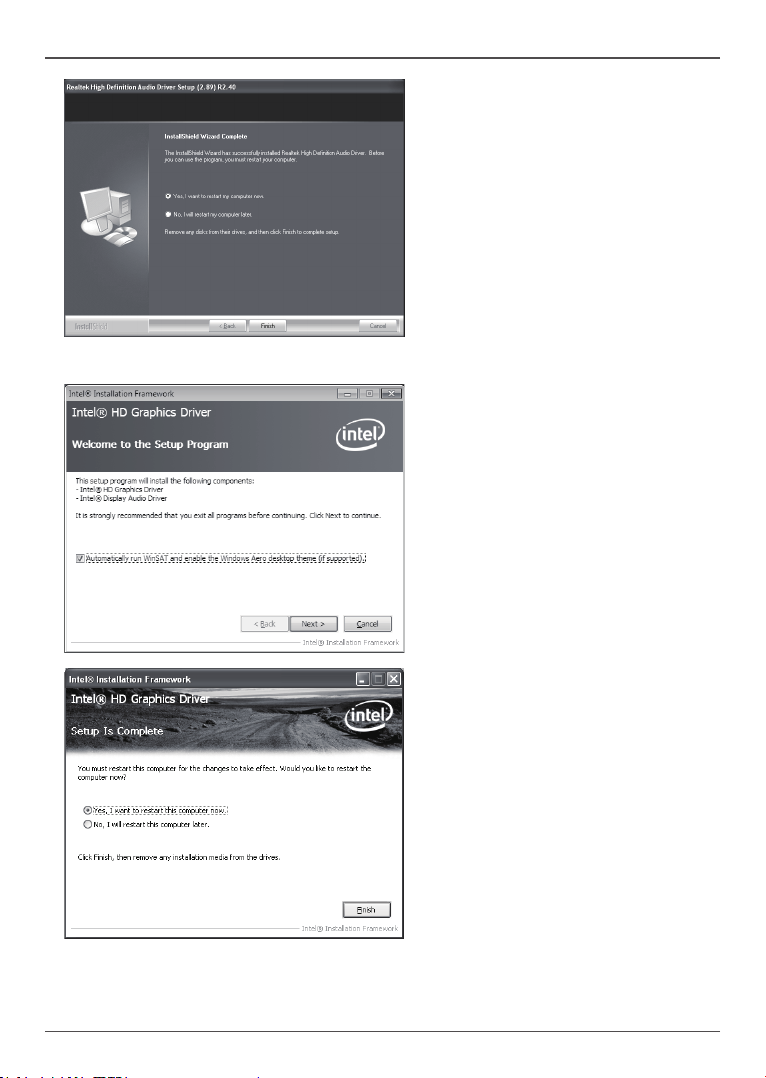

4. Left-click Intel Graphics Driver, begin loading

Installing Drivers And Software

29

Intel NM70-ITX series Motherboard

5. Left-click Ethernet PCI-E Driver, begin loading

30

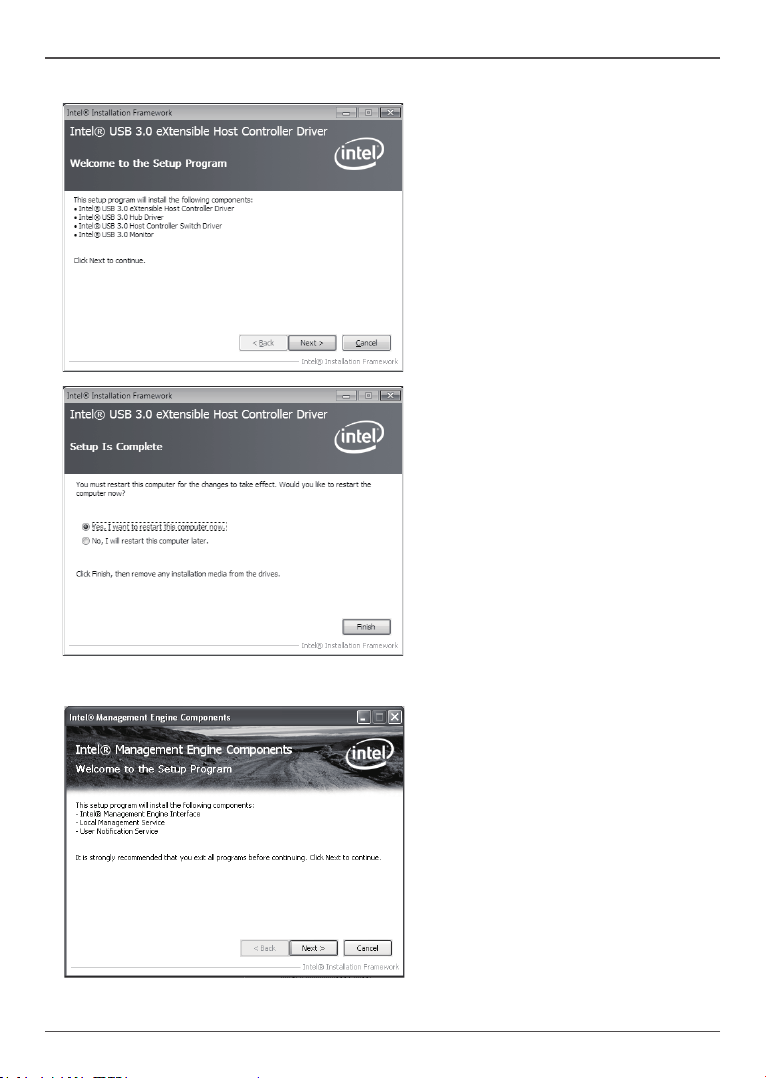

6. Left-click USB3.0 Controller Driver, begin loading

Installing Drivers And Software

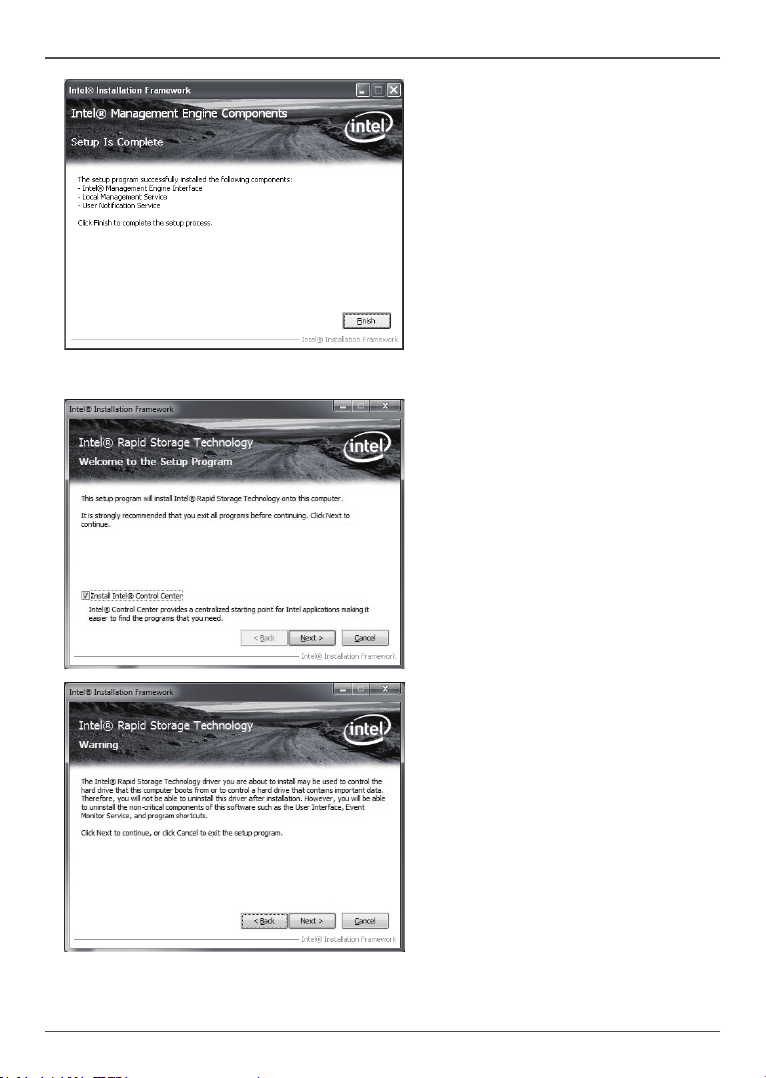

7. Left-click Intel Management Engine, begin loading

31

Intel NM70-ITX series Motherboard

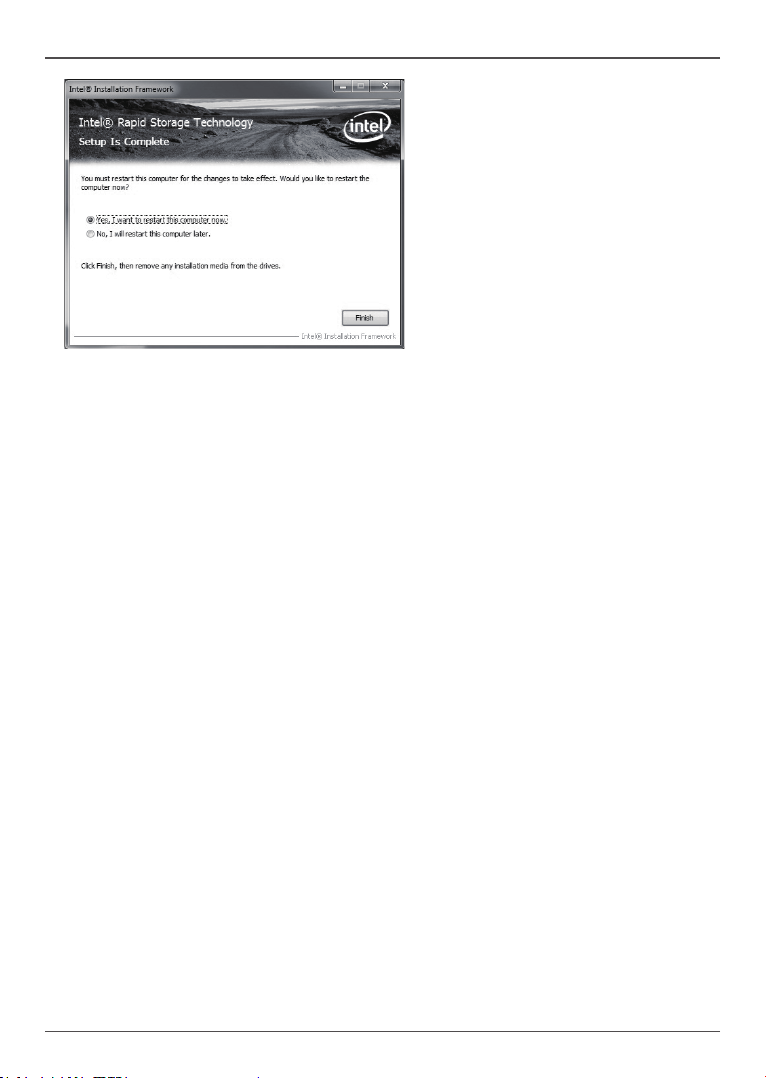

8. Left-click Intel(R) Rapid Storage Technology, begin loading.

32

Installing Drivers And Software

33

Intel NM70-ITX series Motherboard

Realtek HD Audio Driver Setup

Getting Started

After Realtek HD Audio Driver being installed (insert the driver dsk and follow the on-screen
instructions), “Realtek HD Audio Manager” icon will show in System tray as below. Double
click the icon and the control panel will appear:

Double click to display
Realtek HD Audio Manager

Digital Output

After clicking on the “Sound Effect” tab, 3 sections “Environment”, “Equalizer” and “Karaoke”
are available for selection.

34

Installing Drivers And Software

Environment Simulation

You will be able to enjoy different sound experience by pulling down the arrow, totally 23 kinds
of sound effect will be shown for selection. Realtek HD Audio Sound Manager also provides ve

popular settings “Sewer pipe”, “Bathroom”, “Arena”, “Stone Room”, and “Auditorium” for quick

enjoyment.

Equalizer Selection

Change to graphic EQ by clicking on the Equalizer icon . The Equalizer section allows
you to create your own preferred settings by utilizing this tool.

In standard 10 bands of equalizer, ranging from 31Hz to 16kHz are available:

Frequently Used Equalizer Setting

Realtek recognizes the needs that you might have. By leveraging our long experience at audio
eld, Realtek HD Audio Sound Manager provides you certain optimized equalizer settings that
are frequently used for your quick enjoyment.

How to Use

Other than the buttons “Pop” “Live” “Club” & “Rock” shown on the page, to pull down the arrow

in “Others” , you will nd more optimized settings available to you.

Karaoke Mode

Karaoke mode brings Karaoke fun back home by simply using the music you usually play, Karaoke

mode can help you eliminate the vocal of the song or adjust the key to accommodate your range.

Vocal Cancellation: Single click on “Voice Cancellation”, the vocals of the songs will be erased,
while the background music is still playing which lets you take over the vocal part.

Key Adjustment: Using “Up/Down Arrow” to nd a key which better ts your vocal range.

35

Intel NM70-ITX series Motherboard

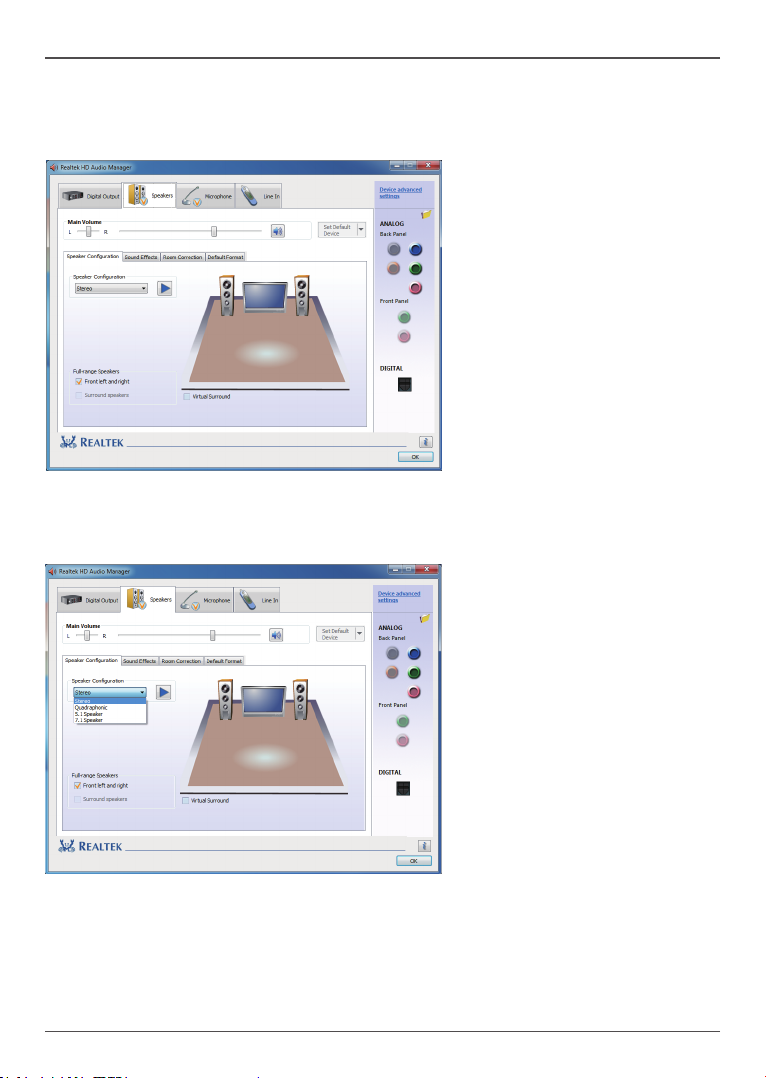

Speakers

Realtek HD Audio Manager frees you from default speaker settings. Speakers includes four tabs:

Speaker Conguration, Sound Effects, Room Correction and Default Format.

Speaker Conguration

In this tab, you can choose speaker conguration: Stereo, Quadraphonic, 5.1 Speaker or 7.1

Speaker using “Up/Down Arrow”.

36

Installing Drivers And Software

Microphone

This page is designed to provide you better microphone/recording quality.

Below picture indicates both “Noise Suppression” & “Acoustic Echo Cancellation” are both enabled.

Noise Suppression

If you feel that the background noise, especially the sound generated from the fan inside PC, is

too loud? Try “Noise Suppression”, which allows you to cut off and suppress disturbing noise.

Acoustic Echo Cancellation

This function prevents playback sound from being recorded by microphone together with your

sound. For example, you might have chance to use VOIP function through Internet with your

friends. The voice of your friend will come out from speakers (playback). However, the voice of your
friend might also be recorded into your microphone then go back to your friend through Internet.
In that case, your friend will hear his/her own voice again. With AEC (Acoustic Echo Cancellation)

enabled at your side, your friend can enjoy the benet with less echo.

37

Intel NM70-ITX series Motherboard

Line In

Realtek HD Audio Manager integrates “Volume Control” functions into the Line In page. This gives
you the advantage to you to create your favorite sound effect in one single tool.

Single click on the volume icon , the Recording/Playback Volume will be changed to the
mute mode.

38

Installing Drivers And Software

Device Advanced Settings

Click on “Device advanced settings” at the upper right corner of Realtek HD Audio Manager page,
and you can set the playback device and recording device as below.

Connector Settings

Click on the icon on the main page of Realtek HD Audio Manager, and the Connector

Settings dialog will display. You can disable front panel jack detection. After changing the settings,
click “OK” to conrm.

39

Intel NM70-ITX series Motherboard

Information

Click on the icon at the lower right corner of Realtek HD Audio Manager page, the Realtek
HD Audio information will display.

Hardware / Software
information of your audio
system

Language setting
When “Audio” is chosen,
this language setting
would accommodate to
OS language on your
systems.

Quick launch button at system tray

This section provides information about your current system audio device.

The screenshots shown in this section are for Windows® 7 operating system.



40

291-MA299-00
