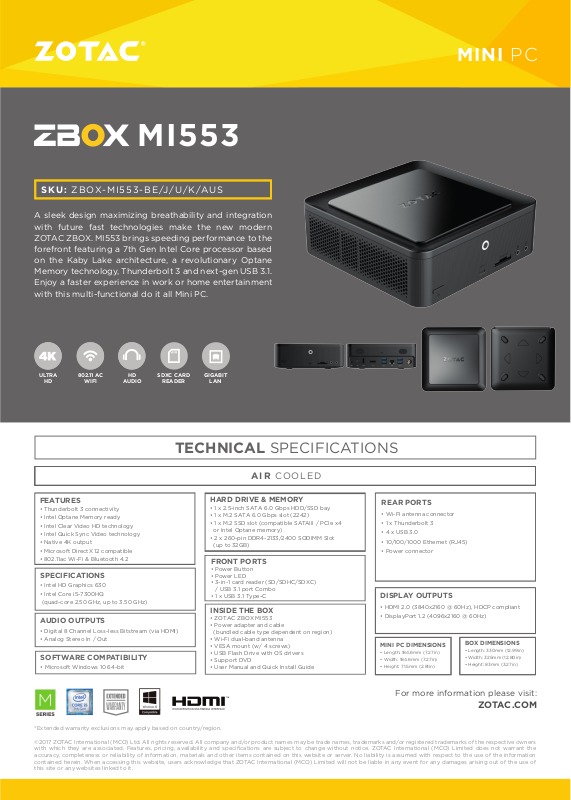

Zotac MI553 User Manual
MI553
SKU: ZBOX-MI553-BE/J/U/K/AUS
A sleek design maximizing breathability and integration
with future fast technologies make the new modern
ZOTAC ZBOX. MI553 brings speeding performance to the
forefront featuring a 7th Gen Intel Core processor based
on the Kaby Lake architecture, a revolutionary Optane
Memory technology, Thunderbolt 3 and next-gen USB 3.1.
Enjoy a faster experience in work or home entertainment
with this multi-functional do it all Mini PC.
MINI PC
ULTRA
HD
802.11 AC
WIFI
HD
AUDIO
SDXC CARD
READER
FEATURES
• Thunderbolt 3 connectivity
• Intel Optane Memory ready
• Intel Clear Video HD technology
• Intel Quick Sync Video technology
• Native 4K output
• Microsoft DirectX 12 compatible
• 802.11ac Wi-Fi & Bluetooth 4.2
SPECIFICATIONS
• Intel HD Graphics 630
• Intel Core i5-7300HQ
(quad-core 2.50 GHz, up to 3.50 GHz)
AUDIO OUTPUTS
• Digital 8 Channel Loss-less Bitstream (via HDMI)
• Analog Stereo In / Out
SOFTWARE COMPATIBILITY
• Microsoft Windows 10 64-bit
GIGABIT
LAN
TECHNICAL SPECIFICATIONS
AIR COOLED
HARD DRIVE & MEMORY
• 1 x 2.5-inch SATA 6.0 Gbps HDD/SSD bay
• 1 x M.2 SATA 6.0 Gbps slot (2242)
• 1 x M.2 SSD slot (compatible SATAIII / PCIe x4
or Intel Optane memory)
• 2 x 260-pin DDR4-2133/2400 SODIMM Slot
(up to 32GB)
FRONT PORTS
• Power Button
• Power LED
• 3-in-1 card reader (SD/SDHC/SDXC)
/ USB 3.1 port Combo
• 1 x USB 3.1 Type-C
INSIDE THE BOX
• ZOTAC ZBOX MI553
• Power adapter and cable
(bundled cable type dependent on region)
• Wi-Fi dual-band antenna
• VESA mount (w/ 4 screws)
• USB Flash Drive with OS drivers
• Support DVD
• User Manual and Quick Install Guide
REAR PORTS
• Wi-Fi antenna connector
• 1 x Thunderbolt 3
• 4 x USB 3.0
• 10/100/1000 Ethernet (RJ45)
• Power connector
DISPLAY OUTPUTS
• HDMI 2.0 (3840x2160 @ 60Hz), HDCP compliant
• DisplayPort 1.2 (4096x2160 @ 60Hz)
MINI PC DIMENSIONS
• Length: 184.6mm (7.27in)
• Width: 184.6mm (7.27in)
• Height: 71.5mm (2.81in)
BOX DIMENSIONS
• Length: 330mm (12.99in)
• Width: 325mm (12.80in)
• Height: 83mm (3.27in)
For more information please visit:
ZOTAC.COM
*Extended warranty exclusions may apply based on country/region.
©2017 ZOTAC International (MCO) Ltd. All rights reserved. All company and/or product names may be trade names, trademarks and/or registered trademarks of the respective owners
with which they are associated. Features, pricing, availability and specifications are subject to change without notice. ZOTAC International (MCO) Limited does not warrant the
accuracy, completeness or reliability of information, materials and other items contained on this website or server. No liability is assumed with respect to the use of the information
contained herein. When accessing this website, users acknowledge that ZOTAC International (MCO) Limited will not be liable in any event for any damages arising out of the use of
this site or any websites linked to it.
