Electronic Emission Notices
WARNING!
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with instructions
contained in this manual, may cause harmful interference to radio and television communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- REORIENT OR RELOCATE THE RECEIVING ANTENNA
- INCREASE THE SEPARATION BETWEEN THE EQUIPMENT AND THE RECEIVER
- CONNECT THE EQUIPMENT INTO AN OUTLET ON A CIRCUIT DIFFERENT FROM
THAT OF THE RECEIVER
- CONSULT THE DEALER OR AN EXPERIENCED AUDIO/TELEVISION TECHNICIAN
NOTE:
Connecting this device to peripheral devices that do not comply with Class B requirements, or
using an unshielded peripheral data cable, could also result in harmful interference to radio or
television reception.
The user is cautioned that any changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate this equipment.
To ensure that the use of this product does not contribute to interference, it is necessary to use
shielded I/O cables.
Copyright
This manual is copyrighted with all rights reserved. No portion of this manual may be copied or
reproduced by any means.
While every precaution has been taken in the preparation of this manual, no responsibility for
errors or omissions is assumed. Neither is any liability assumed for damages resulting from the
use of the information contained herein.
Trademarks
All brand names, logos and registered trademarks mentioned are property of their respective
owners.
CAUTION:
Risk of explosion if the battery is replaced with an incorrect type. Batteries should be recycled
where possible. Disposal of used batteries must be in accordance with local environmental
regulations.
1
AMD E350-ITX series Motherboard
Table of Contents
Motherboard Specications ---------------------------------------------------------------------------------4
Motherboard Layout--------------------------------------------------------------------------------------------6
Hardware Installation ------------------------------------------------------------------------------------------9
Safety Instructions-------------------------------------------------------------------------------------------9
Installing Memory Modules--------------------------------------------------------------------------------10
Installing the Motherboard --------------------------------------------------------------------------------11
Installing the I/O Shield -------------------------------------------------------------------------------11
Securing the Motherboard into the Chassis ----------------------------------------------------- 11
Connecting Cables and Setting Switches -------------------------------------------------------------12
DC OUT Connector-CN12 ---------------------------------------------------------------------------13
SPDIF-Out Header-CN4------------------------------------------------------------------------------14
COM Header-COM1 (Optional)---------------------------------------------------------------------14
Front Panel Header-FP1 -----------------------------------------------------------------------------14
USB Headers-FP_U1/FP_USB3_1 ----------------------------------------------------------------15
Front Pannel Audio Header-FP_S1 ---------------------------------------------------------------15
Fan Connectors-----------------------------------------------------------------------------------------16
Serial-ATA (SATA) Connectors (SATA1/2/3/4) --------------------------------------------------16
Expansion Slots ----------------------------------------------------------------------------------------17
Jumper Settings ----------------------------------------------------------------------------------------17
Conguring the BIOS ------------------------------------------------------------------------------------------18
Enter BIOS Setup -------------------------------------------------------------------------------------------18
Main Menu ----------------------------------------------------------------------------------------------------18
Advanced Menu----------------------------------------------------------------------------------------------19
ACPI Settings -------------------------------------------------------------------------------------------19
CPU Conguration -------------------------------------------------------------------------------------19
IDE Conguration --------------------------------------------------------------------------------------20
USB Conguration -------------------------------------------------------------------------------------20
Super IO Conguration -------------------------------------------------------------------------------20
H/W Monitor ---------------------------------------------------------------------------------------------20
X-Setting --------------------------------------------------------------------------------------------------21
Chipset Menu -------------------------------------------------------------------------------------------------21
GFX Conguration -------------------------------------------------------------------------------------21
OnBoard Device Cong ------------------------------------------------------------------------------21
Boot Menu -----------------------------------------------------------------------------------------------------22
Boot Settings Conguration -------------------------------------------------------------------------22
Security Menu ------------------------------------------------------------------------------------------------23
Administrator Password ------------------------------------------------------------------------------23
User Password ------------------------------------------------------------------------------------------23
Exit Menu ------------------------------------------------------------------------------------------------------24
2
Table of Contents
Save Changes and Exit-------------------------------------------------------------------------------24
Discard Changes and Exit ---------------------------------------------------------------------------24
Save Changes and Reset ----------------------------------------------------------------------------24
Discard Changes and Reset ------------------------------------------------------------------------24
Save Changes ------------------------------------------------------------------------------------------24
Discard Changes ---------------------------------------------------------------------------------------25
Restore Defaults----------------------------------------------------------------------------------------25
Save as User Defaults --------------------------------------------------------------------------------25
Restore User Defaults --------------------------------------------------------------------------------25
Launch EFI Shell from lesystem device --------------------------------------------------------25
Flash Update Procedure ----------------------------------------------------------------------------------25
Installing Drivers and Software ----------------------------------------------------------------------------26
Drivers Installation ------------------------------------------------------------------------------------------26
Realtek HD Audio Driver Setup -------------------------------------------------------------------------33
Getting Started ------------------------------------------------------------------------------------------33
Sound Effect ---------------------------------------------------------------------------------------------33
Mixer -------------------------------------------------------------------------------------------------------35
Audio I/O --------------------------------------------------------------------------------------------------37
Microphone -----------------------------------------------------------------------------------------------41
3D Audio Demo -----------------------------------------------------------------------------------------42
Information -----------------------------------------------------------------------------------------------42
3
AMD E350-ITX series Motherboard
Motherboard Specications
q Chipset
v AMD® Hudson M1
q Size
v Mini ITX form factor of 6.7 X 6.7 inch
q Microprocessor support
v AMD® E-350 (Dual-core, 1.6 GHz)
q Operating systems
v Supports Windows XP 32bit/64bit, Windows Vista 32bit/64bit and Windows 7 32bit/64bit
q System Memory
v Two 204-pin SO-DIMMs DDR3-1066/1333 (OC)
v Maximum memory size: 8 GB
q USB 2.0 ports
v Supports hot plug and play
v Six USB 2.0 ports (four ports on the back panel, two via the USB brackets connected
to the internal USB header)
v Supports USB 2.0 protocol up to 480 Mbps transmission rate
q USB 3.0 ports
v Supports hot plug and play
v Four USB 3.0 ports (two on the back panel, two via the USB bracket connected to the
internal USB header)
v Fully backward compatible with USB 2.0 and 1.1 specications
q Onboard Serial ATA ports
v Independent DMA operation on four ports
v Four SATAIII ports (6.0 Gb/s)
q eSATA Port
v One eSATA port on backpanel
v Supports hot plug and play
q Onboard LAN
v Support Full Duplex ow control (IEEE802.3x)
v 10/100/1000 BASE-T IEEE 802.3 compliant
v Wake On LAN (WOL) power management support
4
Motherboard Specications
q WiFi support
v Compliant with IEEE802.11n Draft 2.0 Standard
v High speed wireless connection and enhanced wireless security
v Max transfer rate up to 150 Mbps (optional for different models)
q Audio
v 6 channel High Denition Audio
v All DACs support 192k/96k/48k/44.1kHz sample rate
v One optical SPDIF output port on board
q Green Function
v Supports ACPI (Advanced Conguration and Power Interface)
q Onboard Graphics Features
v AMD® RADEON HD 6310 Graphics, DirectX11, 500 Mhz
v Single-link DVI/HDMI/DP output (VGA compatible with adapter)
v Support up to 2560x1600 resolution
v Support AMD® UVD3.0
q Expansion slots
v One PCI Express x4 slot (open-ended, PCI Express x16 devices supported*)
v One Mini PCI Express slot (half-height)
*Note: Users please note that when a PCIe x16 device is used on the x4 slot, its performance
may be limited.
5
AMD E350-ITX series Motherboard
1
SYS _FAN
PCIEX4
56
SATA1
11
13
14
15
16 17
DDRIII-1
DDRIII-2
K/B USB3.0
DVI
USB/e_SATA
LAN/USB
SD1
CN12
FP1
JP1
COM1
FP_S1
DP/HDMI
2
3
4
FP_USB3_1
CPU_FAN
SATA3
SATA2SATA4
FP_U1
CN4
APU
Chipset
12
Mini_PCIE
PWP1
Motherboard Layout
Figure 1 shows the motherboard and Figure 2 shows the back panel connectors.
1.5V
1.5V
Figure 1. Board Layout
1. DC-OUT Connector-CN12
2. SYS Fan Connector-SYS_FAN
3. Front Panel Header-FP1
4. Clear CMOS Jumper-JP1
5. Mini PCI Express Slot-Mini_PCIE
6. Serial-ATA (SATA) Connectors (SATA1/2/3/4)
7. PCI Express x4 Slot-PCIEX4
8. COM Header-COM1 (Optional)
9. USB 2.0 Header-FP_U1
6
Figure 1
10. Front Pannel Audio Header-FP_S1
11. SPDIF-Out Header-CN4
12. Backpanel Connectors
13. USB 3.0 Header-FP_USB3_1
14. CPU Fan Connector-CPU_FAN
15. Chipset
16. APU
17. DDRIII Sockets-DDRIII-1~2
1
2
3
9
4
6
10
8
5
11
7
Figure 2. Backpanel Connectors
12
Rear panel
1. USB 3.0 Ports
3. DVI Port
5. USB 2.0 Ports
6. Port 2-Channel 4-Channel 6-Channel
Blue Line-In Rear Speaker Out Rear Speaker Out
Green Line-Out Front Speaker Out Front Speaker Out
Pink Mic I n Mic In Center/Subwoofer
7. Optical SPDIF Output
8. 19V DC Power input (Optional)
This motherboard contains a DC power input jack (as picture 1). Users can plug a 19V AC/
DC adapter to the DC power input jack (as picture 2). Please use a 19V DC power adapter
instead of ATX power supply. Picture 3 is the nal image.
1
9. LAN port LED indicators
Speed LED Activity LED
Speed LED
Status Description
Off Speed: 10 Mbps
Green Speed: 100 Mbps
Orange Speed: 1000 Mbps
2. HDMI Port
4. eSATA Port
2
3
1.5V
1.5V
Activity LED
Status Descritption
Off No link
Orange Linked
Blinking Data activity
10. DisplayPort
11. PS2 Keyboard/Mouse Port
7
AMD E350-ITX series Motherboard
12. WiFi antenna connectors (Optional)
This motherboard can support two WiFi antenna modules. Refer to the following to install
the WiFi antenna modules.
Step 1. Remove the red caps from the WiFi antenna connectors.
Step 2. Install the WiFi antennas to the WiFi antenna connectors, and make sure the screws
are rotated in clockwise direction.
1.5V
1.5V
Note: 1. Users please note that the appearance of your WiFi antenna modules may
not be exactly the same as those shown in this manual.
2. Users can install one or two WiFi antennas to the motherboard.
3. Users can bend or rotate the WiFi antennas to the best receiving direction
according to the picture below.
8
Hardware Installation
Hardware Installation
This section will guide you through the installation of the motherboard. The topics covered in this
section are:
q Installing Memory Modules
q Installing the Motherboard
q Connecting Cables and Setting Switches
Safety Instructions
To reduce the risk of re, electric shock, and injury, always follow basic safety precautions.
Remember to remove power from your computer by disconnecting the AC main source before
removing or installing any equipment from/to the computer chassis.
9
AMD E350-ITX series Motherboard
Installing Memory Modules
Your new motherboard has two 1.5V 204-pin slots for SO-DIMM DDR3 memory. These slots
support 1 GB/2 GB/4 GB DDR3 devices. There must be at least one memory bank populated to
ensure normal operation. Refer to the following recommendations to install memory modules.
1.5V
1.5V
DDRIII-1
DDRIII-2
Note that a memory module has a notch, so it can only t in one direction. Refer to the following
procedure to install memory modules into the slots on the motherboard.
1. Unlock a SO-DIMM slot by pressing the module clips outward.
2. Align the memory module to the SO-DIMM slot, and insert the module vertically into the
slot. The plastic clips at both sides of the slot automatically lock the SO-DIMM into the
connector.
10
Hardware Installation
Installing the Motherboard
The sequence of installing the motherboard into the chassis depends on the chassis you are
using and if you are replacing an existing motherboard or working with an empty chassis. Deter-
mine if it would be easier to make all the connections prior to this step or to secure the mother-
board and then make all the connections. It is normally easier to secure the motherboard rst.
Use the following procedure to install the I/O shield and secure the motherboard into the chassis.
Note: Be sure that the CPU fan assembly has enough clearance for the chassis covers
to lock into place and for the expansion cards. Also make sure the CPU Fan assem
-bly is aligned with the vents on the covers.
Installing the I/O Shield
The motherboard kit comes with an I/O shield that is used to block radio frequency transmis-
sions, protects internal components from dust and foreign objects, and promotes correct airow
within the chassis.
Before installing the motherboard, install the I/O shield from the inside of the chassis. Press the
I/O shield into place and make sure it ts securely. If the I/O shield does not t into the chassis,
you would need to obtain the proper size from the chassis supplier.
Securing the Motherboard into the Chassis
Most computer chassis have a base with mounting studs or spacers to allow the motherboard
to be secured to the chassis and help to prevent short circuits. If there are studs that do not
align with a mounting hole on the motherboard, it is recommended that you remove that stud
to prevent the possibility of a short circuit. In most cases, it is recommended to secure the
motherboard with spacers.
1. Carefully place the motherboard onto the studs/spacers located inside the chassis.
2. Align the mounting holes with the studs/spacers.
3. Align the connectors to the I/O shield.
4. Ensure that the fan assembly is aligned with the chassis vents according to the fan assembly
instruction.
5. Secure the motherboard with screws.
11
AMD E350-ITX series Motherboard
Connecting Cables and Setting Switches
This section takes you through all the connectors and switch settings necessary on the mother-
board. This will include:
q Power Connector
v DC OUT Connector-CN12
q Internal Headers/Connectors
v SPDIF-Out Header-CN4
v COM Header-COM1 (Optional)
v Front Panel Header-FP1
v USB Headers (FP_U1/FP_USB3-1)
v Front Pannel Audio Header-FP_S1
q Serial-ATA (SATA) Connectors (SATA1/2/3/4)
q Fan Connectors
q Expansion Slots
q CMOS Jumper Settings
See Figure 1 to locate the connectors and jumpers referenced in the following procedure.
12
Hardware Installation
DC OUT Connector-CN12
This motherboard can supply the power to SATA devices with a SATA power cable.
Users can plug a SATA power cable (as picture 7) to the DC out connector (as picture
8). Picture 9 is the nal image.
CN12-Pin Dinition
1.5V
1.5V
1
CN12
PIN Assignment
1 12V
2 GND
3 GND
4 5V
8
1.5V
1.5V
1
7
9
1.5V
1.5V
13
AMD E350-ITX series Motherboard
SPDIF-Out Header-CN4
This header provides a SPDIF (Sony/Philips Digital Interface) output to digital multimedia
device through coaxial connector.
COM Header-COM1 (Optional)
COM1 - Pin Denition
Pin Signal Pin Signal
1 DCD 2 RXD
3 TXD 4 DTR
5 GND 6 DSR
7 RTS 8 CTS
9 RI 10 NC
Front Panel Header-FP1
The front panel header on this motherboard is
one connector used to connect the following four
cables :
FP1-Pin Denition
Pin Signal Pin Signal
1 HDD_LED+ 2 PW_LED+
3 HDD_LED- 4 PW_LED-
5 GND 6 PWR_SW
7 RESET 8 GND
9 NC 10 KEY
q PWRLED
Attach the front panel power LED cable to these two pins of the connector. The Power LED
indicates the system’s status.
q PWR SW
Attach the power button cable from the case to these two pins. Pressing the power button
on the front panel turns the system on and off rather than using the power supply button.
q HDD LED
Attach the hard disk drive indicator LED cable to these two pins. The HDD indicator LED
indicates the activity status of the hard disks.
q RST SW
Attach the Reset switch cable from the front panel of the case to these two pins. The system
restarts when the RESET switch is pressed.
Note: Some chassis do not have all four cables. Be sure to match the name on the
connectors to the corresponding pins.
14
CN4
CN4 - Pin Denition
Pin Signal
1 GND
2 SPDIF-out
3 VCC
COM1
1
1.5V
1.5V
FP1
1
Hardware Installation
USB Headers-FP_U1/FP_USB3_1
This motherboard contains four USB 2.0 and two USB 3.0 ports that are exposed on the rear
panel of the chassis. The motherboard also contains one 10-pin internal USB 2.0 header and
one 20-pin USB 3.0 connector onboard.
FP_USB3_1
1
1.5V
1.5V
Note: Secure the bracket to
either the front or rear panel
of your chassis (not all chas-
sis are equipped with the front
panel option).
FP_S1
1
1
FP_USB3_1-Pin Denition
Pin Signal Pin Signal
FP_U1
1 AVBUS 11 BD+
2 ASSRX- 12 BD-
FP_U1-Pin Denition
PIN Assignment PIN Assignment
1 VCC 2 VCC
3 USBP0- 4 USBP1-
5 USBP0+ 6 USBP1+
7 GND 8 GND
9 KEY 10 NC
3 ASSRX+ 13 GND2
4 GND 14 BSSTX+
5 ASSTX- 15 BSSTX-
6 ASSTX+ 16 GND3
7 GND1 17 BSSRX+
8 AD- 18 BSSRX-
9 AD+ 19 BVBUS
10 NC 20 KEY
Front Panel Audio Header-FP_S1
The audio connector supports HD audio standard
and provides two kinds of audio output choices: the
Front Audio, the Rear Audio. The front Audio supports
retasking function.
FP_S1-Pin Denition
PIN Assignment PIN Assignment
1 MIC2(L) 2 GND
3 MIC(R) 4 -ACZ-DET
5 Front Audio(R) 6 Reserved
7 FAVDIO-JD 8 Key(No pin)
9 Front Audio(L) 10 Reserved
Note:
In order to utilize the front audio
header, your chassis must have front
audio connector. Also please make
sure the pin assignment on the cable
is the same as the pin assignment
on the mainboard header. To nd
out if the chassis you are buying
supports a front audio connector,
please contact your dealer.
15
AMD E350-ITX series Motherboard
Fan Connectors
There are two fan connectors on the motherboard, including system fan connector-SYS_FAN
and CPU fan connector-CPU_FAN.
CPU_FAN
1.5V
1.5V
GND
+12V
Sense
Control
SATA 1
SATA 3
SATA 2
SATA 4
SYS_FAN
Control
Sense
+12V
GND
Serial-ATA (SATA) Connectors (SATA1/2/3/4)
The Serial ATA connector is used to connect the Serial ATA device to the motherboard. These
connectors support the thin Serial ATA cables for primary storage devices. The motherboard
incorporates four SATA III ports with maximum transfer rate up to 6.0 Gb/s each.
SATA-Pin Denition
Pin Signal
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
16
Hardware Installation
Expansion Slots
The motherboard contains two expansion slots, one Mini PCIe slot and one PCIe x4 slot.
1.5V
1.5V
Mini_PCIE
PCIEX4
Mini PCI Express Slot-Mini_PCIE
There is one Mini PCIe slot, reserved for the WiFi Module.
PCI Express x4 Slot-PCIEX4
There is one PCI Express x4 slot that is designed to accommodate less bandwidth intensive
cards, such as a VGA card.
Jumper Settings
This section explains how to congure the motherboard’s hardware. Before using your
computer, make sure all jumpers and DRAM modules are set correctly. Refer to this section
whenever in doubt.
CMOS Clear Jumper-JP1
JP1 Selection
1-2* Normal*
1
1
2-3 CMOS Clear
Close Open * = Default setting.
If you want to clear the system conguration, use the JP1 (Clear CMOS Jumper) or SW1 (Clear CMOS Button) to
clear data.
Notice:
1. Be sure to save the CMOS setting when exit the CMOS.
2. If the CPU is frequency multiplier locked, no CPU speed change will be seen even if the
frequency multiplier setting in CMOS setup is changed.
17
AMD E350-ITX series Motherboard
Conguring the BIOS
This section discusses how to change the system settings through the BIOS Setup
menus. Detailed descriptions of the BIOS parameters are also provided.
Enter BIOS Setup
The BIOS is the communication bridge between hardware and software. Correctly
setting the BIOS parameters is critical to maintain optimal system performance.
Refer to the following procedure to verify/change BIOS settings.
1. Power on the computer.
2. Press the Del key when the following message briey displays at the bottom of
the screen during the Power On Self Test (POST).
Pressing Del takes you to the BIOS Setup Utility.
Note: 1. We reserve the right to update the BIOS version presented in the manual. The
BIOS pictures shown in this section are for reference only.
2. It is strongly recommended that you do not change the default BIOS settings.
Changing some settings could damage your system.
Main Menu
This menu gives you an overview of the general system specications. The BIOS
automatically detects the items in this menu.
Note: Users please note that the data in gray is non-changeable, and the others are for selection.
q BIOS Information
Displays the auto-detected BIOS information.
q Memory Information
Displays the auto-detected memory information.
q System Date/Time
Allows you to set the system date/time.
18
Conguring the BIOS
Advanced Menu

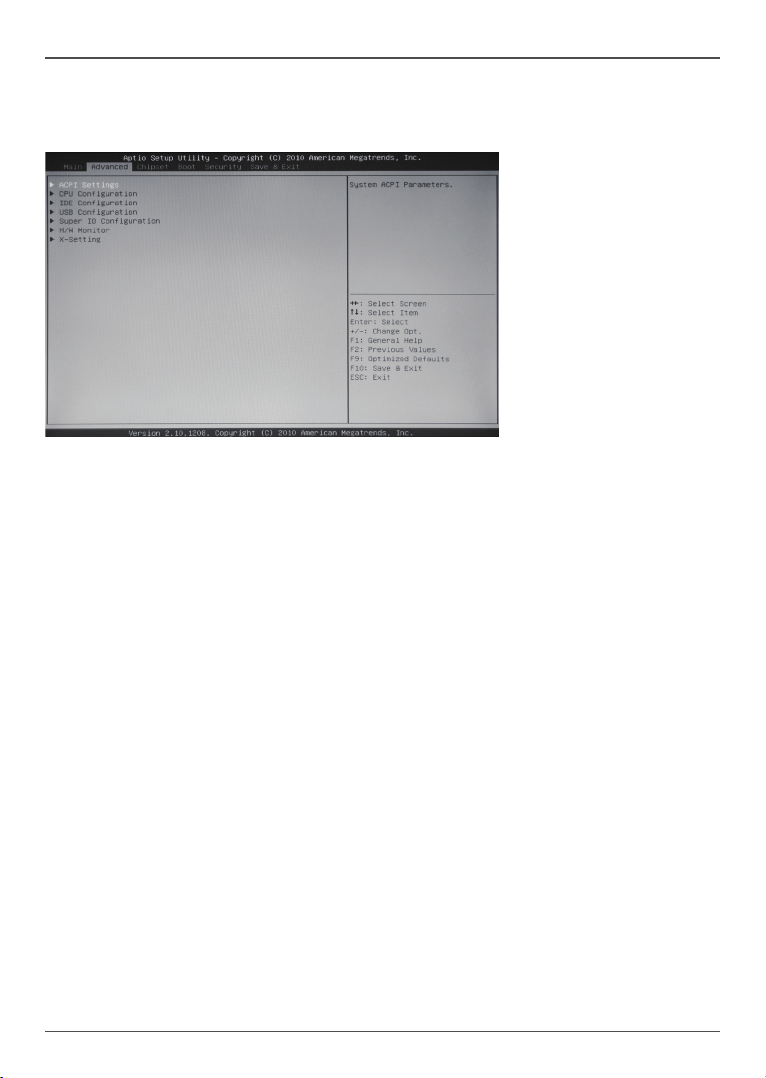

The Advanced menu items allow you to change the setting for the CPU and other
system devices. Press <enter> to display the conguration options:
ACPI Settings
The items in this menu allow you to set ACPI Conguration.
q ACPI Sleep State
Select the highest ACPI sleep state, the system will enter when the SUSPEND
button is pressed.
q USB Device Wakeup From S3 or S4
Use this item to enable or disable USB Device wakeup from S3 or S4.
q Wakeup from PCIE
Use this item to enable or disable USB Device wakeup from PCIE.
q RTC Alarm
Use this item to enable or disable Real-Time Clock Alarm.
CPU Conguration
The items in this menu show the CPU-related information that the BIOS automatically
detects. Press <enter>to display the conguration options:
q Limit CPUID Maximum
Allows you to determine whether to limit CPUID maximum value. Set this item
to [Disable] Windows XP operating system; set this item to [Enable] for legacy
operating system such as Windows NT4.0..
q PSS Support
Use this item to enable or disable PSS Support.
q PSTATE Adjustment
Use this item to adjust Performance State.
q PPC Adjustment
Use this item to adjust PPC.
q NX Mode
Use this item to enable or disable NX mode.
19
AMD E350-ITX series Motherboard
q SVM Mode
Use this item to enable or disable SVM mode.
q C6 Mode
Use this item to enable or disable C6 mode.
IDE Conguration
The items in this menu allow you to set or change the congurations for the IDE
devices installed in the system. Press <enter>to display the conguration options:
q OnChip SATA Channel
Use this item to congure onchip SATA channel.
q OnChip SATA Type
Use this item to congure onchip SATA type.
USB Conguration
The items in this menu allow you to change the USB-related features. Press <enter>
To display the conguration options:
q Legacy USB Support
Allows you to enable or disable support for USB devices on legacy operating
systems.
q USB3.0 Support
Allows you to enable or disable USB3.0 support.
q XHCI Hand-Off
Allows you to enable support for operating systems without an XHCI hand-off
feature.
q EHCI Hand-Off
Allows you to enable support for operating systems without an EHCI hand-off
feature.
q USB transfer time-out
Allows you to set USB transfer time-out.
q Device reset time-out
Allows you to set device reset time-out.
q Device power-up delay
Allows you to set device power-up delay.
Super IO Conguration
The items in this menu allow you to congure IT8758 Super IO Chipset..
q Serial Port 0 Conguration
Allows you to set parameters of Serial Port 0 (C0MA).
H/W Monitor
The items in this menu allow you to monitor the hardware status. Press <enter>to
display the conguration options:
q CPUFAN Mode Setting
Use this item to select CPU FAN Control mode.
20
Conguring the BIOS
X-Setting
The X-Setting menu items show the settings of CPU, memory and so on.
q Adjust Memory Voltage
Use this item to adjust memory voltage.
Chipset Menu
The chipset menu items allow you to change the advanced chipset settings. Press
<enter> to display the sub-menu:
GFX Conguration
The item allows you to select Primary Video Device that BIOS will use for output.
OnBoard Device Cong
The item allows you to congure south bridge features, including SB USB, HD Audio,
and so on.
21
AMD E350-ITX series Motherboard
Boot Menu
The Boot menu items allow you to change the system boot options. Press <enter> to
display the conguration options:
Boot Settings Conguration
The items allow you to congure Boot settings. Press <enter> To display the
conguration options:
q Setup Prompt Timeout
Use this item to set number of seconds to wait for setup activation key.
q Bootup NumLock State
Use this item to select the keyboard NumLock state: [On] or [Off].
q Quiet Boot
When set to [Disabled], displays normal POST message. When set to [Enabled],
displays OEM Logo instead of POST messages.
q GateA20 Active
When set to [Upon Request], GA20 can be disabled using BIOS services. When
set to [Always], GA20 can not be disabled; this option is useful when any RT code
is executed above 1MB.
q Option ROM Messages
Use this item to set display mode for Option.
q Interrupt 19 Capture
When set to [Enabled], this function allows the option ROMS to trap interrupt 19.
q Boot Option #1
This item displays the boot option.
22
Conguring the BIOS
Security Menu
The security menu items allow you to change the system security settings. Press
<enter> to display the conguration options:
Administrator Password
Select this item to set Setup Administrator Password.
User Password
Select this item to set the user password.
To set an Administrator/User Password:
1. Select the item [Administrator/User Password] and press <Enter>.
2. From the password box, type a password composed of at least six letters and/or
numbers, then press <Enter>.
3. Conrm the password when prompted:
The message “Password Installed” appears after you successfully set your
password.
To change the administrator/user password, follow the same steps as setting a use
password.
To clear the administrator/user password, select the item [Administrator/User
password], then press <enter>. The message “Password Uninstalled” appears.
23
AMD E350-ITX series Motherboard
Exit Menu
The exit menu items allow you to load the option or failsafe default values for the BIOS
items, and save or discard your changes to the BIOS items. Press <enter> to display
the sub-menu:
Save Changes and Exit
Select this item and press <Enter> to save the changes that you have made in the
BIOS Setup and exit the BIOS Setup. When the diolog box [Save conguration and
exit?] appears, select [Yes] to save and exit, or select [No] to return to the main menu.
Discard Changes and Exit
Select this option only if you do not want to save the changes that you have made
to the setup program. If you made changes to elds other than system date, system
time, and password, the BIOS asks for a conrmation before exiting.
Save Changes and Reset
Select this item and press <Enter> to reset the system after saving the changes.
When the diolog box [Save conguration and reset?] appears, select [Yes] to save
and reset, or select [No] to return to the main menu.
Discard Changes and Reset
Select this item and press <Enter> to reset system setup without saving any changes.
When the diolog box [Reset without saving?] appears, select [Yes] to discard and
reset, or select [No] to return to the main menu.
Save Changes
Select this item and press <Enter> to save the changes that you have made in the
BIOS Setup and exit the BIOS Setup. When the diolog box [Save conguration?]
appears, select [Yes] to save changes, or select [No] to return to the main menu.
24
Conguring the BIOS
Discard Changes
This option allows you to discard the selections you have made and restore the previ-
ously saved values. When the dialog box [Load Previous Values?] appears, select
[Yes] to discard any change and load the previously saved values.
Restore Defaults
Use this item to restore/load default values for all the setup options.
Save as User Defaults
Use this item to save the changes as User Defaults.
Restore User Defaults
Use this item to restore the User Defaults to all the setup options.
Launch EFI Shell from lesystem device
Use this item to launch EFI Shell application (Shellx64.e) from one of the available
lesystem devices.
FLASH Update Procedure
The program EFUDOS.exe is included in the driver dsk (X:\Utility\EFUDOS.exe). Please follow
the recommended procedure to update the ash BIOS, as listed below.
(X: your driver disk letter).
1. Create a DOS-bootable oppy diskette. Copy the new BIOS le (just obtained or downloaded)
and the utility program EFUDOS.exe to the diskette.
2. Allow the PC system to boot from the DOS diskette.
3. At the DOS prompt, type
EFUDOS XX.ROM /P /B /N <ENTER>
Note: XX (the BIOS le name) can be dened by users.
4. Wait until the ash-update is complete.
5. Restart the PC.
Warning: - Do not turn off or RESET the computer during the ash process.
- If you are not sure how to upgrade the BIOS, please take your computer to an
Authorized Service Center and have a trained technician do the work for you.
25
AMD E350-ITX series Motherboard
Installing Drivers and Software
Note: It is important to remember that before installing the driver disk that is shipped in
the kit, you need to load your operating system. The motherboard supports
Windows XP 32 bit/64 bit, Windows Vista 32 bit/64 bit and Windows 7 32bit/64bit.
The kit comes with a driver disk that contains utility drivers and additional software.
The driver disk that has been shipped with your motherboard contains the following software
and drivers:
q AMD Chipset driver
q Realtek HD Audio driver
q Realtek PCIE network driver
q VIA USB3.0 driver
q Atheros Wireless Driver
Note. We reserve the right to update the driver version presented in the manual. The driver
installation pictures shown in this section are for reference only.
Drivers Installation
1. Insert the driver disk into the drive after loading your operating system, and then you can see
the interface below.
26

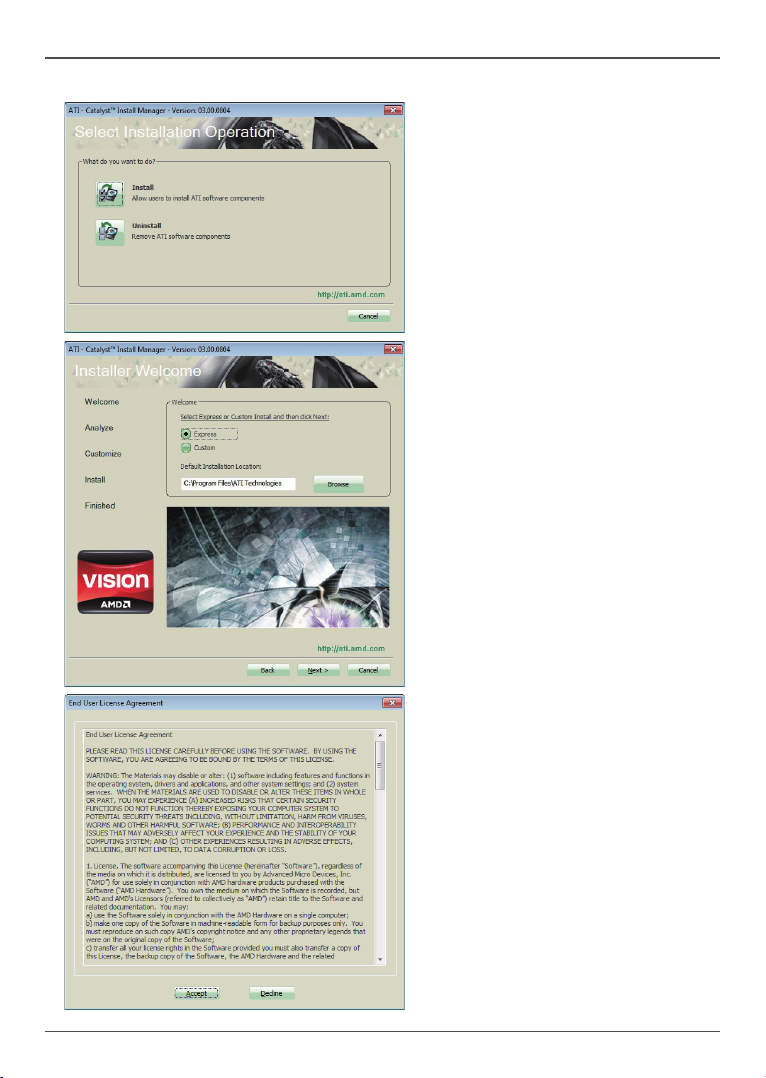

2. Left-click AMD Chipset driver, begin loading
Installing Drivers And Software
27
AMD E350-ITX series Motherboard
3. Left-click Realtek HD Audio driver, begin loading
28
Installing Drivers And Software
4. Left-click Realtek PCIE network Driver, and follow the instructions below to install the
network driver.
29
AMD E350-ITX series Motherboard
5. Left-click USB 3.0 Controller Driver, begin loading
30
Installing Drivers And Software
Note: USB 3.0 port would not work in POST,
CMOS setup and DOS mode.
31
AMD E350-ITX series Motherboard
6. Left-click Atheros Wireless driver, begin loading
At last, you can enter Computer Management that provides information about the hardware
devices on this motherboard to check if the driver installation is complete.
32
Installing Drivers And Software
Realtek HD Audio Driver Setup
Getting Started
After Realtek HD Audio Driver being installed (insert the driver dsk and follow the on-screen
instructions), “Realtek HD Audio Manager” icon will show in System tray as below. Double click

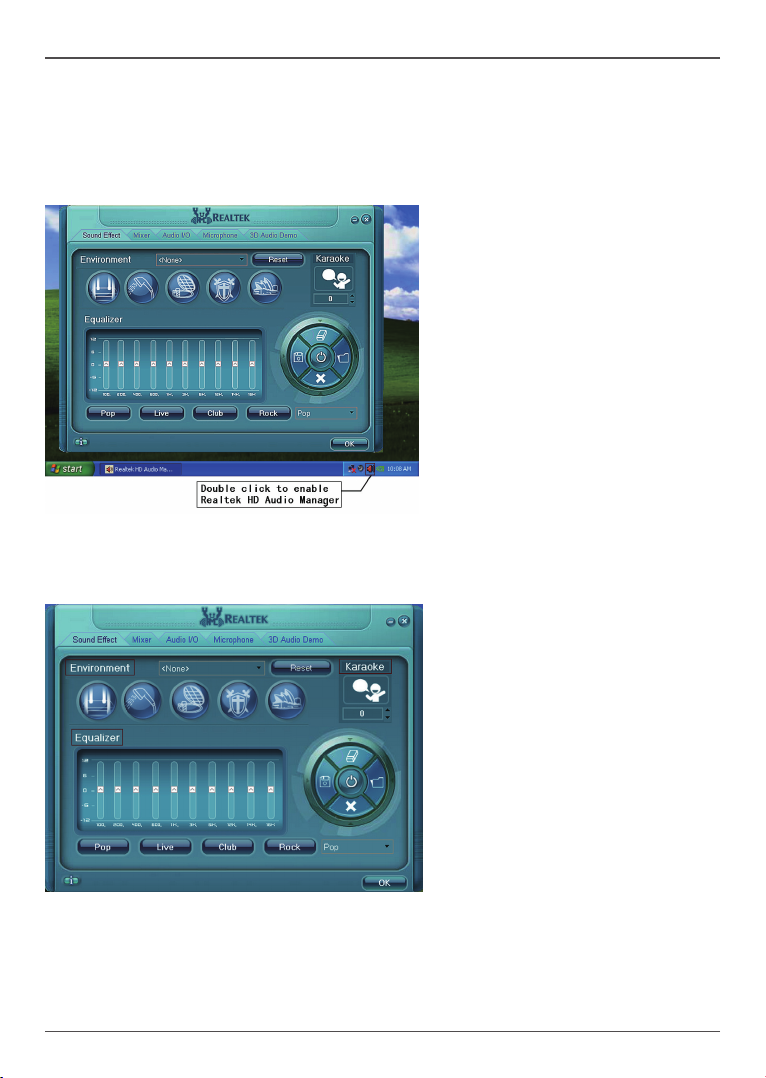

the icon and the control panel will appear:
Sound Effect
After clicking on the “Sound Effect” tab, 3 sections “Environment”, “Equalizer” and “Karaoke”
are available for selection.
Environment Simulation
You will be able to enjoy different sound experience by pulling down the arrow, totally 23 kinds
of sound effect will be shown for selection. Realtek HD Audio Sound Manager also provides ve
popular settings “Stone Corridor”, “Bathroom”, “Sewer pipe”, “Arena” and “Audio Corridor” for
quick enjoyment.
33
AMD E350-ITX series Motherboard
Equalizer Selection
The Equalizer section allows you to create your own preferred settings by utilizing this tool.
In standard 10 bands of equalizer, ranging from 100Hz to 16KHz are available:
Frequently Used Equalizer Setting
Realtek recognizes the needs that you might have. By leveraging our long experience at audio
eld, Realtek HD Audio Sound Manager provides you certain optimized equalizer settings that
are frequently used for your quick enjoyment.
How to Use
Other than the buttons “Pop” “Live” “Club” & “Rock” shown on the page, to pull down the arrow
in “Others” , you will nd more optimized settings available to you.
Karaoke Mode
Karaoke mode brings Karaoke fun back home by simply using the music you usually play, Karaoke
mode can help you eliminate the vocal of the song or adjust the key to accommodate your range.
Vocal Cancellation: Single click on “Voice Cancellation”, the vocals of the songs will be erased,
while the background music is still playing which lets you take over the vocal part.
Key Adjustment: Using “Up/Down Arrow” to nd a key which better ts your vocal range.
34
Installing Drivers And Software
Mixer
Realtek HD Audio Sound Manager integrates Microsoft’s “Volume Control” functions into the Mixer
page. This gives you the advantage to you to create your favorite sound effect in one single tool.
Playback control
Mute
You may choose to mute single or multiple volume controls or to completely mute sound output.
Tool
√ Show the following volume control
This is to let you freely decide which volume control items to be displayed, total 13 items to
be chosen.
√ Advanced controls
√ Enable playback multi-streaming
35
AMD E350-ITX series Motherboard
With this function, you will be able to have an audio chat with your friends via headphone
(stream 1 from front panel) while still have music (stream 2 from back panel) playing.
At any given period, you can have maximum 2 streams operating simultaneously.
Recording control
Mute
You may choose to mute single or multiple volume controls or to completely mute sound input.
Tool
√ Show the following volume controls
This is to let you freely decide which volume control items to be displayed.
√ Advanced controls.
Advanced control is a “Microphone Boost” icon.
Once this item is checked, you will nd “advanced” icon beside “Front Pink In” &
“Mic Volume”. With this, the input signal into “Front Pink In” & “Mic Volume” will be strengthen.
√ Enable recording multi-streaming
At any given period, you can have maximum 2 streams operating simultaneously.
36
Installing Drivers And Software
Audio I/O
Realtek HD Audio Manager frees you from default speaker settings. Different from before, for
each jack, they are not limited to perform certain functions. Instead, now each jack is able to be
chosen to perform either output (i.e. playback) function or input (i.e. Recording) function, we call
this “Retasking”.
Audio I/O aims to help you setting jacks as you wish. Moreover, other than blue to blue, pink to
pink, the way that you used to do, Audio I/O would guide you to other right jacks that can also
serve as microphone / speaker / headphone.
37
AMD E350-ITX series Motherboard
Speaker Conguration
Step 1: Plug in the device in any available jack.
Step 2: Dialogue “Connected device” will pop up for your selection. Please select the device you
are trying to plug in.
* If the device is being plugged into the correct jack, you will be able to nd the icon beside the
jack changed to the one that is same as your device.
38
Installing Drivers And Software
Connector Settings
Click to access connector settings
√ Mute rear panel when front headphone plugged in
Once this option is checked, when front headphone is plugged, the music that is playing from
the back panel, will be stopped.
√ Disable front panel jack detection (option)
Did not nd any function on front panel jacks?
Please check if front jacks on your system are so-called AC’97 jacks. If so, please check this
item to disable front panel jack detection.
√ Enable auto popup dialogue, when device has been plugged in.
Once this item checked, the dialog “Connected device” would automatically pop up when
device plugged in.
S/PDIF
Short for Sony/Philips Digital Interface, a standard audio le transfer format. S/PDIF allows the
transfer of digital audio signals from one device to another without having to be converted rst
to an analog format. Maintaining the viability of a digital signal prevents the quality of the signal
from degrading when it is converted to analog.
39
AMD E350-ITX series Motherboard
√ Output Sampling Rate
- 44.1KHz: This is recommended while playing CD
- 48KHz: This is recommended while playing DVD or Dolby
- 96KHz: This is recommended while playing DVD-Audio
- 192KHz: This is recommended while playing HD Audio
√ Output Source
- Output digital audio source: The digital audio format (such as .wav, .mp3, .midi etc) will
come out through S/PDIF-Out.
Speaker Calibration
After you have successfully plugged in speakers and assigned to the right jacks, you are only
one more step to go to enjoy the intended sound. We provide “Speaker Calibration” to help you
check if the speakers are located in the correct position.
40
Installing Drivers And Software
Microphone
This page is designed to provide you better microphone/recording quality.
Below picture indicates both “Noise Suppression” & “Acoustic Echo Cancellation” are both enabled.
Noise Suppression
If you feel that the background noise, especially the sound generated from the fan inside PC, is
too loud? Try “Noise Suppression”, which allows you to cut off and suppress disturbing noise.
Beam Forming
Also known as “directional recording”, this option lets you do the following: Once beam forming
is enabled; only the sound from certain direction will be recorded. You will get the best quality if
you chose 90° position, which we recommend you to use, this effectively means that you speak
right into the microphone.
Note: A Stereo Microphone is required when using Beam Forming function.
Acoustic Echo Cancellation
This function prevents playback sound from being recorded by microphone together with your
sound. For example, you might have chance to use VOIP function through Internet with your
friends. The voice of your friend will come out from speakers (playback). However, the voice of your
friend might also be recorded into your microphone then go back to your friend through Internet.
In that case, your friend will hear his/her own voice again. With AEC (Acoustic Echo Cancellation)
enabled at your side, your friend can enjoy the benet with less echo.
41
AMD E350-ITX series Motherboard
3D Audio Demo
The section “3D Audio Demo” grants you another possibility to enjoy your sound. The Audio Demo
allows you to listen to sound in an extraordinary way.
Information
This section provides information about your current system audio device.
42
43
AMD E350-ITX series Motherboard
44
291-MA192-01
Loading...
