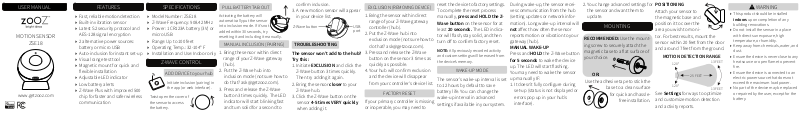

USER MANUAL

MOTION SENSOR

ZSE18

www.getzooz.com

FEATURES SPECIFICATIONS

4 Fast, reliable motion detection
4 Built-in vibration sensor
4 Latest S2 security protocol and

AES-128 signal encryption

4 2 alternative power sources:

battery or micro USB

4 Auto-inclusion for instant set-up
4 Visual range test tool
4 Magnetic mount for quick and

flexible installation

4 Adjustable LED indicator
4 Low battery alerts
4 Z-Wave Plus with improved 500

chip for faster and safer wireless
communication

4 Model Number: ZSE18
4 Z-Wave Frequency: 908.42 MHz
4 Power: 1 CR123A battery (3V) or

micro USB

4 Range: Up to 100 feet
4 Operating Temp.: 32-104° F
4 Installation and Use: Indoor only

Z-WAVE CONTROL

ADD DEVICE to your hub

Initiate inclusion (pairing) in
the app (or web interface).

Twist open the cover of
the sensor to access
the battery.

PULL BATTERY TAB OUT

Activating the battery will
automatically put the sensor
into inclusion mode. If it’s not
added within 30 seconds, try
resetting it and including it manually.

MANUAL INCLUSION (PAIRING)

1. Bring the sensor within direct
range of your Z-Wave gateway
(hub).

2. Put the Z-Wave hub into
inclusion mode (not sure how to
do that? [e-mail]).

3. Press and release the Z-Wave
button 3 times quickly. The LED
indicator will start blinking fast
and turn solid for a second to

confirm inclusion.

3. A new motion sensor will appear
in your device list.

Z-Wave button

USB
port

TROUBLESHOOTING

The sensor won’t add to the hub?
Try this:

1. Initiate EXCLUSION and click the
Z-Wave button 3 times quickly.
Then try adding it again.

2. Bring the sensor closer to your
Z-Wave hub.

3. Click the Z-Wave button on the

sensor 4-5 times VERY quickly
when adding it.

EXCLUSION (REMOVING DEVICE)

1. Bring the sensor within direct
range of your Z-Wave gateway
controller (hub).

2. Put the Z-Wave hub into
exclusion mode (not sure how to
do that? [e-mail]).

3. Press and release the Z-Wave
button on the sensor 3 times as
quickly as possible.

4. Your hub will confirm exclusion
and the device will disappear
from your controller's device list.

FACTORY RESET

If your primary controller is missing
or inoperable, you may need to

reset the device to factory settings.
To complete the reset process
manually, press and HOLD the Z-

Wave button on the sensor for at
least 20 seconds. The LED indica­tor will flash, stay solid, and then
turn off to confirm factory reset.

NOTE: All previously recorded activity
and custom settings will be erased from
the device’s memory.

WAKE-UP MODE

The sensor’s wake-up interval is set
to 12 hours by default to save
battery life. You can change the
wake-up interval in advanced
settings if available in your system.

During wake-up, the sensor recei­ves communication from the hub
(setting updates or network infor­mation). Long wake-up interval will
not affect how oen the sensor
reports motion or vibration to your
gateway (hub).

MANUAL WAKE-UP

Press and HOLD the Z-Wave button
for 5 seconds to wake the device

up. The LED will start flashing.
You may need to wake the sensor

up manually IF:

1. It doesn’t fully configure during
set-up (status is not displayed or
errors pop up in your hub’s
interface).

2. You change advanced settings for
the sensor and want them to
update.

MOUNTING

RECOMMENDED: Use the mount­ing screw to securely attach the
magnetic base to a flat surface of
your choice.

OR:

Use the adhesive tape to stick the

base to a clean surface

for quick and hassle-

free installation.

POSITIONING
Attach your sensor to
the magnetic base and
position it to cover the
area you wish to moni-

tor. For best results, mount the

sensor within 0 feet from the door 2
and around 7 feet from the ground.

MOTION DETECTION RANGE

120°

25 FEET

120°

13 FEET

13 FEET

See Settings for ways to optimize
and customize motion detection
and activity reports.

WARNING

4 This product should be installed

indoors upon completion of any
building renovations.

4 Do not install the sensor in a place

with direct sun exposure, high
temperature, or humidity.

4 Keep away from chemicals, water, and

dust.

4 Ensure the device is never close to any

heat source or open flame to prevent
fire.

4 Ensure the device is connected to an

electric power source that does not
exceed the maximum load power.

4 No part of the device may be replaced

or repaired by the user, except for the
battery.

SETTINGS

Please refer to your controller's
user guide for advanced program­ming instructions as they are a little
different for every soware.

Not sure where to start? Let us
know! [e-mail]

ASSOCIATION

Associate your Motion Sensor with

other Z-Wave devices for direct
communication between them so
your rules and automations can
take place even if the hub is down.
The Motion Sensor supports Group
1 (motion detection and battery

level) and Group 2 (BASIC SET) with

up to 5 devices for lifeline commu-

nication. To associate the sensor
with other devices, put your Z-Wave
controller in Association mode by
sending the appropriate command
and wake up the sensor by pressing
and holding the Z-Wave button for
5 seconds.

CUSTOMIZE YOUR SENSOR

Motion Sensor

Parameter 12: Use it to adjust PIR
sensor sensitivity.
Values: 1 - 8, where 1 = low
sensitivity and = high sensitivity. 8
Default set to 4.
Size: 1 byte dec.

Parameter 14: Use it to enable or

disable BASIC SET reports when
motion is triggered for Group 2 of
associated devices.
Values: 0 - disabled (default), 1 ­enabled

Size: 1 byte dec.

Parameter 15: Use it to reverse

values sent in BASIC SET reports
when motion is triggered for Group
2 of associated devices.
Values: 0 - BASIC SET value 255 is
sent when motion is triggered,
BASIC SET value 0 is sent when
motion times out (default).
1 - BASIC SET value 0 is sent when
motion is triggered, BASIC SET

value 255 is sent when motion
times out.

Size: 1 byte dec.

Parameter 18: Use it to set trigger
interval - the time when motion is
reported again aer initial trigger.
Values: 3 - 65535 where 3 stands for

6 seconds and 65535 stands for
65538 seconds (add 3 seconds to
each value number). Default set to
30 seconds (value 27).
Size: 2 byte dec.

NOTE: Small interval will increase

activity and decrease battery life.

Vibration Sensor

Parameter 17: Use it to disable the
vibration sensor.
Values: 0 - vibration sensor is
disabled, 1 - vibration sensor is
enabled (default).

Size: 1 byte dec.

Low Battery Alert

Parameter 32: Use it to set battery
level for low battery reports.
Values: 10-50, where 10 stands for
10% battery le and 50 stands for
50% battery le. Default set to 10.

Size: 1 byte dec.

LED Indicator

Parameter 20: Use it to disable the
LED indicator.
Values: 0 - LED indicator is
disabled, 1 - LED indicator is
enabled (default).

Size: 1 byte dec.

OR

CLICK 6 TIMES TO
DISABLE / ENABLE LED

USB POWER

When used with a USB power
adapter, the sensor will act as a Z­Wave signal repeater. Go to our
website for inclusion instructions:

support.getzooz.com

RANGE TEST TOOL

You can easily check if the sensor is
within your Z-Wave hub’s range:
Press and hold the Z-Wave button
for 10-15 seconds and release it
to start the test. The LED indicator
will then report signal strength.
Solid blue = direct communication
with the primary controller is

stable
Slow blinking blue = communica-
tion quality is fair
Fast blinking blue = communica-

tion with the primary controller has

failed

Press and release the Z-Wave
button to exit testing mode.

COMMAND CLASSES

This device requires the following
command classes to be supported
and recognized by your Z-Wave
controller:

COMMAND_CLASS_ASSOCIATION_GRP_INFO

COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_BATTERY
COMMAND_CLASS_CONFIGURATION
COMMAND_CLASS_DEVICE_RESET_LOCALLY
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
COMMAND_CLASS_NOTIFICATION_V5
COMMAND_CLASS_POWERLEVEL
COMMAND_CLASS_SECURITY
COMMAND_CLASS_SECURITY_S2
COMMAND_CLASS_SUPERVISION
COMMAND_CLASS_TRANSPORT_SERVICE_V2
COMMAND_CLASS_VERSION_V2
COMMAND_CLASS_WAKE_UP_V2
COMMAND_CLASS_ZWAVEPLUS_INFO_V2

S2

This product can be included and
operated in any Z-Wave network
with other Z-Wave certified devices
from other manufacturers and/or
other applications. All non-battery
operated nodes within the network
will act as repeaters regardless of
vendor to increase reliability of the
network.

This product features the latest
Security 2 (S2) framework to re­move smart home network hacking
risks. This device is equipped with
unique authentication code for
trusted wireless communication.

WARRANTY

This product is covered under a 12­month limited warranty. To read
the full warranty policy or file a
warranty claim, please go to

www.getzooz.com/warranty

FCC NOTE
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY
R AD I O OR T V IN T E RF E RE N C E C A US E D BY
U NA U TH OR IZ E D M O DI F IC AT I ON S TO T HI S
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE
USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
STORE INDOORS WHEN NOT IN USE. SUITABLE FOR
DRY LOCATIONS ONLY. DO NOT IMMERSE IN WATER.
NOT FOR USE WHERE DIRECTLY EXPOSED TO WATER.
This device complies with Part 15 of the FCC Rules.

Operation is subject to the following conditions:

1. This device may not cause harmful interference, 2.

This device must accept any interference received,
including interference that may cause undesired
operation.

This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used
according to instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will
not occur in any given installation.
f this equipment causes harmful interference to radio
or television reception, the user may try to correct
the interference by taking one or more of the
following measures:

- Reorient or relocate receiving antenna

- Increase the separation between equipment and

receiver

- Connect equipment into a separate outlet or circuit
from receiver

- Consult the dealer or an experienced radio/TV
technician for additional assistance

All brand names displayed are trademarks of
their respective holders.

© Zooz 2018
