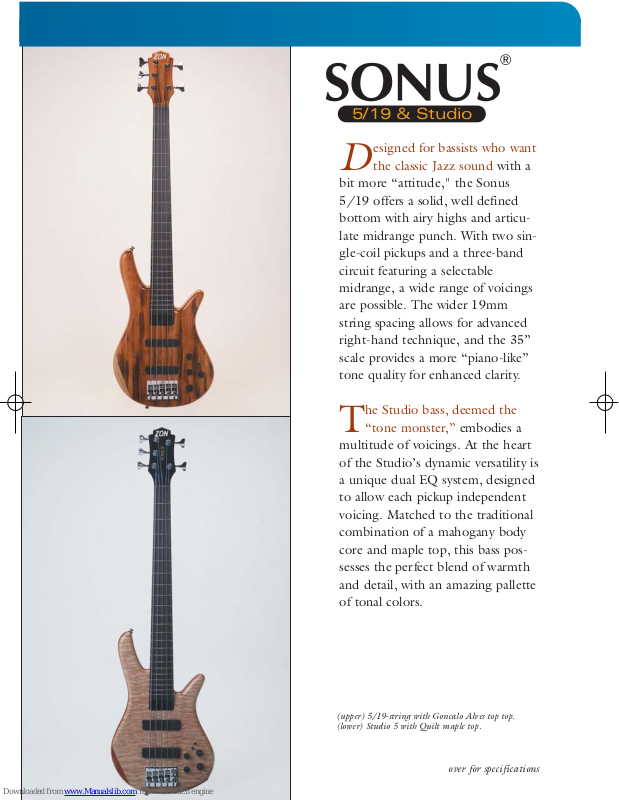

Zon Guitars Sonus Studio Specifications

D

esigned for bassists who want

the classic Jazz sound with a

bit more “attitude," the Sonus
5/19 offers a solid, well defined
bottom with airy highs and articu­late midrange punch. With two sin­gle-coil pickups and a three-band
circuit featuring a selectable
midrange, a wide range of voicings
are possible. The wider 19mm
string spacing allows for advanced
right-hand technique, and the 35”
scale provides a more “piano-like”
tone quality for enhanced clarity.

T

he Studio bass, deemed the

“tone monster,” embodies a

multitude of voicings. At the heart
of the Studio’s dynamic versatility is
a unique dual EQ system, designed
to allow each pickup independent
voicing. Matched to the traditional
combination of a mahogany body
core and maple top, this bass pos­sesses the perfect blend of warmth
and detail, with an amazing pallette
of tonal colors.

(upper) 5/19-string with Goncalo Alves top top.
(lower) Studio 5 with Quilt maple top.

over for specifications

5/19 & Studio

Body

Material: 5/19 two-piece swamp Ash (figured wood top, transparent or custom color

see options).

Studio:: two-piece mahogany w/Maple top.
Finish: Polyester gloss
Color: Natural

Neck

Type: Composite, bolt-on design
Finish: Flat urethane
Fingerboard: Phenowood w/side dot markers
Frets/size: 4-string: 24/medium 5-string: 22/medium
Nut: Graphite
Width at nut: 4-string–1.532” 5-string–1.875”

Electronics- 5/19

Type: ZHR-47 active electronics made for Zon by Bartolini
Function: Master volume, pickup blend, midrange and stacked bass/treble controls with

3 position mid frequency switch. Boost/cut ±15dB
Pickups: Exclusively designed for Zon by Bartolini, medium aperture, passive, linear single

coil design.

Electronics- Studio

Type: ZHR-6 dual active system made for Zon by Bartolini
Functions: Master volume, pickup blend, dual independent stacked bass/treble controls

with 3-position boost switch, one for each pickup.
Pickups: Exclusively designed for Zon by Duncan custom shop medium-aperture, passive,

planar-coil design

Hardware

Bridge: Zon machined brass
Spacing: 4-string–.750”(19mm) 5-string–.750”(19mm)
Tuners: Gotoh GB-7

Options

General: Fretless with or without lines (no dots on board face) • Solid and transparent

colors • Master grade wood tops • Left-handed • Black or gold hardware •

Hardshell case. (See price list for details).

Other: Gig bag included.

Specifications

Zon Guitars • 780 Second Ave, Redwood City, CA 94063

Phone: [phone] • Fax: [phone] • www.zonguitars.com

Sonus is a registered trademark of Zon Guitars. Legacy, Hyperbass, Mosaic and UltraSonic are trademarks of Zon Guitars.

Jazz Bass is a trademark of Fender Musical Instruments.

5/19 & Studio

T

he Sonus reflects innovations

in design and advanced
electronics for a contemporary
interpretation of the traditional
Jazz bass. This model achieves a
perfect blend of classic and con­temporary characteristics that
replicate the timeless Jazz sound
while offering bassists superior
performance. The Sonus is voiced
with a warm, smooth bottom end,
solid mid-range punch, and a
sweet, clear treble response.

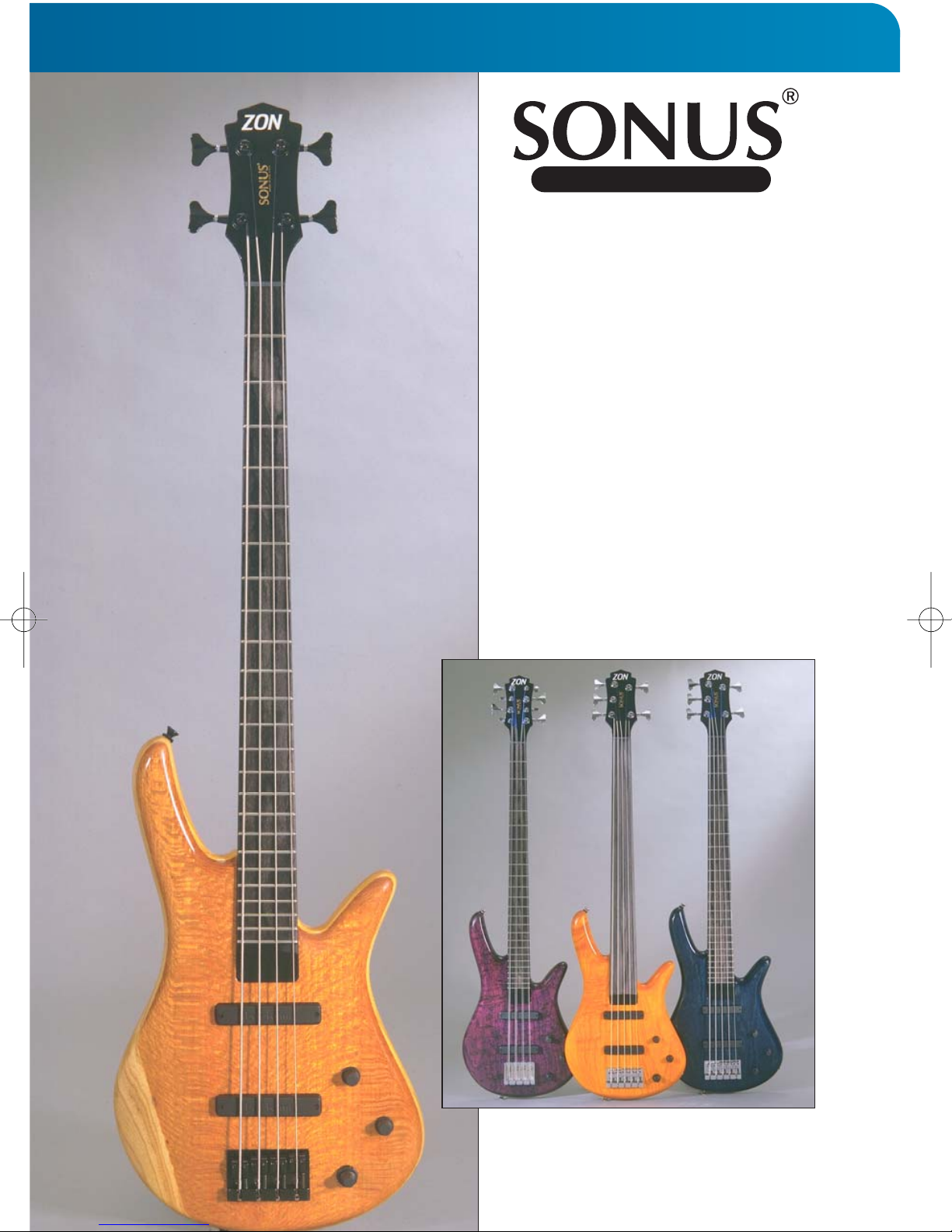

(L to R) 4-string with optional Lacewood top; pur­ple 8-string; amber 5-string fretless; and cobalt blue
5-string

over for specifications

4,5,6 & 8-strings
