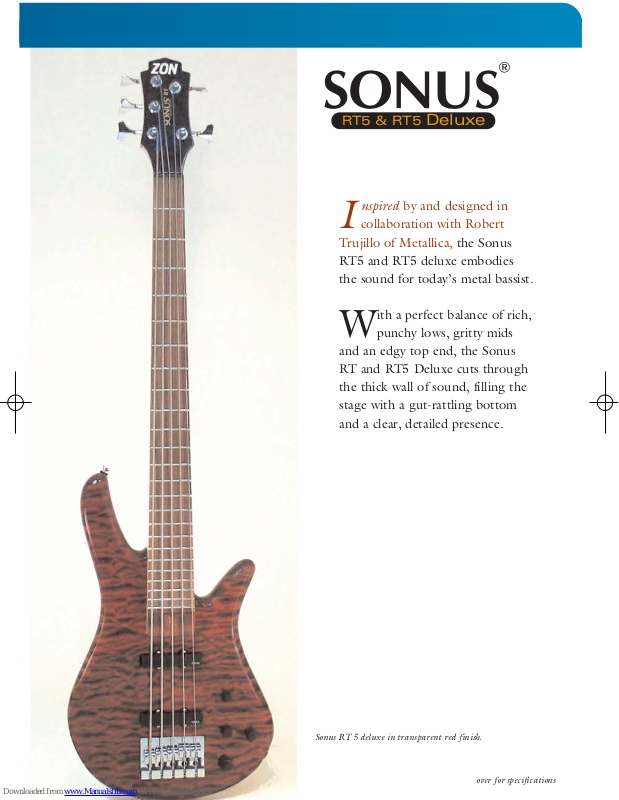

I
nspired by and designed in
collaboration with Robert
Trujillo of Metallica, the Sonus
RT5 and RT5 deluxe embodies
the sound for today’s metal bassist.
W
ith a perfect balance of rich,
punchy lows, gritty mids
and an edgy top end, the Sonus
RT and RT5 Deluxe cuts through
the thick wall of sound, filling the
stage with a gut-rattling bottom
and a clear, detailed presence.
over for specifications
Sonus RT 5 deluxe in transparent red finish.
RT5 & RT5
Deluxe
Page 2
Body
Material: Two-piece select maple with figured maple top (RT5)
Two piece solid quilt maple (RT5 Deluxe)
Finish: Polyester gloss
Color: Natural, transparent black, red, blue
Neck
Type: Maple, bolt-on design
Finish: Flat urethane
Fingerboard: Rosewood w/side dot markers
Radius: 12"
Nut: Graphite
Frets/size: 24/medium
Width at nut: 1.813”
Scale length: 34"
Electronics – RT5
Type: ZB2 active system by Bartolini.
Functions: Master volume, pickup blend, bass and treble controls. Boost/cut
±15dB
Pickups: EMG active single coil
Electronics – RT5 deluxe
Type: ZB3 active system by Bartolini.
Functions: Master volume, pickup blend, bass, mid and treble controls.Boost/cut
±15dB
Pickups: EMG active single coil
Power requirements: Single 9-volt battery
Life expectancy: 2500 hours of continuous use.
Hardware
Bridge: ZON machined brass.
String spacIng .687"/17mm (string-to-string center)
Tuners: Gotoh GB-7
Finish: Chrome
Options
General: Fretless -lined, blank (no dots on board face) • Sunburst or Tobaccoburst
•
Left-handed • Black hardware •Hipshot X-tender
Other: Gig bag included
Specifications
Zon Guitars • 780 Second Ave, Redwood City, CA 94063
Phone: 650.366.3516 • Fax: 650.366.9996 • www.zonguitars.com
Sonus is a registered trademark of Zon Guitars. Legacy, Hyperbass, Mosaic and UltraSonic are trademarks of Zon Guitars.
Jazz Bass is a trademark of Fender Musical Instruments.
RT5 & RT5 Deluxe
