Page 1
T
he Sonus Classic is designed
with retro curves and appointments giving this bass a vintage
feel. Solid lows, a tight, fat
midrange and bright highs define
its tone. The 35” scale bolt-on
composite neck attached to an ash
body adds to the “cut and clarity”
of this instrument. A simple, yet
extremely functional active circuit
allows for boost and cut of bass
and treble in just one control, with
independent volume controls for
each pickup. Coupled with two
narrow-aperture dual-coil pickups,
the result is a plug-and-play bass
with an expressive and flexible
voice.
over for specifications
Classic

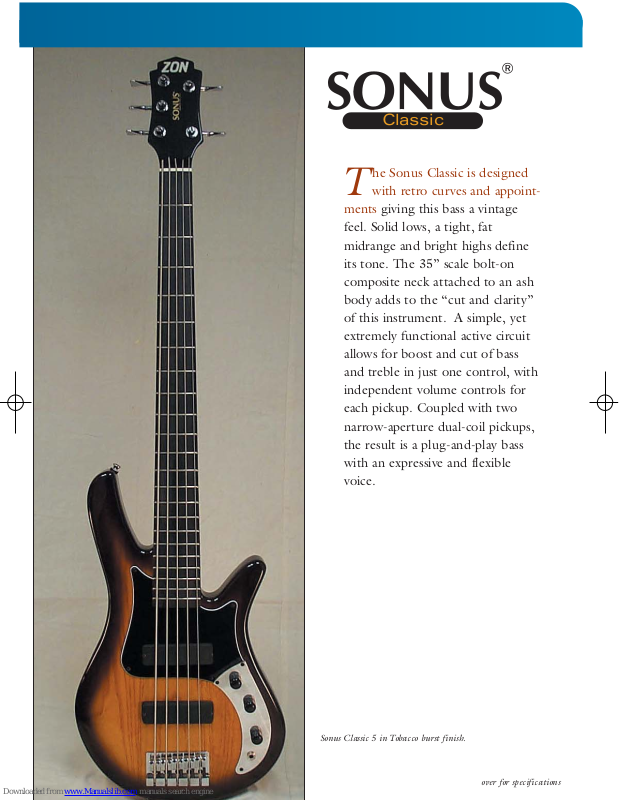

Sonus Classic 5 in Tobacco burst finish.
Page 2
Body
Material: Select Swamp Ash
Finish: Flat poly/urethane
Color: Natural
Neck
Type: Composite, bolt-on design
Finish: Flat urethane
Fingerboard: Phenowood w/side dot markers
Frets/size: 4-string: 24/medium 5-string: 22/medium
Nut: Graphite
Width at nut: 4-string–1.532” 5-string–1.875”
Scale length: 4-string–34” 5-string–35”
Electronics
Type: ZAP-1 active system made for Zon by Aguilar
Functions: Volume, volume, bass and treble boost controls
Pickups: Exclusively designed for Zon by Duncan custom shop, narrow aperture, dual-coil
design
Hardware
Bridge: Zon machined brass
Spacing: 4 string–.750” (19mm) 5 string–.687” (17mm)
Tuners: Gotoh GB-7
Options
General: Fretless with or without lines (no dots on board face) • Custom and transparent
colors • Left-handed • Hardshell and Ultralite case (See price list for details)
Other: Gig bag included
Specifications
Zon Guitars • 780 Second Ave, Redwood City, CA 94063
Phone: 650.366.3516 • Fax: 650.366.9996 • www.zonguitars.com
Sonus is a registered trademark of Zon Guitars. Legacy, Hyperbass, Mosaic and UltraSonic are trademarks of Zon Guitars.
Jazz Bass is a trademark of Fender Musical Instruments.
