T
he 4/1 & 5/1 models are
straight ahead, single pickup
basses. These instruments deliver a
deep thunderous bass with growly
mids and a crisp treble response.
The exceptional punch and clarity
of these instruments make them the
perfect complement for bassists
who are looking for a big “phat”
sound.

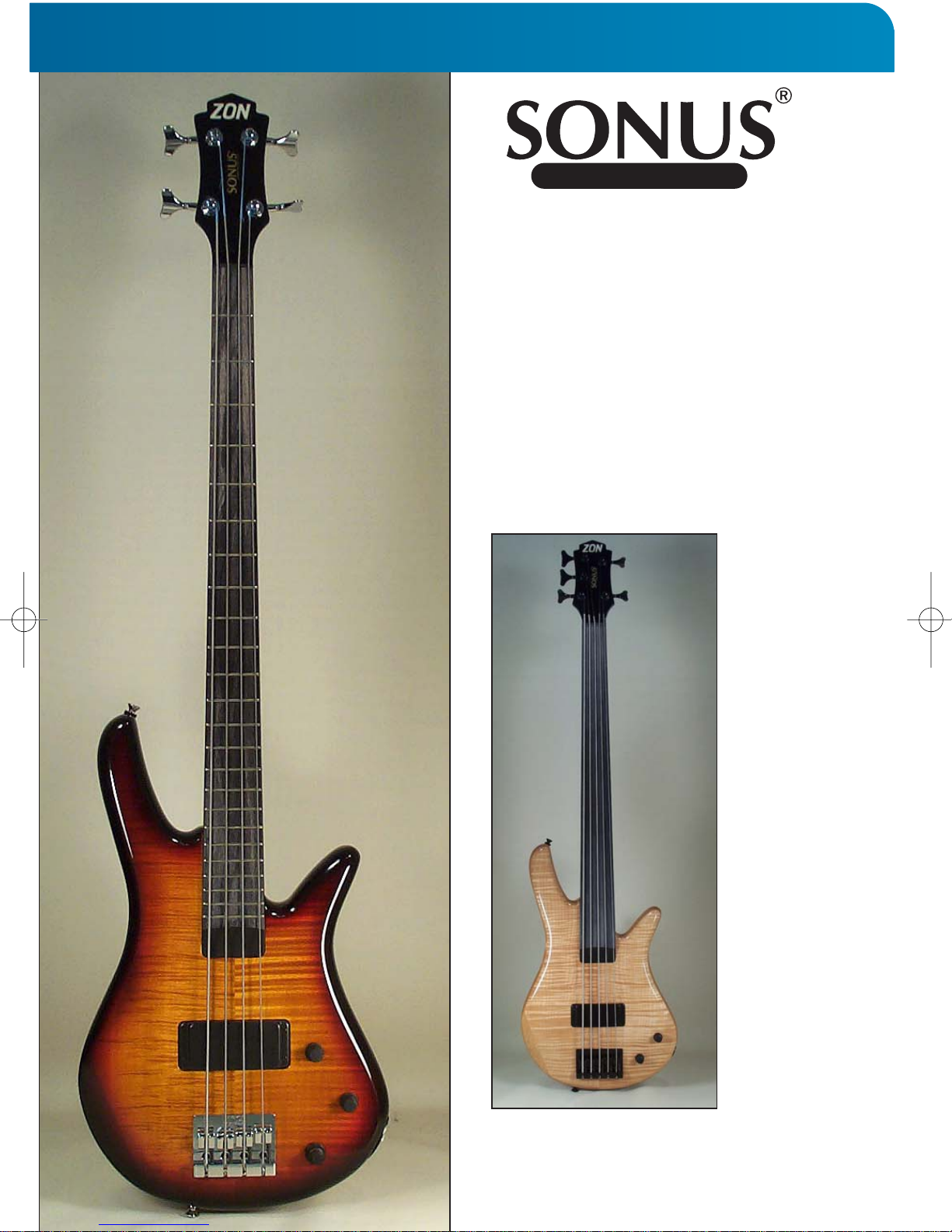

(L to R) Quilt maple 4/1 with sunburst finish
and Flame maple, fretless 5/1
over for specifications
4/1 & 5/1
Page 2
Body
Material: Two-piece select Alder with figured Maple top
Finish: Polyester gloss
Color: Natural
Neck
Type: Composite, bolt-on design.
Finish: Flat urethane
Fingerboard: Phenowood w/side dot markers
Frets/size: 4-string: 24/medium 5-string: 22/medium
Nut: Graphite
Width at nut: 4-string–1.532” 5-string–1.875”
Scale length: 4-string: 34” 5-string : 35”
Electronics
Type: ZHR-2 active system by Bartolini
Functions: Master volume with stacked bass/treble control Boost/cut ±15dB
Pickup: Designed for Zon by Duncan custom shop extra wide aperture, dual coil
design.
Hardware
Bridge: Zon machined brass
SpacIng: 4-string–.750”(19mm) 5-string–.687” (17mm)
Tuners: Gotoh GB-7
Options
General: Fretless with or without lines (no dots on board face) • Solid and transparent
colors • Left-handed • Black hardware • Hardshell case.
(See price list for details).
Other: Gig bag included
Specifications
Zon Guitars • 780 Second Ave, Redwood City, CA 94063
Phone: 650.366.3516 • Fax: 650.366.9996 • www.zonguitars.com
Sonus is a registered trademark of Zon Guitars. Legacy, Hyperbass, and UltraSonic are trademarks of Zon Guitars.
Zon instruments are made in the U.S.A.
