T
he Custom is a hybrid of the
Sonus and Legacy models.
Voiced with a rich bottom, growly
mids, and a sweet, bright treble
response, the versatility of this
instrument makes it a perfect choice
for bassists who play a variety of
musical styles.
The Special is designed with
maximum cut for bassists who need
an articulate voice that won’t get
lost in a wall of sound. The natural
compression from the Bubinga top
and the low mid enhancement of
the pickup configuration make this
bass speak with clarity and focus.

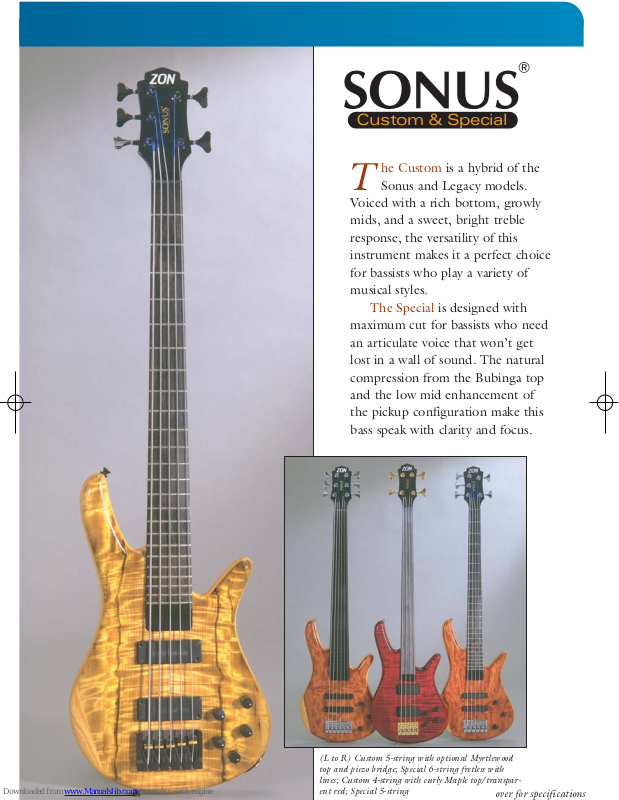

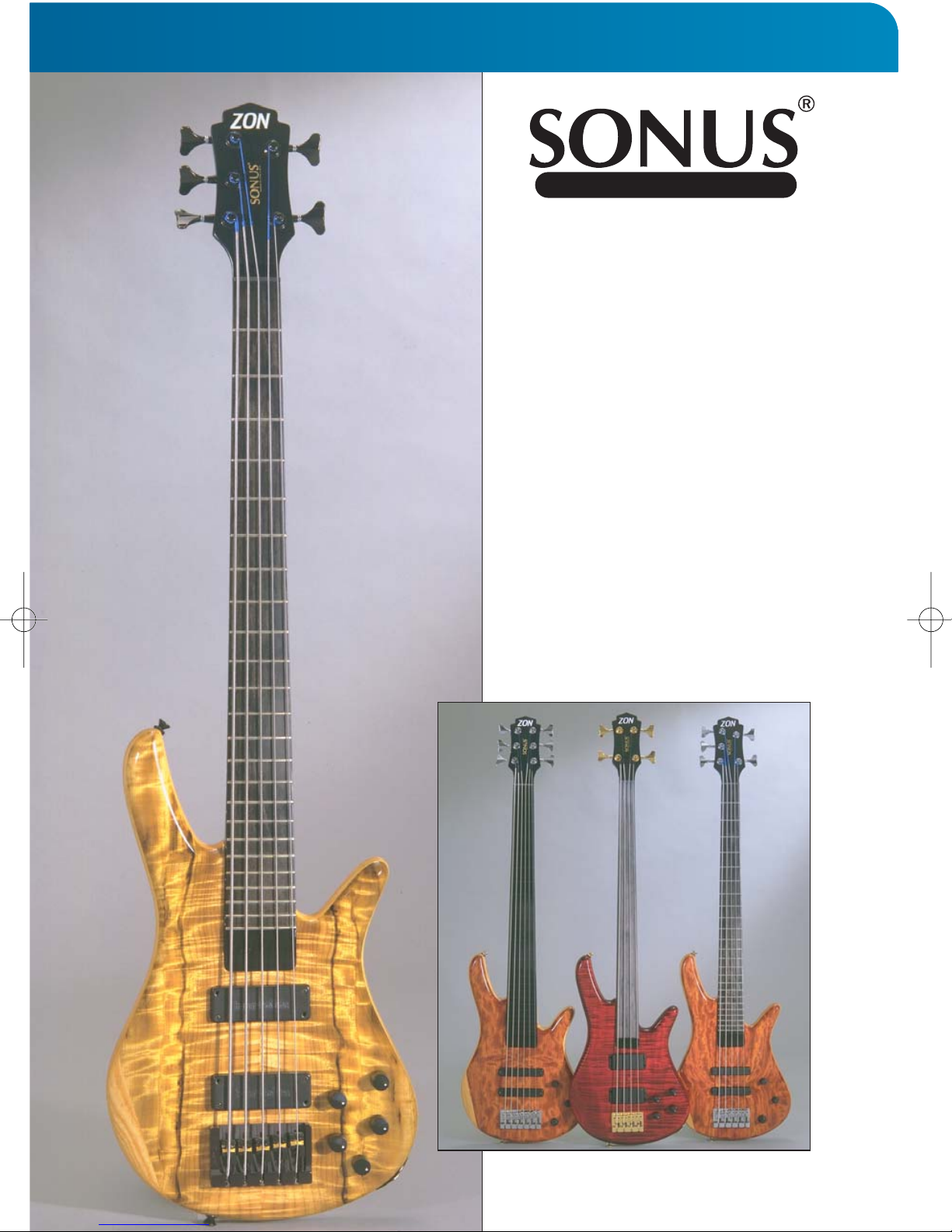

(L to R) Custom 5-string with optional Myrtlewood
top and piezo bridge; Special 6-string fretless with
lines; Custom 4-string with curly Maple top/transparent red; Special 5-string
over for specifications
Custom & Special
Page 2
Body
Material: Custom: two-piece swamp Ash (figured wood top, transparent or custom color
see options).
Special: two-piece swamp Ash w/Bubinga wood top only.
Finish: Polyester gloss
Color: Natural
Neck
Type: Composite, bolt-on design
Finish: Flat urethane
Fingerboard: Phenowood w/side dot markers
Frets/size: 24/medium
Nut: Graphite
Width at nut: 4-string–1.532” 5-string–1.875” 6-string–2.125”
Scale length: 34”
Electronics–Custom
Type: ZP-2D by Polyfusion exclusively for Zon.
Functions: Master volume, pickup blend, bass, treble and midrange controls Boost/cut
±15dB
Pickups: Exclusively designed for Zon by Bartolini, wide-aperture, passive, dual-coil design
Electronics–Special
Type: ZHR-2 active system by Bartolini
Functions: Master volume, pickup blend and stacked bass/treble control. Boost/cut ±15dB
Pickups: Exclusively designed for Zon by Bartolini, narrow-aperture, passive, multi-coil
design.
Hardware
Bridge: Zon machined brass
Spacing: 4-string–.750”(19mm) 5-string–.687”(17mm) 6 string–656”(16mm)
Tuners: Gotoh GB-7
Options
General: Fretless with or without lines (no dots on board face) • Solid and transparent
colors • Master grade wood tops • Left-handed • Black or gold hardware •
Hardshell case. (See price list for details).
Other: Gig bag included.
Specifications
Zon Guitars • 780 Second Ave, Redwood City, CA 94063
Phone: 650.366.3516 • Fax: 650.366.9996 • www.zonguitars.com
Sonus is a registered trademark of Zon Guitars. Legacy, Hyperbass, Mosaic and UltraSonic are trademarks of Zon Guitars.
Jazz Bass is a trademark of Fender Musical Instruments.
