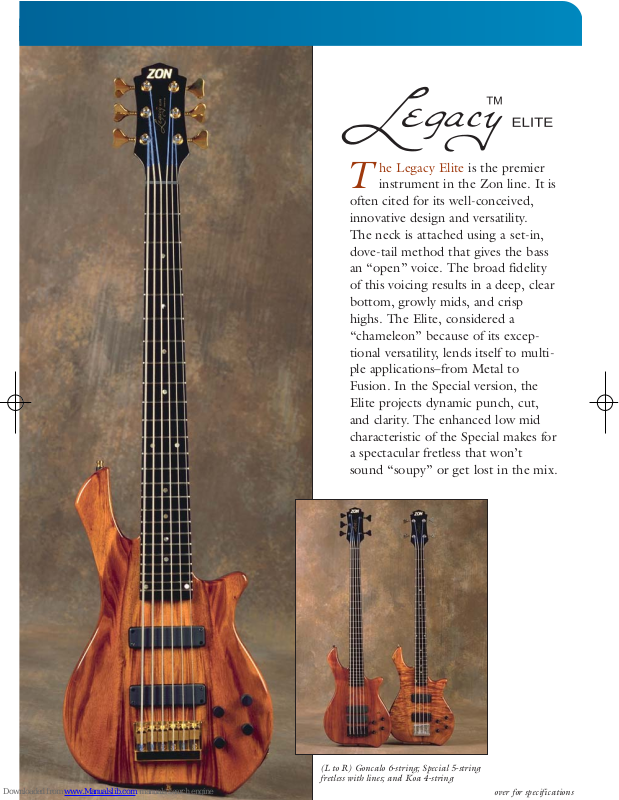

Zon Guitars Legacy Elite Specifications

T

he Legacy Elite is the premier

instrument in the Zon line. It is
often cited for its well-conceived,
innovative design and versatility.
The neck is attached using a set-in,
dove-tail method that gives the bass
an “open” voice. The broad fidelity
of this voicing results in a deep, clear
bottom, growly mids, and crisp
highs. The Elite, considered a
“chameleon” because of its excep­tional versatility, lends itself to multi­ple applications–from Metal to
Fusion. In the Special version, the
Elite projects dynamic punch, cut,
and clarity. The enhanced low mid
characteristic of the Special makes for
a spectacular fretless that won’t
sound “soupy” or get lost in the mix.

(L to R) Goncalo 6-string; Special 5-string
fretless with lines; and Koa 4-string

over for specifications

Body

Material: Elite: two-piece Mahogany core (w/choice of figured wood top ).

Elite Special: two-piece Mahogany core w/Bubinga top (only).

Finish: Polyester gloss
Color: Natural

Neck

Type: Composite, set-in design
Finish: Polyester gloss
Fingerboard: Phenowood w/side dot markers and Abalone face dots
Frets/size: 24/medium
Nut: Graphite
Width at nut: 4-string–1.687” 5-string–1.875” 6-string–2.125”
Scale length: 34”

Electronics

Type: ZP-2DM active system made for Zon by Polyfusion. Class A electronics with

studio-grade components on a printed circuit board design.

Functions: Master volume, pickup blend, bass, treble and midrange controls Boost/cut

±15dB

Pickups: Exclusively designed for Zon by Bartolini,wide-aperture, passive, dual coil design

Hardware

Bridge: Zon machined brass
Spacing: 4-string–.750”(19mm) 5-string–.687”(17mm) 6-string–.656”(16mm)
Tuners: Gotoh GB-7

Options

General: Fretless with or without lines (no dots on board face) • Solid and transparent

colors • Master grade wood tops • Left-handed• Black or gold
hardware • Hardshell and Ultralite case. (See price list for details).

Piezo bridge: Individual string sensors in each saddle with independent EQ systems for

magnetic and piezo pickups. Selectable mid and treble center frequencies for
the magnetic system.

Specifications
