Zonet Technology ZSR4154WE User Manual
Copyright Statement
is the registered trademark of Zonet Technology Inc. All the
products and product names mentioned herein are the trademarks or
registered trademarks of their respective holders. Copyright of the whole
product as integration, including its accessories and software, belongs to Zonet
Technology Inc. Without the permission of Zonet Technology Inc., any individual
or party is not allowed to copy, plagiarize, imitate or translate it into other
languages.
Table of Contents
Chapter 1 Introduction......................................................................... 1
Welcome.............................................................................................. 1
Contents of Package.............................................................................. 1
System Requirement ............................................................................. 1
Getting to Know Your ZSR4154WE .......................................................... 2
Chapter 2 Hardware Installation......................................................... 4
Chapter 3 Connect Your ZSR4154WE ................................................... 6
How to Check the Network Connection..................................................... 9
Chapter 4 Basic Configurations ...........................................................10
How to Access the Web-based Configuration Utility ..................................10
Setup Wizard.......................................................................................11
Chapter 5 Advanced Settings ..............................................................15

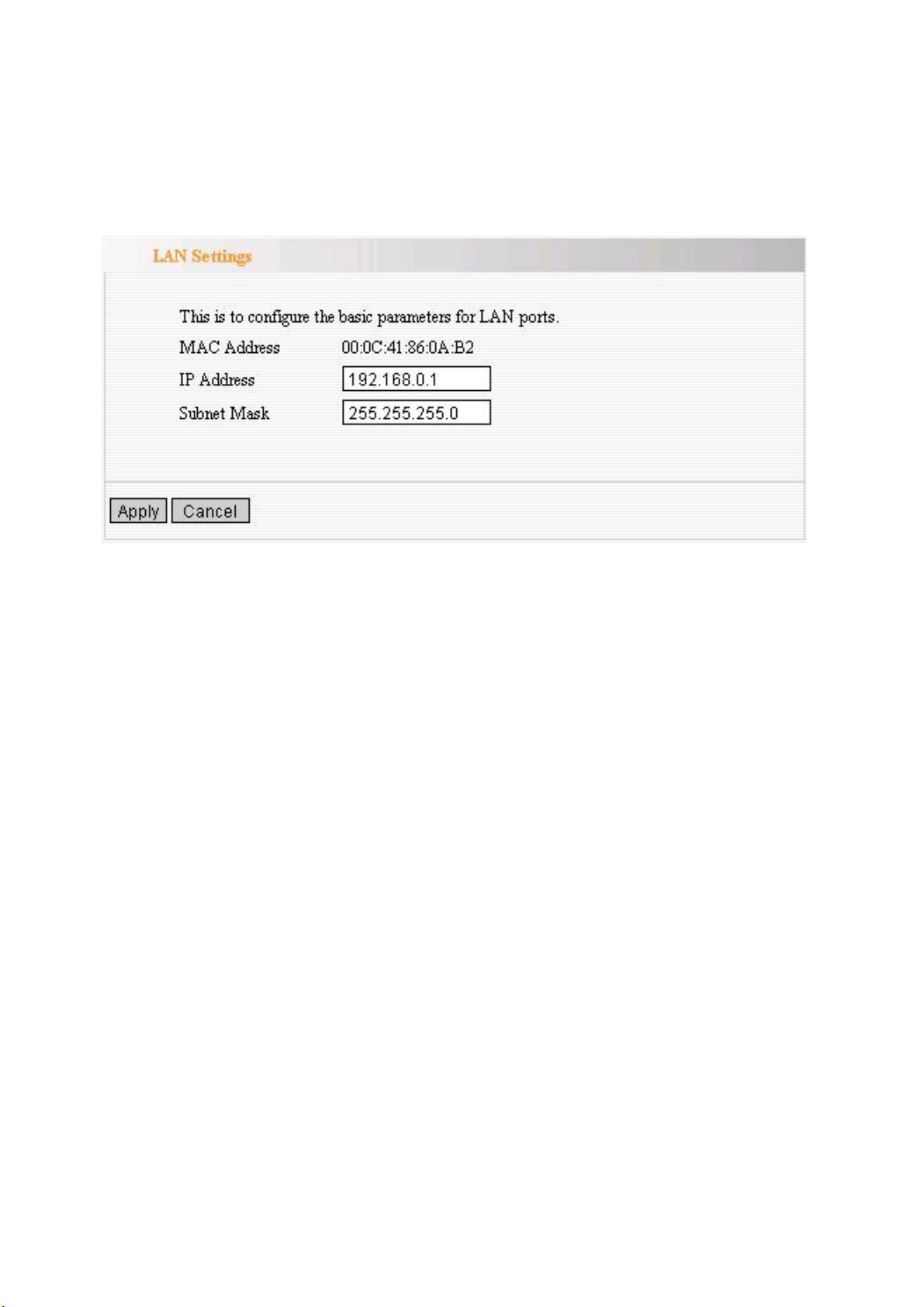

LAN Settings .......................................................................................15
WAN Settings ......................................................................................16

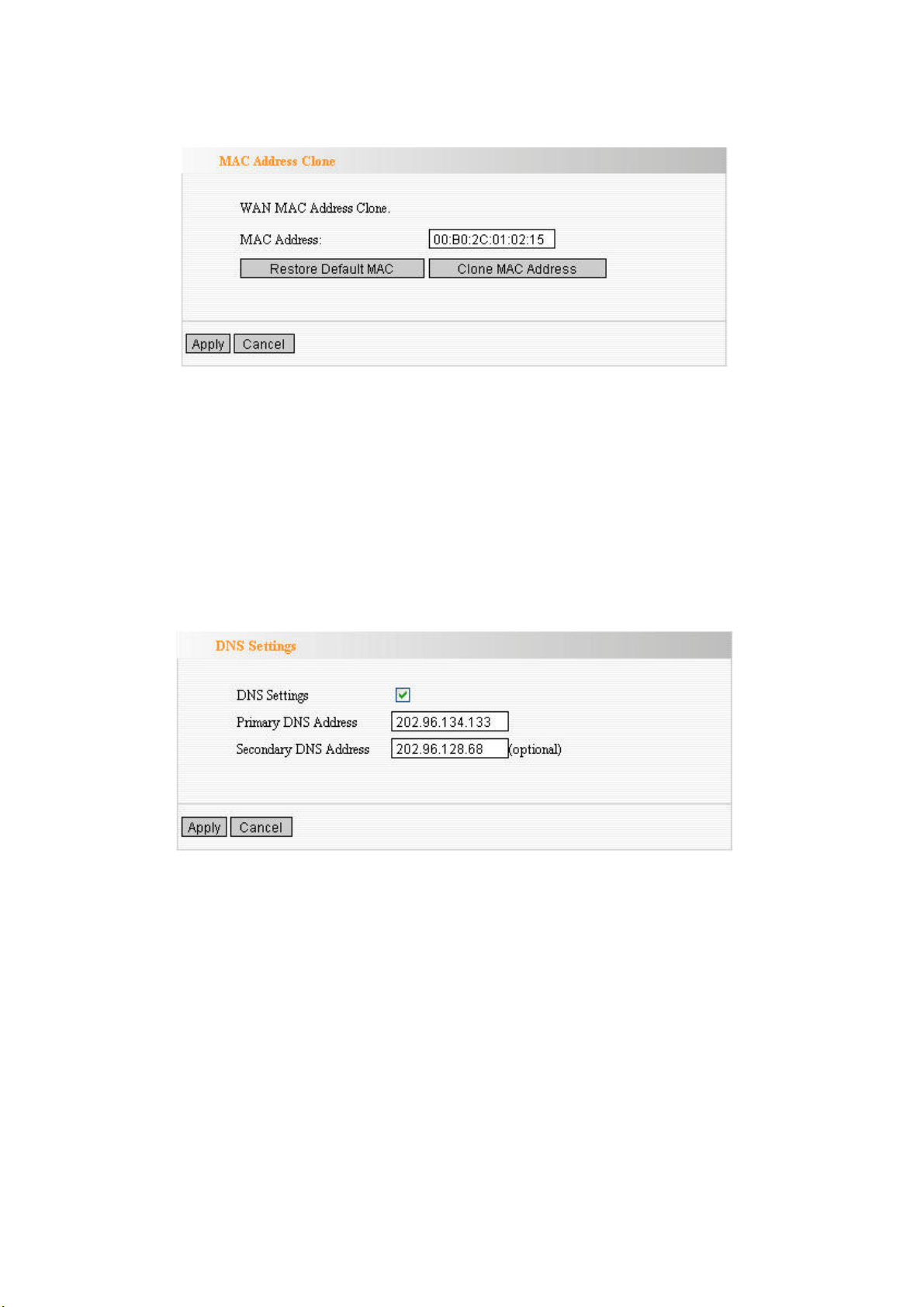

MAC Address Clone ..............................................................................20
DNS Settings .....................................................................................20
Chapter 6 Wireless Settings ................................................................21

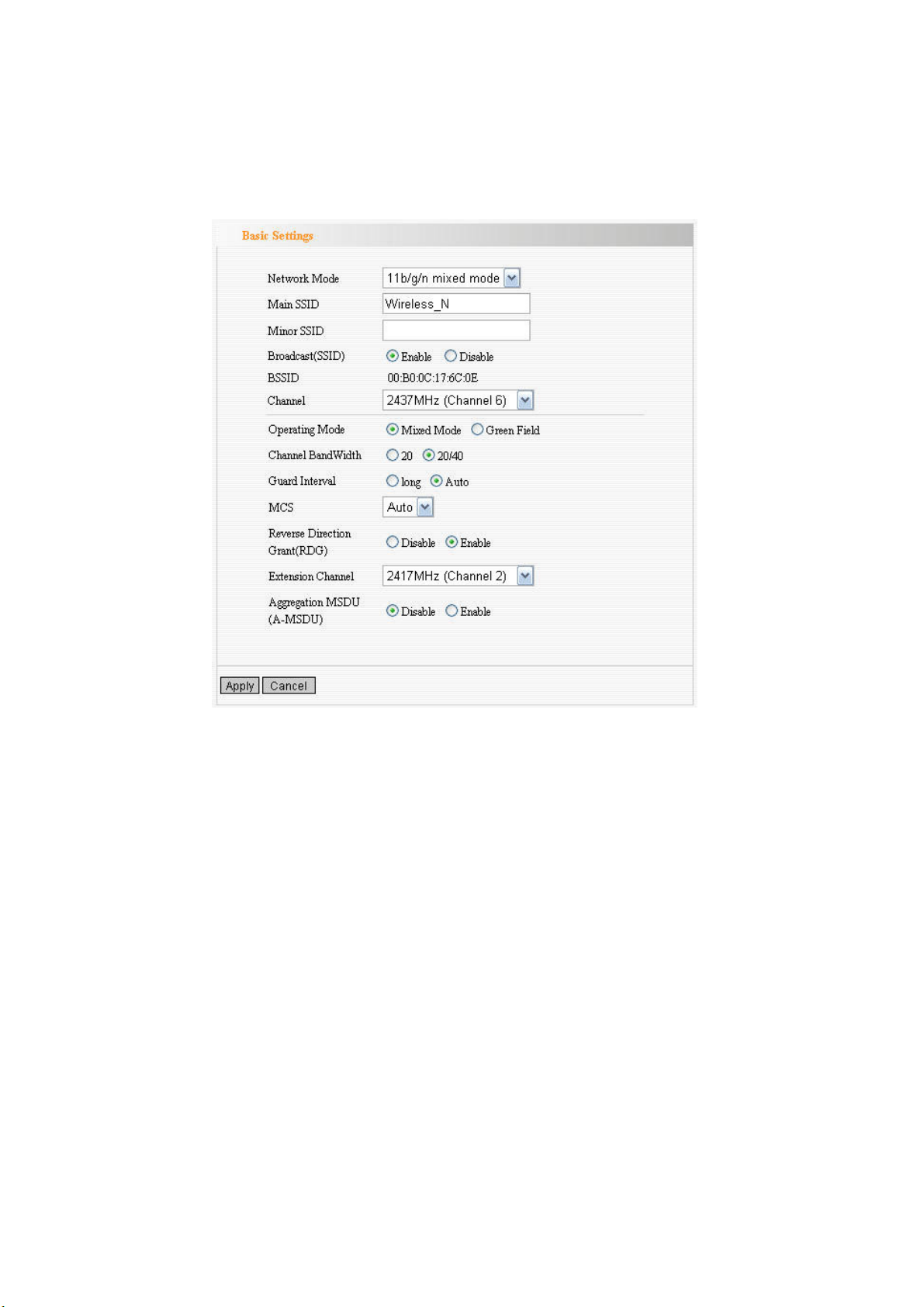

Basic Settings......................................................................................21

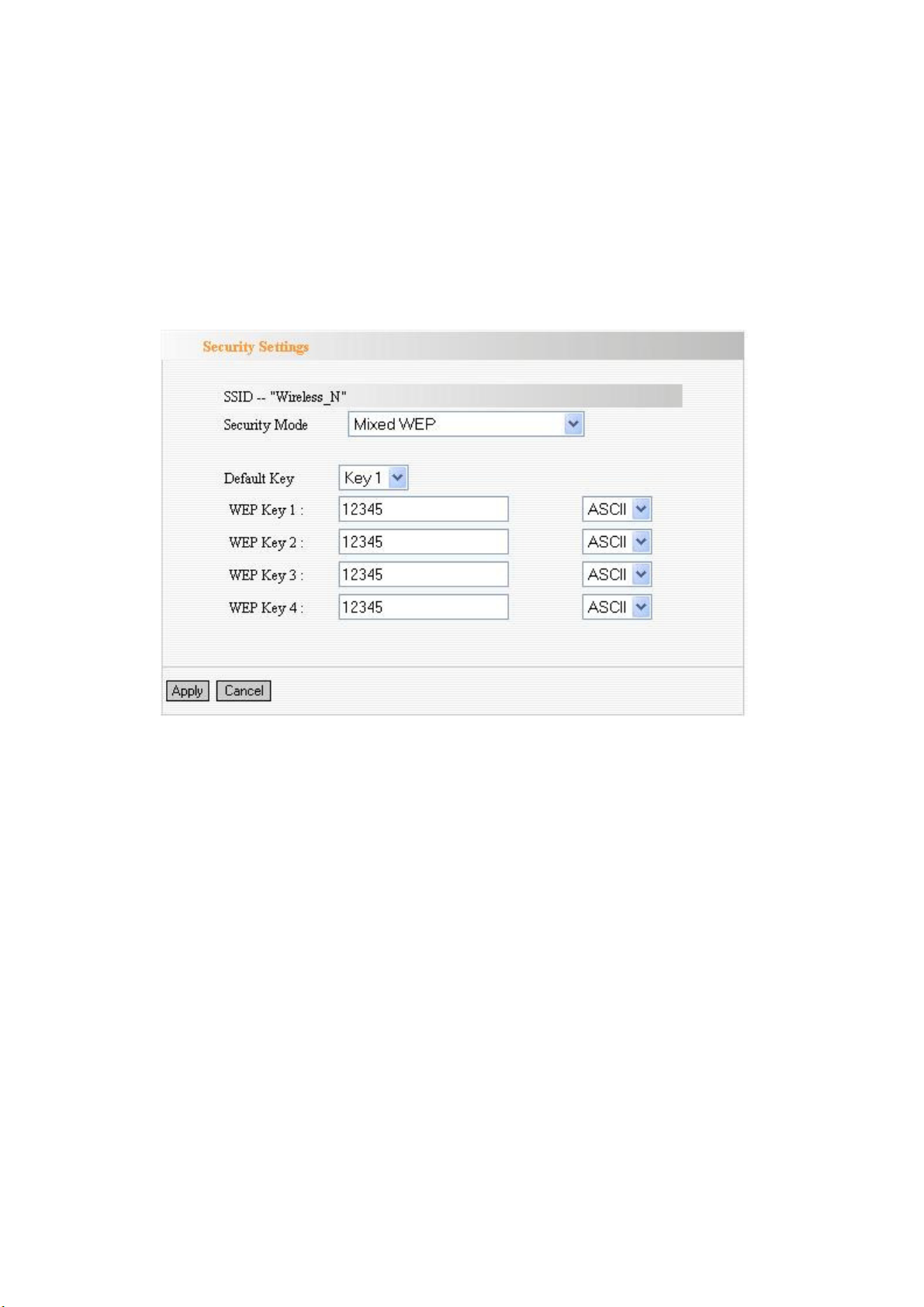

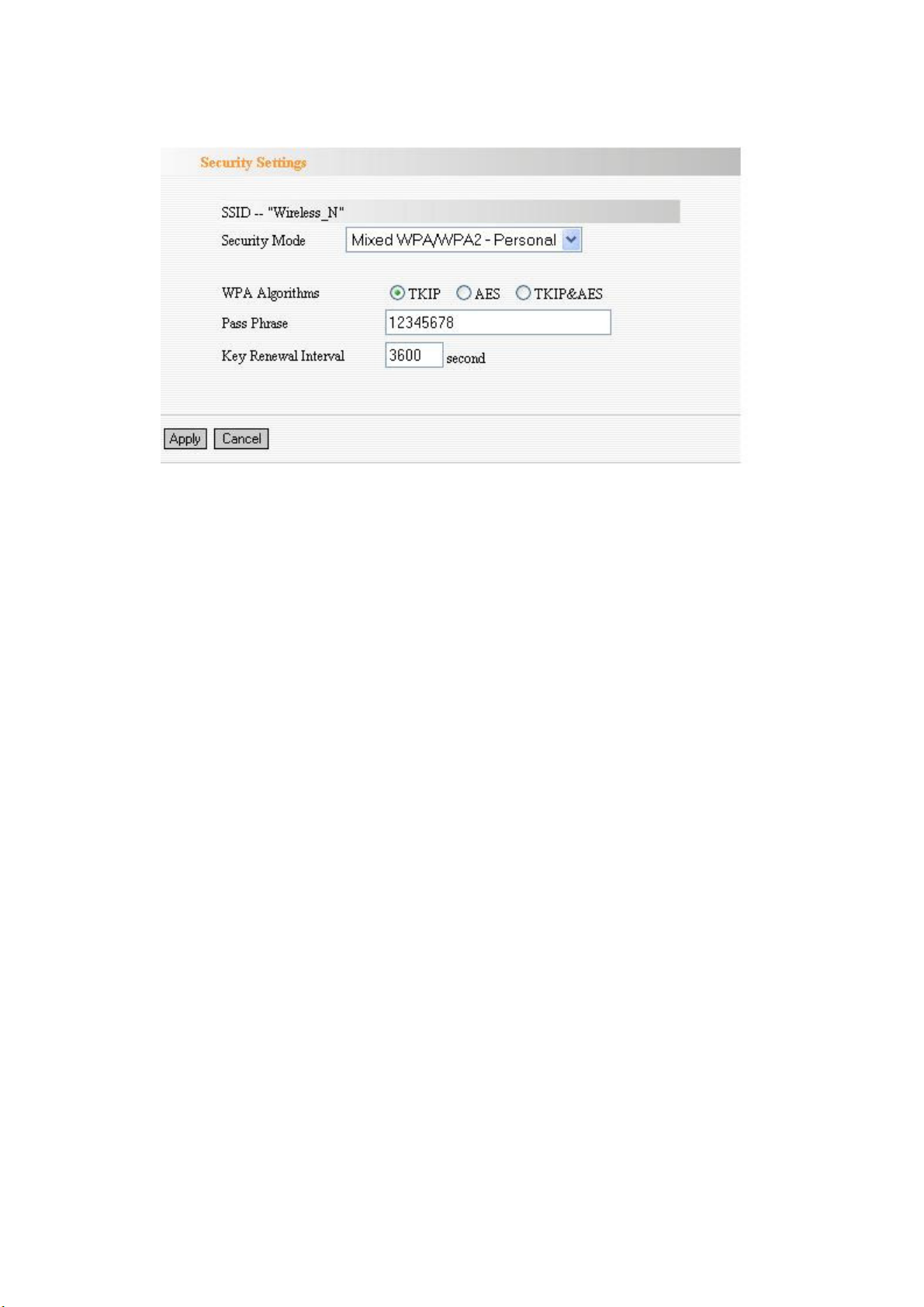

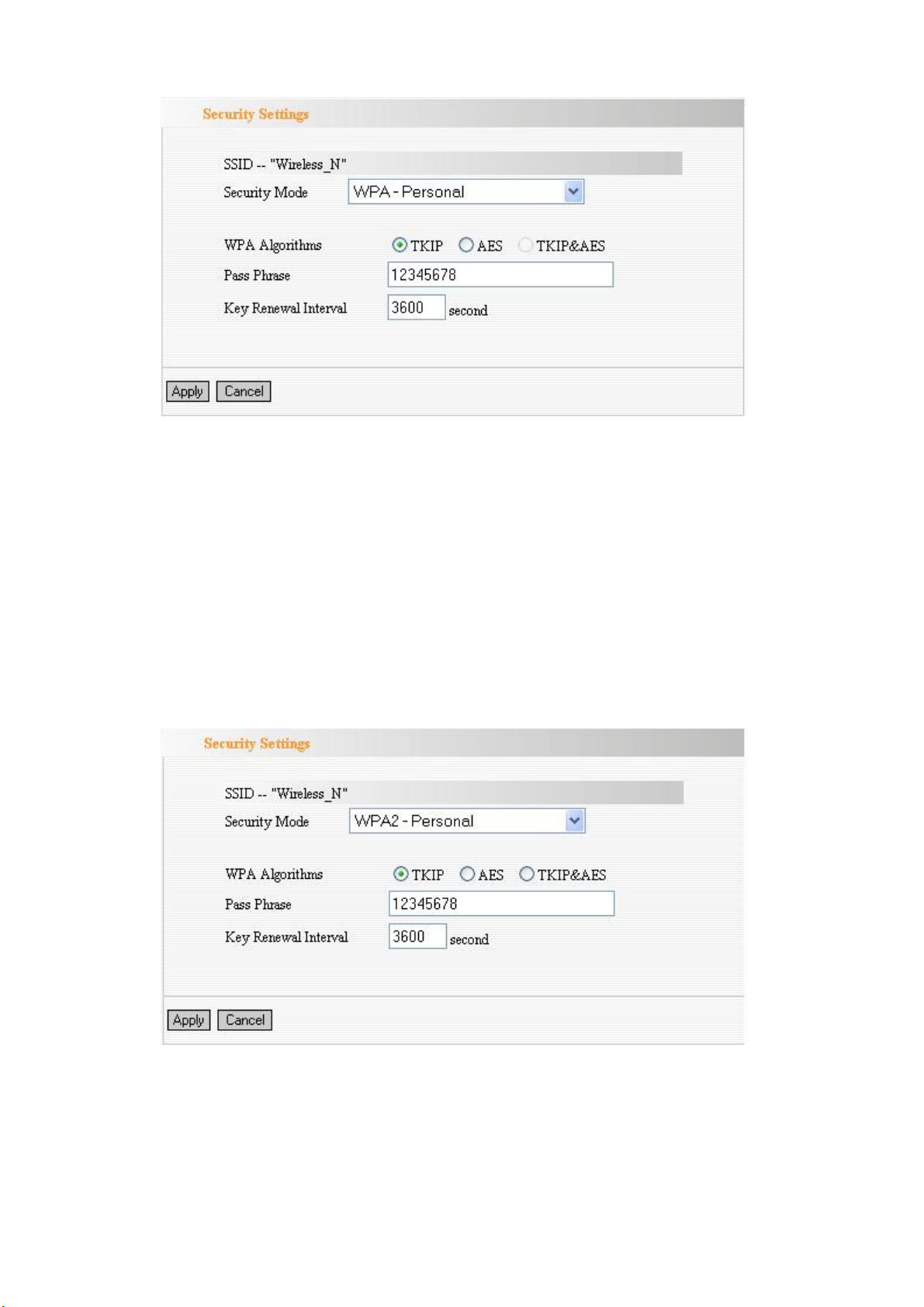

Security Settings .................................................................................22

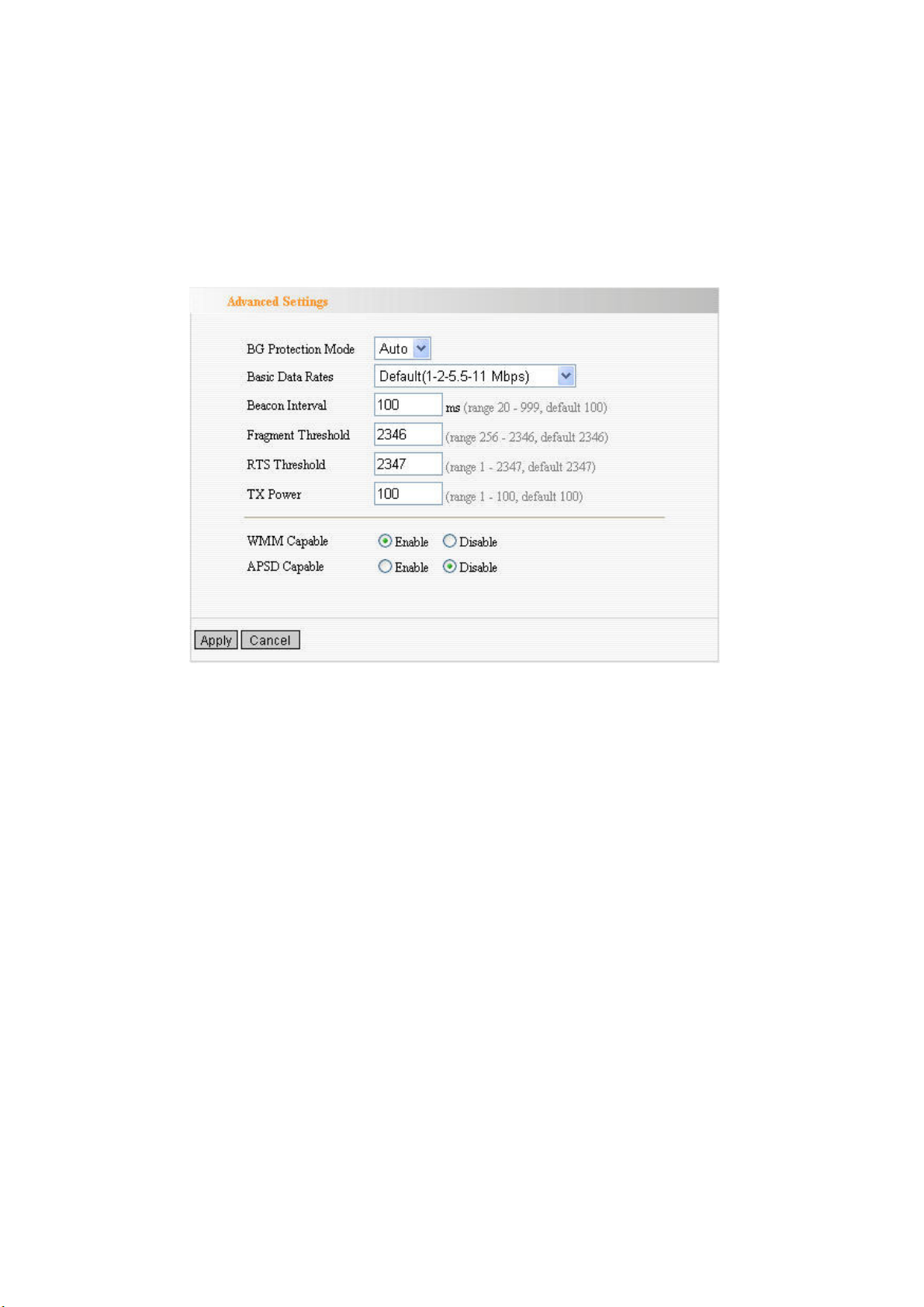

Advanced Settings ...............................................................................25

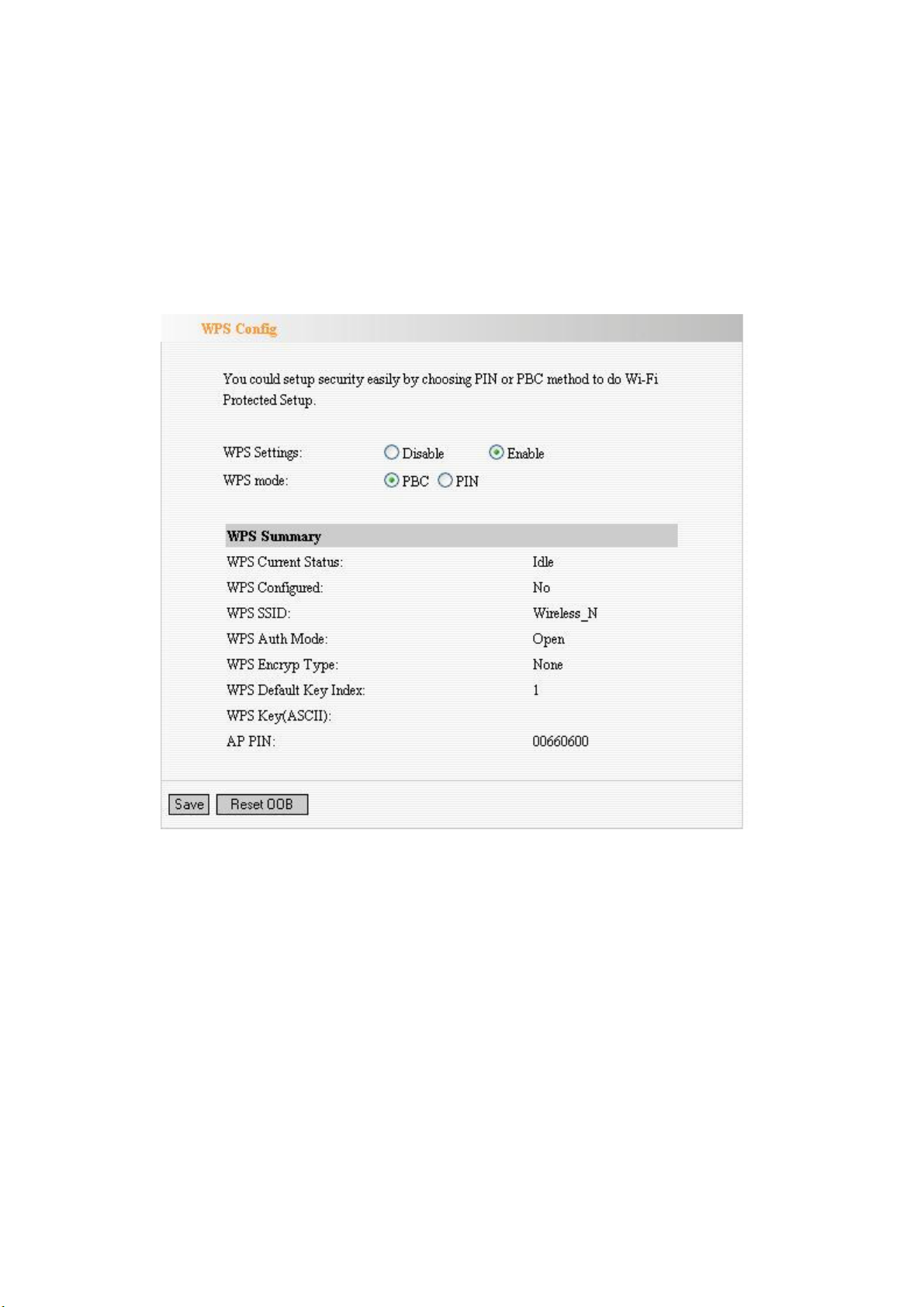

WPS Settings.......................................................................................26

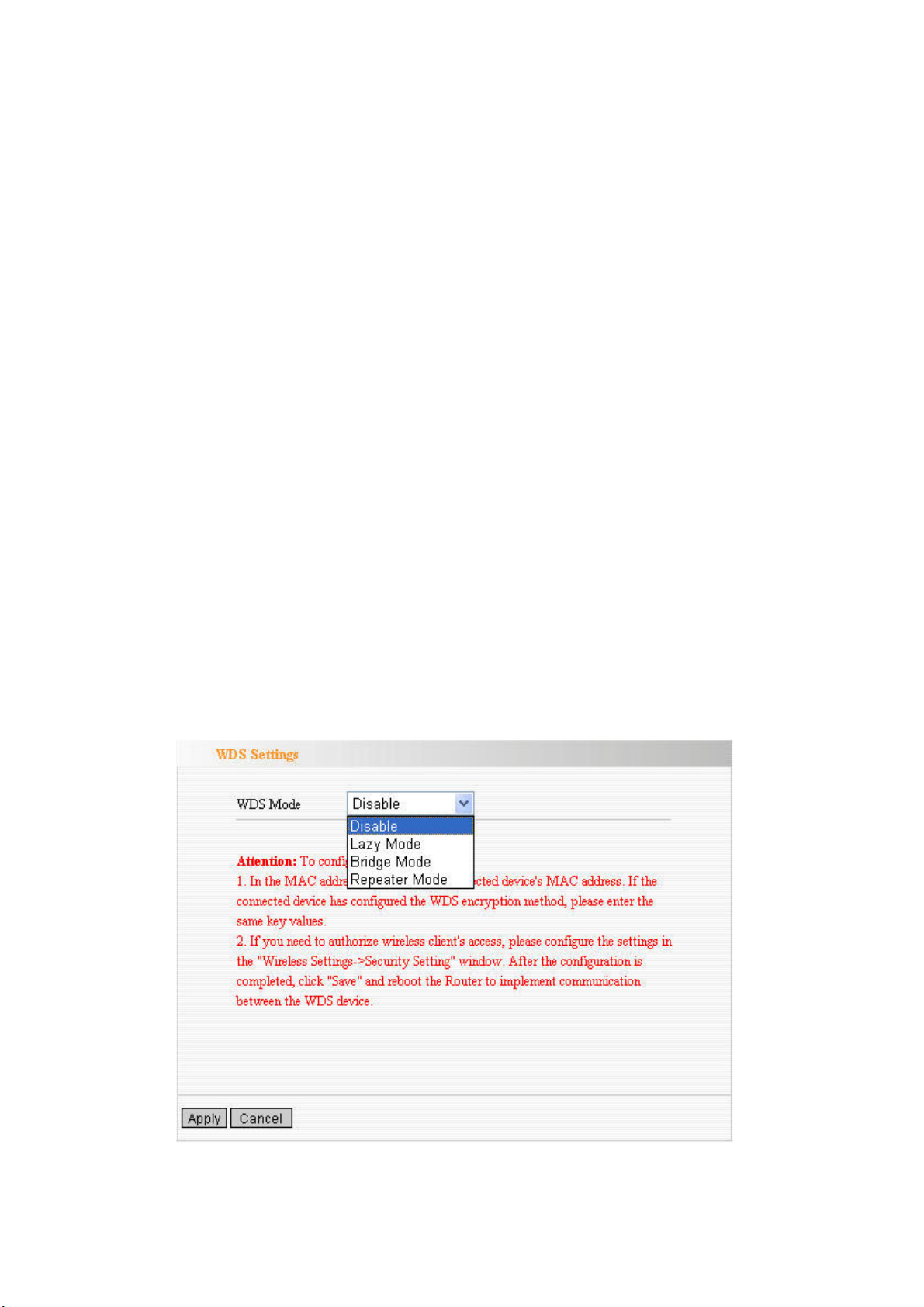

WDS Settings ......................................................................................27

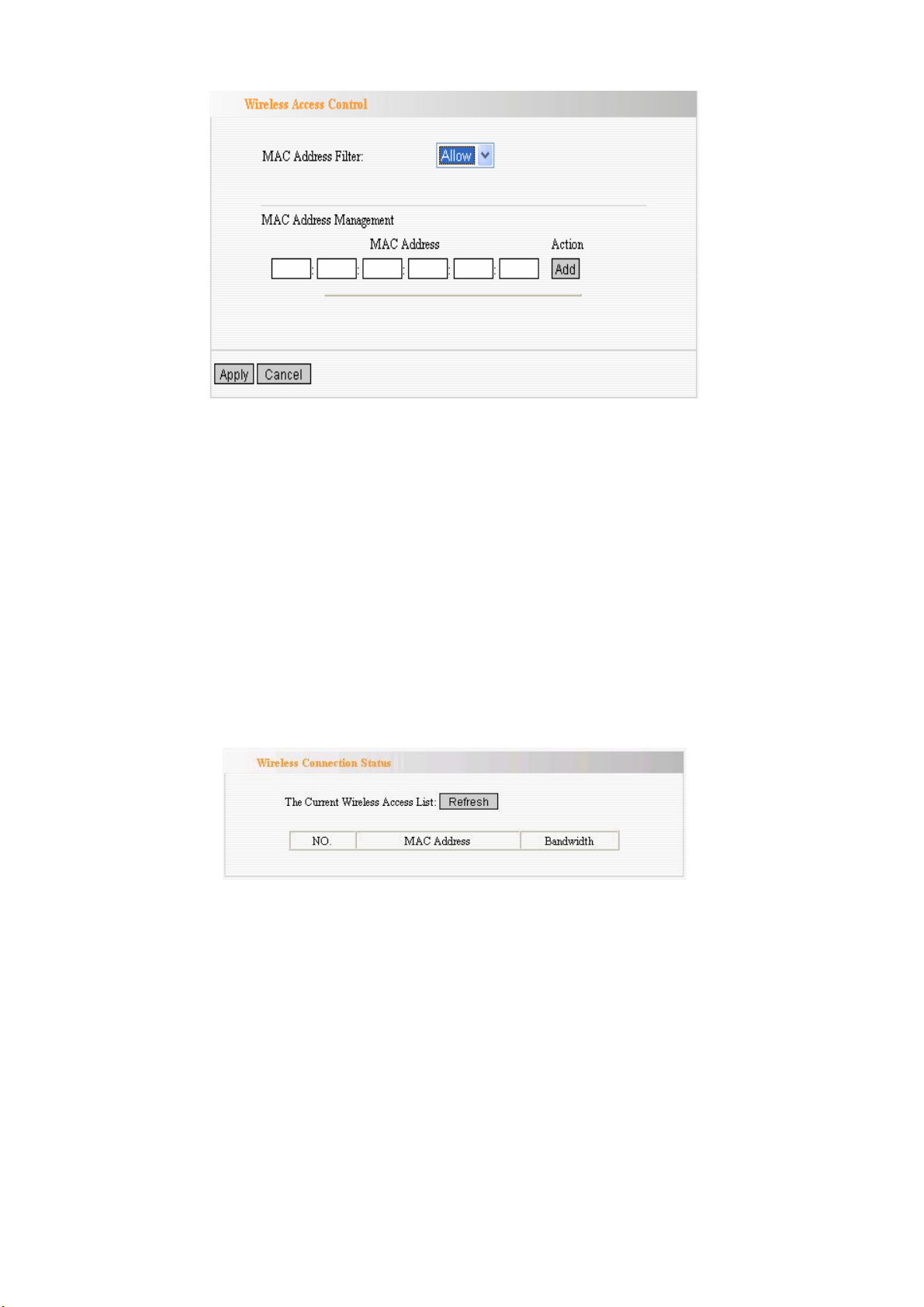

Access Control .....................................................................................28
Connection Status ................................................................................29

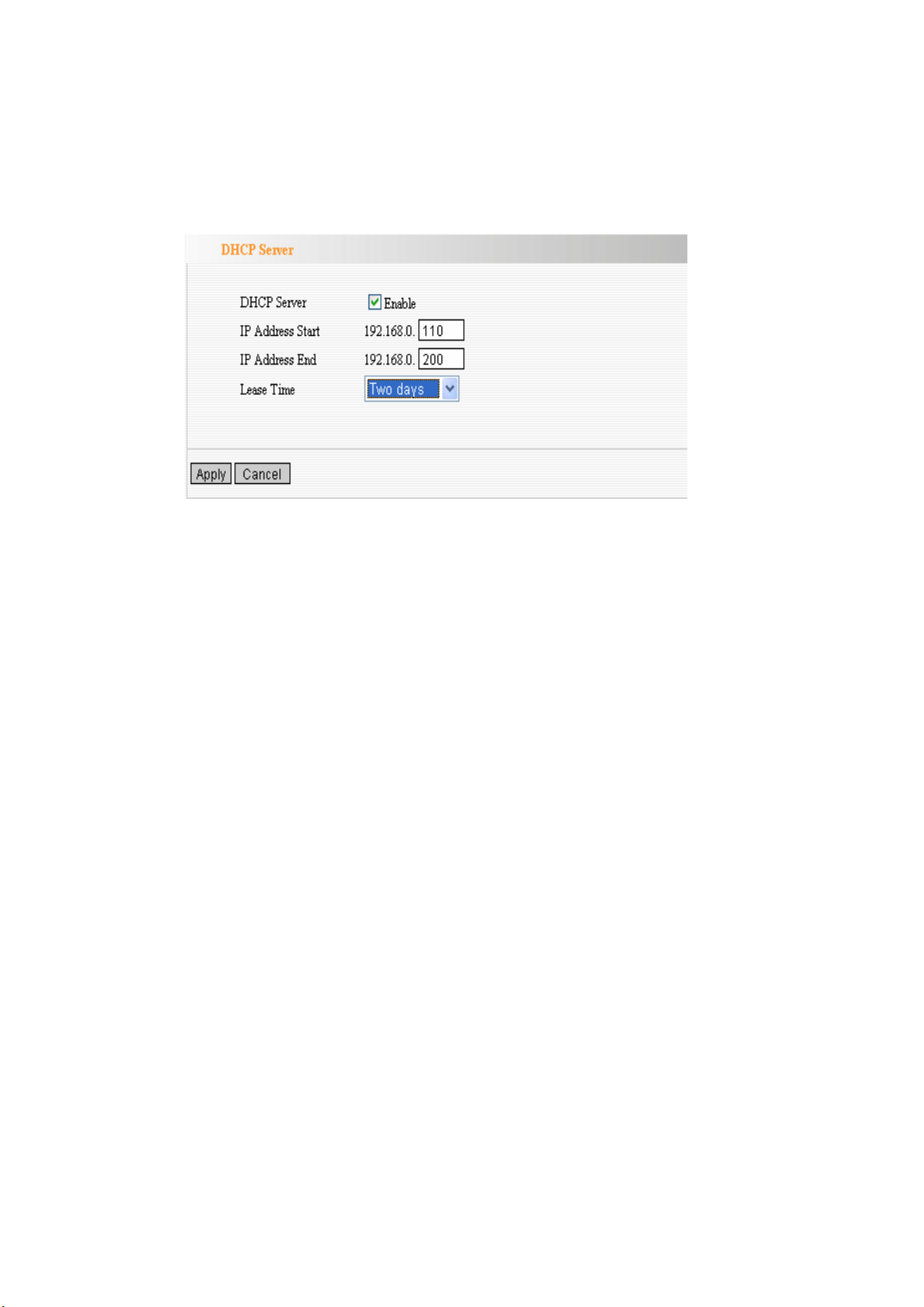

Chapter 7 DHCP Server .......................................................................30
Server List & Binding ............................................................................31
Chapter 8 Virtual Server......................................................................32

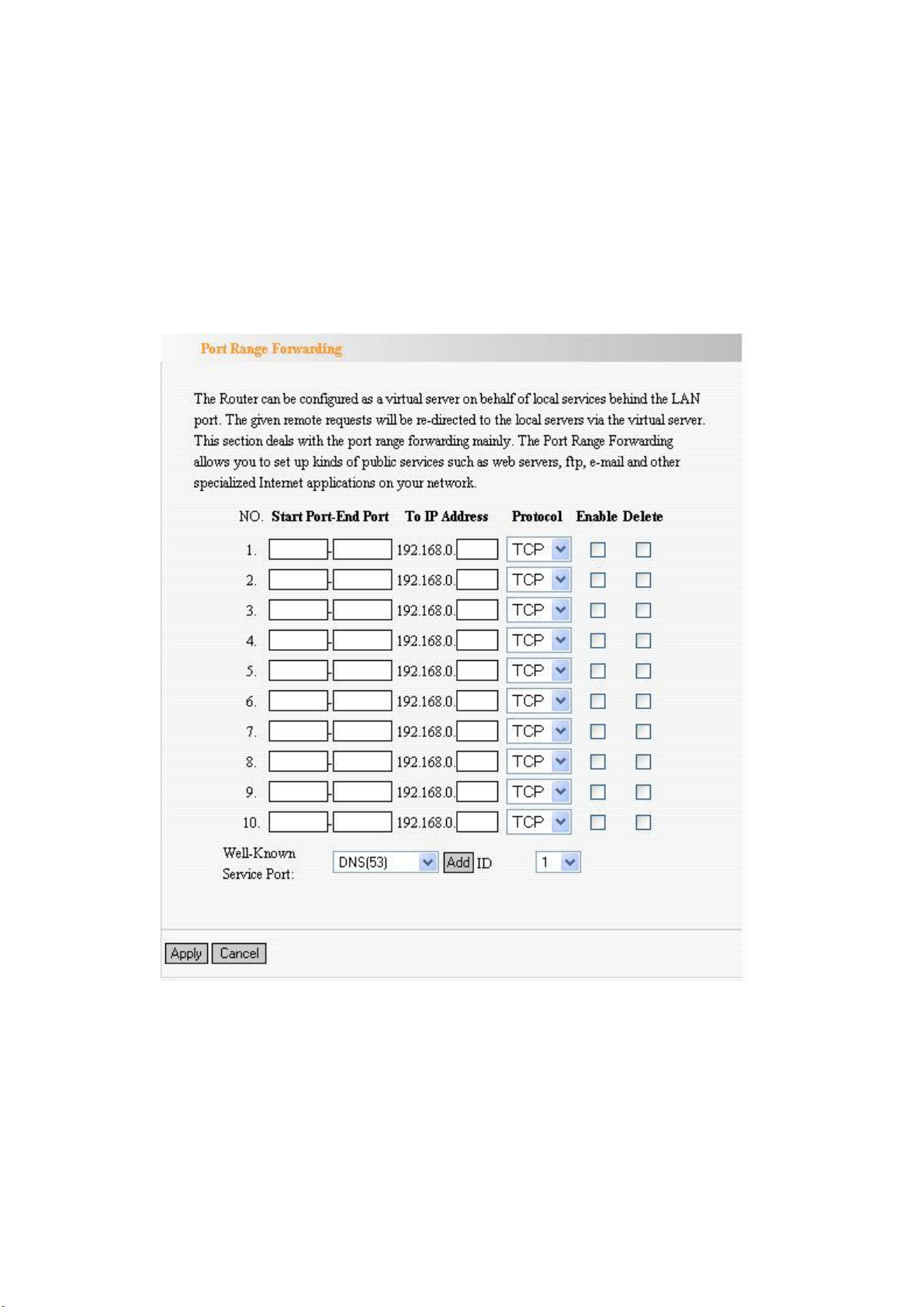

Port Range Forwarding..........................................................................32

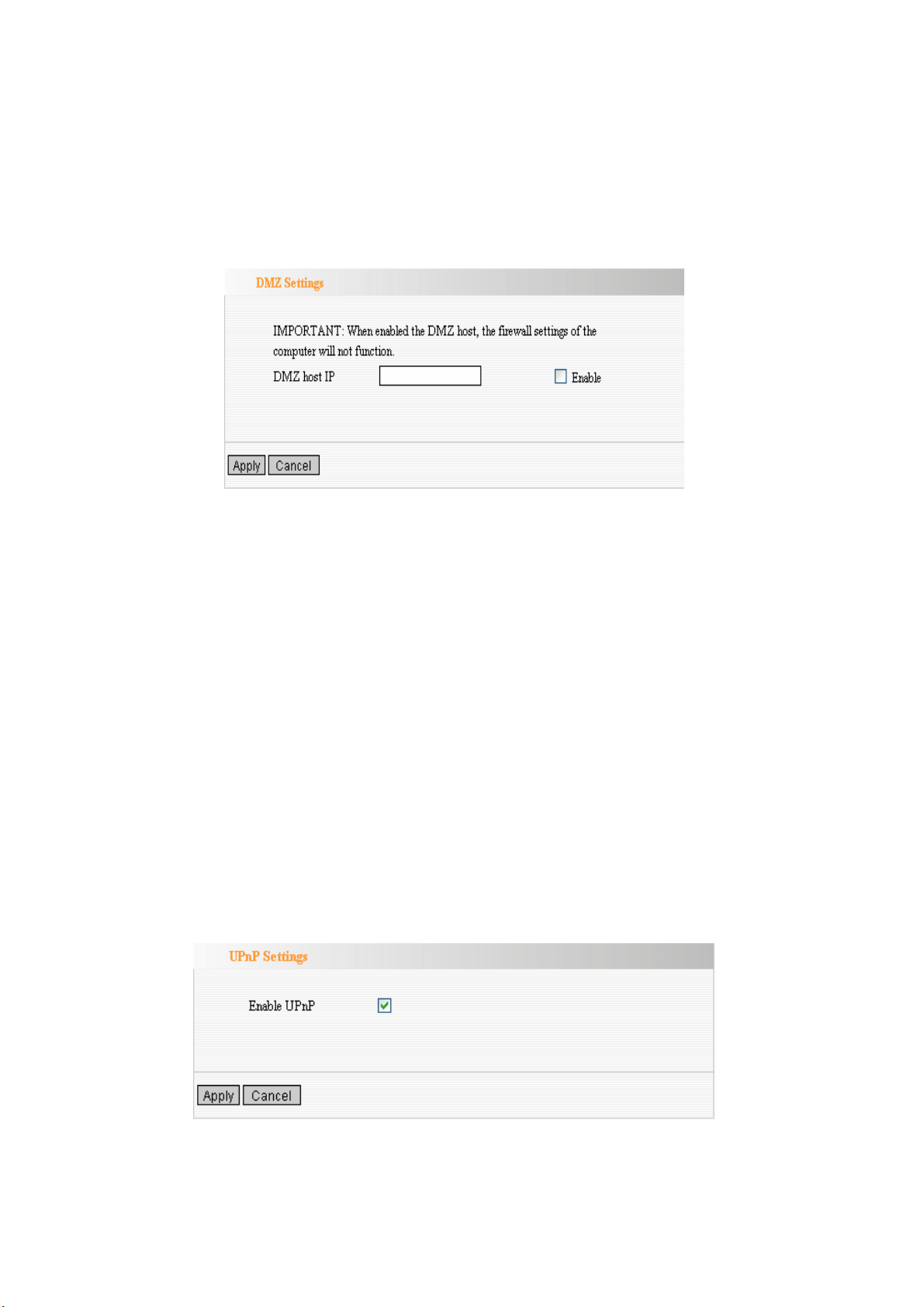

DMZ Settings.......................................................................................33
UPnP Settings......................................................................................33

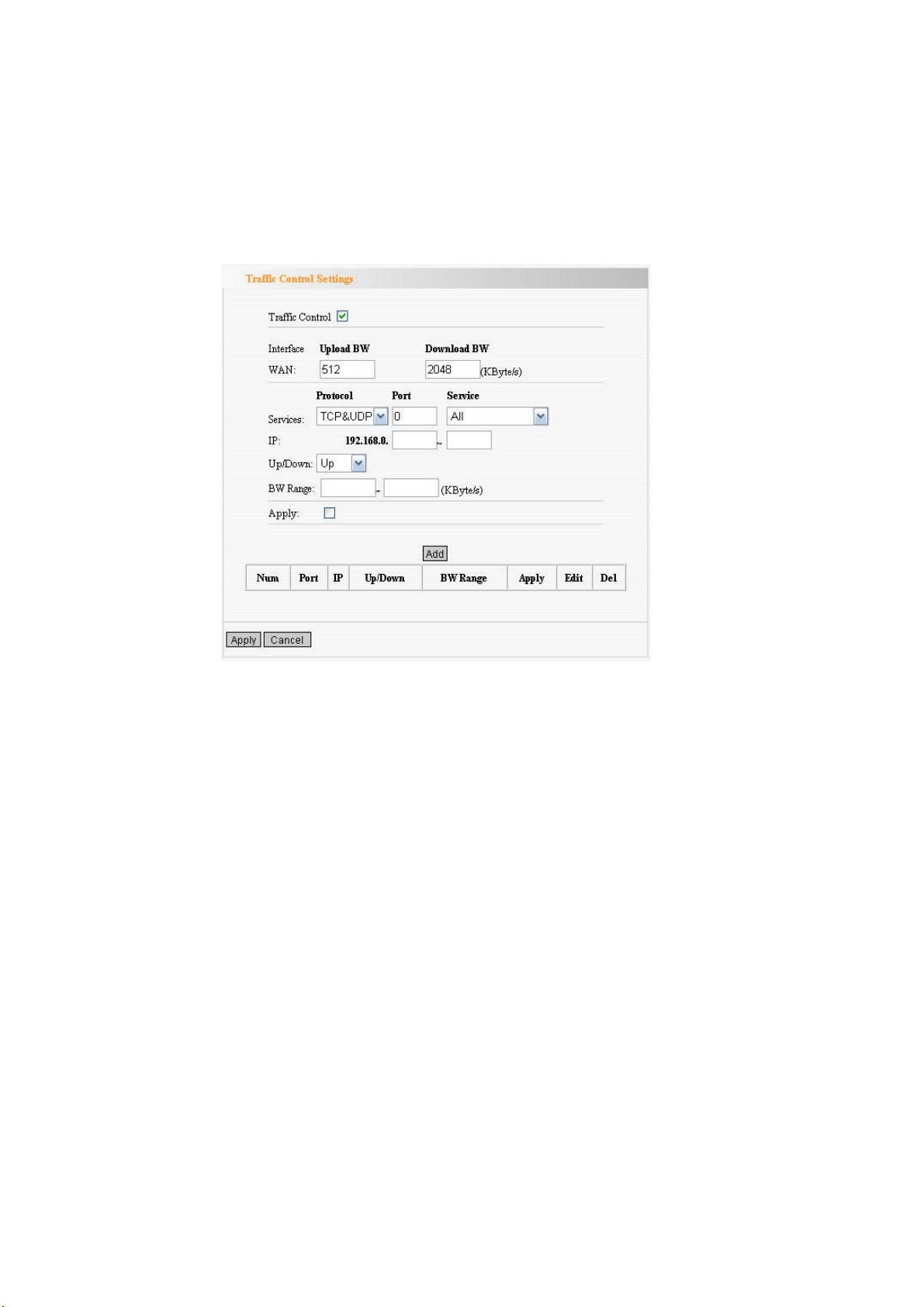

Chapter 9 Traffic Control ...................................................................34

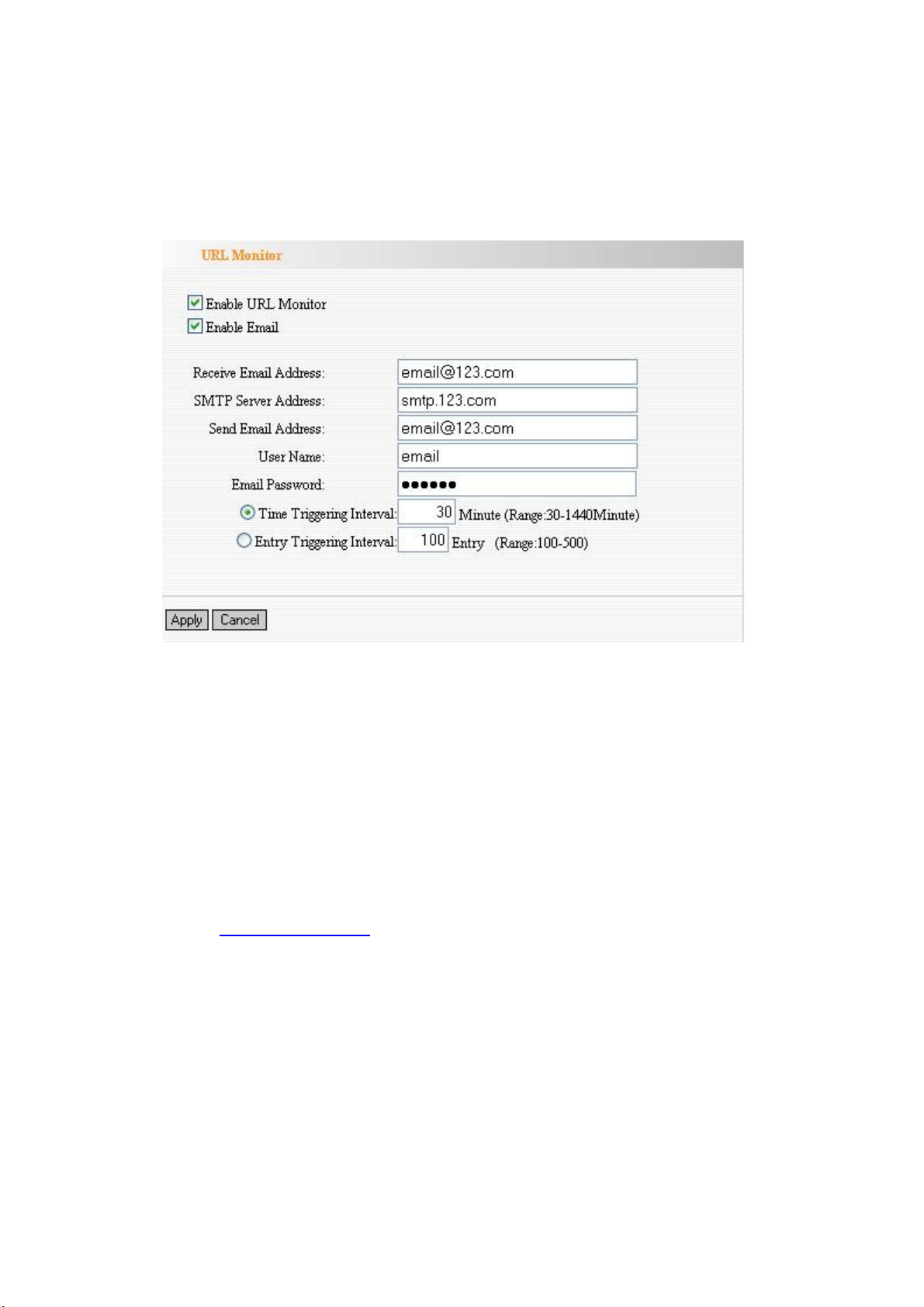

Chapter 10 URL Monitor.....................................................................35
Chapter 11 Security Settings...............................................................37
Client Filter .........................................................................................37
URL Filter............................................................................................38

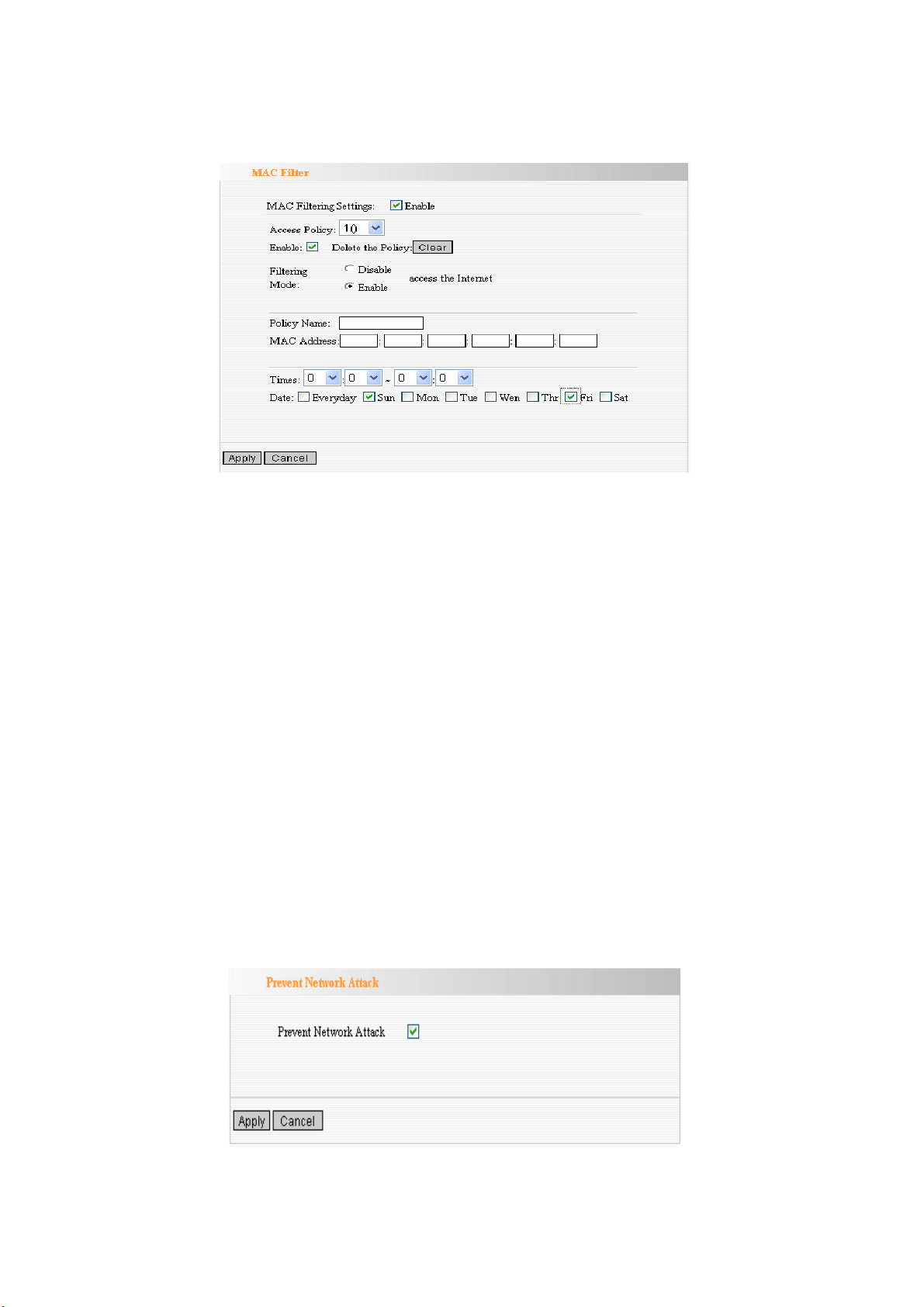

MAC Filter ...........................................................................................39
Prevent Network Attack ........................................................................39

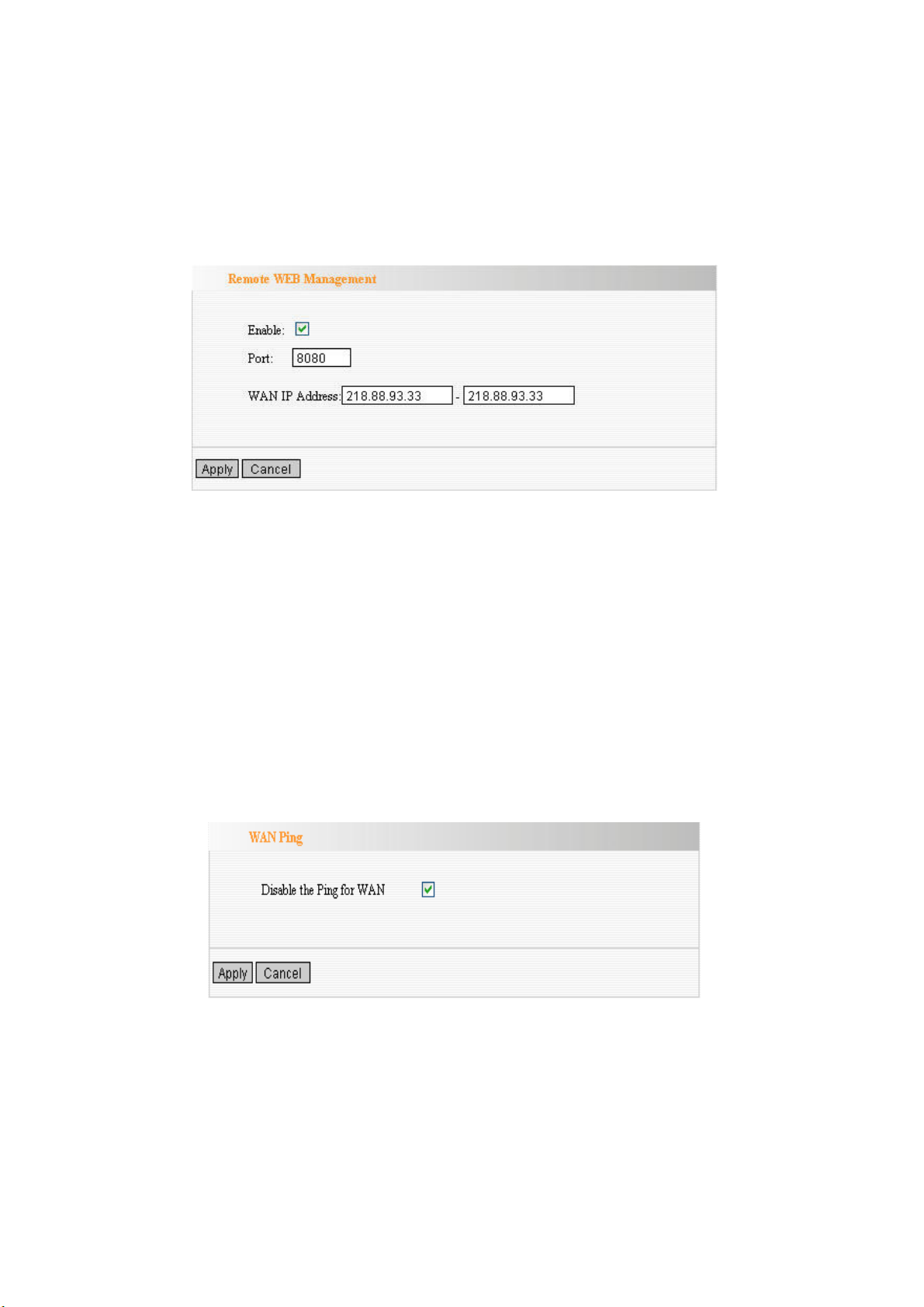

Remote Web Management.....................................................................40
Wan Ping ............................................................................................40
Chapter 12 Routing Settings ...............................................................42

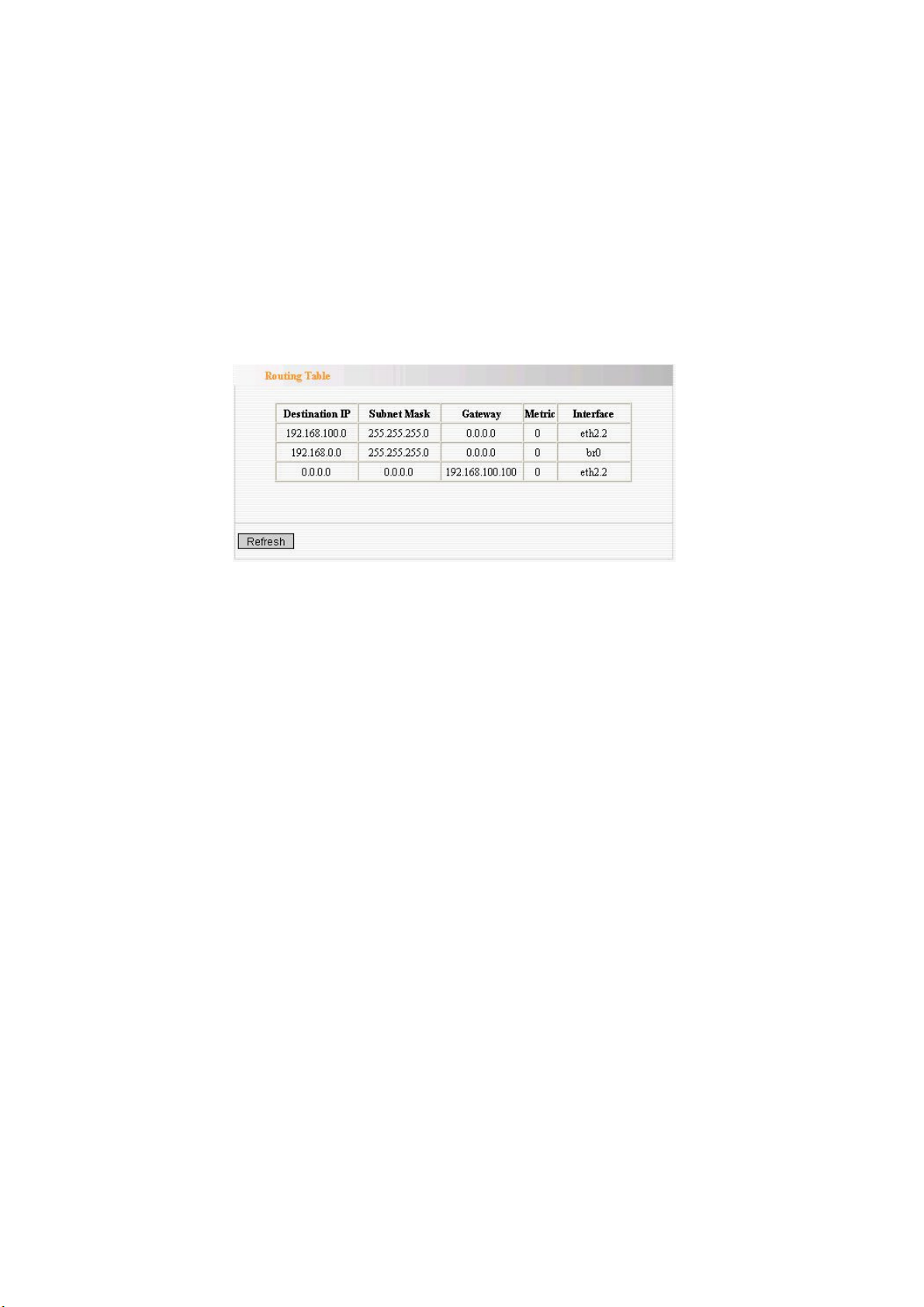

Routing Table .....................................................................................41
Chapter 13 System Tools.....................................................................42

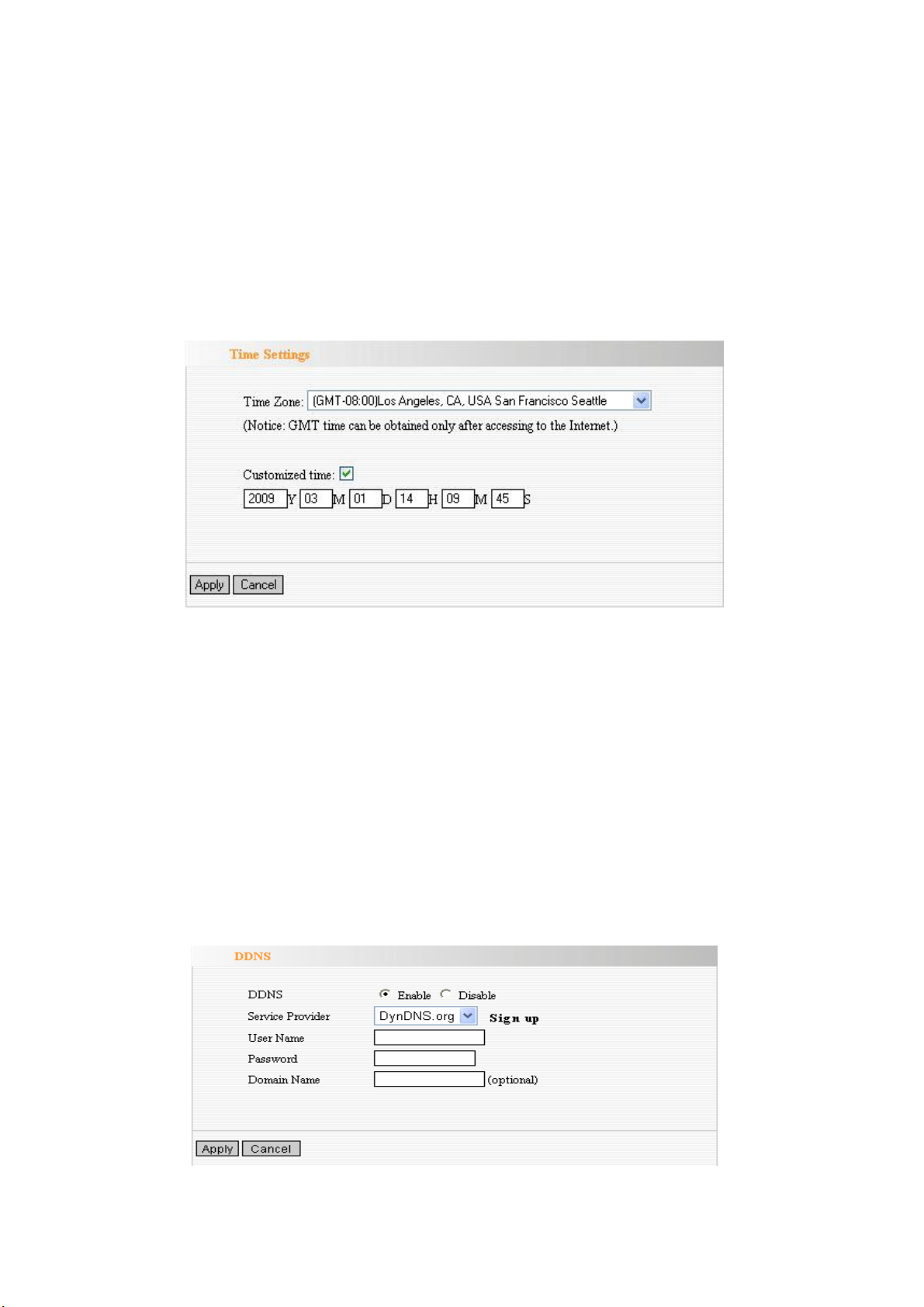

Time Settings ......................................................................................42
DDNS .................................................................................................42

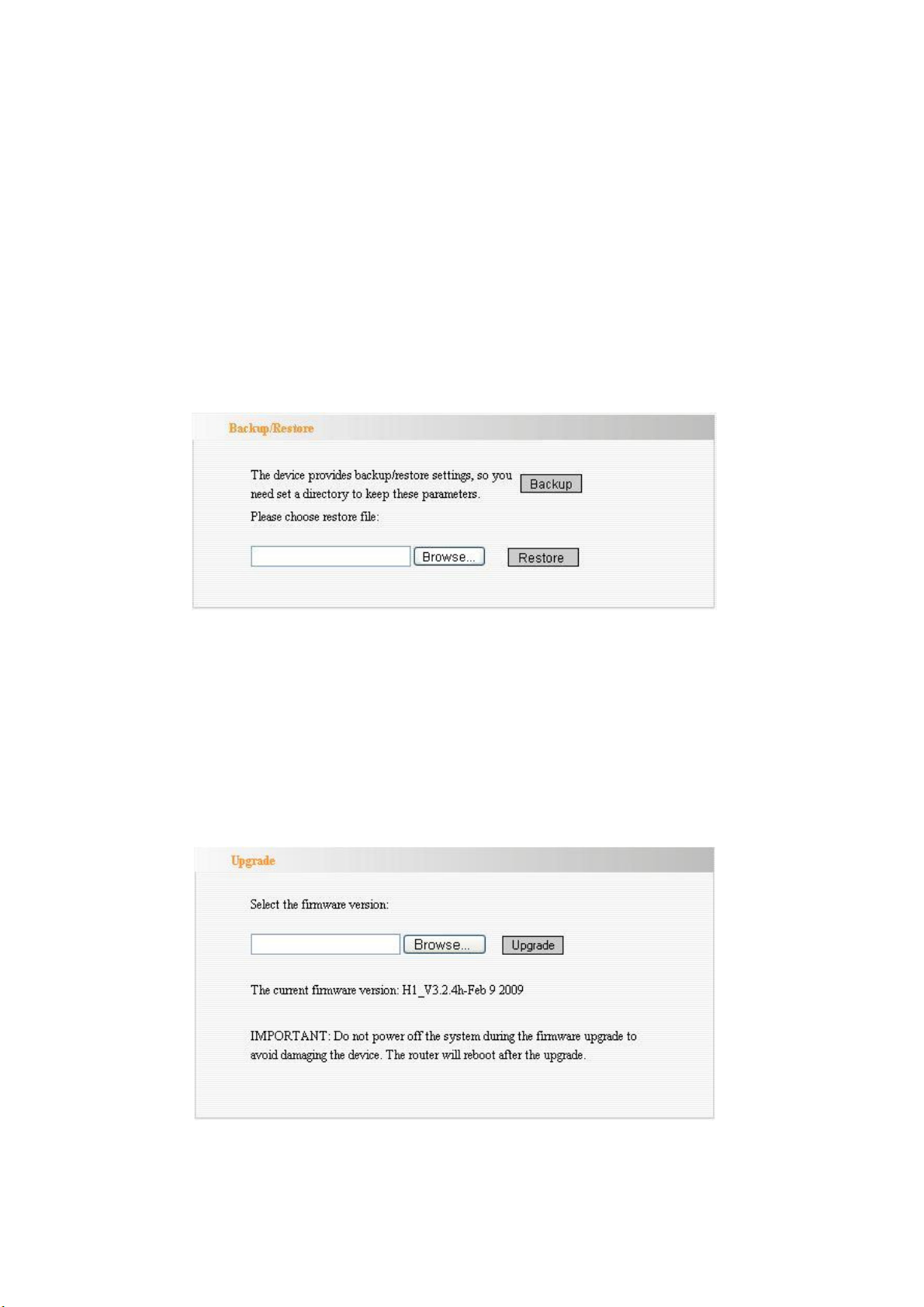

Backup/Restore ...................................................................................43
Firmware Upgrade................................................................................43
Restore to Factory Default Settings ........................................................44
Reboot................................................................................................44

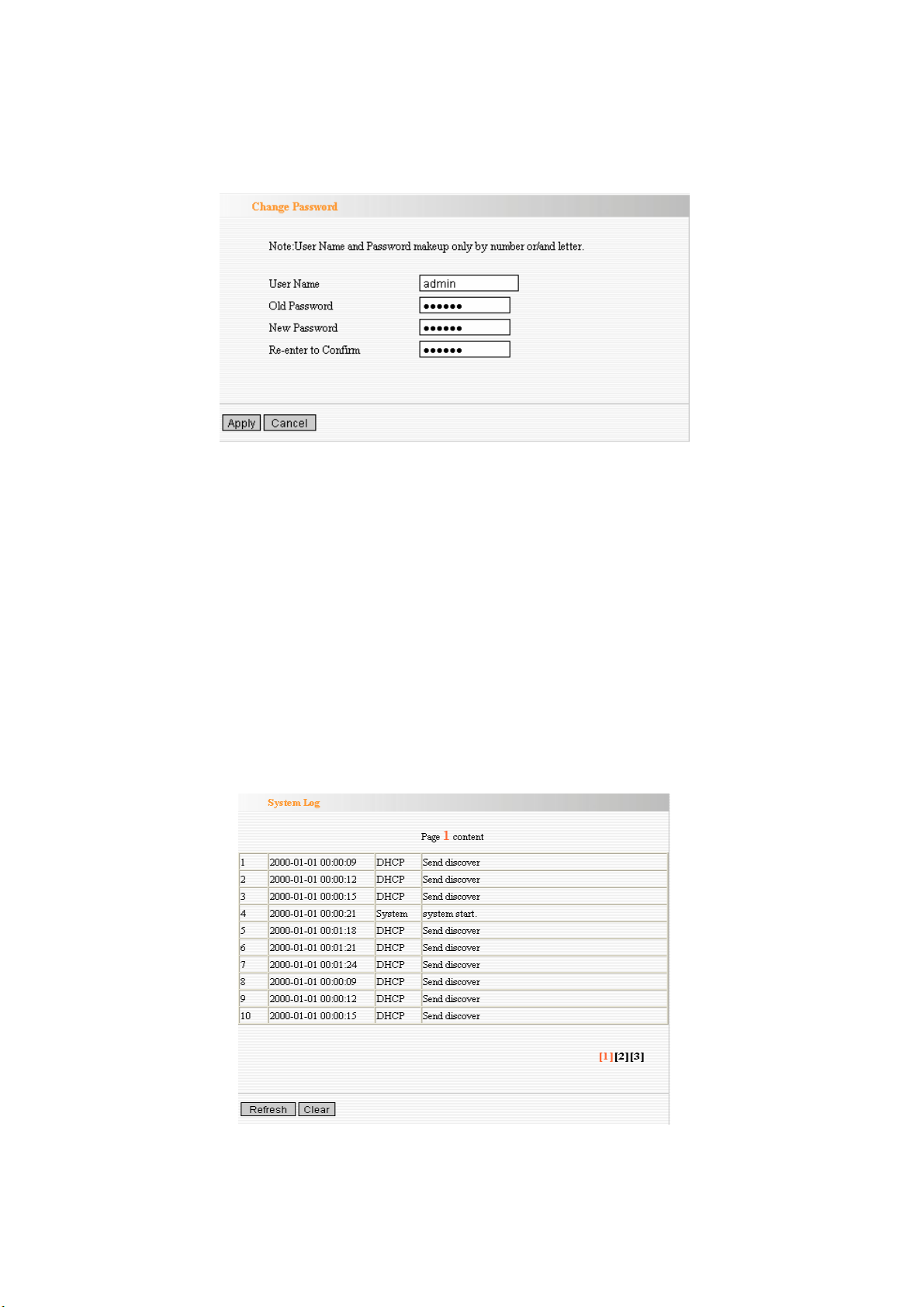

Change Password.................................................................................45
System Log .........................................................................................45
Appendix 1: Product Features & Specifications .................................46
Appendix 2: Troubleshooting .............................................................48
Chapter 1 Introduction
Welcome
Thank you for purchasing Zonet ZSR4154WE – 802.11n wireless broadband
router! This high cost-efficiency router is the best choice for Small office / Home
office users, all computers and network devices can share a single xDSL / cable
modem internet connection at high speed. Easy install procedures allows any
computer users to setup a network environment in very short time - within
minutes, even inexperienced. When the number of your computers and
network-enabled devices grow, you can also expand the number of network slot
by simple attach a hub or switch, to extend the scope of your network!
All computers and IEEE 802.11b/g/n(Draft 4.0) wireless-enabled network
devices (including PDA, cellular phone, game console, and more!) can connect
to ZSR4154WE without additional cabling. The MIMO technology also gives you
the highest speed of wireless experience ever! With a compatible wireless card
installed in your PC, you can transfer file for up to 150Mbps! The radio coverage
is also doubled, so don’t worry if your office or house is really big!
Moreover, the Zonet ZSR4154WE also can be managed or configured through
Local/Remote easy-to-use Web-based utility.
Contents of Package
One ZSR4154WE
One Detachable Antenna
One Power Adapter
One User Manual CD
One Quick Installation Guide
Contact your local authorized reseller or the store purchased from for any items
damaged and/or missing.
System Requirements
Internet connection, provided by xDSL or cable modem with a RJ-45
Ethernet port.
Computer or network devices with wired or wireless network interface card.
Web browser (Microsoft Internet Explorer 5.5 or above, Firefox 1.0 or
above).
An available power socket (100–240V, 50/60Hz)
1
Getting to Know Your ZSR4154WE
Top Panel
LED Indicator Status Description
POWER ON ZSR4154WE is switched on and correctly powered
SYS Flashing Indicates the system works normally.
ON Indicates WAN port is connected
WAN
Flashing
Indicates WAN activity (transferring or receiving
data)
WLAN Flashing Indicates the wireless signal is OK.
ON Indicates LAN port is connected
LAN(1/2/3/4)
Flashing
WPS Flashing
Indicates LAN activity (transferring or receiving
data)
Indicates ZSR4154WE is negotiating with WPS
clients in WPS Mode (PBC or PIN).
2
Rear Panel
Item Name Description
POWER Power connector, connects to power adapter
WAN Wide Area Network (WAN / Internet) port.
1-4 (LAN Ports) Local Area Network (LAN) ports 1 to 4
Reset ZSR4154WE to factory default settings (clear all
RESET
settings). Press this button and hold for 7 seconds to
restore all settings to factory defaults.
WPS
Start WPS function. Press this button for 1 second to start
WPS function.
Antenna The antenna is 3dBi dipole antenna.
3
Chapter 2 Hardware Installation
Please follow the following instruction to build the network connection between
your ZSR4154WE and your computers, network devices:
1. Connect the A/C power adapter to the wall socket, and then connect it to the Power
socket of ZSR4154WE.
2. Connect all your computers, network devices (network-enabled consumer devices
other than computers, like game console, or switch / hub) to the LAN port of
ZSR4154WE.
4
3. Connect your xDSL / cable modem to the WAN port of ZSR4154WE by Ethernet
cable.
4. Please check all LEDs on the top panel. POWER LED should be steadily on, WAN and
LAN LEDs should be on if the computer / network device connected to the
respective port of ZSR4154WE is powered on and correctly connected. If any LED
you expected is not on, please recheck the cabling, or jump to “Troubleshooting”
for possible reasons and solution.
5
Chapter 3 Connect Your ZSR4154WE
How to Set the Network Configurations for My Computer
1. Right click My Network Places and select Properties
2. Right click Local Area Network Connection and select Properties.
6
3. Select Internet Protocol (TCP/IP) and click Properties.
4. Select Obtain an IP address automatically and Obtain DNS server
address automatically. Click OK to save the configurations.
7
5. Or select Use the following IP address and enter the IP address, Subnet
mask, Default gateway. Of course, you need to input the DNS server address
provided by your ISP. Otherwise, you can use the ZSR4154WE’s default
gateway as the DNS proxy server. Click OK to save the configurations.
8
How to Check the Network Connection
1. Select Start →
Programs →→→→ Accessories →→→→ Command Prompt.
→→→
2. Input ping 192.168.0.1 and press Enter. If the screen displays as below, it
means your PC is connected to your router successfully.
If not, please make sure the hardware installation and network adapter are
OK.
9
Chapter 4 Basic Configurations
This section is to show you how to configure your new ZSR4154WE through the
Web-based Configuration Utility.
How to Access the Web-based Configuration Utility
1. After your computer obtained an IP address from ZSR4154WE, please start
your web browser, and input the default IP address of ZSR4154WE
http://192.168.0.1 in address bar.
2. Please input user name and password and then click OK.
Both default user name and password is admin.
10
Setup Wizard
1. When Welcome to Setup Wizard pop out, Click Next to continue.
2. Select one Internet connection type you’re using. If you’re not sure, click
Detect or contact your Internet Service Provider.
Click Next.
11
a. ADSL Virtual Dial-up (Via PPPoE)

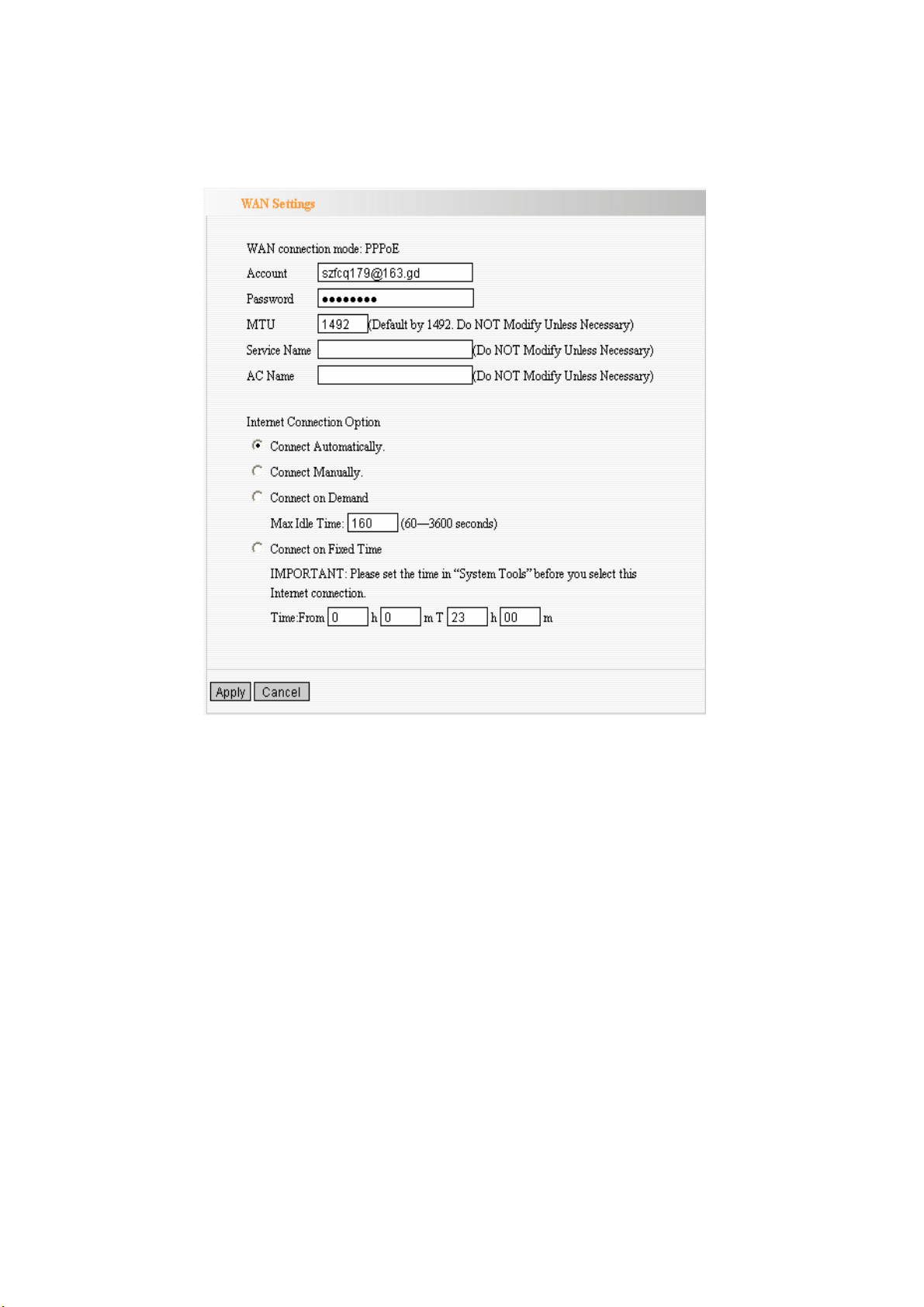

Enter the Account and Password provided by your ISP, and click Next.
b. Dynamic IP (Via DHCP)
If your connection type is Dynamic IP, it means your IP address keeps
changing every time you connect. You do not need to enter the
information.
c. Static IP
Fill the network address information from your ISP in the IP Address,
Subnet Mask, Gateway and Primary DNS server fields and click Next.
12
d. L2TP
Enter the Account and Password provided by your ISP.
L2TP(Layer 2 Tunneling Protocol) provides two address modes.
Dynamic IP: If the L2TP offered by your ISP is Dynamic IP, please select
Dynamic IP.
Static IP: Please fill in the parameters provided by your ISP.
After configuration, please click Next.

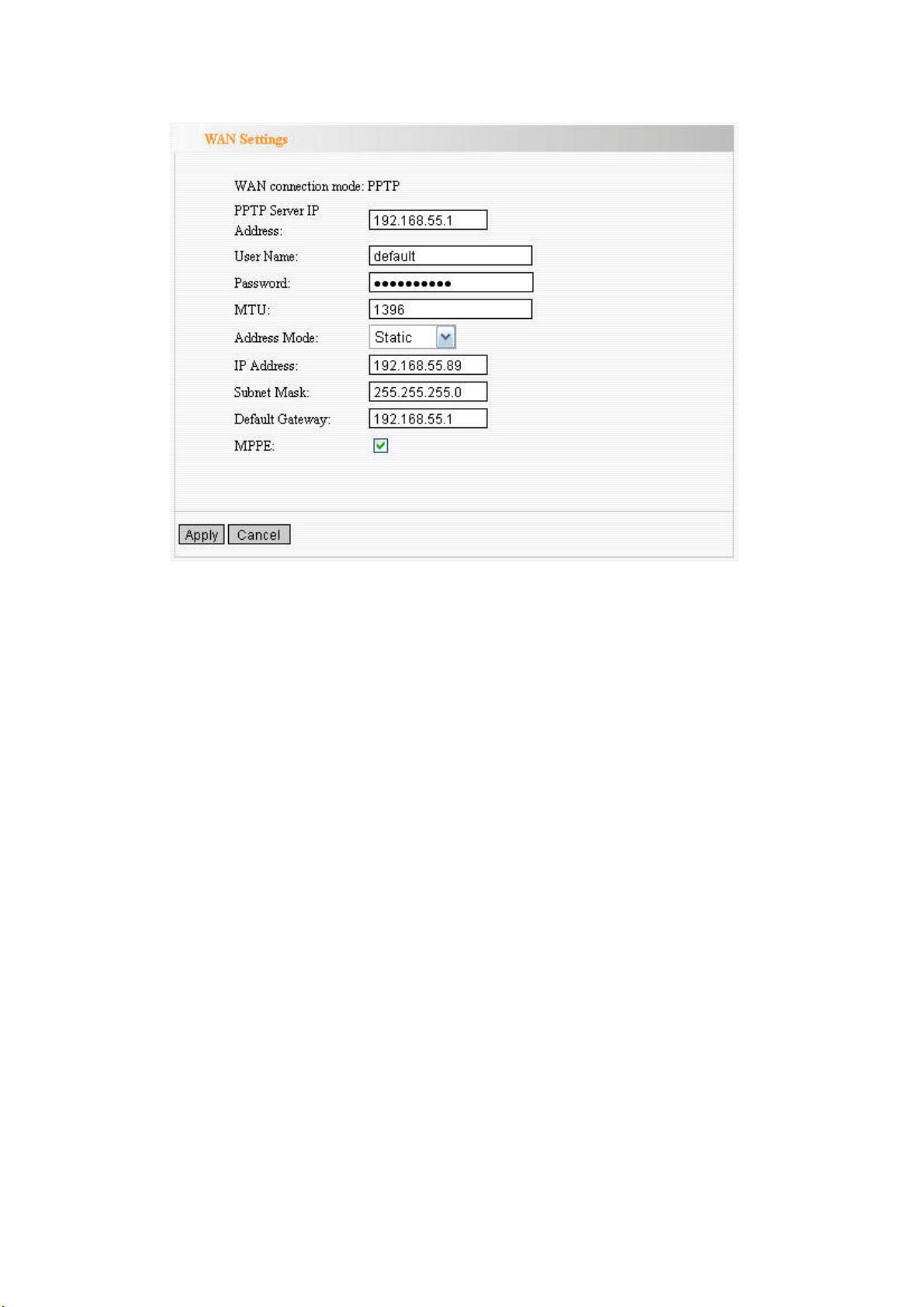

e. PPTP
Enter the Server IP Address, User Name, and Password provided by your ISP
PPTP(PP Tunneling Protocol) provides two address modes.
Dynamic IP: If the PPTP offered by your ISP is Dynamic IP, please select
Dynamic IP.
Static IP: Please fill in the parameters provided by your ISP.
After configuration, please click Next.

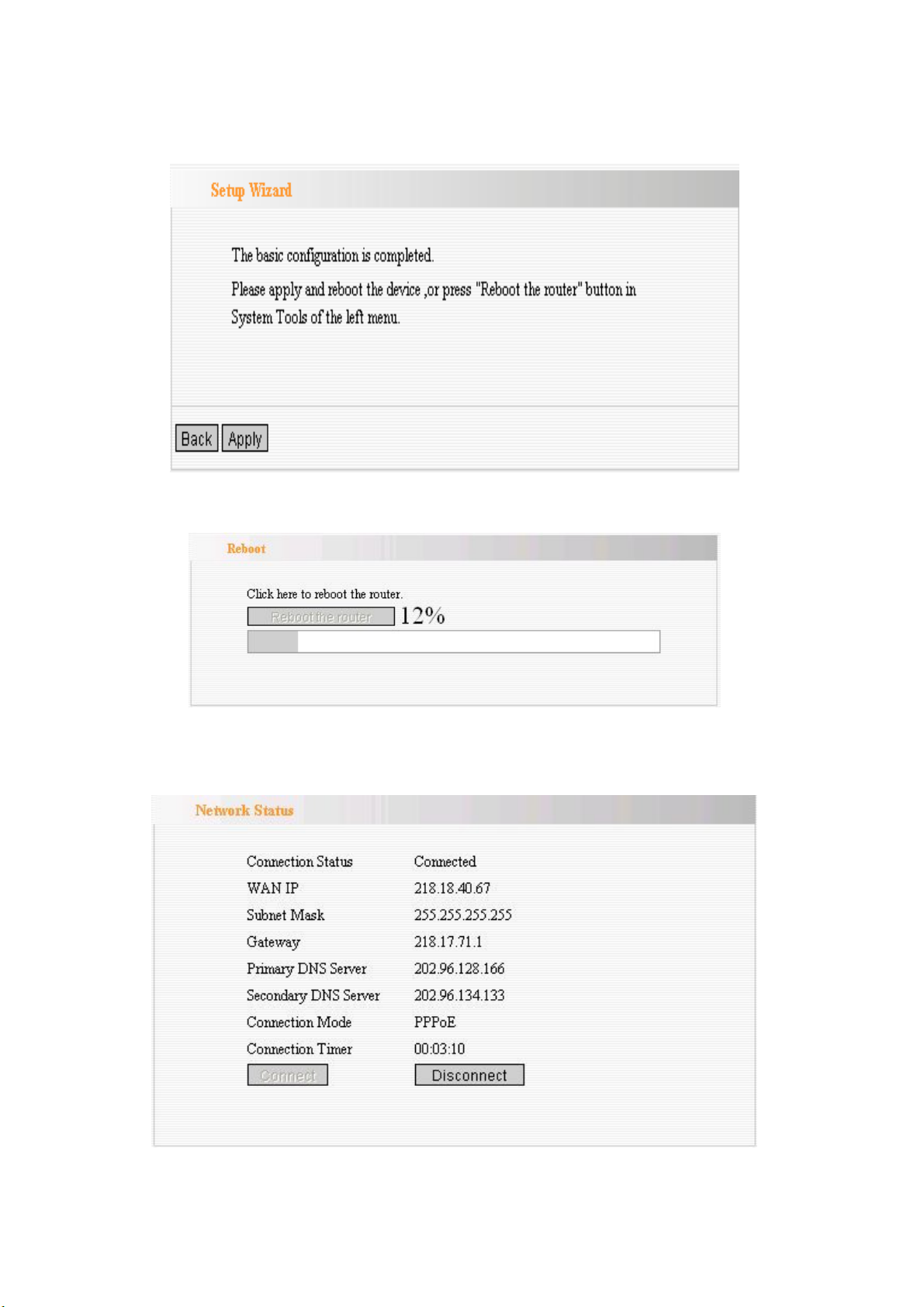

13
