Zonet Technology ZEN3200 User Manual

1100//110000MMbbppss FFaasstt EEtthheerrnneett AAddaapptteerr

QQuuiicckk IInnssttaallllaattiioonn GGuuiiddee

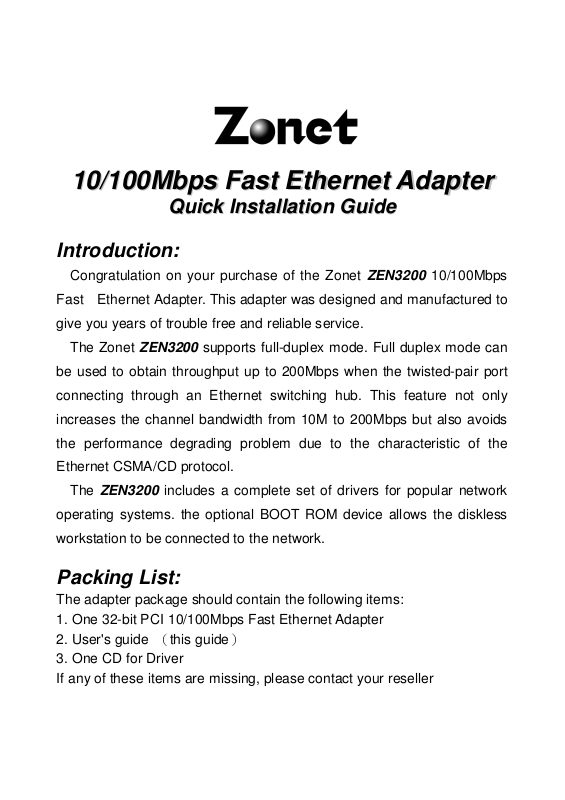

Introduction:

Congratulation on your purchase of the Zonet ZEN3200 10/100Mbps

Fast Ethernet Adapter. This adapter was designed and manufactured to

give you years of trouble free and reliable service.

The Zonet ZEN3200 supports full-duplex mode. Full duplex mode can

be used to obtain throughput up to 200Mbps when the twisted-pair port

connecting through an Ethernet switching hub. This feature not only

increases the channel bandwidth from 10M to 200Mbps but also avoids

the performance degrading problem due to the characteristic of the

Ethernet CSMA/CD protocol.

The ZEN3200 includes a complete set of drivers for popular network

operating systems. the optional BOOT ROM device allows the diskless

workstation to be connected to the network.

Packing List:

The adapter package should contain the following items:

1. One 32-bit PCI 10/100Mbps Fast Ethernet Adapter

2. User's guide （this guide）

3. One CD for Driver
If any of these items are missing, please contact your reseller

Installation:

Hardware Installation :

1.Turn OFF the computer, unplug the power cord and open the computer
case.

2.Pick a free PCI bus master expansion slot and remove the expansion
slot cover. Insert the adapter into the slot until it is fully seated. Secure
the adapter.

3.Replace the computer cover and connect the network cable to the
newly installed network adapter. Reconnect the computer's power cord
and plug it into the power outlet.

Configuration:

The Zonet ZEN3200 is automatically configured when you
power-on computer, In certain computer, however, you must modify BIOS
by entering CMOS ETUP utility to enable PCI Device and map INTA to
an appropriate address, Please refer to the system documentation for
details on configuration the PCI SYSTEM BIOS.

Driver Installation:

Before you connect adapter to the network, you have to install the
network driver first. The driver for each networking operating system is
under a separate directory. In the directory, there is a file describing
driver's installation procedure.

Boot ROM Installation:

The optional Boot ROM device allows you to connect a diskless
workstation to the network. Perform the following steps to install your
Boot ROM device:

1. Insert the Boot ROM into the socket on the adapter.

2. Refer to the installation procedure provided by networking operating
system (Options: Some adapters need to run SETUP Utility to enable
Boot ROM function)

12-086-00518 Rev:01
