Zonet ZUH2207, ZUH2214 lNSTALLATION GUIDE

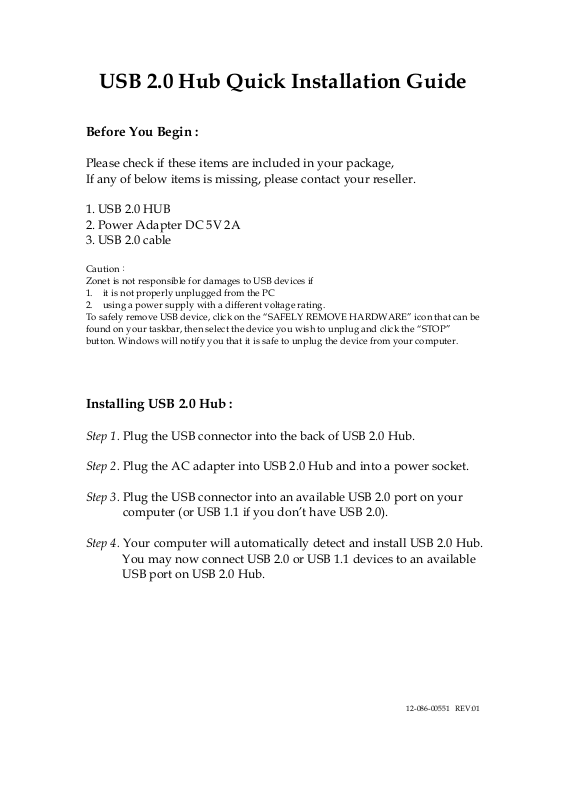

USB 2.0 Hub Quick Installation Guide

Before You Begin :

Please check if these items are included in your package,
If any of below items is missing, please contact your reseller.

1. USB 2.0 HUB

2. Power Adapter DC 5V 2A

3. USB 2.0 cable

Caution：
Zonet is not responsible for damages to USB devices if

1. it is not properly unplugged from the PC

2. using a power supply with a different voltage rating.
To safely remove USB device, click on the “SAFELY REMOVE HARDWARE” icon that can be
found on your taskbar, then select the device you wish to unplug and click the “STOP”
button. Windows will notify you that it is safe to unplug the device from your computer.

Installing USB 2.0 Hub :

Step 1. Plug the USB connector into the back of USB 2.0 Hub.

Step 2. Plug the AC adapter into USB 2.0 Hub and into a power socket.

Step 3. Plug the USB connector into an available USB 2.0 port on your

computer (or USB 1.1 if you don’t have USB 2.0).

Step 4. Your computer will automatically detect and install USB 2.0 Hub.

You may now connect USB 2.0 or USB 1.1 devices to an available
USB port on USB 2.0 Hub.

12-086-00551 REV:01
