Zonet ZSR0104UP user manual

BROADBAND FIREWALL ROUTER WITH 1-USB +

Trademarks

1-P

ARALLEL PRINT SERVER PORT

USER’S MANUAL

V1.0

Windows 95/98/Me and Windows NT/2000/XP are registered trademarks of Microsoft Corporation. All other brands and product names are trademarks of their respective companies.

No part of this publication may be reproduced in any form or by any means or used to make any derivative (such as translation, transformation or adaptation) without the express written consent of the manufacturer as stipulated by the United States Copyright Act of 1976.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to subpart J of Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, which the user will be required to correct at their own expense.

Part No. RT9312 V1.0

Table of Contents

1. INTRODUCTION............................................................................................................................. 1

RODUCT OVERVIEW.......................................................................................................................... 1

AIN BENEFITS ...................................................................................................................................1

BOUT THIS MANUAL.......................................................................................................................... 1

HE PACKING LIST ..............................................................................................................................1

ETWORK SOFTWARE REQUIREMENTS.............................................................................................. 2

ROADBAND FIREWALL ROUTER EMBEDDED 4-PORT 10/100MBPS SWITCH................................... 2

DSL/C

2. HARDWARE INSTALLATION ..................................................................................................... 4

OVERVIEW........................................................................................................................................... 4

P C C C P R

ABLE MODEM REQUIREMENT ..................................................................................................2

REPARATION ..................................................................................................................................... 4

ONNECTING FIREWALL ROUTER TO THE DSL/CABLE MODEM (WAN)........................................... 4

ONNECTING BROADBAND FIREWALL ROUTER TO THE NETWORK ................................................... 5

ONNECTING THE AC POWER ADAPTER ........................................................................................... 5

OWER ON SELF TEST (POST)......................................................................................................... 5

ESETTING THE FIREWALL ROUTER................................................................................................... 5

3. GETTING STARTED...................................................................................................................... 6

OVERVIEW........................................................................................................................................... 6

REPARATION ..................................................................................................................................... 6

ETTING UP THE BROADBAND FIREWALL ROUTER USING THE WEB BROWSER ................................7

ONFIGURING WINDOWS 95/98/ME OR WINDOWS NT/2000/XP (DHCP-CAPABLE) COMPUTERS 9

ONFIGURING BROADBAND FIREWALL ROUTER IN PRE-EXISTING IP NETWORKS ......................... 10

ONFIGURING NON-DHCP COMPUTERS ........................................................................................ 13

ASSWORD SETTING ........................................................................................................................ 13

ETTING DATE AND TIME.................................................................................................................. 14

TRAFFIC REPORT .............................................................................................................................. 15

CCESS MONITOR ............................................................................................................................ 15

TOOLS ............................................................................................................................................... 16

OADING THE FACTORY DEFAULT VALUES ...................................................................................... 17

4. ADVANCED CONFIGURATION................................................................................................ 18

OVERVIEW......................................................................................................................................... 18

REPARATION: CONNECTING TO THE BROADBAND FIREWALL ROUTER ......................................... 19

ROUP SETUP .................................................................................................................................. 19

DHCP S

ERVICE................................................................................................................................ 20

DMZ SETUP...................................................................................................................................... 22

OUTING TABLE ................................................................................................................................ 24

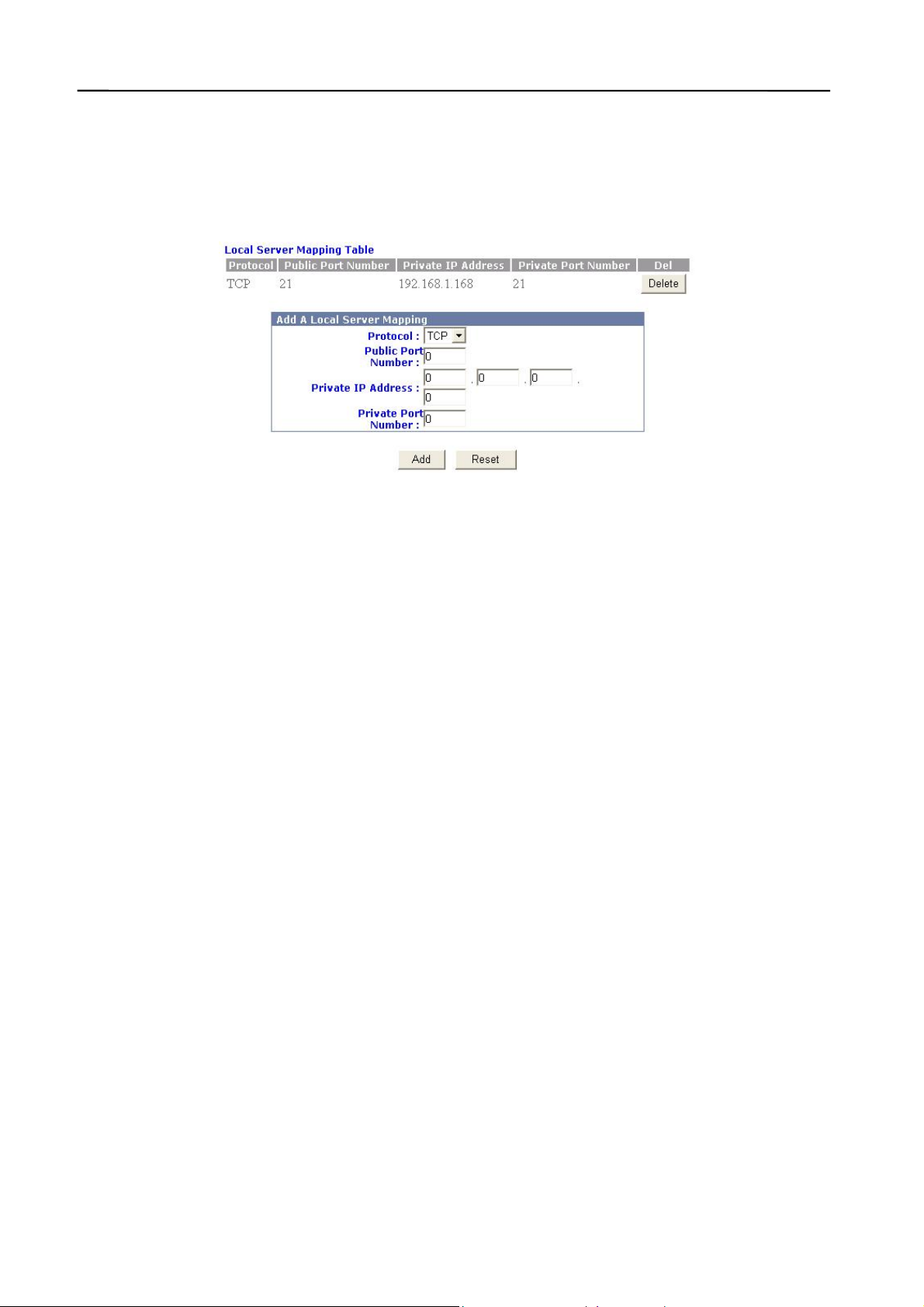

OCAL SERVER ................................................................................................................................. 24

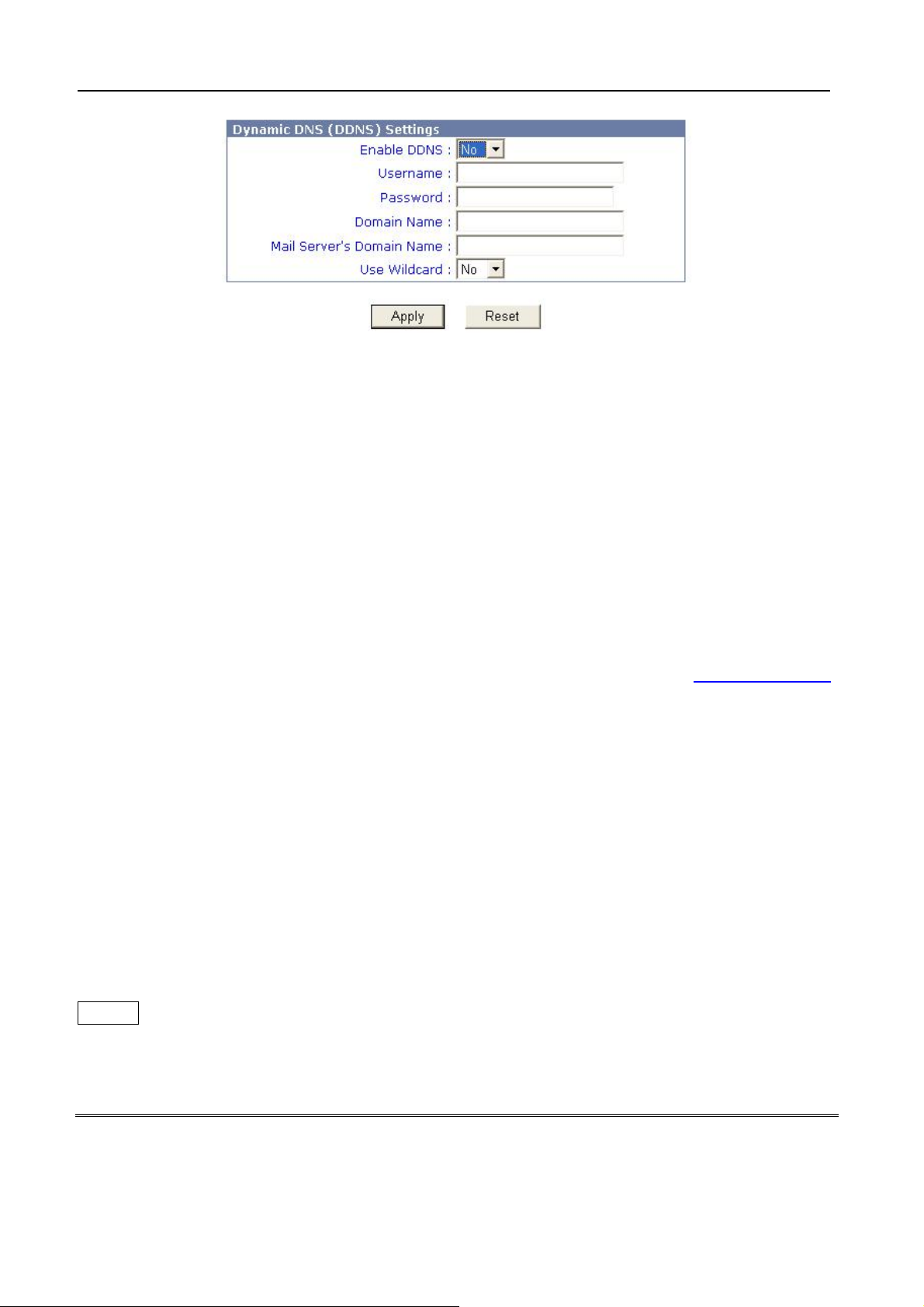

DDNS (D

YNAMIC DNS)................................................................................................................... 25

5.PRINT SERVER CONFIGURATION .......................................................................................... 26

PREPARATION ................................................................................................................................... 26

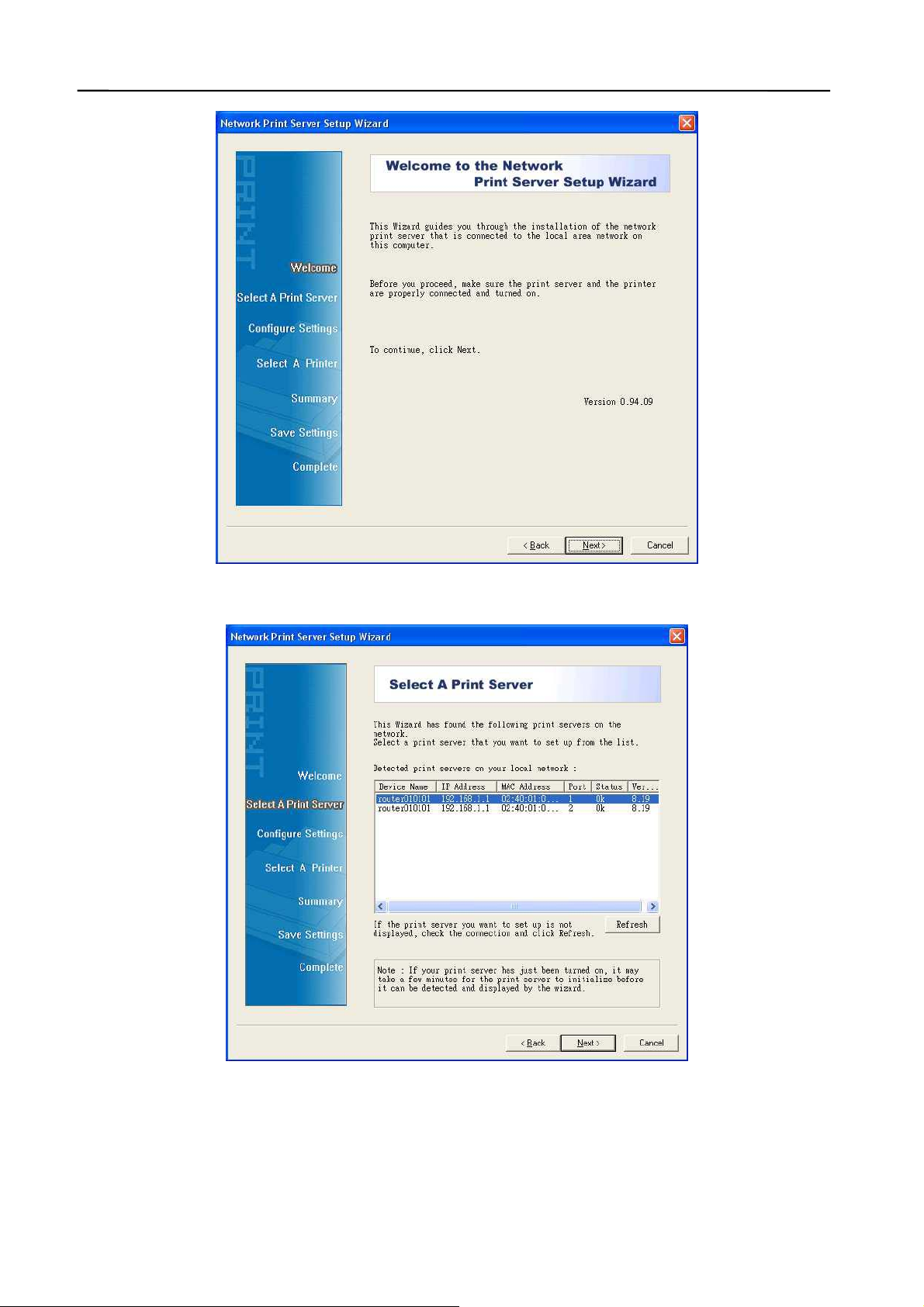

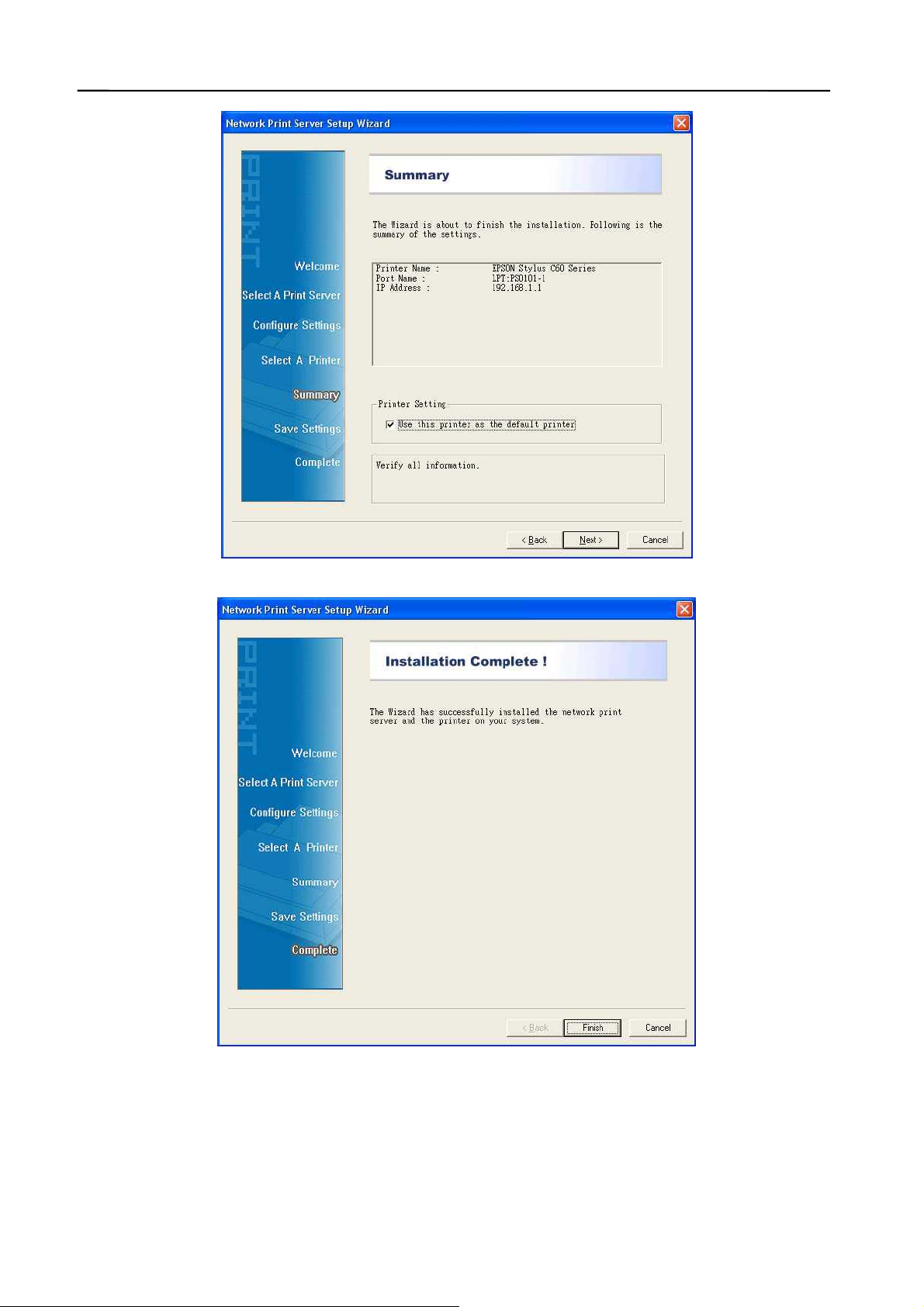

WINDOWS-BASED SYSTEM INSTALLATION PROCEDURE .................................................................. 27

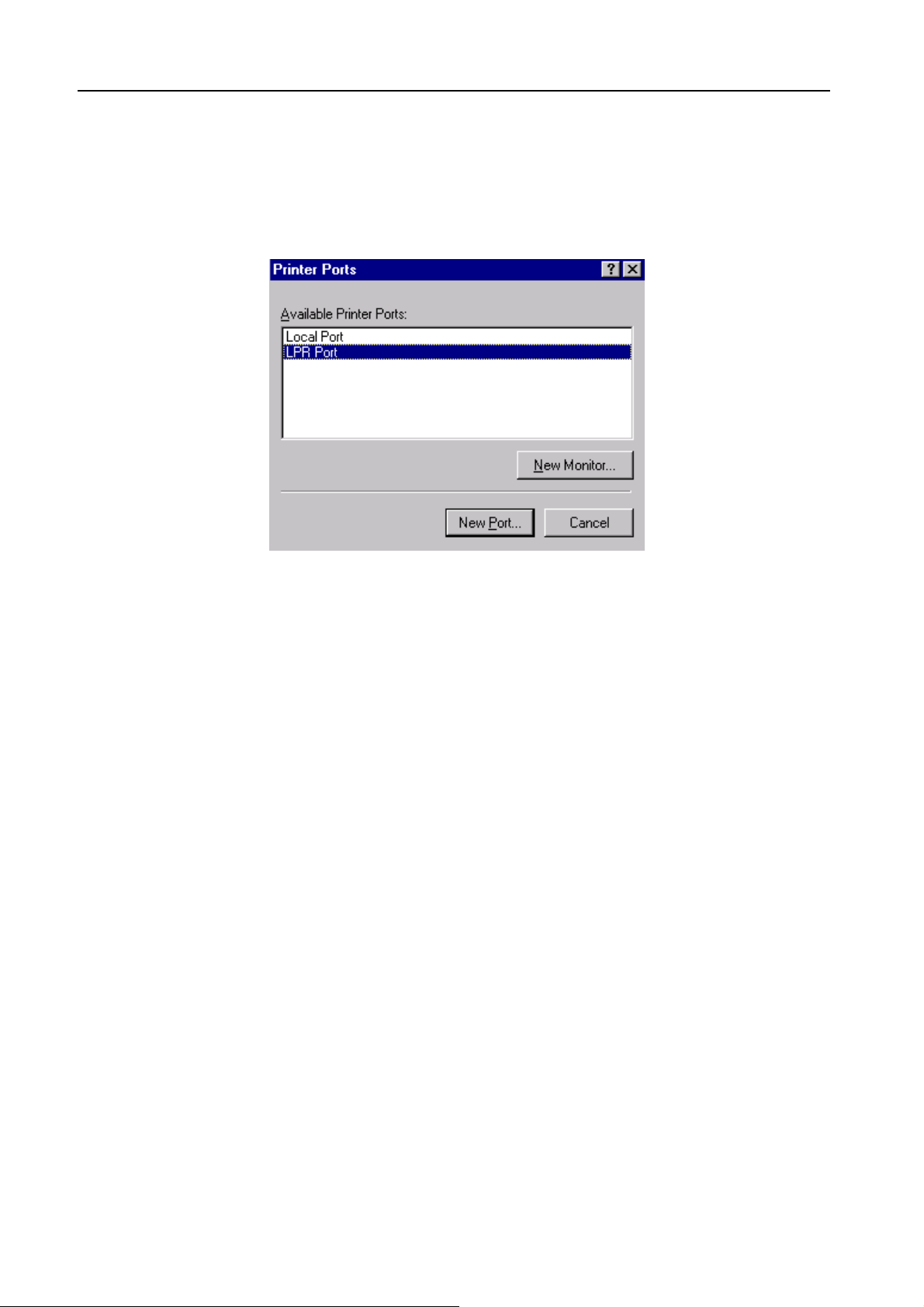

INDOWS NT LPR PORT INSTALLATION......................................................................................... 31

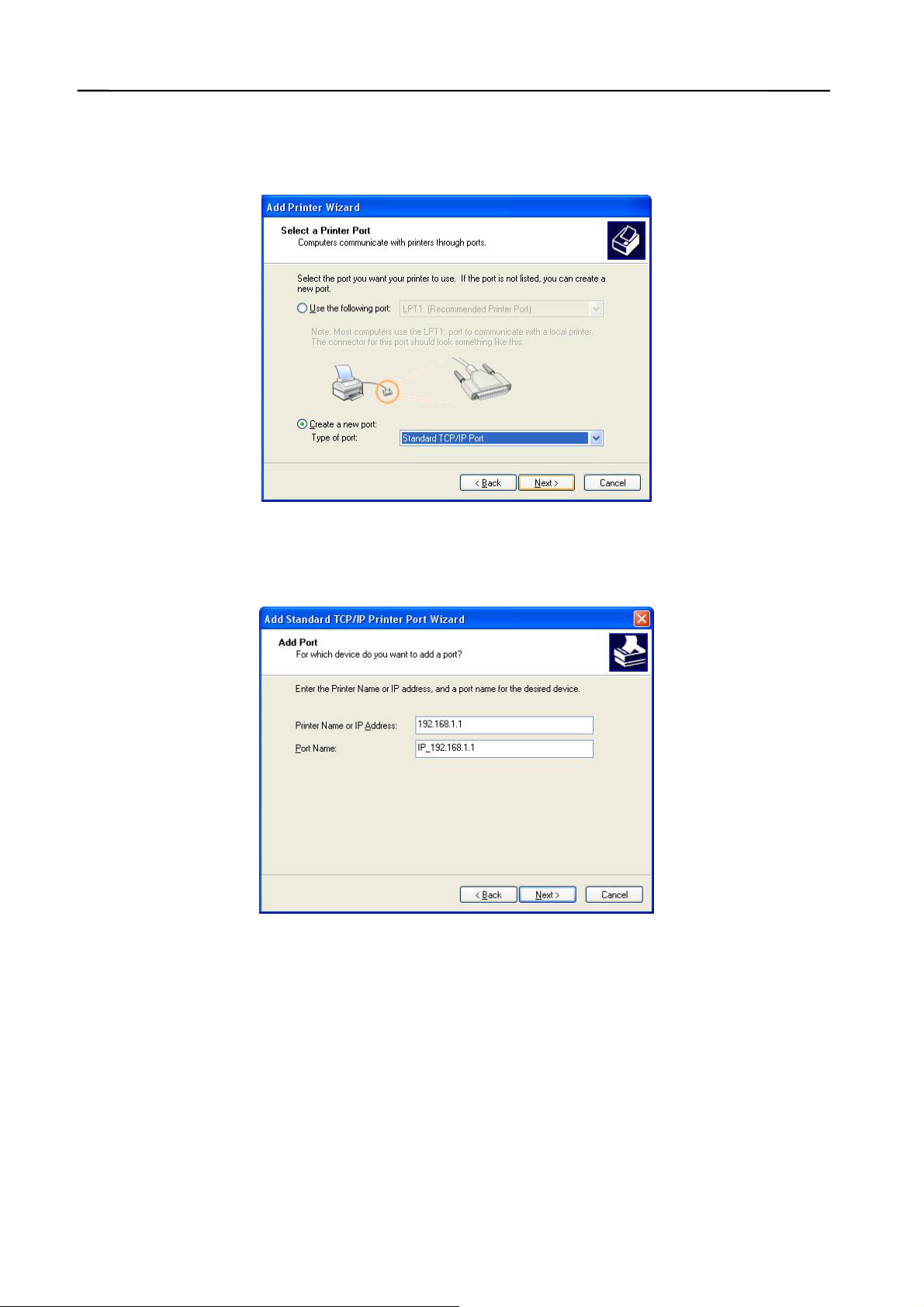

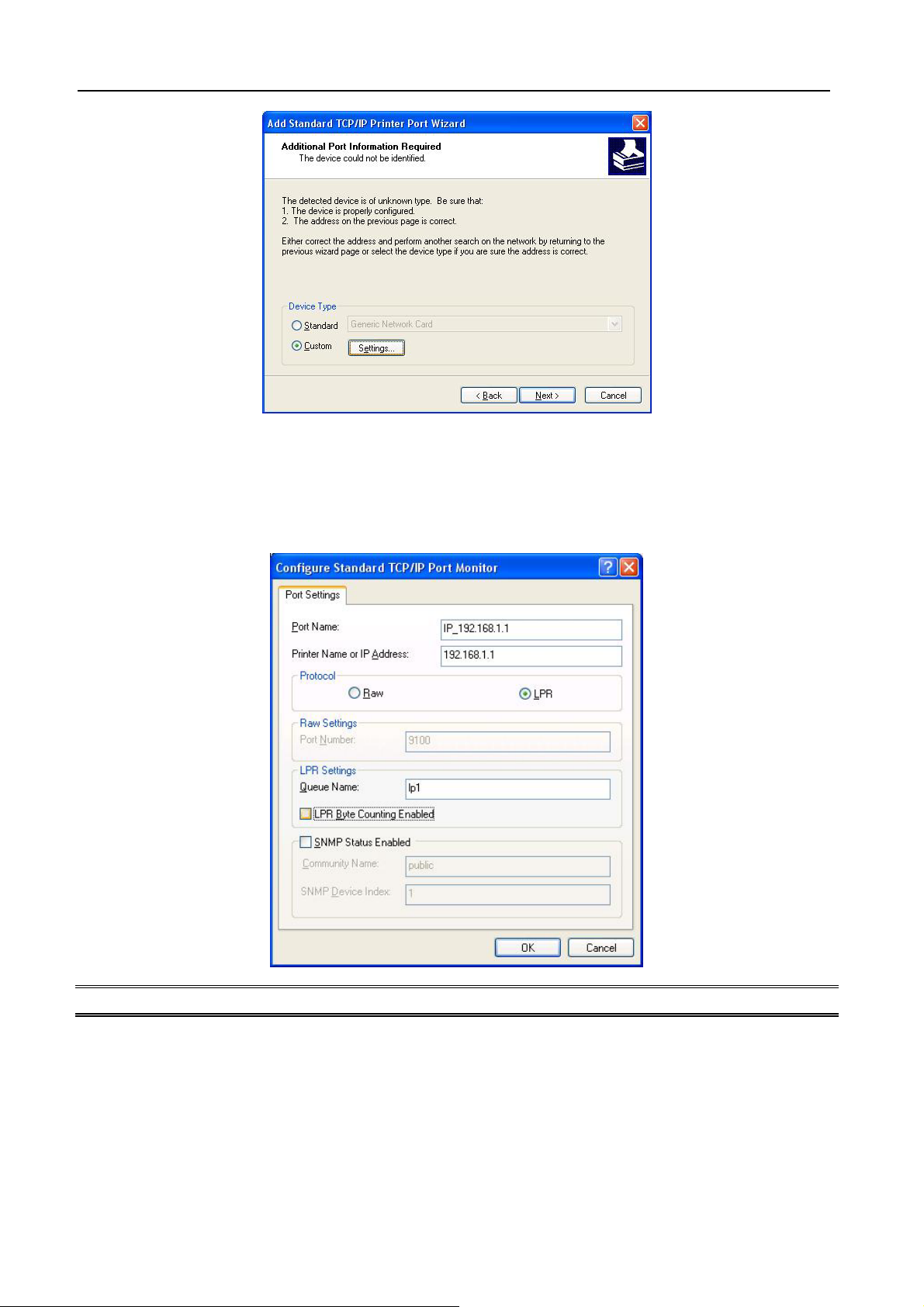

INDOWS 2000/XP STANDARD TCP/IP PORT INSTALLATION....................................................... 32

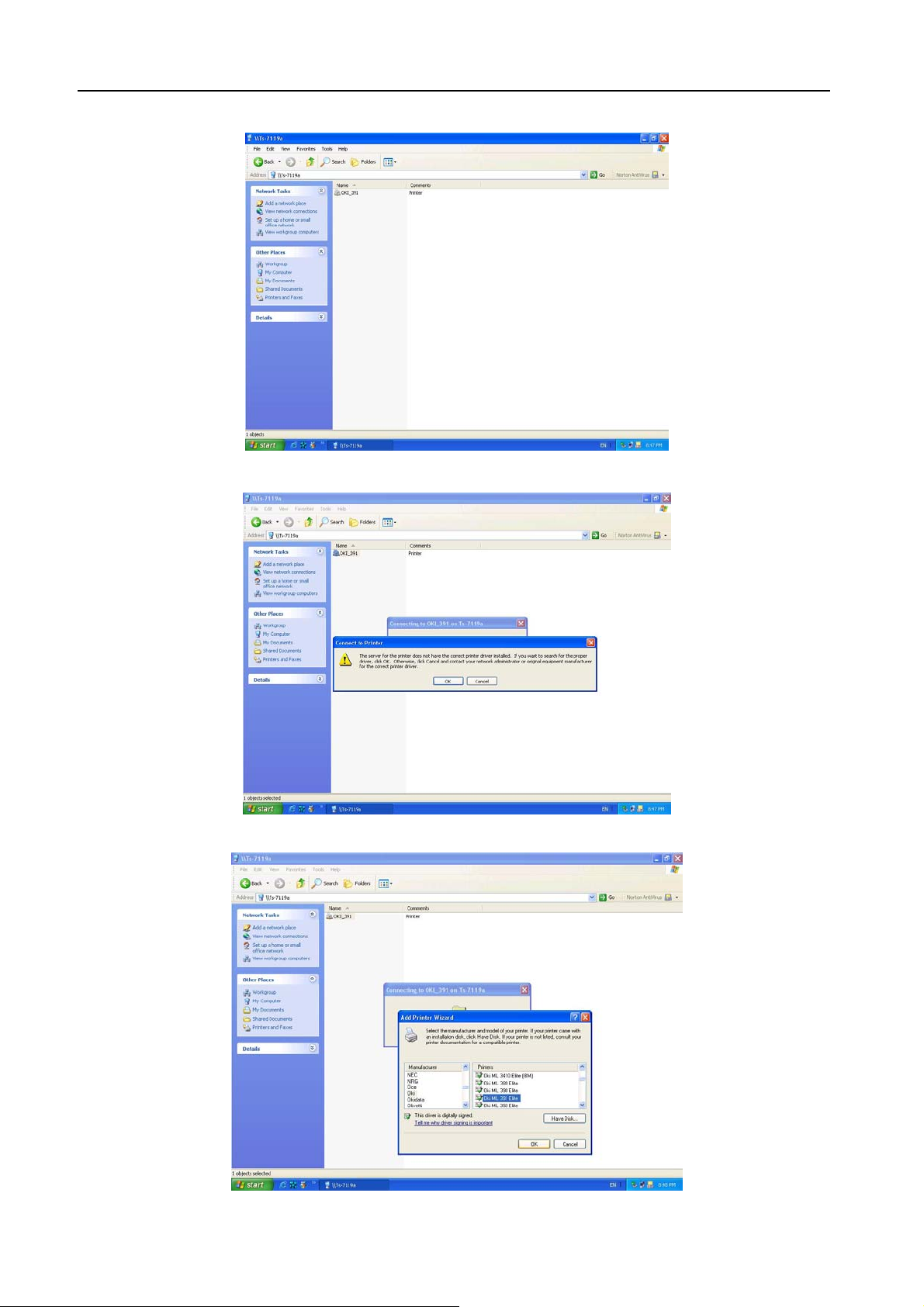

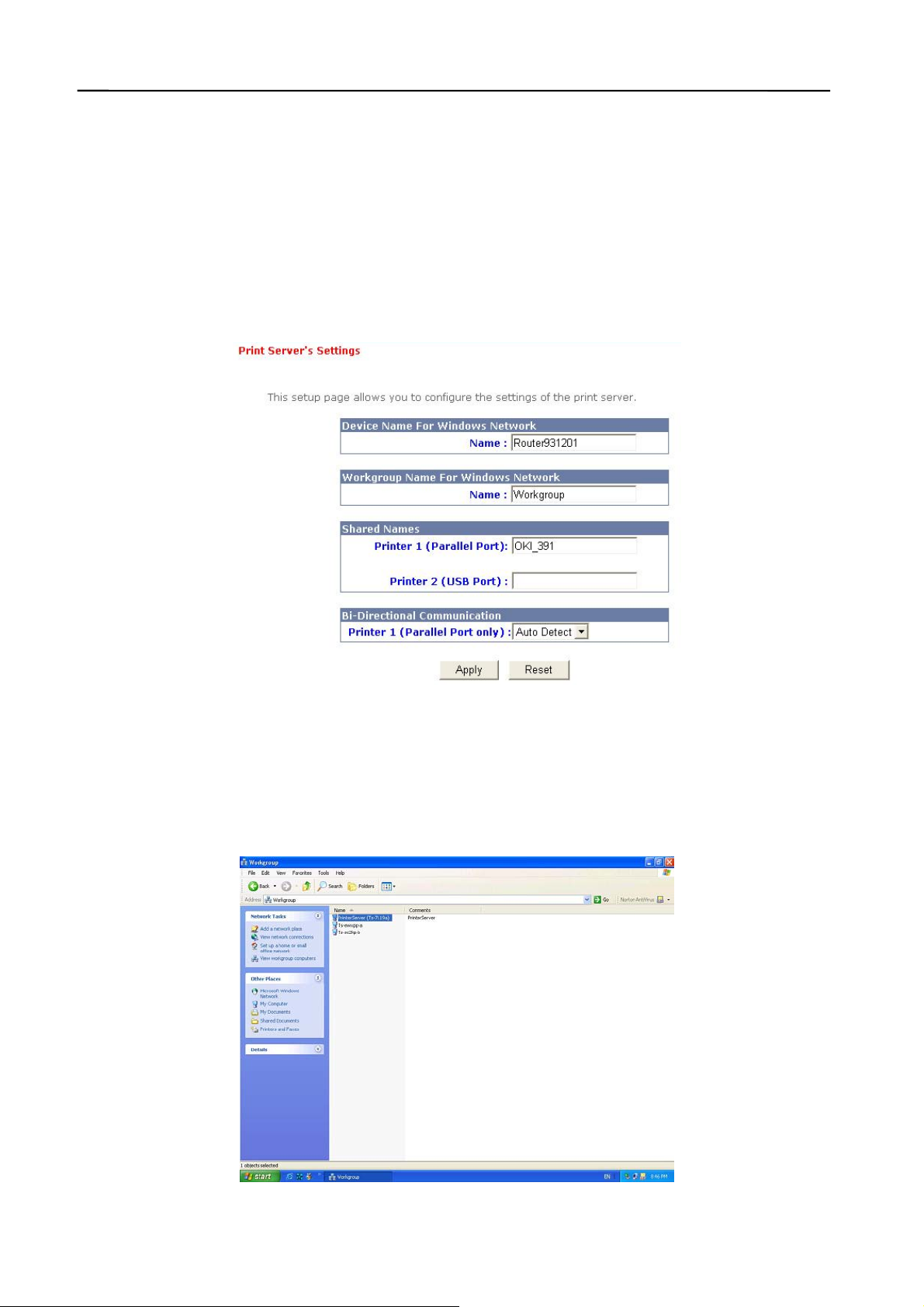

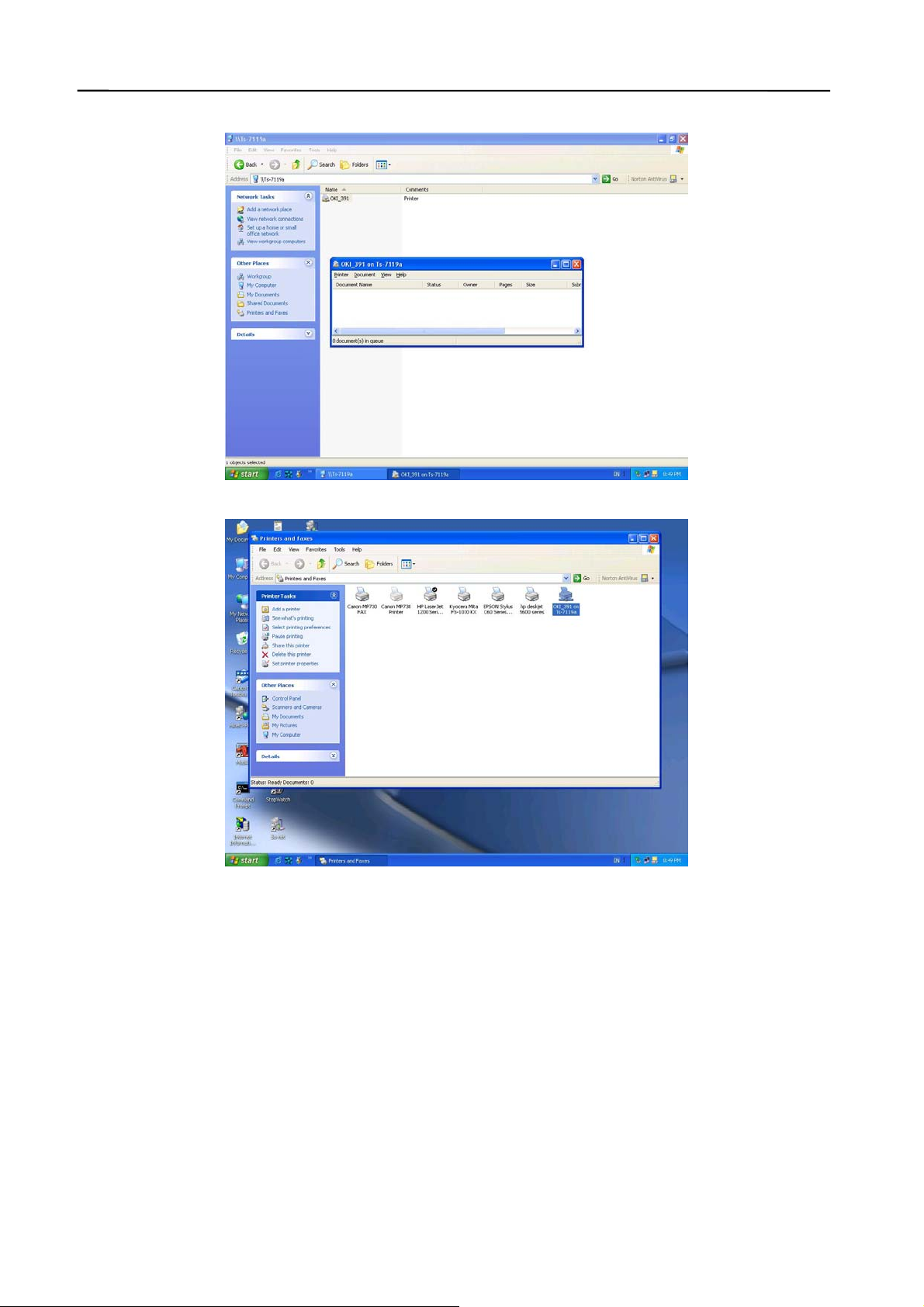

WINDOWS SMB PRINTING ............................................................................................................... 35

6.FIREWALL CONFIGURATION................................................................................................... 38

VERVIEW......................................................................................................................................... 38

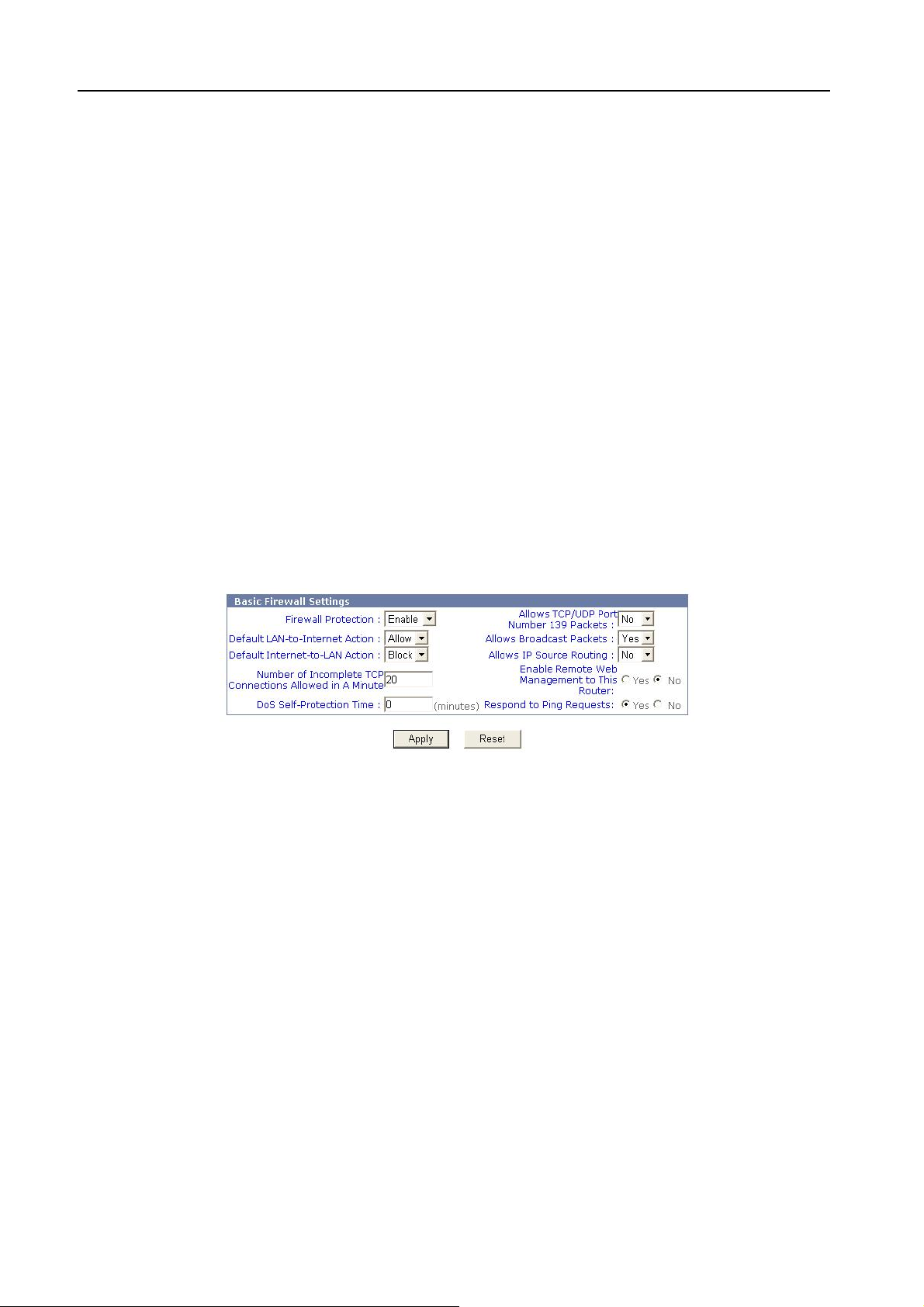

ASIC SETTING ................................................................................................................................. 38

LAN

TO INTERNET (WAN) ACCESS RULE....................................................................................... 39

NTERNET (WAN) TO LAN ACCESS RULE....................................................................................... 40

URL B E-

LOCKING................................................................................................................................. 40

MAIL ALERTS ................................................................................................................................. 41

7. UPGRADING THE BROADBAND FIREWALL ROUTER

.......................................................... 43

OVERVIEW......................................................................................................................................... 43

PGRADING THE ROUTER IN WINDOWS NT/2000/XP (USING TCP/IP)......................................... 43

PGRADING THE ROUTER IN WINDOWS 95/98/ME & NT/2000/XP (USING BROWSER)................ 43

PGRADING THE ROUTER ON UNIX (USING TCP/IP) ..................................................................... 44

8. TROUBLESHOOTING................................................................................................................. 45

OLUTION.......................................................................................................................................... 45

APPENDIX .........................................................................................................................................47

LOADING THE DEFAULT VALUES....................................................................................................... 47

1. Introduction

Product Overview

Congratulations on your purchase of this Broadband Firewall Router. During the design process, we have given much thought to making this device as convenient to use as possible. The end result is the Broadband Firewall Router that can be set up in minutes, allowing network users to access the Internet via either the high-speed DSL or Cable connection.

Main Benefits

 Cost-effective solution using high-speed DSL or Cable connection.  Mobility.  Ideal for the small office or SOHO users.  Internet access without delay.  Have the system up and running in minutes.  Saves time and money.  Greater security.  Multiple functions.

About This Manual

The instructions in this book describe how to connect and configure the Broadband Firewall Router to a network and set up an Internet connection. The manual has been written for network administrators and experienced users and makes some assumptions about the readers. If you want to install the Broadband Firewall Router on your network you should be familiar with:

 Microsoft Windows 95/98/Me or Windows NT/2000/XP  Any TCP/IP-enabled systems like Mac OS and UNIX  Basic functions in any Telnet program  TCP/IP and related issues

This manual details procedures for Windows 95/98/Me or Windows NT/2000/XP operating systems. For other operating systems, please refer to your operating system’s documentation for networking and other information.

The Packing List

The following items should be included in the Broadband Firewall Router package:

 One Broadband Firewall Router unit  One AC power adapter

 One User’s Manual or CD (including quick guide)

Network Software Requirements

The Broadband Firewall Router requires one of the following types of software:

 Windows 95/98/Me or Windows NT/2000/XP  Any TCP/IP-enabled systems like Mac OS and UNIX

Broadband Firewall Router Embedded 4-port 10/100Mbps Switch

The Broadband Firewall Router with embedded 4-port 10/100Mbps Switch features auto-negotiation switch ports and provides the flexibility to fit into your operational space and network environment.

This device is built with plug & play, auto-negotiation supports all ports, half & full-duplex multi-selection, and a store and forward transmission scheme.

The Broadband Firewall Router requires the following network hardware:

 UTP cable (Cat.5 Twisted-pair), 10Base-T or 100Base-TX Fast Ethernet.

Note: Prepare twisted-pair cables with RJ-45 plugs. Use Cat.5 cable for all connections.

Make sure the length of each cable does not exceed 328 feet (approximately 100 meters).

LED Indicators

LED State Indication

Power

Status Blinking (Red)

On (Green) The Broadband Firewall Router’s power is on. Off The Broadband Firewall Router’s power is off.

When power is first switched on, the Status indicator will flash one time.

On (Green) Port has a valid network connection at 100Mbps.

WAN

On (Orange) Port has a valid network connection at 10Mbps. Blinking (Orange)

Data is being transmitted and received via the WAN port.

On (Green) Port has a valid network connection at 100Mbps.

LAN

On (Orange) Port has a valid network connection at 10Mbps. Off Port has not established a network connection. Blinking (Green) Data is being transmitted and received at 100Mbps.

Activity

Blinking (Orange)

Data is being transmitted and received at 10Mbps

Parallel Blinking (Green) Data is being transmitted via Parallel Port (PID1) USB Blinking (Green) Data is being transmitted via USB Port (PID2)

DSL/Cable Modem Requirement

The Broadband Firewall Router requires one of the following external modem(s) or device(s):

 One external DSL modem with an RJ-45 (LAN) interface

 One external Cable modem with an RJ-45 (LAN) interface

2. Hardware Installation

Overview

This chapter details the step-by-step procedure required for correct installation of the Broadband Firewall Router hardware. Topics discussed in this chapter include connecting and disconnecting the Broadband Firewall Router to and from the modem, the network, and the power unit.

Preparation

The following items are needed in order to install the Broadband Firewall Router unit:

 The Broadband Firewall Router unit

 One AC power adapter

 UTP cable (Cat.5 Twisted-pair)

 One DSL/Cable modem with RJ-45 LAN interface

Connecting Firewall Router to the DSL/Cable Modem (WAN)

1. Turn off the modem’s power.

2. Connect one end of the UTP cable to the Broadband Firewall Router’s WAN connector at the rear panel of the device.

3. Connect the other end of the UTP cable to the modem’s UTP (RJ-45) port.

4. The connection is complete.

Note: We recommend you connect a single modem first, and then add additional modems as

needed.

Connecting Broadband Firewall Router to the Network

1. Connect one end of the UTP cable to the Broadband Firewall Router.

2. Connect the other end of the UTP cable to any network computer.

3. The connection is complete.

Connecting the AC Power Adapter

1. Connect the power adapter to the Broadband Firewall Router’s AC power adapter jack.

2. Plug the AC power adapter into a power outlet.

3. Turn the modem’s power on.

4. The connection is complete.

Note: DO NOT use any AC power adapter other than the one shipped with the Broadband

Firewall Router; using an incorrect AC power adapter may damage the Broadband Firewall Router.

Power On Self Test (POST)

The Broadband Firewall Router automatically performs a Power On Self Test (POST) when powered on. Successful powering up of the Broadband Firewall Router is indicated by one flashes of the red LED marked Status on the topside of the Broadband Firewall Router. If the Red LED does not flash one times, please contact your dealer for repair or replacement.

Resetting the Firewall Router

The Broadband Firewall Router has a reset button in the rear panel of the device. In some circumstances you may need to reset the Broadband Firewall Router. Please follow the instructions below to reset the Broadband Firewall Router.

1. With the Broadband Firewall Router powered on, press the reset button once. The red LED light that is marked as Status will then flash once.

2. Reset the DSL/Cable modem.

3. Getting Started

Overview

Configuring the Broadband Firewall Router for the first time can be done using the following method:

To configure the Broadband Firewall Router uses the web browser.

Note: The configuration procedures described in this chapter are for basic setup purposes

only.

Preparation

1. In general, using a Broadband Firewall Router for Internet access requires at least the DSL or Cable service. We assume you have obtained DSL/Cable service from your local telephone company or Internet Service Provider (ISP).

Please have your connection information ready, including:

a. The IP address provided by the ISP for the connection. b. The Subnet mask provided by the ISP for the connection. c. The Gateway IP Address. d. Domain Name System (DNS) server’s IP address.

Setting up the Broadband Firewall Router using the Web browser

Overview

We’ve designed an easy-to-use web-based configuration interface in the device. Users can set up the device by using the web browser. Furthermore, the enhanced HTTP support available in the device includes a quick and easy management tool for performing the configuration tasks, including all basic and advanced setup, on a TCP/IP network.

To access the device from your web browser you will need a web browser supporting frame structure within an HTML page. Netscape or Microsoft Internet Explorer JAVA-enabled browser is recommended.

Preparation

The Broadband Firewall Router comes with a pre-set default IP address, 192.168.1.1. It also features a DHCP server. To configure it over your TCP/IP network, please follow the directions listed below.

Note: If you’re installing the Broadband Firewall Router in a pre-existing IP network, please

see the Configuring Broadband Firewall Router in Pre-Existing IP Networks section later in this chapter.

1. Please ensure your computer (Windows 95/98/Me or Windows NT/2000) has TCP/IP protocol installed. If not, please install the protocol first and then proceed to Step 2.

2. In your Network Properties dialog box, select the Obtain IP address automatically option. When done, restart the computer.

3. After the computer restarts, open your browser.

4. Type the default IP address (192.168.1.1) in the Location box and press Enter. The device’s Home Page will then appear.

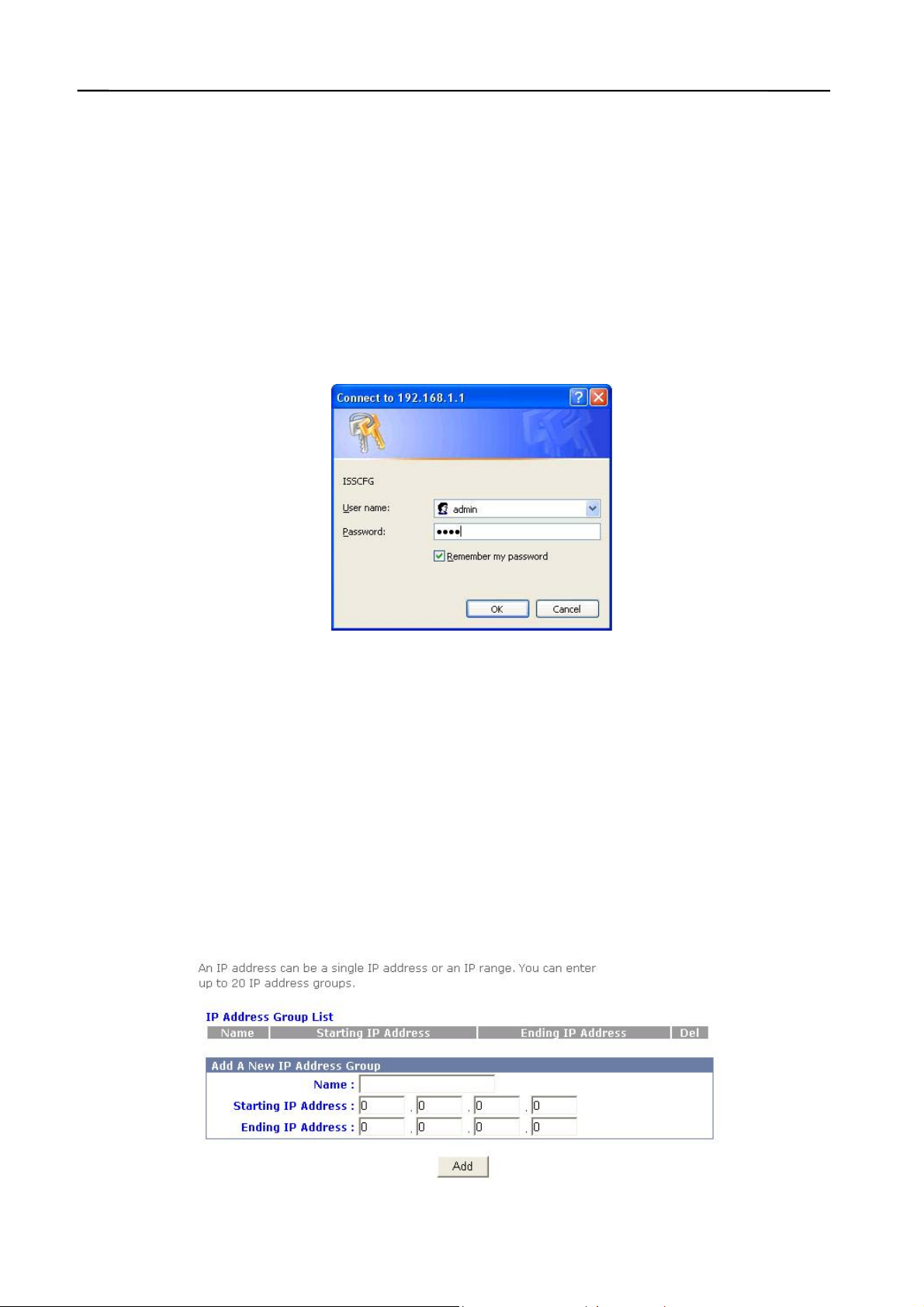

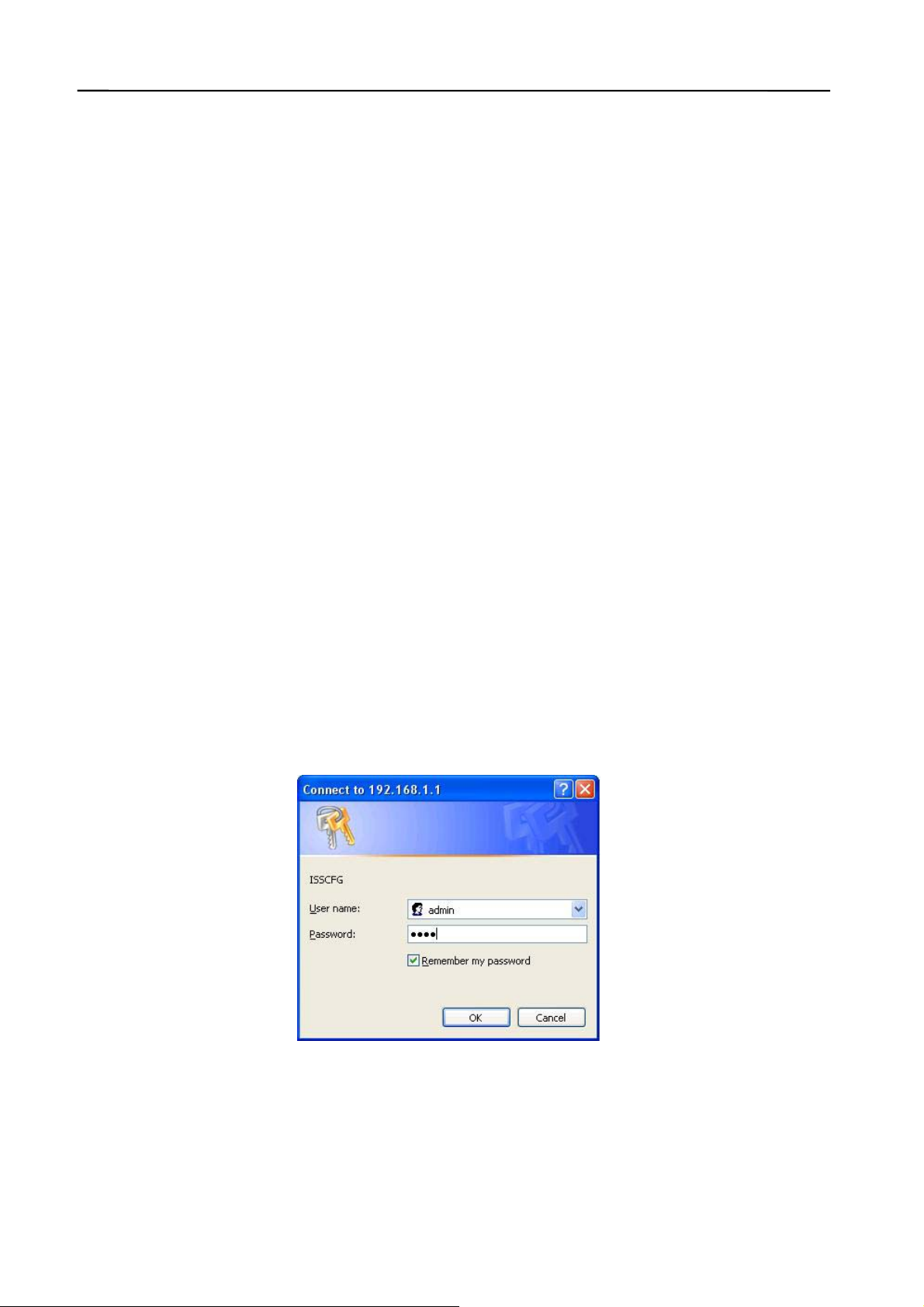

5. It then displays an authentication dialog for the Broadband Firewall Router. Type the default administration user name, admin, and type the default configuration password 0000 and click OK button as shown in following figure.

6. It then enters the Broadband Firewall Router main setup menu as shown in the following figure.

7. Click the Connection Setup, and the following box will appear.

8. Choose either DSL or Cable modem as your connection method.

9. Complete the following settings: (The example shown is for DSL fixed IP)

Choose “Static IP” page, and the following image will appear:

a. In “IP Address” type the IP address provided by your ISP. b. In “Subnet Mask” type the Subnet Mask IP address provided by your ISP. c. In “Gateway’s IP Address” type the Default Gateway IP address provided by your

ISP.

d. Set DNS IP as provided by your ISP.

10. Click Apply.

11. The configuration is now complete.

12. To configure the TCP/IP settings on each client computer, please see the

Configuring Windows 95/98/Me or Windows NT/2000/XP (DHCP-capable) Computers or the Configuring Non-DHCP Computers section.

Configuring Windows 95/98/Me or Windows NT/2000/XP (DHCP-capable) Computers

Each PC that supports DHCP and is located on your LAN must be configured so it can communicate with the Broadband Firewall Router. Follow these steps to configure the reset of the PCs on your LAN.

(If you want to manually specify an IP address and related settings for the computers, please see the Selecting an IP Address section later in this chapter).

Note: The steps described in this section are for TCP/IP-capable operating systems like

Windows 95/98/Me or Windows NT/2000/XP. For non-TCP/IP systems like DOS/Windows 3.x, please see the Configuring Non-DHCP Computers section later in this chapter.

1. From your Windows 95/98/Me or Windows NT/2000/XP desktop, click Start, point to

Settings, and select Control Panel.

2. Double-click the Network icon.

3. Check to see if the TCP/IP protocol is installed. If not, please add this protocol before

proceeding to the next step.

4. Select TCP/IP protocol and click Properties.

5. Click Obtain an IP address automatically.

6. Click OK.

7. Click OK.

8. Restart your computer.

You are now ready to use your Web browser or other Internet applications.

Configuring Broadband Firewall Router in Pre-existing IP Networks

The Broadband Firewall Router is easily added to an existing network that already has IP addresses assigned. The following assumes that you have configured TCP/IP for your network (and on each computer) and are now adding the Broadband Firewall Router for Internet access. We also assume that you will not be using the Broadband Firewall Router

DHCP server to dynamically allocate and assign addresses (since you’ve already assigned IP addresses to each computer).

The following steps use an example pre-existing network of computers with IP addresses

204.1.1.1 through 204.1.1.154 (IP addresses of Class C, without any IP sub-networks). Please follow the steps listed below to use your existing IP addresses with the Broadband Firewall Router.

1. From your range of available IP addresses, select a single IP address to be used as the Broadband Firewall Router’s address (such as 204.1.1.100).

2. Select one computer (we strongly recommend Windows 95/98/Me or Windows NT/2000/XP) to configure the Broadband Firewall Router. Open the Network properties dialog box of the computer, and write down its current IP settings, including IP address and DNS Server IP address (provided by your ISP).

Next, check the Specify an IP Address option in the TCP/IP properties dialog box and enter 192.168.1.2 for the IP address and 255.255.255.0 for the subnet mask. Finally, enter 192.168.1.1 for the gateway IP address. You must then restart your computer to update the new TCP/IP settings.

3. On the same computer, open your web browser.

4. Type the default IP address (192.168.1.1) in the Location box and press Enter. The device’s Home Page will then appear.

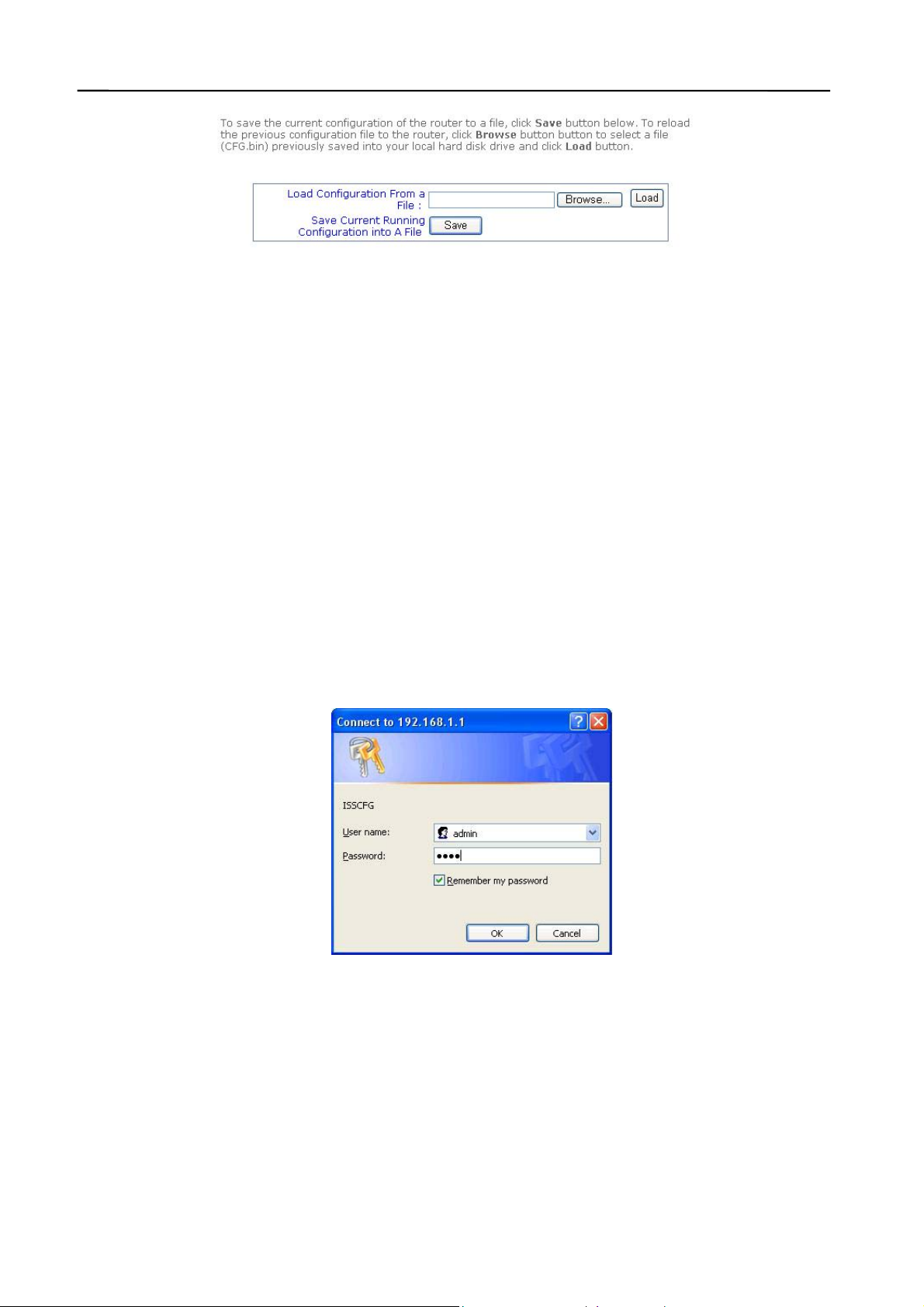

5. It then shows an authentication dialog for the Broadband Firewall Router. Type the default administration user name, admin, and type the default configuration password 0000. Then click OK, as shown in following figure.

6. Click “Basic Settings” in the top column. It then enters the sub-menu.

7. In the LAN Settings, enter the IP address you selected in Step 1 (such as

204.1.1.100) in the LAN IP Address field.

8. Enter the subnet mask 255.255.255.0 in the Subnet Mask field.

9. Enter the IP address you selected in Step 1 (such as 204.1.1.100) in the Default Gateway field.

10. Click Apply button for the new settings to take effect.

11. Close your browser.

12. Now open the Network properties dialog box of the computer again and select TCP/IP protocol.

13. Change the computer’s IP address, subnet mask, and DNS Server IP address (provided by your ISP) back to their original settings.

14. Next, enter the IP address of the Broadband Firewall Router as the computer’s gateway IP address (see Step 1: 204.1.1.100).

15. Finally, restart the computer for new TCP/IP settings to take effect.

16. Please refer to settings given in this chapter to continue configuring the Broadband Firewall Router.

17. Repeat Step 16 and Step 17 on each computer located on your LAN.

Once your network and the Broadband Firewall Router are both successfully configured, the computers on your network should be ready to access the Internet using the Broadband Firewall Router.

+ 35 hidden pages
