Zoje ZJ5780 User Manual

HIGH-SPEED

COMPUTER

CONTROLLED

LOCKSTITCH

STRAIGHT

BUTION·HOLING

SEWING

MACHINE

"

PARTS

itt:

=p

BOOK

It

llllil·

ZOJE

Ill

Jl

~11!11

SEWING

iliR

R~

ffl

MACHINE

~

Bll

~

CO., L TO.

61

CONTENTS

目录

1． RAME & MISCELLANEOUS COVER COMPONENTSⅠ……………………..……01

机壳部件Ⅰ

2． RAME & MISCELLANEOUS COVER COMPONENTSⅡ…………………………..04

机壳部件Ⅱ

3． MAIN SHAFT COMPONENTS………………………………………………………….07

上轴关系

4． HOOK DRIVING SHAFT COMPONENTS.……………………………………….…. .10

下轴部件

5． PRESSER& FEED COMPONENTS………………………………………………..…. 12

送料、抬压脚部件

6． NEEDLE BAR ROCKING COMPONENTS…………………………………………...15

摆针部件

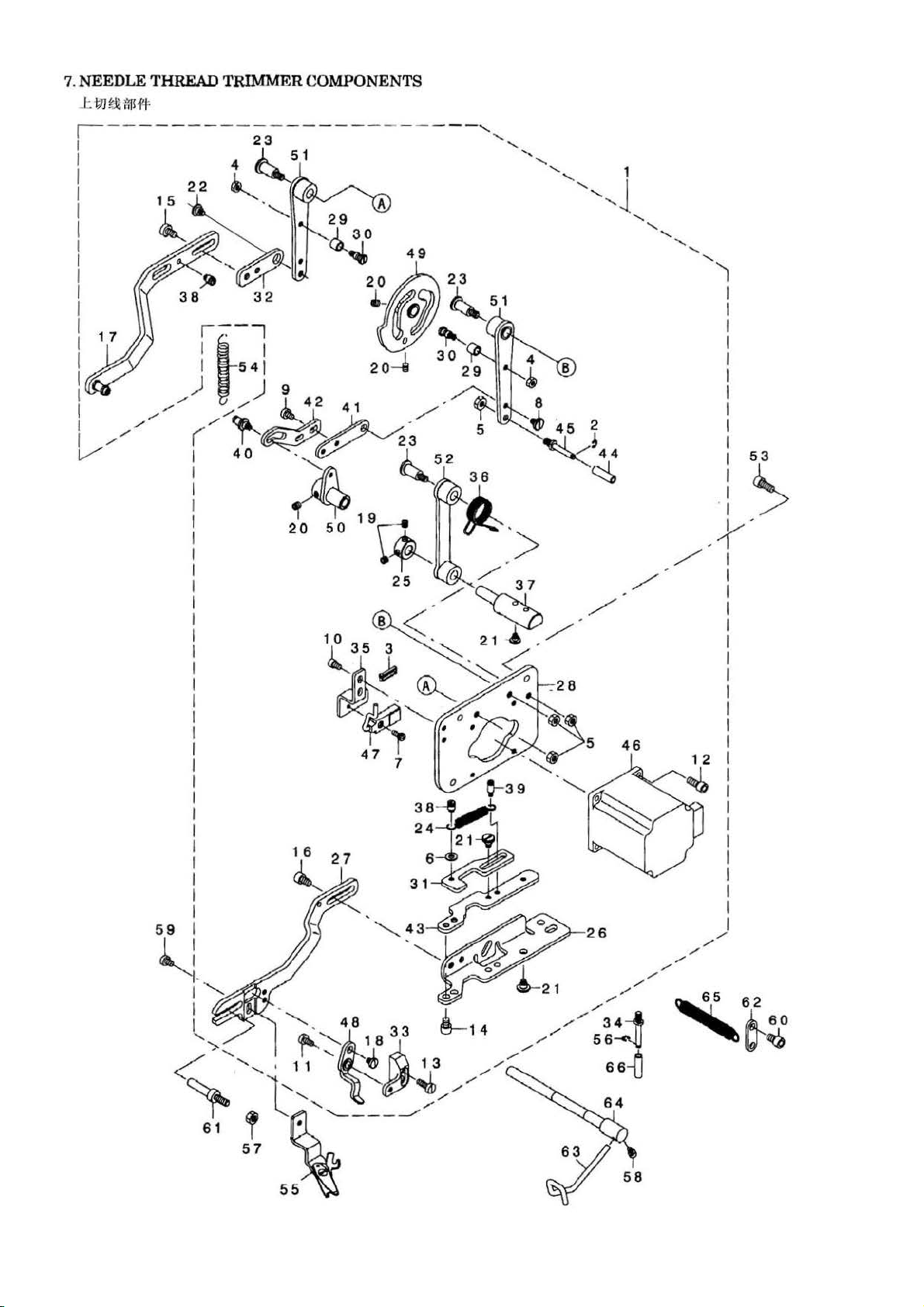

7． NEEDLE THREAD TRIMMER COMPONENTS………….…………………………17

上切线部件

8． BOBBIN THREAD TRIMMER COMPONENTS………..…………………………. ..20

下切线部件

9． CLOTH CUTTING COMPONENTS………..……………………………………….…23

切布刀部件

10． ACCESSORIE PART COMPONENTS………………………………………..…. . 25

附件…

11． THREAD STAND COMPONENTS………………………………………...….…....28

过线架部件

12． CONTROL BOX COMPONENTS………………………………………..……….. .29

电控部件

I

-1-

1. FRAME & MISCELLANEOUS COVER COMPONENTS J

!J-fm,

*~~~

J

5

14!_

1

3"11

9

f

1 0

1 7

l't30

~44

~

5

o-3

0 ;--3 0

19f48

r·5

1.头部、外装关系I

-2-

FRAME&MISCELLANEOUS COVER COMPONENTSⅠ

序号

NO.

1 20003569 上盖 UPPER_COVER 1
2 10003883 上盖螺钉 SCREW 6
3 20003592 左盖 LEFT_COVER 1
4 10003883 左盖螺钉 SCREW 2
5 20003383 左盖板 LEFT_COVER_B 1
6 10003883 左盖板螺钉 SCREW 4
7 20003373 挑线杆防护罩 THREAD_TAKE_UP_LEVER_COVER 1
8 10003883 挑线杆防护螺钉 SCREW 1

9 20003379 面板 FRONT_COVER 1
10 10003883 面板螺钉 SCREW 3
11 20003595 后罩 MOTER_COVER 1
12 10003827 后罩螺钉 SCREW M5 L=16 4
13 10003446 总线夹 OIL TUBE HOLDER 1
14 10003399 电线夹螺钉 SCREW M4 L=10 1
15 20003380 后盖 REAR_COVER 1
16 10003883 后盖螺钉 SCREW 4
17 20000226 底板前盖板组件 HOOK OIL SHIELD COVER COMPL. 1
18 10003881 底板前盖板螺钉 HEXAGON SOCKET HEAD SCREW M5*6 2
19 10005987 接地标志 GROUNDING SYMBOL 1
20 10003399 右线钩螺钉 SCREW M4 L=6 1
21 10003359 过线槽 THREAD GUIDE TROUGH 1
22 10003419 右线钩 TAKE-UP THREAD GUIDE A 1
23 10003396 螺钉 SCREW M5 L=8 2
24 10003423 左线钩 TAKE-UP THREAD GUIDE B 1
25 10003873 下过线钩 NEEDLE BAR THREAD GUIDE 1
26 10008936 安全指示牌 SAFETY LABEL 12 1
27 10003426 底板前盖板垫 RUBBER PLUG 1
28 10000091 上盖前油塞 PLUG D=7.5 L=3.5 2
29 10003399 螺钉 SCREW M4 L=6 6
30 10011136 背部前端油塞 RUBBER PLUG 1
31 10011099 油塞 RUBBER PLUG 2
32 10003880 底板后端油塞 RUBBER PLUG 1
33 10011099 油塞 RUBBER PLUG D=12.5 L=4 3
34 10003871 油塞 PLUG 2
35 10003402 机头铰链螺钉 SCREW M6 L=10 4
36 10003832 底座锁紧螺钉 HEXAGON BOLT 4
37 10011232 连接销紧定螺钉 SCREW M6 L=6 2
38 10003870 点动开关组件 SWITCH ASM. 1
39 10003875 点动开关组件螺钉 SCREW 2
40 10000131 上夹线器组件 PRE_TENSION CONTROLLER ASM. 1
41 10000167 两眼过线柱 THREAD GUIDE BAR 1
42 10003878 底座 BED_BASE 1
43 20003381 底座后盖板 BED_REAR_COVER 1
44 10003358 电线夹 CABLE CLAMP 1
45 10000405 油塞 RUBBER PLUG 2
46 10003413 眼睛防护罩安装柱 VCS STUD A 1

件号

Part No.

描述

Description 数量

47 10003397 风扇安装架组件 FINGER GUARD 1

-3-

48 10003347 机头铰链套 HINGE_BUSH 1
49 10003884 连接销 HINGE PIN 2
50 10003443 机头后铰链 HINGE PLATE A 1
51 10003831 机头前铰链 HINGE PLATE B 1
52 10005504 调节螺母 NUT M6 8
53 10003888 安全开关组件 SAFETY SWITCH COVER 1
54 10003395 底座锁紧螺钉垫片 WASHER 6.1X18.5X2 4
55 10003453 挡油板 OIL SHIELD 1
56 10003415 底座垫II RUBBER A 2
57 10003829 底座长垫 CUSHION 1
58 10003415 底座垫I RUBBER 1
59 10003451 底座圆垫 Z STOPPER RUBBER 1
60 10003357 底座橡胶垫片 RUBBER CUSHION(B) 4
61 10003350 机头铰链橡胶套 RUBBER HINGE 1
62 10003875 挡油板螺钉 SCREW 1
63 10003353 左盖垫 CLOTH PLATE WASHER 1

-4-

2. FRAME & MISCELLANEOUS

.m~fflHlfi

i

COVER

COMPONENTS 1 I

i--55

_L

~

r __ L_I

I

I

I ®__ I

I

54

14--

I

I I

I

L_l _

46

~47

._46

~49

50

!&-51

__

1

I

I

I

I
I

_j

~

52

-

-

~3

'

~

2.机壳部件Ⅱ

-5-

FRAME&MISCELLANEOUS COVER COMPONENTSⅡ

序号

NO.

1 10000650 夹线电磁铁 ASSY_AT_SOLENOID 1
2 10000742 连接杆 AT_SHAFT 1
3 10000651 夹线电磁铁连接架 AT_SHAFT_HOLDER 1
4 10000652 夹线器座挡圈 RETAINING RING 1
5 10000755 夹线三分盘 DISK_STOPPER 1
6 10000756 夹线器外盖 DISK_STOPPER_HOLDER_CAP 1
7 10003399 电线夹螺钉 SCREW M4 L=6 4
8 10000754 连接杆螺母锁紧螺母 NUT 2

9 10000743 外盖螺钉 SCREW 3
10 10000731 绝缘片螺钉 SCREW M4 L=8 1
11 10005139 夹线电磁铁螺钉 SCREW M L=8 3
12 10013019 挡圈螺钉 SCREW 2
13 10000746 夹线器座螺钉 SCREW M3 L=4 1
14 10011232 夹线器紧固螺钉 SCREW M6 L=6 1
15 10009471 连接铁芯螺母 NUT 1
16 10005415 连接铁芯螺钉垫圈 SPRING WASHER 1
17 10001122 油管夹 LUBRICATING OIL WICK STOPPER 4
18 10000069 挑线簧 TAKE-UP SPRING 1
19 10000749 夹线器座 THREAD_TENSION_POST_BASE 1
20 10000753 连接杆螺母 THREAD_TENSION_SHAFT_COLLAR 2
21 10000732 夹线电磁铁挡圈 THRUST COLLAR 1
22 10007123 缓冲垫架螺钉 UTT_SUSPENSION_SCREW_9 1
23 10000766 三分盘组件 ASSY_THREAD_TENSION_POST 1
24 10000741 传感片内绝缘片 GUIDE PLATE 1
25 10000752 传感片外绝缘片 BUSHING 1
26 20000299 断线检测传感片组件 THREAD BREAK DETECTOR A 1
27 10000744 绕线器组件 ASSY_BOBBIN_THREAD_WINDER 1
28 10011096 梭芯卷线体组件 BOBBIN FITTING BASIS COMPL. 1
29 10004497 控制板 ADJUSTING PLATE 1
30 10004486 薄垫片 VERTICAL ROLLER WASHER 2
31 10013038 绕线器凸轮轴挡圈 E-RING 1
32 10004494 弹簧 PRESSER FOOT SPRING 1
33 10000822 卷线轴垫 BOBBIN CUSHION 1
34 10006151 定位块 BOBBIN CAM SHAFT COMPLE. 1
35 10004501 弹簧 SPRING 1
36 10000757 橡胶轮 BTW_RUBBER_RING 1
37 10009937 锁心弹簧 LATCH SPRING 1
38 10000823 摆动板组件 ASSY_BTW_SHAFT 1
39 10000735 卷线手柄螺钉 SCREW 9/64 -40 L=13.5 1
40 10000736 卷线手柄 BOBBIN LEVER 1
41 10000737 绕线调节板 BOBBIN ADJUSTING PLATE 1
42 10000759 线量调节板螺钉 SCREW 9/64 -40 L=5.0 1
43 10004485 绕线轴O型圈 RUBBER RING 1
44 10006142 绕线器摆动板轴挡圈 RETAINING RING 1
45 10011101 绕线器螺钉 SCREW 11/64X40 L=11 3
46 10003088 绕线夹线器组件 BOBBIN THREAD TENSION ASM. 1

图号

Part No.

描述

Description 数量

47 10004503 塑料夹线螺母 THREAD TENSION NUT 1

-6-

48 10004391 夹线簧 THREAD TENSION SPRING 1
49 10004393 夹线板 BOBBIN WINDER TENSION DISC 2
50 10003089 中过线板 BOBBIN THREAD TENSION ROD ASM. 1
51 10004507 夹线器螺母 NUT 11/64-40 1
52 10011149 绕线切刀 THREAD CUTTER 1
53 10000164 绕线切刀螺钉 SCREW 1/8-44 L=2.9 2
54 10000733 绕线过线板 THREAD GUIDE 1
55 10010668 绕线过线板螺钉 SCREW 11/64-40 L=7.8 1

-7-

3.

MAINSHAF

_t~*~

T COMPONENTS

28

,36

b

~19

.~~

~

?

24

v

5530~

~

34

35

37

'

~~

1 6

30

27

33

~32

~Cf~

~25

20

I

Ct-31

14

3.上轴关系

-8-

MAIN SHAFT&THREAD COMPONENTS

序号

NO.

1 10003204 挑线杆组件 THREAD_TAKE_UP_ASM. 1

2 10009777 挑线杆大轴承 BEARING 1

3 10003552 挑线杆小轴承 BEARING 1

4 10000844 挑线连杆 THREAD_TAKE_UP_CRANK 1

5 10014511 挑线连杆轴承 BUSHING 1

6 10000847 针杆连杆套 BUSH 1

7 10004161 挑线杆过线套 THREAD PASS BUSH 1

8 10000856 挑线杆 LINK_TAKE_UP 1

9 10000846 挑线曲柄 NEEDLE_BAR_CRANK 1
10 10000857 针杆连杆 NEEDLE_BAR_CRANK_ROD 1
11 10010537 挑线曲柄左旋螺钉 LEFT SCREW 1
12 10009074 挑线连杆铰链轴螺钉 SET SCREW M4 L=4 1
13 10025862 上轴后轴承 BEARING 1
14 10025881 上轴前轴承 BEARING 1
15 10005747 挑线杆铰链轴滚针轴承 BEARING 2
16 10005786 挑线杆铰链轴滚针轴承挡圈 BEARING SUPPORT 2
17 10000839 上轴前轴套 BEARING HOLDER 1
18 10000867 绕线主动轮 BOBBIN WINDER DRIVING WHEEL 1
19 10000862 针杆曲柄定位螺钉 COUNTER_WEIGHT_SCREW 1
20 10000861 针杆曲柄 COUNTER_WEIGHT 1
21 10000868 连接前块 COUPLING 1
22 10025119 上轴伺服电机 AC SERVO MOTOR 1
23 10000841 上轴 MAIN_SHAFT 1
24 10003177 挑线连杆铰链轴 NEEDLE_CRANK_SHAFT 1
25 10000831 针杆曲柄紧定螺钉 SCREW M8 L=16 1
26 10000863 前导轨螺钉 SCREW M4 L=12 2
27 10000860 上轴伺服电机螺钉 SCREW M5 L=20 4
28 10009171 滑块槽螺钉 SCREW M6 L=25 3
29 10012162 挑线曲柄轴挡圈螺钉 SCREW M5 L=5 2
30 10011062 主动轮螺钉 SCREW 11/64-40 L=15.5 2
31 10011232 螺钉 SCREW M6 L=6 6
32 10000314 上轴带轮螺钉 SCREW M6 L=8 6
33 10000779 上轴带轮组件 SPROCKET_A 1
34 10000824 针杆滑块 SQUARE_BLOCK 1
35 10003176 针杆前滑块 SQUARE_BLOCK_B 1
36 10000833 针杆滑块槽 SQUARE BLOCK_GUIDE 1
37 10000832 针杆滑块前导轨 SQUARE BLOCK_GUIDE_B 1
38 10000855 挑线曲柄销 THREAD_TAKE_UP_CRANK_SHAFT 1
39 10000845 挑线曲柄销挡圈 THRUST COLLAR D=7 W=8 1
40 10000842 同步齿形带 TIMING_BELT 1
41 20000359 惰轮组件 IDLER_ASM. 1
42 10003239 惰轮挡圈 RETAINING RING 2
43 10000835 惰轮组件固定螺钉 HINGE_SCREW 1
44 10000877 惰轮调节板 IDLER_FIXED_PLATE 1
45 10000875 惰轮 IDLER PULLEY 1
46 10000899 挡圈 INTERMEDIATE SPROCKET WASHER 1

图号

Part No.

描述

Description 数量

47 10000876 惰轮螺母 NUT M10 1

-9-

48 10000879 惰轮弹性挂销 FEED LEVER SPRING HOOK 1
49 10000874 惰轮螺栓 SCREW M10 L=42.5 1
50 10003594 惰轮轴承 BALL BEARING 2
51 10000836 惰轮组件调节螺钉垫圈 WASHER 1
52 10000865 惰轮组件调节螺钉 SCREW M6 L=14 1
53 10000866 复位弹簧 ADJUSTING_SPRING 1
54 10000837 复位弹簧挂销 SUSPENSION_SCREW 1
55 10000834 挡油毡 NEEDLE ROD CRANK LUBRICATING 1
56 10000864 滑块槽前导轨螺钉垫片 WASHER 2
57 10000838 连接后块 COUPLING 1
58 10011227 橡胶连接块 RUBBER COUPLING 1

-10-

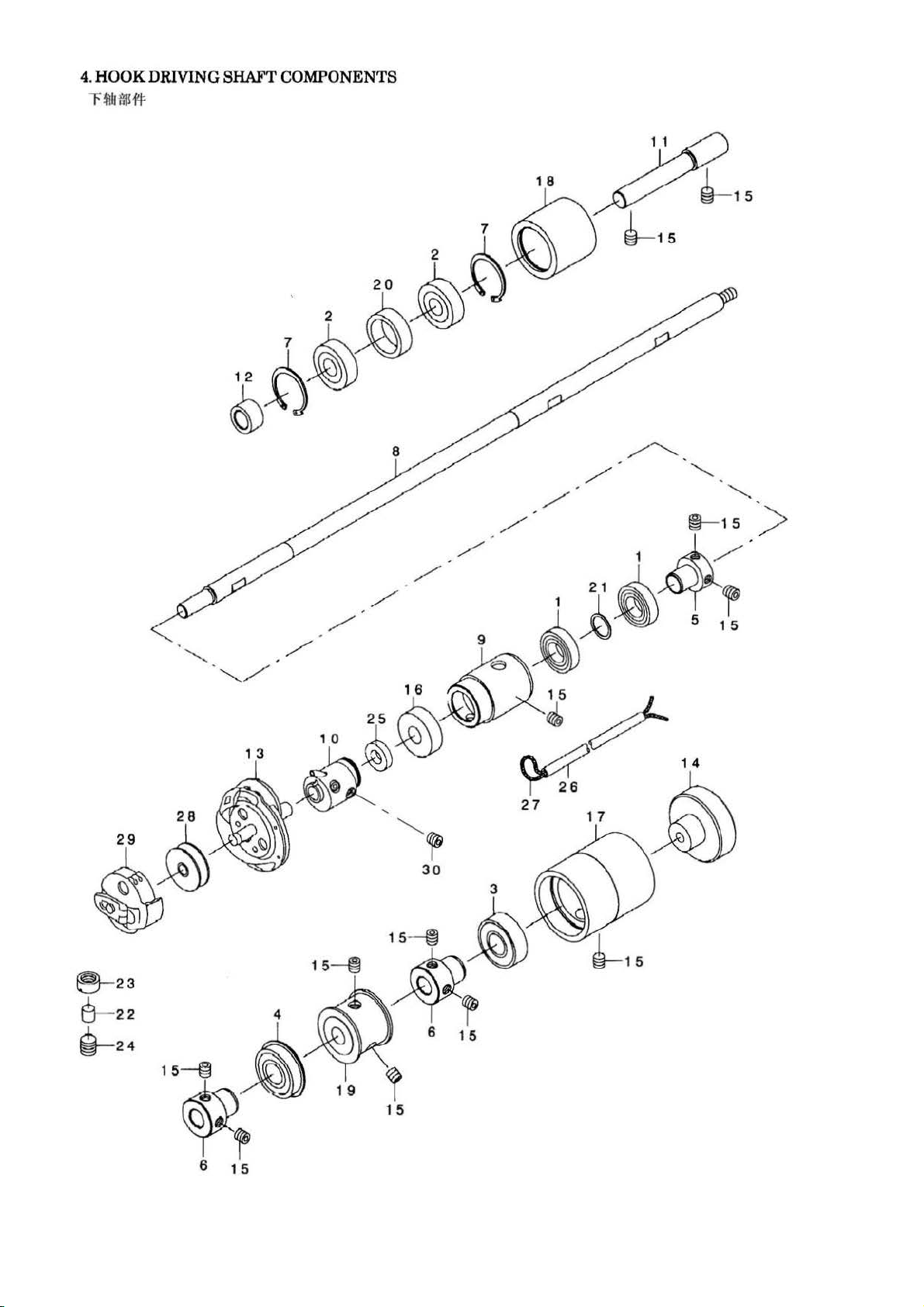

4. HOOK

r

DRIVIN

~1$f!f

G SHAFT COMPONENTS

/

Jt-

15

-~

'""

~

15

""-.

>

~23

6-

22

~24

"""

'---..../.

1 3

/

10

15

~®i;)J~

~

""-

'fli

30

15

-®

~f'

~

6

15

2 7

3

/

17

6

15

4.下轴部件

-11-

HOOK DRIVING SHAFT COMPONENTS

序号

NO.

1 10007410 下轴前轴套轴承 BEARING 2

2 10003544 辅助带轮轴承 BALL BEARING 2

3 10003581 下轴后轴套轴承 BEARING 1

4 10003600 下轴中轴套轴承 BEARING 1

5 10000897 下轴前轴套 BEARING_SUPPORT 1

6 10000891 下轴中轴套 BUSH 2

7 10000929 轴承挡圈 RETAINING RING 2

8 10000892 下轴 HOOK_DRIVING_SHAFT 1

9 10000895 下轴前套 HOOK_DRIVING_SHAFT_METAL 1
10 10000902 旋梭供油套组件 HOOK SLEEVE ASM. 1
11 10000898 辅助带轮轴 INTERMEDIATE SPROCKET SHAFT 1
12 10000899 辅助带轮轴挡圈 INTERMEDIATE SPROCKET WASHER 1
13 10003803 旋梭 HOOK COMPL. 1
14 10000775 下轴手轮 CROWN KNOB 1
15 10011232 螺钉 SCREW M6 L=6 12
16 10000883 供油套大毛毡 FELT 1
17 10000893 下轴后轴套大套 BEARING SUPPORT 1
18 10000900 辅助带轮 SPROCKET_B 1
19 10000774 下轴带轮 SPROCKET_C 1
20 10000901 轴承隔圈 INTERMEDIATE SPROCKET RING 1
21 10000896 下轴前轴套波形垫圈 WASHER 1
22 10000887 油量调节柱 ADJUSTING SHAFT 1
23 10000885 油量调节螺母 SDJUSTING_NUT 1
24 10000884 油量调节螺钉 SCREW M8X8 1
25 10000882 供油套小毛毡 FELT 1
26 10007800 供油套软管 TUBE 1
27 10008101 供油管油线 OIL WICK 1
28 10000880 梭芯 BOBBIN 1
29 10003801 梭壳 BOBBIN CASE ASM. 1
30 10000881 旋梭供油套螺钉 SCREW 4

图号

Part No.

描述

Description 数量

-12-

5. PRESSER & FEED COMPONENTS

l:E

JJ!II

,

~t-Hi!#

57-1

53

47

/

~76

(

if~

2317

~

<"

4

79

___.

5.压脚、送料部件

-13-

PRESSER & FEED COMPONENTS

序号

NO.

1 10000796 送料电机 FEED MOTOR ASS'Y 1

2 10000956 送料传感器 FEED SENSOR ASS'Y 1

3 10000004 送料带轮轴承挡片 BEARING SUPPORT 2

4 10000005 左右盖板 THROAT PLATE BASE COVER 2

5 10000955 送料电机固定板 MOTOR_BRACKET 1

6 10000970 送布驱动轮组件 PULLEY_B 1

7 10000056 送料带轮组件 PULLEY_C 1

8 10000003 带轮轴 SUPPORT_SHAFT 1

9 10000067 同步带固定块 TIMING_BELT_HOLDER 1
10 10000000 送料轴 FEED_SHAFT 1
11 10000066 送料导向轴 FEED_GUIDE_SHAFT 1
12 10000945 送料架 FEED_BASE 1
13 10000931 送料板 WORK_CLAMP_CARRIER 1
14 10000957 送料传感器固定板 SENSOR_PLATE 1
15 10000002 送料带轮挡圈 THRUST COLLAR D=7 W=8 1
16 10005747 送料带轮轴承 BEARING 2
17 10000007 单向推力球轴承 BEARING 1
18 10003681 轴承 BEARING 3
19 10000984 送料传感器固定螺钉 SCREW M3X10 1
20 10003399 螺钉 SCREW M4 L=6 4
21 10003399 同步带固定块固定螺钉 SCREW M4 L=8 2
22 10000342 螺钉 SCREW M4 L=10 6
23 10003402 送料电机固定板短螺钉 SCREW M6 L=10 3
24 10010735 送料电机固定板长螺钉 SCREW M6 L=18 1
25 10012162 螺钉 SCREW M5 L=5 5
26 10011232 螺钉 SCREW M6 L=6 2
27 10000001 送料同步带 TIMING_BELT 1
28 10000019 左右盖板螺钉 SCREW M4 L=5 4
29 20007581 抬压脚电机组件 ASSY_PBL_GEAR_MODULE 1
30 10000018 抬压脚电机 CLAMP MOTOR ASS'Y 1
31 10000795 抬压脚前曲柄 PBL_FRONT_LINK 1
32 10000794 抬压脚驱动齿轮 PBL _GEAR'S 1
33 10000946 抬压脚齿轮轴 PBL _GEAR_SHAFT 1
34 10000793 抬压脚曲柄 PBL_L_LINK 1
35 10000064 抬压脚长连杆 PBL_LONG_ROD 1
36 10000947 传感器挡片 PBL_SENSOR_PLATE 1
37 10003399 传感器挡片固定螺钉 SCREW M4 L=6 2
38 10000863 抬压脚电机固定螺钉 SCREW M4 L=10 4
39 10000933 抬压脚齿轮轴紧定螺钉 SCREW M6 L=5 5
40 10000261 螺钉 SHOULDER SCREW D8 H3.2 4
41 10000965 抬压脚齿轮 ASSY_PBL_GEAR_ L 1
42 10000967 抬压脚电机固定板组件 ASSY_PBL_MOTOR_BASE 1
43 10000939 压杆纵向导销 PIN,SHORT 1
44 10000006 抬压脚传感器 CLAMP SENSOR ASS'Y 1
45 10000937 滑动滚子 SLIDE ROLLER 1
46 10000936 滑动滚子导套 COLLAR 1

图号

Part No.

描述

Description 数量

47 10000949 压杆簧 PBL_COLL_SPRING 1

-14-

48 10000950 护指架 PBL_FINGER_GUARD 1
49 10000948 抬压脚导板 PLB_GUIDE 1
50 10000942 压脚纵向导板 PBL_LIFTING_PLATE 1
51 10000934 压杆导套 PBL_METAL 1
52 10000932 抬压脚导块 PBL_POSITION_BRACKET 1
53 10000931 压杆 PBL_PRESSER_BAR 1
54 10000935 压杆连接块 PBL_ROLLER_BASE 1
55 10000938 滑动滚子连接销 PBL_ROLLER_SHAFT 1
56 10000958 抬压脚传感器固定板 PBL_SENSOR_BASE 1
57 10000930 调压螺钉 PBL_SPRING_REGULATOR 1
58 10000944 抬压脚导架 PBL_WORK_CLAMP_ARM 1
59 10000065 抬压脚导架销 PBL_WORK_CLAMP_ARM_SHAFT 1
60 10000984 抬压脚传感器固定螺钉 SCREW M3X10 1
61 10012553 护指架螺钉 SCREW M4 L=8 1
62 10009103 压杆连接块固定螺钉 SCREW M4 L=16 1
63 10000943 压脚纵向导板螺钉 SCREW M5 L=8 2
64 10005490 抬压脚导板固定螺钉 SCREW M5 L=10 4
65 10005139 抬压脚电机固定板螺钉 SCREW M5 L=12 4
66 10012162 滑动滚子导套紧定螺钉 SCREW M5 L=6 2
67 10000941 上切刀复位板 UTT_CLOSE_CAM 1
68 10000261 抬压脚前曲柄轴位螺钉 SHOULDER SCREW D8 H3.2 1
69 10000933 抬压脚导块固定螺钉 SCREW M6 L=5 1
70 10000960 抬压脚柄组件 WORK CLAMP CHECK HOLDER 1
71 10000008 压脚柄 WORK CLAMP CHECK HOLDER 1
72 10000961 抬压脚弹簧片 WORK CLAMP CHECK SPRING 2
73 10000068 压脚连接销 WORK CLAMP CHECK SPRING SET PI 2
74 10000009 抬压脚弹簧 WORK CLAMP CHECK SPRING SPRING 1
75 10000951 压脚连接螺钉 SCREW 3/32-56 L=1.9 2
76 10000962 抬压脚底板组件 PRESSER 1
77 10000940 抬压脚轴位螺钉 HINGE SCREW D=7.94 H=2 1
78 10003399 送料板固定螺钉 SCREW 2
79 10009074 带轮轴定位螺钉 SCREW 1
80 10010685 抬压脚传感器固定板螺钉 SCREW 2

-15-

6. NEEDLE BAR ROC

11!#~

1H

4

KING

COMPONENTS

8

~

33

36

37

6.摆针部件

-16-

NEEDLE BAR ROCKING COMPONENTS

序号

NO.

1 20007584 摆针曲柄组件 ZIGZAG DRIVE FULL ASSY 1

2 10000996 摆针连杆组件 ZIGZAG ROD ASM. 1

3 10000997 摆针小连杆 ZIGZAG ROD 1

4 10000983 摆针连杆套 SHAFT HOLDER LINK BUSH 2

5 10000981 摆针连杆销 JUNCTION SHAFT A 2

6 10000060 摆针轴挡圈 THRUST COLLAR D15 W11 1

7 10012162 摆针轴挡圈螺钉 SCREW M5 L=5 2

8 10011232 螺钉 SCREW M6 L=6 4

9 10000984 摆针传感器螺钉 SCREW M3X10 1
10 10000342 螺钉 SCREW M4 L=10 6
11 10000980 摆针曲柄螺钉 SCREW M5 L=14 1
12 10009008 摆针大连杆螺钉 SCREW M6 L=18 1
13 10012162 连杆销螺钉 SCREW M5 L=5 4
14 10001001 摆针传感器安装板 SENSOR PLATE 1
15 10000977 摆针传感器 CLOSE SENSOR 1
16 10000059 摆针大连杆 ZIGZAG LEVER REAR 1
17 10000978 摆针电机安装板 MOTOR BASE 1
18 10000979 摆针曲柄 MOTOR LEVER 1
19 10000975 摆针步进电机 NEEDLE SWING MOTOR ASS'Y 1
20 10009008 摆针电机安装板螺钉 SCREW M6 L=10 3
21 10000992 摆针轴组件 ZIGZAG LEVER SHAFT ASM. 1
22 10000994 摆针驱动销螺母 NUT M5 1
23 10000995 摆针轴 ZIGZAG LEVER SHAFT 1
24 10000993 摆针驱动销螺钉 NEEDLE SWING SENSOR ASSY 1
25 10000954 针杆连接柱 NEEDLE BAR CONNECTION 1
26 10000973 连接柱螺钉 NEEDLE_BAR_CONNECTION 1
27 10000989 针杆连接板 NEEDLE BAR ROD 1
28 10000061 摆针滑块 SQUARE BLOCK 1
29 10000062 摆动架组件 NEEDLE BAR FRAME ASSY 1
30 10000063 针杆摆动架 NEEDLE BAR FRAME 1
31 10000982 针杆套 NEEDLE BAR METAL 2
32 10000974 摆动架销 SUPPORT SHAFT 1
33 10000998 摆针压板组件 FRAME SUPPORT PLATE ASM. 1
34 10000990 摆针前套 BUSHING 1
35 10000991 摆针后套 BUSHING REAR 1
36 10000953 针杆 NEEDLE BAR 1
37 10002447 机针 DPX5 #11 NEEDLE DPX5 #11 1
38 10000952 针杆线钩 NEEDLE BAR BOBBIN THREAD GUIDE 1
39 10010588 机针螺钉 SCREW M3 L=5 1
40 10000976 传感器安装定位板 SENSOR PLATE 1

图号

Part No.

描述

Description 数量

-17-

sv

~

5 8

7.上切线线部件

-18-

NEEDLE THREAD TRIMMER COMPONENTS

序号

NO.

1 10003215 上切线电机组件 ASSY UTT MODULE 1

2 10003248 挡圈 E-RING 3 1

3 10003358 线夹 CABLE BAND 1

4 10002463 螺母 NUT M4 2

5 10000994 螺母 NUT M5 4

6 10002765 垫圈 WASHER 4.3X9X0.8 1

7 10000984 螺钉组件 SCREW ASM. 1

8 10003496 轴位螺钉 SHOULDER SCREW D6 H2.6 1

9 10002762 螺钉 SCREW M4 L=6 2
10 10003399 上切线传感器安装螺钉 SCREW M4 L=6 2
11 10003298 螺钉 SCREW M4 L=8 1
12 10003399 上切线电机螺钉 SCREW M4 L=10 4
13 10009037 螺钉 SCREW M4 L=12 2
14 10003881 上切线X板螺钉 HEXAGON SOCKET HEAD SCREW M5X6 2
15 10002802 螺钉 SCREW M5 L=8 2
16 10003396 紧定螺钉 SCREW M5 L=8 2
17 10002497 上切线松线臂组件 ASSY UTT RELEASE ARM B 1
18 10003262 松线杆固定螺钉 SCREW M4 L=5 1
19 10012162 挡圈紧定螺钉 SCREW M5 L=4 2
20 10012162 螺钉 SCREW M5 L=5 4
21 10003256 轴位螺钉 SHOULDER SCREW D6 H3.2 4
22 10002755 轴位螺钉 SHOULDER SCREW D8 H4 1
23 10003266 轴位螺钉 SHOULDER SCREW D8 H15 3
24 10002767 弹簧 SPRING 1
25 10002760 紧圈 THRUST COLLAR D8 W9 1
26 10002469 上切线支承臂A UTT ARM A 1
27 10002766 上切线悬臂B UTT ARM A 1
28 10003263 上切刀部件安装板 UTT BASE PLATE 1
29 10000021 上切线凸轮滚柱 UTT CAM ROLLER 2
30 10002803 上切线凸轮滚柱导向螺钉 UTT CAM ROLLER SHAFT 2
31 10002531 止动平板 UTT RATCH PLATE 1
32 10002533 上切线松线臂 A UTT RELEASE ARM A 1
33 10003297 松线座 UTT RELEASE LEVER BASE 1
34 10003222 轴 UTT Y-DRIVE SHAFT 1
35 10002751 上切线传感器安装板 UTT SENSOR BASE 1
36 10002758 上切线支架扭簧 UTT_SUPPORT_ARM_SPRING 1
37 10003226 上切线支承轴 UTT SUPPORT SHAFT 1
38 10002764 拉簧短螺钉 UTT SUSPENSION SCREW 4 2
39 10002763 拉簧长螺钉 UTT SUSPENSION SCREW 9 1
40 10003495 轴位连接螺钉 UTT SUSPENSION SHOULDER SCREW 1
41 10003441 上切线连接杆A UTT THREAD PULLING LINK A 1
42 10003496 上切线连接杆B UTT THREAD PULLING LINK B 1
43 10002566 上切线X板 UTT X-CAM 1
44 10003223 轴套 UTT Y-DRIVE ROLLER 1
45 10003222 轴 UTT Y-DRIVE SHAFT 1
46 10003215 上切线电机 UT TRIM MOTOR ASS'Y 1

图号

Part No.

描述

Description 数量

47 10002752 上切线传感器 UT TRIM SENSOR ASS'Y 1

-19-

48 10002495 松线拨动杆组件 ASSY UTT RELEASE LEVER 1
49 10002568 上切线凸轮组件 ASSY UTT CAM 1
50 10002448 上切线连接臂组件 ASSY UTT THREAD PULLING ARM 1
51 10002755 上切线凸轮导向板组件 ASSY UTT CAM ARM 1
52 10002498 上切线支承臂组件 ASSY UTT SUPPORT ARM 1
53 10014210 上切线部件安装螺钉 SCREW M5 L=12 3
54 10002761 支承板弹簧 BUTTON SUPPORT LEVER SPRING 1
55 10002450 上切刀组件 ASSY UTT TRIMMER 1
56 10003248 挡圈 E-RING 3 1
57 10000994 螺母 NUT M5 1
58 10003399 螺钉 SCREW M4 L=6 1
59 10002762 切刀组件安装螺钉 SCREW M4 L=6 1
60 10003396 紧定螺钉 SCREW M5 L=8 1
61 10003261 导向轴 UTT GUIDE SHAFT 1
62 10003258 弹簧吊钩板 UTT SUSPENSION PLATE 1
63 10003260 上切线拉线杆 UTT THREAD PULLING LEVER 1
64 10003259 拉线轴 UTT THREAD PULLING SHAFT 1
65 10003257 上切线拉簧 UTT TRIMMER CLOSE SPRING 1
66 10003223 轴套 UTT Y-DRIVE ROLLER 1

-20-

8.

BOBBIN

""f

·

IJJ~

THREAD

f

llif'l

~

TRIMM

ER

COMPONENTS

51~

sa-o

•

71

62~ l ~

~

63

46~

/?)

53

~

57-&

~

69

8.下切线部件

-21-

BOBBIN THREAD TRIMMER COMPONENTS

序号

NO.

1 20007587 下切线电机大组件 BTT_DRIVE_UNIT 1

2 10001143 下切线凸轮组件 ASSY_BTT_DRIVE_CAM 1

3 10001164 下切线主动板组件 ASSY_BTT_DRIVE_LEVER 1

4 10001012 切线传动板 BTT_DRIVE_LINK 1

5 10001009 下切线电机安装板 BTT_DRIVE_UNIT_BASE 1

6 10008447 分刀主动板组件 ASSY_BTT_RELEASE_LEVER 1

7 10001015 分刀传动短杆 BTT_RELEASE_LINK_F 1

8 10001014 分刀传动长杆 BTT_RELEASE_LINK_R 1

9 10001024 切线调节偏心轴 LINK ROD 1
10 10002076 凸轮滚柱螺钉螺母 NUT M4 1
11 10001146 分刀主动板组件螺钉螺母 NUT M5 2
12 10001022 下切线电机 LT TRIM MOTOR ASS'Y 1
13 10000984 下切线传感器螺钉组件 SCREW M3 X 10 1
14 10010685 传感器安装板螺钉 SCREW M4 L=6 2
15 10001010 下切线电机螺钉 SCREW M4 L=8 4
16 10012162 下切线凸轮组件螺钉 SCREW M5 L=4 2
17 10001013 切线调节偏心轴螺钉 HEXAGONAL BOLY 1
18 10001021 传感器安装板 SENSOR_FITTING_PLATE_BT 1
19 10001007 下切线传感器 LT TRIM SENSOR ASS'Y 1
20 10001029 螺钉 SHOULDER SCREW D8 H10 2
21 10001124 挡线驱动板主动螺钉 STOPPER_PIN 1
22 10000021 凸轮滚柱 UTT_CAM_ROLLER 2
23 10000919 凸轮滚柱螺钉 UTT_CAM_ROLLER_SHAFT 2
24 10001023 分刀传动长杆螺钉 SHOULDER SCREW D8 H2.9 1
25 10010554 分刀传动连接螺钉 SCREW M3 L=6 2
26 10002464 下切线大组件 THROAT_PLATE_BASE_COMPL 1
27 10003487 挡线钩 PICKER 1
28 10000915 上拨线板 BT_CLAMP 1
29 10000910 上拨线板座 BT_CLAMP_LEVER 1
30 10001120 下拨线板 BT_PULLER 1
31 10001126 分刀板组件 ASSY_BT_RELEASE_ARM 1
32 10000022 下切线组件驱动板 BT_TRIMMER_LINK 1
33 10000918 上拨线板拉簧 SPRING 1
34 10000916 上拨线板拉簧紧定螺钉 WASHER 1
35 10000070 下切线组件驱动板长螺钉垫 WASHER 1
36 10001123 针板垫 OIL_SHIELD 1
37 10001017 垫片 PLAIN WASHER 4.3X12X1 3
38 10001121 下切线板座螺钉垫片 WASHER 4.5X20X1 1
39 10001145 针板螺钉 SCREW M3 L=4 2
40 10001051 螺钉 SCREW 3
41 10000041 下切刀组件螺钉 SCREW M4 L=4 9
42 10000917 上拨线定位螺钉 HINGE SCREW 1
43 10000071 下切线组件驱动板短螺钉 SHOULDER SCREW D5 H1.6 1
44 10001144 下切线组件驱动板长螺钉 SHOULDER SCREW D5 H1.6 1
45 10001053 上拨线板拉簧动螺钉 SUSPENSION_SCREW 2
46 10001016 挡线驱动板 PICKER_ACTUATING_LEVER 1

图号

Part No.

描述

Description 数量

47 10001155 针板座组件 ASSY_THROAT_PLATE_BASE 1

-22-

48 10000072 下切线板座 BTT_LEVER 1
49 10001127 下切刀组件 ASSY_BTT_LOWER 1
50 10000074 针板 THROAT_PLATE(K) 1
51 10001052 挡线传动板 PICKER_ACTUATING_L_LINK 1
52 10001028 挡线连接块 PICKER_BASE 1
53 10001026 挡线连接块安装板 PICKER_BASE_FITTING_PLATE 1
54 10000912 旋梭定位钩 STOPPER A 1
55 10000913 旋梭定位钩座 BOBBIN CASE POSITIONING PLATE 1
56 10000040 挡线钩螺钉 SCREW M3 L=4 1
57 10001027 挡线连接块安装板螺钉 SCREW M4 L=5 1
58 10009104 旋梭定位钩座螺钉 SCREW M4 L=10 2
59 10010554 旋梭定位钩螺钉 SCREW M4 L=6 1
60 10001025 挡线连接块复位螺钉 SCREW M4 L=12 1
61 10001010 下切线电机安装板螺钉 SCREW M5 L=8 3
62 10001023 螺钉 SHOULDER SCREW D8 H2.9 4
63 10000918 上拨线板拉簧 SPRING 1
64 10001020 安全开关挡板 SAFETY SWITCH PRESSING PLATE 1
65 10009529 安全开关挡板螺钉 SCREW 1
66 10002076 挡线连接块复位螺钉螺母 NUT M4 1
67 10001029 挡线连接块螺钉 SHOULDER SCREW D8 H10 1
68 10001053 挡线传动板长螺钉 SUSPENSION_SCREW 2
69 10001018 挡线传动板短螺钉 STOPPER_PIN 1
70 10001137 油盒组件 OIL_TANK_ASM. 1
71 10000073 油盒安装板 OIL_TANK_PLATE 1
72 10001135 油盒组件螺钉 SCREW 6
73 10000911 挡线连接块挡板 PICKER_BASE_STOPPER 1
74 10000039 油盒安装长螺钉 STUD 1
75 10001011 油盒安装短螺钉 STUD 1
76 10000914 旋梭定位钩座垫 BTT_SPACER 1

-23-

9. CLOTH CUTTING

·

~

.frj

7J

-:m

ft

j:

KNIFE

COMPONENTS

-""

~

---

I 1

I )

l

N

12

3 3

i~~

'1

~

A

20

u I : /

5

'1'

-flf

bj.,:

. I

.

~

11

9

,//

1

)//

//

//

------

//

5

,/

6 5 I

,'

/,/

-,

J. I

~:

I

r

=rrl23

1

24

I

l25--

L

___

~

_1.

~I

_j

1

1

17

8

L

__

__

____

1 9

/

22

~37

~

3 7 1 3

9.切布刀部件

-24-

CLOTH CUTTING KNIFE COMPONENTS

序号

NO.

1 20007588 切布刀电磁铁大组件 KNIFE SOL ASM. 1

2 10002467 切布刀电磁铁缓冲垫 CUSION 1

3 10008621 切布刀电磁铁组件 SOLENOID 1

4 10001157 电磁铁连接块 KNIFE HOLDER 1

5 10002465 切布刀铁芯轴螺母 NUT M8 3

6 10002466 切布刀电磁铁缓冲限位板 PLATE A 1

7 10001170 切布刀导向滑块 SQUARE BLOCK 1

8 10001182 切布刀导向板 SUPPORT GUIDE 1

9 10003402 切布刀电磁铁螺钉 SCREW M6 L=10 3
10 10001089 双臂曲柄销 SUSPENSION SCREW 1
11 10001190 切布刀电磁铁架 SOLENOID BASE 1
12 10000837 切布刀复位销 SUSPENSION SCREW 1
13 10001158 支轴挡圈 THRUST COLLAR D=12 W=11 1
14 10001184 切布刀导向圈 COLLAR 1
15 10001085 切布刀复位弹簧 SPRING 1
16 10001086 切布刀 KNIFE 1
17 10001169 切布刀竖轴 KNIFE BAR 1
18 10001180 切布刀驱动架 KNIFE BAR BASE 1
19 10001186 切布刀竖轴连接架 KNIFE BAR BRACKET 1
20 10001185 切布刀竖轴上套 KNIFE BAR BUSH 1
21 10001187 双臂曲柄连杆 KNIFE BAR CONNECTING LINK 2
22 10001088 双臂曲柄 KNIFE BAR DRIVING LEVER 1
23 10001084 切布刀缓冲垫组件 KNIFE BAR DRIVING STOPPER ASM. 1
24 10001156 缓冲垫支承螺钉 KNIFE BAR DRIVING STOP SCREW 1
25 10001084 切布刀缓冲垫 KNIFE DRIVING LEVER STOPPER 1
26 10001171 切布刀导向销 KNIFE BAR SUPPORT SHAFT 1
27 10001181 切布刀竖轴下套 KNIFE BAR LOWER BUSHING 1
28 10001160 切布刀架 KNIFE FITTING BASE 1
29 10001191 双臂曲柄支轴 KNIFE LEVER SHAFT 1
30 10001085 缓冲垫螺母 NUT M6 1
31 10002765 切布刀螺钉垫片 WASHER 4.3X9X0.8 1
32 10001172 导向销垫 WASHER 5X10.5X1 1
33 10001173 曲柄销 BELL CRANK SHAFT 4
34 10003399 导向板螺钉 SCREW M4 L=8 2
35 10011824 切布刀驱动架螺钉 SCREW M6 L=12 1
36 10001159 竖轴连接架螺钉 SCREW 1
37 10011232 支轴紧定螺钉 SCREW M6 L=6 4
38 10001189 切布刀螺钉 HEXAGONAL BOLT 1
39 10001183 导向滑块螺钉 SHOULDER SCREW D4 H5 1
40 10005139 电磁铁固定螺钉 SCREW M5 L=12 5
41 10012162 曲柄销紧定螺钉 SCREW M5 L=5 5

图号

Part No.

描述

Description 数量

-25-

w .

ACCESSORIE

llfH't

·

p

ART

COMPONENTS

46

23

~

16

21f

1 9

20

l

I
I

I

I

I

I
I

I

I

I

I

rJr

50

10

2

8

I

I

0

..._......,-/·>-----15

I

I
I

I
I

I

I

I

I

I

I
I

I
I

9

1 2

9--53

®--

51

52

11

cb--

~

54

56

~

ru

~-----------

!

i

t~

:

@>-@

:

I

L,

',,

2~

-------

',,

'..__

-~

~

~16

"'

____

--

~1

34~

28-r

37

~

·~.

I I

~

~

-~~

{}-29

~~25:

]~36''>

32

-----~~-

i

__

I

7

- -

-:

!

!

~35

I

!

:

f :

J

10.附件

-26-

ACCESSORIES PART COMPONENTS

序号

NO.

1 10001177 机头罩 ACCESSORIE BAG 1

2 10013185 小螺丝刀 SCREW DRIVER,SMALL 1

3 10010995 中螺丝刀 SCREW DRIVER,MIDDLE 1

4 10000880 梭心 BOBBIN 3

5 10002447 机针 EEEDLE DPX5 #11~#14 1

6 10009685 内六角扳手 HEXAGONAL WRENCH KEY 1

7 10009689 内六角扳手 HEXAGONAL WRENCH KEY 1

8 10001056 防震泡膜 VINYL COVER 1

9 10014203 链钩 LINK 1
10 10000167 两眼过线柱 THREAD GUIDE BAR 1
11 10003357 底座锁紧螺钉橡胶垫片 RUBBER CUSHION(B) 4
12 10012456 链条 CONNECTING ROD 1
13 20007589 辅助机台组件 AUXILIARY TABKE COMPL. 1
14 20006740 辅助机台 AUXILIARY TABLE 1
15 10002394 辅助机台安装板 INSTALLING PLATE 2
16 10001095 辅助机台安装板小螺钉 SCREW 11/64-40 L=4.8 4
17 10003402 辅助机台安装板大螺钉 SCREW M6 L=10 2
18 10001192 切布刀 KNIFE 1 1
19 10004455 油瓶 OILER 1
20 10013294 油瓶 DEFRIX OIL NO.1(600CC) 1
21 10001093 切布刀 KNIFE 5/8 1
22 10001092 切布刀 KNIFE 3/8 1
23 10001174 高度块 HOOK TIMING GAUGE,K 1
24 20000415 眼睛防护罩组件 ASSY_SAFETY_PLATE 1
25 10001338 安全板座 SAFETY_PLATE_FITTING_BASE 2
26 10011636 安全板 SAFETY PLATE 1
27 10001339 安全板组件 SAFETY PLATE INSTALLING PLATE 1
28 10011678 安全板弹簧 SAFETY PLATE RETURN SPRING 1
29 10002880 弹性圆柱销 SPRING PIN 2X6 2
30 10011570 安全板螺钉 SCREW 11/64-40 L=7 1
31 10003399 安全板座螺钉 SCREW M4 L=6 1
32 10000100 轴位螺钉螺母 NUT 11/64-40 2
33 10011680 安全板螺钉垫片 WASHER 4.5X10X0.8 1
34 10011677 安全板轴位螺钉 HINGE SCREW D=6 H=10.2 1
35 10011633 弹簧复位销 TENSION SPRING RACK B 1
36 10011682 复位销螺母 NUT 3/16-28 1
37 10001289 轴位螺钉垫片 WASHER 7.4X10X0.8 1
38 20007590 踏脚开关组件 ASSY 4 POSION PEDAL 1
39 10004701 踏脚开关架 PEDAL FRAME 1
40 10011634 踏脚开关 PEDAL FRAME 1
41 10011631 踏脚开关弹簧 SPRING 1
42 10011647 踏脚开关螺钉 SCREW 1
43 10022510 线夹 CABLE CLAMP 1
44 10011754 线夹螺钉 SCREW 1
45 10001283 踏脚开关传感器电线 WIRE 1

46 10006278 传感器 PHOTO SENOR 2

图号

Part No.

描述

Description 数量

47 10011199 传感器固定螺钉组件 SCREW 3

-27-

48 10010994 大螺丝刀 SCREW DRIVER,LARGE 1
49 10001241 塑料薄膜 EC PRODUCTION DECLARATION 1
50 10001116 抬压脚柄组件 PREDDER FOOT 2 ASM. 1
51 10011749 机头支承杆 HEAD SUPPORT BAR 4
52 10003832 底板锁紧螺钉 HEXAGON BOLT 4
53 10003875 接地线螺钉组件 BOLT 1
54 10003395 底座锁紧螺钉垫片 WASHER 6.1X18.5X2 4
55 10008323 踏脚开关安装木螺钉 WOOD SCREW D=4.8 L=20 2
56 10003078 底座锁紧螺母 NUT M6 8

-28-

11.

THREAD

m~JfH

STAND

llWt:

COMPONENTS

ff

~

~

-·-··-··-··-

1

00

20001171

% m

..

-

..

-

~

··-

··-··-··-·

D

ESCRIPTION

·-· ·-·

THREAD

STAND

·-

··-··-··-

ASM

.

It

..

:fi

-.

1

-29-

12. CONTROL BOX COMPONENTS

~~A£~r~1t

l

1

__

1

---~----l

I

.t-

I I

I I

I I

1----

-

----

7

_j

1

·o

--1

12.电控部件

-30-

CONTROL BOX COMPONENTS

序号

NO.

1 20007591 电控系统 CONTROL BOX 1

2 10025125 控制箱体 CONTROL BOX ASSEMBLY 1

3 10001298 电源开关 POWER SWITCH 1

4 10008323 电源开关螺钉 SCREW 2

5 10001118 螺钉 SCREW 3

6 10021351 操作盒组件 OPERATION BOX 1

7 10025126 操作盒 OPERATION BOX 1

8 10022012 操作板座 OPERATION BOX PLATE 1

9 10001118 操作盒安装螺钉 SCREW 2

图号

Part No.

描述

Description

数量
