EN
H03818-00.A3 EN – 2012-03 1
• Read this manual carefully before installing, maintaining or repairing this device!
• The symbol
indicates important information that must be taken into account in order to avoid risk
of personal injury and/or damage to the appliance.
• The symbol
indicates useful information.
• Exclusive use: pool water cleaning (must not be used for any other purpose).
Failure to comply with the following warnings can result in permanent injury, electrocution or drowning.
PREVENT ELECTRICAL SHOCK
To reduce risk of electrical shock:
• Connect unit to receptacle protected by a Ground Fault Circuit Interrupter (GFCI) or a Residual Current
Device (RCD) having a rated residual operating current not exceeding 30mA.
• While the control unit is water resistant, it is not intended for any type of sustained contact with water.
Therefore, it should be installed at least 3.5 meters from the inside wall of your swimming pool. Never
submerge the control unit.
• Be sure to follow all applicable local and national electrical and installation codes.
• The cleaner is for fixed installations only and to be used in conjunction with swimming pool equipment.
The cleaner is to be installed in accordance with the relevant requirements of the Australian wiring rules
AS/NZS 3000. Also refer to the installation instructions relating to the swimming pool equipment for which
the cleaner will be an integral part. The cleaner is to be supplied through a Residual Current Device (RCD)
with a rated residual operating current of 30mA.
• Do not enter pool while the cleaner is in water.
• Do not bury cord. Locate cord so as to prevent it from being damaged by lawn mowers, hedge trimmers
and other equipment.
• To reduce the risk of electrical shock, do not use the cleaner or control unit if the cord is worn or damaged.
If the supply cord is damaged it must be replaced by the manufacturer or its service agent, or a similarly
qualified person in order to avoid a hazard.
• Double insulation—The cleaner utilizes a 'double-insulated' construction which means that it is designed
such that it does not require a safety-connection to earth ground. For continued protection against possible
electric shock, use only identical replacement parts when servicing. Do not attempt repair of the cleaner,
control unit, power cord, or floating cable.
• NEVER OPEN CONTROL UNIT.
• Do not use an extension cord to connect the unit to electric supply; provide a properly located outlet. The
control unit should be placed near the outlet box.
PREVENT CHILD INJURY AND DROWNING
• To reduce the risk of injury, do not permit children to operate this product.
• Do not let anyone, especially small children, sit, step, lean, or climb on any equipment installed as part of
your pool’s operational system.
Warnings
H03818-00.A3 EN – 2012-03 2
Contents
1. Information before use ............................................................................................ 3
2. Use .......................................................................................................................... 5
3. Maintenance ............................................................................................................ 7

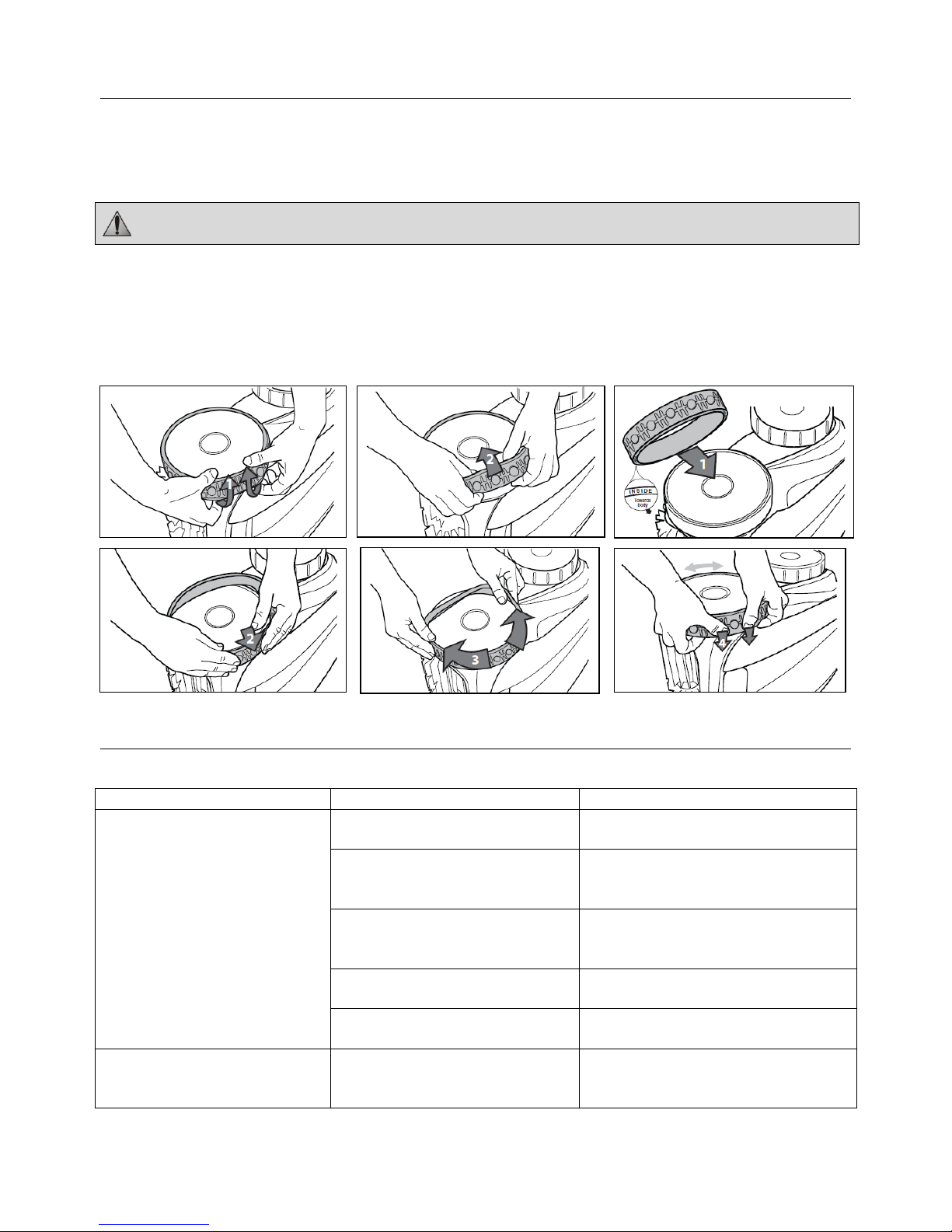

4. Replacing the Brushes .............................................................................................. 8
5. Replacing the Tyres on the Cleaner .......................................................................... 9
6. Troubleshooting ....................................................................................................... 9
7. Zodiac Australia - Express Warranty and Guarantees ............................................. 10
8. Conformity ............................................................................................................. 11
Failure to comply with the following warnings could cause damage to pool equipment or personal injury.
• This product is intended for use with permanently-installed pools. Do not use with storable pools. A
permanently-installed pool is constructed in or on the ground or in a building such that it cannot be readily
disassembled for storage. A storable pool is constructed so that it is capable of being readily disassembled
for storage and reassembled to its original integrity.
• The cleaner must be installed and operated as specified.
• Turn the cleaner off before removing it from water, and do not operate out of water.
• Do not remove the cleaner from the pool for 15 minutes after the cleaning cycle has completed.
• Clean filter canister in the cleaner after each use.
• Do not use the product in your pool if the water temperature is above 35° C or below 13° C.
USE OF THE CLEANER IN A VINYL LINER POOL
Certain vinyl liner patterns are particularly susceptible to rapid surface wear of pattern removal caused by
objects coming into contact with the vinyl surface, including pool brushes, pool toys, floats, fountains,
chlorine dispensers, and automatic pool cleaners. Some vinyl liner patterns can be seriously scratched or
abraded simply by rubbing the surface with a pool brush. Ink from the pattern can also rub off during the
installation process or when it
comes into contact with objects in the pool. Zodiac Group Australia Pty Ltd., is
not responsible for, and the Limited Warranty does not cover, pattern removal, abrasion or markings on vinyl
liners.
Warnings
EN
H03818-00.A3 EN – 2012-03 3
1. Information before use
1.1 Important
Ensure that the unit has not been damaged in transit (impact, broken parts, etc.). Please report any damage,
however minor, to your retailer immediately, before using.
1.2 Package contents
The packaging should contain the following items:
• The robot
• a transport caddy,
• a control unit,
• a user manual,
1.3 Assembling the transport trolley
• Insert the upper tubes (handles) into the bottom tubes on the cart as shown (1). Make sure the upper tubes
(handles) are in the proper orientation and align the screw holes.
• Position the bottom power cable hook as shown (2). Place the cable hook plate opposite the power cable hook.
Secure using a screw and tightening with the Torx® wrench (3).
• Secure the cable hook plate using two bolts and two nuts and tighten with Torx® wrench (4).
• Position the power cable hook and control unit hook on the upper tubes (5).
Make sure the upper tubes (handles) are in the proper orientation.
• Secure the power cable hook and control unit hook around the tubes using a screw and hand tighten with the
Torx wrench (supplied with unit). (6).
H03818-00.A3 EN – 2012-03 4
• Secure the control unit hook using two bolts and two nuts and tighten with Torx wrench (7).
•
Place two caps on the wheels (8).
• Attach the support blocks to the caddy using four screws (V3 = figure 9; V3 4WD = figure 10).
• The transport caddy is now ready to use
1.4 Connecting the control unit to the caddy
• Position the control unit over the control unit hook on the caddy.
• Slide the locking plate clips into the control hook and line up the screw holes (1).
• Secure the locking plate using Phillips head screws. Do not overtighten (2).
EN
H03818-00.A3 EN – 2012-03 5
1.5 Technical information
Control unit voltage
220-240 VAC, 50 Hz; short-circuit-proof
safety isolating type
Robot supply voltage
30 VDC
Installed load
150 W
Cable length
18 m
Cleaner size (WxDxH) 43 x 48 x 27 cm
Pack size (WxDxH) 58 x 58 x 59 cm
Weight of cleaner 11 kg 300
Packed weight 19 kg
Filtering surface 3400 cm²
Filtration medium
Theoretical width cleaned 38 cm
Theoretical area cleaned 260 m² / h
Pump output 16 m³/h
Rate 8 m / min
2. Use
2.1 Advice on use
• The cleaner must operate in pool water maintained at the following levels: Chlorine < 3 mg, pH between 6.8 and
7.6, temperature between 10°C and 35°C.
• Use your cleaner as often as possible. You will benefit from a pool that is always clean and the filter will not
become clogged.
• If the pool is very dirty, especially during first use, remove larger pieces of debris using a net in order to optimise
the cleaner's performance.
• Remove thermometers, toys and other objects that might damage the cleaner from the water.
• Immerse the cleaner in the pool, before starting a cleaning cycle.
• Do not leave the cleaner in the water permanently.
• Stow your cleaner on its caddy as soon as possible after use, in order to avoid distorting the flexible edge at the
opening to the filter.
• Never cover the control box while the cleaner is in operation
• Do not leave the control box in direct sunlight after having used the cleaner.
• If part of the pool is not properly cleaned, change the place where you immerse the cleaner until you find the
best position of entry to achieve the best coverage.
• The cleaner's behaviour is strongly influenced if the cable is tangled. Spread the cable out in the sun from time
to time so that it resumes its original shape.
• The behaviour of the cleaner can be influenced by the jet at the pool return outlets especially when the filter
pump is operational. In this case we recommend that you start your cleaner when the filter pump is not
operational.
2.2 Immersing the robot
• Submerge the cleaner in the pool and remove any air trapped inside by keeping the unit vertical (1).
• Ensure the unit sinks to the bottom of the pool (2).
• Spread out the floating cable over the pool, ensuring there are no kinks or coils in the cable (3).
Do not use your cleaner during shock chlorination!
H03818-00.A3 EN – 2012-03 6
2.3 Electrical connection
• Place the control box at a distance of at least 3.5 meters from the
pool edge and away from direct sunlight; it can either be placed on
the ground or attached to the caddy.
• Connect the cleaner cable to the control box (1) and lock the
connector by firmly tightening the ring by turning it clockwise (2).
Make sure the connector is sufficiently pushed into place, if this is
not the case repeat operation.
• Connect the power cable. Only connect the control box to a power
outlet protected by a 30 mA maximum ground fault circuit breaker
(if in doubt contact a qualified electrician). Ensure that the plug is
permanently and easily accessible.
2.4 Operation
Program I: Maximised cleaning of the pool floor in minimum time. Duration 1.30 hr.
Program II: Intense cleaning of the pool floor and pool sides, including the waterline. Duration 2.30 hr.
OFF button: used to cut the cleaner power supply at the end of a cleaning cycle.
2.4.1. Start-up
• To start your cleaner, press the button for "Cycle I" cleaning program. "Cycle
I" cleaning is the primary cleaning cycle for inground pools. If an alternative
cycle is preferred, press "Cycle II". The indicator light illuminates and the
cleaner starts up after just a few seconds. When the cleaner is powered ON it
will remain in standby until the Cycle I button is pressed (1).
• When the "Cycle I" program button is selected the indicator light above will
illuminate. The cleaner will start in a few seconds.
• To change the selected cleaning cycle, press the new cycle button and the
new cycle will start in a few seconds.
• If you wish to stop the cleaner during a cleaning cycle, press the OFF button
(2).
2.4.2. End of program
• At the end of the cycle, the cleaner will stop and after 15 minutes the light will flash slowly to indicate the cycle
is completed.
• Cleaner includes a safety feature that automatically stops the cleaner after about 20 seconds, when it is
powered on, but not submerged in the water. For pools equipped with a beach area, this safety feature allows
the cleaner to reverse, and back into the pool when the impeller is out of the water.
• Disconnect the control unit cable from the electrical outlet.
• Disconnect the cable from the control unit.
• At the end of each cycle, coil the cable starting at the cleaner and go toward the connection point at control
unit. Remove coils or twists along the way.
The cleaner control unit is water-resistant, not waterproof. In order to prevent electrocution, which
could result in serious injury or death, never submerge the control unit.
If you use an extension cable to connect your cleaner to the power supply, ensure the control box is
placed no less than 3.5 meters from the pool edge.
EN
H03818-00.A3 EN – 2012-03 7

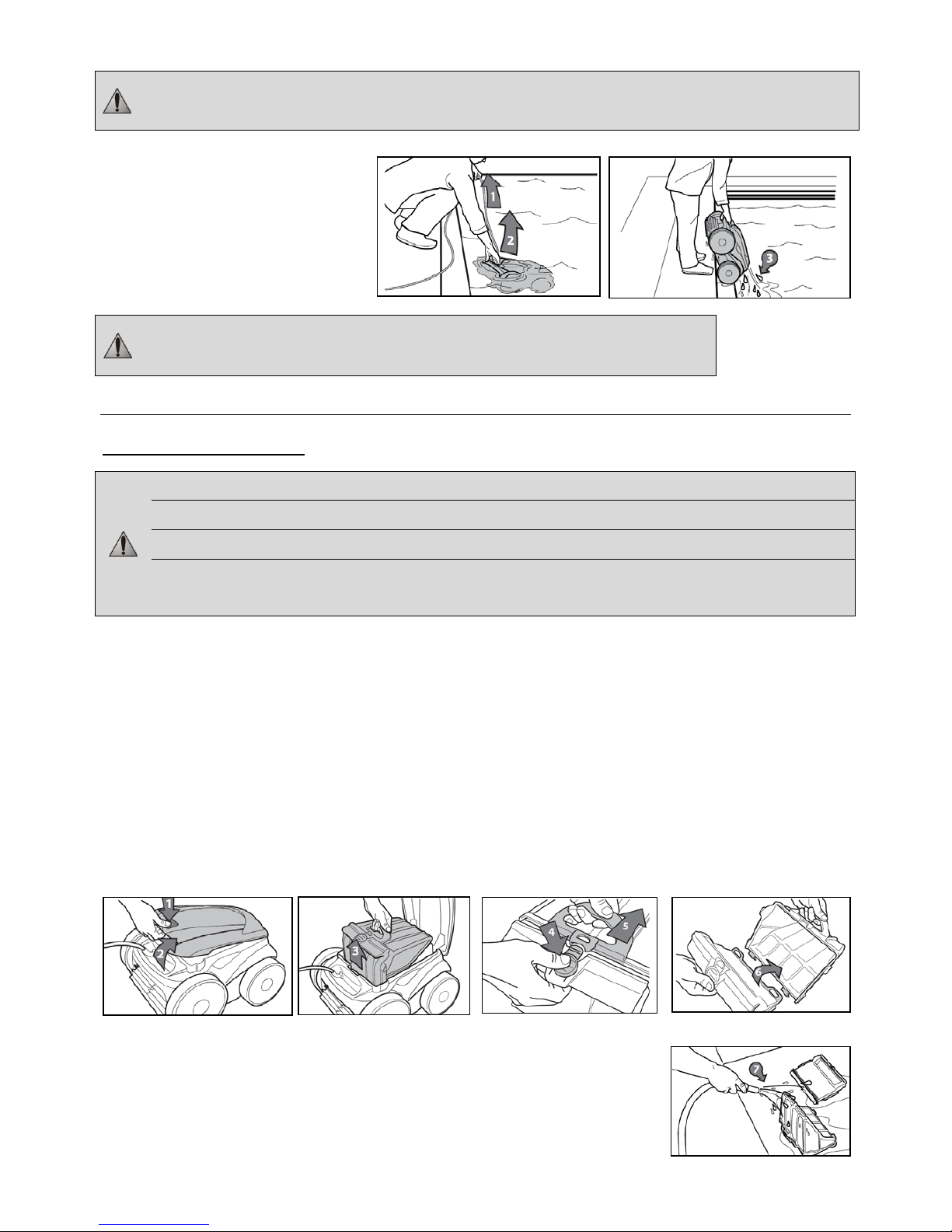

• Remove the cleaner from the pool
after the cleaning cycle is completed
and store on the caddy.
• Never lift the cleaner out of the pool
by the floating cable. Always use the
handle to remove it from the pool.
3. Maintenance
3.1 Cleaning the filter bag
• To avoid electric shock and other hazards which could result in permanent injury or death, disconnect
(unplug) the cleaner from the control unit before performing any cleaning and maintenance.
• The filter canister should be cleaned at the end of each cycle.
• Ensure that the control unit cable has been disconnected from the electrical outlet or that the floating cable has
been disconnected from the control unit.
• Remove the cleaner from the water and let the remaining water drain by maintaining the cleaner in the vertical
position.
• Set the unit on its wheels.
• Push the cover lock (1) and lift the cover (2) until it is secured in the vertical position (Figure 1).
• Remove the filter assembly from the body (3) (Figure 2).
• Push the quick release button on the canister assembly (4) and pull open the filter assembly (5) (Figure 3).
• Separate the filter canister from the filter support (6) (Figure 4).
• Wash the filter canister, the filter support, and the cleaner under water or using a
hose (7) (Figure 5).
Approximately 15 minutes after the cycle is completed, the light located on the control unit will flash
slowly to indicate that the cleaner may be removed from the pool. The 15 minute period allows the
motor to cool and will prevent damage to the cleaner.
• Remove the cleaner from pool when super chlorinating.
• Do not handle cleaner while it is in operation.
• Use your cleaner as often as needed to keep your pool clean.
• Clean the filter canister after each cleaning cycle.
• Do not leave your cleaner in the pool on a permanent basis.
• At the end of each cycle, remove the cleaner from the pool. Start at the cleaner head and untangle
any coils in the hose before storing the cleaner.
H03818-00.A3 EN – 2012-03 8
3.2 Cleaning and Storing the Cleaner
The cleaner must be cleaned regularly using slightly soapy clean water, do not use solvents such a
trichloroethylene or its equivalent. Rinse the cleaner generously using clean water. Do not let your cleaner dry in
direct sunlight near the pool. The cleaner must be stored on its own caddy, so that it dries quickly.
• Place the rear wheels on the caddy side wedges (1).
• Roll the unit into place onto the caddy (2).
4. Replacing the Brushes
The cleaner is fitted with PVC brushes. There are ''wear'' indicators on the brushes. To maintain cleaner
performance at its best you need to replace the brushes as soon as one of the wear indicators has been reached
(even if the blade wear is not even). It recommended to replace the brushes every two (2) years.
• Lift the cleaner to a vertical position so that the handle is up (1).
• Separate the edges of the brush and undo the tabs (2). Remove the worn brushes.
• To install a new brush, position the new brush on the roller with the spikes facing downwards (3).
• Thread each tab into the slot provided and gently feed it through until the heel comes out at the other side of
the slot (4).
• Use a pair of scissors to cut the tabs 20mm from the heel so that they are no higher than the spikes (5).
• Repeat this procedure to install the second brush.
The cleaner cable must be disconnected from the control unit before removing the cleaner from the pool.
Wrap the cleaner cable around the hooks located at the rear of the caddy.
EN
H03818-00.A3 EN – 2012-03 9
5. Replacing the Tyres on the Cleaner
• Pull on the inside of the old tyre to remove the tyre lip from the wheel (1).
• Remove the old tyre (2).
• To replace the tyre, position the tyre on the wheel making sure to orient the tyre so that the tyre tread is on the
outer side of the wheel (3).
• Push one side of the tyre on to the wheel and fit the rib of the tyre in the groove of the wheel (4).
• Work the tyre onto the wheel and verify the rib of the tyre is positioned properly within the groove of the wheel
(5).
• Push and position the rib of the inner side of the tyre in the groove of the wheel (6). If needed, turn the wheel
gently to help with installation.
6. Troubleshooting
Symptom Cause Solution
The flashing indicator lights
appear just after start (pressing
the Power or Cycle button to
start the cleaner) (< 20 seconds).
Floating cable is not properly
plugged into the control unit.
Unplug the floating cable from the
control unit and plug it again properly.
Cleaner is not well submerged.
Submerge the cleaner following the
procedure in Section 2.2, "Submerging
the Cleaner".
Cleaner needs to be reset and start
new cycle.
Press the power button OFF and then
Cycle I or II Program buttons to start
new cycle.
Propeller does not turn. Please contact your local service
representative.
Wheels do not turn. Please contact your local service
representative.
The flashing lights appears during
the cycle.
If the cleaner sucks air for 60
seconds, the flashing light appears.
Submerge the cleaner following the
procedure in Section 2.2, "Submerging
the Cleaner".
The word "inside" is imprinted on the rim of the tyre. Make sure the word "inside" is facing towards the
body of the cleaner.
H03818-00.A3 EN – 2012-03 10
7. Zodiac Australia - Express Warranty and Guarantees
Zodiac Group Australia Pty Ltd (Zodiac Australia) warrants that V3 and V3 4WD (Product) will be free from defects in materials and
workmanship for a period of 2 years from date of purchase.
Terms & Conditions
1. This express warranty only applies if the Product has been purchased from a dealer authorised by Zodiac Australia to supply it
(Authorised Dealer).
Purchase from an Authorised Dealer ensures that the product is a genuine Zodiac product, that it is the version designed for Asia Pacific
conditions, and that the Purchaser has access to appropriate technical knowledge and advice.
2. Zodiac Australia's liability under this express warranty is limited, at its option, to the repair or replacement of the Product or the
payment of the cost of having the Product repaired or replaced.
3. This express warranty does not apply in the following circumstances:
(a) if the Product has not been installed in accordance with Zodiac's installation instructions;
(b) if the Product has been modified other than as authorised by Zodiac Australia or if a component part has been replaced by a part that is
not a genuine Zodiac product;
(c) if a defect results from use of the Product outside recommended operating conditions; or
(d) if a defect results from damage (including damage to any internal electronics) caused by a power surge or lightning strike.
Symptom Cause Solution
The cleaner does not stay firmly
on the pool bottom.
There is air in the appliance casing. Submerge the cleaner following the
procedure in Section 2.2, "Submerging
the Cleaner".
The cleaner does not or no
longer climbs the pool sides.
Filter is full or dirty. Clean the filter canister following the
procedure Section 3.1, "Cleaning the
Filter Canister".
Sides of pool are slippery or slimy.
Although the water seems clear,
microscopic algae, invisible to the
human eye, are present in the
pool.
As a result the pool sides become
slippery and prevent the cleaner
from climbing.
Do a shock chlorination treatment and
slightly reduce the pH. DO NOT leave
the cleaner in the pool during this
treatment.
On startup the cleaner does not
move.
Not supplied with electricity. The outlet the control unit it is
connected to is not supplying electrical
power. Check that the outlet to which
the control unit is connected is
receiving electricity.
Unit is turned ON. Check that you have started one (1) of
the two (2) programs and check that
the indicator for the selected program
is lit. If the problem persists, contact
your local service representative.
The cleaner seems to be
performing less efficiently.
Brushes have become smooth. Replace the brushes following the
procedure in Section 4, "Replacing the
Brushes".
Filter canister is full or dirty Clean the filter canister following the
procedure in Section 3.1, "Cleaning the
Filter Canister". Make sure the floating
cable is spread out over the pool.
Floating cable is excessively coiled
or kinked.
Make sure the floating cable is spread
out over the pool.
EN
H03818-00.A3 EN – 2012-03 11
Zodiac chlorinators are designed and tested in accordance with International Standard EN 61000-6-1 immunity measurements. They are
designed to tolerate minor fluctuations (2000 volts) in power supply that can be reasonably expected to occur in the energy grid. They will
not tolerate power surges outside these limits nor will they withstand lightning strikes.
4. Without limiting 3 above, products sold by Zodiac Australia are designed for use with swimming pool water balanced in accordance with
Australian Standard AS3633-1989 with a pH range of 7.0 - 7.8.
Maximum chlorine readings should not exceed 4ppm. Where pool water is not maintained within these parameters, Zodiac Australia will
not be responsible under this express warranty for any resulting damage, including damage caused by corrosion, scaling or stress loading.
5. Replacement parts supplied under this express warranty are warranted to be free from defects in materials and workmanship for the
remainder of the warranty period or for 12 months from the supply of the replacement, whichever is longer.
6. Warranty claims relating to replacement of the electrodes for LM series, C series, Duo Clear and D series chlorinators are subject to the
following pro-rata pricing procedure. The Purchaser must pay for the replacement electrode a proportion of the cost equal to that
proportion of the warranty period during which the original electrode functioned effectively. The warranty period for the replacement
electrode is the remainder of the warranty period for the original electrode or 12 months from the supply of the replacement, whichever is
longer. The Purchaser must pay full cost for any replacement electrodes after the first replacement.
Product warranty registration
7. Purchasers should register their Products as soon as conveniently possible after purchase by completing a Product Warranty Registration
Form and posting it to Zodiac Australia at the address shown on the Form or by registering online at www.zodiac.com.au.
8. Product registration must occur, and proof of purchase must be received by Zodiac Australia, prior to any warranty work being
approved. Where applicable, a serial number, installation date and name of installer is required as part of the registration process.
How to make a warranty claim
9. The Purchaser must telephone or email Zodiac Australia Customer Service and obtain a warranty ID number for the warranty claim.
Contact details are:
Zodiac Group Australia Pty Ltd Customer Service
219 Woodpark Road Telephone: 1800 688 552
Smithfield NSW 2164 Email address: apac.aftersales@zmp.zodiac.com
10. Zodiac Australia reserves the right to determine, in relation to each warranty claim, whether the Product should be returned to the
Authorised Dealer at the address where the Purchaser purchased the Product or whether warranty service will be provided in the field,
repaired at a Zodiac workshop or at the premises of an authorized Zodiac warranty agent.
11. If it is necessary for the Purchaser to incur freight charges in making a valid claim under this warranty, Zodiac Australia will reimburse
the Purchaser for charges reasonably incurred upon proof of the charges.
Additional guarantees, rights and remedies
Australian Purchasers - Guarantees under the Australian Consumer Law
12. The benefits of this express warranty are in addition to other guarantees, rights and remedies Australian consumers have under the
Australian Consumer Law.
13. Zodiac Australia products come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Purchasers in other Countries
14. The laws and regulations of other countries may confer on Purchasers in those countries additional rights and remedies. To the extent
that they cannot be excluded or modified, Purchasers have the benefits of those rights and remedies in addition to the benefits of this
express warranty. To the full extent that it is permissible to do so, those additional rights and remedies are excluded or modified so as to
be consistent with Zodiac Australia's express warranty.
INCONSISTENCY WITH WARRANTY STATEMENTS IN PRODUCT MANUALS OR OTHER DOCUMENTS ACCOMPANYING PRODUCTS
If any warranty statements in a Zodiac Australia product manual or other document are inconsistent with the above Express Warranty and
Guarantees, the above overrides and replaces the inconsistent statements.
8. Conformity
The manufacturer reserves the right to modify these specifications without notice.
Although the cleaning robots have been tested in a large variety of Swimming pools, Zodiac cannot be held responsible in the case of a non
perfect adaptation of the robot to a particular swimming pool.
Notes
Notes
Notes
Loading...
