Workbook JXi Pool &
Spa Heater
1

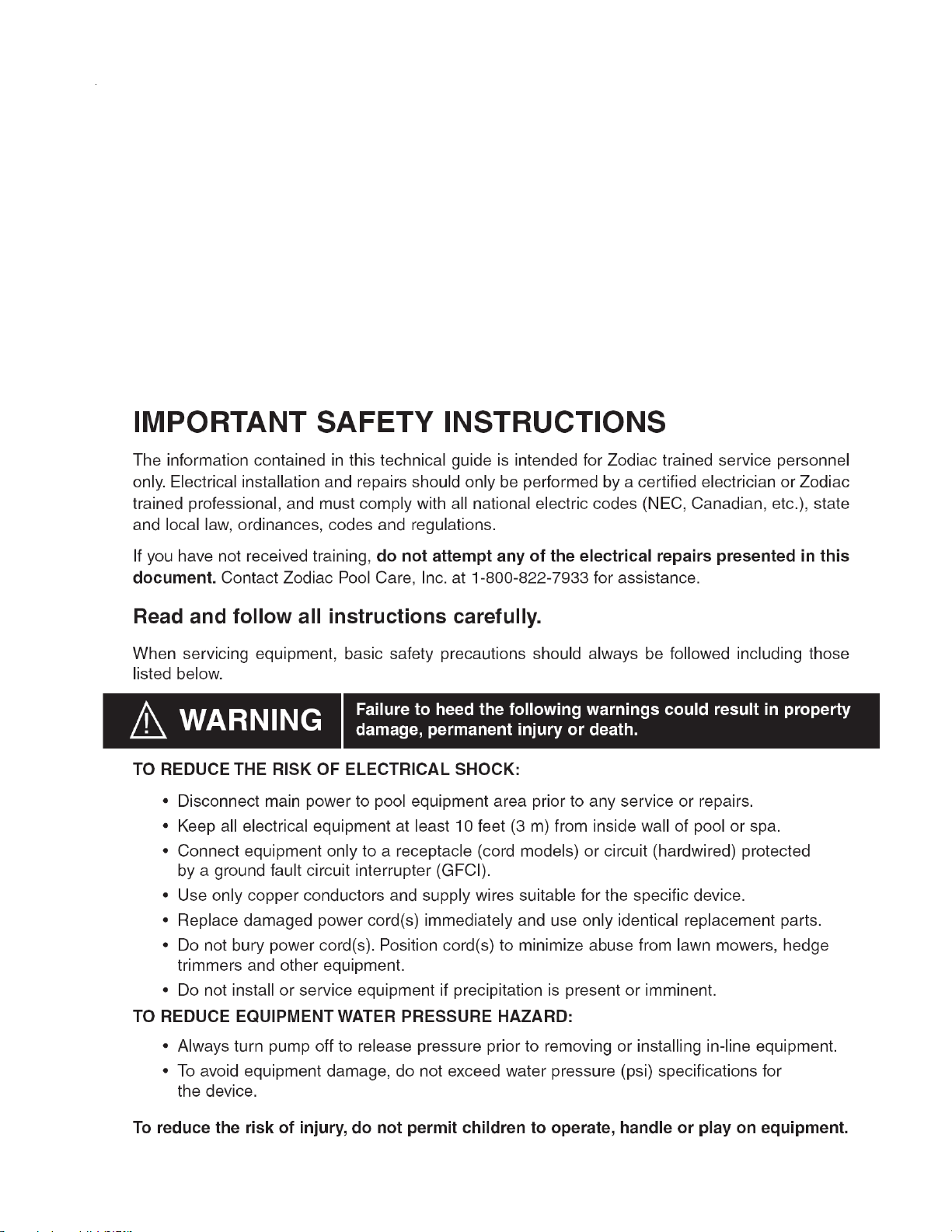

2
Zodiac Pool Systems Inc.
3
1-800-822-7933 - Regional ext. ____________
www.zodiacpoolsystems.com
Instr ucto r: __ __ ___ __ ____ ___ ___ ___ ___ ___ ____ ___ ___ ___ ___ ___ ____ ___ ___ ___ _ e xt ._____ ____
Sale s Repre sent atives: ___ ___ __ ___ ___ ___ ____ ___ ___ ___ ___ ___ ____ ___ ___ ___ __ e xt ._____ ____
__ ___ _________ ______ ______ _______ ______ _______ _____ _______ _______ _____ e xt ._____ ____
__ ___ __ ____ ___ ___ ___ ___ ___ ____ ___ ___ ___ ___ ____ ___ __ ____ ___ ___ ____ ___ __ e xt ._____ ____
Service Man ager : ______ _____ _______ ______ ______ _______ ______ ______ ______ e xt ._____ ____
__ ___ _________ ______ ______ _______ ______ _______ _____ _______ _______ _____ e xt ._____ ____
Introduction
4
The Jandy Pro Series JXi pool/spa heater is a blower
assisted, internal combustion chamber, residential
heater.
Available Model Sizes:
200, 260 & 400K BTU's
Model Numbers JXI200N, JXI200P,
JXI260N, JXI260P, JXI330N, JXI330P,
JXI400N, JXI400P
JXI 400 N
Model
BTU's
Gas Type N= Natural P = Propane
General
All gas fired appliances require correct installation to assure safe operation.
The requirements for this pool heater include the following:
Indoor vent adapter required for indoor installation.
Must be vented with Type B Double wall for Category 1 venting or stainless steel
vent pipe for Category 3.
Water piping can be Schedule 40 PVC.
Can be wired 120VAC or 240 VAC
The JXi CAN be installed on combustable surfaces.
Field Assembly
- Properly size gas pipe to supply gas from the meter to the heater.
- Gas shut-off valve (ball-cock) must be installed in-line outside of the heater jacket.
- Suitable gas union must be installed to connect gas line to heater outside of the heater jacket.
- Gas sediment trap (drip leg) in gas line between shut-off valve and heater.
- Supplied power 120VAC or 240VAC (as local code requires)
Proper Gas Pipe Sizing
Distance from Gas Meter
For LP gas, reduce pipe diameter by one size, but
maintain a minimum 3/4 inch diameter.
Heater
Size
200
260
330
400
0-50 feet
(0-15 m)
in. mm in. mm in. mm
1 25 1-1/4 32 1-1/4 32
1-1/4 32 1-1/4 32 1-1/4 32
1-1/4 32 1-1/4 32 1-1/2 38
1-1/4 32 1-1/2 38 1-1/2 38
50-100 feet
(15-30 m)
100-200 feet
(30-60 m)

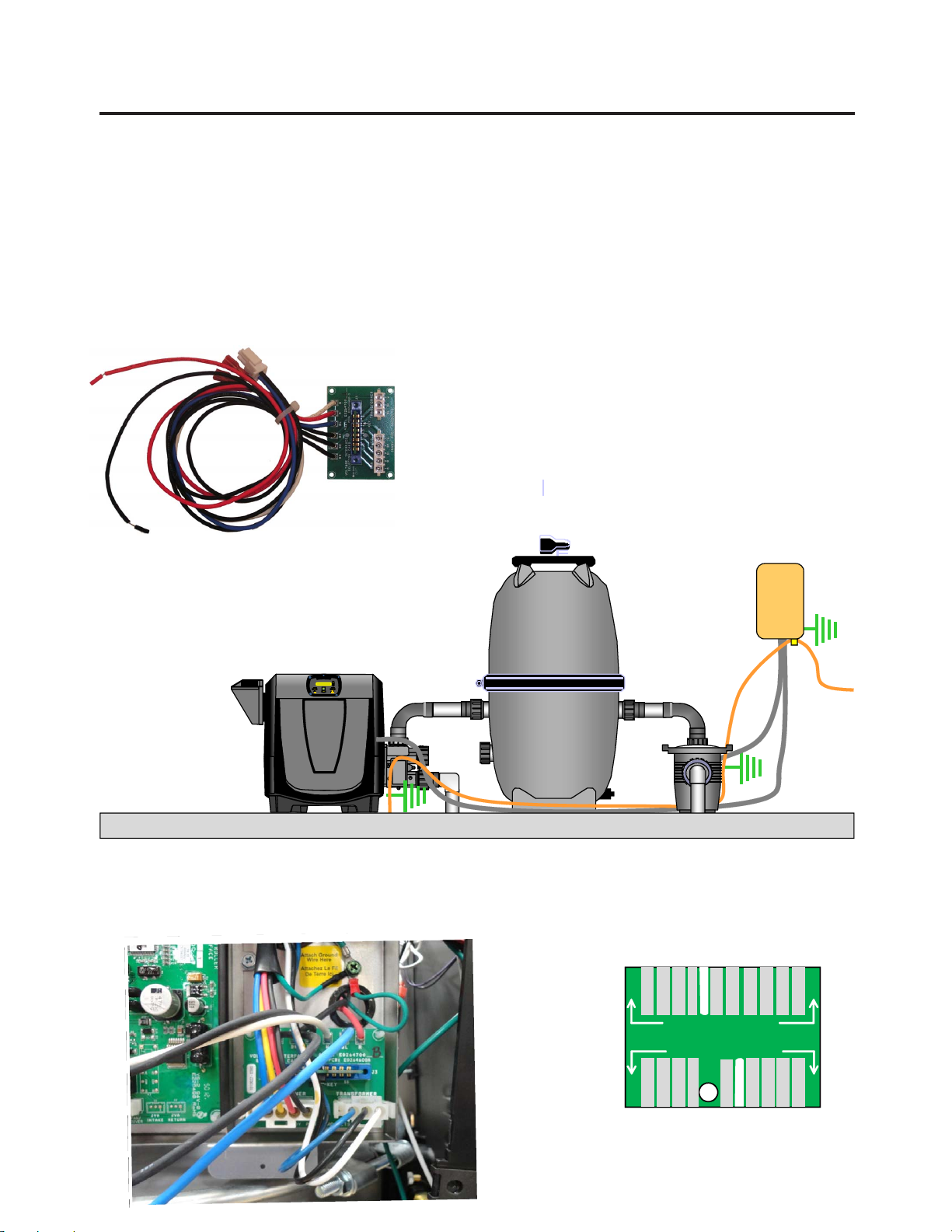

Installation Requirements (Field Assembly)
5
Supplied power 120VAC or 240VAC
Electrical
Electrical wiring must be in accordance with the latest
®
edition of the National Electric Code
National Fire Protection Association
in Canada, the Canadian Electrical Code (CSA
(NEC®), ANSI®/
®
(NFPA®) 70, or
®
C22.1)
unless local code requirements indicate otherwise.
The heater comes factory-wired intended for use with 240
Vot, 60 Hz AC eld electrical supply. To use 120 Vot,
60 Hz AC requires changing the position of the voltage
selector board on the power distribution board. This must
be done by a certi ied electrician.
Filter
Filter
Pump
JXi Heater
Power Distribution Board
Conversion from 240 VAC to 120 VAC
10
FOR 120 VAC
1
1
FOR 240 VAC
10
Installation Requirements
6
PLUMBING
Heater must be plumbed down steam of filter.
Heater must be installed so that when the filter pump is off so to is the heater.
All electrical equipment must be grounded and bonded.

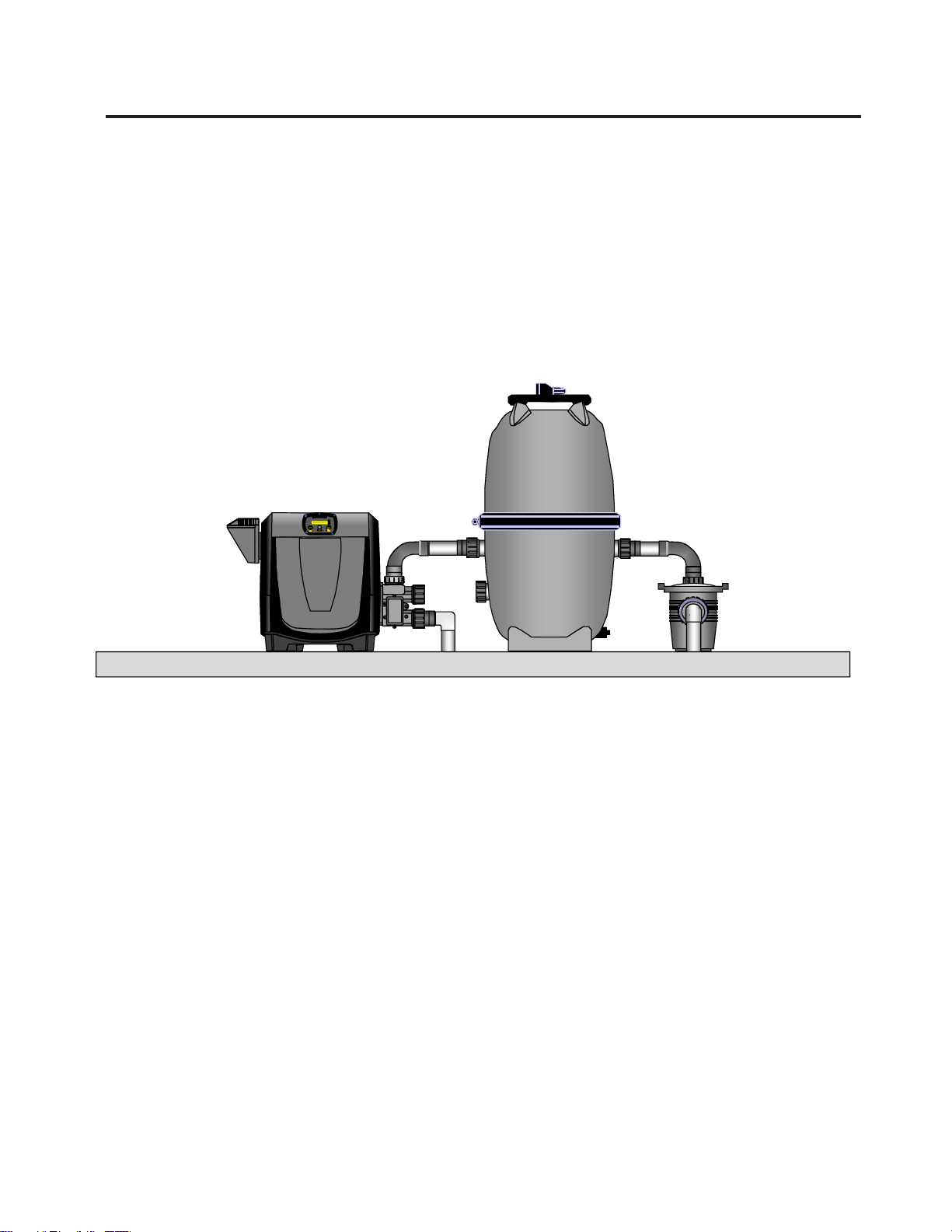

Plumbing
JXi Heater
Filter
Filter
Pump
The JXi heater is Versa Plumb ready.
The Versa Plumb System reduces hydraulic resistance by up to 50% versus other equipment sets in
its class.
The Versa Plumb System's increased hydraulic efficiency allows for up to a 1/2 HP smaller pump to
achieve the same level of flow, resulting in greater energy savings.
Faster installation with our pre-assembled plumbing kits, which enable quick and consistent equipment
plumbing design to reduce installation costs.
Innovatively designed system requires less plumbing pipe and fittings, while increasing hydraulic efficiency.
Installation RequirementsIn
7
Appropriate site location
Clearances/ Combustable sufaces
In both indoor installations (US) and outdoor shelter
installations (Canada), the heater must be placed to
provide clearances on all sides for maintenance and
inspection, as well as maintain minimum distances from
combustible surfaces.
The following minimum clearances must be maintained from combustible surfaces during operation.
Minimum Clearances for combustible surfaces
TOP: 6 inches (15 cm)
EXHAUST SIDE: 6 inches (15 cm) from
surface of the exhaust vent
HEADER SIDE: 6 inches (15 cm)
DOOR PANELS: 6 inches (15 cm)
Combustion and Ventilation requirements.
Clearances
Minimum vertical clearance
Minimum clearance to
er Flow
Wat
Model Min gpm (lpm) Max gpm (lpm)
200 30 (114) 120 (454)
260 30 (114) 120 (454)
= 36 inches
at least one door panel = 18 inches
Water Inlet
Water Outlet
330 30 (114) 120 (454)
400 30 (114) 120 (454)

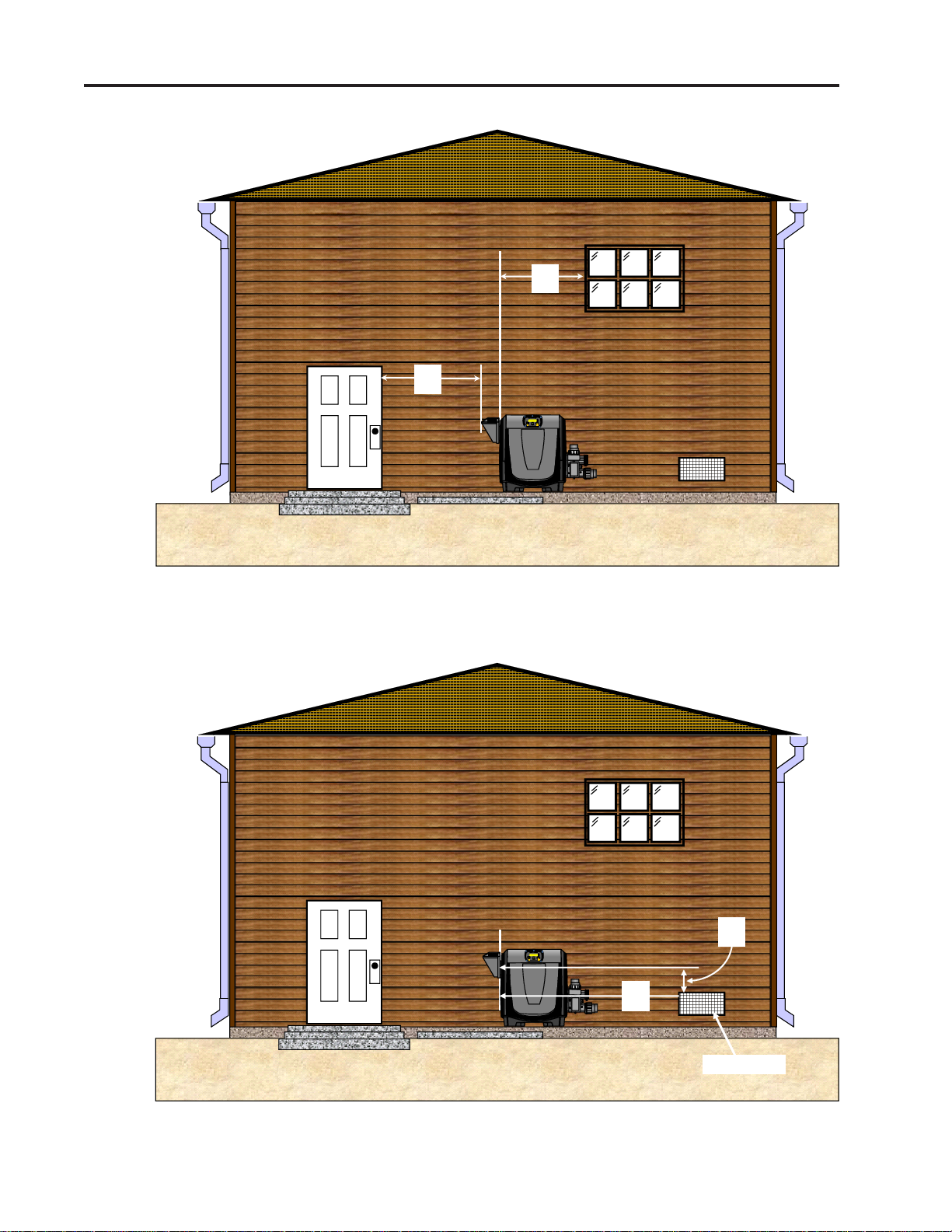

Clearances to Openings
8
Distance from heater to door, window or other
opening to living structure.
Dimension “A”– 4’ minimum
A
A
Distance from heater to forced air inlet or other vented opening.
Dimension “B” –May be any distance if dimension “C” is 3’ or more.
Dimension “B”– Must be at least 10’ if dimension “C” is less than 3’.
C
B
Forced air in l et

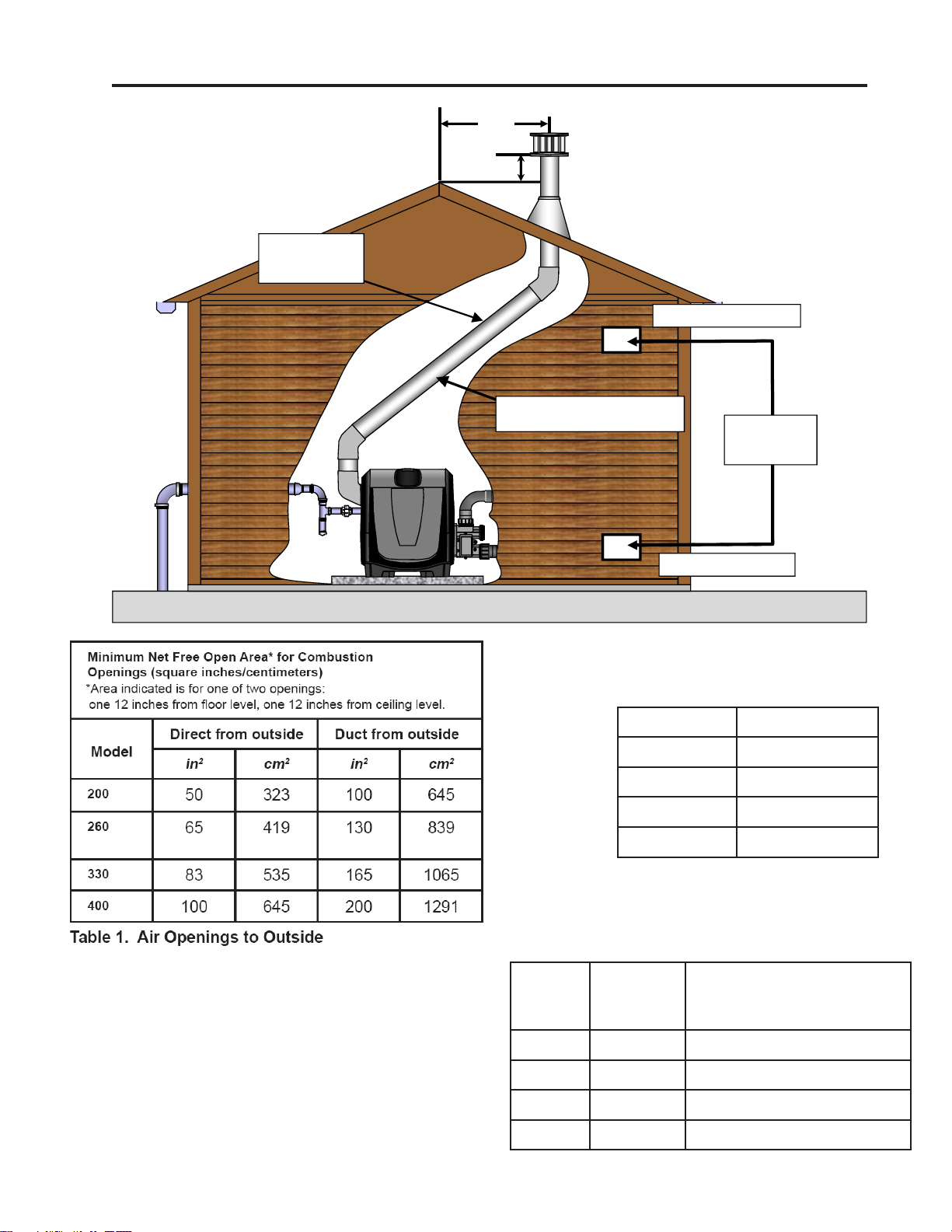

Category l Venting
9
1/4 inch minimum
pitch per foot of
horizontal pipe.
10’
2’
Type B Double Wall
Vent Pipe.
Vent Cap
12 inches from ceiling
Adequate air
into room
See next slide
Vertical or Horizontal Venting
(Category III)
When the installation requires horizontal venting in excess
of what is allowed for Category I installations or calls
for horizontal discharge, the JXi may be installed with a
Category III venting system.
See Table 3 for recommended
vent size and run lengths
without elbows. For each elbow installed, reduce the run
length by 12 feet (3.7m)
12 inches from floor
Heater Size
Vent Size
200 6" (15cm)
260 7" (18cm)
330 8" (20cm)
400 8" (20cm)
Table 2. Category I Vent Pipe Sizing Table
Heater
Size Vent Size
Length (vertical or horizontal)
Special Gas Vent
in feet (metres)
200 4" (10cm) TBD (m)
260 4" (10cm) 50ʹ(15m)
330 4" (10cm) TBD (m)
400 4" (10cm) 50ʹ(15m)
Table 3. Category III Vent Pipe Sizing Table
Vent Connection and Pipe Sizing
10
Vent Pipe or Elbow Increaser Installation
(Category I and Category III)
1. Remove the exhaust body.
2.
Remove the exhaust rain shield .(Figure 1)
Figure 2. Remove Exhaust Body and Rain Shield
Category I:
3.
Figure 2. Remove Exhaust Body and Rain Shield
Install a draft hood connector and an increaser to
meet the vent size requirements per Table 2. (See
Figure 2.)
Category III:
Install vent connector or elbow to the flue colla
according to the specific i stallation instructions
from the vent connector or elbow component
manufacturer.
Exhaust Vent
Rain Shield
Figure 1
4.
Wipe the socket of the vent body with rubbing
alcohol using a clean cloth or paper towel, then.
dry with a different clean cloth.
5.
Connect the vent connector to the lue collar and
fasten with three (3) sheet metal screws, as
shown in Figure (3).
Figure 3. Correct positioning of screws
on vent collar
Apply high temperature silicone RTV at the
6.
connection to seal, as shown in Figure 4.
NOTE: Use a minimum 600°F (315°C) temperature rated RTV.
Figure 2
Figure 4. Seal Connection with RTV
Figure 3
Figure 4
Connection to Controls
11
JXi CONNECTED TO AQUALINK RS AT RS 485 LINE
There are two ways of connecting a Jandy JXi heater to the AquaLink RS. One way is to connect at the Pool
and Common terminals of the Power Interface Board. This type of connection is shown on the next page. The
other way is to connect to the RS 485 line (red terminal bar) as shown here. When connected at the RS 485
line, the JXi and AquaLink RS become “smart” in that the control knows if the heater is malfunctioning. When
connecting to the RS 485 line, the AquaLink RS firmware must be Rev N or newer.
To establish communication between the LXi and AquaLink RS do either of the following:
After making connection turn power off then on to the AquaLink RS.
Hold the MENU button down for 5 seconds, then simply follow the screen prompts.
Connection to Jandy Control - RS 485
CONFIG 0 1 2 3 4
J10
J 9
Air/Co il
J12
J17
J16
J15
J 6
Power Interface
J 3
Board (PIB)
H2O
GREEN
RED
YELLOW
BLACK
4 3 2 1
RESET
ON
AUTO
SERVICE
TIME OUT
ON
AUX 1 AUX 2 AUX 3 AUX 4 AUX 5 AUX 6 AUX 7
FIL- PMP
INTAKE RETURN CLEANER SOLAR
HEATER SOL AR
SLR-PMP E-HTR
POOL MODE
SPA MODE
SPA DRAIN
SPA FILL
SPARE
JXi Connected to “Fireman’s Switch”
12
CONFIG 0 1 2 3 4
J 9
J10
Air/Coil
J12
H2O
J17
J16
SPA
POOL
COMMON
i HEATER CONNECTION AT “FIREMAN’S SWITCH”
JX
J15
J 6
Power Interfa ce
J 3
Board (PIB)
RESET
ON
AUTO
SERVICE
TIME OUT
ON
AUX 1 AUX 2 AUX 3 AUX 4 AUX 5 AUX 6 AUX 7
FIL- PMP
INTAKE RETURN CLEANER SOLAR
HEATER SOLAR
SLR-PMP E-HTR
POOL MODE
SPA MODE
SPA DRAIN
SPA FILL
SPARE
At the JXi Power Interface Board connect one end of two wires to terminals POOL and COMMON (J6).
Connect the other end of these two wires to terminals 1 and 2 of the
Set pool thermostat
to maximum (104 F).
AquaLink RS Green terminal bar.
Set the JXi to recognize this type of connection by holding down MENU, POOL, and SPA buttons
together for 7 to 10 seconds at the JXi’s User Interface. Set REMOTE to T-Stat. Press POOL button to
exit.
HEATER IS OFF
PRESS POOL OR
SPA
®
SELECT SERVICE
REMOTE
SETUP
TSTAT
®
SELECT SERVICE
SETUP
* REMOTE
* ENABLED*
TSTAT *
REMO
TE
®
®
DISPLAY BEZEL w/GASKET & COVER
13
P/N = R0458300
End User Menu, Universal Control, LXi
Hold down the Menu Button for 5 to 10 Seconds
English
JXi
Language
Spanish
French
Fahrenheit
Temperature Scale
Celsius
Continuous
Spa Timer
0:15 to 23:00 Hours
On
Hold down the MENU buttons for 5 to 10
Display Light
Off
2 Minute Delay
Installer/Technician Menu, Universal Control, LXi
Hold down the Pool, Menu, & Spa Button for 5 to 10 Seconds
Disable
Maintain Temp
Enable
Load Defaults
seconds to enter the menu.
JXi
No
Yes
HEATER IS OFF
PRESS POOL OR SPA
®
Maintain Temp
Delay
Remote
Freeze Protect
Louver
0:00 to 2:00 Hours
Off
Hi-Lo-Com
Remote T-Stat
Off
On (34º - 42º)
Disable
Enable
Air Temp Cal
Water Temp Cal
Water Temp Diff
Statistics
Gas Valve on time (# of hours).
Cycles (# of times heater fires).
Last Fault
F = + or - 4°
C = + or - 4°
F = + or - 4°
C = + or - 2°
F & C = +1° to +5°
*------------*
*------------*
HEATER IS OFF
PRESS POOL OR SPA
®
Hold down the POOL, MENU and SPA buttons
for 5 to 10 seconds to enter the hidden menu.
Components - Water Flow
14
Heat Exchanger
Bypass Kit with Shaft,
C-Clip and Poppet
R0589800
Model 200 = 3 tubes
Model 260 = 4 tubes
Model 330 = 5 tubes
Model 400 = 6 tubes
Heat Exchanger
Thermal Regulator Valve (TRV)
R0589402-05
R0589700
As with all pool heaters water velocity and flow through the heat exchanger are controlled by
an automatic bypass. The automatic bypass consists of a disk and spring and is located between
the Inlet/Outlet header.
A thermal regulator valve is also incorporated into this heater in the Inlet/Outlet header. Its
purpose is to hold water in the exchanger during initial heat up to reduce the amount of condensate
created at the heat exchanger.
Components - Electrical
15
Release Button
Raceway Release Button
Ignition Control
Power Interface Board
Press to release
Power Distribution Board
Power Distribution Circuit Board
16
P/N = R0458100
To covert from 240 VAC to 120 VAC wiring, snip the wire tie holding the conversion board in place. Remove the
conversion board, flip it over and reinsert.
Power Interface Board (PIB)
R0458200
10
FOR 120 VAC
1
1
FOR 240 VAC
10
Ignition Control
17
R0456900
Pre-Purge: 15 Sec. Ignition: 7 Sec.
Interpurge: 15 Sec. Heat-Up: 40 Sec.
Input : 24 VAC 50/60 Hz 300 mA
Valve: 24 VAC, 2.0 A max.
Inducer: 120/240 VAC, 3.0 A, ¼ HP
Ignitor: 120 VAC, 5.0 A max. 50/60 Hz
Blower ON
Pre-Purge
15 seconds
FC
24
VAC
F2
F1
FENWAL
GND
To Ga s Va lv e
VAL
From Thermostat
W
From Air Pressure Switch
PS
Pre-Purge: 15 Sec. Ignition: 7 Sec.
Interpurge: 15 Sec. Heat-Up 40 Sec.
Input : 24 VAC 50/60 Hz 300 m A
Valve: 24 VAC, 2.0 A max.
Inducer: 120/240 VAC, 3.0 A, ¼ HP
Ignitor: 120 VAC, 5.0 A max. 50/60 Hz
IGN/FS
L2
L1
IGN/
120
Hot Surf ace Igniter
40 seconds
Heat Up
To HS I
out of phase with
120 VAC
Transformer
18
P/N = R0456300
This transformer is a center tap primary. When
connected to the Power Distribution Board, this
transformer provides 120 VAC to terminals L1 and L2
of the Ignition Control, whether the incoming power is
120 or 240 VAC.
The secondary (24 VAC) of the transformer provides
power to the Power Interface Board and the Ignition
Control.
In-Line Fuse - 2 amp
P/N = R0337100
Fuse and Harness
P/N = R0457700
Water Temperature Sensor
R0456500
10 K Ohms thermistor
Water Pressure Switch
R0013200
High Limit Temperature Sensors Kit
19
R0592300
High Limit – 135 °F High Limit – 150 °F
High Limit – 150 °F
High Limit – 135 °F

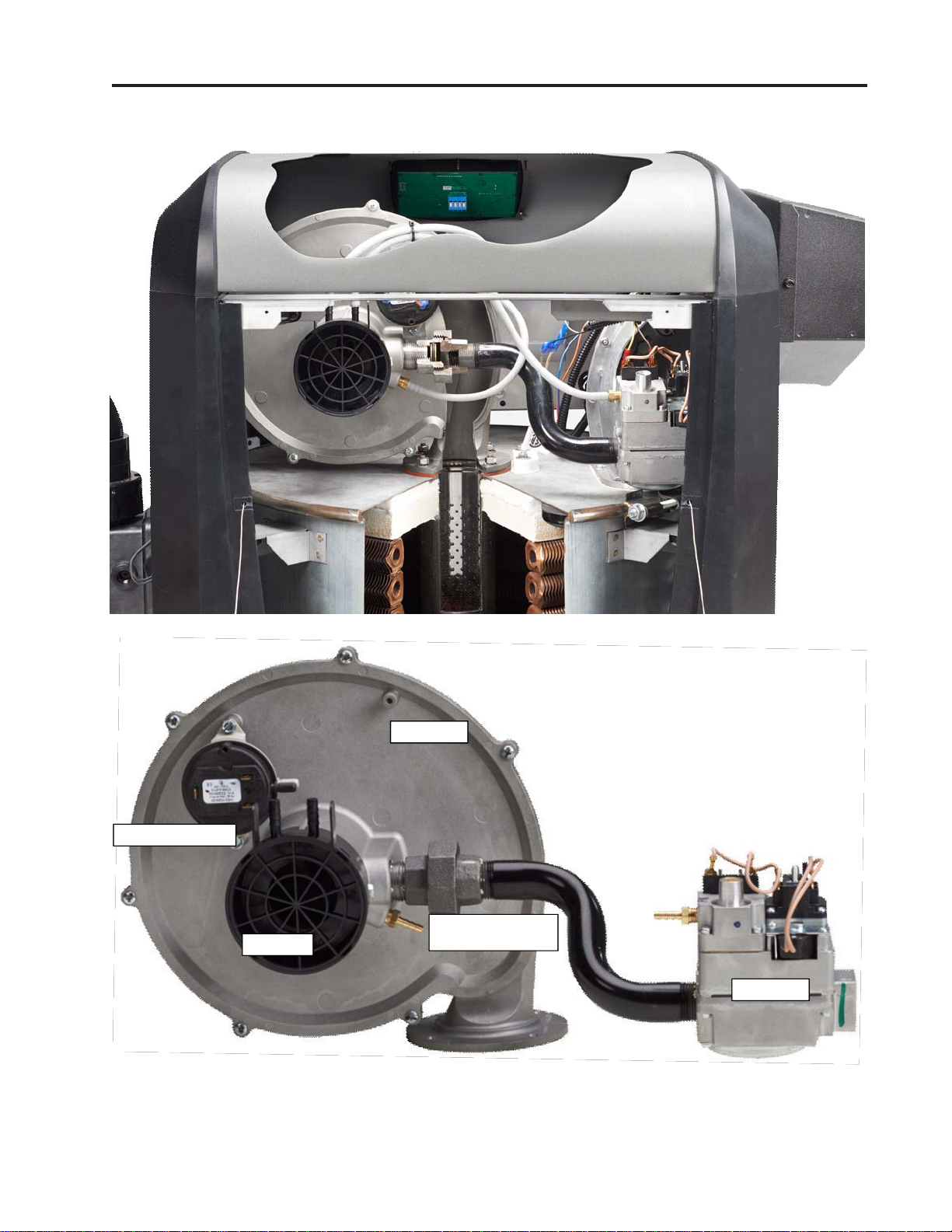

Fuel Components
20
Air Pressure Switch
Air Orific e
Air Blower
Union – Gas Orifice
is located here
Gas Valve

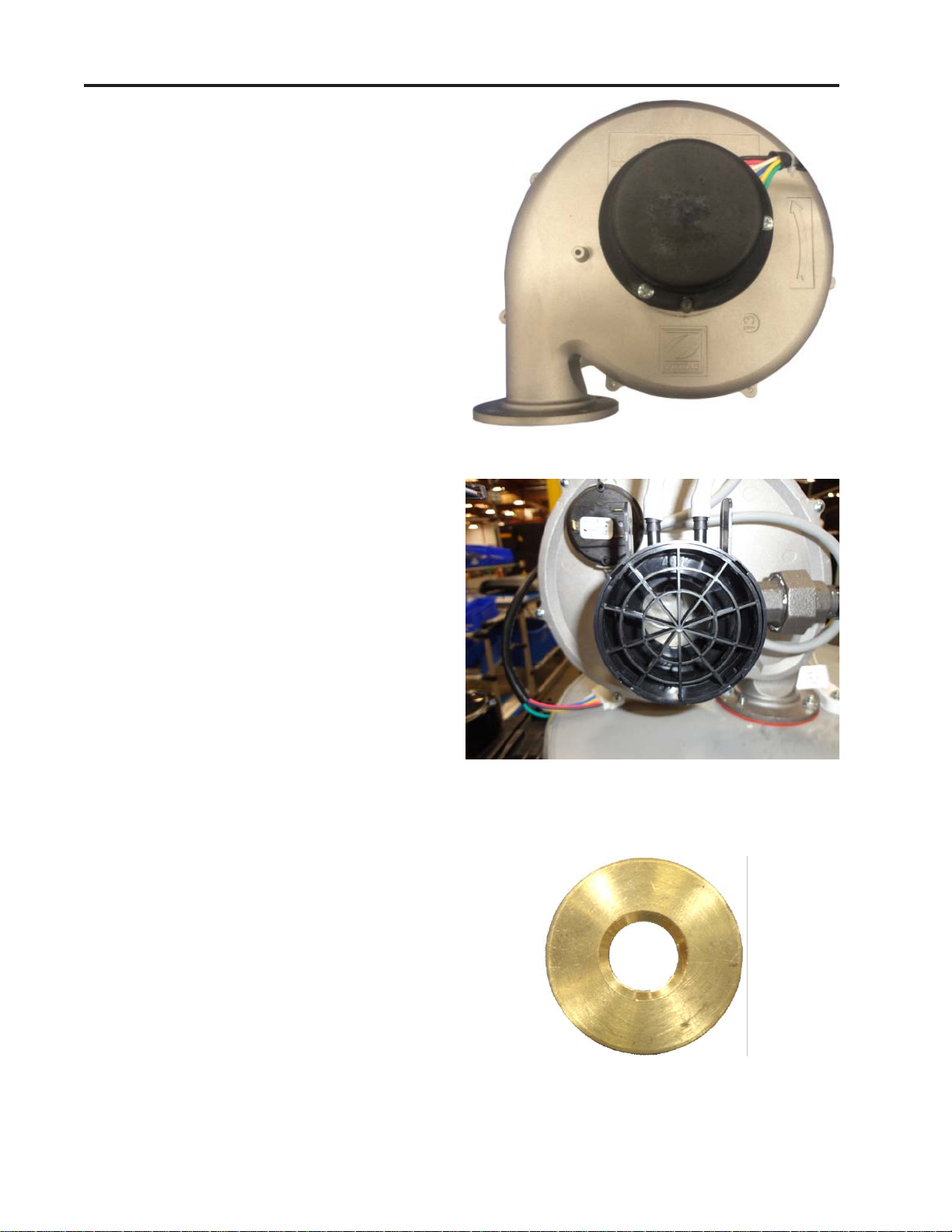

Blower Assembly
21
R0591100
BLOWER INTAKE ORIFACE KIT
BTU NATURAL
LP
200 R0591302 R0591312
260 R0591303 R0591313
330 R0591304 R0591314
400 R0591305 R0591315
FUEL ORIFACE KIT
BTU NATURAL LP
200 R0591
601 R0591605
260 R0591602 R0591606
330 R0591603 R0591607
400 R0591604 R0591608

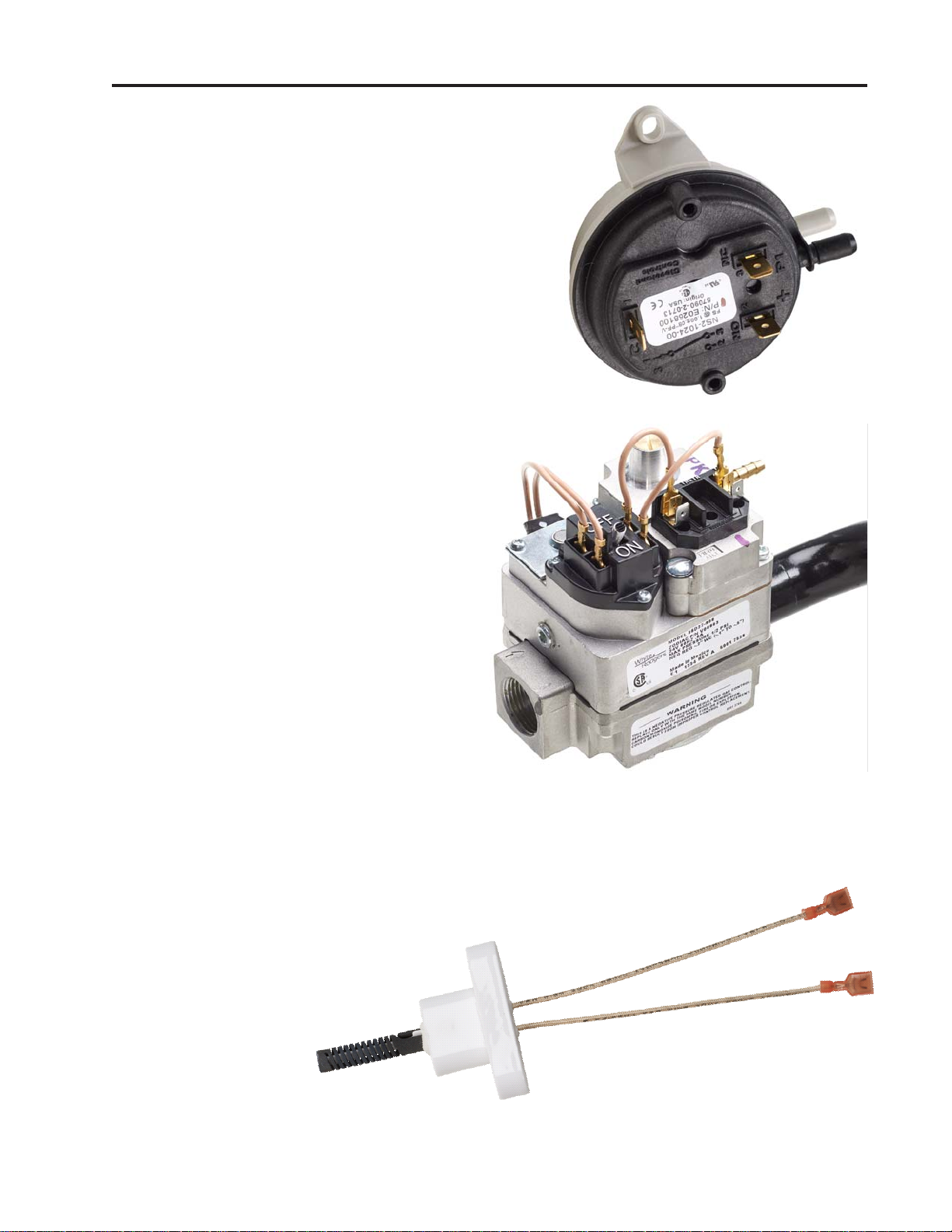

Air Pressure Switch
22
R0456400
Gas Valve
R0591400
Hot Surface Igniter (HSI)
R0457500
Range 50 to 500 Ohms

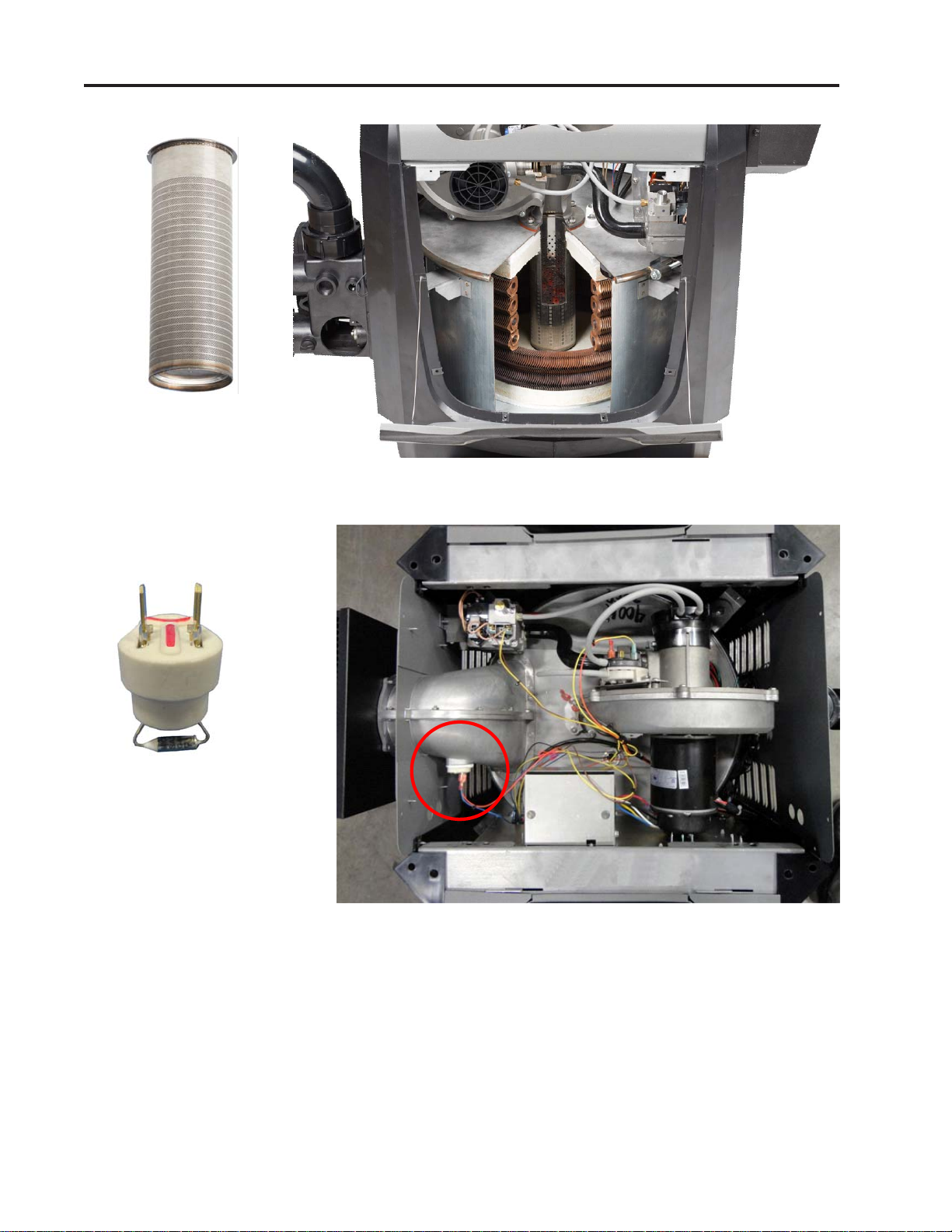

Burner
23
R0591700
Exhaust Temperature Switch
R0524300

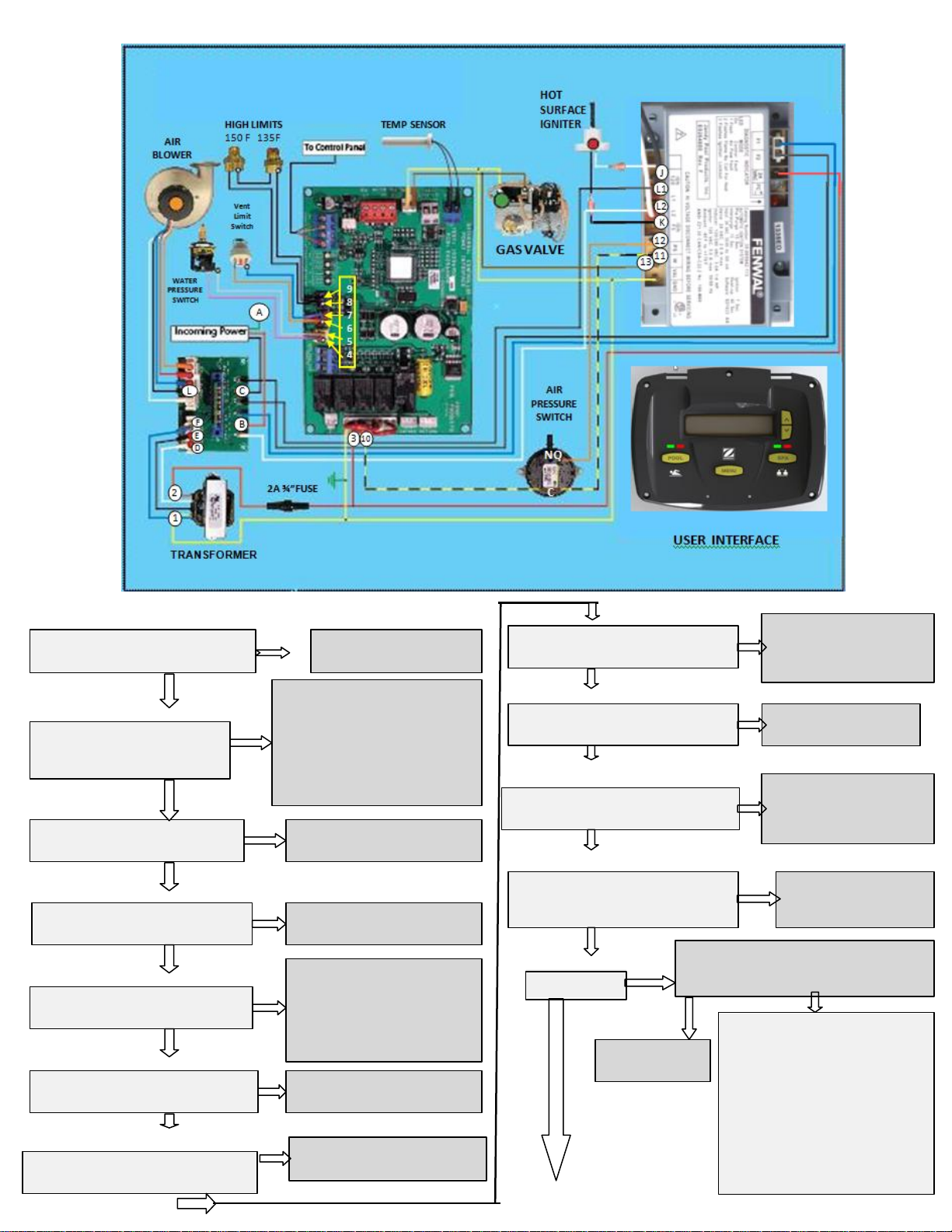

JXi Troubleshooting Guide
NOTE: If Blower is on Go to Step 13
STEP 1- Check Power at Dist. Brd. (make certain filter pump motor is on)
240 or 120 VAC between Black (C)
wire and Red (B) wire on Power
YES
STEP 2- Check Transformer
24 VAC between Red (2) wire and
Yellow (1) wire on Transformer?
YES
STEP 3- Check Fuse
24 VAC between Red (3) wire on PIB
and Yellow (1) wire on Transformer?
YES
STEP 4- Check power to Water Press. Sw.
24 VAC between Purple (4) wire on PIB NO
and Yellow (1) wire on Transformer?
YES
STEP 5- Check Water Pressure Switch
24 VAC between Gray (5) wire on PIB
and Yellow (1) wire on Transformer?
YES
STEP 6- Check power to Fusible Link
24 VAC between Orange (6) wire on PIB
and Yellow (1) wire on Transformer?
YES
STEP 7- Check Fusible Link
24 VAC between Blue (7) wire on PIB
and Yellow (1) wire on Transformer?
YES
NO
NO
NO
NO
NO
NO
Make certain filter pump is
on. Correct wiring
If wired 240 VAC check voltage
between Black (E) wire and Blue (F)
wire. If wired 120 VAC check voltage
between Black (E) and White (D)
wires. If the correct voltage is
present, replace Transformer, if not
check Conversion Board position
Locate and correct short circuit,
replace Fuse.
Recheck at Red (3) wire, if
voltage is 24 VAC replace PIB.
Back Pressure Test, if pressure is
higher than 2 PSI, replace Water
Pressure Switch, if less clean
filter, baskets or repair pressure
problem
Recheck voltage at Gray (5) wire,
if voltage is 24 VAC replace PIB.
Check Vent Limit and replace
failed part if necessary.
STEP 8- Check Power to High Limits
24 VAC between Black (8) wire on PIB
and Yellow (1) wire on Transformer?
YES
YES
STEP 9- Check High Limits
and Yellow (1) wire on Transformer?
YES
STEP 10- Check Power to Ignition Control
24 VAC between Black/Yellow(10) wire on
PIB and Yellow (1) wire on Transformer?
YES
STEP 11- Check Power at Ignition Control
24 VAC between Black/Yellow (11) at
W terminal of Ignition Control and
Yellow of Transformer?
YES
STEP 12- Check Blower
Is Blower ON?
YES
Correct incoming
power problem.
STEP 13- Check Air Pressure Switch
Check voltage between F2 terminal of
Ignition Control and ground (A0. Is voltage
105 VAC or higher?
NO
NO
Recheck power at Blue (7)
wire. If 24 VAC at Blue but
not Black, replace PIB.
NO
Replace both High Limits.
24 VAC between Black (9) wire on PIB
Do a Temp. Rise Test.
Recheck power at Black (9)
NO
wire. If 24 VACat Black, but
not Black/Yellow(10),
replace PIB.
NO
Correct problem with
Black/Yellow wire or its
connectors.
YES
Check voltage between F1 terminal
of Ignition Control and ground (A). Is
voltage 105 VAC or higher? If no,
replace Ignition Control, if yes check
voltage between Black (L) to Blower
PDB and white wire. Wired 120,
voltage range is 105 to 130, when
wired 240 range is 210 to 250. If
voltage is correct replace Blower. If
not check PDB and wires.
Blower is ON – Start on Step 13
STEP 13- Check Air Pressure Switch
24 VAC between Orange (NO) wire at the Air
Pressure Switch and Yellow (1) wire on Transformer?
YES
STEP 14- Check Power to PSW
Control and Yellow (1) wire on Transformer?
YES
STEP 15- Check Hot Surface Igniter
After Blower comes on wait at least 15 seconds
(pre-Purge). Is Igniter glowing?
YES
STEP 16- Check for Ignition
After the HIS begins to glow, wait approximately
40 seconds. Did the burners ignite?
NO
NO
JXi Troubleshooting Guide
NO
NO
Make certain Blower s on and combustion chamber is sealed. Check air tubes for kinks or
holes. Make certain front air tube is connected to the positive (+) side and back/lower air
tube is connected to negative (-) side of the Air Pressure Switch. If all are OK replace the
Air Pressure Switch.
24 VAC between Orange (12) wire at the Ignition
Check wire connections. Replace Orange wire.
Check voltage between K and J of the Ignition Control. If 105 to 130 VAC, check wires and
connectors to the Igniter, if OK, replace Igniter. If voltage is less than 105 VAC check
incoming voltage between L1 and L2, if voltage is 105 to 130 VAC replace Ignition Control.
Check voltage on Brown (13) wire at terminal VAL of the Ignition Control. Is there 24 VAC at VAL?
NO
YES
YES
Replace Ignition Control.
Check supply gas pressure. If OK,
replace Gas Valve.
STEP 17- Check Burners operation
Do Burners stay on beyond 7
seconds?
YES
Step 18 – Verify heating
Heater is operating properly.
Heater is not recognizing the flame (flame rectification). Any of the following can prevent flame rectification:
Low gas pressure.
Poorly connected or missing ground wire.
Corroded or dirty Flame Sense Rod.
Ignition Control not sending flame sense signal.
Or there is insufficient current when the gas valve is powered. Current loss can be caused by any of the following:
Excessive corrosion on wire terminals.
Frayed or over heated wires.
Pitting contact points, usually at the Water Pressure Switch or High Limits.
To determine whether the problem is lack or rectification or loss or current, check voltage at the Black/Yellow(11) wire at
Ignition Control. Keep the meter probe at this location and watch the reading. If, after the gas valve receives power, the
voltage slowly drops until the gas valve shuts off, then returns to normal, the problem is due to loss of current.
Note: If the Blower runs continuously, unplug F1/F2 connector from the Ignition Control, if the Blower goes off replace the Ignition Control. Of
the Blower stays on, check for shorted wires between the Ignition Control and PDB or from the PDB and the Blower.
Service Codes
Flow Rates (gpm)
BTUs MIN MAX
DISPLAY FUALT CAUSE REMEDY
Fault- Pump
NO FLOW
1. Pump is not running
1.
Pump is not running
2.
Low pump pressure.
3.
Pressure switch fault
1. This is a normal display when the control is in Maintain Temp
mode. NO SERVICE REQUIRED.
1.
Check breakers and power source, recheck wiring , set time
clock and current time.
2.
Clean filter, clear blockages, check position of all valves in
plumbing system
3.
Adjust or replace pressure switch. Refer to qualified service
personnel.
200 20 120
1.
Verify function of high limit s witches. Perform temperature
rise test. Identify and correct cause of overheating.
2.
Identify loose connections or replace switches. Refer to
qualified Service Personnel.
1. Identify loose connections or replace Vent Limit. Refer to
qualified Service Personnel.
1.
Check tubing and replace if necessary.
2.
Correct fault or replace fan. Refer to qualified service
personnel.
3.
Verify proper wiring for 120 or 240 VAC. Refer to qualified
service personnel.
4.
Check for proper clearances around heater and for adequate
room ventilation if enclosed. Inspect for blockages or
restriction at discharge of flue. Refer to qualified service
personnel.
5.
Clean filter or identify and repair cause of pump oscillation.
6.
Identify and correct loose wiring connections, or problems with
igniter, flame sensor, gas valve, or ignition control. Refer to
qualified service personnel.
1. Inspect sensor wiring. Ensure sensor is connected into Power
Interface Board.
2. Replace temperature sensor. Refer to qualified service
personnel.
260 25 120
330 30 120
400 40 120
GAS PRESSURE
Inches of Water Column
Natural LP
Max Inlet 10.5 14
Min Inlet 4 4
Gas Offset -0.2 -0.2
FAULT –
HIGH
LIMIT
FAULTFUSELINK/FIEL
D
FAULTCHECK
IGN
CONTROL
FaultShorted H2O
Sensor Or
1.
Water Temperature in heater
exceeds the Internal limit.
2.
Limit switch fault.
1. Vent Limit fault.
1.
Broken, split, pinched or
disconnected fan/switch tubing.
2.
Fan not operating.
3.
Fan running slow or premature fan
failure.
4.
Air flow restricted at intake or
discharge.
5.
Oscillating pump pressure.
6.
Low gas supply pressure.
7.
No flame at burners.
1. aulty wiring or connection.
2. Failed sensor.
Open Water Sensor
Loading...
