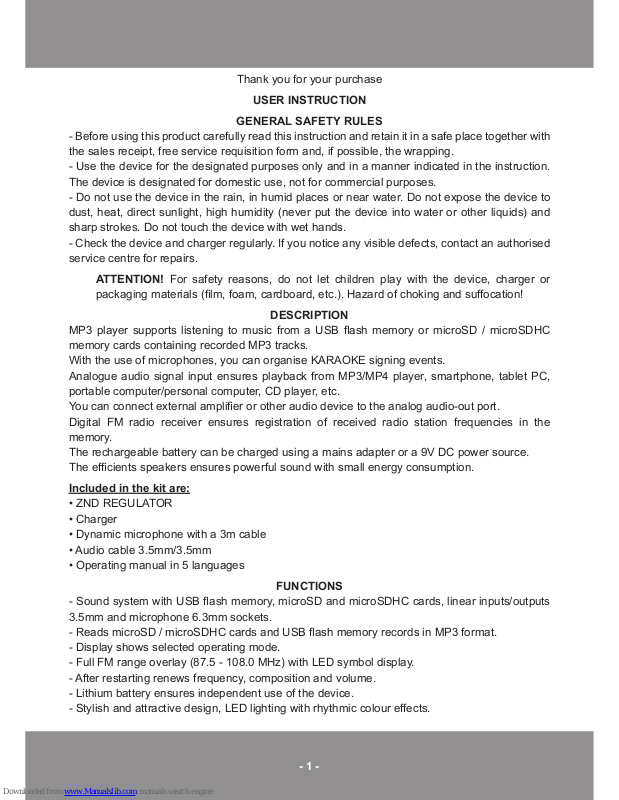

Thank you for your purchase
USER INSTRUCTION
GENERAL SAFETY RULES
- Before using this product carefully read this instruction and retain it in a safe place together with
the sales receipt, free service requisition form and, if possible, the wrapping.
- Use the device for the designated purposes only and in a manner indicated in the instruction.
The device is designated for domestic use, not for commercial purposes.
- Do not use the device in the rain, in humid places or near water. Do not expose the device to
dust, heat, direct sunlight, high humidity (never put the device into water or other liquids) and
sharp strokes. Do not touch the device with wet hands.
- Check the device and charger regularly. If you notice any visible defects, contact an authorised
service centre for repairs.
ATTENTION! For safety reasons, do not let children play with the device, charger or
packaging materials (lm, foam, cardboard, etc.). Hazard of choking and suffocation!
DESCRIPTION
MP3 player supports listening to music from a USB ash memory or microSD / microSDHC
memory cards containing recorded MP3 tracks.
With the use of microphones, you can organise KARAOKE signing events.
Analogue audio signal input ensures playback from MP3/MP4 player, smartphone, tablet PC,
portable computer/personal computer, CD player, etc.
You can connect external amplier or other audio device to the analog audio-out port.
Digital FM radio receiver ensures registration of received radio station frequencies in the
memory.
The rechargeable battery can be charged using a mains adapter or a 9V DC power source.
The efcients speakers ensures powerful sound with small energy consumption.
Included in the kit are:
• ZND REGULATOR
• Charger
• Dynamic microphone with a 3m cable
• Audio cable 3.5mm/3.5mm
• Operating manual in 5 languages
FUNCTIONS
- Sound system with USB ash memory, microSD and microSDHC cards, linear inputs/outputs
3.5mm and microphone 6.3mm sockets.
- Reads microSD / microSDHC cards and USB ash memory records in MP3 format.
- Display shows selected operating mode.
- Full FM range overlay (87.5 - 108.0 MHz) with LED symbol display.
- After restarting renews frequency, composition and volume.
- Lithium battery ensures independent use of the device.
- Stylish and attractive design, LED lighting with rhythmic colour effects.
- 2 -
1
12
22212019181716151413
10987654 23 11
32
AUX IN AUX OUT USB
+ MIC ECHO - + MIC VOL - MIC MIC
DC IN
TF
Control panel
PREPARATION (See component numbers on the picture)
Charging the battery:
Insert the supplied adapter cable plug into the device's DC 9V (14) socket. A red charging mode
indicator (13) will light up on the display.
The battery must be charged for approximately 3-4 hours. When the battery is fully charged, the
indicator will go out.
NOTE: If the device is powered on at the time of charging, the time of charging is longer.
USING THE DEVICE
Switching on:
To turn the device on, set the main ON•OFF switch (1) to position ON.
Volume and tone control:
Turn - MASTER VOL + (12) to increase or decrease volume.
Change the low frequency (bass) level by turning the button - BASS VOL + (4).
Equalizer
The device is equipped with a 5-band graphic equalizer with centre frequencies 100Hz-300Hz1kHz-3kHz-10kHz.
Adjustment range is ± 10dB.
- 3 -
Playing MP3 les:
1. Insert USB or microSD (TF Card) memory card containing MP3 recordings.
IMPORTANT: For the proper functioning of the memory card, be sure to insert a memory
card or USB ash drive before switching on the device by using the ON•OFF switch (1)
ON. Do not insert or remove the memory card or USB ash drive while the device is in
operation. Inserting or removing a memory card or USB ash drive while the device is in
operation may cause loss of information and/or damage the equipment!
IMPORTANT: Put the microSD memory card in by holding it straight and with the golden
contacts upwards. Inserting a memory card the wrong way or at an angle may damage
contacts or cause the memory card to get stuck.
If the memory card is not inserted into the socket all the way until it clicks, data may not
be readable.
2. Turn on the device by using ON•OFF switch (1). MP3 playback will begin.
- If you have previously used another mode (''bLUE'', ''LINE'' or FM radio), press [Mode] (11) to
select the MP3 mode (in "USB/TF" ).
- Press [ ] (9) if you wish to turn on the Pause mode - playback will be stopped.
- If you press the button [ ] (9) again, playback will be resumed from where it was stopped.
- Selecting the next or previous track:
Briey press [ ] (10) to fast-forward.
Briey press [ ] (7) to fast-backward.
3. After listening to recordings, press [ ] (9).
4. Turn the device off by moving the main switch ON•OFF (1) to position OFF.
5. Remove memory card.
Playback of the analogue signal from external source:
1. Put in the cable plug found in the set in the round 3.5 mm jack AUX IN (15), put the other
cable plug in the source (for example, smartphone, tablet PC, MP3/MP4 player, etc.) LINE OUT
or earphone jack.
2. Switch on the device and with the button [Mode] (11) choose the mode "LINE".
3. Adjust volume.
Bluetooth wireless connection:
NOTES:
• Bluetooth is a technology that uses radio waves to wirelessly connect devices located
within a close range of each other.
• Since there are many different manufacturers, models and software versions, complete
functionality cannot be guaranteed.
1. Device pairing via NFC (for devices with the NFC function)
INFO: Devices can be paired instantly by using the NFC function.
a. Turn on REGULATOR and select the "bLUE" mode.
b. Activate the NFC function on your mobile device.
c. Very slowly move the mobile device closely over the REGULATOR NFC symbol ( ),
until you hear a signal and the mobile device receives a conrmation message.
- 4 -
INFO: Not all smartphones have the NFC function.
2. Device pairing (for devices without the NFC function)
a. Make sure that the Bluetooth function is activated on your mobile device (e.g.
smartphone).
To do this, refer to your mobile device's manual.
b. Turn on the device by using the ON•OFF switch (1).
c. Press the [Mode] button (11). Turn on Bluetooth mode - the word "BT" will begin to ash
on the display.
REGULATOR is now attempting to connect to the device with which it was previously
paired. If REGULATOR nds the paired device, a signal will sound and the word "BT" will
stop ashing on the display. If the paired device is not found, REGULATOR is ready to be
paired with another device.
d. Find the Bluetooth menu on your mobile device and register the device on your mobile
device. To do this, refer to your mobile device's manual. Information should appear on your
mobile device’s display regarding the paired device (BT ID) with the name REGULATOR.
e. If password is requested, enter "0000" (or another depending on the model or software
version of you mobile device).
INFO: Use the mobile device's controls to select the piece and play mode and set the start
volume (see the mobile device’s user manual). Adjust volume level with button - MASTER
VOL + (12)
3. Re-Connecting via Bluetooth
a. Activate the Bluetooth feature on your mobile device.
b. Turn on REGULATOR and select the mode "bLUE".
c. If your mobile was paired only with REGULATOR, the connection will be established
automatically. If your mobile device was paired with a number of other devices, connecting
to REGULATOR must be carried out manually.
NOTES:
• Depending on the playback device manufacturer, re-registration may be required
(PAIRING).
• If you experience any problems connecting to the device, deactivate WiFi and mobile data
features on your device.
• Bluetooth compatibility cannot be guaranteed for devices (e.g. mobile phones), which will
be produced in the future.
• To ensure optimum connection, make sure your device's battery is fully charged.
• Some mobile devices have a power-saving mode. Deactivate the power-saving mode, as
it may cause problems in the transmission of data in the Bluetooth mode.
Reception of FM radio stations:
1. If FM radio frequency numbers (e.g. "87.5") are displayed, it means that radio mode is on (if
name of another mode is displayed, turn the radio mode on by pressing button [Mode] (11)).
2. Press button [ ] (9) and hold pressed for 1 second, range scanning and registration of
radio station frequencies in the memory will start - the frequency on display will change and the
- 5 -
number of the found transmitter memory cell will shortly appear (for example, "P02") and a short
fragment of broadcast will be playbacked.
To stop scanning the FM radio stations, press the button [ ] (9).
When scanning of FM radio stations is done, broadcast of the radio station found rst ("P01")
will be playbacked.
3. By shortly pressing the button [ ] (7) or [ ] (10), choose any of the xed stations in the
memory.
4. Adjust volume.
Connecting a microphone:
1. Turn off the device.
2. Turn the echo regulators - ECHO + (19), the main volume control - MASTER VOL + (12) and
the microphone volume control - MIC VOL + (20) to the minimum.
3. Insert the microphone plug into the appropriate socket (21) and/or (22).
IMPORTANT: Move the dynamic microphone switch to the ON position.
4. Turn on the device by using the ON•OFF switch (1).
5. Speak into the microphone and set the desired volume by using the main volume control
- MASTER VOL + (12) and - MIC VOL + (20).
INFO: Use the echo regulator - ECHO + (19) to set the required level of echo.
Karaoke function:
To use the karaoke function, you must rst connect the microphone, as described under
'Connecting a microphone' and insert a USB ash drive or memory card with pre-recorded music
(you can also use a mobile device with a Bluetooth connection or another external music player,
which is connected to the socket AUX IN (15), as a music source).
1. Turn on the device by using the ON•OFF switch (1).
2. Press [Mode] button (11) to select the MP3 music source (USB/TF-BLUE-LINE-Radio).
3. Adjust the volume level of music and microphone with - MASTER VOL + (12) and - MIC VOL
+ (14).
When using Bluetooth (bLUE) or LINE mode, also adjust volume on your mobile device or
external player.
Lighting effects:
Some elements and speakers of the device can be illuminated with multicolour LEDs.
Switch these light effects on/off by pressing button [Light] (8).
Choose mode of the light effects by pressing any of the six keys (5).
PROVISIONS FOR PROPER USE
This is a complex device and it must be treated carefully. For device to serve for a long time and
trustworthy, please take into consideration the following:
1. Do not place the device in a very hot place (over 40˚C). In heat, electronic devices and
batteries damage faster and plastic details can even become deformed.
2. make sure the device is not in contact with water and any other liquids.
3. Do not draw the device near powerful sources of electric eld and static electricity.
- 6 -
4. Do not arbitrarily open the device and repair it.
5. Do not insert non-standard, unqualied or broken spare parts, accessories, batteries in the
device.
6. If the device is brought from cold into a warm room, do not switch it on, but allow dewy details
to get dry for approximately two hours.
7. Do not allow unqualied persons to open the device.
8. Protect the device from blows, falls and powerful vibrations.
9. If the device has got wet, switch it off, wipe it and let it dry for at least 24 hours in a warm place.
CLEANING
Clean the device with soft, dry or slightly wet cloth, use no solvents (petrol, acetone, spirit etc.)
for cleaning.
Do not use any abrasive or caustic cleaning agents. After cleaning, carefully dry the device.
Technical data
Functions: USB and microSD card socket,
dynamic microphone 6.3 mm inputs x 2,
linear 3.5mm input,
linear 3.5 mm output,
FM radio 87.5 - 108 MHz
Wireless connectivity: Bluetooth V2.1 + EDR
NFC
Speakers: 5.25" (133.4mm) x 2
Output power: 40W
Playback freq. range: 90Hz - 20kHz
Signal/noise ratio: ≥60 dB
Charging power supply: 9V, 1.3A, direct current
Battery: Li-ion 7.4V, 1800 mAh
Battery operation time*: ≥ 10 hours
Playback le format: MP3/WMA/WAV
Temperature of environment: 0˚C to 40˚C
Relative humidity of environment: 20% - 90%
Size: 420 x 214 x 254 mm
Weight: 4.35 kg
*measurement done by 50% volume and the result is approximate (depends on ash
construction and recording content).
Technical changes are possible.
