ZMote ZC30 Users Manual

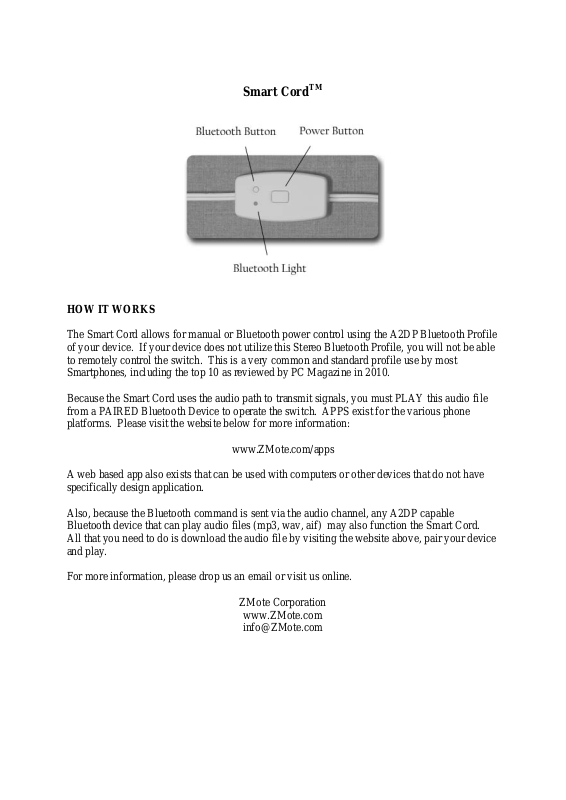

Smart CordTM

HOW IT WORKS

The Smart Cord allows for manual or Bluetooth power control using the A2DP Blue to oth Profile
of your device. If your device does not u tilize this Stereo Bluetooth Profile, you will not be able
to remotely control the switch. This is a very common and standard profile use by most
Smartphones, including the top 10 as reviewed by PC Magazine in 2010.

Because the Smart Cord uses the audio path to transmit signals, you must PLAY this audio file
from a PAIRED Bluetooth Device to operate the switch. APPS exist for the various phone
platforms. Please visit the website below for more information:

www.ZMote.com/apps

A web based app also exists that can be used with computers or other devices tha t do not have
specifically design application.

Also, because the Bluetooth command is sent via the audio channel, any A2DP capable
Bluetooth device that can play audio files (mp3, wav, aif) may also function the Smart Cord.
All that you need to do is download t he aud io file by visiting the website above, pair your device
and play.

For more information, please drop us an email or visit us online.

ZMote Corporation

www.ZMote.com
[e-mail]

MANUAL POWER TOGGLE

Push the Power Button to Toggle the Power of the Smart Cord.
Bluetooth does not have to be on for this to work.

TURN ON BLUETOOTH

Hold Down the Bluetooth Button for 5 seconds until Bluetooth Light flashes, indicating
Bluetooth is On.

TURN OFF BLUETOOTH

Hold Down the Bluetooth Button for 10 seconds until Red Light Flashes Quickly and then turns
off.

DARK MODE

With Bluetooth On, tap the Bluetooth Button. Bluetooth Light will then turn OFF. Tap the
Bluetooth Button again to turn the Bluetooth Light back on.

PAIRING

Bluetooth Operation

1. Hold Down the Bluetooth Button for 5 seconds until Bluetooth Light flashes.

2. DISCOVER Bluetooth Devices with your Phone or Similar device.

3. Connect to the Smart Cord identified ZCHORD1.

4. The Bluetooth Light will stop flashing and remain constant, indicating a connection has been

made.

For information on how to access your devices Bluetooth Connection process, please refer to the
documentation associated with your Phone or similar device.

FCC RF Exposure requirements:

RF exposure information:
To maintain compliance with FCC RF exposure requirements, use device that maintain a 20cm separation distance
between the user's body and the host.

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.

NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications
to this equipment. Such modifications could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
