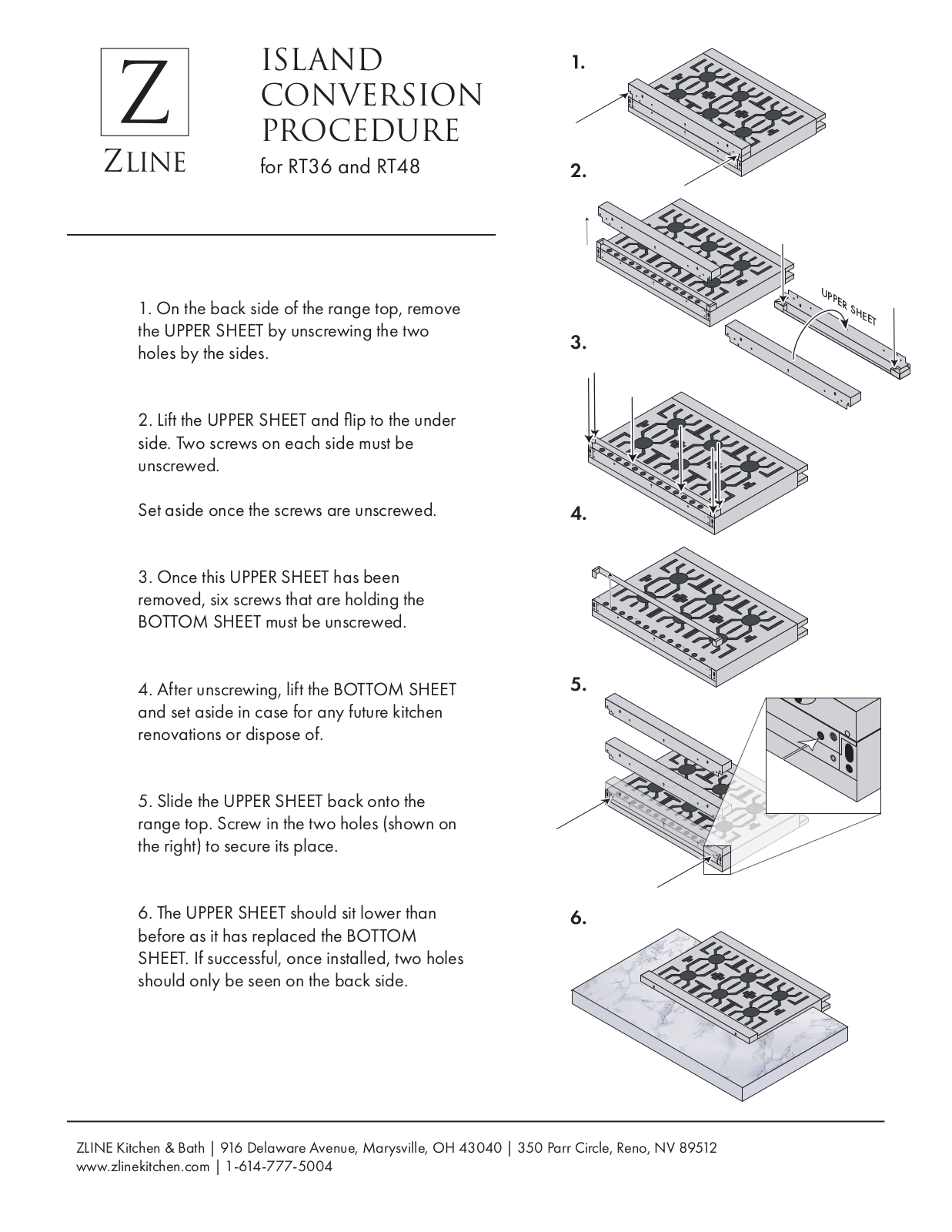

ZLINE RTS30, RT36 CONVERSION PROCEDURE

UPPER SHEET

ISLAND
CONVERSION
PROCEDURE

1.

for RT36 and RT48

1. On the back side of the range top, remove
the UPPER SHEET by unscrewing the two
holes by the sides.

2. Lift the UPPER SHEET and flip to the under
side. Two screws on each side must be
unscrewed.

Set aside once the screws are unscrewed.

3. Once this UPPER SHEET has been
removed, six screws that are holding the
BOTTOM SHEET must be unscrewed.

2.

3.

4.

4. After unscrewing, lift the BOTTOM SHEET
and set aside in case for any future kitchen
renovations or dispose of.

5. Slide the UPPER SHEET back onto the
range top. Screw in the two holes (shown on
the right) to secure its place.

6. The UPPER SHEET should sit lower than
before as it has replaced the BOTTOM
SHEET. If successful, once installed, two holes
should only be seen on the back side.

5.

6.
