InductIon cooktop
Installation Guide
and Users Manual
Technology yields progression. Electromagnetic heating technology
emits heat into the cookware itself rather than atop the surface burner.
This design uses premium glass which distributes and retains heat more
efficiently than other cooktop types.
CONTENTS
Installation Guide
Important Safety Instructions 1
Product Dimensions 6
CONTENTS
Users Manual
Users Manual 7
Room Ventilation 8
Surface Burner Layout 9
Using the Cooktop 12
Cookware Uses 17
Cleaning your Cooktop 18
Troubleshooting 19
Installation Instructions 21
Thank You
We want to thank you for choosing one of our beautiful professional induction
cooktops. We know that you have many brands to choose from and we are thrilled
that you have decided to place one of our products in your home.
Our appliances are designed according to the strictest safety and performance
standards for the North American market. We follow the most advanced
manufacturing process. Each appliance leaves the factory after thorough quality
inspection and testing. Our distributors and our service partners are ready to answer
any questions you may have regarding installation of your ZLINE product.
This manual will help you learn to use the product in the safest, most efficient manner,
and care for it so that it may give you the highest satisfaction for years to come.
This manual also includes directions for the professional installer that will install the
product in your home. We recommend professional installation by trained personnel.
Please keep this manual for future use.
Location of Appliance Tags
Induction cooking is a safe, advanced, efficient, and economical cooking technology. It
works by electromagnetic field generating instant heat directly in the cookware bottom,
rather than indirectly through heating the glass surface. The glass becomes hot only
because the cookware warms it up.
The rating tag shows the model and serial number of your range. The tag is located under
the front edge of the induction cooktop. The tag is visible when the oven door is open.
Important Appliance Information
Dealer
Model
Date Installed
Installer
Important Safety Instructions
Failure to follow these warnings could result in a fire or explosion that
WARNING
• Before beginning installation, please read these instructions completely and
carefully.
• The manufacturer will not be responsible for any damage to property or to
persons caused by incorrect installation or improper use of the appliance.
• The manufacturer reserves the right to make changes to its products when
considered necessary and useful, without affecting the essential safety and
operating characteristics.
• Our induction cooktop has been tested and complies with Part 18 of the FCC
Rules for ISM equipment. Product meets the FCC requirements to minimize
interference with other devices in residential installation.
• Do not remove permanently affixed labels, warnings, or plates from the product.
This may void the warranty.
• Please observe all local, state and national codes and ordinances.
INTENDED USE
• This appliance is designed for in-household use only.
• Do not use outdoors.
• Do not use the appliance to heat a room.
CLEANING SAFETY
• Do not use steam cleaners or high-pressure cleaners to clean the cooktop, as this
may result in electric shock.
CONDITION OF UNIT
• Do not operate any appliance with a damaged cord or after the appliance
malfunctions or has been damaged in any manner. Return appliance to the
nearest authorized service facility for examination, repair, or adjustment.
• Do not cook on broken cooktop. If cooktop breaks, cleaning solutions and
spillovers may penetrate the broken cooktop and create a risk of electric shock.
causes property damage, personal injury or death. To reduce the risk
of fire, electric shock or injury, take the following precautions:
Do not store items of interest to children in cabinets above the
WARNING
cooktop or on the backguard of a cooktop - children climbing on
the cooktop to reach items could get seriously injured.
1
Important Safety Instructions
ENVIRONMENT OF UNIT
• To reduce the risk of fire, do not let any objects(glass, paper, etc.) obstruct the
inlet and outlet of your cooktop. To reduce the risk of electric shock, do not mount
unit over a sink. To reduce the risk of fire, do not store anything directly on top of
the appliance surface when the appliance is in operation.
• Always have a working smoke detector in or near the kitchen.
• Do not leave lids or other metal objects such as knives, forks or spoons on the
cooktop. If the cooktop is turned on, these objects can heat up quickly and may
cause burns.
• Do not place rough or uneven objects on the units as they may damage the
surface. If the cooktop is near a window, ensure that curtains do not blow over
or near the unit.
• Do not use the cooktop as a work surface. Certain substances such as salt,
sugar, or sand can scratch the glass ceramic surface.
• Do not store hard or pointed objects over the cooktop as they can damage the
unit if they fall on top.
• Do not put detergents or flammable materials in the equipment installed under
the cooktop.
• While cooking any overflowed fat or oil on the cooktop may ignite. There is a
risk of burning and fire; therefore, control the cooking process at all times.
• The use of accessory attachments not recommended by the appliance
manufacturer may cause injuries.
• Items with a magnetic field such as: radios, televisions, credit cards, cassette
tapes etc., can affect the unit.
• The marked electrical rating should be at least as great as the electrical rating on
the appliance.
• To prevent accidents and achieve optimal ventilation, allow for sufficient space
around the cooking area.
• To reduce risk of burns, ignition of flammable materials, and spillage due to
unintentional contact with cookware, the cookware handles should be turned
inward and not extend over adjacent heating surface.
• Wear proper apparel - loose fitting or hanging garments should never be worn
while using the appliance.
2
Important Safety Instructions
COOKING SAFETY
• Do not allow aluminum foil, paper or cloth to come in contact with a hot element.
• Avoid preparing food in aluminum foil or plastic containers over the hot cooking
zones.
• Protective liners - Do not use aluminum foil to line cooking zone, drip bowls or
oven bottoms, except as suggested in the manual. Improper use of these liners
may result in a risk of electric shock or fire.
• Do not allow pans to boil dry or empty.
• Never leave the cooktop unattended when in use.
• Always use the proper pot and pan size.
• The use of undersized cookware will expose a portion of the hot element, which
can result in ignition of clothing or personal burners.
• Close supervision is necessary when any appliance is used by or near children.
• Do not touch hot surfaces. Use dry pot holders to hold the handles of pots/pans.
• Use only dry potholders - moist or damp potholders on hot surfaces may result in
burns from steam. Do not let the potholder touch hot heating elements.
• Do not use a towel or other bulky cloth.
• Always remove the covers on sealed or canned goods and before heating to
avoid explosion.
• Nevertheless, we strongly recommend That a person with physical or mental
impairments not use the appliance unless accompanied by a qualified person.
The same recommendation applies to children.
• When the unit is on, do not touch outside the control panel as the surface may
contain residual heat. It is important to be aware that the unit’s surface will
remain hot for a short period of time after use.
3
Important Safety Instructions
POWER CORD SAFETY
• To protect against electric shock, do not immerse cord, or main body in water or
any other liquid.
• Do not let cord hang over edge of table or counter.
• Do not allow cord to touch hot surface. A short power supply cord or detachable
power supply cord should be used to reduce the risk of becoming entangled in
or tripping over a longer cord.
• Always attach plug to appliance first, then plug cord into the wall outlet. To
disconnect, turn any control to off, then remove plug from wall outlet.
• The cord should be arranged so that it will not drape over the countertop where it
can be pulled on by children or tripped over.
SERVICE AND REPAIR SAFETY
• Do not repair or replace any part of the appliance unless specifically
recommended in the manual. All other services should be referred to a qualified
technician.
• There are no user serviceable parts on this appliance. Only an authorized
service representative should attempt to service your cooktop.
This product may not be treated as household waste. Instead it should be handed
over to the applicable collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product.
For more detailed information about recycling of this product, please contact your
local city office, your household waste disposal service or ZLINE Kitchen & Bath.
4
Warrant y and Service
Warranty and Service
All range products carry a one year parts warranty and includes service, if required.
Service on all products shall be carried out by industry professionals only. For
warranty service, please call customer service.
Replacement Parts
Only authorized replacement parts may be used in performing service on this
appliance.
Replacement parts are available from ZLINE. Call 1-614-777-5004.
PRODUCT SPECIFICATIONS
Electric Power Rating
Voltage: 240 volts
Frequency: 60 Hz
Amperage: 40 amps
RCIND-36
RCIND-30
5
Product Dimensions
COOKTOP DIMENSIONS
A. WIDTH B. DEPTH C. THICKNESS D. HEIGHT
30” 21 ” ⁵/₃₂” 2 ¹/₈”
36” 21 ” ⁵/₃₂” 2 ¹/₈”
6
Users Manual
7
Room Ventilation
The use of this appliance generates heat and humidity in the room where it is installed.
Proper ventilation in the room is needed. Make sure the kitchen is equipped with a range
hood of appropriate power (400 CFM minimum). Activate the exhaust fan/range hood
when possible. Intensive and continuous use of the appliance may require additional
ventilation, for example by opening a window.
8

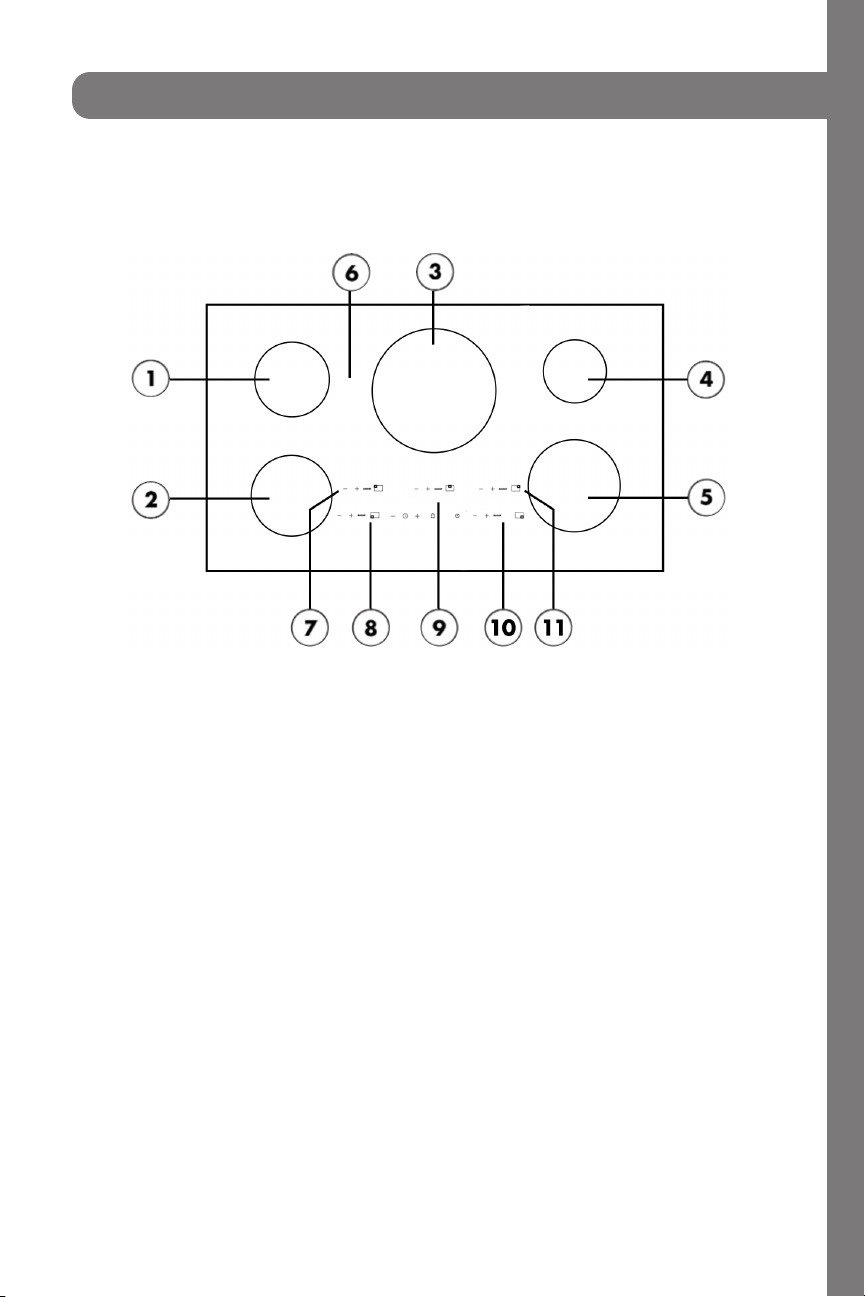

Surface Burner Layout
1. Left rear cooking element
2. Left front cooking element
3. Right rear cooking element
4. Right front cooking element
5. Ceramic glass
6. Left rear cooking element control
7. Left front cooking element control
8. Right front cooking element control
9. Right rear cooking element control
9
Surface Burner Layout
1. Left rear cooking element
2. Left front cooking element
3. Middle cooking element
4. Right rear cooking element
5. Right front cooking element
6. Ceramic glass
7. Left rear cooking element control
8. Left front cooking element control
9. Middle cooking element control
10. Right front cooking element control
11. Right rear cooking element control
10
Surface Burner Layout
10. Main Power On/Off
11. Control Lock
12. Decrease Timer (minute)
13. Minute Timer
14. Increase Timer (minute)
15. Decrease Power
16. Increase Power
17. Power Boost
11
using the cooktop
CONTROLS LOCK
• Controls Lock is activated when the cooktop is off for 5 minutes
• Controls Lock prevents activation of any sensor key in STANDBY mode. Deactivate the
CONTROL LOCK first, then touch the POWER key to turn on the cooktop.
TO LOCK
• Touch and hold the LOCK button until a beep sounds. The
indicator light will light up above the button.
TO UNLOCK
• Touch and hold the LOCK button until a beep sounds. The
indicator light will turn off above the button.
TO TURN ON THE COOKTOP
• To turn on the cooktop, touch the POWER button.
• The indicator light above the button will light up. If no further
action is made, the cooktop will return to STANDBY mode after
a few seconds for safety reasons.
SELECTING/CHANGING THE POWER LEVEL
• To turn one or more cooking zone, place an appropriate pot or pan on the desired
cooking zone.
• With the cooktop turned ON, touch the ON/OFF button of the cooking zone. The
screen will show “-” indicating that there is no power level set for the zone yet.
• Press the “+ and -”BUTTON to adjust the power.
12
using the cooktop
AUTOMATIC POWER LEVEL CONTROL
• The power level displayed may be different from the actual power level at
the power sharing and high temperature range. To prevent the cooktop from
overheating, the power level is controlled automatically.
POWER BOOST MODE
• The POWER BOOST is used to cook at maximum power for a short period of
time (maximum 10 minutes).
• This is best recommended for boiling water.
• The power is reduced to level 9 at the end of the maximum time.
• Use the “B” BUTTON to boost the power level to the highest level for 10 minutes.
The screen will show a “P” indicating the POWER BOOST.
• To turn off POWER BOOST, touch the “-” key to switch from P to level 9.
DO NOT leave a pot unattended while in POWER
WARNING
BOOST mode or other high power settings.
KEEP WARM MODE
• While in a power level, touch the “-” to enter into “KEEP WARM” mode. The
screen will switch from 1 to L.
13
using the cooktop

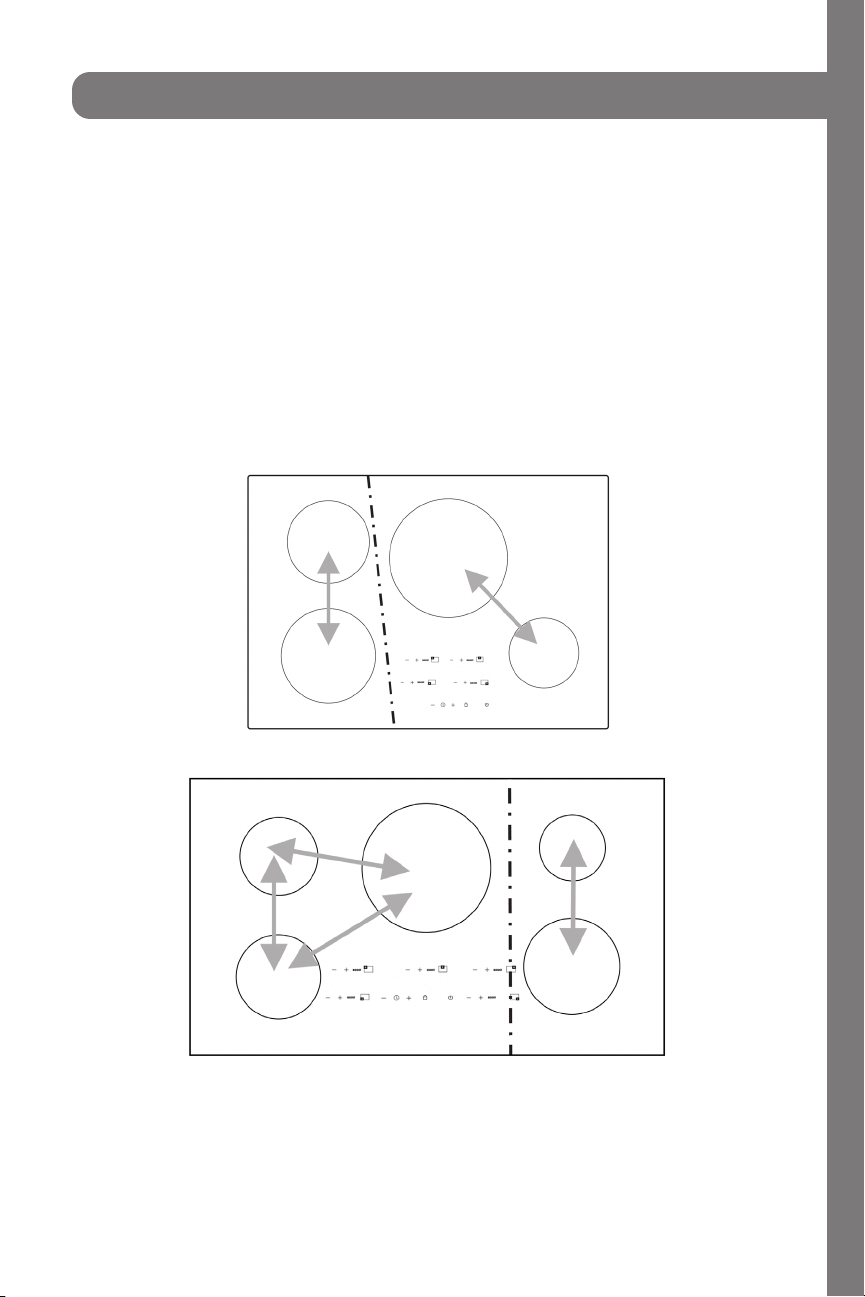

POWER SHARING
• Four or five cooktops are divided into two separate cooking areas: the right and
left side cooking elements share the power of an inverter.
• Power sharing is activated when the cooking elements that are in the same zone
are activated. The controls adjust the power automatically for POWER SHARING.
This power sharing is administered by the unit’s microprocessors, which will
alternate power in one area.
TIPS Remember to select the power setting last for the cooking element you want to
maintain at full setting heat. To maintain full setting heat for two items, place one item on
an area and place the second item on another area.
TO TURN OFF THE COOKTOP
• To turn off the cooktop, touch the POWER button.
• The indicator light above the button will turn off.
14
using the cooktop
RESIDUAL HEAT INDICATOR
• After using the cooktop, the cooking area will remain hot for a few minutes. The
digital display will show an “H” to warn the user that the surface is hot to touch.
Wait until the “H” is no longer displayed to clean the unit. You may turn the
cooktop on even if the “H” is displayed.
SET TIMER
• A short key press adjusts the time by 1 minute and a long key press by 10
minutes. The automatic timer range from 1 minute - 99 minutes. This is used to
automatically turn off the cooktop.
• NOTE: Seconds are not used in the timer settings.
• The red dot next to the time symbol indicator will illuminate indicating that the
cooking elements is selected.
15
• TO SET
• While cooking, touch the timer key pad until the time light of the desired
cooking element is on. Time digital displays read “00” and blinking.
• Use “+” or “-” key to adjust and set the desired time.
• The timer will begin 5 seconds after setting the timer.
• The display will stop blinking and will stay static on the display.
• The cooking element that the timer was set on will automatically shut off
once time runs out.
using the cooktop
• If you want to set another burner to a timer, touch timer key to the desired time
symbol indicator blinks, repeat the same steps above.
• If you want to check the remaining time for another cooking element, touch the
timer until the time symbol indicator for the desired cooking element blinks.
• If more than one switch-off time is programmed, the shortest time remaining
will show in the digital display.
• TO CANCEL TIMER
• Touch the Timer until the time symbol indicator for the desired cooking element
blinks, then touch the “+” or “- ” to set the timer to 00.
• The Time digital display will blink for 5 seconds and then turn off, indicating
that the timer of selected cooking element has been cancelled.
16
cookware uses
COOKWARE NOISE
• Heavier pans such as enameled cast iron, will produce less noise than a lighter
stainless steel pan. Light weight cookware may also vibrate. Heavy weight
quality cookware is recommended.
• Cookware with irregular or warped bottoms can vibrate audibly on the ceramic
glass surface, though again, typically only at high power settings.
• Loose-fitting handles on cookware, typically when rivets are used, can vibrate.
• “Cracking” noise- occurs if the cookware base is made of a different material.
• “Low Humming” noise- occurs when cooking, which is normal particularly at
high power settings.
• A “whistling” noise- occurs if both elements are being used at the same time at
high settings, and the cookware base is made of a different material.
COMPATIBLE COOKWARE
• DO NOT USE heat-resist glass, ceramic, copper, aluminum pan/pots, round-
bottomed cookware, or cookware with a base less than 5 inches.
• Compatible cookware packaging often will have the induction logo
17
cleaning your cooktop
Before using the product for the first time, clean the top to protect and make cleanups
easier. Daily use of a ceramic glass cleaner will keep the cooktop looking new with
every use.
• Use a ceramic glass cleaner when the cooktop is cool
• Apply a few drops directly to the cooktop and use a paper tower or a soft cleaning
pad.
• Use a dry cloth or paper towel to remove all cleaning residue.
NEVER RUN THE COOKTOP UNDER WATER
CLEANING BURNED RESIDUE
• Use a ceramic glass cleaner when the cooktop is cool
• Spread a few drops on the burned residue area.
• Use a ceramic glass cleaning pad, rub the residue with pressure as needed.
• Repeat the steps above if any residue remains
CLEANING HEAVILY BURNED RESIDUE
• Use a ceramic glass cleaner when the cooktop is cool
• Use a single-edge razor blade scraper approximately at a 45˚ angle against the
glass surface, and scrape off the residue.
• After scraping the residue, spread a few drops on the burned residue area and
finish off with a ceramic glass cleaner and paper towel.
METAL MARKS AND SCRATCHES
• For preventative measures, be careful not to slide pots or pans across the cooktop
surface. This will leave metal marks. These metal marks are removable using a
ceramic glass cleaner with a cleaning pad.
• If pots with a thin overlay of aluminum or copper boil dry, the overlay may leave a
black discoloration on the cooktop. This must be removed immediately before using
the cooktop or the discoloration will become permanent.
WARNING
If cracks or indentations in the glass surface occurs, the cooktop will
have to be replaced. Contact us at 1-614-777-5004 for assistance.
18
troubleshooting
If you encounter the following problems while using your cooktop, check the guide below
to see if you can correct the problem yourself before calling for assistance or service:
PROBLEM POSSIBLE CAUSE SOLUTIONS
• Make sure the
CONTROLS LOCK
button is turned off. See
page 12.
• Check the house lights to
confirm power outage
• Make sure that the
cookware is centered on
the cooking element, and
that cookware is also the
correct type for induction
cooking.
• The bottom of the
cookware must be large
enough to cover cooking
element completely.
• Cookware must be flat and
centered on the cooking
element.
• Make sure the correct
control is turned ON for
the cooking element being
used.
Cooktop
does not
work
Cooktop
does not
generate
heat
• Cooktop controls are locked.
• Power outage.
• Installation wire is not plugged in
correctly.
• Circuit breaker tripped or the fuse blown.
• No cookware or improper cookware
placement on the cooking element.
• Incorrect cookware size for the selected
cooking element.
• Cookware is not properly resting on the
cooking element.
• Circuit breaker tripped or the fuse blown.
• Incorrect cooking element selected.
• No power to cooktop.
19
Cooktop
turns off
while
cooking
• Cooktop internal heat sensor has
detected high temperature inside the
cooktop, activating the automatic shut-off.
• Liquid or object on the controls area.
• Make sure the cooktop
vents are not blocked.
• The cooktop features an
automatic shutoff feature
that turns off the entire
cooktop if any cooking
element has been on
continuously for 2 hours.
• The cooktop control panel
may register liquids or
objects obstructing the
panel, which can cause the
cooktop to shut off. Clean
up spills or remove objects
and restart the unit.
troubleshooting
PROBLEM POSSIBLE CAUSE SOLUTIONS
Power Boost
does not
work
The fans
keep running
after the
cooking
element
has been
switched off.
E0 • IGBT overheating
E1
E2 • Supplied voltage to cooktop is too low
E3 • Supplied voltage to cooktop is too high
E7 • NTC1 Breakoff
E8 • NTC1 Short Circuit
E9 • NTC2 Break off
EE • NTC2 Short Circuit
Noise
• Boost function is not available if the
adjacent burner is in use and the total
power reaches 3700W or 4800W (Right
area and left area)
• The electronics are shutting down and
cooling off.
• No cookware found or improper
placement on the cooking element
• Noises with humming, crackling, and
buzzing
• See POWER SHARING
on page 14
• This is a normal
occurrence.
• Turn off the unit to allow
IGBT to cool. Restart the
unit after a couple of
minutes
• Make sure that the
cookware is centered
on the cooking element,
and that it is also
induction compatible.
See COMPATIBLE
COOKWARE on page
17.
• This may be caused by
reduced voltage supply to
the house circuit. Be sure
that the connections are
correct and the supplied
voltage.
• This may be caused by
increased voltage supply
to the house circuit. Be sure
that the connections are
correct and the supplied
voltage.
• Turn the cooktop off, and
pull the plug out for 30
seconds. After, replug and
turn on the cooktop. If error
still occurs, call for service.
• This is a normal
occurrence. See
COOKWARE NOISES
on page17.
20
installation instructions
IMPORTANT SAFETY INFORMATION
WARNING: Installation and service must be performed by a qualified
WARNING
BEFORE INSTALLING THE COOKTOP
1. Visually inspect the cooktop for damage. Make sure all cooktop screw are on tight.
2. Record the model and serial number as found on the bottom part of your cooktop. When
ordering for parts or making inquiries about your cooktop, be sure to include these
numbers from the serial plate.
3. Cutout dimensions of the countertop.
4. Make sure the wall coverings, countertop, and cabinets around the cooktop can
withstand heat (up to 200˚F) generated by the cooktop.
5. Gently lower the cooktop into the countertop cutout.
6. NOTE: Do not seal the cooktop to the countertop. The cooktop must be removable if
service is necessary. Instead, use foam tape to ensure that the cooktop is secure.
installer or service technician.
WARNING: Always read and obey all safety information, failure to
follow these instructions can be killed or seriously injured.
21
installation instructions
The induction cooktop must connect to a separate, grounded wire, single phase. AC
only electrical supply with their own circuit breaker. These appliances must be installed
in accordance with National Electrical Codes, as well as all state, municipal and local
codes. This appliance must be supplied
with the proper voltage, frequency,
and amperage protected by a properly
sized circuit breaker or time delay fuse.
3-WIRE CABLE FROM HOME
POWER SUPPLY
• IMPORTANT: Use the 3-wire
cable from Home Power Supply where
local codes permit a 3-wire connection
4-WIRE CABLE FROM HOME
POWER SUPPLY
• IMPORTANT: Use the 3-wire
cable from Home Power Supply where
local codes permit a 3-wire connection.
The cooktop conduit wiring is approved
for copper wire connection only, if you
have aluminum house wiring, use only
special connectors which are approved
for joining copper and aluminum
wires conform with local codes and
ordinances. Follow the electrical
connector manufacturer’s recommended
procedure closely.
22
installation instructions
23
COOKTOP DIMENSIONS
A. WIDTH B. DEPTH C. HEIGHT
30” 21 ” 2 ¹/₈”
* DO NOT obstruct these areas
IMPORTANT: For proper ventilation, provide a vent under the countertop, in front of
the cabinet and in the back of the cabinet. The ventilation opening is to extend the full
length of the cooktop cutout.
Junction box approximate location: minimum 4 ¹/₂” below the cooktop.
installation instructions
AFTER INSTALLING THE COOKTOP
1. Remove all the stickers and items from the top of the cooktop surface.
2. Clean cooktop before use. Dry with a soft cloth. See CLEANING YOUR COOKTOP
for reference.
3. Read USING THE COOKTOP
4. Turn on the power to the cooktop.
5. Verify all function operation properly.
NOTE: If the cooktop does not work or you meet any problem in your operation, please
check that the circuit breaker has not tripped or the house has not blown. For more
information, please See TROUBLESHOOTING. If the problem cannot be resolved, call
ZLINE at 1-614-777-5004.
24
Min 19
Max 20
installation instructions
Air exhaust*
Air exhaust*
Junction Box
Vent
7
/
1
8
“
/
“
16
4
Air exhaust*
1
/
“
2
FRONT
7
/
“
Min 35
Max 35
32
7
“
/
16
25
Vent
COOKTOP DIMENSIONS
A. WIDTH B. DEPTH C. HEIGHT
36” 21 ” 2 ¹/₈”
* DO NOT obstruct these areas
IMPORTANT: For proper ventilation, provide a vent under the countertop, in front of
the cabinet and in the back of the cabinet. The ventilation opening is to extend the full
length of the cooktop cutout.
Junction box approximate location: minimum 4 ¹/₂” below the cooktop.
installation instructions
AFTER INSTALLING THE COOKTOP
1. Remove all the stickers and items from the top of the cooktop surface.
2. Clean cooktop before use. Dry with a soft cloth. See CLEANING YOUR COOKTOP
for reference.
3. Read USING THE COOKTOP
4. Turn on the power to the cooktop.
5. Verify all function operation properly.
NOTE: If the cooktop does not work or you meet any problem in your operation, please
check that the circuit breaker has not tripped or the house has not blown. For more
information, please See TROUBLESHOOTING. If the problem cannot be resolved, call
ZLINE at 1-614-777-5004.
26
installation instructions
It is very important to keep
2 distance between the
cooktop and the oven.
Spacer Graphic Profile
Countertop
3
/
4
“
Note: Do not put a
divider between the
oven and cooktop
27
Do not remove spacer
NOTE: The cooktops include spacers on
both sides to ensure proper airflow once
installed. Do not remove the spacers.
Kitchen and Bath
Three Locations:
350 Parr Circle
Reno, NV 89512
916 Delaware Avenue
Marysville, OH 43040
319 Rowland Mill Road
Bruceton, TN 38317
www.zlinekitchen.com
1-614-777-5004
Loading...
