Designer Island Hood Installation
1
Designer Island Hood Installation
*The recommended height to install your hood is 30˝ minimum and 3 6"maximum
above the cooktop.
*For Outdoor (Copper and 304 Series) hood installation, the unit must be installed
at a minimum of 36˝ above the grill.
1
2
Locate the center above the stove where the hood is to be installed. There are 2 brackets,
the Crown Molding Bracket and the Chimney Mounting Bracket. Install the Crown
Molding Bracket directly on the ceiling with the curved sides facing towards the
ground (the crown will slide on at the end). Install the Chimney Mounting Bracket
underneath the Crown Mounting Bracket. Ensure that the brackets will be secured to
solid wood backing so it can hold the load. Attach brackets to the ceiling.
How to measure your chimney: Make note above stove top where the base of the hood
will be after installed (30-36in above stove). From this point, measure to the point
where the Chimney Mountain Bracket rests (this bracket ends 2.5in from the ceiling,
the chimney will terminate here, not flush with the ceiling). If you measure to the
ceiling, subtract 2.5 inches for correct chimney height. Once you have the total height,
subtract the height of the base of the hood to where the chimney begins and you will
have the correct height of the chimney. Cut the chimney to fit.
*Make sure to include 2.5 inches of space above the chimney to the ceiling (the crown
molding will cover this).
2
3

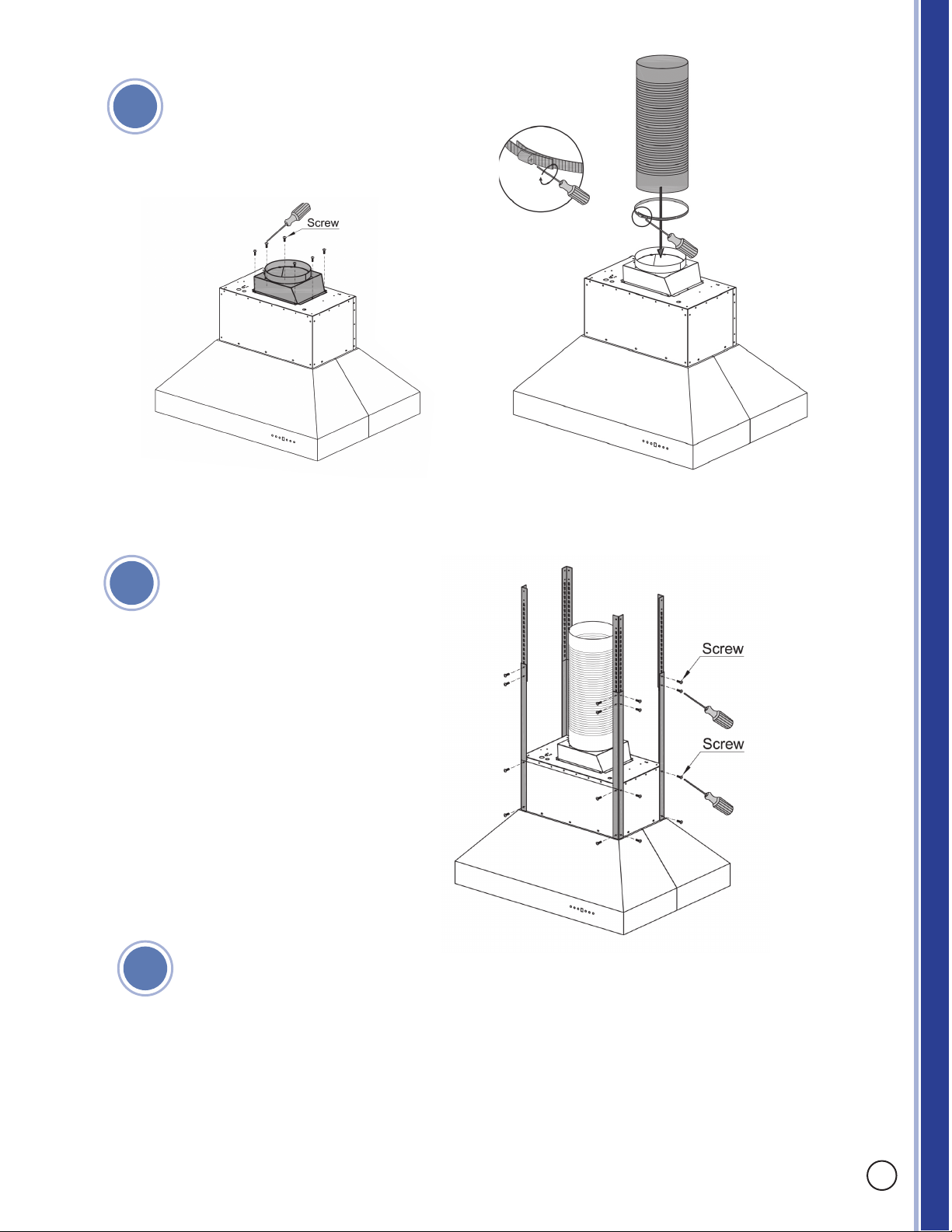

Attach the transition piece
to top of the hood.
, rubber gasket and ducting
Attach the angle iron pieces to the hood.
4
Measure your cut chimney, add 2.5in and
attach the second angle iron to correct height
for mounting.
5
Install the duct work in the center of
the ceiling bracket.
3
Slide chimney over the angle irons
6
and place in position on top of
the
hood. Pull the electrical plug to
the top of the chimney.

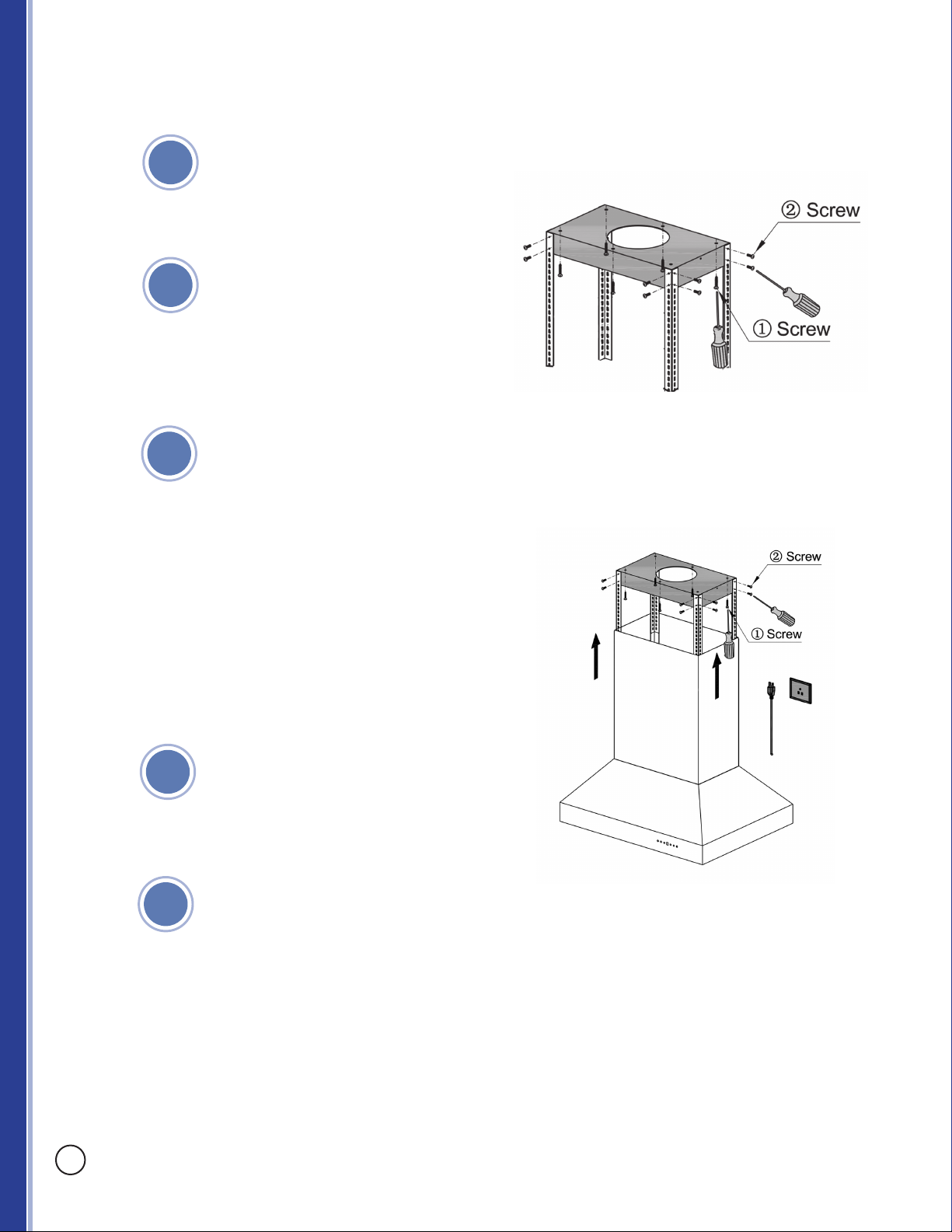

Lift the hood to attach the angle
7
irons to the ceiling bracket. Use
screws pro-vided to attach. Chimney
should be cut 2.5in short to allow
for screwing angle irons into
bracket.
8
9
10
Make your electrical and
ducting connections. Use rigid duct
wherever possible. Try
the use of elbows. More elbows and
longer runs create higher
pressure. The hood comes with a
grounded three prong plug that can
either be directly wired or plugged
into a 20 amp circuit.
Slide crown molding over the
crown molding bracket on the
ceiling.
Remove plastic wrap from all sides
and install stainless steel baffle
filters.
Before installing bae lters, make sure that you
insert the grease cup under the motor blower.
and minimize
static
4
