Before Installation
Lock Diagram
A
B
D
N
O
P
F
E
G
C
I
J
L
M
H
K
1
R
Q
Page 3
Packing List
A N
H J L M C
T
S
O
F E
B
G I D
2
Page 4
Door Preparation
1. Check door thickness; prepare proper screws and spindles.
Door Thickness D Spindles G Spindle I Screws
40 - 50 mm 30 mm 75 mm 25 mm
Note: I f th e door is thicker tha n 40 -50 mm,this lock sha ll not be applicabl e.
2. Check the door ’s open direction.
H
Lef t inward R ight in ward
H
Lef t outwa rd Righ t outwa rd
Note: Please insta ll the mor ti se (H) and strike plate (M) a cc ording to t he a bove
3
Sta ndpoi nt
H
H
Page 5
Cautions
1. New lock is defined as always open mode until it is locked once by mifare card.
2. Please swipe authorised card, time sync card, room card at first for the new lock .
3. The lock is equipped with mechanical keys for manual unlock ing. Remove the
mechanical keys from the pack age and keep them in a safe place.
4. To power on the lock, four alkaline AA batteries (not included) are required.
Non-alkaline and rechargeable batteries ARE NOT RECOMMENDED.
5. Do not remove batteries when the lock is in working state.
6. When batter y power is low, the lock will beep to remind user to renew the batteries.
Please do not mix up positive and negative while replacing battery.
7. Avoid contacting with corrosive substances, and do not hang objec ts on the handle.
8. The software within the lock manages the RFID cards, for more details refer to the
soft ware user manual.
9. If there are any questions, please do not hesitate to contact the seller.
4
Page 6
Installation
1. Drill holes on the door
ness
thick
door
40~50 mm
center lin e of
the h andle
e
dl
an
d h
re
i
s
e
d
t
h
g
i
e
h
backset
62.5 mm
Note 1: Align the te mplate along the vertical
cente r line of the mortise (H) at the desi red
handl e he ight, and tape it to door.
Note 2: M ar k the holes first, th en s tart drill in g.
2. Remove the mortise latch plate (J )
H
J
5
K
Page 7

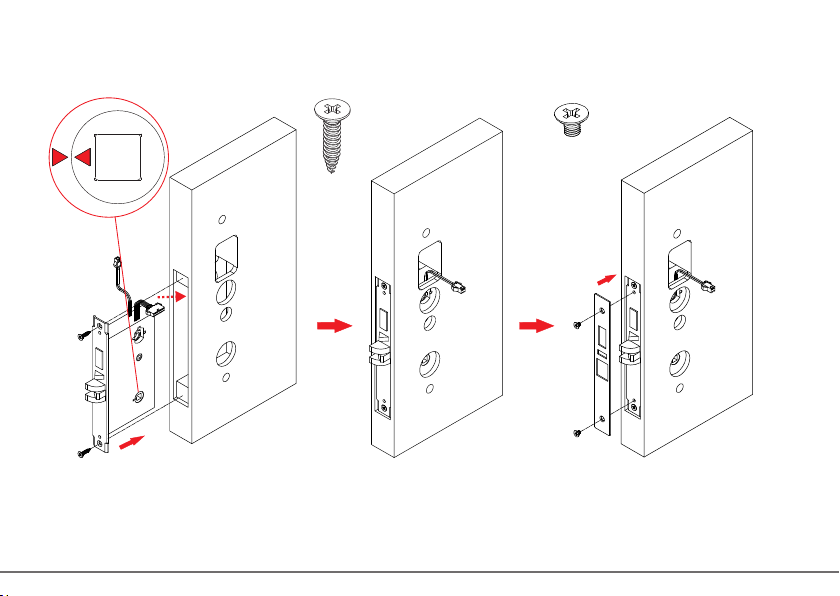

3. Install mortise (H)
I
I
K
K
J
H
6
Page 8

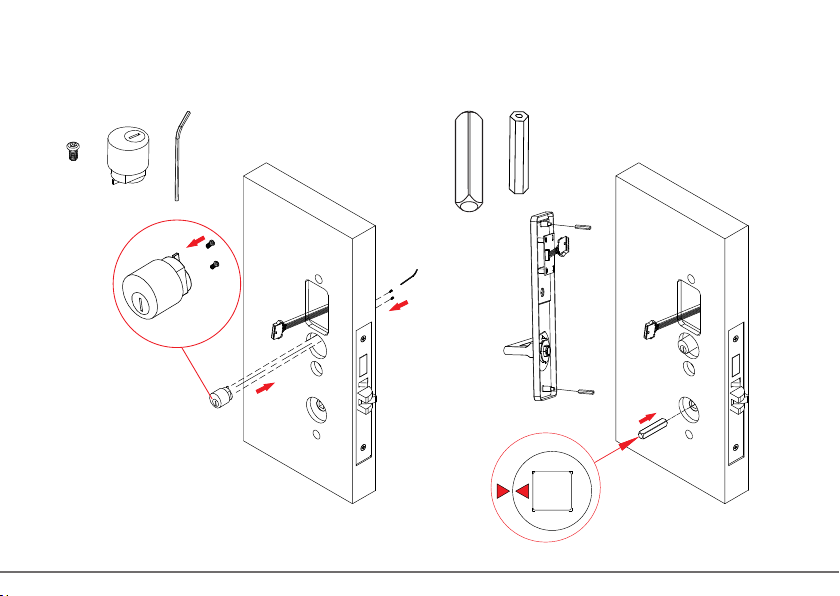

4. Install lock cylinder (C)
5. Install spindle (D) and stud (B)
E
F
C
D
B
B
A
F
E
E
C
C
D
Note: Ensure the t wo triangle s are in horizont al alignment.
7
Page 9

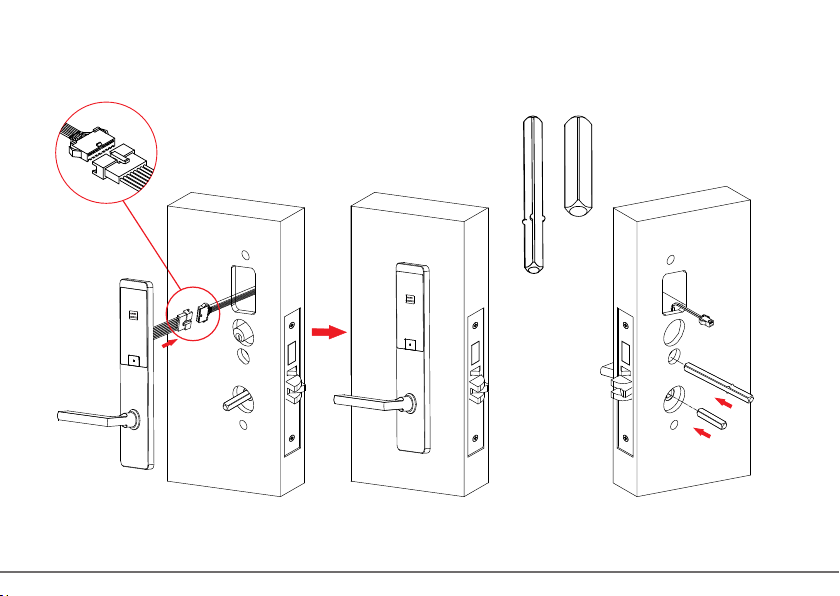

6. Install outdoor unit (A)
A
7. Install spindle (G) and (D)
G
D
G
D
8
Page 10

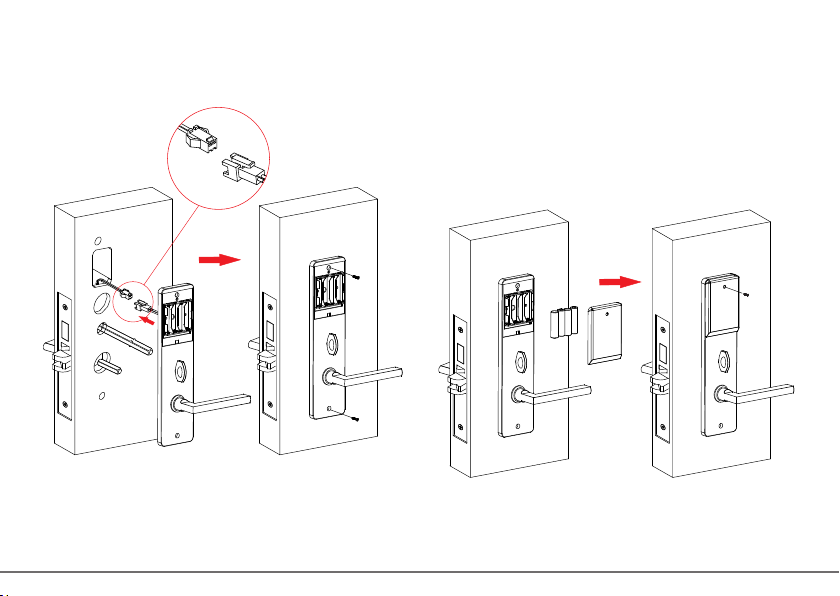

8. Install indoor unit (N)
N
O
9. Install the battery (P) and
battery cover (Q)
P
Q
9
R
Page 11
10. Mark and drill holes for strike
25 mm
I
22 mm
3 mm
125 mm
89 mm
M
L
I
10
Page 12

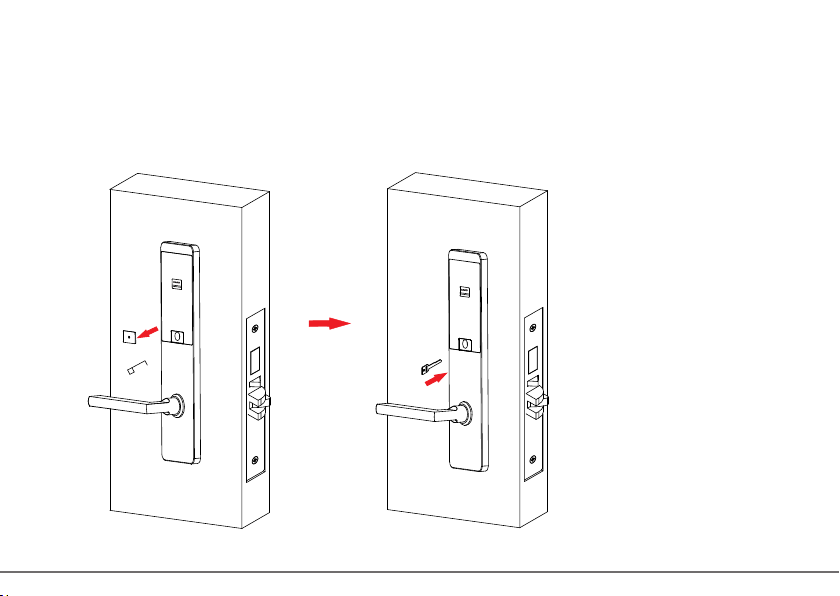

11. Test Lock by mechanical key (S)
Step1: Remove the cover on the key hole with a hook (T ).
Step2: Insert mechanical key (S) into the key hole and rotate it at 90°.
T
S
11
Page 13
