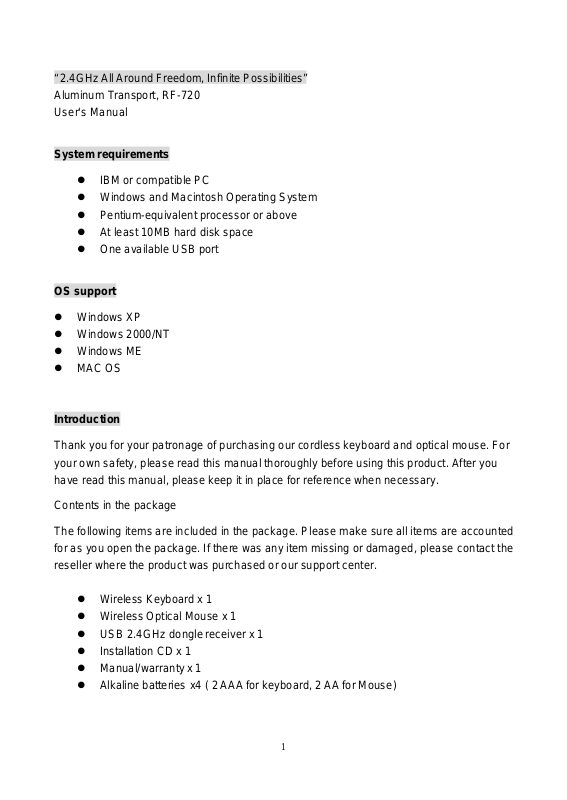

“2.4GHz All Around Freedom, Infinite Possibilities”
Aluminum Transport , RF-720
User's Manual

System requirements

l IBM or compatible PC
l Windows and Macintosh Operating System
l Pentium-equivalent processor or above
l At least 10MB hard disk space
l One available USB port

OS support

l Windows XP
l Windows 2000/NT
l Windows ME
l MAC OS

Introduction

Thank you for your patronage of purchasing our cordless keyboard and optical mouse. For
your own safety, please read this manual thoroughly before using this product. After you
have read this manual, please keep it in place for reference when necessary.

Contents in the package
The following items are included in the package. Please make sure all items are accounted

for as you open the package. If there was any item missing or damaged, please contact the
reseller where the product was purchased or our support center.

l Wireless Keyboard x 1
l Wireless Optical Mouse x 1
l USB 2.4GHz dongle receiver x 1
l Installation CD x 1
l Manual/warranty x 1
l Alkaline batteries x4 ( 2 AAA for keyboard, 2 AA for Mouse)

1

Warning

Zippy Technology Corporation and its respective distributors and resellers are not
responsible for any malfunction, damage or personal injury incurred by:

Any malfunction, damage or personal injury caused by the malfunctioning or damage of the
user’s personal computer or misuse of this product.

Any attempt to dismantle, change or modify this product in any manner.

Warning
Please do not use this product in ashy, wet, or oily environments. Failure to do so may
shorten the life of th is product and may cause bodily harm.
Please keep this product as far away from Radio Frequency interruption areas as possible.
This is not an outdoor product. Exposing this product to the elements may cause damages
to the product and bodily harm to its users.
Please do not use petroleum, benzene or thinner-based solution to clean this product.

Warranty Information

This product is backed by a One-Year Manufacturer’s Warranty, starting from the date of
purchase. The warranty covers for free repair in accordance with the contents stated herein
but does not cover wear and tear and any malfunction or damages as results of improper
usage as stated in this manual.

2

Specifications

l Keyboard

■ Dimensions: 410 x 167x 22.5 mm

■ Weight:600+/ - 20g (with Battery)

■ Key Number: 104 Keys(By language)

■ Battery: 2 x AAA batteries

■ Battery Life: 3 Month (Base on average usage)

■ Channel: 78 Channels automatically switch.

■ ID: unique ID for each keyboard

■ Radio Frequency: 2.4 GHz

■ Hot Keys : None

l Mouse

■ Dimensions: 102 x 57 x 41mm

■ Weight: 108 +/- 20g (with Battery)(重量請實測)

■ Key Number: 3 Keys (Wheel button on middle button)

■ Battery: 2 x AA batteries

■ Battery Life: 3 Month (Base on average usage)

■ Channel: 78 Channels

■ ID: Unique ID for mouse

■ Radio Frequency: 2.4 GHz

l Dongle Receiver

■ Dimensions: 71x 24 x 13 mm

■ Weight: 15+/-3g (重量請實測)

■ Interface: USB 1.1

Attention

The mouse’s optical sensor may not work on bumpy, reflective and/or translucent materials;
such as glass, polished table top and/or cloth. We recommend using a mouse pad for
improved accuracy.

Installation Procedure

Before installing this product please make sure you have one available USB port reserved
for the dongle receiver. If your computer did not have an available USB port, you may
purchase one of Zippy’s 10-Key keypad with USB Expansion ports or equivalent USB hub.
A. Setting up the Dongle Receiver

1. Plug the dongle receiver (FIG. 1) into an available USB port
