ZIPPY TECHNOLOGY CORPORATION
1
February 7, 2012
English Version 01
BW7050 User’s Manual
Thank you for your purchase of our BW7050 Keybo ard. For your own safety
and convenience, please read this manual thoroughly before using this
product. After you have read this manual, please keep it in a place for
reference when necessary.
Contents in the package
These following items are included in the package. Please make sure all items
are complete when open the package at first time. If there is any item missing
or damaged, please contact the reseller where the product was purchased or
our support center.
BW7050 Keyboard x 1
Manual x 1
USB cable x 1
Attention
ZIPPY TECHNOLOGY CORPORATION and its respective distributors and
resellers are not responsible for any malfunction, damage or personal injury
incurs which are caused by:
Any malfunction, damage or personal injury caused by the malfunctioning or
damage of the user’s personal computer or misuse of this product. Any
attempt to dismantle, change or modify this product in any manner.
Warning
Please do not use this product in ashy, wet, or oily environment(s). Failure to
do so may shorten the life of this product and may cause bodily harm.
Please keep this product away from radio frequency interruption area(s).
This is not an outdoor product. This product is not for outdoor use. Exposing
the product outdoors may cause damage to it.
ZIPPY TECHNOLOGY CORPORATION
2
(iPhone, iPod,iPad……etc.)
Apple iOS
February 7, 2012
English Version 01
Please do not use alcohol, petroleum, benzene or thinner-based solutions to
clean this product. We recommend wiping this product with a damp cloth.
Warranty Information
This product is backed by a One-Year Manufacturer’s Warranty, starting from
the date of purchase. The warranty covers for free repair in accordance with
the contents stated herein but does not cover wear and tear and any
malfunction or damages as results of improper usage as stated in this manual.
Product Appearance
Function-keys for Apple iOS
Hotkeys for iOS & Windows
ZIPPY TECHNOLOGY CORPORATION
3
Hotkeys
PC & Apple iOS
Compatible
Windows XP / Vista /win7 x86 x64 / Android 3.0 later / Apple iOS /OSX
Interface
USB / Bluetooth3.0
Accessories
User Manual
Safety
CE, FCC
Dimensions
450 x165 x20mm
Weight
1200g
No. of Keys
US/UK 108 Keys (including
No. of Hotkeys
4 keys
Battery
AA 2PCS
Available Layout
World Wide
Electrical Specs
Working Voltage 5.0+/
Current Consumption 100mA max
Power Consumption 0.5 Watts max
N Key Roll Over
YES
February 7, 2012
English Version 01
Product Features
Cherry MX series mechanical switch, more than 50mi llion strike lifecycle.
Classic graceful appearance with full QWERTY key layout in full-size 18.5” form
factor.
Blue illuminate back light. (only WASD&↑↓←→)
Graceful hidden indicator light. (Num, Scrol l lock, Caps lock)
4 multimedia keys: calculator, Vol+, Vol-, m ute.
Separable USB cable(1.5m).
Enhanced USB wire and Bluetooth3.0 multi-pair technology – can be switched
between 1 USB wired machine and 5 Bluetooth wirel ess devices.
Compatible with Apple iPod, iPad, iPhone, and google Android 3.0 system devices.
Specific iOS (iPAD, iPhone…..etc.) function keys provide quick ly access to a variety
of iOS features — the Home screen, Spotlight search, display brightness, picture
frame mode, the onscreen keyboard, and screen lock.
Product Specification
Function Keys,Media Keys)
-0.5 Vdc
4

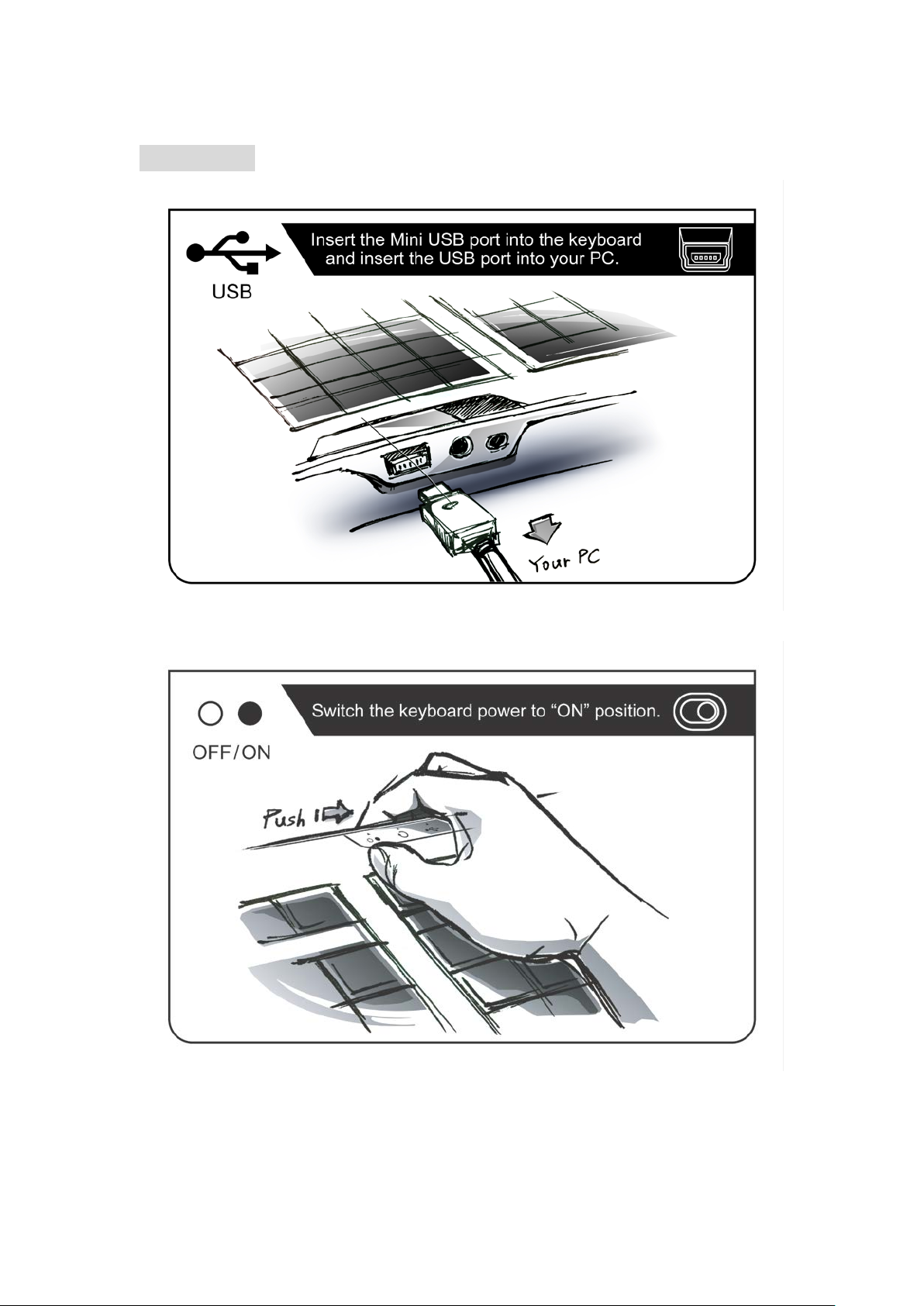

Installation
ZIPPY TECHNOLOGY CORPORATION
February 7, 2012
English Version 01
ZIPPY TECHNOLOGY CORPORATION
5
February 7, 2012
English Version 01
ZIPPY TECHNOLOGY CORPORATION
6
February 7, 2012
English Version 01
7

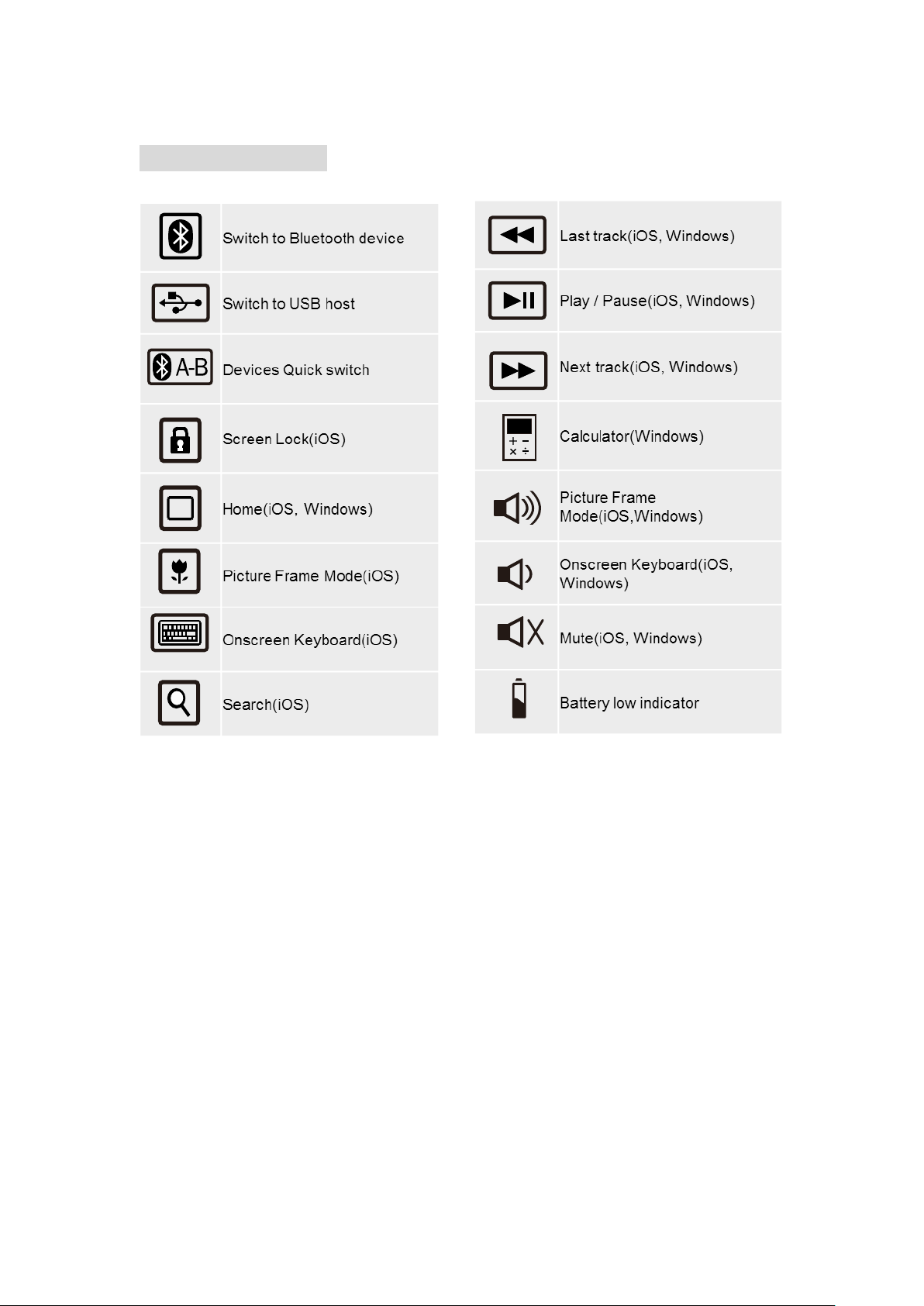

Hot Key Functions
ZIPPY TECHNOLOGY CORPORATION
February 7, 2012
English Version 01
ZIPPY TECHNOLOGY CORPORATION
8
February 7, 2012
English Version 01
FCC Statement on CLASS B
Deral Communication Commission interference state-ment :
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Caution
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference and
(2) this device must accept any interference received, including interference
that may cause undesired operation
RF exposure warning: The equipment complies with RF exposure limits set
forth for an uncontrolled
environment. The antenna(s) used for this transmitter must not be co-located
or operating in conjunction
with any other antenna or transmitter.
You are cautioned that changes or modifications not expressly approved by
the party responsible for compliance could void
your authority to operate the equipment.
