Zippy RF-620 User Manual

1

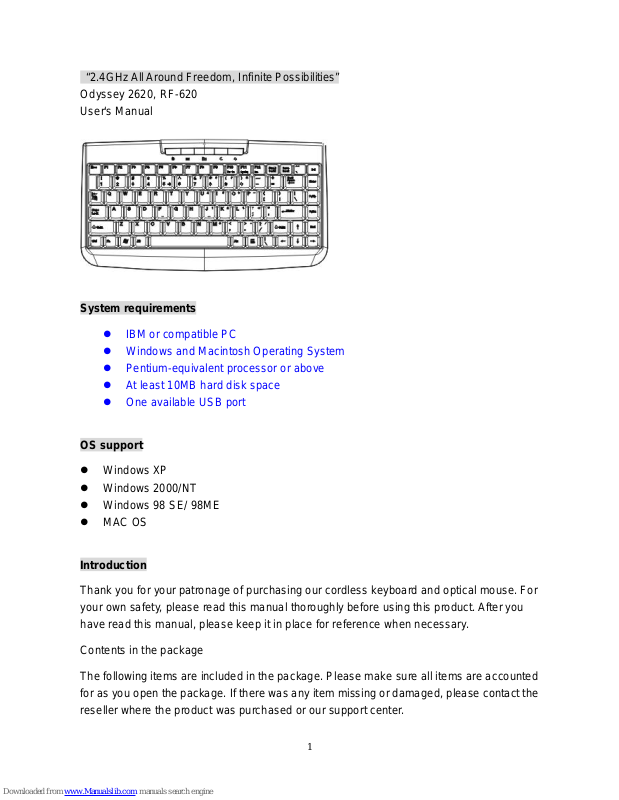

“2.4GHz All Around Freedom, Infinite Possibilities”
Odyssey 2620, RF-620
User's Manual

System requirements

 IBM or compatible PC
 Windows and Macintosh Operating System
 Pentium-equivalent processor or above
 At least 10MB hard disk space
 One available USB port

OS support

 Windows XP
 Windows 2000/NT
 Windows 98 SE/ 98ME
 MAC OS

Introduction

Thank you for your patronage of purchasing our cordless keyboard and optical mouse. For
your own safety, please read this manual thoroughly before using this product. After you
have read this manual, please keep it in place for reference when necessary.

Contents in the package
The following items are included in the package. Please make sure all items are accounted

for as you open the package. If there w as an y item missing or damag ed, please contact t he
reseller where the product was purchased or our support center.

2

 Wireless Keyboard x 1
 Wireless Optical Mouse x 1
 USB 2.4GHz dongle receiver x 1
 Manual/warranty x 1
 Optical Mouse Charger x 1 / (110V, 220V, optional)
 Rechargeable batteries x 2 (AAA, for mouse)
 Alkaline batteries x 2 (AAA, for keyboard)

Warning

Zippy Technology Corporation and its respective distributors and resellers are not
responsible for any malfunction, damage or personal injury incurred by:

Any malfunction, dama g e or per so nal i nj ury caused by the malfunctioning or damage o f th e
user’s personal computer or misuse of this product.

Any attempt to dismantle, change or modify this product in any manner.

Warning
Please do not use this product in ashy, wet, or oily environments. Failure to do so may
shorten the life of this product and may cause bodily harm.
Please keep this product as far away from Radio Frequency inter r upti on areas as possi bl e.
This is not an outdoor product. Exposing this product to the elements may cause damages
to the product and bodily harm to its users.
Please do not use petroleum, benzene or thinner-based solution to clean this product.

Warranty Information

This product is backed by a One-Year Manufacturer’s Warranty, starting from the date of
purchase. The war r anty covers for free repair in accordance with the contents stated her ei n
but does not cover wear and tear and any malfunction or damages as results of improper
usage as stated in this manual.
Specifications

 Keyboard

■ Dimensions: 303 x 163 x 22 mm

■ Weight: 325 +/- 20g (with Battery)

■ Key Number: 85 Keys

3

■ Battery: 2 x AAA batteries

■ Battery Life: 3 Month (Normally Average)

■ Channel: 16 Channels

■ ID: 65535 sets

■ Radio Frequency: 2.4 GHz

■ Hot Keys :WWW, E-Mail, My Favorite, Sleep, Power

Mouse

■ Dimensions: 98 x 56 x 35.8 mm

■ Weight: 90 +/- 20g (with Battery)

■ Key Number: 3 Keys (Wheel button on middle button)

■ Battery: 2 x AAA batteries (Rechargeable; please do not charge

non-rechargeable dry-cell or alkaline batteries)

■ Battery Life: 1 Month (Normally Average)

■ Channel: 16 Channels

■ ID: 65535 sets

■ Radio Frequency: 2.4 GHz

 Dongle Receiver

■ Dimensions: 102 x 75 x 29 mm

■ Weight: 14+/- 20g

■ Interface: USB 1.1

Attention

The mouse’s opti cal s ensor may not w ork on bum py, reflective and/or transluce nt ma terial s;
such as glass, polished table top and/or cloth. We recommend using a mouse pad for
improved accuracy.

Installation Procedure

Before installing this product please make sure you have one available USB port reserved
for the dongle receiver. If your computer did not have an available USB port, you may
purchase one of Zippy’s 10-Key keypad with USB Expansion ports or equivalent USB hub.

A. Setting up the Dongle Receiver

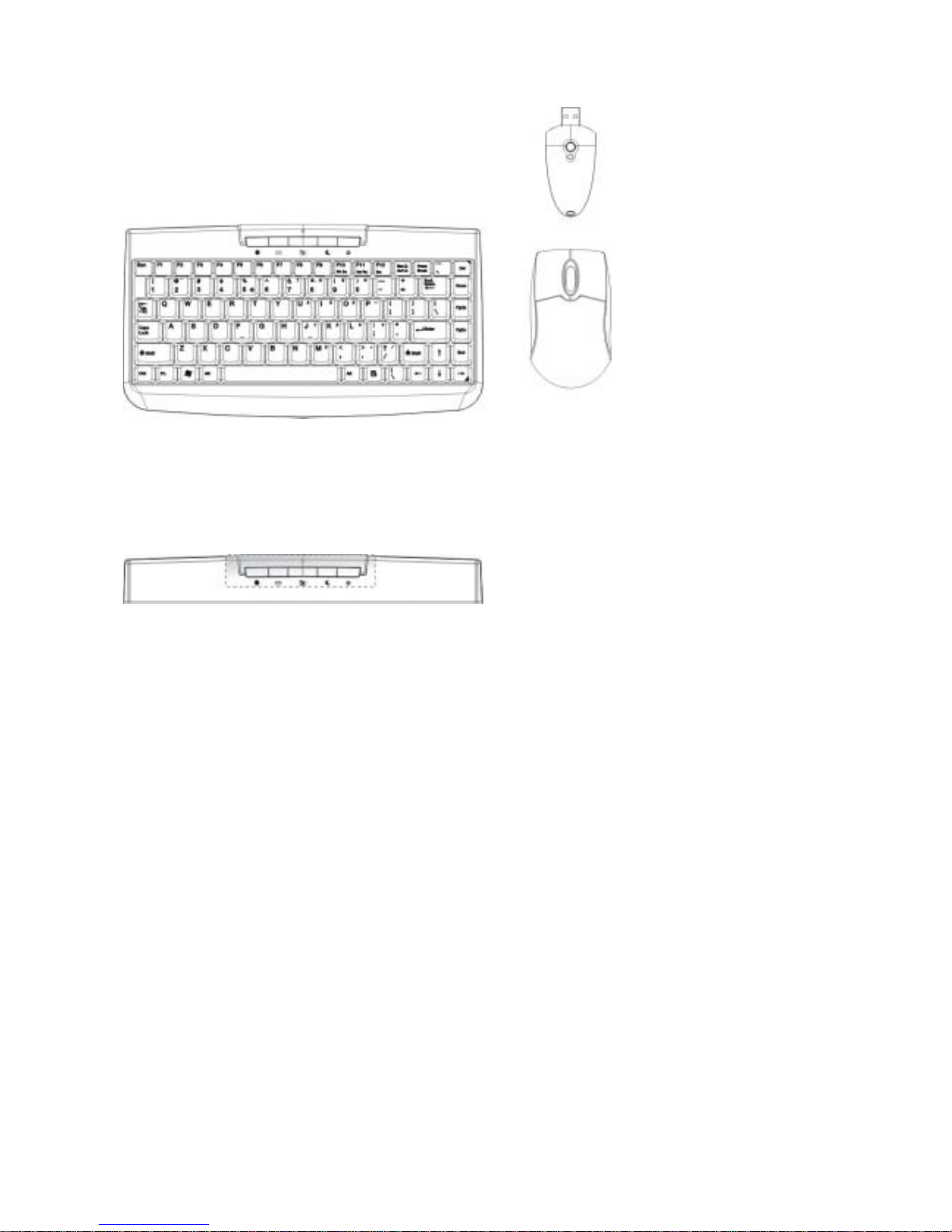

1. Plug the dongle receiver (FIG. 1) into an available USB port

2. Wait for Windows to install drivers for the dongle receiver, keyboard and mouse

3. When the dongle receiver has been properly initialized, its LED light will stay alit.
