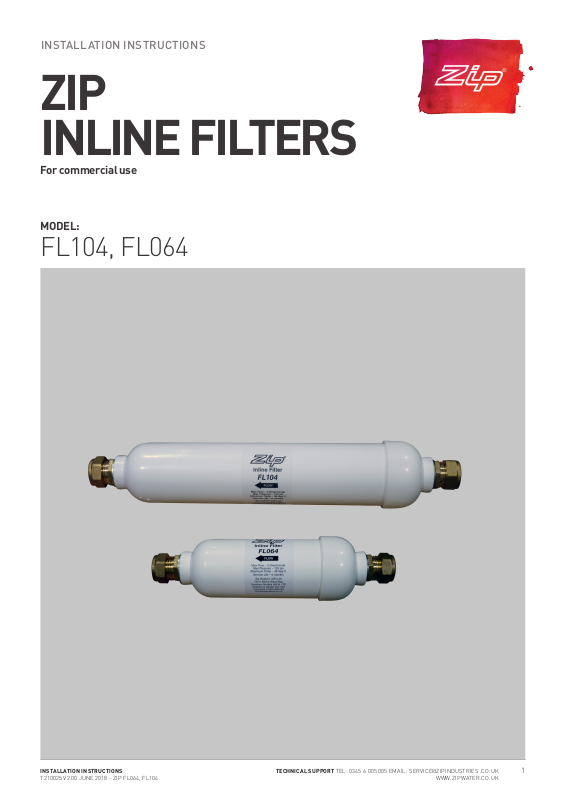

INSTALLATION INSTRUCTIONS
ZIP
INLINE FILTERS
For commercial use
MODEL:
FL104, FL064
INSTALLATION INSTRUCTIONS
T210025 V2.00 JUNE 2018 - ZIP FL064, FL104
TECHNICAL SUPPORT TEL: 0345 6 005 005 EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK
WWW.ZIPWATER.CO.UK
1
INSTALLATION INSTRUCTIONS
!
Safety information
WARNINGS
!
• This product must be installed in accordance with local regulations and these installation instructions.
• Installation, commissioning and maintenance must only be carried out by a competent installer who will then be
responsible for adhering to all relevant standards and regulations.
• An approved check valve or other (no less effective) back ow device must be tted between the supply and lter.
• The filter must not be modified in any way.
• In case of leaks isolate the water supply. Repairs must only be carried out by Zip or an authorised Zip service engineer.
• Incoming water temperature must not exceed 23°C.
• Only to be used with a Wholesome (cat 1) water supply.
• If the lter interferes with any earth bonding then a bonding strap should be tted according to current IEE regulations.
CAUTIONS
!
• Optimum operation is ensured at a water flow pressure of 0.5-8.6 bar. Do not subject the filter to water hammer or
excessive pressure.
• The filter must only be used when correctly installed and in perfect working order.
• Flush the water supply pipes thoroughly prior to installation.
• Zip cannot be held liable for any damages caused by failure to observe these instructions.
• Filter performance is dependent upon age and site water conditions.
Description
• A range of in-line lters, containing granular activated carbon and scale inhibitor.
Technical specications
• The filters are designed to reduce tastes and odours (including chlorine / chlorine by-products), THM’s, PAH’s,
pesticides such as Simazine, Atrazine, Lindane, Dieldrin and inhibit the precipitation of scale deposits.
• WRAS approved.
• Flow rate 2 - 3l / min.
• Temp. range 1 – 23oC.
• Water flow pressure of 0.5-8.6 bar.
• Capacity FL064 3000l nominal, FL104 6000l nominal.
• 15mm compression ttings.
Construction
• Filter casing polypropylene.
• Internal grilles polypropylene.
• Reticulated foam polyurethane.
• Particulate filters polyester.
• Media infill granular activated carbon / polyphosphate.
2
INSTALLATION INSTRUCTIONS
T210025 V2.00 JUNE 2018 - ZIP FL064, FL104
TECHNICAL SUPPORT TEL: 0345 6 005 005 EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK
WWW.ZIPWATER.CO.UK
INSTALLATION INSTRUCTIONS
FL064
165mm
Existing Pipework
Remove 165mm of existing pipework to feed in lter
Dimensions
FL064 215mm x Ø50mm (max).
FL104 315mm x Ø50mm (max).
Preparation (if tting to existing pipework)
Existing Pipework
275mm
Installation
FL104
Remove 275mm of existing pipework to feed in lter
165mm
Existing Pipework
FL064
Remove 165mm of existing pipework to feed in lter
ø54
ø54
• Fit the lter in the incoming mains cold water supply line to the appliance.
• Turn off the incoming cold mains water supply.
• Note the ow direction on the lter (marked with an arrow).
• Connect supply line to the inlet side of the lter.
• Tighten rmly, using two spanners (do not over tighten).
• Turn on the water supply.
• Flush 18 litres of water through the lter (use a length of hose on the outlet of lter and drain to waste).
• Turn off water supply.
• Connect lter outlet.
• Tighten rmly using two spanners.
• Turn on water supply.
• Check for leaks and tighten ttings if leaks occur.
INSTALLATION INSTRUCTIONS
T210025 V2.00 JUNE 2018 - ZIP FL064, FL104
TECHNICAL SUPPORT TEL: 0345 6 005 005 EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK
WWW.ZIPWATER.CO.UK
3
4
INSTALLATION INSTRUCTIONS
T210025 V2.00 JUNE 2018 - ZIP FL064, FL104
Zip Water UK
14 Bertie Ward Way, Dereham, Norfolk NR19 1TE
0345 6 005 005 sales@zipindustries.co.uk
www.zipwater.co.uk
