Zip Heaters DOMBC1A Install & Operating Instructions

Installation and Operating Instructions

®

Zip HydroTap All-In-One

Filtered Boiling and Chilled water plus Hot and Cold water for the kitchen

This Installation Instruction covers the following Residential HydroTap models:

Affix Model Number Label Here

89944UK

HydroTap Installation and Operating Instructions - 89944UK - August 2011 v1.04 Page 1 of 20

This page intentionally left blank

Page 2 of 20 HydroTap Installation and Operating Instructions - 89944UK - August 2011 v1.04

Check List

Installation Checklist:

A. Read the instructions.

B. Note: Not all fittings are supplied with the appliance kit. Isolation valves are not supplied.

C. Check the water pressure to determine if you require a pressure reduction valve or a flow
restrictor added or removed from the kit.

D. Check the water quality to determine if extra filtration will be required.

E. Check the appliance rating plate and ensure correct power is available for the appliance.

F. Check the underbench cupboard supporting the appliance is adequate for
the total weight of the appliance, when full of water.

Before Commissioning:

1. Check the unit has been secured correctly.

2. Flush the supply line before connecting.

3. Check all plumbing fittings have been tightened.

4. Ensure the outlet and vent pipes are positioned to drain correctly.

5. For undersink units ensure there is adequate ventilation.

6. Check all tubes from the undersink unit to the tap, have a constant rise and there are no ‘S’
traps or kinks in the hoses.

7. Check all electrical connections are correct and there are no loose wires.

Commission:

8. Turn on the water and check for leaks.

9. Flush the tap for 3 - 5 minutes.

10. Turn on the power.

11. Allow sufficient time for the unit to heat up, before using.

HydroTap Installation and Operating Instructions - 89944UK - August 2011 v1.04 Page 3 of 20

Contents

Check List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Read These Warnings First . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 6

Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Models Covered by These Instructions. . . . . . . . . . . . . . . . . . 7

Special Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Installation Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 12

Operating the Mixer Tap . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

External Filter Replacement . . . . . . . . . . . . . . . . . . . . . . . . . .13

Mains version connections (diagrams) . . . . . . . . . . . . . . . . .14 - 15

Internal Filter Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Operating the HydroTap . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Setting the Energy Saver Timer . . . . . . . . . . . . . . . . . . . . . . . 18 - 19

Child Safety Lock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Boiling Water Isolation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Setting Boiling and Chilled dispensing Times. . . . . . . . . . . . . 20

Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

End of Life Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

NOTE:

Read all instructions and precautions before proceeding. If in doubt, or need
further guidance, please call Zip on 0845 602 4533.

Please leave these instructions with the end user after installation

This unit must be installed in accordance with water supply byelaws, current
IEE regulations and relevant local authority byelaws.

Page 4 of 20 HydroTap Installation and Operating Instructions - 89944UK - August 2011 v1.04

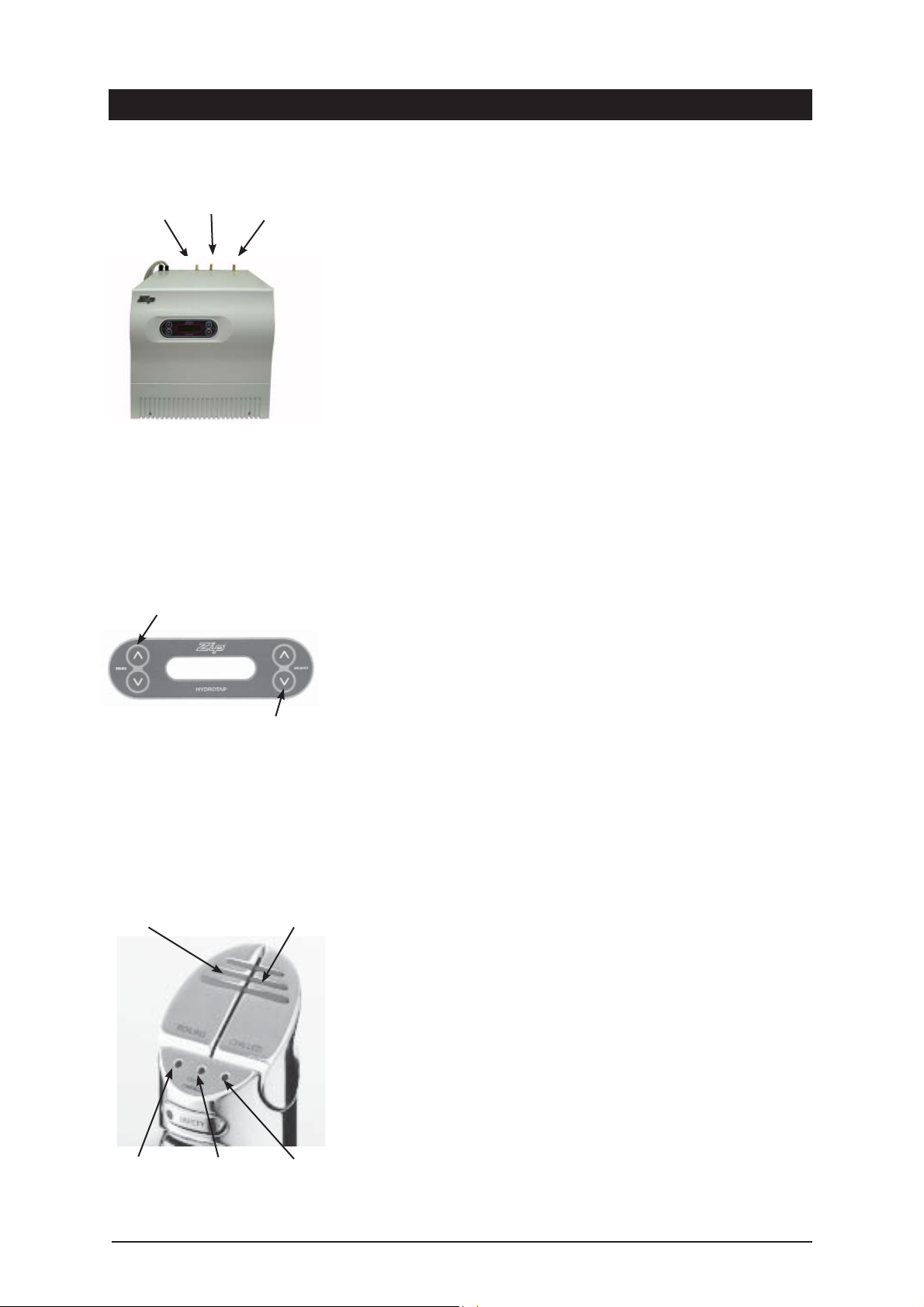

Product Description

Hydrotap All-In-One series are able to supply Boiling and Chilled water as well
as Hot and Cold water, all from the same tap.

The ‘A’ series have their Boiling / Chilled outlets connected to the undersink
(open vented) unit and their Hot and Cold mixer outlets are connected to
external (Mains) Hot water and Cold water supplies.

The estimated temperature ranges will be:

Boiling water: 68°C - 98°C

Mixed water: From ambient up to approximately 50°C

Cold water: Ambient.

Chilled water: 7°C - 11°C factory setting

Read These Warnings First

Safety

This appliance is not intended for use by persons (Including Children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.

The power point must be located within
reach of its cable (length 3m). The
appliance must be positioned so that the
power point is accessible.

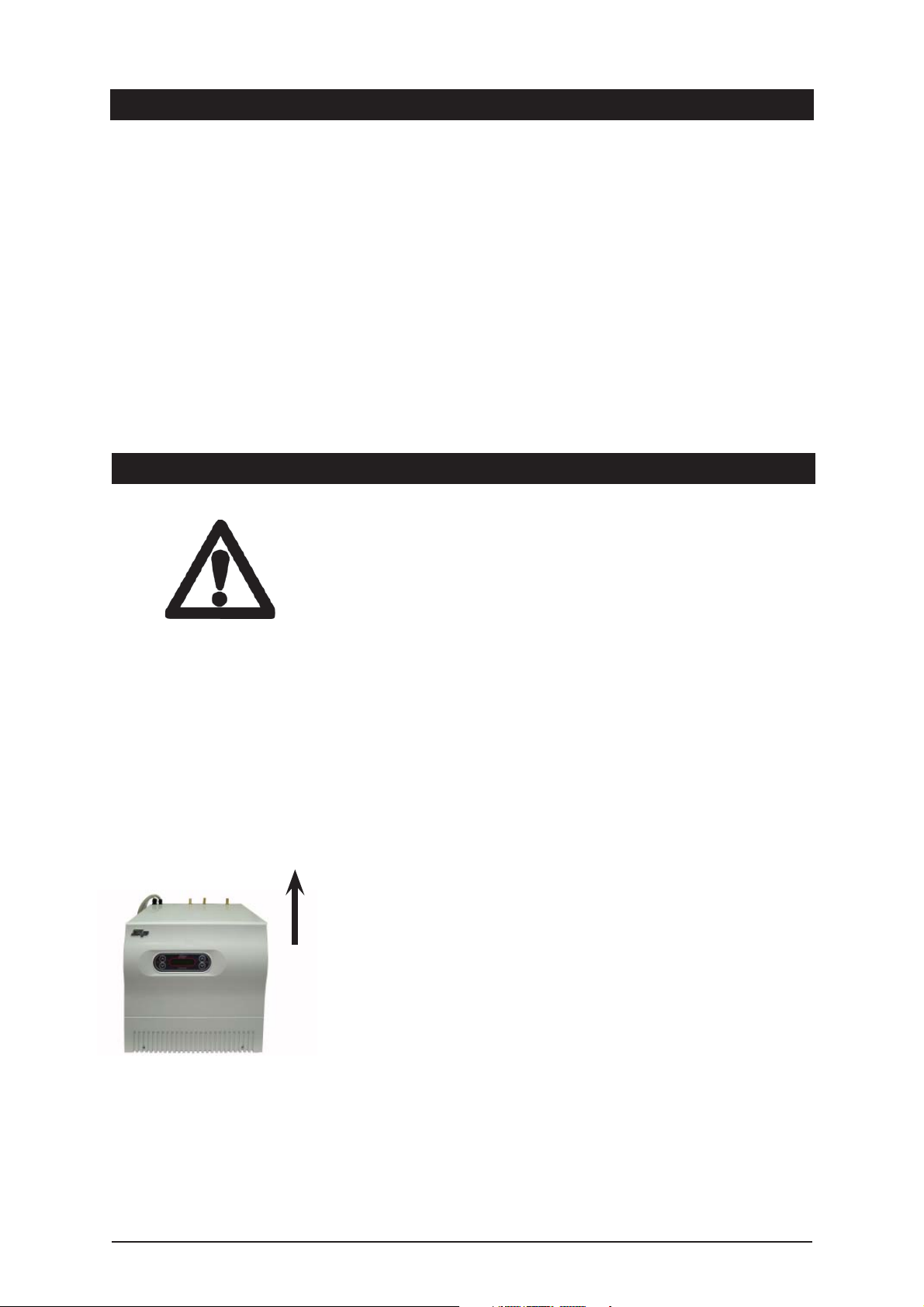

This way up

Typical Zip Hydrotap undersink assembly.

NOTE: All appliances must be placed on a

horizontal surface in an upright position, as

shown above.

Children should be supervised to ensure they do not play with the appliance

Refrigerant

The HydroTap Chilling unit contains 134A refrigerant under pressure. No
part of the unit should be exposed to a naked flame. Maintenance of the
refrigeration unit must be carried out by an accredited service provider or
qualified refrigeration mechanic.

Qualifications

If the power cable is damaged it must be repaired only by a qualified
technician. To avoid hazards, all installation procedures must be carried out by
a suitably qualified tradesperson. The power cable and power outlet must be
in a safe visible position for connection.

Venting

Sometimes steam and / or boiling water may discharge through a vent outlet
at the mouth of the tap. Ensure the tap body is located so the tap outlet safely
drains into the sink bowl area.

NOTE: On startup, the controls take the system through a calibration process
which causes the unit to over-boil for a period of 90 secs. Once this mode is
completed the system reverts back to normal operation.

Lifting

Take care when lifting the HydroTap undersink unit. Some units may
exceed safe lifting limits. If you feel this is beyond your personal capabilities,
please seek assistance with the lift. The weights of the units are marked
on the packaging and given in the table under the heading “Installation
Requirements”. Do not lift the unit by the doors.

Airflow

The ambient temperatures this unit should operate within are 5ºC - 35ºC.
Proper air circulation must be provided. The system will operate satisfactorily

HydroTap Installation and Operating Instructions - 89944UK - August 2011 v1.04 Page 5 of 20

Note:

Always ensure the tubes are
shortened so that any excess is
removed and their route is the
most direct line between the tap
assembly and the HydroTap unit.

Do not allow the tubes to sag or
droop so water is trapped within
the hoses. Always maintain a
constant fall

Positioning of the tap assembly
must be within the following
parameters:

The height between the base of
the Hydrotap unit and the base
of the Tap assembly cannot be
greater than 900mm.

Read These Warnings First (continued)

only if the recommended air gaps are provided, these are 65mm min rear
clearance and 50mm side clearance. Make sure that the ventilation grilles of the
undersink unit are not obstructed.
backed silicon buffers. If air vents are not installed in the cupboards housing the
HydroTap, the buffers must be placed on the inside edge of the cupboard door
to create a slight gap ensuring a minimum airflow. Failure to do this may cause
the HydroTap to overheat and operate inefficiently.

Minimum Pressure warning:

All A models requre a minimum cold and hot water supply pressure of 0.7 bar
(70kpa) and a maximum working pressure of 7 bar (700 kPa).

Filter Control

The HydroTap filter control is preset to 6000 Litres to provide trouble-free flow
and operation in most installations. Local water quality conditions may require
an alteration to this capacity. In areas where the water has a high concentration
of sediment, the preset litre capacity may be shortened to avoid poor flow,
taste or odour situations. In areas where the water quality is above average,
lengthening the preset capacity may be desirable, but not essential. If any of
these changesis are needed, follow the instructions on page 18 or contact your
Service Provider.

Frost Protection

If this appliance is located where the ambient air temperature could fall below
5ºC when the heater is not in use, do not turn off the appliance electrically. This
safeguard does not offer the same protection to the connecting pipework and
fittings.

Included in the installation pack are adhesive

Altitude

The HydroTap is equipped with a self-calibrating program which caters for
altitude adjustment.

Installation Environment Considerations

This unit is intended for indoor use only and should never be installed outdoors
or exposed to the elements of nature. This unit must not be positioned in an
area that may be cleaned by a water jet. This unit must not be cleaned by a
water jet.

NOTE:

HydroTaps are designed to operate within 1ºC to 2ºC of boiling point and at 7ºC
to 14ºC for chilled drinking water.

Page 6 of 20 HydroTap Installation and Operating Instructions - 89944UK - August 2011 v1.04

Installation Requirements

Before installing ensure that the following have been provided at the
installation site:

• Sufficient space in the cupboard to install the undersink unit in accordance
with these Installation Instructions. A table of dimensions is given below.

NOTE: Add 65mm to the Depth of the undersink unit to allow for Water

and Electrical connections and ventilation.

• A water supply connection with isolating valve inside the cupboard within
reach of the 750 mm flexible connection and positioned so that the
connection point and the isolating valve will not be obstructed when the
undersink unit is installed.

• Power supply of 220-240 Volt AC, for connection to the units via a 13 amp
fused spur.

• This switch must provide all-pole disconnection with a contact separation
of at least 3mm, installed in accordance with IEE wiring regulations.

• Cold and hot water supply with a minimum working pressure of 0.7 bar (70
KPa) and a maximum working pressure of 7 bar connected via an isolation
valve. If pressure is likely to exceed 7 bar, install a 3.5 bar Pressure Limiting
Valve.

• DOMBC1A is supplied with a 3.5 bar pressure limiting valve. This valve
must be installed between the service valve and the appliance.

Important:

Do not proceed with the installation if these requirements are not met.

CAUTION: In order to avoid a hazard due to the iadvertent resetting of the

thermal cut out, this appliance must not be supplied through an external
switching device, such as a timer, or connected to a circuit that is regularly
switched on and off by the utility.

Models Covered by these Instructions

These Installation Instructions cover the DOMBC1A HydroTap range.

A = Boiling / Chilled and Hot / Cold. (Mains)

Model Height

mm (inch)

DOMBC1A 348 380 385 26 30

Special Tools Required

Depth

mm (inch)

Width

mm (inch)

Weight empty

kg’s lbs

Weight full

kg’s lbs

In addition to normal tools, the following will be required:

• 50mm diameter sheet metal hole punch for sink tops. (not supplied)

• 50mm diameter hole saw for timber bench tops. (not supplied)

• Nut runner tube spanner (supplied) for fixing tap assembly.

HydroTap Installation and Operating Instructions - 89944UK - August 2011 v1.04 Page 7 of 20

Installation Procedure

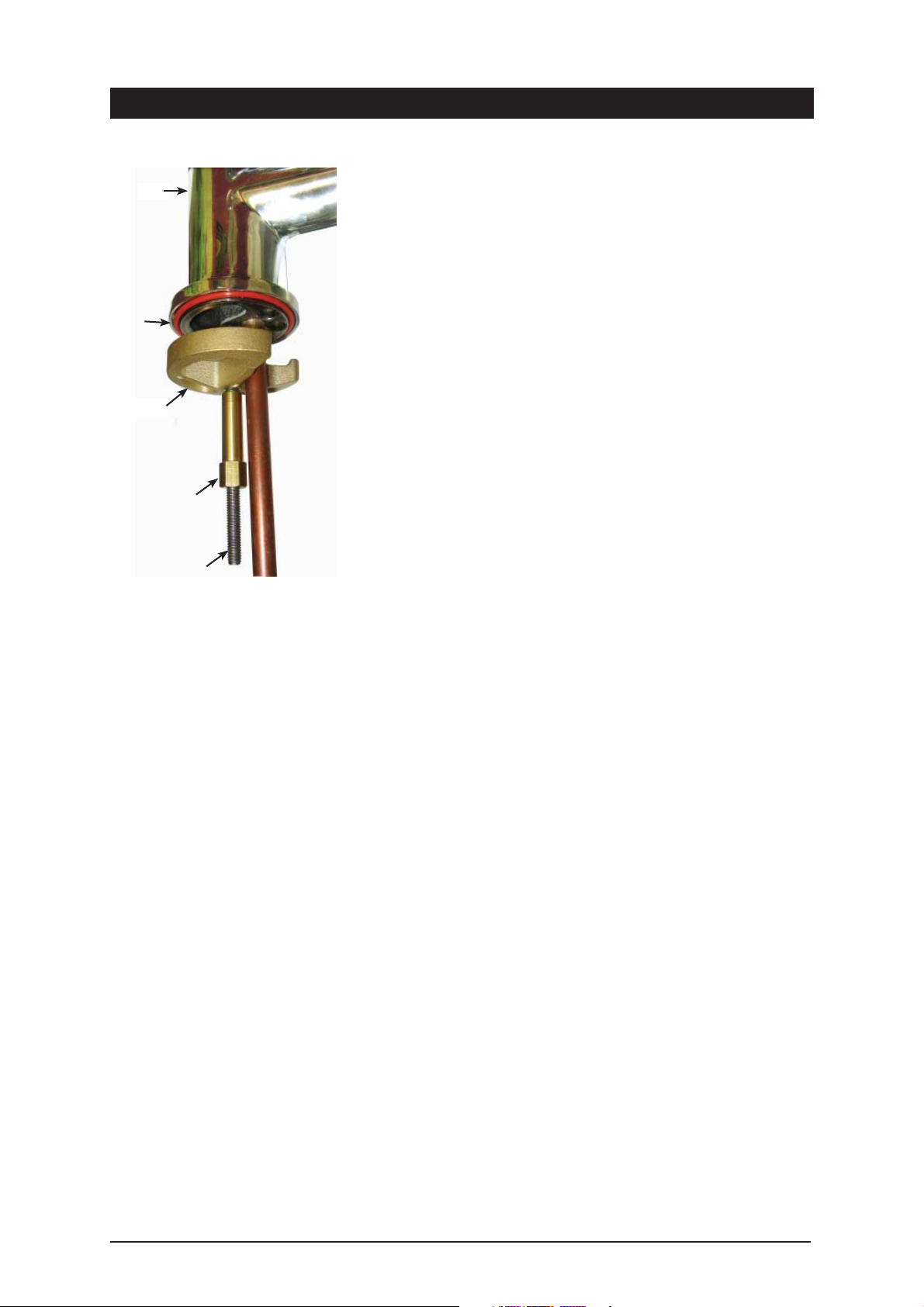

Step A - Installing the All-in-One tap (See P14-15)

O - Ring seal

Base Block

Tap

Fixing nut

All-thread rod

1. Make sure that the tap location will allow the nozzle to drain into the sink.

NOTE 1: The tap assembly must not be positioned more than 900mm

above the HydroTap unit.
Failure to do this may result in poor water delivery.

2. Cut a 50mm hole in the bench / sink top.

3. Ensure the silicon O-Ring remains in place as this is the moisture
seal against the bench / sink top. A light smearing of silicon sealant

on the O-Ring will ensure a watertight fit.

4. Pass all hoses through the 50mm hole and carefully locate the Head
Assembly on the bench / sink top.

5. From the underside of the bench / sink, mount the ‘base block’ by feeding
each of the tubes and electrical cable evenly in between the legs of the
‘base block’. Slide it up to meet the ‘all thread rod’, and pass the ‘all
thread rod’ through the centre of the ‘base block’.

6. Hold the ‘all thread’ steady and fit the 10mm ‘fixing nut’ to the ‘all thread’
using the tube spanner supplied in the kit. Check the Tap Head position
before securing it tightly against the bench / sink top.

NOTE 2: Under no circumstances should the Tap be twisted after the

installation is complete.

Step B - Installing the undersink unit

NOTE :

New hose sets supplied with the
unit should be used. Do not use
old hose sets.

SPECIAL NOTE: The HydroTap undersink units are heavy, take note of the
weights listed in the table on page 7. If you think you cannot lift the unit
safely, get help and avoid possible injury.

Before positioning the heater connect the braided water inlet hose (supplied)
to the cold water tee piece (see Pages 14-15). Flush the hose prior to
connecting to the cold water inlet at the rear of the unit.

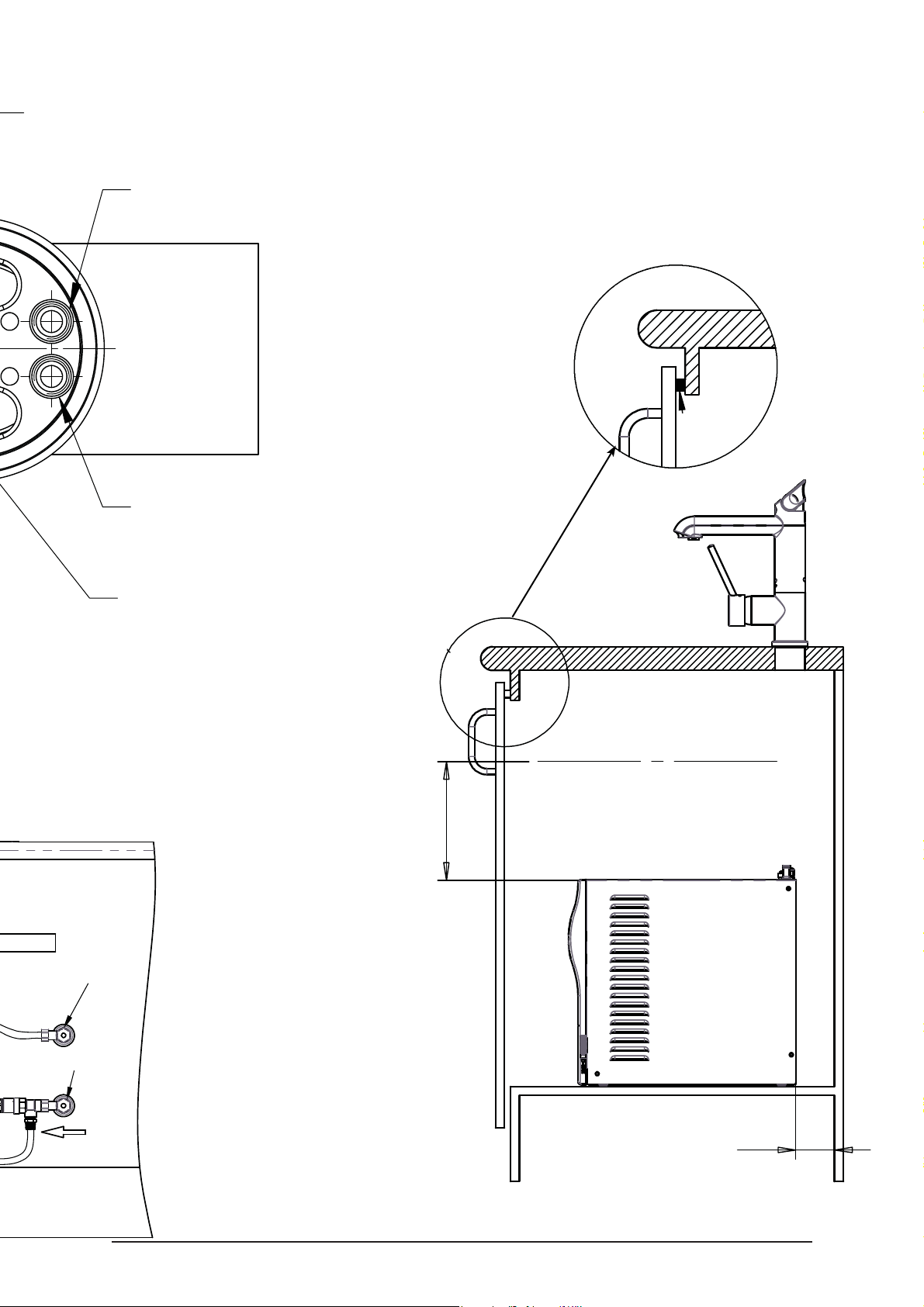

Position the HydroTap undersink unit as close as possible to directly beneath
the All-in-One tap head.

The connection tubes supplied with the tap head assembly CANNOT be
lengthened.

Leave at least a 50 mm air-gap without obstruction on each side of the unit
and 65mm at the rear

Step C - Connecting the All-in-One tap outlet

Note:

Included in the installation pack are adhesive backed silicon buffers. If air
vents are not installed in the cupboards housing the HydroTap, the buffers
must be placed on the inside edge of the cupboard door to create a slight gap
ensuring a minimum airflow. Failure to do this may cause the HydroTap to
overheat and operate inefficiently.

Model: NON Vented.

Connect the two braided hoses to the Hot and Cold water supply, as shown in
pages 14-15 .

Page 8 of 20 HydroTap Installation and Operating Instructions - 89944UK - August 2011 v1.04

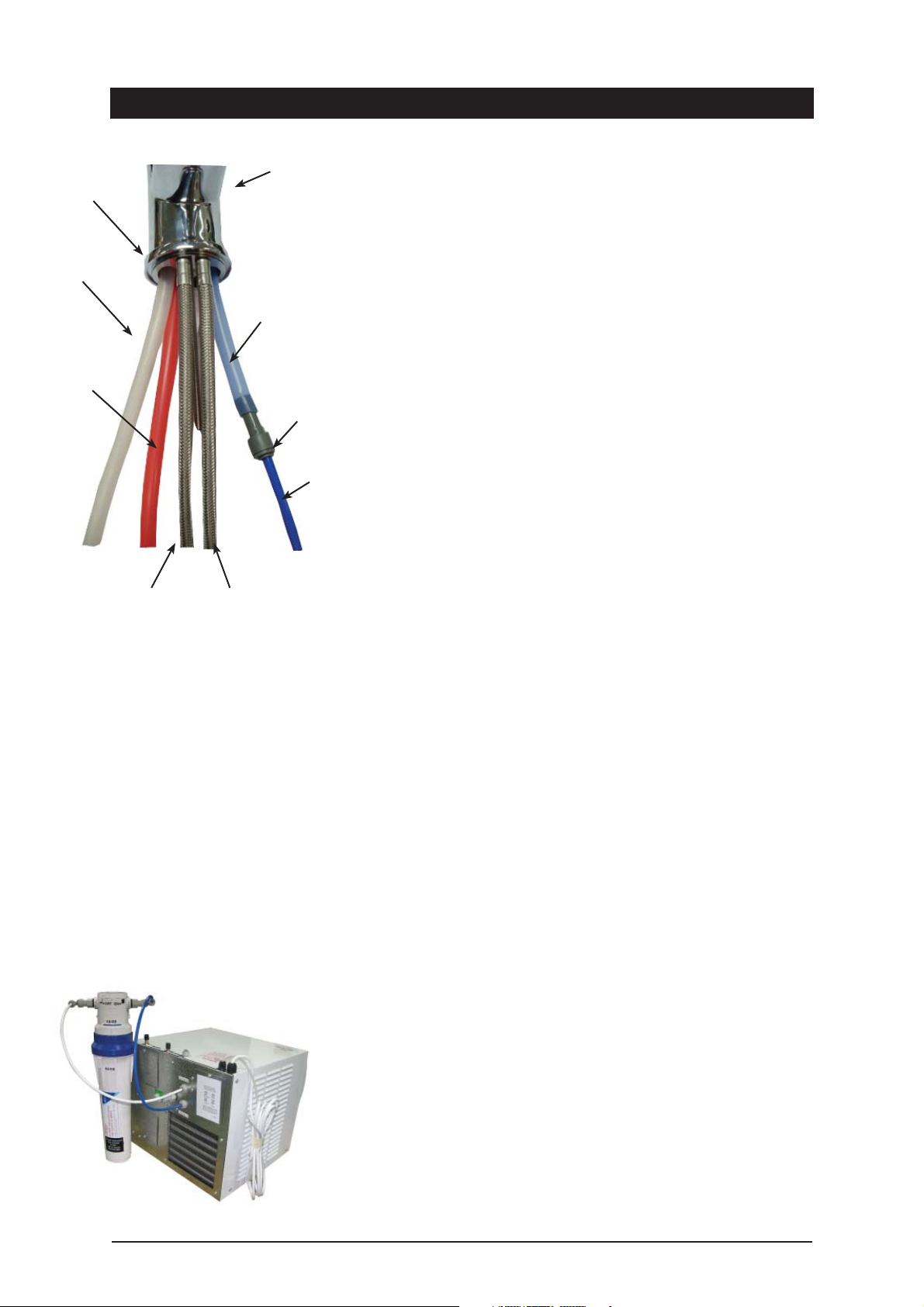

Base block

Clear tube to
the Vent

Boiler
connection
RED

Tap

Chiller
connection
BLUE

JG fitting

Blue plastic
hose

Installation Procedure

.
Measure and trim the red marked tube and connect it to the boiling water

outlet on the top of the undersink unit. Use spring clamps provided to secure
the hose.

Measure and trim the blue hose 100mm from base of the tap. Insert JG
fitting. Measure and trim the blue plastic hose and connect it the the chilled
water outlet on the top of the undersink unit.

Measure and trim the unmarked tube and connect it to the vent outlet on the
top of the undersink unit. Use spring clamps provided to secure the hose.

NOTE: All tubes must have a continuous fall back to the undersink unit.

Connect the tap USB connector to the USB lead on the undersink unit. Orient
the USB plug carefully and connect, do not force the plug. Once connected,
fix the cable to the wall, ensure it is away from any possible water splashes
and is off the floor. Fasten the tap body to the sink using the bolt & plate
system provided.

The following instruction is CRITICAL:

Adjust both cupboard door hinges and attach the supplied rubber door buffers
to the doors to create a 4 mm air-gap between the doors and the cupboard.
This is the minimum ventilation requirement for low usage installations.

White ring
on LHS for for

BH1 Mains in
Cold

NOTE:
1- The braided hose (BH2) with the BLUE

ring markings must be fitted to the Right
Hand Side when the tap is oriented as
shown above. Fit the WHITE marked
braided hose (BH1) to the LHS.

2- The clear silicon tube is the vent line
from the undersink unit to the tap.
SEE P14 - P15

Blue ring on
RHS for BH2

Mains in Hot

Proper air circulation must be provided for all Boiling and Chilled models. The
system will operate correctly only if the recommended air gaps are achieved
during installation. Make sure that the undersink unit ventilation grilles are
not obstructed in any way.

Step D - Connecting an external filter

Model DOMBC1A - Domestic Boiling /Chilled.

(Not supplied as standard equipment.)

To combat the build up of lime scale, a high performance external filter kit
may be ordered from your Zip service provider.

NOTE:

- When fitted, the external filter will supply filtered water only for the Hot

tank. The internal filter will continue to supply filtered water for the cold tank.

- The external filter may require the inlet water pressure to be regulated to
lower than 6 bar. A 3.5 bar pressure Reduction Valve is supplied with the
product.

- The rear of the unit is fitted with, 1/4” John Guest, inlet and outlet fittings,
specifically for the Zip high performance filter kit.

Typical external filter
assembly

HydroTap Installation and Operating Instructions - 89944UK - August 2011 v1.04 Page 9 of 20

- These instructions must be read in conjunction with the filter fitting
instructions supplied with the high performance filter kit.

- The filter assembly must be located close to the appliance with sufficient
space for service access. Consult the instructions supplied with the filter kit.

REMOVE THIS PANEL
TO ACCESS EXTERNAL
FILTER BYPASS VALVE.

CLOSED

WHEN AN EXTERNAL FILTER
IS INSTALLED TO SUPPLY THE
HOT TANK, TURN THE VALVE
TO THE CLOSED POSITION.

Figure 1 and 2.

OPEN

Installation Procedure (continued)

To fit the external filter kit:

- Remove the rear access panel to find the filter bypass valve (located at the
rear of the appliance,near the cable connections).

- Close the filter bypass valve as instructed in Figure 1 and 2.

- Remove the Inlet and Outlet plugs from the John Guest fittings as shown in
Figures 3, 4 and 5.

- After suitably mounting the filter assembly to an adjacent surface, measure
and trim the inlet and outlet tubes.

- Fit the tubes to their respective inlets and outlets, checking to ensure the
flow of water corresponds to the direction indicated by the arrow on the filter
head and by the instructions listed on the rear panel of the under sink unit.

- Check the upper John Guest fitting is the ‘Outlet to the external filter’, and
the lower John Guest fitting is the ‘Inlet from the external filter’.

- Secure the rear access panel and relocate the undersink unit, ensuring all air
gaps and clearances are maintained. (see P5 Airflow details).

- Activate the filter programme within the service mode.

After Testing and Commissioning (Step F)

- Set the external filter life - Max 3000Litres.

Outlet to external filter
with plug removed

- Set external filter use (No need to flush the external filter).

- Check all connections for leaks.

Step E - Connecting the water supply

To prevent sediment from entering the HydroTap at connection, flush water
through the supply line thoroughly before connection to the HydroTap. Open
the access door and check that the filter is in place and secure. Connect the
water supply to the undersink unit using the attached flexible hose .Turn on
water and check for leaks. If no leaks are evident turn the power on.

Outlet with plug

Inlet from external filter
with plug removed

Page 10 of 20 HydroTap Installation and Operating Instructions - 89944UK - August 2011 v1.04

Figure 3, 4

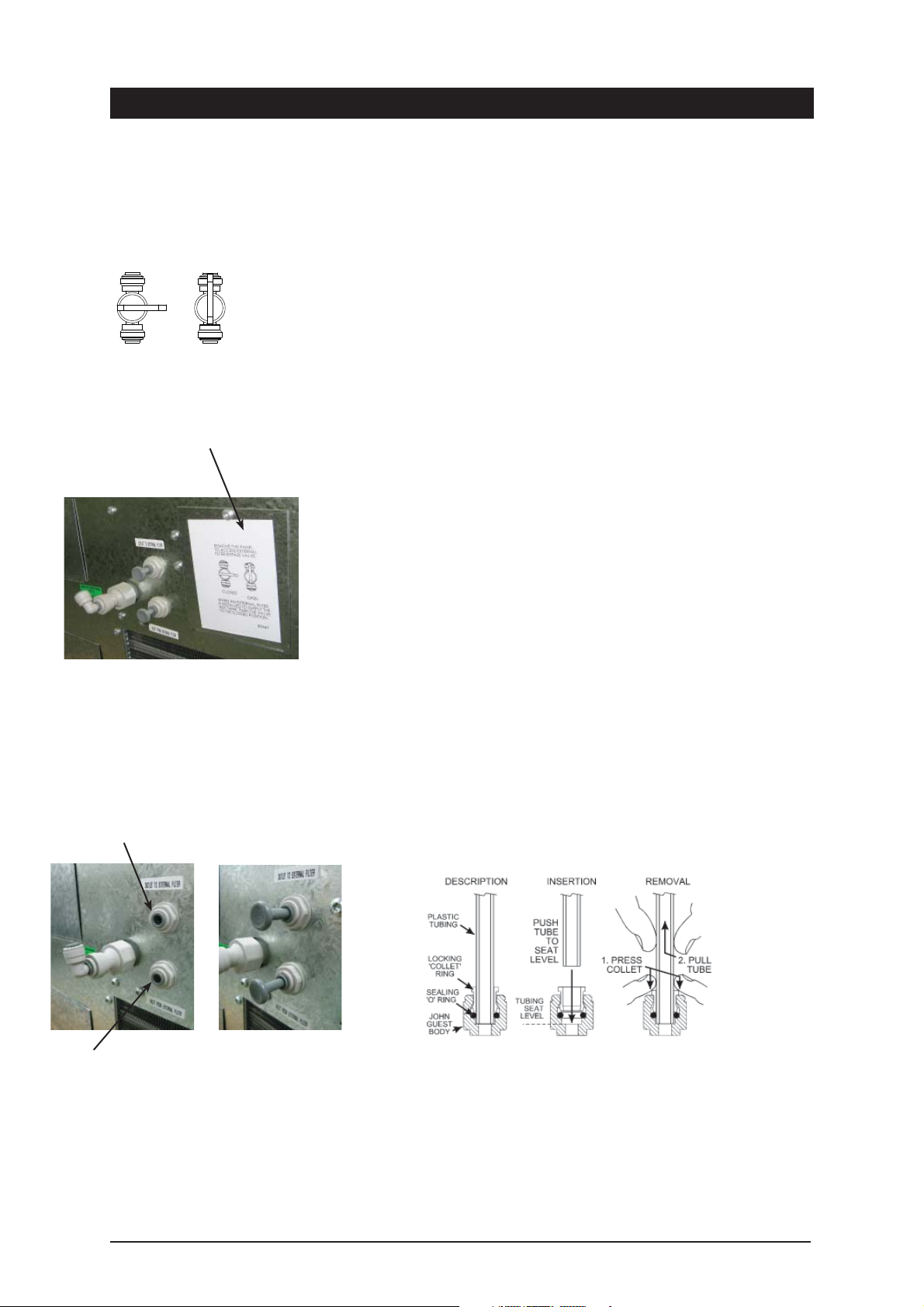

John Guest fittings: Insertion and removal

Figure 5

Chilled line

Vent line

Boiling line

Installation Procedure

(continued)

Step F- Testing and commissioning

Filter Flush Mode The display screen will show which model you have.

Have a bucket or similar container (not supplied) at the ready to hold a quantity
of water that is ejected while the Filter Flush Mode is in operation. Remove front

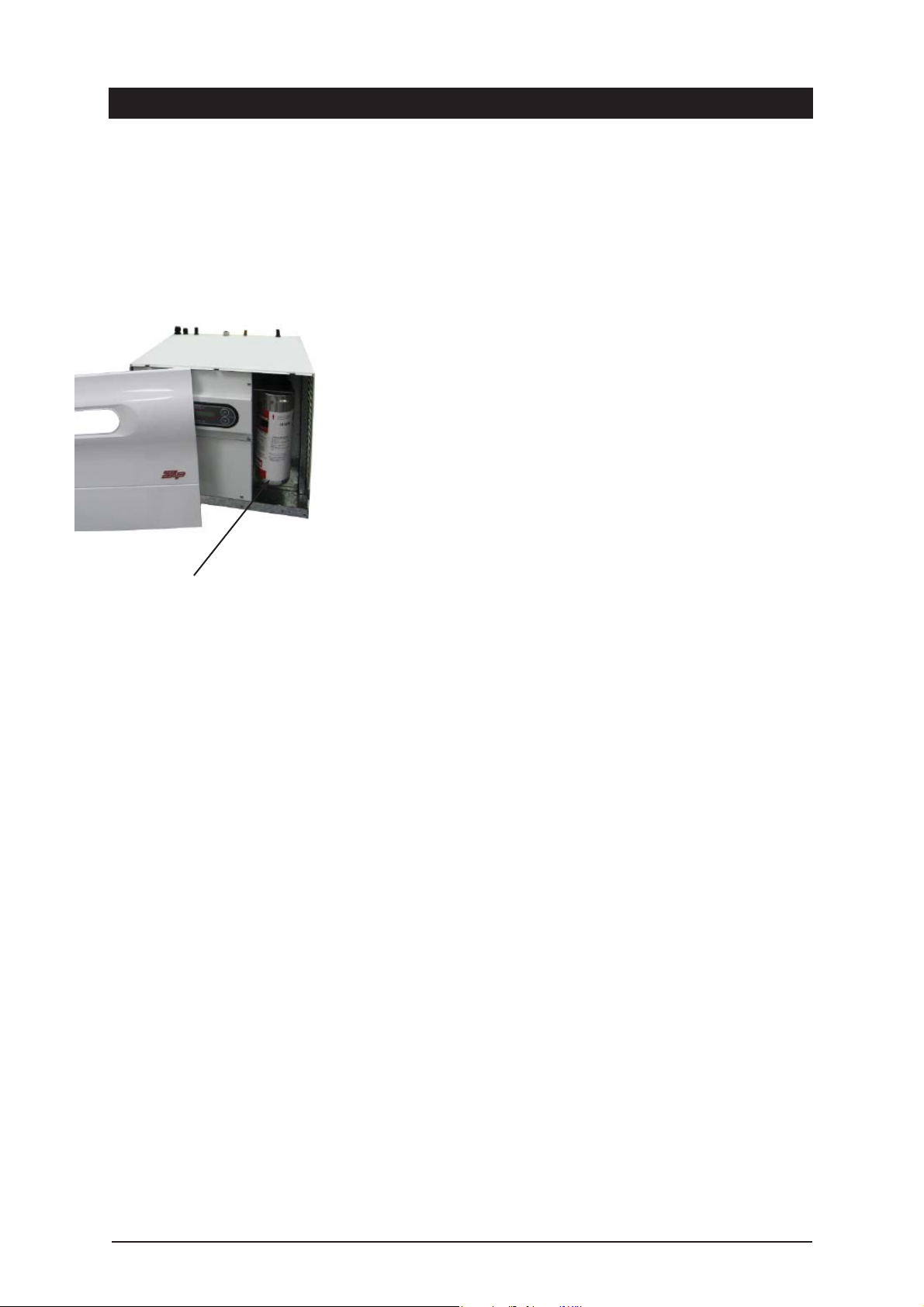

cover of the HydroTap and the filter cartridge will be exposed. Located to the
rear RHS of the cartridge is a fixed flush line, approx 600mm long and the flush
line stop cock. Place the free end of the flush line into the bucket or container
(not supplied).

HydroTap connections for
Undersink unit

Use these buttons to

scroll through the menu

Use these buttons to

activate and de-activate

the program selected

Turn “ON” both water and electricity supplies and open the flush line stop
cock. The display will show Filter Flush Mode. To activate press adjust

<

 Run
at least 7.5 Litres of water through to activate the filter membrane. Press the
adjust < button again to stop the Filter Flush Mode. Turn OFF the Filter Flush
stop cock and re-locate the tube and stop cock in the filter compartment.
Turning OFF the Filter Flush Mode puts the HydroTap into calibration mode.
Press adjust <to start calibration. The element will now cycle On and heat the
water to 95ºC maintaining it at that temperature for a short stabilization period.

Once stabilized, the element will cycle On, bring the water to boiling point and
hold it there for a short period.

The unit now carries out a self calibration function to ensure correct
temperatures are maintained. During this period the Red LED on the Tap Head
assembly flashes slowly until the calibration function is complete.

Once this step is complete (approx 5 minutes) the unit will default to normal
operation.

When starting, both Boiling and Chilled cycles activate simultaneously after
calibration has taken place, the descriptions below indicate what happens during
each cycle.

Boiling

The unit is now running in normal operating mode. The Red LED will flash until
usable temperature is reached.

Before using the HydroTap wait 5 minutes after this point to allow adequate fill
time. The unit is now ready for use. Test water delivery from the tap and check
for appropriate temperatures. Use cable clips to tidy and secure wiring before
connecting power.

Chilled

When water and power are turned On, the Blue LED flashes slowly on the Tap
Head assembly. The cold tank must be filled with water manually. Press the

Boiling Water Lever Chilled Water Lever

chilled water lever on the tap head and hold the lever down until cold water
flows from the spout, then release. The compressor will start and when the
water is chilled to 10ºC the Blue LED on the Tap Head assembly stops flashing
and stays illuminated.

Ensure that the clock matches your local time. If not refer to page 18 . If Energy
Saver Settings are required, the instructions for installing these are described on
page 18 “Setting the Energy Saver Timer”.

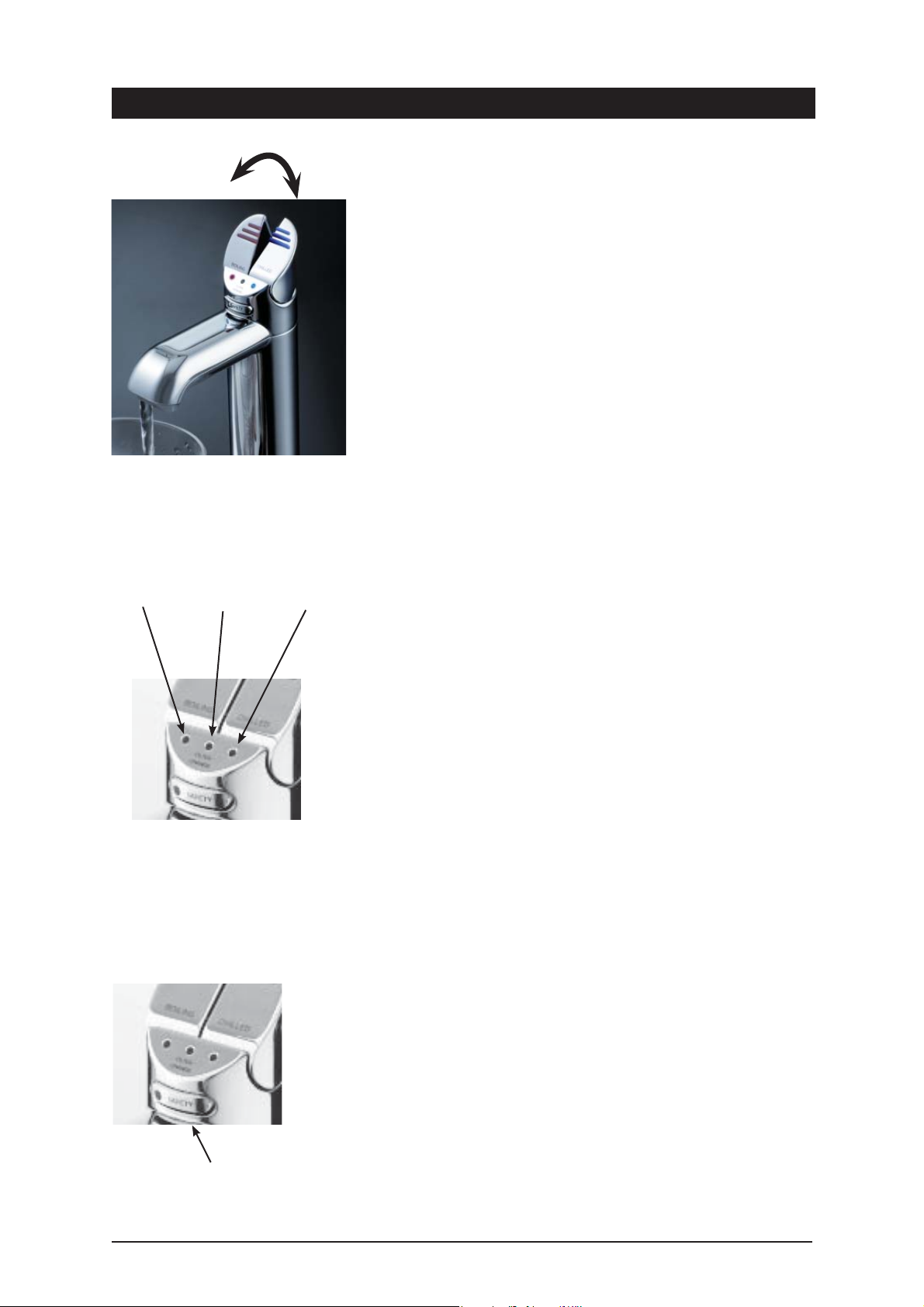

Red Light White Light Blue Light
Boiling Filter Status Chilled

HydroTap Installation and Operating Instructions - 89944UK - August 2011 v1.04 Page 11 of 20

Installation Procedure

(continued)

Step G - Temperature set point adjustment

(Not normally required)

Temperature and Water level screen: (Service Default Screen)

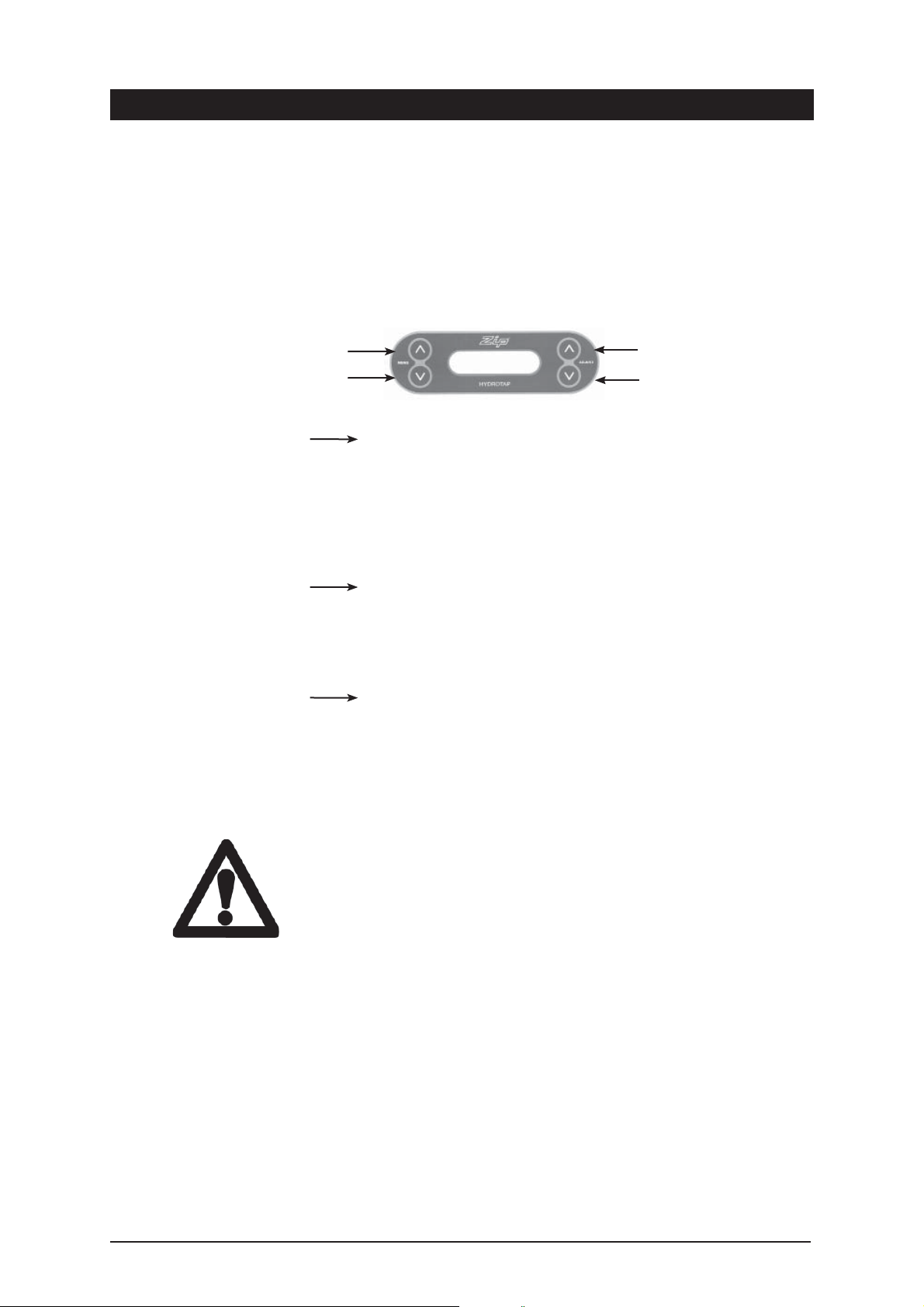

To access this default screen, on the right hand side of the screen, press the ‘A’
adjust buttons together until the screen changes to Service Mode, it will show the
following:

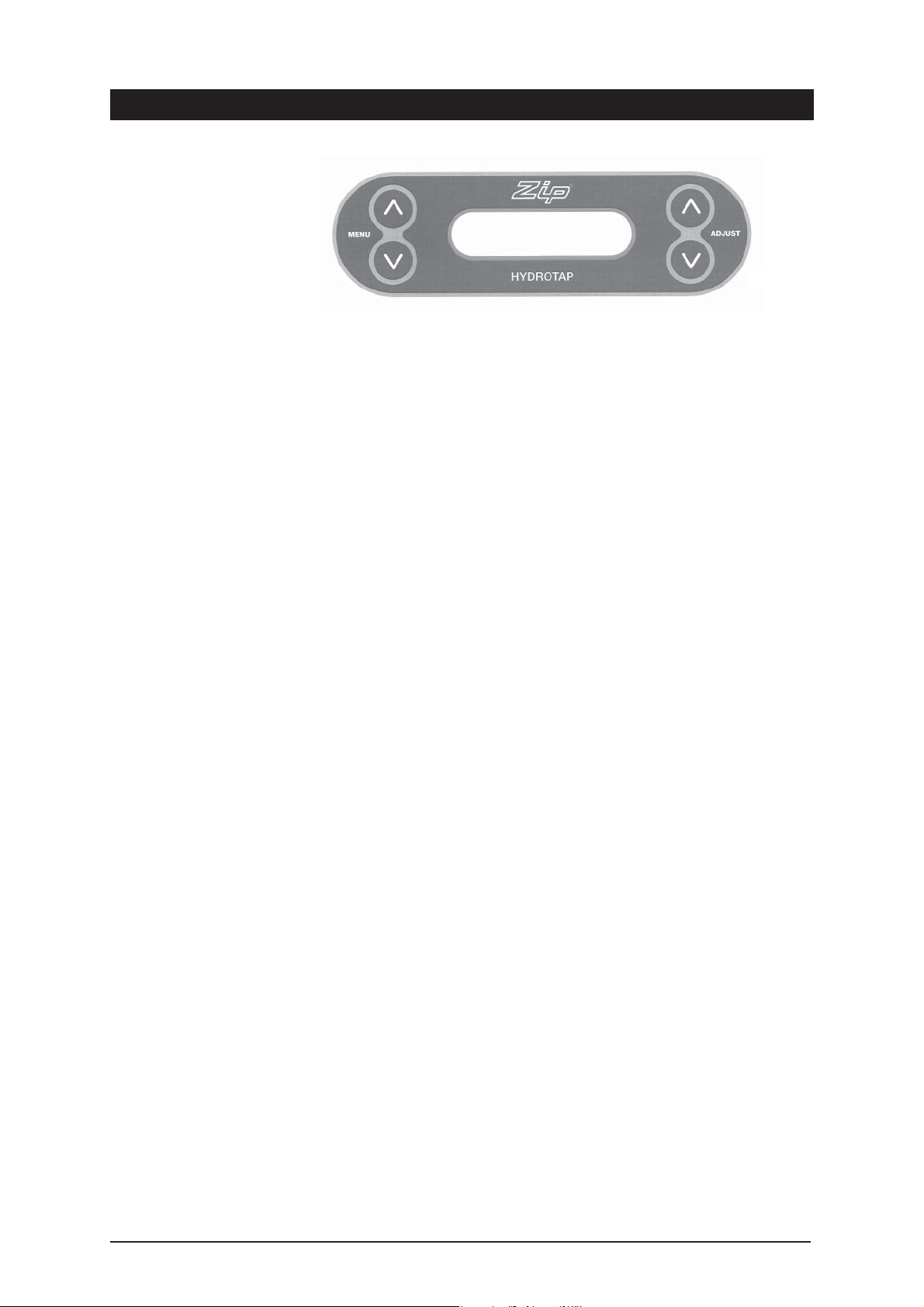

Menu plus

Hot Temp Lvl
Cold Temp Lvl

Menu minus

Press the Menu plus button, once, to enter the Hot Temperature

Adjustment Screen:

Here you can adjust the Hot temperature set point by pressing the A adjust > or >
buttons The Hot temperature set point can be raised or lowered in 0.5ºC increments
between 68º - 100ºC. Note: the Maximum setting of 100ºC is not recommended for
normal use. Do not raise temperature above 98.5ºC without consulting Zip first to
discuss the service issue.

Press the Menu minus button, once, to enter the Cold Temperature

Adjustment Screen :

Here you can adjust the Cold temperature set point by pressing the A adjust > or >
. The cold temperature set point can be changed in 1ºC increments as follows: 7-11º ;
8-12º ; 9-13º or 10-14ºC.

Press the Menu minus button, once, to return to the service default screen:

To change the service default screen back to Normal Operation, press the adjust
buttons together until the screen changes back.

NOTE: The temperatures shown are actual, not the set temperatures. To revert back
to the Normal Operation screen, press the adjust buttons together again until screen

changes.

A

Hot Temp Lvl

Cold Temp Lvl

A

Caution must be observed when changing any settings within the Service

Menu as changes may affect the normal operation of the unit.

Page 12 of 20 HydroTap Installation and Operating Instructions - 89944UK - August 2011 v1.04

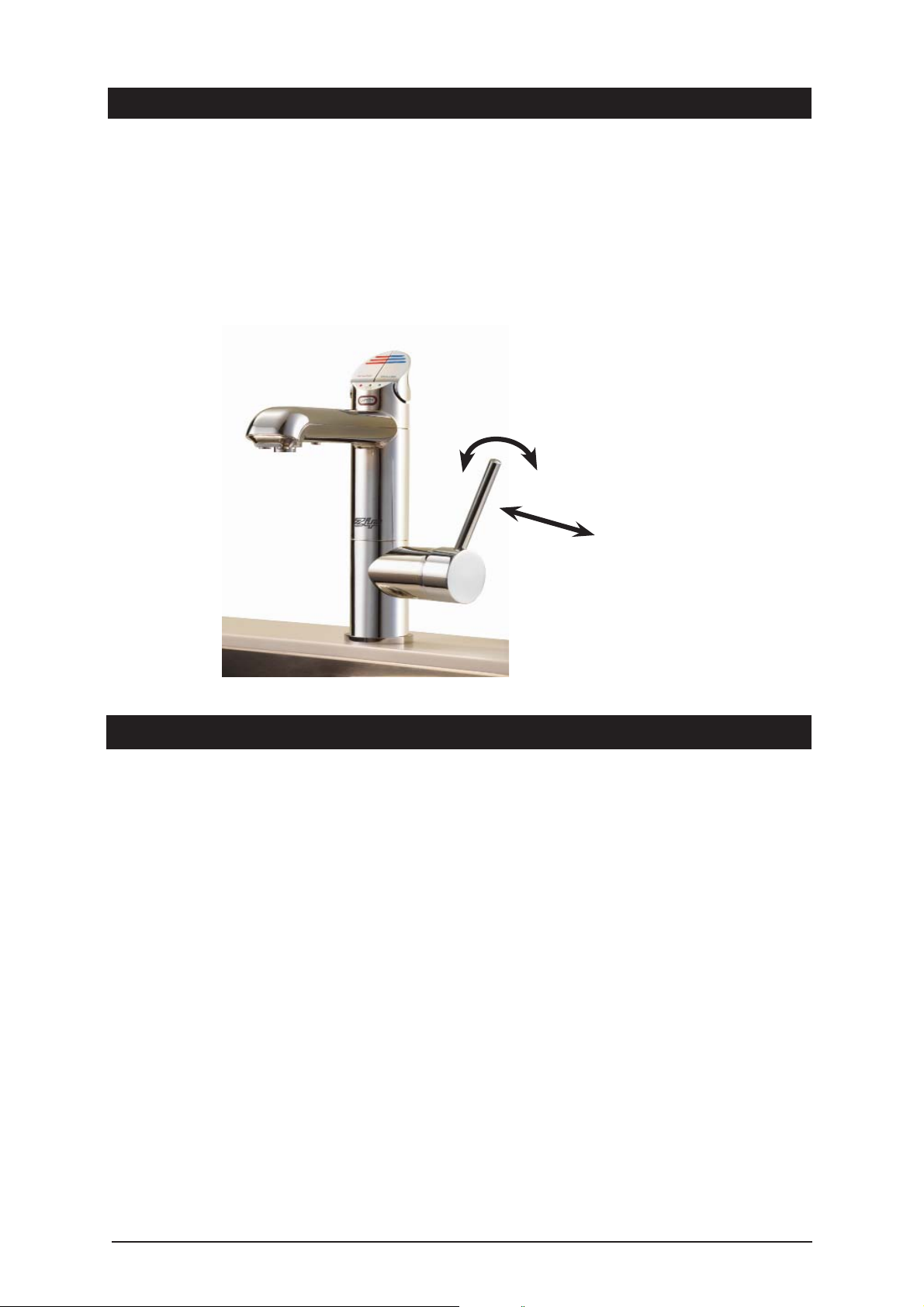

Operating the Mixer tap

The Mixer tap is operated as a conventional ‘Flick Mixer’

Lifting the handle up will decrease the flow rate and lowering the handle will
increase the flow rate. Lift the handle all the way up to turn the tap off.

When the handle is moved to the left, the temperature is decreased and when
moved to the right the temperature is increased. The final temperature will be
dependant on the temperature of the incoming cold water.

The spout may be swivelled, left or right, for convenience.

ROTATE for Hot / Cold water

LIFT OR LOWER HANDLE for ON /OFF water flow

External Filter Replacement

These instructions must be read in conjunction with the filter fitting instructions
supplied with the high performance filter kit.

Depending on local water quality conditions and usage, the filter may require
changing anywhere from 1000 Litres to 3000 Litres. You may also need to
replace the filter if you notice unpleasant odours or tastes.

To change the pre-set filter life, scroll through the menu to “External Filter
Life”, press Adjust > to reset litre counter. Press Adjust > and it asks “are
you sure”. Press Adjust > again to lock in the command.

To Change the external filter:

1. Scroll through the screen menu to “Filter Flush Off” this isolates the water
supply.

2. Relieve system pressure by lifting the Hot lever and allowing the water to
run until it shuts off automatically (15 secs.)

3. Remove and replace the spent external filter cartridge as described in the
filter kit instructions. Mop up any spills from the filter head.

4. Scroll through the menu to “External Filter Used ”, press Adjust > to reset
the litres. Press Adjust > and it asks “are you sure”. Press Adjust >
again to lock in the command. After approx 10 seconds it will default to the
selected mode.

HydroTap Installation and Operating Instructions - 89944UK - August 2011 v1.04 Page 13 of 20

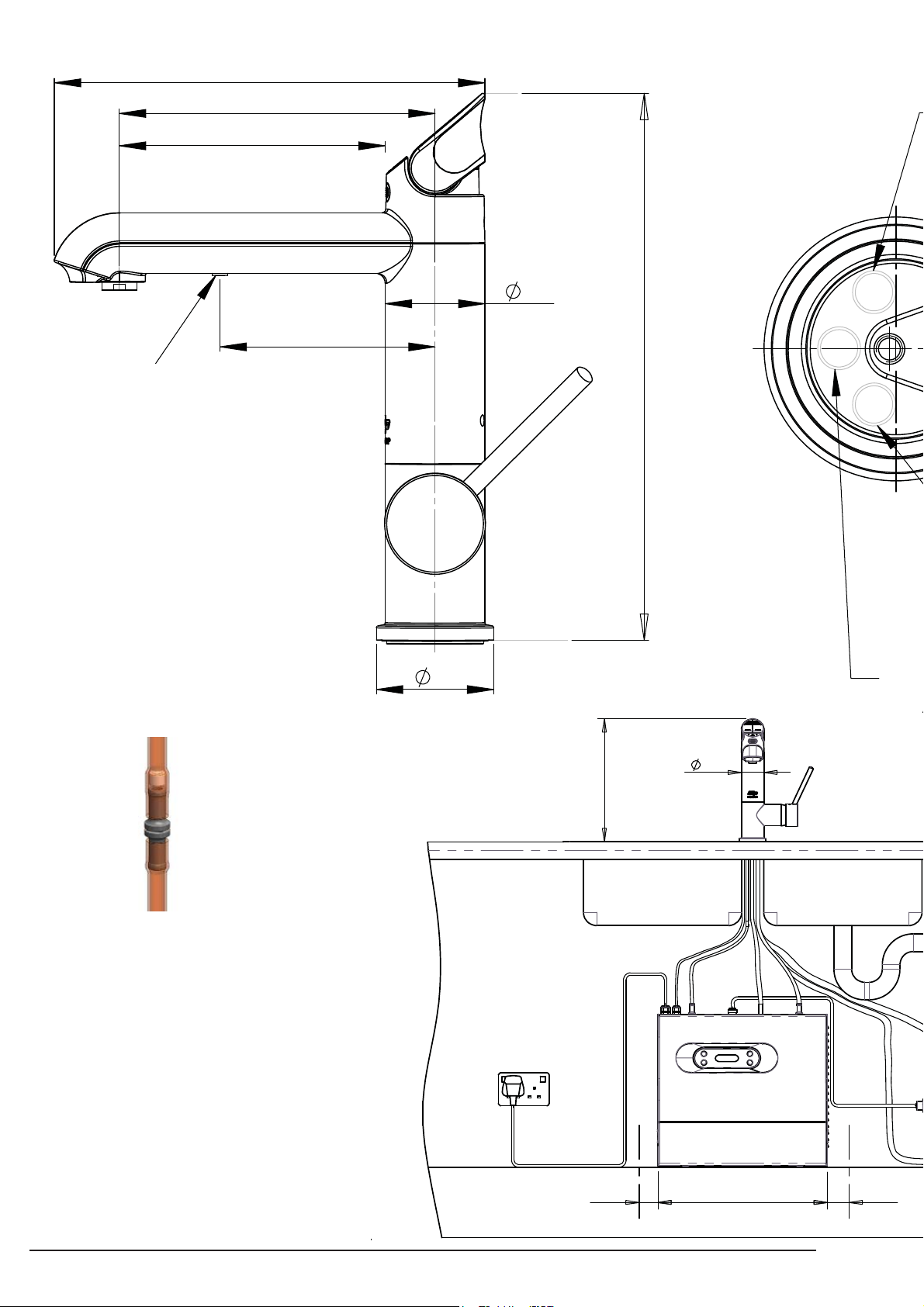

220

C

M
Y
A

R

R

D

R

161.5

136

51

VENT OUTLET

POSITION

110

60



280

SILI
FRO
IN H
TO T





50

NOTE:

IF THE FLOW RATE IS
TOO FAST, CUT THE RED SILICONE
TUBE 75mm MINIMUM FROM THE
BOTTOM OF THE BASE OF THE
ALL-IN-ONE TAP. INSERT THE
TEFLON RESTRICTOR ABOUT
20mm INTO THE UPPER SEGMENT
OF THE RED SILICON TUBE WHICH
CONNECTS TO THE TAP. INSERT
THE BLACK PLASTIC OUTLET BUSH
BETWEEN THE TWO PIECES OF
RED SILICON TUBES THAT WAS CUT.

Page 14 of 20 HydroTap Installation and Operating Instructions - 89944UK - August 2011 v1.04

UK 240V GPO

VENT

BOILING

WATER

CHILLED
WATER

50

 

BH2

+
G

BH1

0
LV

SILICONE HOSE FROM



BOILING WATER TANK
IN HYDROTAP UNIT
TO TAP

BRAIDED HOSE BH1
FROM MAINS WATER
SUPPLY TO TAP

ALL IN ONE TAP-MAINS VERSION

ONE HOSE

STEAM VENT

DROTAP UNIT

P

BRAIDED HOSE BH2
FROM DOMESTIC HOT WATER
SUPPLY TO TAP

SILICONE HOSE FROM
CHILLED WATER TANK
IN HYDROTAP UNIT
TO TAP

BENCHTOP

CABINET DOOR

4mm BUFFER

PAD TO ENSURE

VENTILATION GAP

Air Gap

Buer pad
4mm

WZDWHUIURP

PHVWLFKHDWHU

LQVFROGZDWHU

ODWLRQYDOYH

(ISOLATION VALVE NOT SUPPLIED)

(ISOLATION VALVE NOT SUPPLIED)

%XIIHU3DG
PP





MAINS HOT WATER SUPPLY

MAINS AMBIENT WATER SUPPLY





200

200

65

65



HydroTap Installation and Operating Instructions - 89944UK - August 2011 v1.04 Page 15 of 20

Internal Filter Replacement

The Zip HydroTap notifies when filter replacement is due. The default setting
is 6000 Ltrs, but this can be set in increments of 1000Ltr from 1000Ltr to
10000Ltrs. When a filter change is due, the Change Filter light will flash white
once a minute and remain so until reset. A filter status light is located between
the Red and Blue Lights on the tap head assembly.

Depending on local water quality conditions and usage, the filter may require
changing anywhere from 1000 Ltrs to 10000 Ltrs. You may also need to replace
the filter if you notice unpleasant odours or tastes.

Some water may drip from the filter head (socket) during replacement. Keep a
bucket and towel handy to catch drips and mop up any spills.

To change the Filter:

1. Scroll through the screen menu to “Filter Flush Off” this isolates the water
supply.

2. Remove front panel on DOMBC1.

3. Relieve system pressure via the filter flush stop cock, a quick open and
close will do.

4. Grasp filter cartridge and twist right to left one quarter turn until it stops.

5. Ease cartridge downwards to detach it from the filter head (socket).

Filter location

Warning: If the Zip

HydroTap is switched off for
a long period of time (e.g.
more than a weekend),
run water through the
chilled water outlet for
at least 5 minutes before
consumption.

6. Do not tilt the cartridge as dirty water may spill from it if tilted.

7. Unpack replacement cartridge and write today’s date where shown on the
label.

8. Avoid touching the filter “O” rings and filter opening as this may cause
bacterial contamination of the cartridge.

9. Align cartridge tabs with the slots on the under-side of the filter head.

10. Slide cartridge upward into head and rotate left to right until it stops.

11. Locate the filter flush hose situated behind the filter cartridge and run to a
container ready for flushing. Open the flush hose tap lever. On the control
panel press Adjust >, this will start the water flushing the cartridge. Allow
at least 7.5 Ltrs of water to run through to activate the filter and then press
Adjust > to stop the flow.

12. Isolate the filter flush stop cock and re-fit behind the filter cartridge.

13. Wipe up any spills and dispose of spent filter cartridge and packaging
thoughtfully.

14. Scroll through the menu to “Litres Filtered”, press Adjust > to reset litre
counter. Press Adjust > and it asks “are you sure”. Press Adjust > again to
lock in the command.

15. Scroll through the menu to “Filter Used (Days)”, press Adjust > to reset the
timer. Press Adjust > and it asks “are you sure”. Press Adjust > again to
lock in the command. After approx 10 seconds it will default to the selected
mode.

16. Refit front cover.

>

>

>

> >

>

>

>

HydroTap Installation and Operating Instructions - 89944UK - August 2011 v1.04 Page 16 of 20

Operating the HydroTap

Press or pull lever

Boiling

Blue Chilled Water Light

On all the time:

This indicates that the temperature of the chilled water is within the usable
temperature range.

Flashing slowly :

This indicates that the chilled water is not at the right temperature.
Wait up to 20 minutes. When the chilled water is at the right
temperature, the light will stop flashing. Note: The HydroTap is designed
to dispense chilled wa ter in the temperature range 7°C to 14°C.

During heavy usage, the temperature can rise out of this range.

Red Boiling Water Light

On all the time: This indicates that the boiling water is ready.
Flashing slowly : This indicates that the boiling water is below usable

temperature.

Filter Change Light Off: This indicates the filter

is operating within its normal specified life span.
Filter Change Light Flashing slowly : The light will flash slowly when the
filter is due for replacement and the LCD will show “Filter Change”. Refer to
“Replacing the filter” section of this document.

ChilledFilter Change

Boiling Water Lever

Depressing the “Red” lever allows dispensing of Boiling water.
Pulling up the Red lever allows the tap to operate in a “no-touch” mode. Water
will flow from between 5 and 15 seconds (This is user adjustable). To reset,
return the handle to the “Off” position and repeat the step. The lever has to be
manually returned to the “Off” position.

Note: On the Boiling only models
the Chilled LED is blank.

Chilled Water Lever

Depressing the “Blue” lever allows dispensing of Chilled water.
Pulling up the Blue lever allows the tap to operate in a “no-touch” mode.
Water will flow from between 5 and 15 seconds (This is user adjustable). To
reset, return the handle to the “Off” position and repeat the step. The lever has
to be manually returned to the “Off” position.

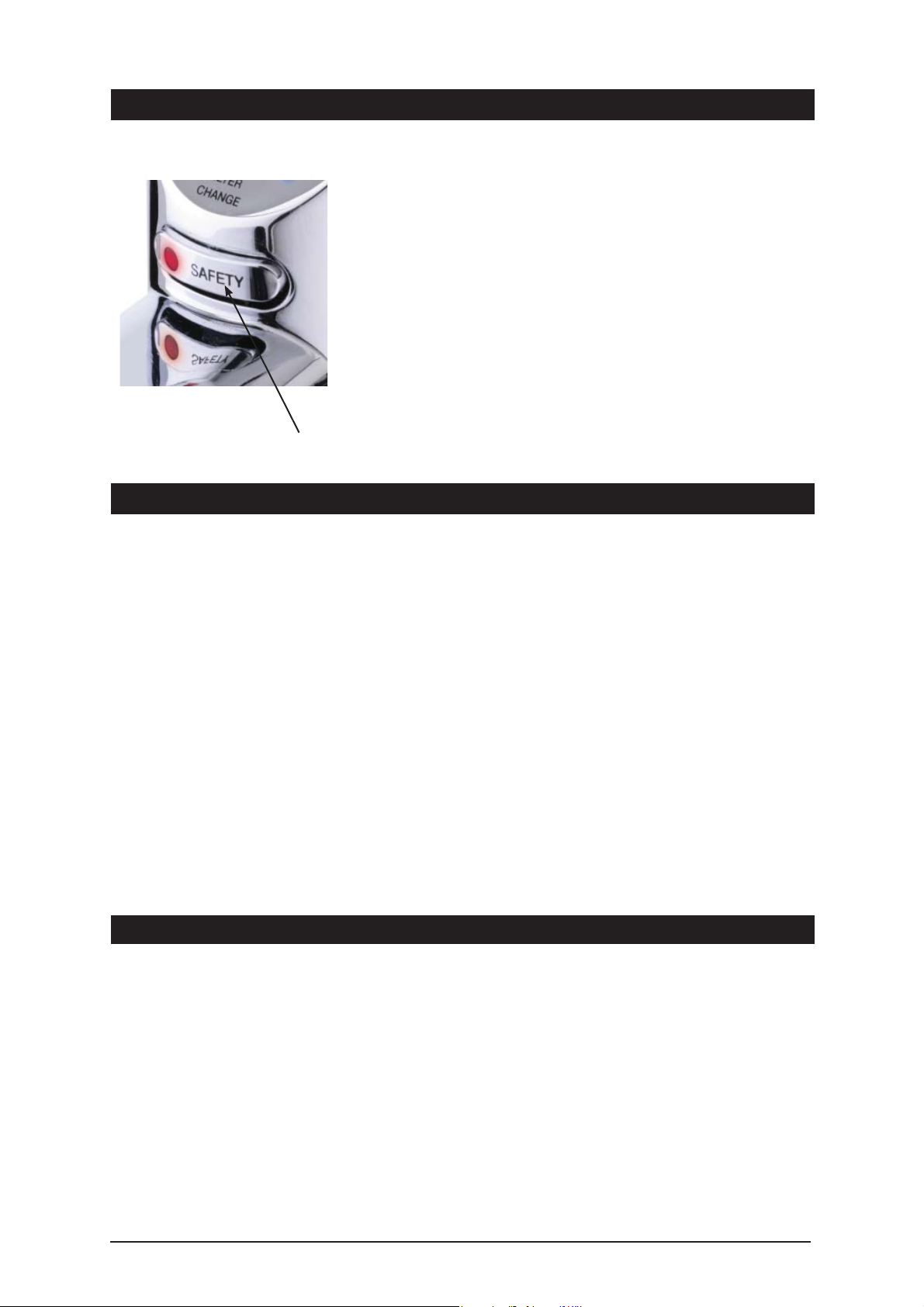

Safety Lock

The safety lock is designed to prevent the flow of boiling water, if the hot lever
is inadvertently activated.

To operate when lock is ON, depress both the Red lever and the safety lock
simultaneously.

Warning: If the HydroTap is switched off for a long period of time (e.g.

more than a weekend), run water through the chilled water outlet for at least
5 minutes before consumption.

Safety Lock

HydroTap Installation and Operating Instructions - 89944UK - August 2011 v1.04 Page 17 of 20

Note:

MeNU buttons
change the
screen options

Menu Plus Button

Setting the Energy Saver Timer

Plus Adjust Button

Adjust buttons
select the
screen options

NOTE:

Operating the Mixer tap will
not De-Activate the sleep
mode or the energy saver On/
Off timer mode.

Menu Minus Button

Minus Adjust Button

Normal Operation

Set Time

To change time, press either Menu > or Menu > button until Set Time is on the
display screen. Press > Adjust button to increase time or > Adjust button to decrease
time. Time increases or decrease in increments of one minute. Hold the Adjust buttons
down for rapid increases or decreases. The time will be displayed in 24Hr Menu.

Set Day

Press either Menu > or Menu > button until Set Day is displayed.

Press > Adjust or > Adjust to select day.

Filter Life ( Factory set at 6000 Ltrs )

Press either Menu > or Menu > button until Filter Life is displayed.

Press > Adjust button to increase Filter Life or > Adjust button to decrease Filter Life.

Filter Life increases in 1000 Ltr increments to a maximum of 10000 Ltrs.

Reset Litres Filtered

This function is to reset the Filter Change display after a filter has reached the end of its
life (refer to “Replace Filter Instructions” section of this document).

>

Press either Menu
Adjust once and “Reset Counter” will be displayed, press > Adjust button once and
“Are You Sure” will be displayed.

Press

>

Adjust once and “Litres Filtered” will be reset to 0.

or Menu > button until “Litres Filtered” is displayed. Press >

Activating Sleep Mode

This mode allows the HydroTap to go into Energy Saving mode. In this mode the unit
will go to “sleep” after a predetermined period of inactivity. Press either Menu > or
Menu > button until “Sleep Mode” is displayed.

Press > Adjust once to select

Option 1: Sleep to 65ºC after 2 hours of NO USE

Press > Adjust once to select

Option 2: Auto OFF after 2 Hrs of NO USE.

When the period of inactivity passes, the display will show “Sleep Mode”. During the
“Sleep Mode” the Red LED on top of the tap lever will flash slowly.

Sleep to OFF means the Boiling and Chilled circuits will be switched OFF

Page 18 of 20 HydroTap Installation and Operating Instructions - 89944UK - August 2011 v1.04

Note:

The Hydrotap may be temporarily
activated by operating the
HydroTap levers, the unit will go
into normal operation and then
remain in an “ON” cycle, until the
next “OFF” cycle.

Setting the Energy Saver Timer

To de-activate the sleep mode, momentarily operate the Hot lever and then
allow sufficient time for the water to reach the set temperature

(continued)

Activating ‘Sleep-when-it’s-dark’ feature

This feature will automatically switch the unit into Sleep mode Option 1 when
the ambient light falls below a set level. For this system to operate correctly the
sensor in the tap head must be calibrated for it’s surroundings.

Activation: This can only be achieved through the service mode.

To access the service mode

Press both the Adjust > and Adjust > buttons simultaneously and hold for
several seconds, until the screen displays the HOT and COLD temperatures.

Press the Menu > button once to display the Auto Sleep screen

Press the Adjust > button or Adjust > button to select Enable or Disable.

Only after Enable has been selected can the tap head sensor be calibrated.

To Calibrate the sensor

Pull both the HOT and COLD levers forward while simultaneously pressing
the safety button. All the lights will flash, hold for approximately 1 second (3
flashes) and then release.

The sensor is now calibrated for it’s surroundings. If there is any confusion with
the surrounding light, the system will revert to Normal operation mode.

To exit from the Service mode Press both the Adjust > and Adjust > buttons
simultaneously and the screen will display Normal Operation. If the buttons are
not pressed together at the same time, the Disabled option may be selected. It
is important to watch the screen to ensure the system remains Enabled during
the exit procedure. Check for correct operation by turning off the surrounding
lights.

NOTE: When the system has entered sleep mode, due to low light conditions,
the screen will display ‘In Sleep Mode’. Operation of the Hot lever or an increase
in the ambient light, will temporarily take the system out of sleep.

Activating 7 Day Timer On / Off Mode

Press the Menu > or Menu > button until “Monday On” is displayed. To set the
time for the unit to turn on press > Adjust button until required time is reached.

To set the time for the unit to turn Off press Menu > button once and “Monday
Off” will be displayed. Now press > Adjust until required time is reached.

If each individual day is to have an “On / Off” time, these steps need to be
repeated for each day and for each On / Off time.

HydroTap Installation and Operating Instructions - 89944UK - August 2011 v1.04 Page 19 of 20

Child safety Lock

Boiling Water Isolation

Child Safety Lock

Child Safety Lock

The child safety lock can be activated to prevent boiling
water flowing if the hot lever is inadvertently activated.
To activate, first press the safety lock then depress the
Blue Chilled water lever for a period of approximately ten
seconds. The safety lock indicator light will now be illuminated.
To de-activate, first press the safety lock then depress the
Blue Chilled water lever for a period of approximately ten
seconds. The safety lock indicator light will now extinguish.
To operate when the lock is ON, depress both the Red lever and the
safety lock simultaneously.

The HydroTap is equipped with a safety mode that allows protection against
accidental operation by Infirm or disabled persons.

1. On the LCD scroll through the menu to Hot Isolation.

2. Press adjust <to activate.

3. Now go to the Tap Head assembly and press the Safety Lock (3) three
times rapidly, the LED’s will scroll from left to right (3) three times. This
operation confirms the activation.

4. This isolates the boiling tap only. The LCD shows isolation mode is active.

5. To temporarily de-activate, press the Safety Lock (3) three times rapidly,
the LED’s will scroll from right to left (3) three times. This operation
confirms de-activation and the unit will be temporarily de-activated. After
30 seconds of no use the unit will revert to isolation mode.

6. If permanent de-activation is required, de-activate by scrolling through the
menu and selecting de-activate when Hot isolation Mode is displayed on
the screen.

7. The LCD will show Normal Operation.

Set the Boiling & Chilled Water Dispensing Times

The ability to change the maximum dispensing time for both the Boiling and
Chilled water has been introduced. The default settings for the maximum
dispensing times is 15 secs. The ability to change both the Boiling and Chilled
dispensing times between 5 and 15 secs, in increments of 1 sec, is accessible
through the Menu screen on the LCD.

Scroll through the Menu until the Dispense Hot screen is displayed, then use
the adjust buttons to set the required dispensing time for the Boiling water.

Follow the same procedure to access the Dispense Cold (for Chilled water)
screens.

Page 20 of 20 HydroTap Installation and Operating Instructions - 89944UK - August 2011 v1.04

Trouble Shooting

Symptom Possible Cause Solution

No LED display, no tap head
lights or, no water when tap
levers are operated.

No water flow from HydroTap Water supply isolated. Check water supply is ON.

No water flow from mixer tap Faulty non return valve Check and Replace faulty non return valves

No hot water from mixer Hot tank empty - Excessive use Wait for tank to refill and reheat

Slow water recovery after use Filter may require replacement. Check filter usage on LCD screen, if “filter change”

No power. Check power supply.
Plug is not located in power socket. Ensure power plug is correctly fitted and switch is

turned ON.

Tap loom is not connected to
HydroTap unit.

Possible internal fault. Contact your authorised Service Provider.

Program in OFF cycle Check LCD for information.

Water supply not connected. Check to ensure plumbing connection is made.
Power supply not connected. Check power plug is correctly fitted and switch is

Tap loom is not connected to
HydroTap unit.

Possible internal fault. Contact your authorised Service Provider.
Program in OFF cycle. Check LCD for information.

Child safety lock is ON Deactivate Child safety lock.

Faulty restrictaflow valve Clean and reset restrictaflow valve

Water supply not connected. Check plumbing connection & turn water ON

Faulty venturi check valve Replace faulty venturi check valve

Check loom connection.

turned ON.
Check for loom connection

is displayed follow instructions.

Water not hot Unit is in Sleep Mode. Momentarily operate the HydroTap Hot lever and

wait for the Red LED to stop flashing.

Unit has just come out of OFF cycle. Wait for Red LED to stop flashing.

Possible internal fault. Contact your authorised Service Provider.

Water not chilled Excessive use, unit refilling or chilling

down to temperature.
Possible internal fault. Contact your authorised Service Provider.

Alternating display messages More than one fault identified at the

same time

Hot tank overflowing Faulty venturi check valve Check & Replace faulty non return valves

Mixer tap operation reversed Braided hoses incorrectly fitted Check position of Blue and White connections

Wait for Blue LED to stop flashing.

Record the number and type of faults
Contact your authorised Service Provider.

HydroTap Installation and Operating Instructions - 89944UK - August 2011 v1.04 Page 21 of 20

Cleaning

Do not use strong, corrosive, spray or abrasive cleaners. Clean with a soft cloth
or brush and mild soap and water.

Do not spray water over the tap as it may damage the low-voltage electronics.

Undersink units must never be located near, or cleaned with water jets.

End of Life Disposal

The use of this crossed out wheeled bin logo indicates that this product needs
to be disposed of separately to any other household waste.

Within each of the European Union member countries, provisions have been
made for the collection and recycling of unwanted electrical and electronic
equipment. Outside of the EU it will be necessary to dispose of this product at
your local community waste collection or recycling centre.

In order to help preserve our environment we ask that you dispose of this
product correctly. Please contact your local city council for collection centre
details

Page 22 of 20 HydroTap Installation and Operating Instructions - 89944UK - August 2011 v1.04

Notes

HydroTap Installation and Operating Instructions - 89944UK - August 2011 v1.04 Page 23 of 20

Warramty

Certain warranties may be implied by law into your contract with Zip. The warranty provided below is additional to these
implied warranties and nothing set out below shall limit your statutory rights or rights at law.
Zip Heaters (UK) Ltd warrants that, should any part fail within 12 calendar months of installation, that part will be
repaired or replaced free of charge by Zip or its Distributor or Service Provider, except as set out below, provided
the appliance is installed and used strictly in accordance with the instructions supplied, and that failure is not due
to accident, misuse, abuse, unsuitable water conditions, or to any alteration, modification or repair by any party not
expressly nominated by Zip.
No costs are payable by the customer other than any mileage or travelling-time charges incurred by a Zip Service
Provider or the cost of removal, cartage and re-installation of any component of the appliance if it needs to be returned
for repair to Zip or its Distributor.
This warranty does not cover damage resulting from non-operation of the appliance, the use of non authorised parts or
consequential damage to any other goods, furnishings or property.
No warranty applies to the life of any filtration cartridge installed with the appliance as cartridge life may vary according
to water quality and the rate of water consumption.
Zip does not exclude, restrict or modify any liability that cannot be excluded, restricted or modified or which cannot,
except to a limited extent, be excluded, restricted or modified as between the owner or user and Zip under the laws
applicable.
Furthermore, this warranty does not displace any statutory warranty, but, to the extent to which Zip is entitled to do
so, the liability of Zip under any statutory warranty will be limited at Zip’s option to the replacement of the appliance or
supply of equivalent appliance, the payment of the cost of replacing the appliance or acquiring an equivalent appliance,
or the payment of the cost of having the appliance repaired or the repair of the appliance.

Registering Your Purchase

Registering your Zip installation on the Zip website may help to establish date of installation should it become necessary
to service the appliance under terms of the Zip warranty. To register your installation go to www.zipheaters.co.uk and
look under the heading “Warranty”.

Head Office

Zip Heaters (UK) Ltd
14 Bertie Ward Way
Dereham
Norfolk NR19 1TE

Website: www.zipheaters.co.uk
[email protected]
Telephone: [phone]
Facsimile: 01362 692 448.

The standard cup referred to in this publication is 167 ml (6 fl oz).
The standard glass is 200 ml (7 fl oz).
The terms “Zip” and “HydroTap” are registered trade marks of Zip Heaters (Aust) Pty Ltd.
Zip products described in this publication are manufactured under one or more of the following
patents: AU675601, AU637412, AU635979, GB0422305, GB2065848, US4354049, US5103859,
and US5099825. Other patents are in force and patent applications are pending.

Page 24 of 20 HydroTap Installation and Operating Instructions - 89944UK - August 2011 v1.04
