Page 1 of 12 81585UK Zip Chillmaster - Installation & operating instructions - Mar 2016 v1.05
Installation and operating instructions
Zip Chillmaster
Floor Mounted Chiller
CH101 Floor mounted chiller
Affix model number label here
81585UK
®
81585UK Zip Chillmaster - Installation & operating instructions - Mar 2016 v1.05 Page 2 of 12
Contents
Safety information ......................................................................................................................................... Page 3
Technical data ............................................................................................................................................... Page 4
Spare parts and accessories .......................................................................................................................... Page 5

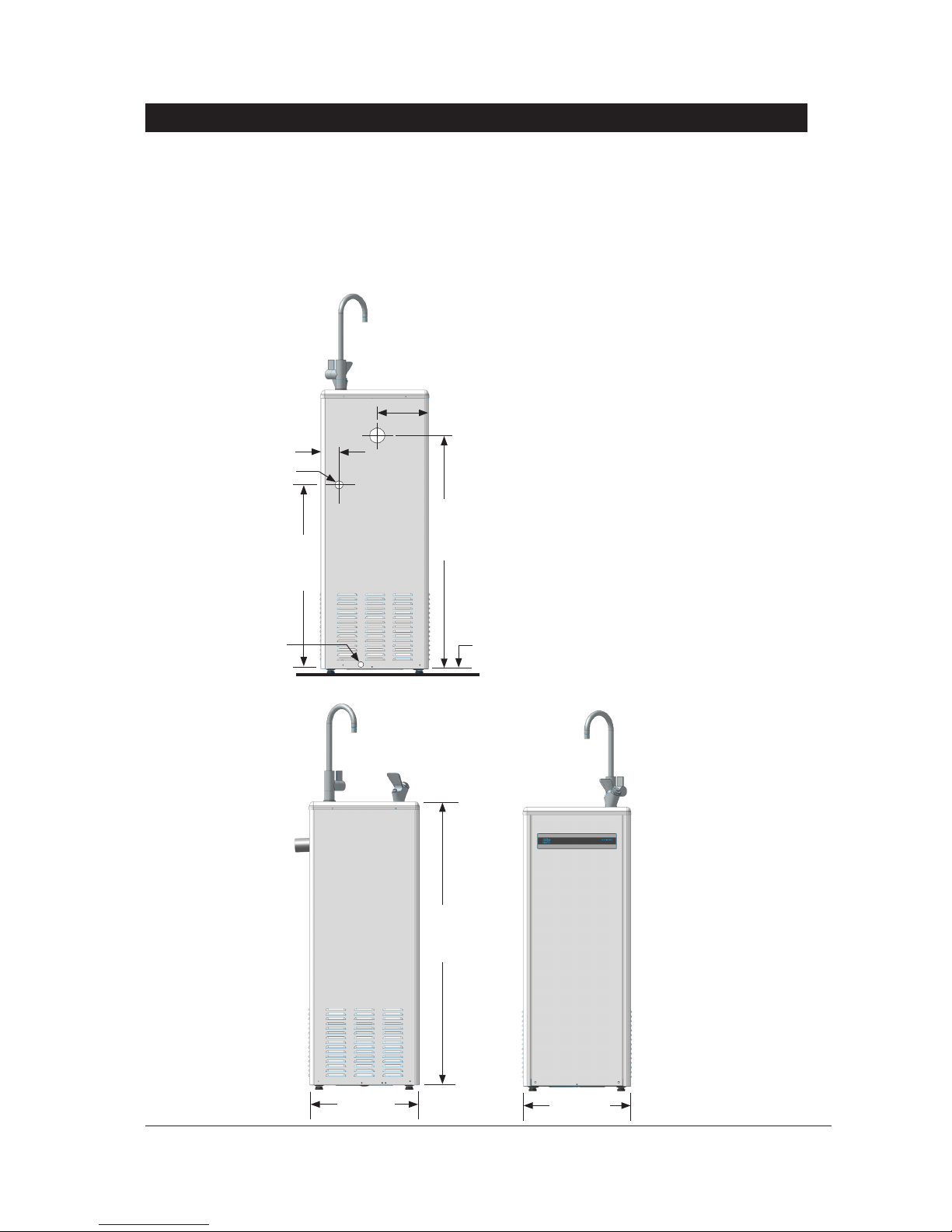

Installation instructions .................................................................................................................................. Page 6
Commissioning .............................................................................................................................................. Page 7

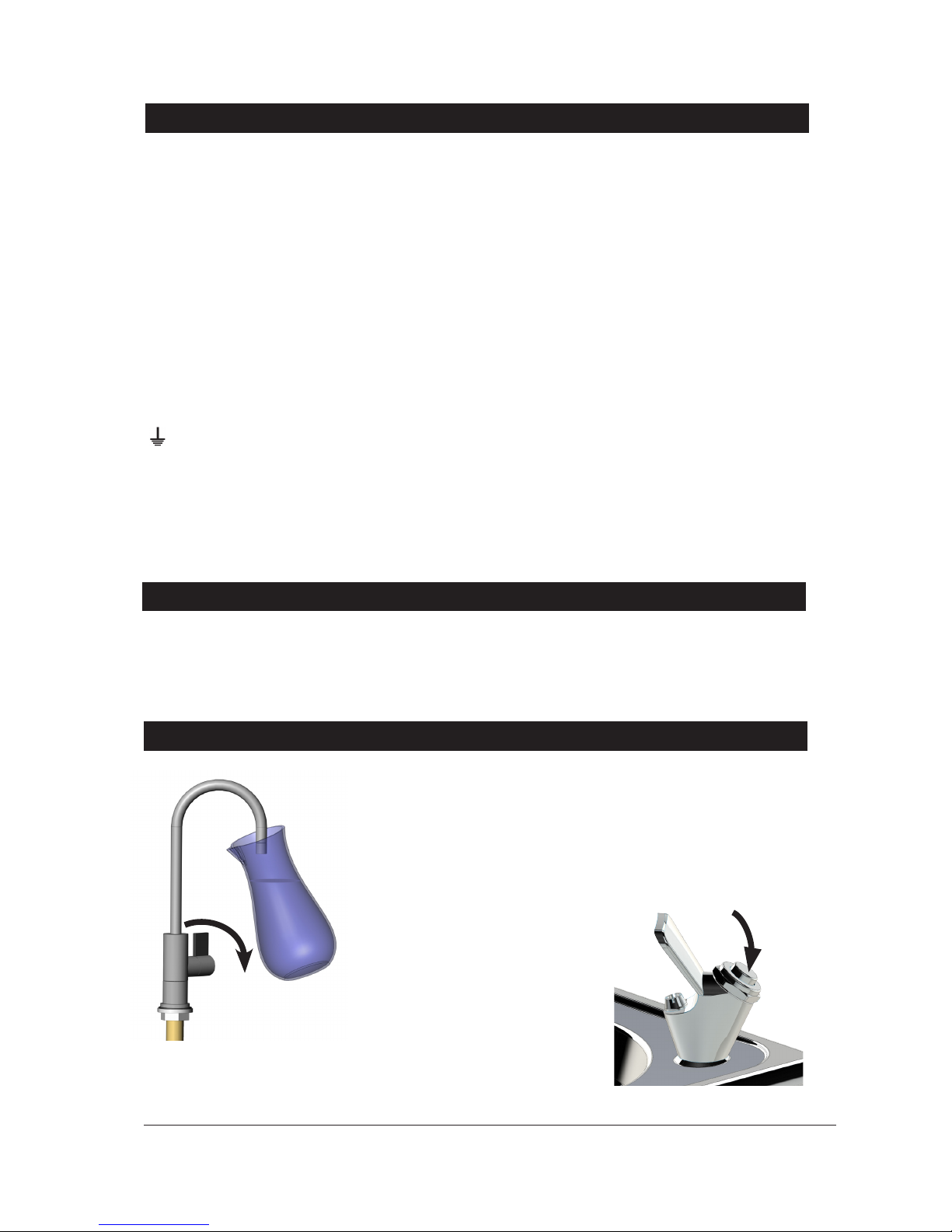

Operation ....................................................................................................................................................... Page 7
Maintenance .................................................................................................................................................. Page 8

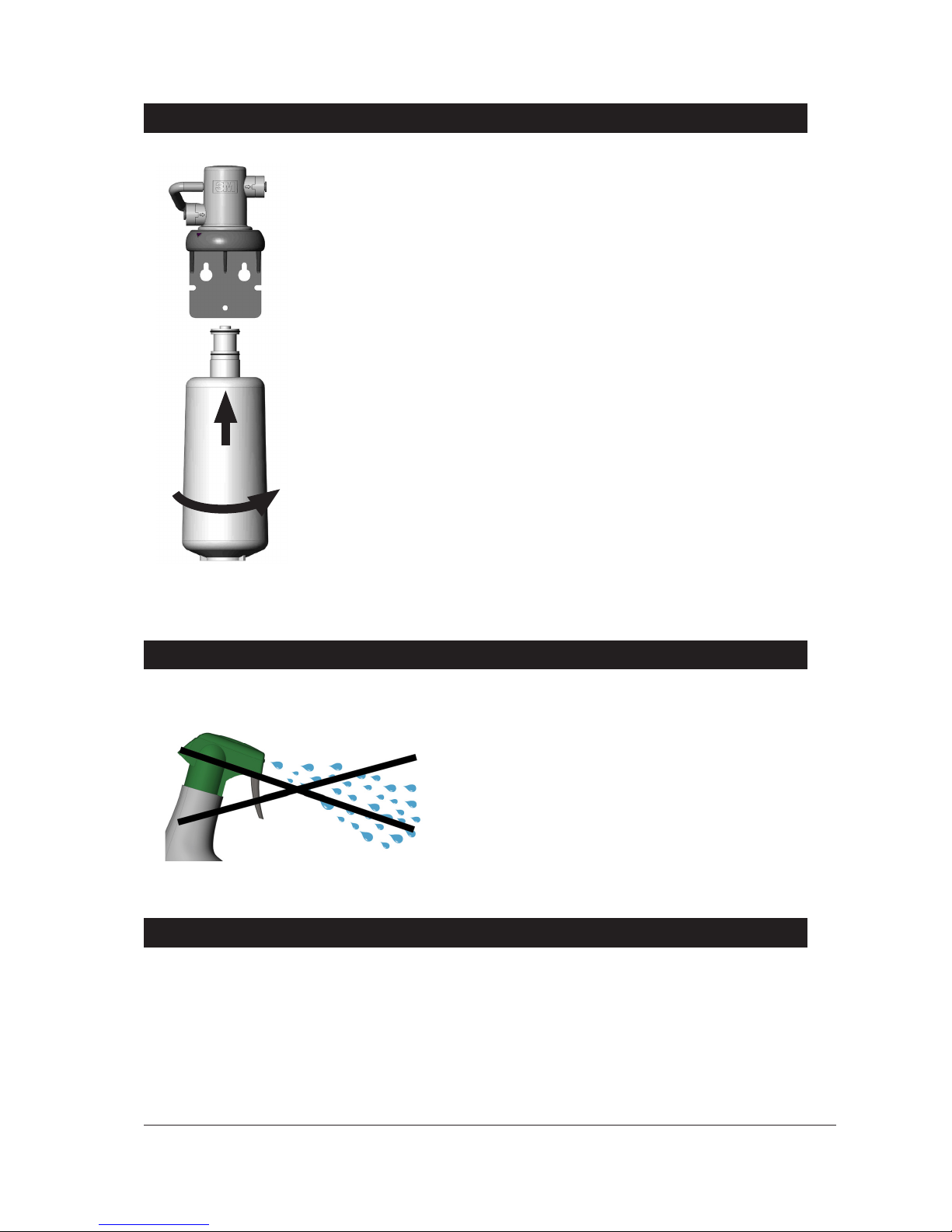

Filter replacement .......................................................................................................................................... Page 8
Cleaning ........................................................................................................................................................ Page 9
Service .......................................................................................................................................................... Page 9
End of life disposal ...................................................................................................................................... Page 10
Warranty information ................................................................................................................................... Page 11
Contact details ............................................................................................................................................. Page 12
Page 3 of 12 81585UK Zip Chillmaster - Installation & operating instructions - Mar 2016 v1.05
Safety information
Please read all installation requirements, installation procedures and precautions before
installing a Zip Chillmaster.
Never attempt to install a Zip Chillmaster without reading all of the applicable instructions.
Installation, commissioning and maintenance of this appliance must only be carried out by a
competent installer who will then be responsible for adhering to all relevant standards and
regulations.
Appliance to be wired to a double pole switched fused spur with a minimum breaking
capacity of 13 amps.
Installation must comply with current IEE regulations and any Local Authority requirements.
This appliance must be earthed.
Check that the power supply is switched off prior to electrical connection.
The appliance, its wiring and piping must not be modified in any way.
In case of malfunction isolate the power supply immediately. In case of leaks also isolate the
water supply. Repairs must only be carried out by Zip Water UK or an authorised Zip service
engineer.
If the power supply cable is damaged it must be replaced by a Zip service engineer or a
qualified electrician.
The cross sectional area of the power supply cable must be appropriate for the
power rating and location of the appliance.
The power supply cable must be adequately secured.
Check that the power supply is switched off prior to electrical connection.
Do not remove the appliance cover under any circumstances without first isolating the
appliance from the power supply.
This appliance must not be used by any person (including children) with limited
physical, sensorial or mental abilities or failing experience and / or knowledge unless they
are supervised by a person responsible for their safety or received instructions about how to
use the appliance.
Children should be supervised in order to make sure that they do not play with the appliance.
The appliance must only be used when correctly installed and in perfect working order.
This product is approved to the LVD and EMC directives and CE endorsed.
This product has been examined, tested and found when correctly fitted to comply
with the requirements of the United Kingdom Water Regulations / Byelaws (Scotland).
The products are listed under the WRAS (Water Regulations Advisory Scheme) Water
Fittings and Materials Directory.
Zip Water UK cannot be held liable for any damages caused by failure to
observe these instructions.
Please leave these instructions with the end user after installation.
81585UK Zip Chillmaster - Installation & operating instructions - Mar 2016 v1.05 Page 4 of 12
Upright water chiller with heavy duty lever-action tap.
Delivers 140 glasses per hour of chilled filtered water within the operating
range of 5 ºC to 10 ºC.
15 mm water connections.
Adjustable levelling feet.
Maximum water pressure: 0.7 MPa (7 bar).
Minimum water pressure: 0.17 MPa (1.7 bar).
Power Supply: 1/N/PE 240 V ~
Power Rating: 300 W.
Rated Current: 1.5 A
Chiller type: Fan cooled condenser with a compressor rated at 200 W.
Stainless steel water bowl and outer case.
Storage capacity: Nominal 1.8 litre.
Output capacity: Rated at 140 glasses per hour at <10 ºC.
Refrigerant type: Non-toxic R134A.
Tap: Chrome plated brass, heavy duty, lever action tap with swivel head.
Outer case: Brushed finish stainless steel case with front access panel.
Filtration type: Submicron filtration.
Dimensions: Height: 915mm, Width: 350mm, Depth: 350mm
Technical data
