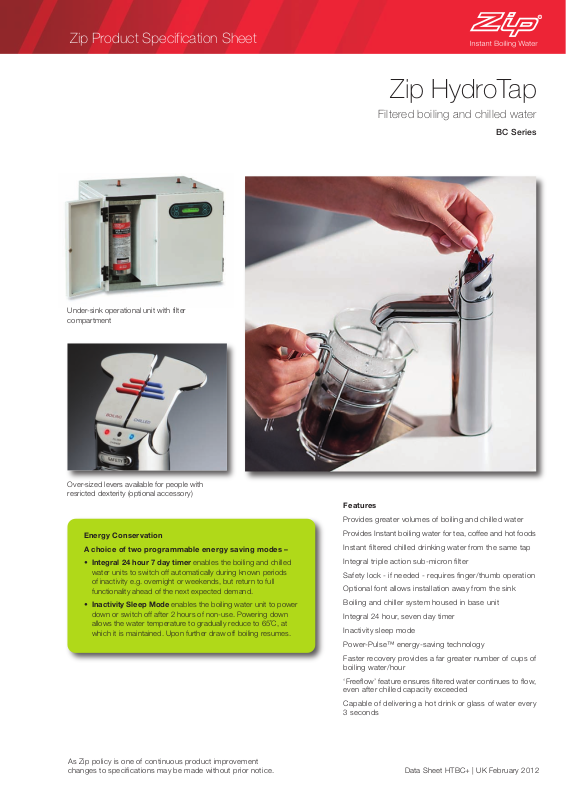

Page 1
Zip Product Specification Sheet
Under-sink operational unit with filter
compartment
Zip HydroTap
Filtered boiling and chilled water
C Series
B
Over-sized levers available for people with
resricted dexterity (optional accessory)
Energy Conservation
A choice of two programmable energy saving modes –
• Integral 24 hour 7 day timer enables the boiling and chilled
water units to switch off automatically during known periods
of inactivity e.g. overnight or weekends, but return to full
functionality ahead of the next expected demand.
• Inactivity Sleep Mode enables the boiling water unit to power
down or switch off after 2 hours of non-use. Powering down
allows the water temperature to gradually reduce to 65˚C, at
which it is maintained. Upon further draw off boiling resumes.
Features
Provides greater volumes of boiling and chilled water
Provides Instant boiling water for tea, coffee and hot foods
Instant filtered chilled drinking water from the same tap
Integral triple action sub-micron filter
Safety lock - if needed - requires finger/thumb operation
Optional font allows installation away from the sink
Boiling and chiller system housed in base unit
Integral 24 hour, seven day timer
Inactivity sleep mode
Power-Pulse™ energy-saving technology
Faster recovery provides a far greater number of cups of
boiling water/hour
‘Freeflow’ feature ensures filtered water continues to flow,
even after chilled capacity exceeded
Capable of delivering a hot drink or glass of water every
3 seconds
As Zip policy is one of continuous product improvement
changes to specifications may be made without prior notice.
Data Sheet HTBC+ | UK February 2012
Page 2
Zip Product Specification Sheet
Zip HydroTap BC Series
Product Selection Chart
Product Maximum Boiling Maximum Chilled Power Rating Dimensions (mm)
ode Cups/hr glasses/hour kW @ 230V W x D x H
C
BC200/175+ 200 175 2.8 500 x 465 x 395
BC160/125+ 160 125 2.3 440 x 430 x 337
Description
• Undersink instant boiling and chilled filtered
water from the same tap
• Can be installed on a worktop or at a sink
All components other than the tap in a
•
ingle case with easy access to the filter
s
Integral, fully encapsulated triple action
•
ubmicron filter with optional scale filter
s
system available
Programmable maximum measured water
•
elivery
d
Safety lock provides additional user safety,
•
here required
w
Available in 2 capacities
•
Cool touch tap
•
• Lock-on tap facility for filling larger vessels
• Filter replacement indicator
• Higher element ratings and enhanced
software significantly increases boiling
water recovery rates
• Free-Flow™ models offer continual supply
of filtered when chilled water capacity is
exceeded. However temperature will be less
chilled until full recovery is achieved
• Undercounter safe tray with leak detector
Boiling system
Open outlet, vented system designed to
operate at 98˚C.
Chilling system
Fan-cooled condenser type, chilling from
5-10˚C.
Refrigerant
134A
R
Tap head
hrome plated tap with electronic controls,
C
ntegral safety lock and LED indicators.
i
Undersink system
hite corrosion resistant enamelled steel
W
ase with front access door and control panel.
c
pprovals
A
RAS approved and CE endorsed.
W
Warranty
year on-site parts and labour.
1
or full details visit HYPERLINK
F
http://www.zipheaters.co.uk/warranty
Installation
Location
Should be installed either on a suitable sink or
on a Zip Tap Font. If installing on a sink, the
tap should be mounted so that it will dispense
into the sink.
The under-sink unit should be located, if
possible, directly beneath the tap and not
more than 1 metre away.
Plumbing
The water supply must be potable (drinkable).
If static pressure exceeds 7 bar, a pressure
reducing valve needs to be fitted. An isolating
valve should be installed between the supply
and the unit.
Venting
A vent in the HydroTap may discharge small
amounts of water or steam, so tap must be
mounted where it can drain.
Ventilation—IMPORTANT
t is essential that the cupboard containing the
I
ndersink unit is adequately ventilated as
u
poor air circulation will adversely affect the
performance of the HydroTap. Cupboard
oors must be offset all round using the 4mm
d
uffers provided and the supplied vent fitted.
b
f it is not possible to fit the vent in the
I
upboard door then consideration should be
c
given to installing it in the side wall of the
cupboard to dissipate heat to adjoining areas.
here limited ventilation is available it is
W
trongly recommended that the optional
s
auxiliary fan, ref: SP90651, is used. Supplied
as standard on BC200//175+.
Electrical
To be wired to a double pole fused spur,
inimum break capacity of 13 amps.
m
Installation must comply with current IEE
regulations.
Caution
In some hard water areas where mineral scale
accumulation may be an issue, consideration
should be given to the maintenance required.
We recommend the use of the Zip Scale
Filtration System.
Technical Support
Contact Zip on: 0800 077 8302.
Maintenance
Zip HydroCare Tel: 01362 852244.
Typical Installation
As Zip policy is one of continuous product improvement
changes to specifications may be made without prior notice.
Minimum clearances (mm)
The terms, Zip, Hydroboil Plus are Trademarks
Dimensions
Data Sheet HTBC+ | UK February 2012
