Zip HydroTap
Filtered chilled drinking water for kitchens and tea rooms.
®
Installation and Operating Instructions
Affix Model Number Label Here
81759
HydroTap
Disabled lever HydroTap
Page 2 of 16 Zip Hydro Tap Installation and Operating Instructions - 81759 - February 2013 v2.01
Contents
Read These Warnings First . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Models covered by these instructions . . . . . . . . . . . . . . . . . .4
Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Special tools required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Step A - Installing the tap . . . . . . . . . . . . . . . . . . . . .5
Step B - Installing the undersink unit . . . . . . . . . . . . 6
See special note page 6, ventilation buffers.
Step C - Connecting the tap, . . . . . . . . . . . . . . . . . . . 6
Step D - Connecting the Water Supply . . . . . . . . . . . 7
Step E - Testing and commissioning . . . . . . . . . . . . .7
Font Installation procedure . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Operating the Tap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Replacing the Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Setting the Energy Saver Timer . . . . . . . . . . . . . . . . . . . . . . .10
AuxillIiary Fan Attachment . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Set Cold water dispensing Time . . . . . . . . . . . . . . . . . . . . . .11
Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
End of Life Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

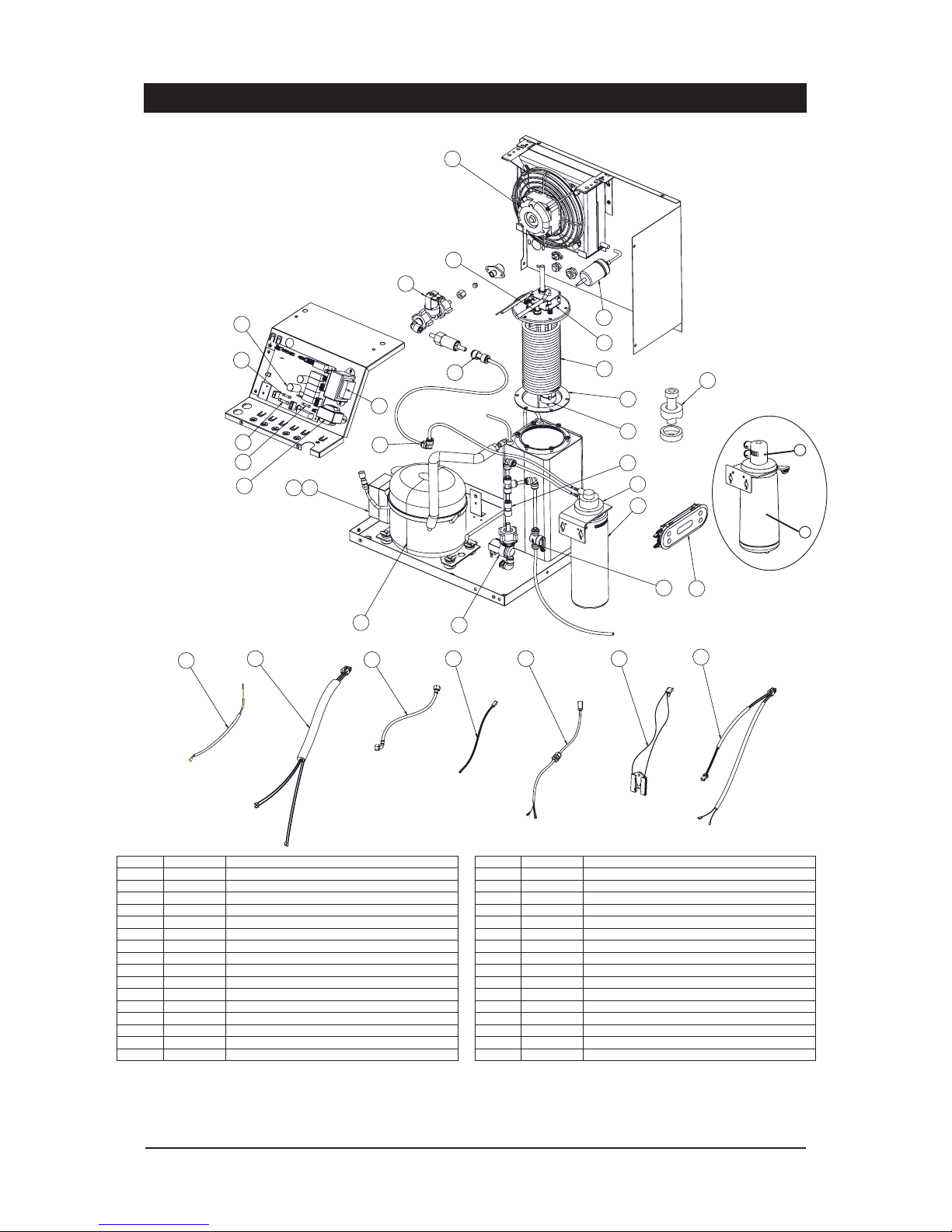

Exploded view Chiller Module and Spares . . . . . . . . . . . . . . .13
Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Contact Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
NOTE:
All plumbing must comply with AS3500.4.1 & AS3500.4.2
All electrical must comply with AS/NZS3350.1, AS/NZS3350.2.75
All refrigeration must comply with AS/NZS3350.2.24
Zip Hydro Tap Installation and Operating Instructions - 81759 - February 2013 v2.01 Page 3 of 16
Read These Warnings First
Safety
Do not allow young children, handicapped or infirm persons, to use the Zip HydroTap without supervision.
Refrigerant
The Zip HydroTap Chilling unit contains 134A refrigerant under pressure. No part of the unit should be exposed to a naked flame. Maintenance of the refrigeration unit must be carried out by an accredited service provider or qualified refrigeration mechanic.
Qualifications
If any power cord or plug is damaged it must be repaired only by a qualified technician. To avoid hazards, all installation procedures must be carried out by a suitably qualified tradesperson. The power cord and general power outlet must be in a safe visible position for connection.
Lifting
Take care when lifting the Zip HydroTap undersink unit. Some units may exceed safe lifting limits. Do not lift without assistance. The weights of the units are given in the table under the heading “Installation Requirements”. Do not lift the unit by the doors.
Airflow
The ambient temperatures this unit should operate within are 5ºC - 35ºC. Proper air circulation must be provided. The system will operate satisfactorily only if the recommended air gaps are provided, these are 50mm min rear clearance and 65mm side clearance. An air vent is provided with each unit for high usage applications, this must be installed in the top half of the cupboard door as a matter of course. An auxillary fan kit is available and should be used to ensure adequate ventilation. Make sure that the ventilation grilles of the undersink unit are not obstructed. Included in the installation pack are adhesive backed silicon buffers. If air vents are not installed in the cupboards housing the HydroTap, the buffers must be placed on the inside edge of the cupboard door to create a slight gap ensuring a minimum airflow. Failure to do this may cause the HydroTap to overheat and operate inefficiently.
Filter Control :
The Zip HydroTap filter control is preset to 6000 Litres to provide trouble-free flow and operation in most installations. Local water quality conditions may require an alteration to this capacity. In areas where the water has a high concentration of sediment, the preset litre capacity may be shortened to avoid poor flow, taste or odour situations. In areas where the water quality is above average, lengthening the preset capacity may be desirable, but not essential. If any of these changes is needed, follow the instructions on page 11 or contact your Zip Service Provider.

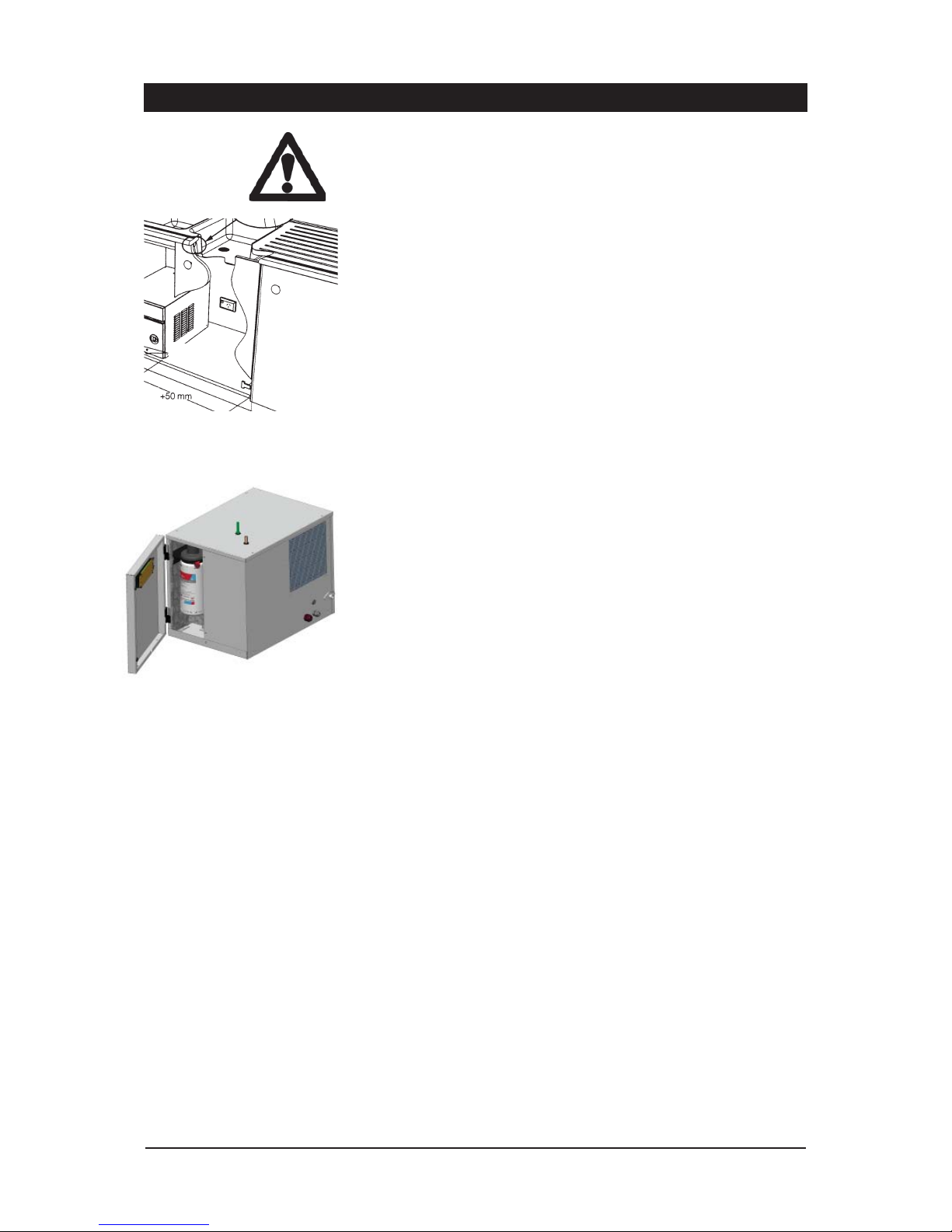

Zip Hydrotap undersink assembly.
The appliance must be placed in a
horizontal position, as shown above.
The power point must be located within reach of its cable. The appliance must be positioned so that the plug is accessable.
Note:
Always ensure the hoses are shortened so that any excess is removed and their route is the most direct line between the tap assembly and the HydroTap unit.
Do not allow the hoses to sag or droop so water is trapped within the hoses.
Always maintain a constant fall back to the unit.
Positioning of the tap assembly must be within the following parameters:
The height between the base of the Hydrotap unit and the base of the Tap assembly cannot be greater than 900mm.
Page 4 of 16 Zip Hydro Tap Installation and Operating Instructions - 81759 - February 2013 v2.01
These installation instructions cover the range of chilled only and C125+ model HydroTaps.
When correctly installed, operated and maintained in accordance with these instructions, the Zip chilled only and C125+ HydroTaps are intended to deliver filtered chilled water for consumption.
Models covered by these instructions
Installation requirements
Before installing ensure that the following have been provided at the installation site:
• Sufficient space in the cupboard to install the undersink unit in accordance with these Installation Instructions. A table of dimensions is given below.
NOTE: Add 65mm to the Width of the undersink unit to allow for Water and Electrical connections.
• A water supply connection with isolating valve inside the cupboard within reach of the 750 mm flexible connection and positioned so that the connection point and the stop cock will not be obstructed when the undersink unit is installed.
• Power supply 220-240 Volt AC, for connection to the heater via a 10 amp G.P.O.
Frost Protection
If this appliance is located where the ambient air temperature could fall below 5ºC when the heater is not in use, do not turn off the appliance electrically. This safeguard does not offer the same protection to the connecting pipework and fittings.
Installation Environment Considerations
This unit is intended for indoor use only and should never be installed outdoors or exposed to the elements of nature. This unit must not be positioned in an area that may be cleaned by a water jet. This unit must not be cleaned by a water jet.
# Section Heading# Section Heading
Read these warnings continued
Height
mm (inch)
Depth
mm (inch)
Weight empty
kg’s lbs
Weight full
kg’s lbs
340 (13.4) 455 (18) 305 (12) 32 (70.5) 35.8 (79)
Width
mm (inch)
Model
C125+ Chiller
C
Model
125+
Glasses of Chilled
Water per Hour
Zip Hydro Tap Installation and Operating Instructions - 81759 - February 2013 v2.01 Page 5 of 16
Special tools required
In addition to normal tools, the following will be required:
• 35mm diameter sheet metal hole punch for sink tops. (not supplied)
• 35mm diameter hole saw for timber bench tops. (not supplied)
• Nut runner tube spanner (supplied) for fixing tap assembly.
When installing a Font unit:
• 108mm diameter sheet metal or hole saw to suit surface being cut.

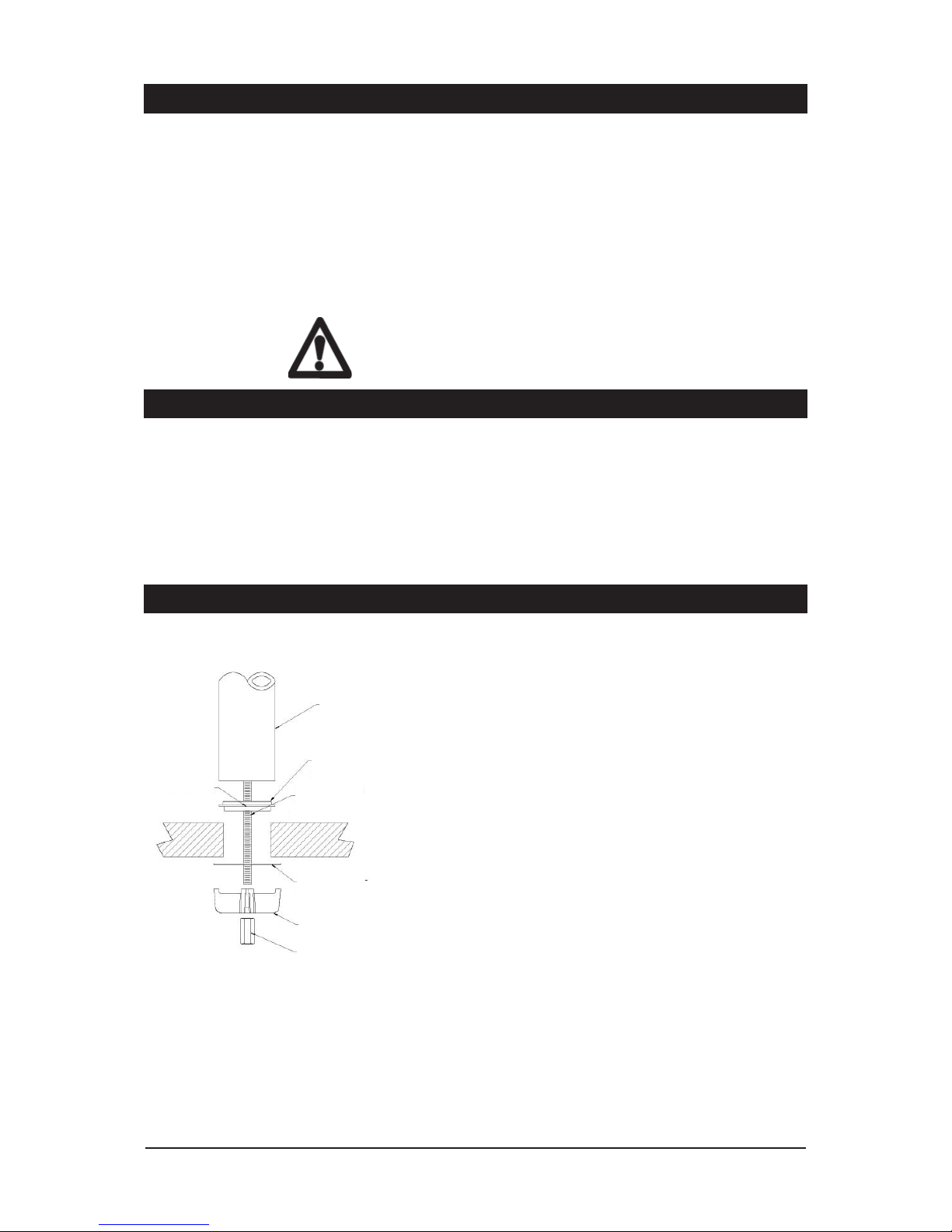

Step A - Installing the tap
1. Make sure that the tap location will allow the nozzle to drain into the sink.
2. Install the 35mm hole in the bench / sink top.
3. Ensure the black plastic spacer remains in place as this is the moisture seal against the bench / sink top. A light smearing of silicon sealant on the underside of the spacer will ensure a watertight fit.
4. Pass the two hoses through the 35mm hole and carefully locate the Head Assembly and black spacer on the bench / sink area.
5. From the underside of the bench / sink area install the S/S washer and “Spider Clamp” by feeding each of the two tubes and electrical cable evenly in between the legs of the “Spider Clamp”. Slide it up to meet the “All Thread”, and pass the “All Thread” through the center of the “Spider Clamp”.
6. Hold the “All Thread” steady and fit the 6mm nut to the “All Thread” using the tube spanner supplied in the kit. Check the Tap Head position before securing it tightly against the bench / sink top.
NOTE 1: The tap assembly must not be positioned more than 900mm above
the base of the HydroTap unit. Failure to do this may result in poor water delivery.
NOTE 2: Under no circumstances should the Tap be twisted after the installation is complete.
Installation procedure
Black Plastic Spacer
See note 3.
Note: A stainless steel washer is supplied to go in between the Spider Clamp and the underside of the sink top. The Spider clamp must rest on a flat surface. See location as shown.
• This switch must provide all-pole disconnection and a contact separation of at least 3mm installed in accordance with wiring rules.
• Cold water supply with a minimum working pressure of 172 kPa and a maximum working pressure of 700 kPa connected via an isolation valve. If pressure is likely to exceed 700 kPa, install a 500 kPa Pressure Limiting Valve.
• The fitting of an air flow vent cut into the top half of the cupboard door concealing the HydroTap requiring a cut size of approximately 100mm circular, to provide adequate warm air displacement. In installations where high volume draw-off will occur, the fitting of the accessory exhaust fan is essential.
Important: Do not proceed with the installation if these requirements are not met.
Installation requirements continued
Spider Clamp
Fixing nut
S/S
Washer
Tap
All-thread rod
Benchtop
Page 6 of 16 Zip Hydro Tap Installation and Operating Instructions - 81759 - February 2013 v2.01
Installation procedure continued
Step B - Installing the undersink unit
SPECIAL NOTE: The HydroTap undersink units are heavy, take note of the weights listed in the table on page 4. If you think you cannot lift the unit safely, get help and avoid possible injury.
Before positioning the heater connect the braided water inlet hose (supplied) to the cold water inlet on the unit. This is located at the rear of the unit.
Position the Zip HydroTap undersink unit as close as possible to directly beneath the Zip HydroTap tap head.
The connection tubes supplied with the tap head assembly CANNOT be lengthened.
Leave at least a 50 mm air-gap without obstruction on each side of the unit.
Adjust both cupboard door hinges and attach the supplied rubber door buffers to the doors to create a 4 mm air-gap between the doors and the cupboard. This is the minimum ventilation requirement for low usage installations.
Proper air circulation must be provided for all Chilled models. The system will operate correctly only if the recommended air gaps are achieved during installation. A ventilation hole measuring 100mm must be cut into the top half of the cupboard door to accommodate the air vent provided. Make sure that the
undersink unit ventilation grilles are not obstructed in any way.
Step C - Connecting the tap
Measure and trim the blue tube and connect it to the chilled water outlet located on the top front, right hand side of the undersink unit. Use spring clamps provided.
Measure and trim the unmarked tube and connect it to the vent outlet.
NOTE: All tubes must have a continuous fall back to the undersink unit.
Connect the tap USB connector to the USB port on the undersink unit. Orient the USB plug carefully and connect, do not force the plug. Once connected, fix the cable to the wall, ensure it is away from any possible water splashes and is off the floor.
Note: When trimming any silicon tubes trim to minimum length, do not loop any excess or allow kinking of the tubes. When connecting, slide the tube over the pipe at least 25mm. There are black plastic clamps provided on the chilled hoses to choke the flow if required. Only choke the flow if it is excessively strong.
Note:
Included in the installation pack are
adhesive backed silicon buffers. If air vents are not installed in the cupboards housing the HydroTap, the buffers must
be placed on the inside edge of the cupboard door to create a slight gap ensuring a minimum airflow. Failure
to do this may cause the HydroTap to
overheat and operate inefficiently.
This instruction is critical

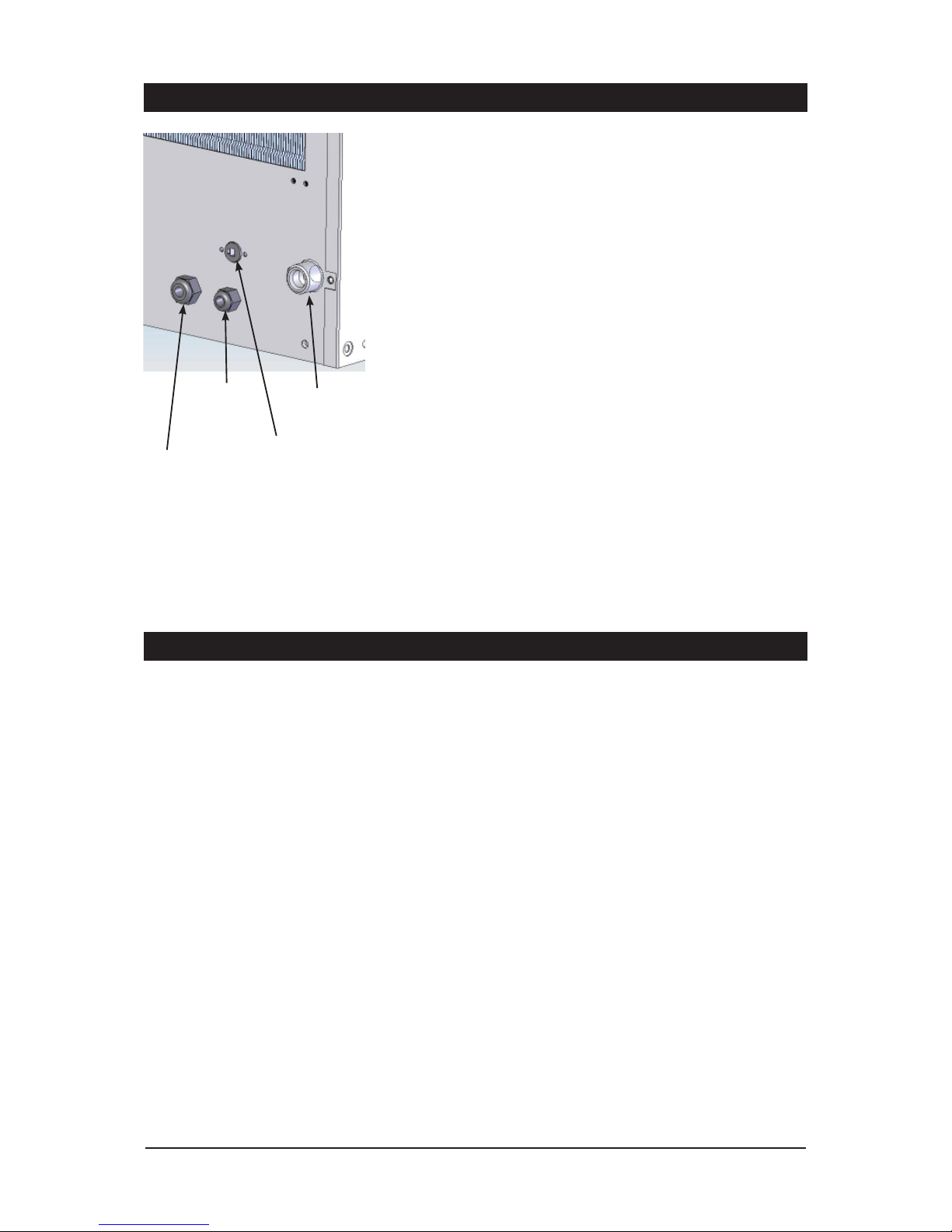

Vent line
Chilled line Cold outlet
Chiller Only Unit
Front
Zip Hydro Tap Installation and Operating Instructions - 81759 - February 2013 v2.01 Page 7 of 16
Installation procedure continued
Step D - Connecting the water supply
To prevent sediment from entering the Zip HydroTap at connection, flush water through the supply line thoroughly before connection to the Zip HydroTap. Open the access door and check that the filter is in place and secure. Connect the water supply to the undersink unit using the supplied flexible hose .Turn on water and check for leaks. If no leaks are evident turn the power on. The Blue L.E.D. flashes slowly on the Tap head assembly.
Step E - Testing and commissioning
Filter Flush Mode :
The display screen will show which model you have.
Have a bucket or similar container (not supplied) at the ready to hold a quantity of water that is ejected while the Filter Flush Mode is in operation. Open the filter access door on the front of the HydroTap and the filter cartridge will be exposed. Located to the rear RHS of the cartridge is a fixed flush line, approx 600mm long and the flush line stop cock. Place the free end of the flush line into the bucket or container (not supplied).
The display will show Filter Flush Mode. Open the flush line stop cock. To activate press adjust
>
. Run at least 7.5 Ltrs of water through to activate the filter membrane. Press the adjust > button again to stop the Filter Flush Mode. Turn OFF the Filter Flush stop cock and re-locate the tube and stop cock in the filter compartment. Turning OFF the Filter Flush Mode puts the HydroTap into normal operation. Press adjust > to start normal operation.
Normal Operation
The compressor activates and water begins to fill the chiller tank at the prescribed rate. When the water is chilled to 10ºC the Blue LED on the Tap Head assembly stops flashing and stays illuminated. The compressor continues to chill down to 5º when it will cycle Off. Ensure that the clock matches your local time. If not refer to page 11 . If
Energy Saver Settings are required, the instructions for installing these are described on page 11 “Setting the Energy Saver Timer”.

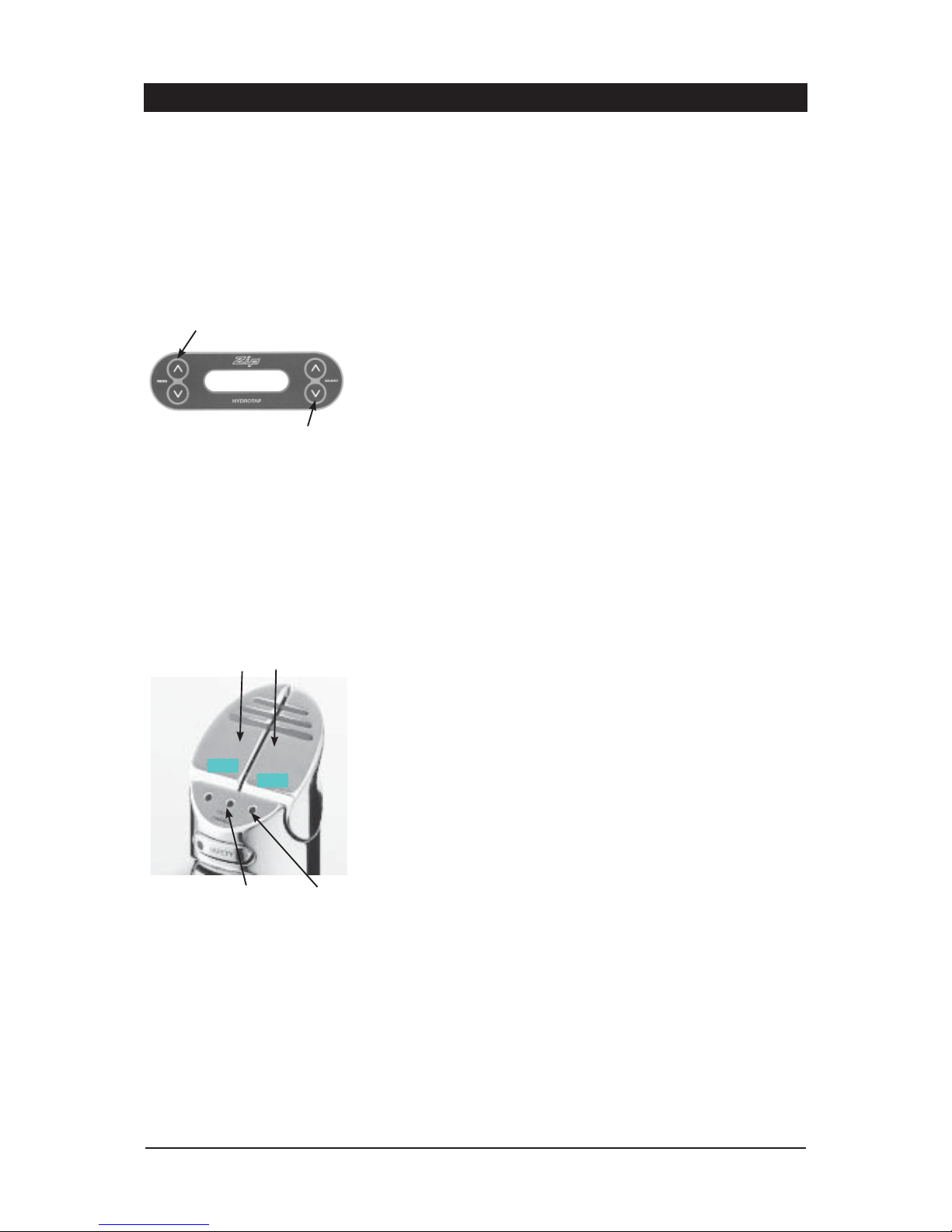

Chilled Water Lever
White Light Blue Light Filter Status Chilled
Use these buttons to
scroll through the menu
Use these buttons to
activate and de-activate
the program selected
CHILLED
DCHILLED
Page 8 of 16 Zip Hydro Tap Installation and Operating Instructions - 81759 - February 2013 v2.01

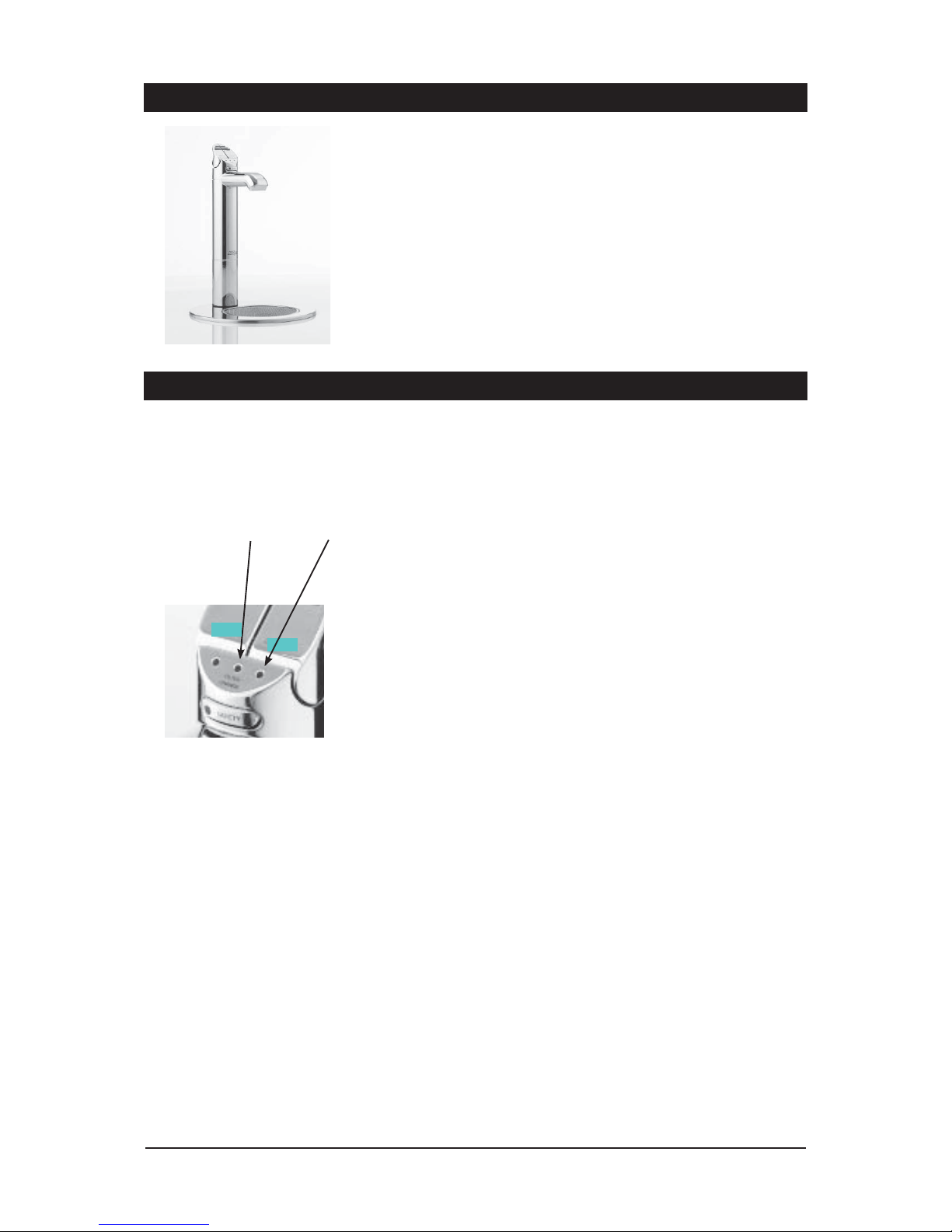

Font installation procedure
A font kit installation is available for this product and is sold separately as an accessory. For details of the available font kits, please contact your Zip customer service provider. The font instalation instructions and mounting template are supplied with the font kit.
Operating the Tap
Blue Chilled Water Light
On all the time:
This indicates that the unit is ON.
Flashing slowly :
This indicates that the chilled water is not at the right temperature. Wait up to 20 minutes. When the chilled water is at the right temperature, the light will stop flashing. Note: The Zip HydroTap is designed to dispense chilled water in the temperature range 5°C to 10°C.
During heavy usage, the temperature can rise out of this range.
Filter Change Light Off: This indicates the filter is operating within its normal specified lifespan.
Filter Change Light Flashing slowly : The light will flash slowly when the filter is due for replacement and the LCD will show “Filter Change”. Refer to “Replacing the filter” section of this document.
Chilled Water Lever
Depressing the “Blue” lever allows dispensing of Chilled water. Pulling up the Blue lever allows the tap to operate in a “no-touch” mode. Water will flow from 5 to 15 seconds (factory preset). To reset, return the handle to the “Off” position and repeat the step. The lever has to be manually returned to the “Off” position. Should an alternate dispensing time be needed refer to page 15, Water Dispensing.
Note: On the Chilled only models the Red LED is blank.
ChilledFilter Change
CHILLED
CHILLED
Zip Hydro Tap Installation and Operating Instructions - 81759 - February 2013 v2.01 Page 9 of 16
The Zenith HydroTap notifies when filter replacement is due. The default setting is 6000 Ltrs, but this can be set in increments of 1000Ltr from 1000Ltr to 10000Ltrs. When a filter change is due, the Change Filter light will flash white once a minute and remain so until reset. A filter status light is located between the Red and Blue Lights on the tap head assembly.
Depending on local water quality conditions and usage, the filter may require changing anywhere from 1000 Ltrs to 10000 Ltrs. You may also need to replace the filter if you notice unpleasant odours or tastes.
Some water may drip from the filter head (socket) during replacement. Keep a towel handy to dry up any drips.
To change the Filter:
1. Scroll through the screen menu to “Filter Flush Off” this isolates the water supply.
2. Open the left door or on the compact model, remove the front cover by lifting the locking tab as shown in photo along side and lift off to expose the filter.
3. Relieve system pressure via the filter flush stop cock, a quick open and close will do. Use the bucket to catch the discharge.
4. Grasp filter cartridge, depress the red lever and rotate the cartridge a quarter turn to the left and gently pull down. Caution: a small amount of water will drip as the cartridge is removed.
5. Do not tilt the cartridge as water may spill from it if tilted.
6. Unpack replacement cartridge, remove sanitary cap and write today’s date where shown on the label.
7. Avoid touching the filter O-rings and filter opening as this may cause bacterial contamination of the cartridge.
8. Moisten the O-rings with water, align the front cartridge label to the left (as shown in the “insert filter” diagram for filter cartridge replacement), and push the new cartridge into the filter head.
9. Turn the cartridge a quarter turn to the right until the cartridge comes to complete stop and is locked into position, with the front label facing forward.
10. Locate the filter flush hose situated behind the filter cartridge and direct the hose into a container ready for flushing. Open the filter flush stop-cock. On the control panel press adjust
>
, this will start the water flow, flushing the cartridge. Allow at least 12 litres of water through the cartridge before use, to activate the filter. Isolate the filter flush stop-cock and re-fit behind the filter cartridge. Now press the adjust > to stop the flow. (It may take approximately 3 minutes to flush the 12 litres.)
11. Wipe up any spills and dispose of spent filter cartridge and packaging thoughtfully.
12. Scroll through the menu to “Litres Filtered”, press adjust > to reset litre counter. Press adjust > and it asks “are you sure”. Press adjust > again to lock in the command.
13. Scroll through the menu to “Filter Used (Days)”, press adjust > to reset the timer. Press adjust > and it asks “are you sure”. Press adjust > again to lock in the command. After approx 10 seconds it will default to the selected mode.
14. Close the door to secure the appliance.

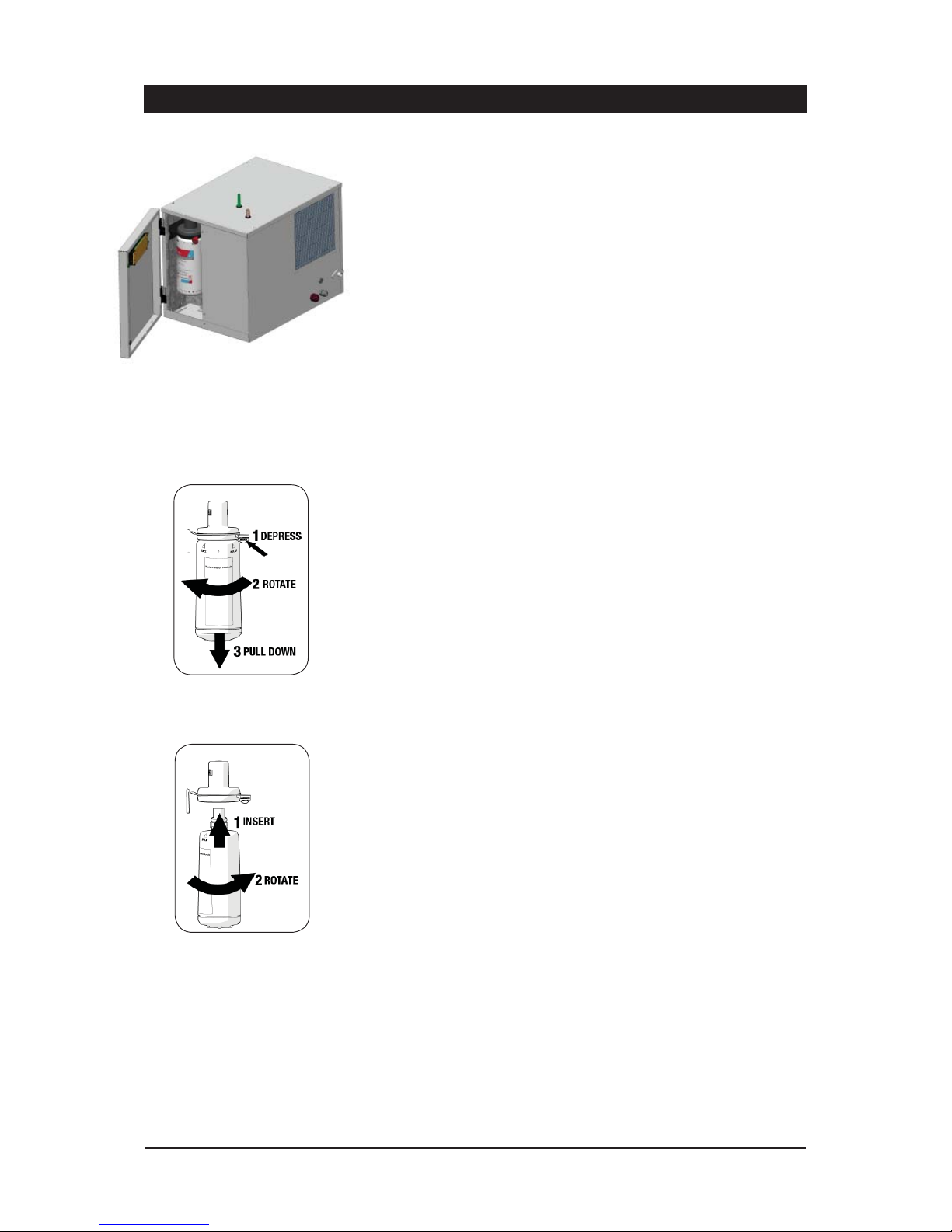

Replacing the Filter
Warning: If the Zip HydroTap is switched off for a long period of time (e.g. more than a weekend), run water through the chilled water outlet for at least 5 minutes before consumption.
FILTER CARTRIDGE REPLACEMENT
REMOVE FILTER
INSERT FILTER
Page 10 of 16 Zip Hydro Tap Installation and Operating Instructions - 81759 - February 2013 v2.01

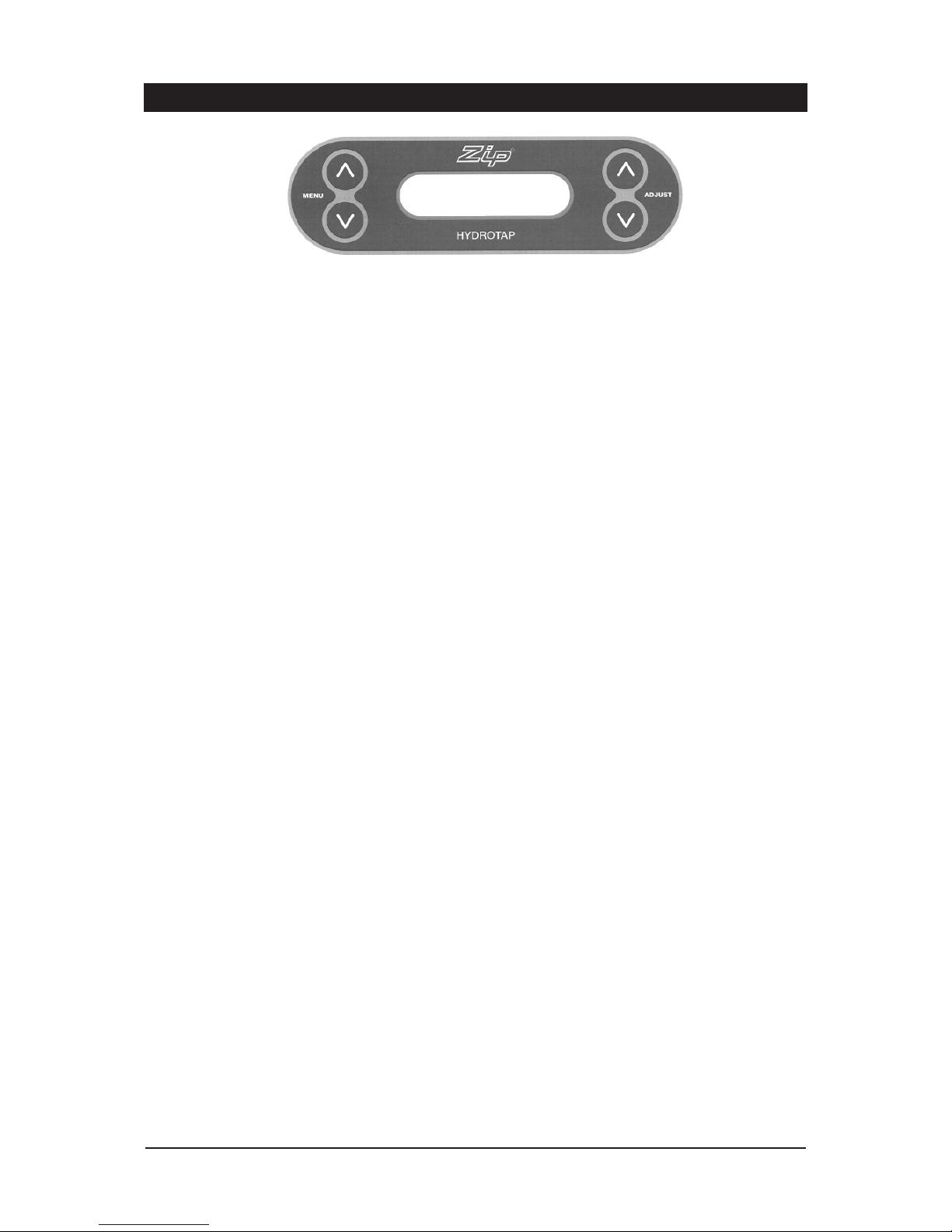

Setting the Energy Saver Timer (products with this feature only)
Normal Operation
Set Time To change time, press either Mode or Mode button until Set Time is on
the display screen. Press >Adjust button to increase time or > Adjust button to decrease time. Time increases or decrease in increments of one minute. Hold the Adjust buttons down for rapid increases or decreases.
The time will be displayed in 24Hr mode.
Set Day Press either Mode >or Mode > button until Set Day is displayed.
Press > Adjust or> Adjust to select day.
Filter Life ( factory set at 6000 Ltrs ) Press either Mode > or Mode > button until Filter Life is displayed.
Press >Adjust button to increase Filter Life or> Adjust button to decrease Filter Life.
Filter Life increases in 1000 Ltr increments to a maximum of 10000 Ltrs.
Reset Litres Filtered This function is to reset the Filter Change display after a filter has reached the
end of its life (refer to “Replace Filter Instructions” section of this document).
Press either Mode > or Mode > button until “Litres Filtered” is displayed. Press > Adjust once and “Reset Counter” will be displayed, press > Adjust button once and “Are You Sure” will be displayed.
Press > Adjust once and “Litres Filtered” will be reset to 0.
Activating On / Off Mode Press the Mode > or Mode > button until “Monday On” is displayed. To set
the time for the unit to turn on press > Adjust button until required time is reached.
To set the time for the unit to turn Off press Mode > button once and “Monday Off” will be displayed. Now press > Adjust until required time is reached.
If each individual day is to have an “On / Off” time, these steps need to be repeated for each day and for each On / Off time.
Water Dispensing Mode
This function allows the user to alter the preset time the water may be dispensed. This can go from 5 secs to 15 secs. (Factory set 15 secs)
To set, scroll through the menu to “Dispense Time”, press adjust
>
or >to
the desired time frame.
Note: The Hydrotap may be temporarily activated during the On / Off Mode. By operating the levers, the unit will go into normal operation and then remain in an “ON” cycle, until the next “OFF” cycle.
Mode Plus Button
Mode Minus Button
Plus Adjust Button
Minus Adjust Button
>
>
Zip Hydro Tap Installation and Operating Instructions - 81759 - February 2013 v2.01 Page 11 of 16
Auxiliary Fan Attachment
Auxiliary fan
connection
Cold water connection
Mains Electrical Power
connection
The HydroTap is equipped with an auxiliary fan connection point on the side panel close to the cold water inlet / flex and plug area. The fan kit is available as a spare part. The fan operates in parallel with the Condensor fan helping to remove heat from the cupboard space. This fan should be purchased and connected to the HydroTap if the airfow characteristics of the cupboard space are inadequate for the effective removal of hot air thereby adversly affecting the operation of the HydroTap.
The fan can be installed so that it extracts air from, or forces air into the cupboard space, whichever is the most effective for your installation.
Application of the fan is of paramount importance in situations where the cupboard space reaches temperatures greater than 35ºC.
The exhaust fan kit must be fitted, when supplied with the appliance.
Tap Control Loom
connections
Set the Cold water dispensing times
The ability to change the maximum dispensing time for the Cold water has been introduced. The default settings for the maximum dispensing times is 15 secs. The ability to change the Cold dispensing times between 5 to 15 secs, in increments of 1 sec, is acessible through the Menu screen on the LCD.
Scroll through the Menu until the Dispense Cold screen is displayed, then use the adjust buttons to set the required dispensing time for the Cold Water.
Page 12 of 16 Zip Hydro Tap Installation and Operating Instructions - 81759 - February 2013 v2.01
Symptom Possible Cause Solution
No LED display, no tap head lights or, no water when tap levers are operated.
No water flow.
Slow water recovery after use.
Water not chilled.
Alternating display messages:
No power.
Plug is not located in power socket.
Tap loom is not connected to HydroTap unit.
Possible internal fault.
Program in OFF cycle
Water supply isolated.
Water supply not connected.
Power supply not connected.
Tap loom is not connected to HydroTap unit.
Possible internal fault.
Program in OFF cycle.
Filter may require replacement.
Unit has just come out of OFF cycle.
Excessive use, unit refilling or chilling down to temperature.
Possible internal fault.
More than one fault identified at the same time
Check power supply.
Ensure power plug is correctly fitted and switch is turned ON.
Check loom connection.
Contact local Zip Service Provider.
Check LCD for information.
Check water supply is on.
Check to ensure plumbing connection is made.
Check power plug is correctly fitted and switch is turned on.
Check for loom connection
Contact local Zip Service Provider.
Check LCD for information.
Check filter usage on LCD screen, if “filter change” is displayed follow instructions on page 9.
Wait for Blue LED to stop flashing.
Wait for Blue LED to stop flashing.
Contact local Zip Service Provider.
Record the number and type of faults
Contact local Zip service Provider
Trouble Shooting
In order to help preserve our environment we ask that you dispose of this product correctly. Please contact your local city council for collection centre details.
End of life disposal
Cleaning
Do not use strong, corrosive, spray or abrasive cleaners. Clean with a soft cloth or brush and mild soap and water.
Do not spray water over the tap as it may damage the low-voltage electronics.
Undersink units must never be located near or cleaned with water jets.
Zip Hydro Tap Installation and Operating Instructions - 81759 - February 2013 v2.01 Page 13 of 16
Exploded View Chiller Module and Spare Parts







ĕĕĕĕĕ














30
28
ITEM KIT NO. DESCRIPTION
1 90728 PLUMBING & FITTINGS KIT 2 90614 SAFETY SOLENOID KIT 3 91362 KIT SOLENOID ASSY C125+ 4 90715 GASKET & ELBOWS KIT COLD TANK 5 90625 DRYER-FILTER KIT W/ NUT & TUBE 6 93147 EVAPORATOR KIT S/S 7 90633 COLD SENSOR PROBE KIT 8 90634 PUMP KIT (COLD TANK)
9 90714 PCB KIT (CHILLER ONLY) 10 90623 TRANSFORMER KIT 11 90726 LOOM SOLENOID KIT 12 90626 CONTROL PANEL KIT 13 90628 STOP VALVE & JOHN GUEST FITTING KIT FILTER 14 90056 FLEXIBLE BRAIDED HOSE KIT 15 90635 LEVEL SENSOR KIT COLD TANK 16 90636 RELAY COMPRESSOR KIT
ITEM KIT NO. DESCRIPTION
17 90637 COMPRESSOR KIT 18 90639 FAN MOTOR KIT 19 90437 CAPACITOR KIT 20 90185 LOOM LEVEL SENSOR KIT 21 90718 TRANSFORMER KIT - AUXILLARY FAN 22 90190 LOOM+GLAND MAIN PCB to TAP 23 90671 3aq - 10Amp FUSE 24 90670 2aq - 10Amp FUSE 25 90669 2aq - 1Amp FUSE 26 90727 LEAK SENSOR KIT 27 90187 LOOM - COMPRESSOR TO FAN KIT 28 91240 FILTER CARTRIDGE KIT
91290 GLOBALPLUS FILTER CARTRIDGE KIT 29 90041 ø35mm CHASSIS PUNCH 30 99108 FILTER HEAD KIT
91351 GLOBALPLUS FILTER HEAD KIT
Page 14 of 16 Zip Hydro Tap Installation and Operating Instructions - 81759 - February 2013 v2.01
Notes
Zip Hydro Tap Installation and Operating Instructions - 81759 - February 2013 v2.01 Page 15 of 16
Notes
Zip Hydro Tap Installation and Operating Instructions - 81759 - February 2013 v2.01 Page 16 of 16
Contact Details
The standard glass is 200 ml (7 fl oz). The terms “Zip” and “HydroTap” are registered trade marks of Zip Heaters (Aust) Pty Ltd. Zip products described in this publication are manufactured under one or more of the following patents: AU675601, AU637412, AU635979, GB0422305, GB2065848, US4354049, US5103859, and US5099825. Other patents are in force and patent applications are pending.
Head Office
Zip Heaters (Aust) Pty. Ltd. ABN 46 000 578 727 67 Allingham Street Condell Park NSW 2200 Postal: Locked Bag 80 Bankstown 1885 Australia
Website: www.zipheaters.com Facsimile: (02) 9796 3858 Telephone: (02) 9796 3100 Free Call: 1 800 638 633
As Zip policy is one of continuous product improvement, changes to specifications may be made without prior notice. Images in this booklet have been modified and may not be true representations of the finished goods.
WMKA00099
AS 3498
Loading...
