Page 2 of 20 801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09
Safety Lock
3. Tap operation
Safety - Boiling Models
B
A safety lock feature is provided to prevent boiling water flowing if any of the
hot levers are inadvertently operated.
To dispense boiling water
(With the Safety ON)
Depress the Red lever, while
simultaneously covering the safety lock
button with a second finger. These two
actions need to occur within 2 seconds
for the successful dispensing of boiling
water.
The Safety Lock button can only be
Disabled or Enabled from the LCD
touch screen (Located on the unit in the
cupboard).
NOTE:
When Disabled, no water will be dispensed from the Boiling Hydrotap.
Boiling Water Lever:
(With the safety OFF)
Depressing the “Red” lever allows the
dispensing of boiling water.
Pulling forward the Red lever allows the
tap to operate in a “no-touch” mode.
Water will flow from between 5 and 15
seconds, this is user adjustable (see
page 17).
To reset, return the lever to the “Off”
position and repeat the step. The lever
has to be manually returned to the “Off”
position.
Press or pull lever
Boiling Models

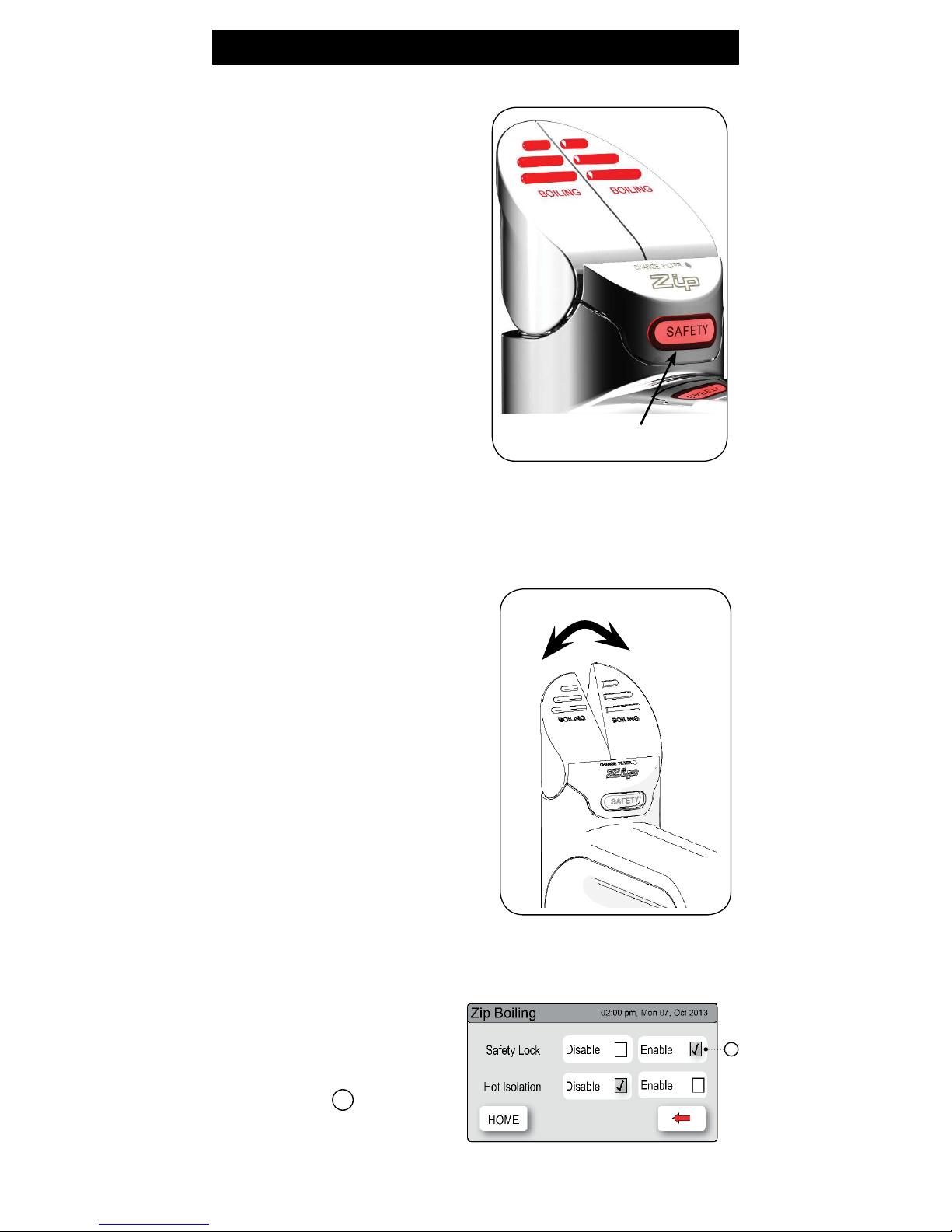

To set the safety using the touch screen:
1.
Press the [MENU] button for
main menu.
2.
Press the [Setting] button.
3.
Press the [Safety] button.
4. Press button to Enable /
Disable, the safety lock feature.
B
Page 2 of 20 801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09
Safety Lock
3. Tap operation
Safety - Boiling Models
B
A safety lock feature is provided to prevent boiling water flowing if any of the
hot levers are inadvertently operated.
To dispense boiling water
(With the Safety ON)
Depress the Red lever, while
simultaneously covering the safety lock
button with a second finger. These two
actions need to occur within 2 seconds
for the successful dispensing of boiling
water.
The Safety Lock button can only be
Disabled or Enabled from the LCD
touch screen (Located on the unit in the
cupboard).
NOTE:
When Disabled, no water will be dispensed from the Boiling Hydrotap.
Boiling Water Lever:
(With the safety OFF)
Depressing the “Red” lever allows the
dispensing of boiling water.
Pulling forward the Red lever allows the
tap to operate in a “no-touch” mode.
Water will flow from between 5 and 15
seconds, this is user adjustable (see
page 17).
To reset, return the lever to the “Off”
position and repeat the step. The lever
has to be manually returned to the “Off”
position.
Press or pull lever
Boiling Models
To set the safety using the touch screen:
1.
Press the [MENU] button for
main menu.
2.
Press the [Setting] button.
3.
Press the [Safety] button.
4. Press button to Enable /
Disable, the safety lock feature.
B
801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09 Page 3 of 20
Boiling Ambient Models

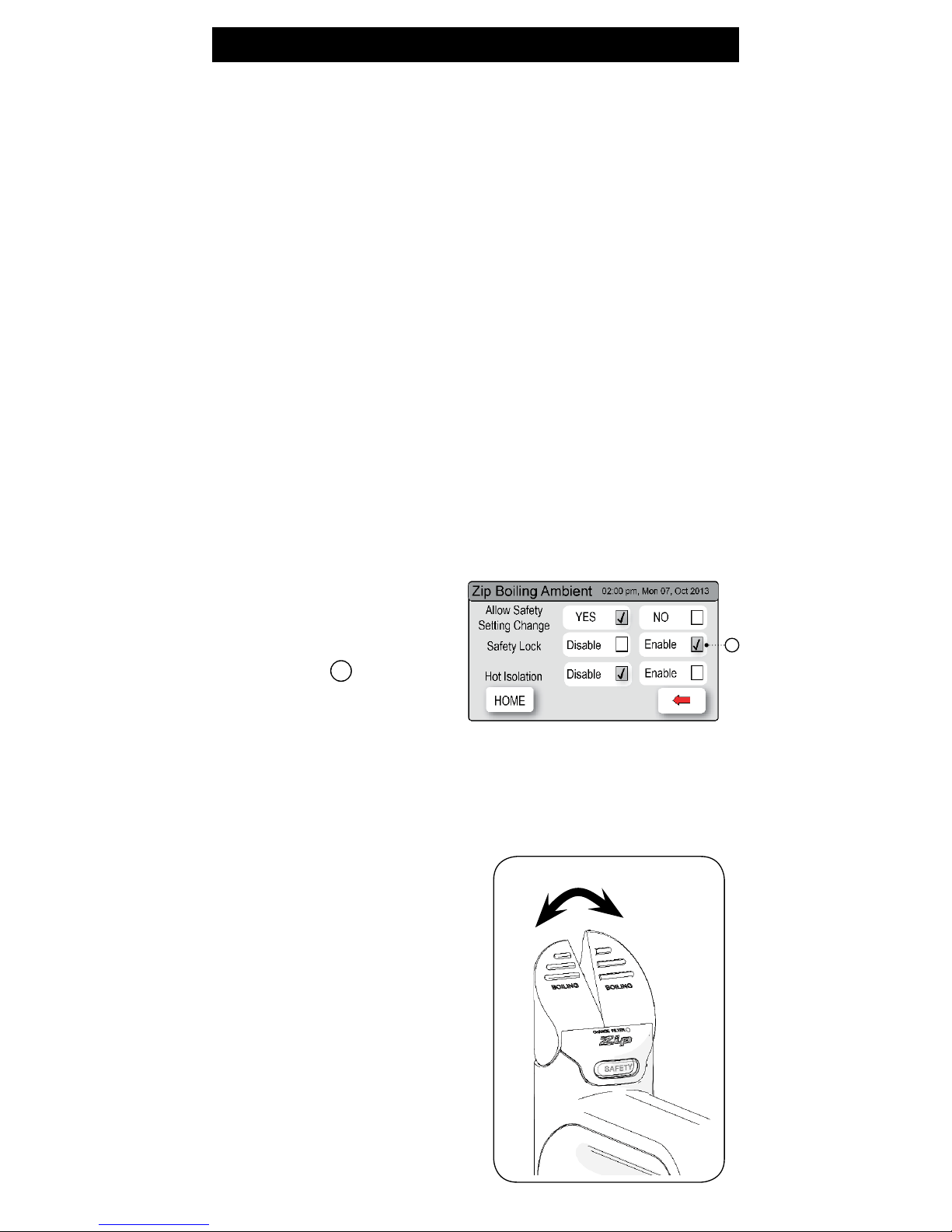

The operation of the safety lock button can be allowed [Yes] from the touch
screen display.
Once allowed [Yes], the safety feature may then be activated or deactivated
from the tap or Enabled /Disabled from the display screen using button
If dis-allowed [No], Then no changes to the safety on the tap, or on the screen
will be possible.

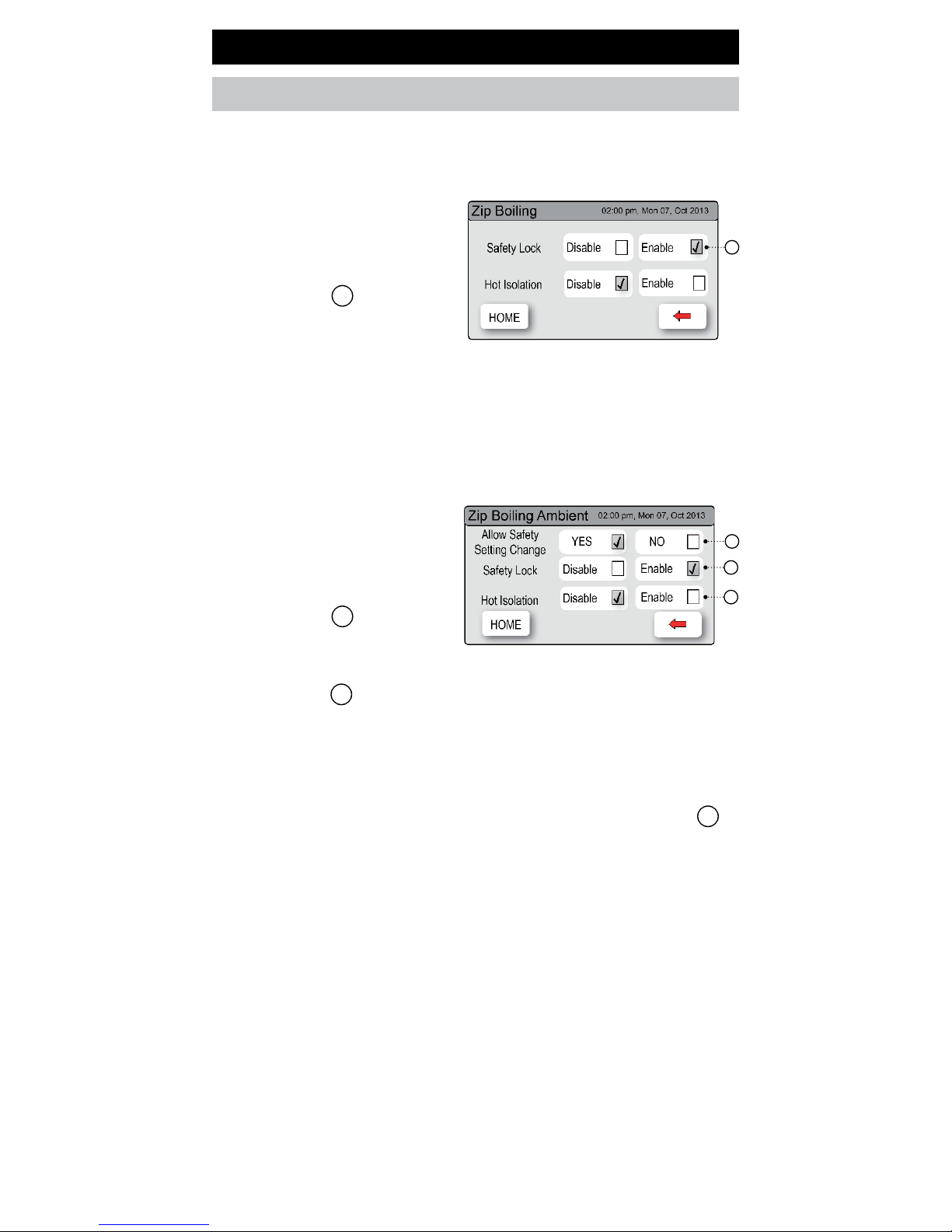

To change the safety using the touch screen:
1.
Press the [MENU] button for
main menu.
2.
Press the [Setting] button.
3.
Press the [Safety] button.
4. Press button to Enable /
Disable, the safety lock feature.
NOTE: When Disabled, boiling water may be dispensed from the Hydrotap.
NOTE: See Page 16 for safety setting changes and Hot Isolation
instructions.
3. Tap operation
To activate the safety (From the tap):
First place a finger on the safety lock, then depress the Blue lever, while
keeping both fingers in position for a period of approximately ten seconds.The
safety lock indicator light will now be illuminated.
To deactivate the safety (From the tap):
First place a finger on the safety lock, then depress the Blue lever, while
keeping both fingers in position for a period of approximately ten seconds.
The safety lock indicator light will now extinguish.
Safety - Boiling Ambient Models
B
B
Ambient Water Lever:
Depressing the “Blue” lever allows
the dispensing of Ambient water.
Pulling forward the Blue lever allows
the tap to operate in a “no-touch”
mode. Water will flow from between
5 and 15 seconds, this is user
adjustable (See page 17). To reset,
return the handle to the “Off” position
and repeat the step. The lever has
to be manually returned to the “Off”
position.
Press or pull lever
801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09 Page 3 of 20
Boiling Ambient Models
The operation of the safety lock button can be allowed [Yes] from the touch
screen display.
Once allowed [Yes], the safety feature may then be activated or deactivated
from the tap or Enabled /Disabled from the display screen using button
If dis-allowed [No], Then no changes to the safety on the tap, or on the screen
will be possible.
To change the safety using the touch screen:
1.
Press the [MENU] button for
main menu.
2.
Press the [Setting] button.
3.
Press the [Safety] button.
4. Press button to Enable /
Disable, the safety lock feature.
NOTE: When Disabled, boiling water may be dispensed from the Hydrotap.
NOTE: See Page 16 for safety setting changes and Hot Isolation
instructions.
3. Tap operation
To activate the safety (From the tap):
First place a finger on the safety lock, then depress the Blue lever, while
keeping both fingers in position for a period of approximately ten seconds.The
safety lock indicator light will now be illuminated.
To deactivate the safety (From the tap):
First place a finger on the safety lock, then depress the Blue lever, while
keeping both fingers in position for a period of approximately ten seconds.
The safety lock indicator light will now extinguish.
Safety - Boiling Ambient Models
B
B
Ambient Water Lever:
Depressing the “Blue” lever allows
the dispensing of Ambient water.
Pulling forward the Blue lever allows
the tap to operate in a “no-touch”
mode. Water will flow from between
5 and 15 seconds, this is user
adjustable (See page 17). To reset,
return the handle to the “Off” position
and repeat the step. The lever has
to be manually returned to the “Off”
position.
Press or pull lever
Page 4 of 20 801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09

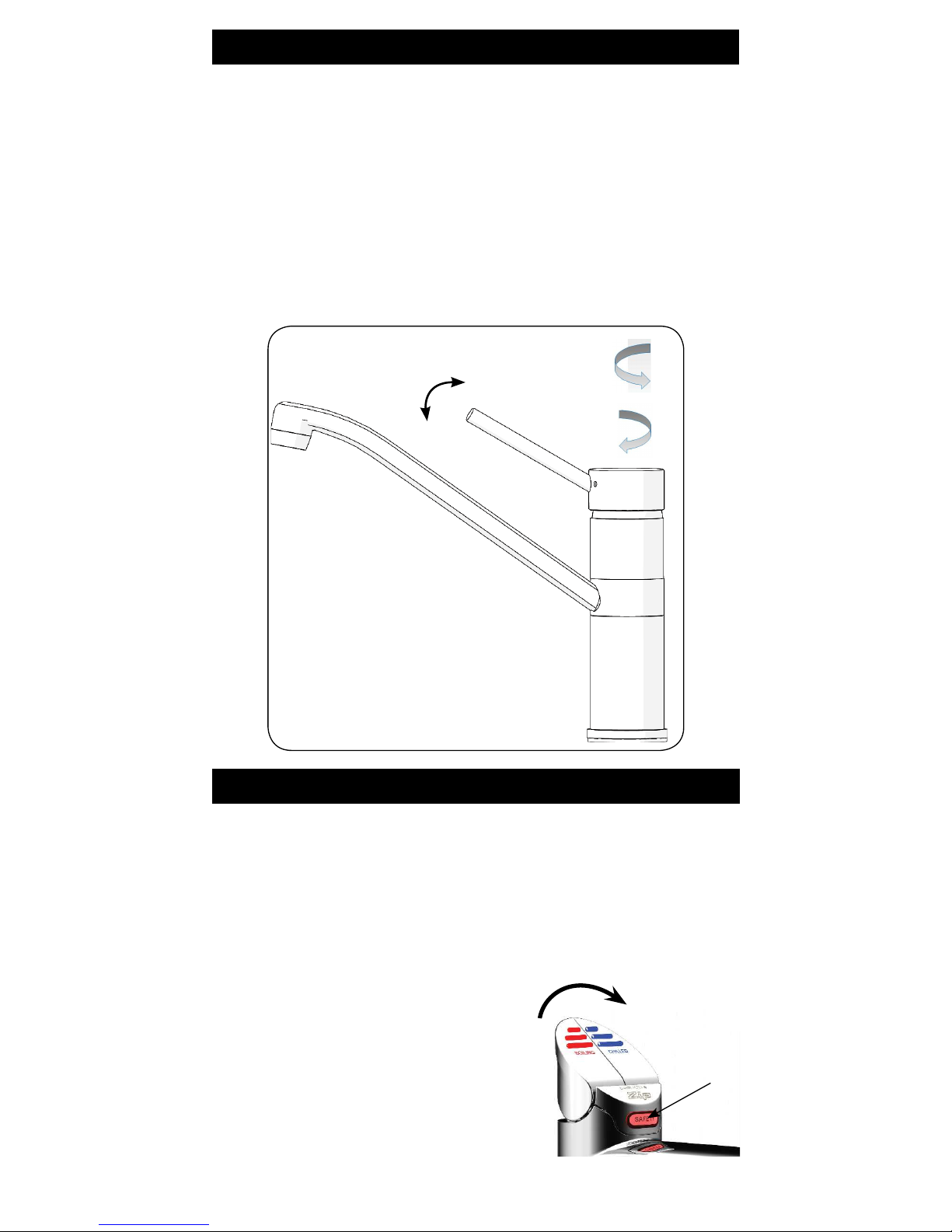

MixerTap
Lifting the handle up will increase the flow rate and lowering the handle will
decrease the flow rate. Lower the handle all the way down to turn the tap off.
When the handle is moved towards the blue dot, the temperature is
decreased and when moved towards the red dot, the temperature is
increased. The final temperature will be dependant on the temperature of the
incoming cold water.
The spout may be swivelled, left or right, for convenience.
Increase flow
Decrease flow
Cold
Hot
3. Tap operation
Procedure:
•
Shield the HydroTap from any direct sun
light using a dark cloth.
•
With the unit in Normal operating mode
•
Turn the power OFF
•
Pull both tap levers to the forward position
•
Turn ON the power
•
The unit will calibrate the safety switch
•
Return the levers to the neutral position.
Light intensity varies from site to site, therefore it is recommended that a
re-calibration be performed at the time of the installation.
All direct natural sun light must be shaded from the HydroTap, during the
calibration. This can be achieved by closing any nearby curtains, blinds, etc.
Pull both levers forward
Safety Sensor Calibration
Safety
sensor
Page 4 of 20 801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09
MixerTap
Lifting the handle up will increase the flow rate and lowering the handle will
decrease the flow rate. Lower the handle all the way down to turn the tap off.
When the handle is moved towards the blue dot, the temperature is
decreased and when moved towards the red dot, the temperature is
increased. The final temperature will be dependant on the temperature of the
incoming cold water.
The spout may be swivelled, left or right, for convenience.
Increase flow
Decrease flow
Cold
Hot
3. Tap operation
Procedure:
•
Shield the HydroTap from any direct sun
light using a dark cloth.
•
With the unit in Normal operating mode
•
Turn the power OFF
•
Pull both tap levers to the forward position
•
Turn ON the power
•
The unit will calibrate the safety switch
•
Return the levers to the neutral position.
Light intensity varies from site to site, therefore it is recommended that a
re-calibration be performed at the time of the installation.
All direct natural sun light must be shaded from the HydroTap, during the
calibration. This can be achieved by closing any nearby curtains, blinds, etc.
Pull both levers forward
Safety Sensor Calibration
Safety
sensor
801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09 Page 5 of 20

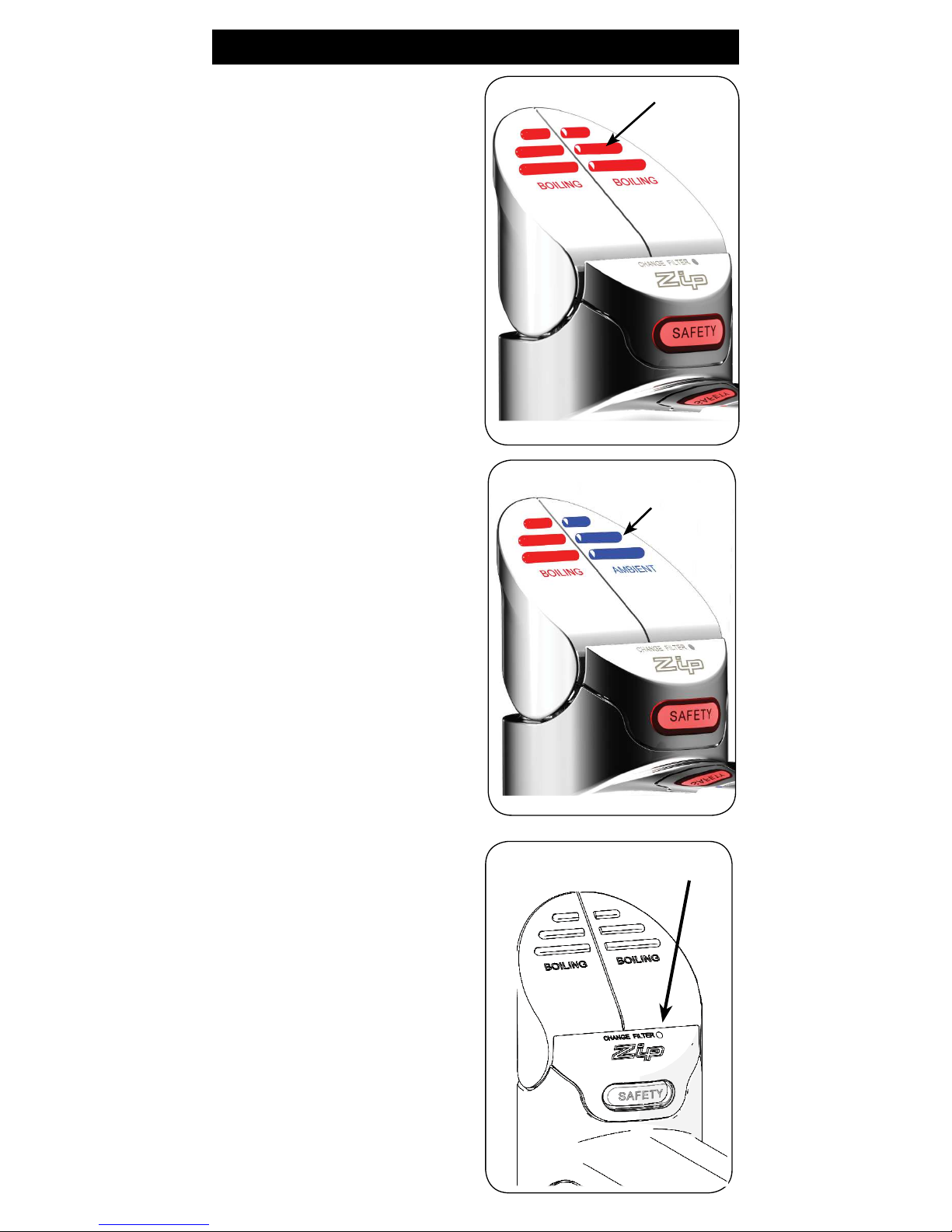

Filter light
Filter Change Light Off:
This indicates the filter is operating
within its normal specified lifespan.
Filter Change light flashing
slowly:
The light will flash slowly when the
filter is due for replacement and the
LCD will show “Filter Change”. Refer
to “Replacing the filter” in section ‘C’
of this document.
Filter light
3. Tap Lights
Blue Lights
Blue Ambient water
Lights
On all the time:
This indicates that the Ambient water
is ready.
Red Lights
Red Boiling Water Light
On all the time:
This indicates that the boiling water is
ready.
Flashing slowly:
This indicates that the boiling water is
below the desired temperature.
Wait for the light to stop flashing
before dispensing water. The flashing
light will typically occur after switching
on, or coming out of sleep mode.
801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09 Page 5 of 20
Filter light
Filter Change Light Off:
This indicates the filter is operating
within its normal specified lifespan.
Filter Change light flashing
slowly:
The light will flash slowly when the
filter is due for replacement and the
LCD will show “Filter Change”. Refer
to “Replacing the filter” in section ‘C’
of this document.
Filter light
3. Tap Lights
Blue Lights
Blue Ambient water
Lights
On all the time:
This indicates that the Ambient water
is ready.
Red Lights
Red Boiling Water Light
On all the time:
This indicates that the boiling water is
ready.
Flashing slowly:
This indicates that the boiling water is
below the desired temperature.
Wait for the light to stop flashing
before dispensing water. The flashing
light will typically occur after switching
on, or coming out of sleep mode.
Page 6 of 20 801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09
Note: When selecting Menu options, the screen will revert to the main menu,
if the screen remains inactive for a period, in excess of 10 seconds.
Zip HydroTap introduces a ‘TOUCH’ screen for easy setup and operation
adjustment. See page 19 for icon details.
Other possible messages in status window:
**Status Information Notes
Safety OFF Product is in normal operation
mode
-
Safety ON Safety lock is activated Refer to section
G - safety
System Fault Product has one or more system
faults
Refer to section B
Sleep Mode System is in sleep mode. Boiling
water or hot water is not available.
Refer to section
G - Energy mode
Log Memory Full - -
Change Filter External/Internal filter needs to be
replaced
Refer to section C
System Off System off in off mode. No boiling
water or chilled water available.
Refer to section
G - Energy mode
Hot Isolated Hot isolation has been activated.
Boiling water or hot water is not
available.
Refer to section
G - Safety

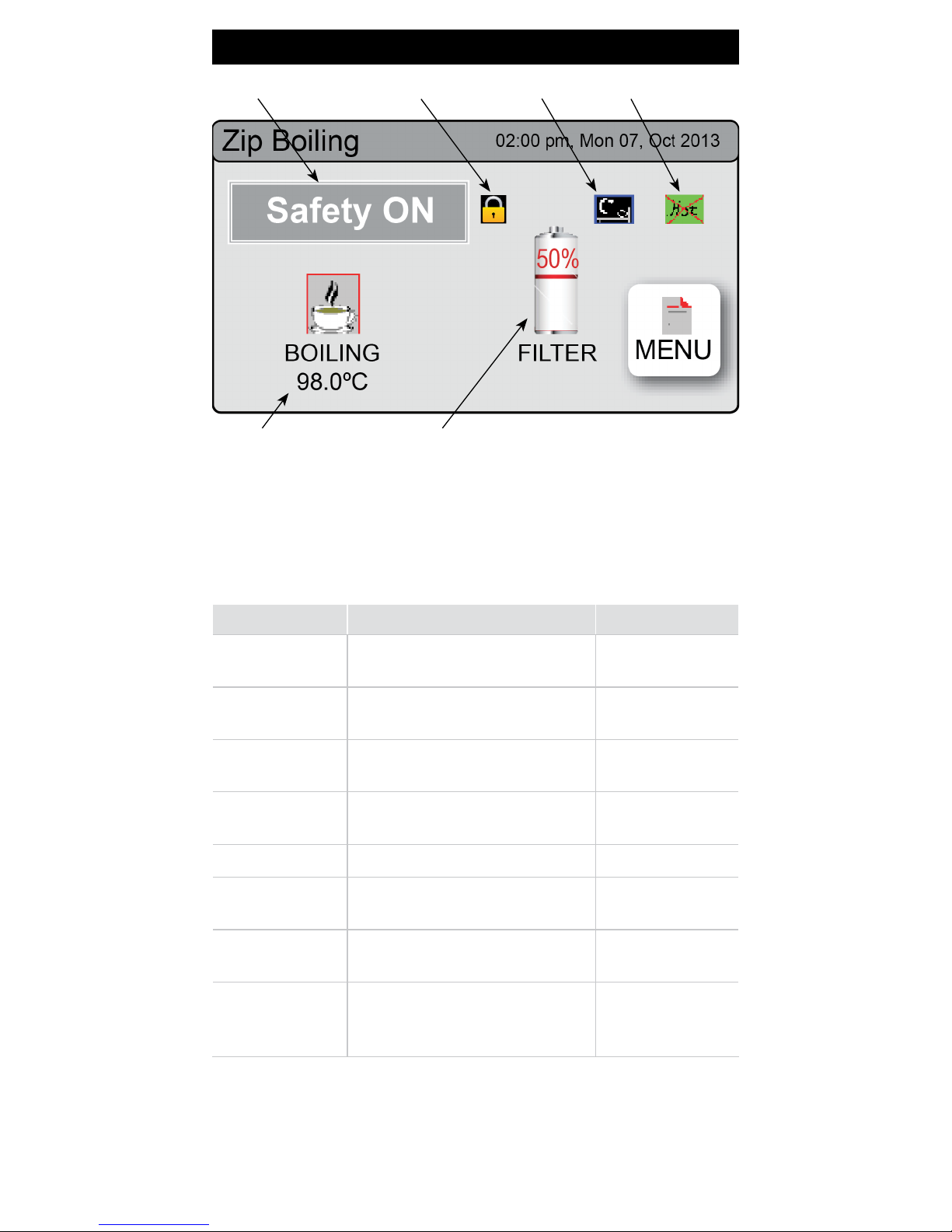

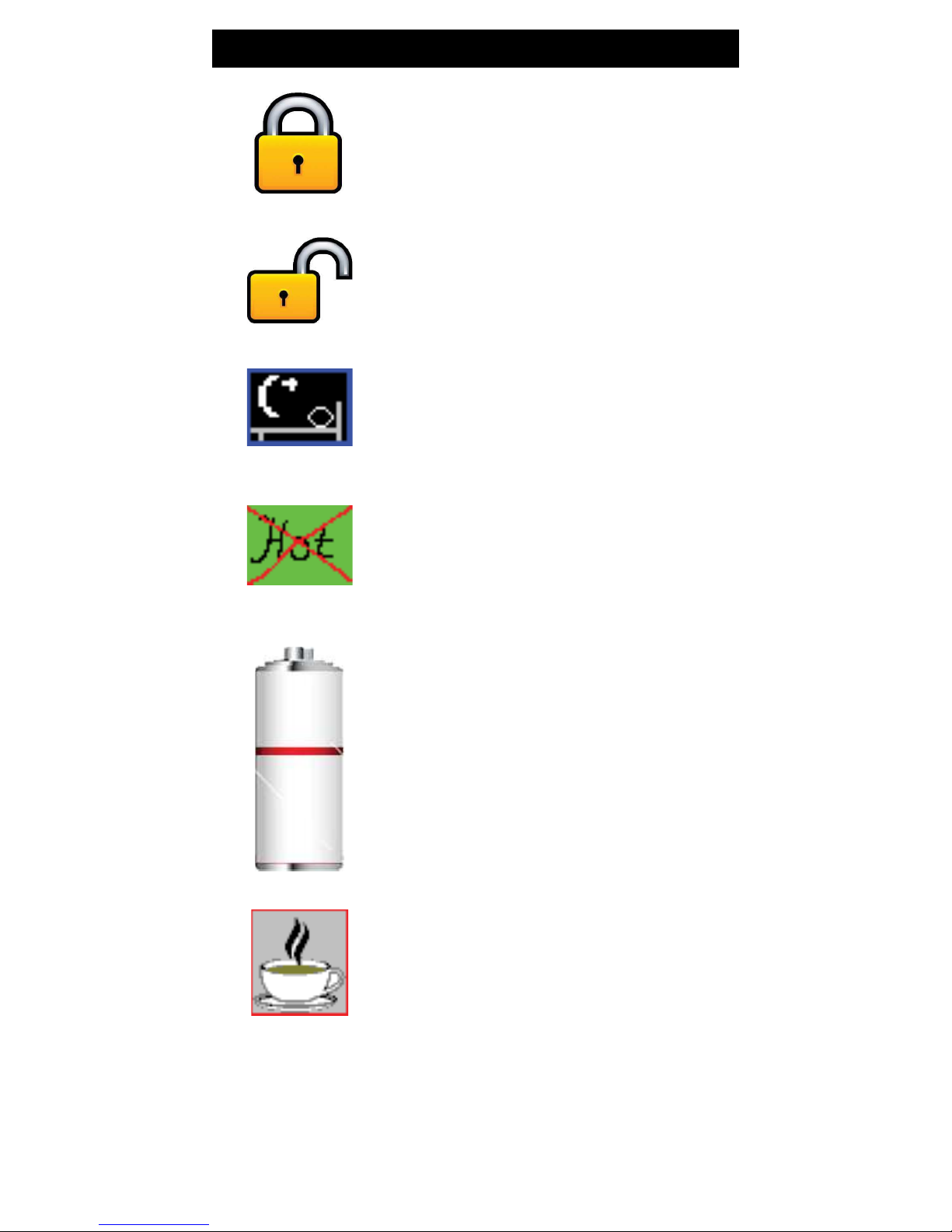

3LCD Screen
Sleep Mode Icon Energy Mode IconSafety lock Icon
Boiling Water Temp. Filter Usage
**Status window
Page 6 of 20 801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09
Note: When selecting Menu options, the screen will revert to the main menu,
if the screen remains inactive for a period, in excess of 10 seconds.
Zip HydroTap introduces a ‘TOUCH’ screen for easy setup and operation
adjustment. See page 19 for icon details.
Other possible messages in status window:
**Status Information Notes
Safety OFF Product is in normal operation
mode
-
Safety ON Safety lock is activated Refer to section
G - safety
System Fault Product has one or more system
faults
Refer to section B
Sleep Mode System is in sleep mode. Boiling
water or hot water is not available.
Refer to section
G - Energy mode
Log Memory Full - -
Change Filter External/Internal filter needs to be
replaced
Refer to section C
System Off System off in off mode. No boiling
water or chilled water available.
Refer to section
G - Energy mode
Hot Isolated Hot isolation has been activated.
Boiling water or hot water is not
available.
Refer to section
G - Safety
3LCD Screen
Sleep Mode Icon Energy Mode IconSafety lock Icon
Boiling Water Temp. Filter Usage
**Status window
801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09 Page 7 of 20
3LCD Screen Menu
Main Menu Sub Menu Sub Menu Options Section
Language
•
English
A
•
Product Info
•
System
Faults
•
Event Log
•
Product serial
no.
•
Lists
B
Information
Installation
•
Filter Flush
•
Filter Reset
•
Boiling
Calibration
•
Booster
•
Lux sensor
calibration
•
Reset options
•
Calibration
options
C
Service Password protected
D
Security
•
Enable
Password
•
Set Password
•
Change
Password
E
Communication
•
Remote
Monitor
•
Remote
Control
•
Wifi / Bluetooth
Options
•
Wifi / Bluetooth
Options
F
Settings
•
Date/Time
•
Temperature
•
Filter
•
Energy
Modes
•
Safety
•
Dispense
Times
•
12hr/24hr
Mode
•
Hot Setpoint
•
Filter Life
(Litres)
•
Filter Life
(Months)
•
Sleep Mode
Options
•
Safety Lock
•
Hot Isolation
•
Hot/Cold
Dispensing
G
801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09 Page 7 of 20
3LCD Screen Menu
Main Menu Sub Menu Sub Menu Options Section
Language
•
English
A
•
Product Info
•
System
Faults
•
Event Log
•
Product serial
no.
•
Lists
B
Information
Installation
•
Filter Flush
•
Filter Reset
•
Boiling
Calibration
•
Booster
•
Lux sensor
calibration
•
Reset options
•
Calibration
options
C
Service Password protected
D
Security
•
Enable
Password
•
Set Password
•
Change
Password
E
Communication
•
Remote
Monitor
•
Remote
Control
•
Wifi / Bluetooth
Options
•
Wifi / Bluetooth
Options
F
Settings
•
Date/Time
•
Temperature
•
Filter
•
Energy
Modes
•
Safety
•
Dispense
Times
•
12hr/24hr
Mode
•
Hot Setpoint
•
Filter Life
(Litres)
•
Filter Life
(Months)
•
Sleep Mode
Options
•
Safety Lock
•
Hot Isolation
•
Hot/Cold
Dispensing
G
Page 8 of 20 801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09
Language options will be
available in some overseas
markets
A Set Language
B System Information
In this section, you can find your product serial number , check system fault
messages or view the event logs of your product.
LCD Screen operation - Section A
LCD Screen operation - Section B

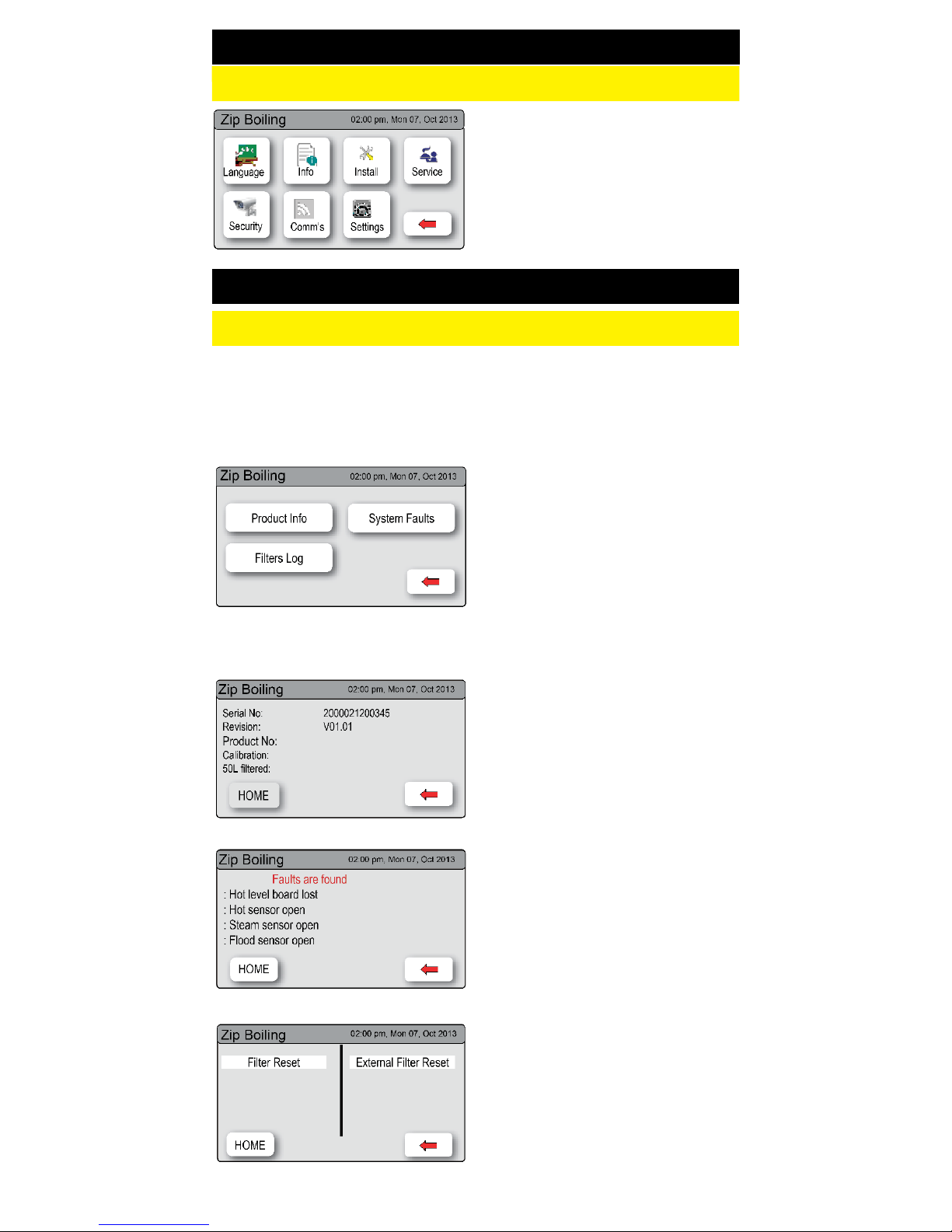

1.
Press [Product Info] to view the
current product serial no;
2.
Press [<=] button for the previous
menu or press [Home] button to
return to the home screen.
1.
Press [System Faults] to check the
faulty information;
2.
Press [<=] button for the previous
menu or press
[Home] button to return to the
home screen.
1.
Press [Filter Log] to view filter
information
2.
Use the scroll buttons to view the
filter logs
3.
Press [<=] button for the previous
menu

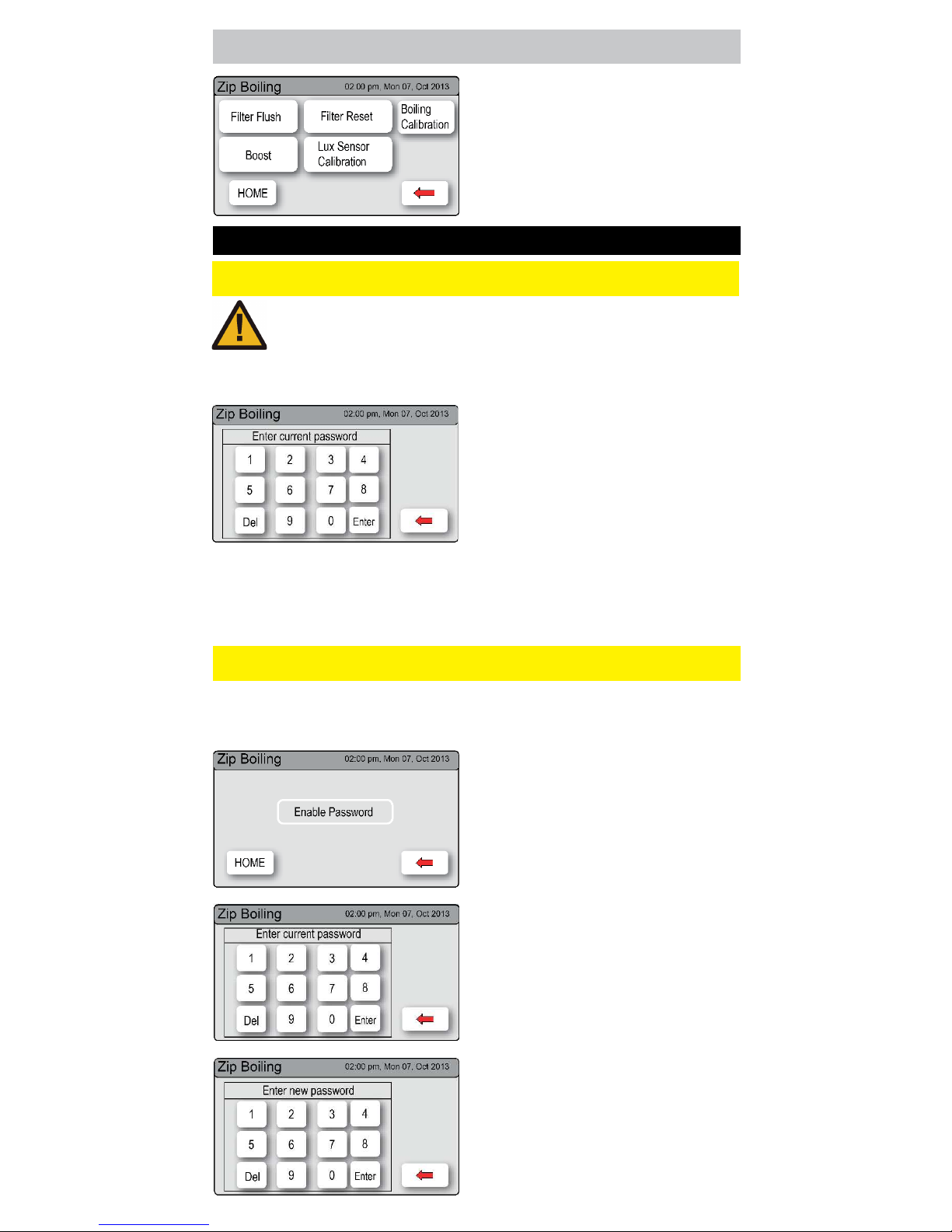

1. Press the [MENU] button for main
menu.
2. Press the [Info] button.
•
Press [product info] to view the
current product serial number
•
Press [System Faults] to check the
fault information
•
Press [Filter Log] to view filter
information
3. Press [<=] button for the previous
menu
Page 8 of 20 801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09
Language options will be
available in some overseas
markets
A Set Language
B System Information
In this section, you can find your product serial number , check system fault
messages or view the event logs of your product.
LCD Screen operation - Section A
LCD Screen operation - Section B
1.
Press [Product Info] to view the
current product serial no;
2.
Press [<=] button for the previous
menu or press [Home] button to
return to the home screen.
1.
Press [System Faults] to check the
faulty information;
2.
Press [<=] button for the previous
menu or press
[Home] button to return to the
home screen.
1.
Press [Filter Log] to view filter
information
2.
Use the scroll buttons to view the
filter logs
3.
Press [<=] button for the previous
menu
1. Press the [MENU] button for main
menu.
2. Press the [Info] button.
•
Press [product info] to view the
current product serial number
•
Press [System Faults] to check the
fault information
•
Press [Filter Log] to view filter
information
3. Press [<=] button for the previous
menu
801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09 Page 9 of 20
C Install
Have a bucket or similar container (not supplied) at the ready to hold
a quantity of water that will be ejected while the Filter Flush Mode is in
operation. Open the filter access door on the front of the HydroTap and the
filter cartridge will be exposed. Located to the rear RHS of the cartridge is
a flush line, approx 600mm long and the flush line stop cock. Place the free
end of the flush line into the bucket or container (not supplied).
Once your Zip HydroTap G4 unit has been installed, Go to Install menu to
configure the system settings for your product.
I. - Filter Flush
Note:
Run at least 10 Ltrs of
water through to flush the filter
of any excess black carbon
particles (this is normal). Once
the filter flush has finished,
press the Stop button to display
the main menu
Sub menu:
I. - Filter Flush
II - Filter Reset
III - Boiling Calibration
IV - Booster
V - Lux Sensor Calibration

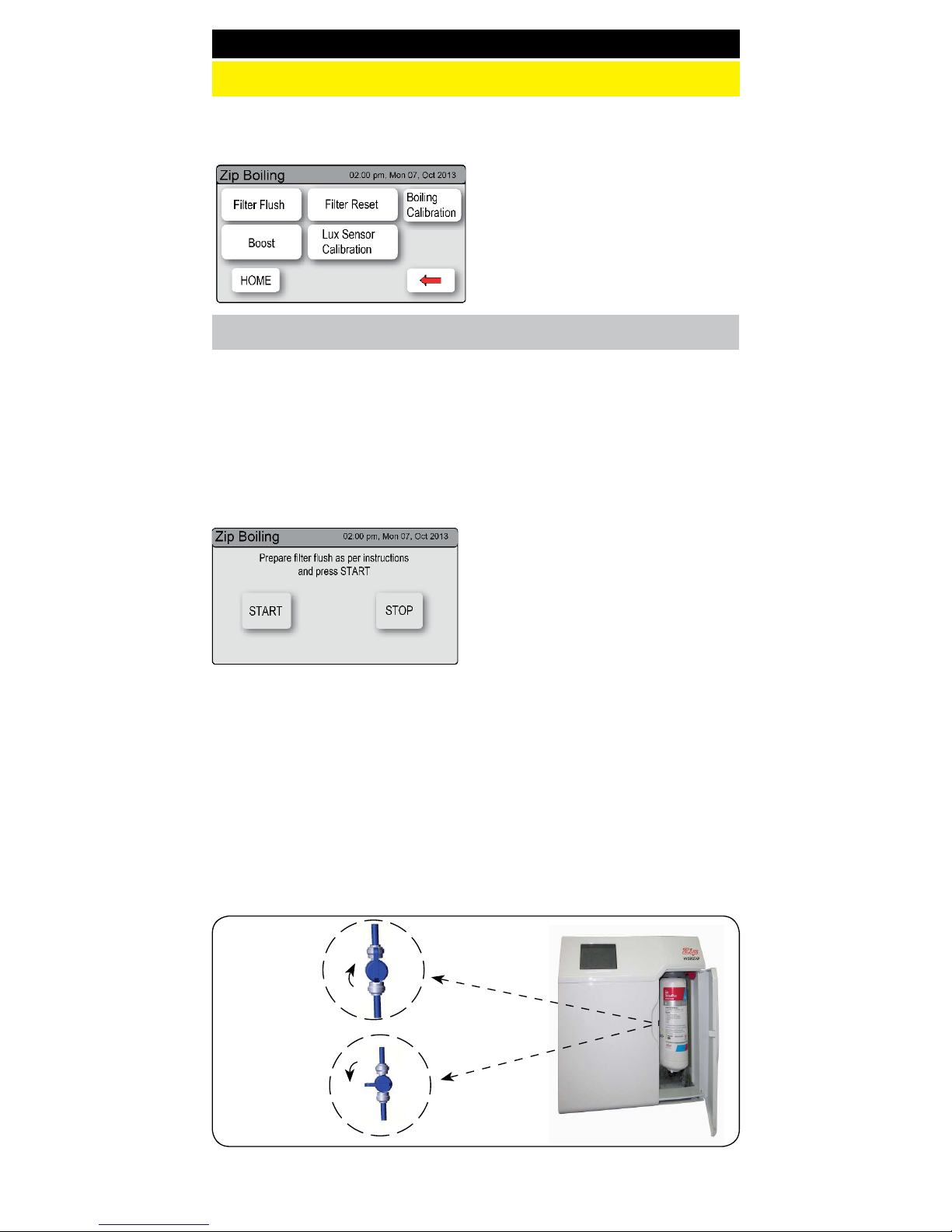

LCD Screen operation - Section C
OPEN
Position
CLOSED
Position
ON
OFF
1.
Press the [MENU] button for main
menu.
2.
Press the [Install] button. Turn the
stop cock ON.
3.
Press the [Filter Flush] button.
4.
Press [Start] button to start filter
flush. Once the filter flush is
finished, Turn the stop cock OFF
first (to ensure the cock is properly
closed) then press [Stop] to end
filter flush mode.
5.
Press [<=] button for the previous
menu or press [Home] button to
return to the home screen.
6.
After initial installation, Turning
OFF the Filter Flush Mode puts the
HydroTap into calibration mode.
With subsequent filter changes, the
system reverts to the main menu.
The Zip HydroTap allows the user to adjust the filter life and to edit the filter
usage. (See filter details on Pages 14 -15).
801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09 Page 9 of 20
C Install
Have a bucket or similar container (not supplied) at the ready to hold
a quantity of water that will be ejected while the Filter Flush Mode is in
operation. Open the filter access door on the front of the HydroTap and the
filter cartridge will be exposed. Located to the rear RHS of the cartridge is
a flush line, approx 600mm long and the flush line stop cock. Place the free
end of the flush line into the bucket or container (not supplied).
Once your Zip HydroTap G4 unit has been installed, Go to Install menu to
configure the system settings for your product.
I. - Filter Flush
Note:
Run at least 10 Ltrs of
water through to flush the filter
of any excess black carbon
particles (this is normal). Once
the filter flush has finished,
press the Stop button to display
the main menu
Sub menu:
I. - Filter Flush
II - Filter Reset
III - Boiling Calibration
IV - Booster
V - Lux Sensor Calibration
LCD Screen operation - Section C
OPEN
Position
CLOSED
Position
ON
OFF
1.
Press the [MENU] button for main
menu.
2.
Press the [Install] button. Turn the
stop cock ON.
3.
Press the [Filter Flush] button.
4.
Press [Start] button to start filter
flush. Once the filter flush is
finished, Turn the stop cock OFF
first (to ensure the cock is properly
closed) then press [Stop] to end
filter flush mode.
5.
Press [<=] button for the previous
menu or press [Home] button to
return to the home screen.
6.
After initial installation, Turning
OFF the Filter Flush Mode puts the
HydroTap into calibration mode.
With subsequent filter changes, the
system reverts to the main menu.
The Zip HydroTap allows the user to adjust the filter life and to edit the filter
usage. (See filter details on Pages 14 -15).
Page 10 of 20 801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09
1.
Press the [MENU] button for main
menu.
2.
Press the [Install] button.
3.

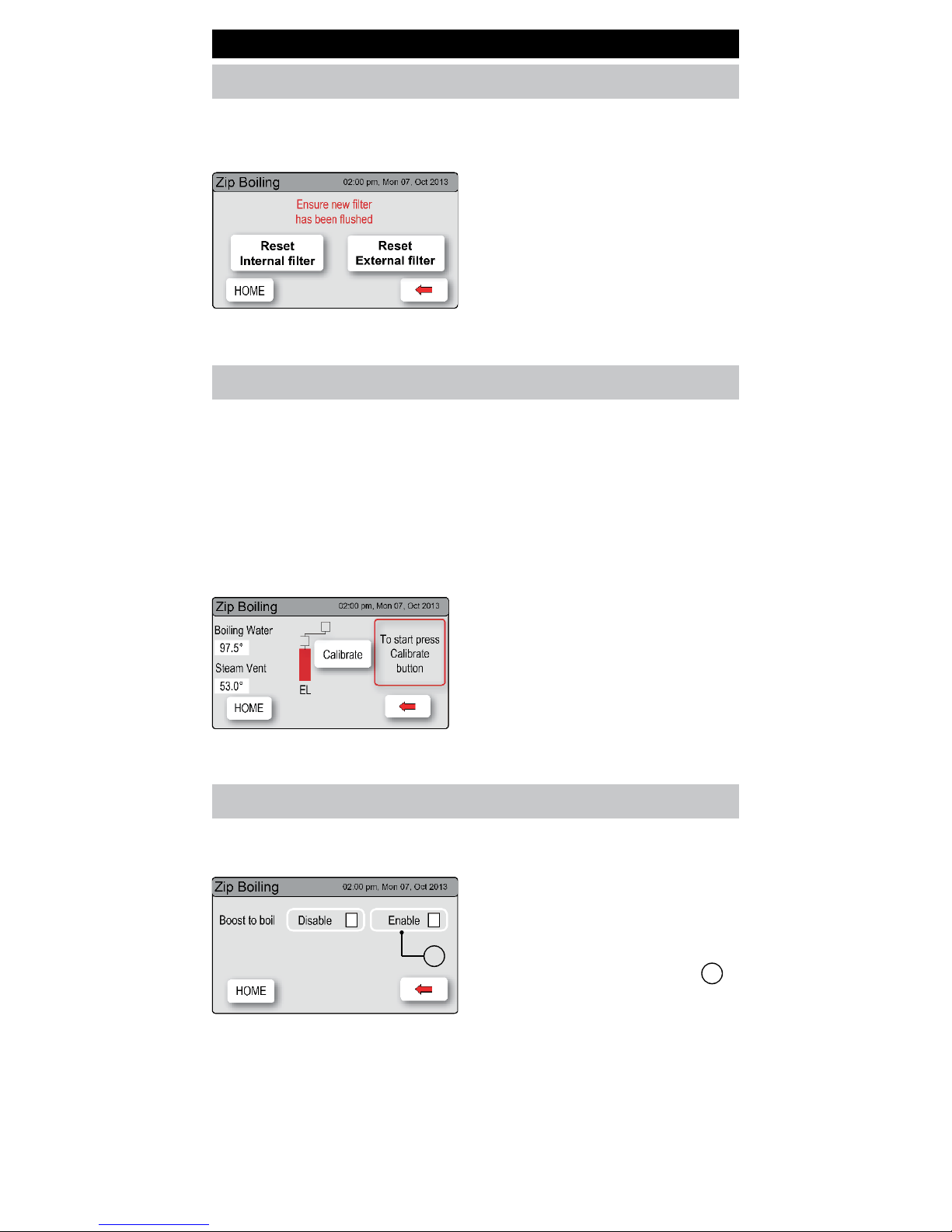

Press the [Filter Reset] button.
4.
In the next screen, press [YES]
button if you want to flush the filter.
Follow the filter flush steps to start
filter flush or press [NO] to cancel
the filter reset program. To set the
filter life or edit filter usage, refer to
section G- Filter.
After replacing the filter, the
counters should be reset
The Zip HydroTap is equipped with a self-calibrating program. On start up,
the controls take the system through a calibration process. Once this mode is
completed the system reverts back to normal operation. If you would like to
calibrate the system anytime after installed, please follow the steps below.
1. Press the [MENU] button for main
menu.
2. Press the [Install] button.
3. Press the [Hot Calibration] button.
4. In the next screen, press [Calibrate] if
you want to start calibration.
Boiling Calibration Screen
III. - Boiling Calibration
Caution:
In general, boiling water units may vent steam from the tap
spout. Take care to avoid personal injury whenever this occurs.
1. Press the [MENU] button for main
menu.
2. Press the [Install] button.
3. Press the [Booster] button.
4. In the next screen, press button
A
to enable the Booster.
5. Dispense boiling water for 30 secs
and check the outlet hose from the
Booster is warm.
This function should only be considered when a Booster unit is installed.
G4 HydroTap Booster Screen
IV. - Booster
Note:
Failing to make the correct selection for ‘Booster’ will effect product
performance.
A
II. - Filter Reset
LCD Screen operation - Section C
Page 10 of 20 801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09
1.
Press the [MENU] button for main
menu.
2.
Press the [Install] button.
3.
Press the [Filter Reset] button.
4.
In the next screen, press [YES]
button if you want to flush the filter.
Follow the filter flush steps to start
filter flush or press [NO] to cancel
the filter reset program. To set the
filter life or edit filter usage, refer to
section G- Filter.
After replacing the filter, the
counters should be reset
The Zip HydroTap is equipped with a self-calibrating program. On start up,
the controls take the system through a calibration process. Once this mode is
completed the system reverts back to normal operation. If you would like to
calibrate the system anytime after installed, please follow the steps below.
1. Press the [MENU] button for main
menu.
2. Press the [Install] button.
3. Press the [Hot Calibration] button.
4. In the next screen, press [Calibrate] if
you want to start calibration.
Boiling Calibration Screen
III. - Boiling Calibration
Caution:
In general, boiling water units may vent steam from the tap
spout. Take care to avoid personal injury whenever this occurs.
1. Press the [MENU] button for main
menu.
2. Press the [Install] button.
3. Press the [Booster] button.
4. In the next screen, press button
A
to enable the Booster.
5. Dispense boiling water for 30 secs
and check the outlet hose from the
Booster is warm.
This function should only be considered when a Booster unit is installed.
G4 HydroTap Booster Screen
IV. - Booster
Note:
Failing to make the correct selection for ‘Booster’ will effect product
performance.
A
II. - Filter Reset
LCD Screen operation - Section C
801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09 Page 11 of 20
Caution
must be observed when changing any settings within the
Service Menu as any changes may affect the normal operation of
the unit. This can only be done by a Zip technician. Please contact
your Zip service provider for further assistance.
1.
Press the [MENU] button for main
menu.
2.
Press the [Service] button.
3.
A password is required to enter
service menu.
G4 HydroTap Service Screen
Note: In Australia call a licensed electrician, plumber,or Zip office on 1800-
638-633, for assistance, service, spare parts, or enquiries.
D Service
LCD Screen operation - Section D
E Security
The Zip HydroTap G4 allows the appliance coordinator to set up a password
to protect against users changing the preferred system settings.
To set a password
1.
Press the [MENU] button for main
menu.
2.
Press the [Security] button.
3.
Press [Change Password}
4.
Enter a 4 digit password
To change a password
1.
Press the [MENU] button for main
menu.
2.
Press the [Security] button.
3.
Press [Change Password}
4.
Enter your old 4 digit password
5.
Then enter your new 4 digit
password. You will need to
enter your password to access
the settings screen. If you have
forgotten the password, please
disconnect the power and restart
your HydroTap unit.
V. - Lux Sensor Calibration
1. Press the [MENU] button for main
menu.
2. Press the [Install] button.
3. Press the [Lux Sensor Calibration]
button.
4. The lights on the Tap head will flash
to confirm calibration.
801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09 Page 11 of 20
Caution
must be observed when changing any settings within the
Service Menu as any changes may affect the normal operation of
the unit. This can only be done by a Zip technician. Please contact
your Zip service provider for further assistance.
1.
Press the [MENU] button for main
menu.
2.
Press the [Service] button.
3.
A password is required to enter
service menu.
G4 HydroTap Service Screen
Note: In Australia call a licensed electrician, plumber,or Zip office on 1800-
638-633, for assistance, service, spare parts, or enquiries.
D Service
LCD Screen operation - Section D
E Security
The Zip HydroTap G4 allows the appliance coordinator to set up a password
to protect against users changing the preferred system settings.
To set a password
1.
Press the [MENU] button for main
menu.
2.
Press the [Security] button.
3.
Press [Change Password}
4.
Enter a 4 digit password
To change a password
1.
Press the [MENU] button for main
menu.
2.
Press the [Security] button.
3.
Press [Change Password}
4.
Enter your old 4 digit password
5.
Then enter your new 4 digit
password. You will need to
enter your password to access
the settings screen. If you have
forgotten the password, please
disconnect the power and restart
your HydroTap unit.
V. - Lux Sensor Calibration
1. Press the [MENU] button for main
menu.
2. Press the [Install] button.
3. Press the [Lux Sensor Calibration]
button.
4. The lights on the Tap head will flash
to confirm calibration.
Page 12 of 20 801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09
F Communication
(when available)

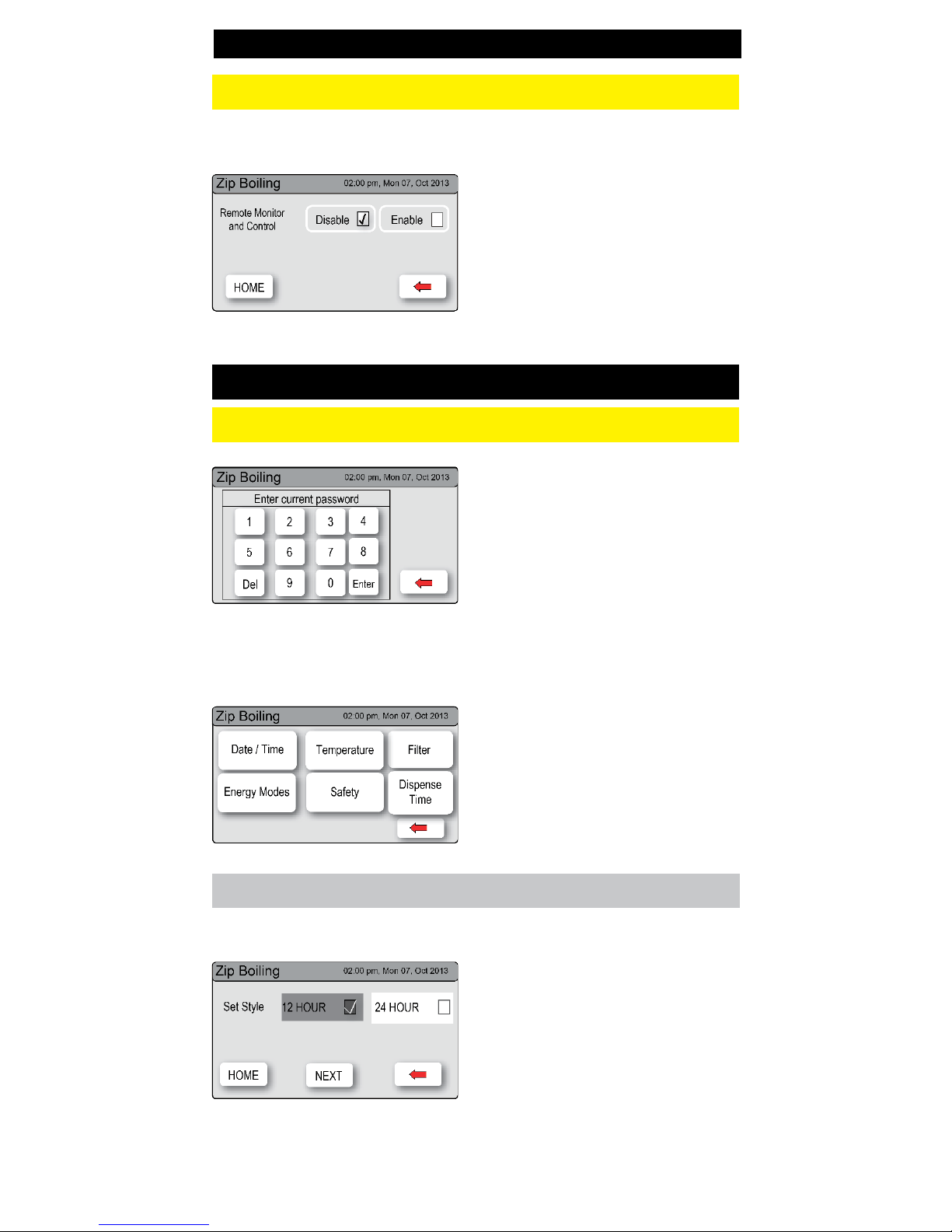

The Zip HydroTap G4 allows the user to use wifi or Bluetooth to operate the
product remotely.
Not yet available
G Settings
3. LCD Screen operation - Section G g Instructions
1. Press the [MENU] button for main
menu.
2. Press the [Settings] button.
4. Then enter your 4-digit password.
You will need to enter your pass-
word to access the settings screens.
If you have forgotten the password,
please refer to section E
In the Settings mode you will be able
to access the following:
1. Press the [MENU] button for main
menu.
2. Press the [Setting] button.
3. Press the [Date/Time] button.
4. Choose 12 hour mode or 24 hour
mode by pressing the square
button. The selected mode will be
displayed in dark grey colour with a
tick box on the right.
5. Press [NEXT] button to set time.
G4 HydroTap Set
Date/Time Screen
Set Date / Time
LCD Screen operation - Section F
Page 12 of 20 801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09
F Communication
(when available)
The Zip HydroTap G4 allows the user to use wifi or Bluetooth to operate the
product remotely.
Not yet available
G Settings
3. LCD Screen operation - Section G g Instructions
1. Press the [MENU] button for main
menu.
2. Press the [Settings] button.
4. Then enter your 4-digit password.
You will need to enter your pass-
word to access the settings screens.
If you have forgotten the password,
please refer to section E
In the Settings mode you will be able
to access the following:
1. Press the [MENU] button for main
menu.
2. Press the [Setting] button.
3. Press the [Date/Time] button.
4. Choose 12 hour mode or 24 hour
mode by pressing the square
button. The selected mode will be
displayed in dark grey colour with a
tick box on the right.
5. Press [NEXT] button to set time.
G4 HydroTap Set
Date/Time Screen
Set Date / Time
LCD Screen operation - Section F
801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09 Page 13 of 20
3. LCD Screen operation - Section G tions
1. Press the [MENU] button for main
menu.
2. Press the [Temperature] button.
3. To adjust the temperature, press
the relevant temperature button and
then use the up and down arrows.

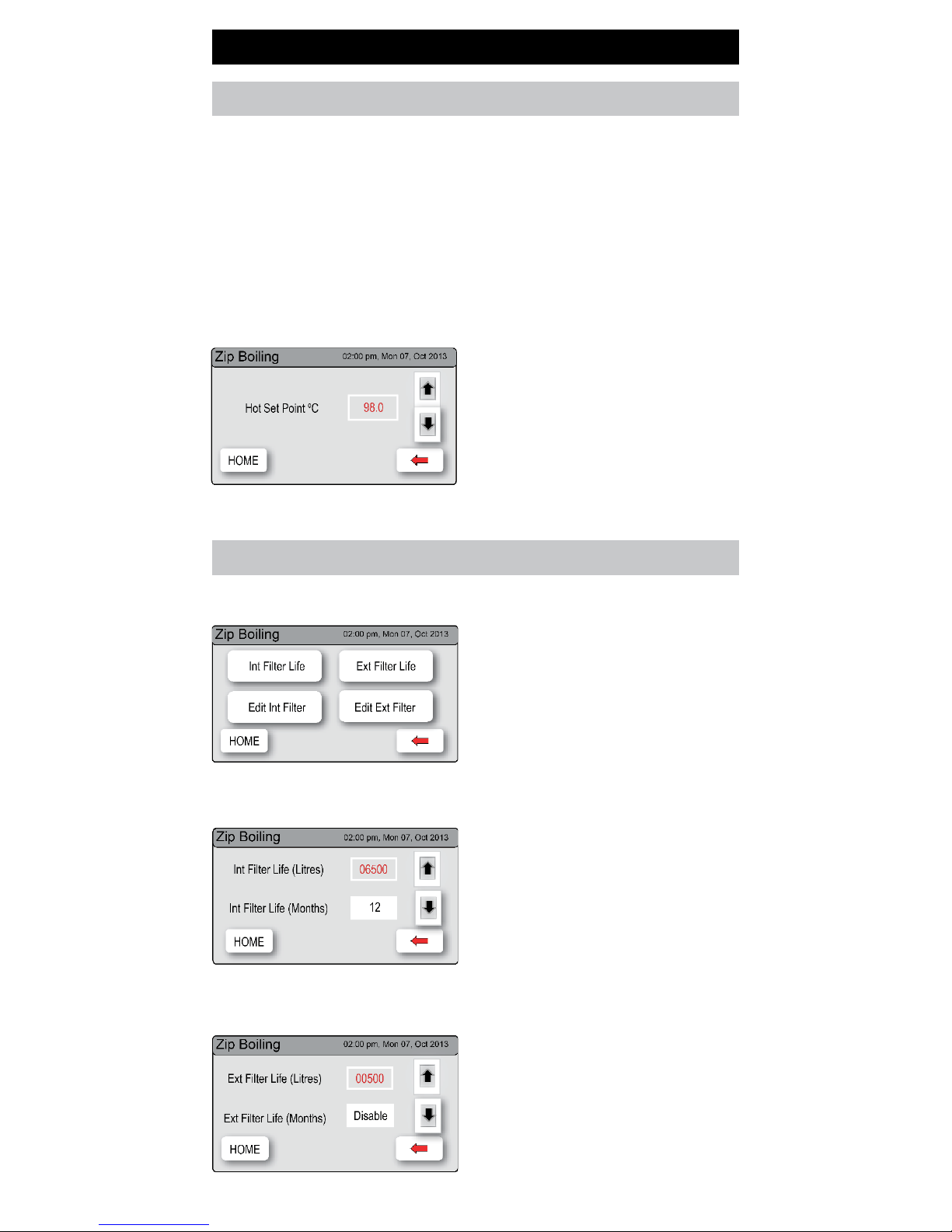

Zip HydroTaps are designed to operate within 1ºC to 2ºC of set point for
boiling water. All boiling water units are self calibrating to 98ºC, which is the
recommended setting. Adjustments to the 98ºC setting are not recommended
however, under certain circumstances adjustments may be made between
68º - 100ºC. It should be noted that a 20% energy saving in standby power
can be achieved when the 98ºC setting is selected over the 100ºC setting.
Furthermore, the 100ºC setting is not recommended as the delivery rate of
water may be affected.
Set Temperature
To edit the filter life:
1. Press the [MENU] button for main
menu.
2. Press the [Setting] button.
3. Press the [Filter] button.
4. Press the [Filter Life] button.
5. To change filter life, first press button
A or B, then press the up or down
arrows to edit filter life. Note: Filter Life
increases in 1000 litres increments to a
maximum of 10000 litres. Factory set at
6000 litres.
Filter
Zip HydroTap G4 allows the user to adjust filter life and edit filter usage.
801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09 Page 13 of 20
3. LCD Screen operation - Section G tions
1. Press the [MENU] button for main
menu.
2. Press the [Temperature] button.
3. To adjust the temperature, press
the relevant temperature button and
then use the up and down arrows.
Zip HydroTaps are designed to operate within 1ºC to 2ºC of set point for
boiling water. All boiling water units are self calibrating to 98ºC, which is the
recommended setting. Adjustments to the 98ºC setting are not recommended
however, under certain circumstances adjustments may be made between
68º - 100ºC. It should be noted that a 20% energy saving in standby power
can be achieved when the 98ºC setting is selected over the 100ºC setting.
Furthermore, the 100ºC setting is not recommended as the delivery rate of
water may be affected.
Set Temperature
To edit the filter life:
1. Press the [MENU] button for main
menu.
2. Press the [Setting] button.
3. Press the [Filter] button.
4. Press the [Filter Life] button.
5. To change filter life, first press button
A or B, then press the up or down
arrows to edit filter life. Note: Filter Life
increases in 1000 litres increments to a
maximum of 10000 litres. Factory set at
6000 litres.
Filter
Zip HydroTap G4 allows the user to adjust filter life and edit filter usage.
Page 14 of 20 801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09

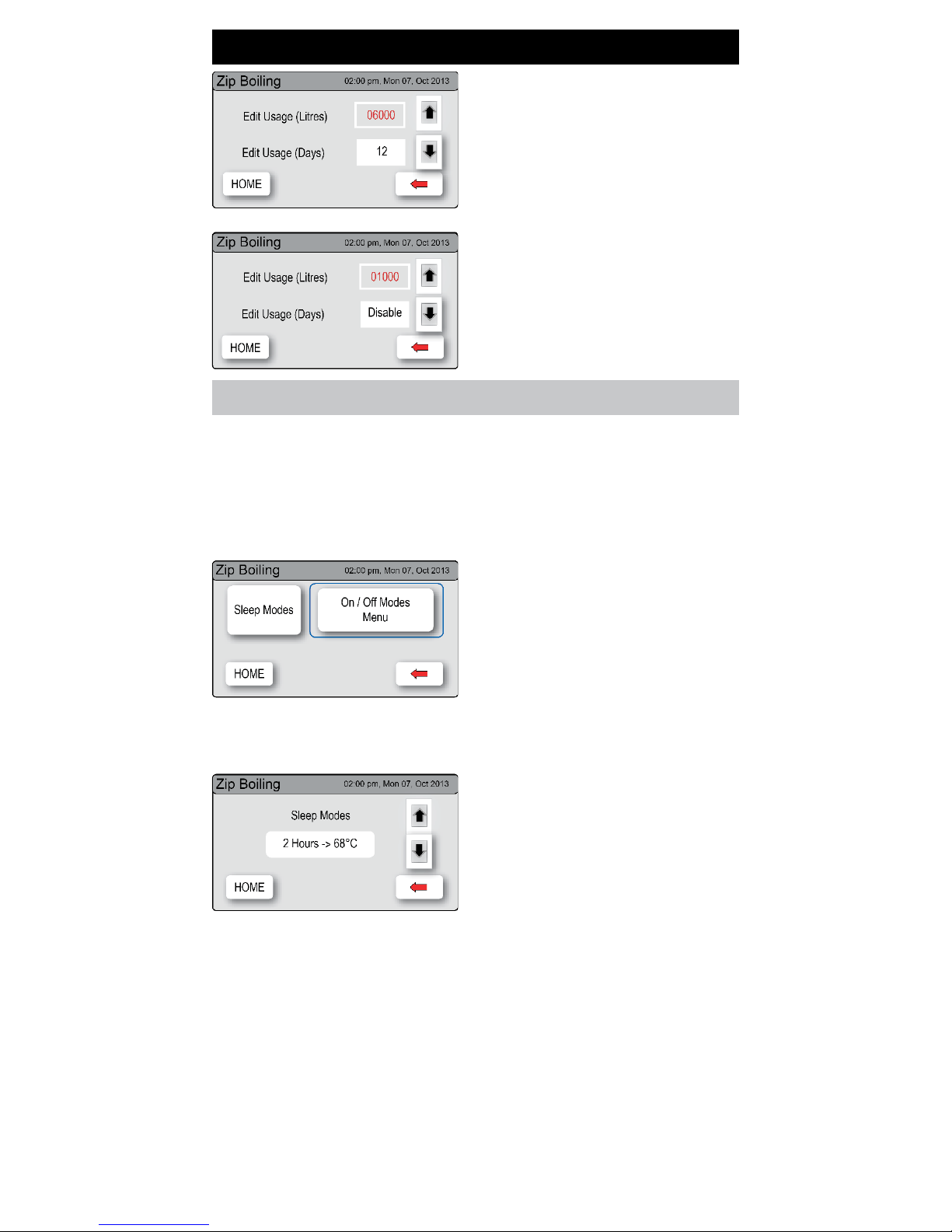

To edit the filter usage:
This function is to reset the Filter
Change display after a filter has reached
the end of its life (refer to “Replace
Filter Instructions” section of this
document).
1. Press the [MENU] button for main
menu.
2. Press the [Setting] button.
3. Press the [Filter] button.
4. Press the [Edit Filter] button.
5. To change filter life, first press button
A or B, then use the up and down
arrows to edit the filter usage.
3. LCD Screen operation - Section G
This mode allows the HydroTap to Go into Energy Saving mode. There are
two options available: sleep mode and ON/OFF mode.
1. Press the [MENU] button for main
menu.
2. Press the [Setting] button.
3. Press the [Energy Modes] button.
4. Press the [Sleep Modes] button then
in the next screen, use the up and down
arrow to select sleep mode from the 7
options.
Option 1: “2Hours -> 68ºC”
Boiling water temperature will gradually
drop to 68ºC after 2 hours of NO USE.
Option 2: “2Hours -> OFF”
Boiling water temperature will graduallydrop to room temperature after 2 hours
of NO USE and the boiler will remain
OFF.
Energy Modes
In SLEEP MODE the unit will Go to “sleep” after a predetermined period
of inactivity. When the period of inactivity passes, the home screen status
window will show “Sleep Mode”. To activate the sleep mode:
Option 3: “Lux Sensor -> 68ºC” - Boiling water temperature will gradually
drop to 68ºC when it’s dark. (Refer to Lux sensor calibration)
Option 4: “Lux Sensor -> OFF” - Boiling water temperature will drop to
room temperature gradually when it’s dark and the boiler will remain OFF.
Option 5: “Lux or 2Hr -> 68ºC” - When it is dark Option 3 is activated otherwise Option 1 will be automatically enabled. (Refer to Lux sensor calibration)
Option 6: “Lux or 2Hr -> OFF” - Boiling water temperature will drop to room
temperature gradually and the boiler will remain OFF.
Option 7: “Disable” - Boiling circuit will be switched ON.
Page 14 of 20 801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09
To edit the filter usage:
This function is to reset the Filter
Change display after a filter has reached
the end of its life (refer to “Replace
Filter Instructions” section of this
document).
1. Press the [MENU] button for main
menu.
2. Press the [Setting] button.
3. Press the [Filter] button.
4. Press the [Edit Filter] button.
5. To change filter life, first press button
A or B, then use the up and down
arrows to edit the filter usage.
3. LCD Screen operation - Section G
This mode allows the HydroTap to Go into Energy Saving mode. There are
two options available: sleep mode and ON/OFF mode.
1. Press the [MENU] button for main
menu.
2. Press the [Setting] button.
3. Press the [Energy Modes] button.
4. Press the [Sleep Modes] button then
in the next screen, use the up and down
arrow to select sleep mode from the 7
options.
Option 1: “2Hours -> 68ºC”
Boiling water temperature will gradually
drop to 68ºC after 2 hours of NO USE.
Option 2: “2Hours -> OFF”
Boiling water temperature will graduallydrop to room temperature after 2 hours
of NO USE and the boiler will remain
OFF.
Energy Modes
In SLEEP MODE the unit will Go to “sleep” after a predetermined period
of inactivity. When the period of inactivity passes, the home screen status
window will show “Sleep Mode”. To activate the sleep mode:
Option 3: “Lux Sensor -> 68ºC” - Boiling water temperature will gradually
drop to 68ºC when it’s dark. (Refer to Lux sensor calibration)
Option 4: “Lux Sensor -> OFF” - Boiling water temperature will drop to
room temperature gradually when it’s dark and the boiler will remain OFF.
Option 5: “Lux or 2Hr -> 68ºC” - When it is dark Option 3 is activated otherwise Option 1 will be automatically enabled. (Refer to Lux sensor calibration)
Option 6: “Lux or 2Hr -> OFF” - Boiling water temperature will drop to room
temperature gradually and the boiler will remain OFF.
Option 7: “Disable” - Boiling circuit will be switched ON.
801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09 Page 15 of 20
Note:
Any attempt, during OFF mode, to dispense water, will bring the
unit out of sleep mode. The unit will return to sleep mode after 2 hours of non
use. Please allow sufficient time for the water to reach the set temperature
after disabling the sleep mode.
LCD Screen operation - Section G

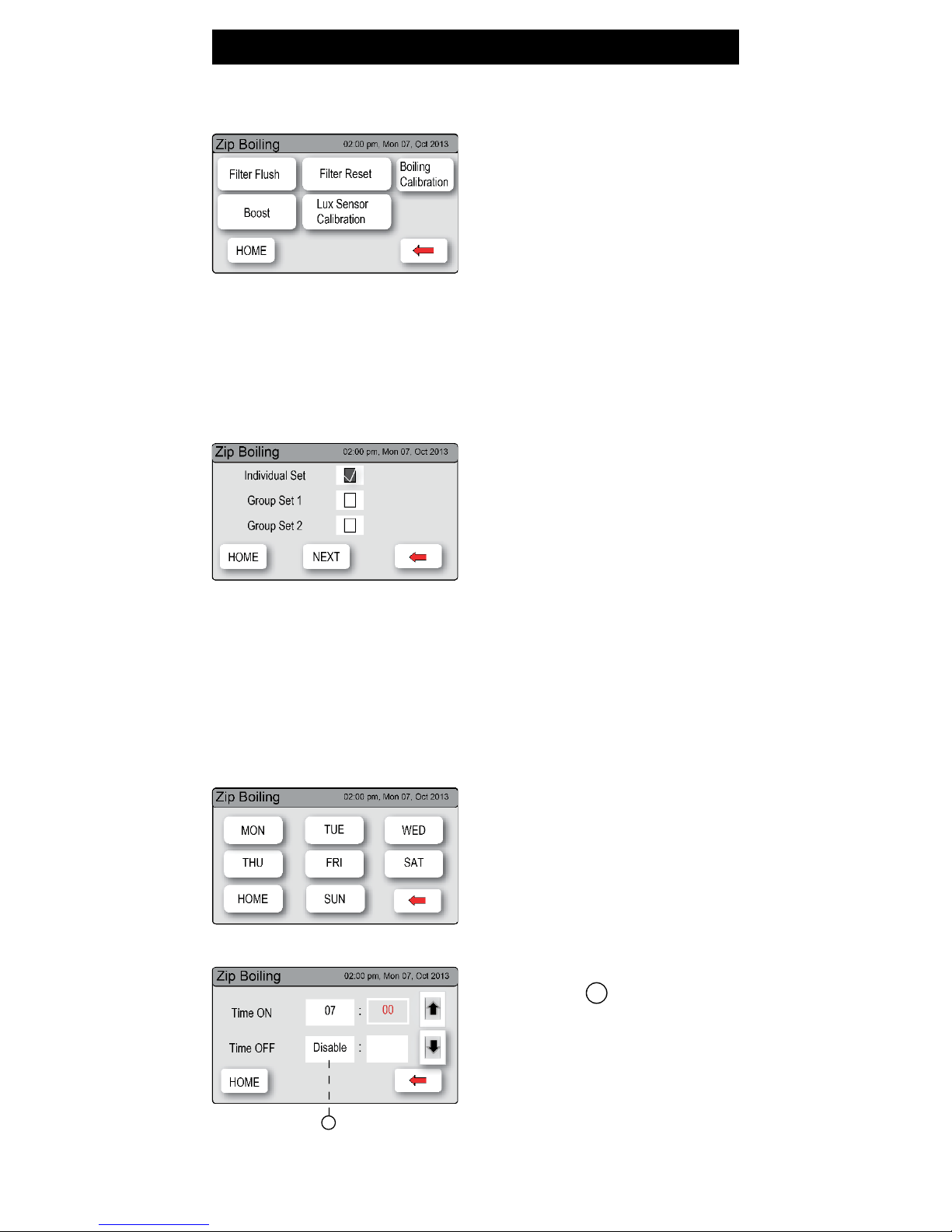

1.
Press group set option 1 / 2
2.
Press button to enable / disable
group set. If the enable box is ticked,
it allows each individual day to have
an “On/Off“time. Then press [ON/
OFF Modes] button, to set up ON/
OFF time.
ON/OFF MODE allows the user to turn
the unit on or off at a specific time.
To activate ON/OFF mode:
1.
Press the [MENU] button for main
menu.
2.
Press the [Setting] button.
3.
Enter your 4 digit password
4.
Press the [Energy Modes] button.
5.
Select ‘Individual set’ if you wish to
allocate a specific time for each day.
6.
Select ‘group set 1’ if you wish to
allocate the same time to all 7 days
7.
Select ‘Group set 2’ if you wish
to allocate the same time to the
5 working days (Mon-Fri) and
additional times for (Sat-Sun).
This screen allows you to select the
individual days for programming.
Only one ON /OFF period is allowed for
each day
ON / OFF Mode Menu
Individual set screen
Group set screen
A
A
Note:
Any attempt, during OFF mode, to dispense water, will bring the unit
out of energy mode for 30minutes.
1. Press the [MENU] button for main
menu.
2. Press the [Install] button.
3. Press the [Lux Sensor Calibration]
button.
4. The lights on the Tap head will flash
to confirm calibration.
It is recommended to recalibrate the Lux Sensor after selecting any of the Lux
sensor options from the sleep mode menu
801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09 Page 15 of 20
Note:
Any attempt, during OFF mode, to dispense water, will bring the
unit out of sleep mode. The unit will return to sleep mode after 2 hours of non
use. Please allow sufficient time for the water to reach the set temperature
after disabling the sleep mode.
LCD Screen operation - Section G
1.
Press group set option 1 / 2
2.
Press button to enable / disable
group set. If the enable box is ticked,
it allows each individual day to have
an “On/Off“time. Then press [ON/
OFF Modes] button, to set up ON/
OFF time.
ON/OFF MODE allows the user to turn
the unit on or off at a specific time.
To activate ON/OFF mode:
1.
Press the [MENU] button for main
menu.
2.
Press the [Setting] button.
3.
Enter your 4 digit password
4.
Press the [Energy Modes] button.
5.
Select ‘Individual set’ if you wish to
allocate a specific time for each day.
6.
Select ‘group set 1’ if you wish to
allocate the same time to all 7 days
7.
Select ‘Group set 2’ if you wish
to allocate the same time to the
5 working days (Mon-Fri) and
additional times for (Sat-Sun).
This screen allows you to select the
individual days for programming.
Only one ON /OFF period is allowed for
each day
ON / OFF Mode Menu
Individual set screen
Group set screen
A
A
Note:
Any attempt, during OFF mode, to dispense water, will bring the unit
out of energy mode for 30minutes.
1. Press the [MENU] button for main
menu.
2. Press the [Install] button.
3. Press the [Lux Sensor Calibration]
button.
4. The lights on the Tap head will flash
to confirm calibration.
It is recommended to recalibrate the Lux Sensor after selecting any of the Lux
sensor options from the sleep mode menu
Page 16 of 20 801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09
To Activate the Hot Isolation:
The HydroTap is equipped with a safety mode that allows for additional
safety protection, if needed.
After allowing [Yes] on the menu screen, follow the instructions for Hot
Isolation on page 17.
Safety
LCD Screen operation - Section G
Boiling Only Models
To set the safety using the touch screen:
1.
Press the [MENU] button for
main menu.
2.
Press the [Setting] button.
3.
Press the [Safety] button.
4. Press button to Enable /
Disable, the safety lock feature
on the tap.
NOTE: When Disabled, boiling water may be dispensed from the Hydrotap
by pressing a Red lever.
Boiling Ambient Models
To allow the safety setting to be changed using the touch
screen:
1.
Press the [MENU] button for
main menu.
2.
Press the [Setting] button.
3.
Press the [Safety] button.
4. Press button to allow the
safety setting to be changed.
To Enable or Disable the safety on the tap
5. Press button to select Enable / Disable
The operation of the safety lock button can be allowed [Yes] from the touch
screen display.
Once allowed [Yes], the safety feature may then be activated or deactivated
from the tap or Enabled /Disabled from the display screen using button
If dis-allowed [No], Then no changes to the safety on the tap, or on the screen
will be possible.
NOTE: Upon completion, all the settings can be protected by dis-allowing
any setting changes by selecting [NO] on the menu screen.
B
B
A
B
C
A
B
B
Page 16 of 20 801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09
To Activate the Hot Isolation:
The HydroTap is equipped with a safety mode that allows for additional
safety protection, if needed.
After allowing [Yes] on the menu screen, follow the instructions for Hot
Isolation on page 17.
Safety
LCD Screen operation - Section G
Boiling Only Models
To set the safety using the touch screen:
1.
Press the [MENU] button for
main menu.
2.
Press the [Setting] button.
3.
Press the [Safety] button.
4. Press button to Enable /
Disable, the safety lock feature
on the tap.
NOTE: When Disabled, boiling water may be dispensed from the Hydrotap
by pressing a Red lever.
Boiling Ambient Models
To allow the safety setting to be changed using the touch
screen:
1.
Press the [MENU] button for
main menu.
2.
Press the [Setting] button.
3.
Press the [Safety] button.
4. Press button to allow the
safety setting to be changed.
To Enable or Disable the safety on the tap
5. Press button to select Enable / Disable
The operation of the safety lock button can be allowed [Yes] from the touch
screen display.
Once allowed [Yes], the safety feature may then be activated or deactivated
from the tap or Enabled /Disabled from the display screen using button
If dis-allowed [No], Then no changes to the safety on the tap, or on the screen
will be possible.
NOTE: Upon completion, all the settings can be protected by dis-allowing
any setting changes by selecting [NO] on the menu screen.
B
B
A
B
C
A
B
B
801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09 Page 17 of 20

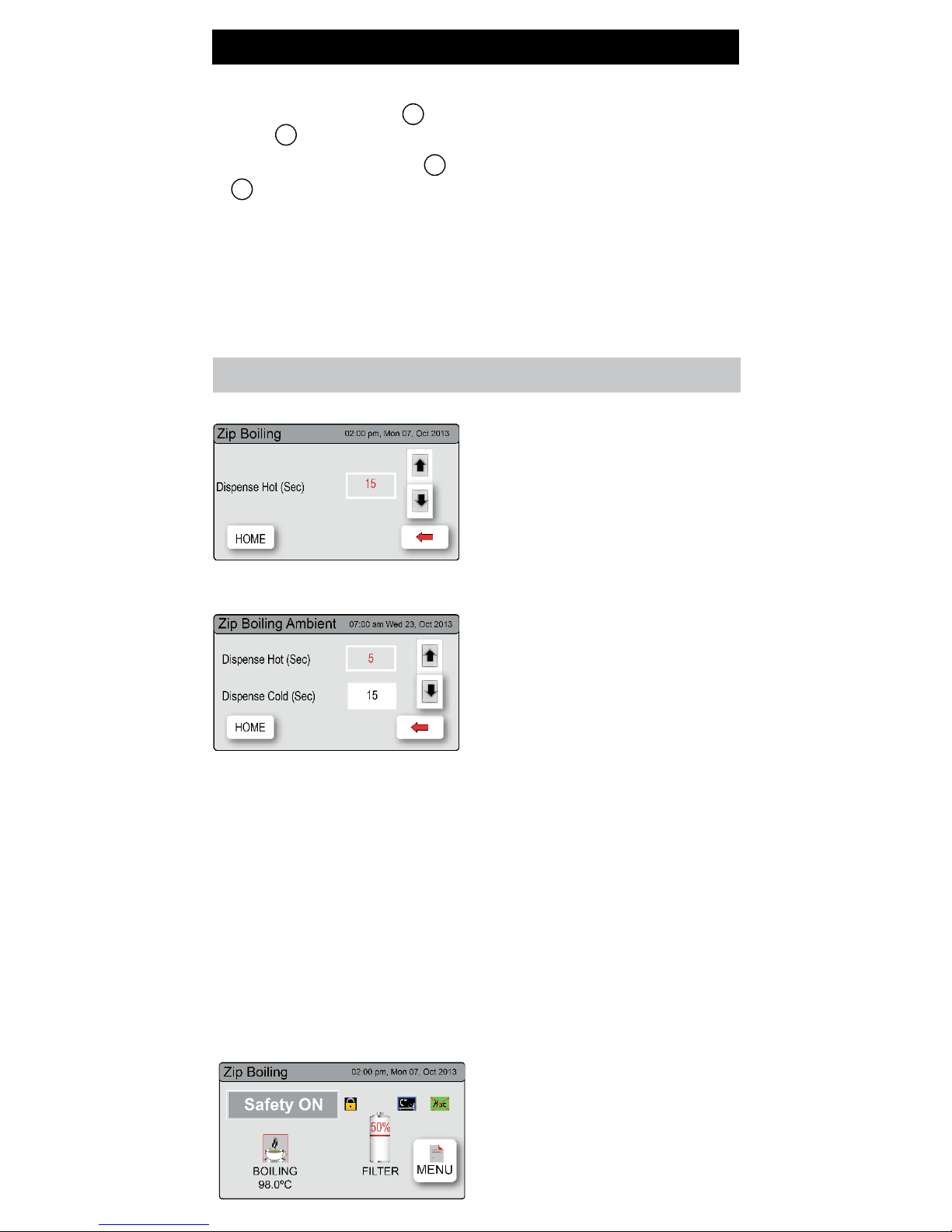

Dispense Times
The ability to change the maximum
dispensing time for both the Hot and
Ambient water has been introduced.
The default settings for the maximum
dispensing times is 15 seconds. Here,
the operator may change both the
Hot and Ambient dispensing times
to between 5 and 15 seconds, in
increments of 1 second. To edit the
dispensing times:
1.
Press the [MENU] button for main
menu.
2.
Press the [Setting] button.
3.
Press the [Dispense Time] button.
4.
Select the option to change and
scroll using the up and down arrow
Keys
The Zip HydroTap notifies when filter replacement is due. If you notice one of
the following, you will need to change the filter:
•
The Change Filter light will flash white once a second and remain so until
reset. A filter status light is located below the Chilled Blue Lights on the tap
head assembly.
•
The filter percentage will change to 0% on the screen.
Note:
Depending on local water quality conditions and usage, the filter
may require changing anywhere from 1000 Ltrs to 10000 Ltrs. You may also
need to replace the filter if you notice
unpleasant odours or tastes.
Some water may drip from the filter
head (socket) during replacement.
Keep a towel handy to dry up any
drips.
Water Filter
Hot Isolation
•
To activate, press button to disable safety lock feature. Then press
button to enable hot isolation.
•
To de-activate, press button to disable hot isolation. Then press button
to enable / disable the safety feature
•
To operate the tap when in Hot Isolation mode, tap the Safety Lock (3)
three times rapidly, the LED’s will scroll from right to left (3) three times.
This operation confirms de-activation and will remain de-activated for 30
seconds. The Hot Isolation can be immediately set again, by tapping the
safety lock (3) times rapidly or after 30 seconds of no use the unit will
revert to hot isolation active mode.
LCD Screen operation - Section G
C
B
C
B
801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09 Page 17 of 20
Dispense Times
The ability to change the maximum
dispensing time for both the Hot and
Ambient water has been introduced.
The default settings for the maximum
dispensing times is 15 seconds. Here,
the operator may change both the
Hot and Ambient dispensing times
to between 5 and 15 seconds, in
increments of 1 second. To edit the
dispensing times:
1.
Press the [MENU] button for main
menu.
2.
Press the [Setting] button.
3.
Press the [Dispense Time] button.
4.
Select the option to change and
scroll using the up and down arrow
Keys
The Zip HydroTap notifies when filter replacement is due. If you notice one of
the following, you will need to change the filter:
•
The Change Filter light will flash white once a second and remain so until
reset. A filter status light is located below the Chilled Blue Lights on the tap
head assembly.
•
The filter percentage will change to 0% on the screen.
Note:
Depending on local water quality conditions and usage, the filter
may require changing anywhere from 1000 Ltrs to 10000 Ltrs. You may also
need to replace the filter if you notice
unpleasant odours or tastes.
Some water may drip from the filter
head (socket) during replacement.
Keep a towel handy to dry up any
drips.
Water Filter
Hot Isolation
•
To activate, press button to disable safety lock feature. Then press
button to enable hot isolation.
•
To de-activate, press button to disable hot isolation. Then press button
to enable / disable the safety feature
•
To operate the tap when in Hot Isolation mode, tap the Safety Lock (3)
three times rapidly, the LED’s will scroll from right to left (3) three times.
This operation confirms de-activation and will remain de-activated for 30
seconds. The Hot Isolation can be immediately set again, by tapping the
safety lock (3) times rapidly or after 30 seconds of no use the unit will
revert to hot isolation active mode.
LCD Screen operation - Section G
C
B
C
B
Page 18 of 20 801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09

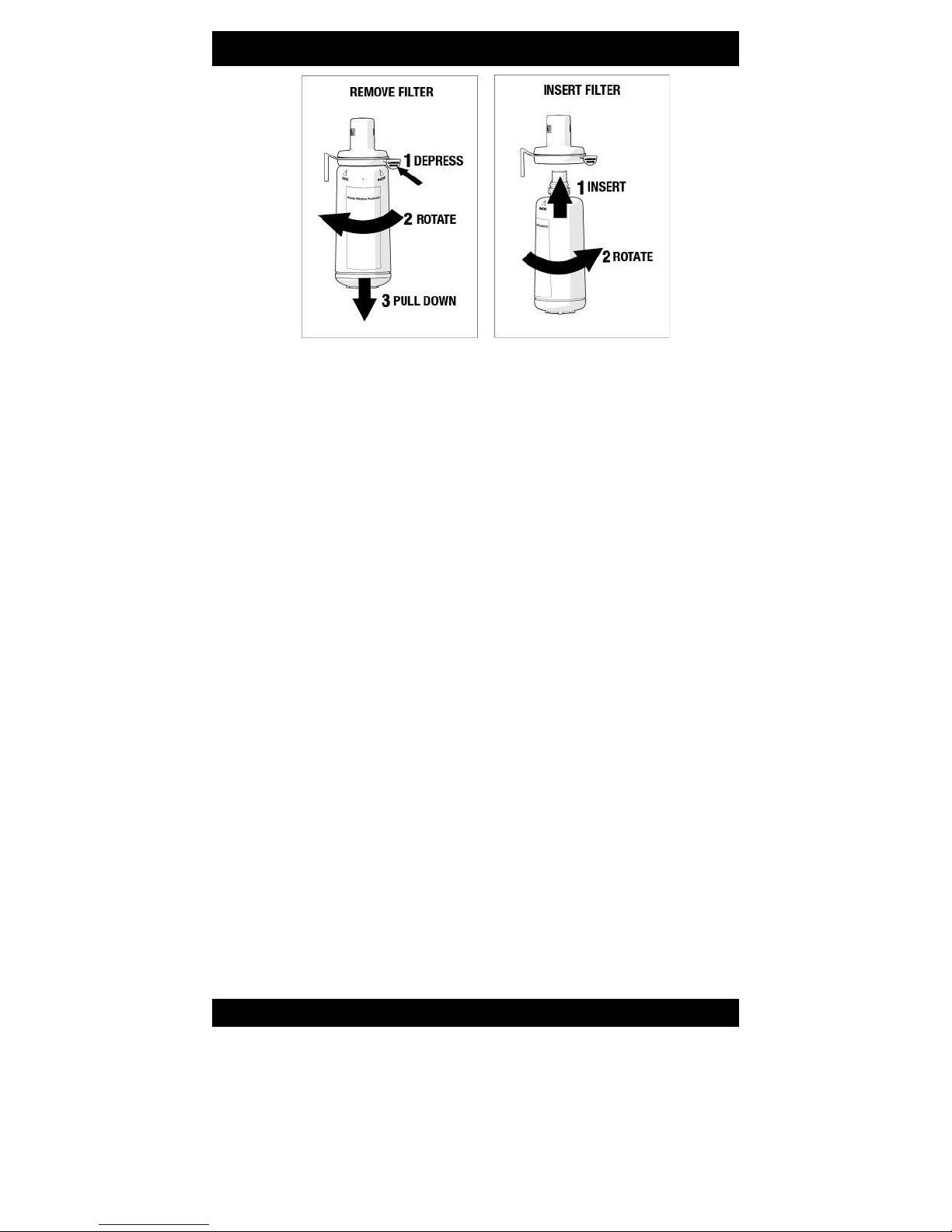

Filter Maintenance
Warning: If the Zip HydroTap is switched off for a long period of time
(e.g. More than a weekend), run water through the chilled water outlet for at
least 5 minutes before consumption.
Cleaning
General cleaning
Do not use strong, corrosive, spray or abrasive cleaners. Clean with a soft
damp cloth and mild soap.
Under sink units must never be located near, or cleaned with water jets.
Avoid using air bourne pesticides near the undersink unit.
To change the Filter: (See also Section C)
1.
Open the door of the under sink unit.
2.
Relieve system pressure via the filter flush stop cock, a quick open and
close will do. Use the bucket to catch the discharge.
3.
Grasp filter cartridge, depress the red lever at the top right of the filter and
rotate the cartridge a quarter turn to the left, then gently pull down.
4. Caution:
a small amount of water will drip as the cartridge is removed.
5.
Do not tilt the cartridge as water may spill from it if tilted.
6.
Unpack replacement cartridge and remove sanitary cap, write today’s
date where shown on the label.
7.
Avoid touching the filter O-rings and filter opening as this may cause
bacterial contamination of the cartridge.
8.
Moisten the O-rings with water, align the front cartridge label to the left (as
shown in the “insert filter” diagram for filter cartridge replacement), and
push the new cartridge into the filter head.
9.
Turn the cartridge a quarter turn to the right until the cartridge comes
to complete stop and is locked into position, with the front label facing
forward.
10.
Initiate the filter flush programme by scrolling through the menu screen
(See section C).
11.
When completed, wipe up any spills and dispose of spent filter cartridge
and packaging thoughtfully.
12.
Close the door to secure the appliance.
13.
Adjust the filter settings in Section G - filter - Litres and Days used.
Page 18 of 20 801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09
Filter Maintenance
Warning: If the Zip HydroTap is switched off for a long period of time
(e.g. More than a weekend), run water through the chilled water outlet for at
least 5 minutes before consumption.
Cleaning
General cleaning
Do not use strong, corrosive, spray or abrasive cleaners. Clean with a soft
damp cloth and mild soap.
Under sink units must never be located near, or cleaned with water jets.
Avoid using air bourne pesticides near the undersink unit.
To change the Filter: (See also Section C)
1.
Open the door of the under sink unit.
2.
Relieve system pressure via the filter flush stop cock, a quick open and
close will do. Use the bucket to catch the discharge.
3.
Grasp filter cartridge, depress the red lever at the top right of the filter and
rotate the cartridge a quarter turn to the left, then gently pull down.
4. Caution:
a small amount of water will drip as the cartridge is removed.
5.
Do not tilt the cartridge as water may spill from it if tilted.
6.
Unpack replacement cartridge and remove sanitary cap, write today’s
date where shown on the label.
7.
Avoid touching the filter O-rings and filter opening as this may cause
bacterial contamination of the cartridge.
8.
Moisten the O-rings with water, align the front cartridge label to the left (as
shown in the “insert filter” diagram for filter cartridge replacement), and
push the new cartridge into the filter head.
9.
Turn the cartridge a quarter turn to the right until the cartridge comes
to complete stop and is locked into position, with the front label facing
forward.
10.
Initiate the filter flush programme by scrolling through the menu screen
(See section C).
11.
When completed, wipe up any spills and dispose of spent filter cartridge
and packaging thoughtfully.
12.
Close the door to secure the appliance.
13.
Adjust the filter settings in Section G - filter - Litres and Days used.
801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09 Page 19 of 20
Home Menu Icons
Safety switch is LOCKED.
The HydroTap will not dispense any Boiling water.
See page 2 for safety switch operation
Safety switch is UNLOCKED.
Boiling water may be dispensed. See page 4 for tap
operation details
Sleep mode is active.
There are 7 sleep mode options which display this
icon on the home screen. See page 14 for details.
Heater is in OFF mode.
When this icon is displayed, no power is being
supplied to the heating element. See pages 14 and
15 for Energy Mode options.
Filter use.
This icon displays the filter usage remaining from
100% (New filter) to 0% (end of life). When it
reaches 0% the filter warning light on the tap head
will flash slowly.
The filter life can be adjusted by litres and by days
used. See pages 13 -14
50%
Boiling Temperature
The temperature of the water in the Boiling tank will
be displayed. This is optimises at 98°C but may be
adjusted between 68°- 100°. See page 13 for hot
set point adjustment.
BOILING
98°C
801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09 Page 19 of 20
Home Menu Icons
Safety switch is LOCKED.
The HydroTap will not dispense any Boiling water.
See page 2 for safety switch operation
Safety switch is UNLOCKED.
Boiling water may be dispensed. See page 4 for tap
operation details
Sleep mode is active.
There are 7 sleep mode options which display this
icon on the home screen. See page 14 for details.
Heater is in OFF mode.
When this icon is displayed, no power is being
supplied to the heating element. See pages 14 and
15 for Energy Mode options.
Filter use.
This icon displays the filter usage remaining from
100% (New filter) to 0% (end of life). When it
reaches 0% the filter warning light on the tap head
will flash slowly.
The filter life can be adjusted by litres and by days
used. See pages 13 -14
50%
Boiling Temperature
The temperature of the water in the Boiling tank will
be displayed. This is optimises at 98°C but may be
adjusted between 68°- 100°. See page 13 for hot
set point adjustment.
BOILING
98°C
Page 20 of 20 801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09
The terms “Zip” and “HydroTap” are
registered trade marks of Zip Heaters (Aust)
Pty Ltd.
Zip products described in this publication
are manufactured under one or more of the
following patents: AU675601, AU637412,
AU635979, GB0422305, GB2065848,
US4354049, US5103859, US5099825 and
SA2006/08043. Other patents are in force
and patent applications are pending.
Head Office
Zip Heaters (Aust) Pty. Ltd.
ABN: 46 000 578 727
67 Allingham Street
Condell Park NSW 2200
Postal: Locked Bag 80
Bankstown 1885 Australia
Website: www.zipheaters.com
Facsimile: (02) 9796 3858
Telephone: (02) 9796 3100
Free Call: 1 800 638 633
As Zip policy is one of continuous product improvement, changes to
specifications may be made without prior notice. Images in this booklet have
been modified and may not be true representations of the finished goods.
WMKA00099
AS 3498
Contact Details
Page 20 of 20 801621 - B, BA, BHA, BAHA, - HydroTap User Guide - August 2014 - V1.09
The terms “Zip” and “HydroTap” are
registered trade marks of Zip Heaters (Aust)
Pty Ltd.
Zip products described in this publication
are manufactured under one or more of the
following patents: AU675601, AU637412,
AU635979, GB0422305, GB2065848,
US4354049, US5103859, US5099825 and
SA2006/08043. Other patents are in force
and patent applications are pending.
Head Office
Zip Heaters (Aust) Pty. Ltd.
ABN: 46 000 578 727
67 Allingham Street
Condell Park NSW 2200
Postal: Locked Bag 80
Bankstown 1885 Australia
Website: www.zipheaters.com
Facsimile: (02) 9796 3858
Telephone: (02) 9796 3100
Free Call: 1 800 638 633
As Zip policy is one of continuous product improvement, changes to
specifications may be made without prior notice. Images in this booklet have
been modified and may not be true representations of the finished goods.
WMKA00099
AS 3498
Contact Details
Loading...
