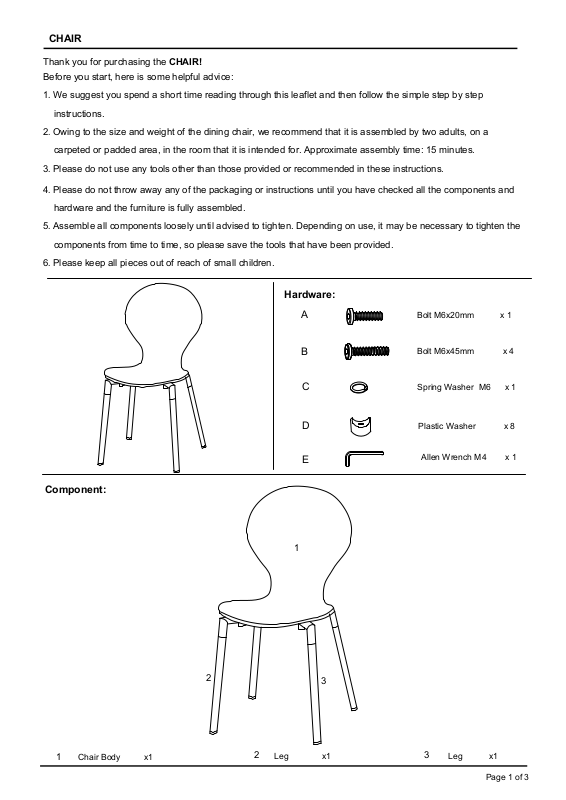

CHAIR
Thank you for purchasing the CHAIR!
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the dining chair, we recommend that it is assembled by two adults, on a
carpeted or padded area, in the room that it is intended for. Approximate assembly time: 15 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or instructions until you have checked all the components and
hardware and the furniture is fully assembled.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all pieces out of reach of small children.
Hardware:
Component:
1
A
B
C
D
E
Bolt M6x20mm x 1
Bolt M6x45mm x 4
Spring Washer M6 x 1
Plastic Washer x 8
Allen Wrench M4 x 1
1
Chair Body x1
2
2
Leg x1
Page 1 of 3
3
3
Leg x1
CHAIR
STEP 1:
Please put Legs (2&3) upside down on a carpeted or padded area.
Attach Leg (3) to Leg (2) by using 1 pieces of Bolt (A) with1 piece of Spring Washer (C).
Use Allen Wrench (E) to tighten Bolt (A).
Do not fully tighten Bolts (A) at this step.
3
2
E
A
C
3
2
Ax1 Ex1
Cx1
Hardware & Tool required
STEP 2:
Please put Chair Body (1) upside down on a carpeted or padded area.
Insert 4 pieces of Blot (B) through the holes on 8 pieces of Plastic washer (E) and Legs (2&3) into the holes on bottom of
Chair Body (1) as shown.
Use Allen Wrench (E) to tighten all Bolt (A&B) clockwise until secure.
Note: The direction of arrow face towards front.
2
3
E
3
B
D
2
D
2
1
1
Bx4 Dx8 Ex1
Hardware & Tool required
Page 2 of 3
CHAIR
STEP 3:
Carefully turn over the assembled chair.
Assembly is completed. The chair is ready to use now!
Page 3 of 3
