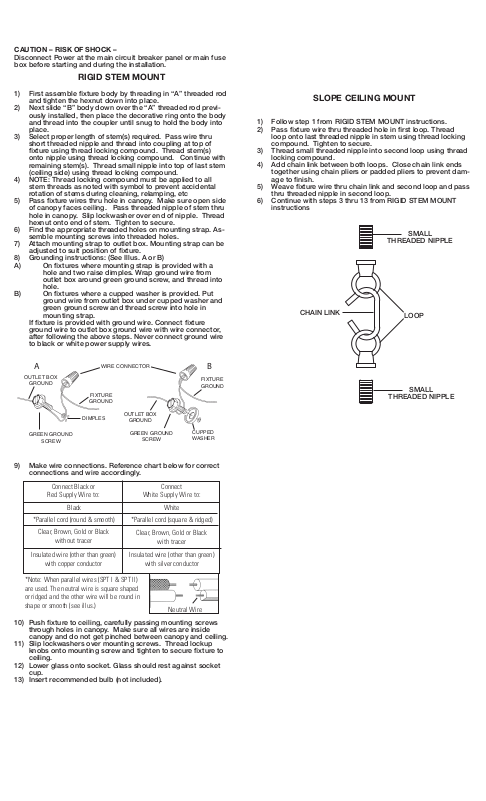

CAUTION – RISK OF SHOCK –
Disconnect Power at the main circuit breaker panel or main fuse
box before starting and during the installation.
RIGID STEM MOUNT
1) First assemble fixture body by threading in “A” threaded rod
and tighten the hexnut down into place.
2) Next slide “B” body down over the “A” threaded rod previously installed, then place the decorative ring onto the body
and thread into the coupler until snug to hold the body into
place.
3) Select proper length of stem(s) required. Pass wire thru
short threaded nipple and thread into coupling at top of
fixture using thread locking compound. Thread stem(s)
onto nipple using thread locking compound. Continue with
remaining stem(s). Thread small nipple into top of last stem
(ceiling side) using thread locking compound.
4) NOTE: Thread locking compound must be applied to all
stem threads as noted with symbol to prevent accidental
rotation of stems during cleaning, relamping, etc
5) Pass fixture wires thru hole in canopy. Make sure open side
of canopy faces ceiling. Pass threaded nipple of stem thru
hole in canopy. Slip lockwasher over end of nipple. Thread
hexnut onto end of stem. Tighten to secure.
6) Find the appropriate threaded holes on mounting strap. Assemble mounting screws into threaded holes.
7) Attach mounting strap to outlet box. Mounting strap can be
adjusted to suit position of fixture.
8) Grounding instructions: (See Illus. A or B)
A) On fixtures where mounting strap is provided with a
hole and two raise dimples. Wrap ground wire from
outlet box around green ground screw, and thread into
hole.
B) On fixtures where a cupped washer is provided. Put
ground wire from outlet box under cupped washer and
green ground screw and thread screw into hole in
mounting strap.
If fixture is provided with ground wire. Connect fixture
ground wire to outlet box ground wire with wire connector,
after following the above steps. Never connect ground wire
to black or white power supply wires.
SLOPE CEILING MOUNT
1) Follow step 1 from RIGID STEM MOUNT instructions.
2) Pass fixture wire thru threaded hole in first loop. Thread
loop onto last threaded nipple in stem using thread locking
compound. Tighten to secure.
3) Thread small threaded nipple into second loop using thread
locking compound.
4) Add chain link between both loops. Close chain link ends
together using chain pliers or padded pliers to prevent damage to finish.
5) Weave fixture wire thru chain link and second loop and pass
thru threaded nipple in second loop.
6) Continue with steps 3 thru 13 from RIGID STEM MOUNT
instructions

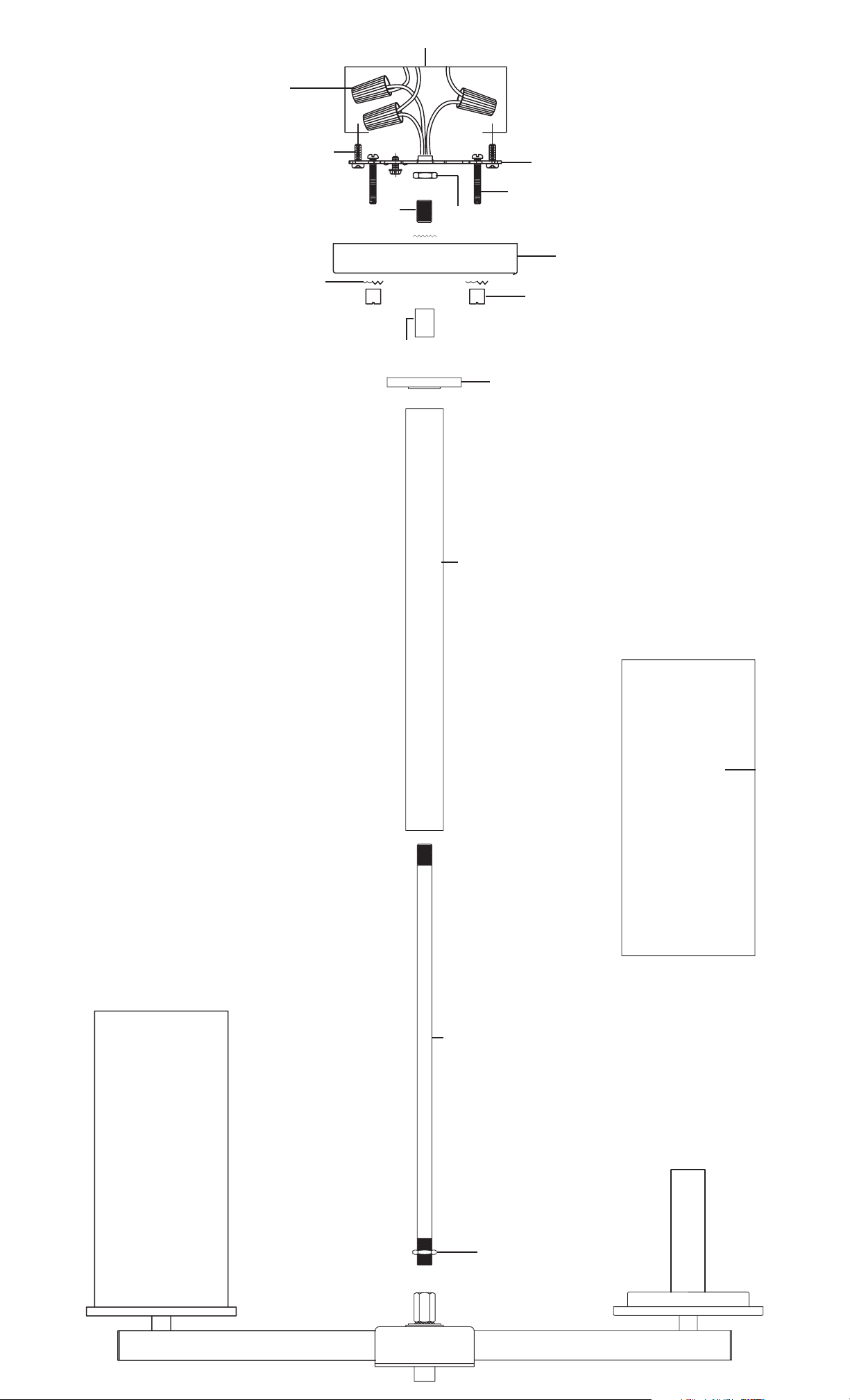

SMALL
THREADED NIPPLE
CHAIN LINK
LOOP
A
OUTLET BOX
GROUND
GREEN GROUND
SCREW
WIRE CONNECTOR
FIXTURE
GROUND
DIMPLES
OUTLET BOX
GROUND
GREEN GROUND
SCREW
B
FIXTURE
GROUND
CUPPED
WASHER
9) Make wire connections. Reference chart below for correct
connections and wire accordingly.
Connect Black or
Red Supply Wire to:
Connect
White Supply Wire to:
Black White
*Parallel cord (round & smooth) *Parallel cord (square & ridged)
Clear, Brown, Gold or Black
without tracer
Insulated wire (other than green)
with copper conductor
Clear, Brown, Gold or Black
with tracer
Insulated wire (other than green)
with silver conductor
*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)
Neutral Wire
10) Push fixture to ceiling, carefully passing mounting screws
through holes in canopy. Make sure all wires are inside
canopy and do not get pinched between canopy and ceiling.
11) Slip lockwashers over mounting screws. Thread lockup
knobs onto mounting screw and tighten to secure fixture to
ceiling.
12) Lower glass onto socket. Glass should rest against socket
cup.
13) Insert recommended bulb (not included).
SMALL
THREADED NIPPLE
WIRE
CONNECTORS
OUTLET BOX
STRAP MOUNTING SCREW(S)
SHORT THREADED NIPPLE
LOCKWASHER(S)
MOUNTING STRAP
MOUNTING SCREWS
HEXNUT
CANOPY
LOCK-UP KNOBS
COUPLING
DECORATIVE
RING
B
GLASS
A
HEXNUT
