Parts List
LAF LOVE SEAT BASE
RAF CHAIR SEAT BASE
CHAIR BACK REST
PLASTIC LEG
ADJUSTABLE
METAL LEG
3 CM
5.5 CM
K
LOVESEAT BACK
OTTOMAN
Thank you for purchasing the quality product. Be sure to check all packing material carefully for small parts
which may have come loose inside the carton during shipment. Separate, identify and count all parts and metal
hardware. Compare with all parts list to be sure all parts are present. If any parts(s) are missing or damaged,
please contact your local furniture dealer. For efficient and speedy service, please indicate the model number
and code letter of part(s) needed.
*** Do not fully tighten screws until fully assembled***
Attention:
***Some number parts listed on the instruction sheet may not be in parts bag as they may already be
assembled. Carefully check parts and packing materials prior to ordering replacements.
How to assemble:
1
2
3
4
1 PC
1 PC
1 PC
8 PCS
G
H
I
J
6 PCS
6 PCS
1 PC
2 PCS
1 PC
F
2 PCS
4 PCS
L
1 PC

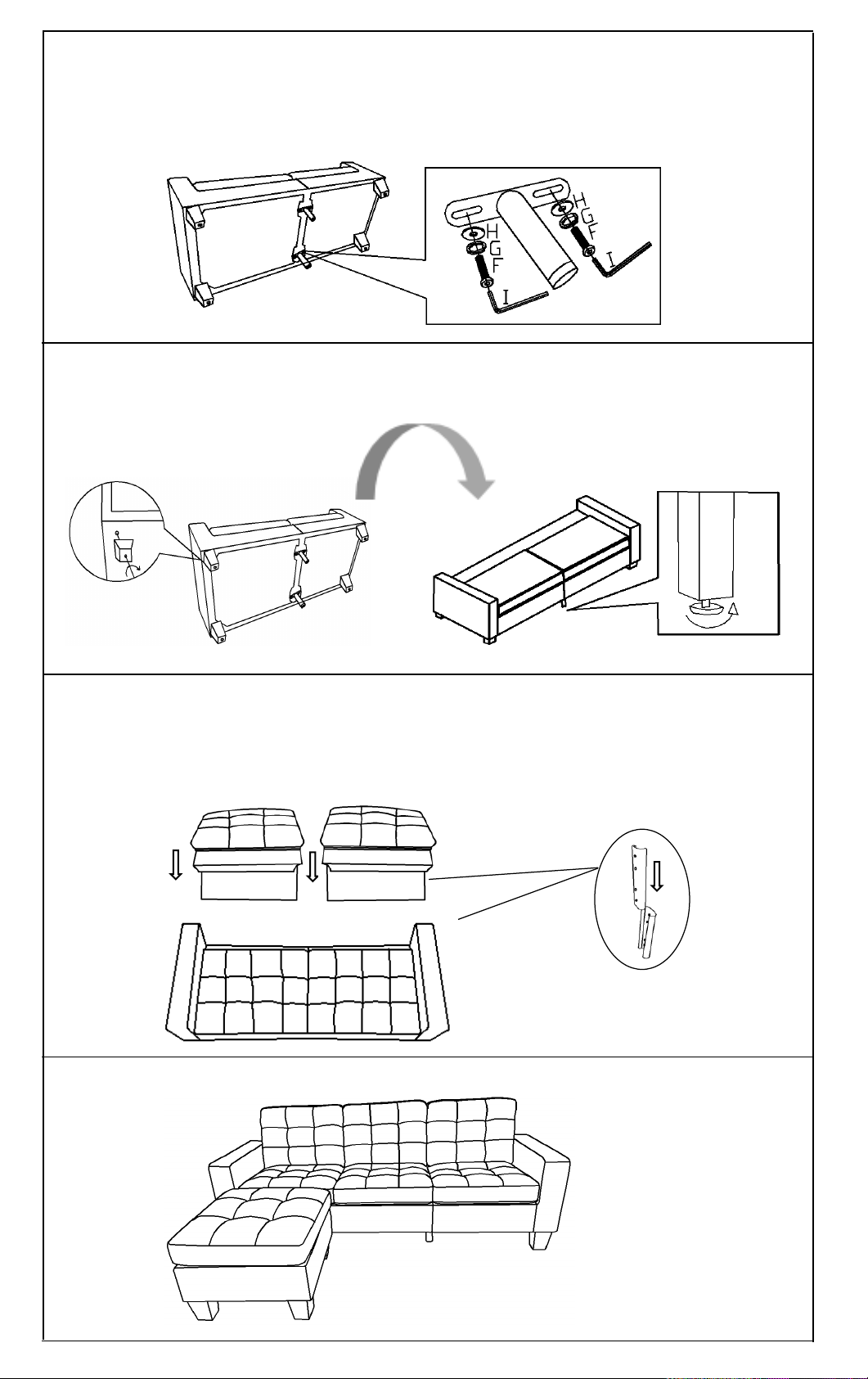

Step 1 Secure the two individual seat frame
2 pcs threaded rod (J)
1 & 2) together with
（
STEP 2: ATTACH THE ADJUSTABLE METAL LEG (5) AND PLACE IT ON THE UNDERSIDE OF THE SEAT
3
3
BASE (1 + 2). ALIGN THE HOLES IN THE METAL LEGS (5) WITH THE HOLES IN THE SEAT BASE
(1 + 2). USING THE BOLTS (F. G. H) AND ALLEN WRENCH (I) SCURE THE METAL LEG (5) TO THE
SEAT BASE AND TIGHTEN ALL OF THEM FIRMLY.
A
STEP 3: INSERT PLASTIC LEG (4) ONTO THE BOTTOM OF LAF & RAF SEAT BASE (1 + 2)
USING THE ADJUSTABLE METAL LEG (5) TO LEVEL THE WHOLE SEAT BASE.
B
EE
STEP 4: ALIGN FEMALE BRACKETS AT THE BACK REST (3) TO THE MALE BRACKETS AT THE
SEAT BASE (1 + 2). INSERT THE BACK REST (3) TO THE SEAT BASE AND PUSH IT TO
THE END. MAKE SURE THE BRACKETS IS SCURED IN POSITION.
STEP 5: COMPLETED
