ASSEMBLY INSTRUCTION
Skip the power trip this time.
ASSEMBLY TOOLS REQUIRED
1. Screwdriver (not provide)
2. Hammer (not provide)
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts which may
have come loose inside the carton during shipment. Separate, identify and count all parts and hardware. Compare with
the parts list to be sure all parts are present.
IMPORTANT : PLEASE READ INSTRUCTION BEFORE STARTING THE ASSEMBLY.
"DO NOT TIGHTEN SCREWS UNTIL COMPLETELY ASSEMBLED"
"DO NOT OVERTIGHT ANY HARDWARE"
WARNING : SMALL PARTS AND HARDWARE NOT FOR CHILDREN UNDER 3 YEARS. ADULT ASSEMBLY REQUIRED.
TABLE OF CONTENTS
HARDWARES LIST
PARTS LIST
PARTS' LOCATION
ASSEMBLY STEPS
ASSEMBLY COMPLETED
ANTI-TIPPING INSTALLMENT
INSTRUCTIONS
PAY ATTENTION ITEMS
PAGE 2 - 3
PAGE 4 - 5
PAGE 6
PAGE 7 - 19
PAGE 20
PAGE 21
PAGE 22
PAGE 1 OF 22
ITEM
A
B
C
D
E
F
G
I
L
DESCRIPTION
MINIFIX CAM LOCK
MINIFIX CAM BOLT
WOOD DOWEL (M8 x 25MM)
WOOD DOWEL (M6 x 25MM)
JCBC SCREW M6 x 35MM
SPRING WASHER M6 x 13MM
FLAT WASHER M6 x 19MM
TRUSS M-SCREW (20MM)
6/8" NAIL
QTY
54 PCS
54 PCS
26 PCS
40 PCS
4 PCS
4 PCS
4 PCS
10 PCS
14 PCS
DRAWING
HARDWARES LIST
PAGE 2 OF 22
MORE HARDWARES DETAIL IN NEXT PAGE...
ASSEMBLY INSTRUCTION
HARDWARES LIST
ITEM
M
N
O
P
Q
R

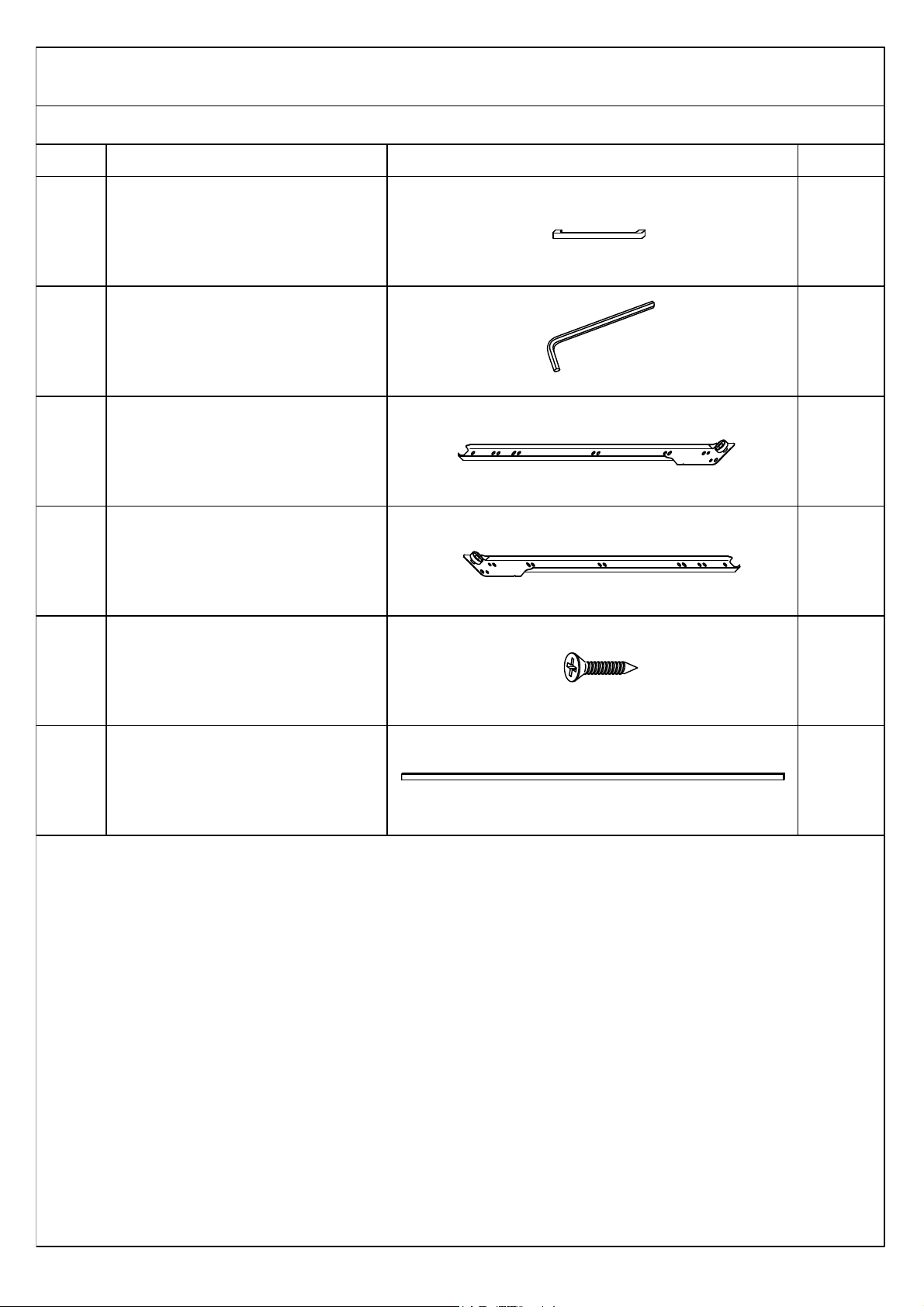

DESCRIPTION
HANDLE
M4 ALLEN KEY (65MM)
LEFT DRAWER SLIDE
RIGHT DRAWER SLIDE
CSK SCREW M3 x 10mm
PLASTIC STRIP (H SHAPE)
QTY
5 PCS
1 PC
5 PCS
5 PCS
40 PCS
1 PC
DRAWING
PAGE 3 OF 22
ASSEMBLY INSTRUCTION
PARTS LIST
MORE PARTS DETAIL IN NEXT PAGE...
ITEM
C1
C2
C3
C4
C5
C7
C8
C9
C10
DESCRIPTION
TOP PANEL
LEFT PANEL
RIGHT PANEL
TOP SUPPORT RAIL
CENTRE SUPPORT RAIL
BACK PANEL
DRAWER HEAD
DRAWER BACK PANEL
DRAWER BOTTOM PANEL
QTY
1 PC
1 PC
1 PC
2 PCS
3 PCS
2 PCS
5 PCS
5 PCS
5 PCS
DRAWING
PAGE 4 OF 22
ASSEMBLY INSTRUCTION
PAGE 5 OF 22
PARTS LIST
ITEM
C11
17
18
19
20
21
DESCRIPTION
BOTTOM PANEL
LEG (i)
LEG (ii)
DRAWER LEFT PANEL
DRAWER RIGHT PANEL
DRAWER BOTTOM SUPPORT RAIL
QTY
1 PC
2 PCS
2 PCS
5 PCS
5 PCS
5 PCS
DRAWING
ASSEMBLY INSTRUCTION
PARTS ' LOCATION
CHEST x 1 PC
DRAWER x 5 PCS
PAGE 6 OF 22
C4
C1
C3
C5
C11
17
17
18
18
C8
C9
19
20
C7
21
C10
C2
C7
ASSEMBLY INSTRUCTION
STEP 1
ASSEMBLY STEPS
PAGE 7 OF 22
Assembled become like this
Fix the 5 pieces (O) to the (C2) by using 20 pieces (Q). Then insert 4 pieces (A), 5 pieces (B) and 3 pieces (C) as
shown.
Arrow need to face outside.
C2
Arrow need to face outside.
B
A
C
C2
Q
O
Insert screw to tight
this hole first
Q
O
C2
Finished edge
ASSEMBLY INSTRUCTION
Assembled become like this
C3
B
C
Arrow need to face outside.
Arrow need to face outside.
A
STEP 2
PAGE 8 OF 22
Fix the 5 pieces (P) to the (C3) by using the remaining 20 pieces (Q). Then insert 4 pieces (A), 5 pieces (B) and 3 pieces
(C) as shown.
Insert screw to tight
this hole first
C3
P
Q
C3
Q
P
Finished edge
ASSEMBLY INSTRUCTION
STEP 3
STEP 4
PAGE 9 OF 22
Assembled become like this
Arrow need to face outside.
Arrow need to face outside.
Arrow need to face outside.
C4
A
C
Insert 5 pieces (A) and 2 pieces (C) to the (C4) as shown.This step needs to be done twice.
C5
C
Arrow need to face outside.
Arrow need to face outside.
Assembled become like this
Insert 2 pieces (A) and (C) to the (C5) as shown.This step needs to be done three times.
A
C4
ASSEMBLY INSTRUCTION
STEP 5
STEP 6
PAGE 10 OF 22
Assembled become like this
B
C1
Insert 10 pieces (B) to the (C1) as shown.
Assembled become like this
Insert 4 pieces (B) and 6 pieces (C) to the (C11) as shown.
C11
B
C
ASSEMBLY INSTRUCTION
STEP 7
STEP 8
PAGE 11 OF 22
C2
C4 C5
C4
C5
C3
INSIDE VIEW
C4
C5 C5
C4
C2
Combine the (C4),(C5) to the (C2) then tighten the 5 pieces (A)-(pre insert in step 3 and 4) as shown.
Combine the (C3) to the (C4),(C5) then tighten the another 5 pieces (A)-(pre insert in step 3 and 4) as shown.
ASSEMBLY INSTRUCTION
STEP 9
STEP 10
PAGE 12 OF 22
Combine the (C11) to the (C2),(C3) then tighten the 4 pieces (A)-(pre insert in step 1 and 2) as shown.
C11
C2
C3
Insert 4 pieces (C),(E),(F) and (G) to combine the (17) and (18) to the (C11) as shown.
18
17
C3
C2
C11
C3
C2
C
C11
17
18
N
E
F
G
90 °
C11
C
INSIDE VIEW
ASSEMBLY INSTRUCTION
STEP 11
STEP 12
PAGE 13 OF 22
INSIDE VIEW
Combine the (C1) to the frame then tighten the remaining 10 pieces (A)-(pre-insert in step 1 to 3) as shown.
C4
C1
C2
C3 C3
C2
C4
R
C7
C7
C7
C7
R
Put the (C7) to the gap of (R) as shown.Direction of the side with colored paper must be the same.
ASSEMBLY INSTRUCTION
Assembled become like this
B
Insert 3 pieces (B) to the (C8) as shown.This step needs to be done five times.
C8
STEP 13
STEP 14
PAGE 14 OF 22
C7 C7
R
L
C2
C11
Insert the 14 pieces (L) to fix the (C7) as shown. Colored paper face to outside.
To prevent blocking (C1) and (C11), make sure the (R) at the middle of (C7) , do not over high or lower.
C1
ASSEMBLY INSTRUCTION
STEP 15
STEP 16
PAGE 15 OF 22
B
D
A
Assembled become like this
D
A
B
19
20
Assembled become like this
Insert 1 piece (A),(B) and 2 pieces (D) to (19) as shown.This step needs to be done five times.
Insert 1 piece (A),(B) and 2 pieces (D) to (20) as shown.This step needs to be done five times.
Arrow need to face outside.
Arrow need to face outside.
21
Arrow need to face outside.
Arrow need to face outside.
A
STEP 17
STEP 18
PAGE 16 OF 22
Assembled become like this
D
Assembled become like this
C9
Arrow need to face outside.
Arrow need to face outside.
A
Insert 2 pieces (A) , 1 piece (B) and 4 pieces (D) to (C9) as shown.This step needs to be done five times.
Insert 2 pieces (A) to (21) as shown.This step needs to be done five times.
B
STEP 19
PAGE 17 OF 22
STEP 20
C9
20
19
C10
C9
19
20
C10
Combine the (19) and (20) to the (C9) . Then tighten the 2 pieces (A)-(pre-insert in step 17) as shown.This step needs
to be done five times.
Put the (C10) into the gap of (19),(20) and (C9) as shown.This step needs to be done five times.
C9
ASSEMBLY INSTRUCTION
PAGE 18 OF 22
STEP 21
STEP 22
Combine the (C8) to the drawer frame. Then tighten the 3 pieces (A)-(pre-insert in step 15,16 and 18) as shown.This
step needs to be done five times.
Combine the (21) to the (C9) then tighten the 1 piece (A)-(pre-insert in step 18) as shown.This step needs to be done
five times.
C9
21
19
20
90 °
C10
20
21
INSIDE VIEW
C8
C10
19
ASSEMBLY INSTRUCTION
M
I
C3
C1
20
19
C8
STEP 23
STEP 24
PAGE 19 OF 22
Align the position then push the 5 pieces drawer to inside exactly by your hand as shown.
Insert 2 pieces (I) fix the (M) as shown.This step needs to be done five times.
C8
ASSEMBLY INSTRUCTION
ASSEMBLY COMPLETED
PAGE 20 OF 22
STEP 25
ASSEMBLY INSTRUCTION
PAGE 21 OF 22
Place the drawer which sticked a warning label in the top as shown.
PAGE 22 OF 22
This sticker was sticked at one of the DRAWER LEFT PANEL(19).
