Page 1

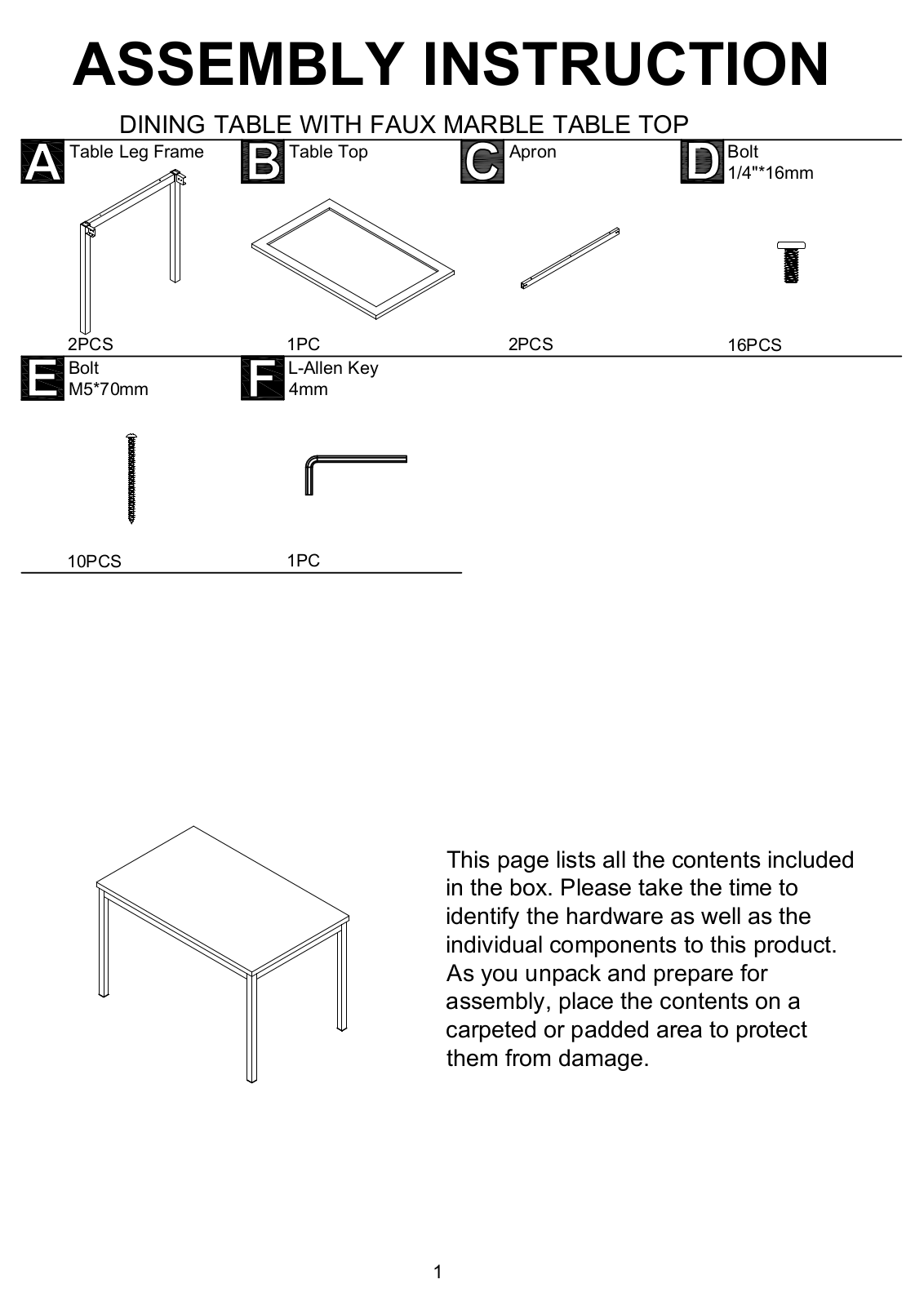

ASSEMBLY INSTRUCTION
2601-48 DINING TABLE WITH FAUX MARBLE TABLE TOP
Table Leg Frame Table Top
Apron Bolt
1/4"*16mm
2PCS
Bolt
M5*70mm
10PCS
1PC
L-Allen Key
4mm
1PC
2PCS
16PCS
This page lists all the contents included
in the box. Please take the time to
identify the hardware as well as the
individual components to this product.
As you unpack and prepare for
assembly, place the contents on a
carpeted or padded area to protect
them from damage.
1

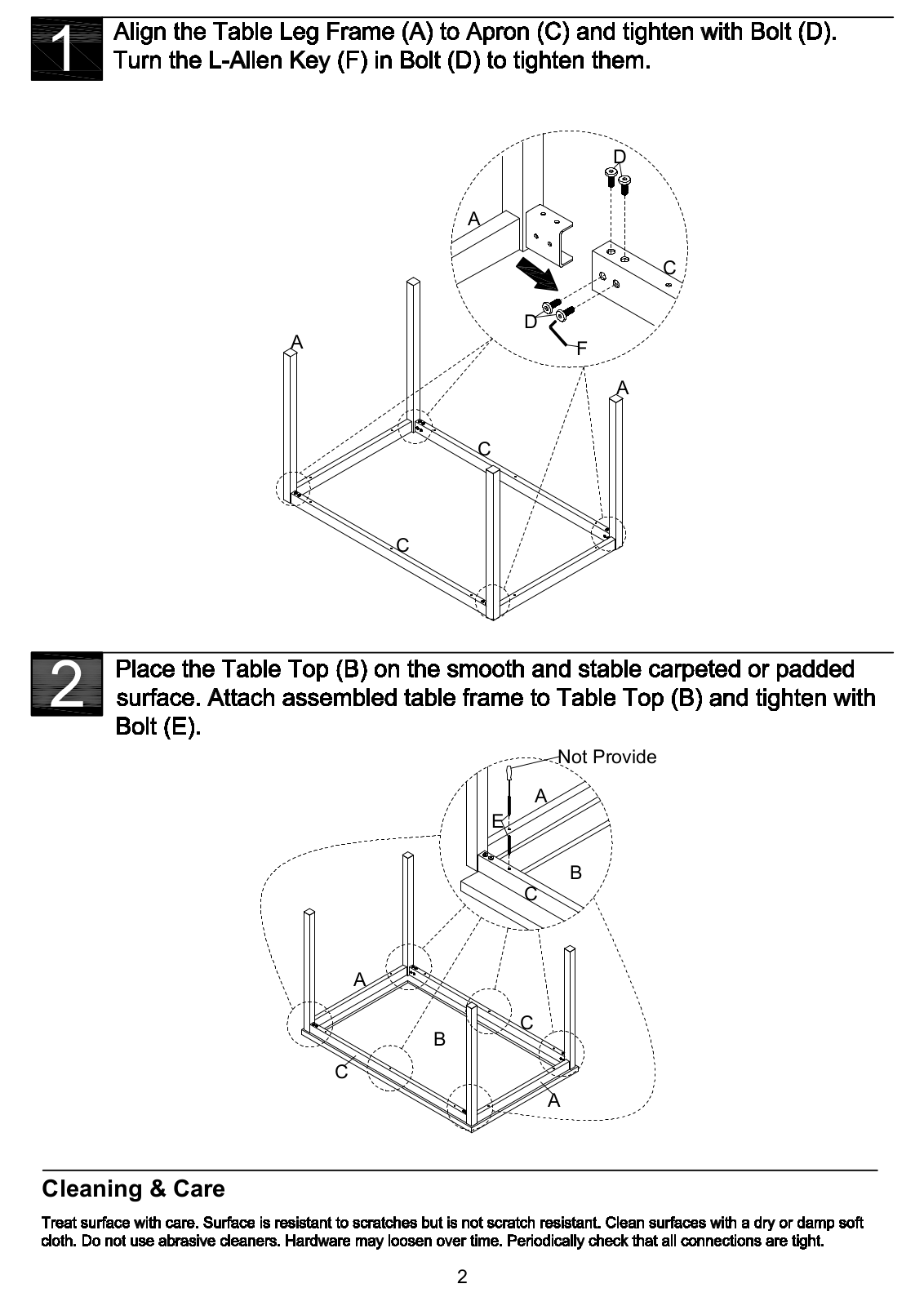

Page 2
A
D
A
C
D
F
A
C
C
Cleaning & Care
Not Provide
A
E
B
C
A
C
B
C
A
2
Page 3

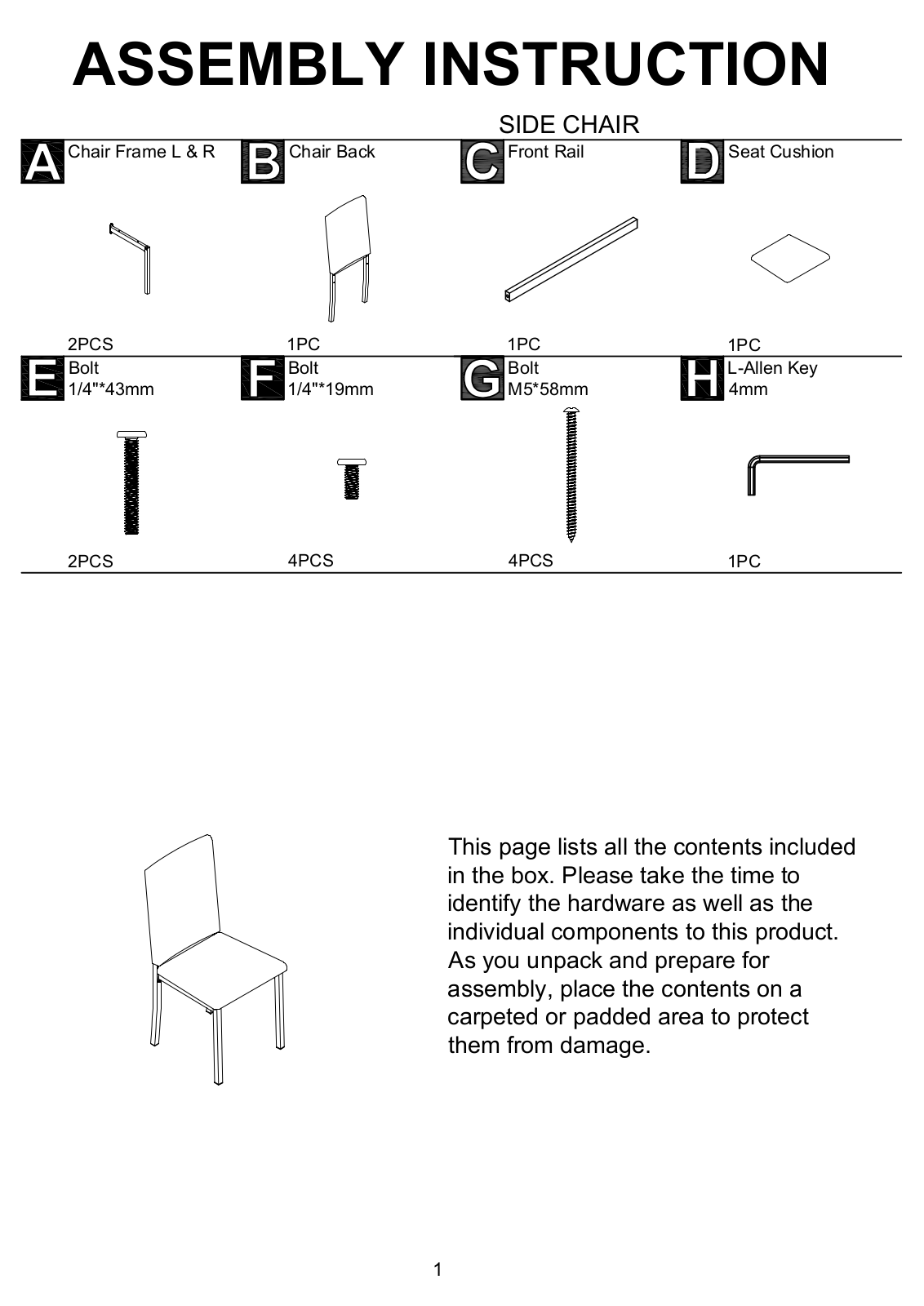

ASSEMBLY INSTRUCTION
2601S(3A) / 2601S-2(3A) / 2601GDS-GPU SIDE CHAIR
Chair Frame L & R
Chair Back
Front Rail
Seat Cushion
2PCS
Bolt
1/4"*43mm
2PCS
1PC
Bolt
1/4"*19mm
4PCS
1PC
Bolt
M5*58mm
4PCS
1PC
L-Allen Key
4mm
1PC
This page lists all the contents included
in the box. Please take the time to
identify the hardware as well as the
individual components to this product.
As you unpack and prepare for
assembly, place the contents on a
carpeted or padded area to protect
them from damage.
1
Page 4
B
C
B
F
H
A
F
A
A
E
H
C
A

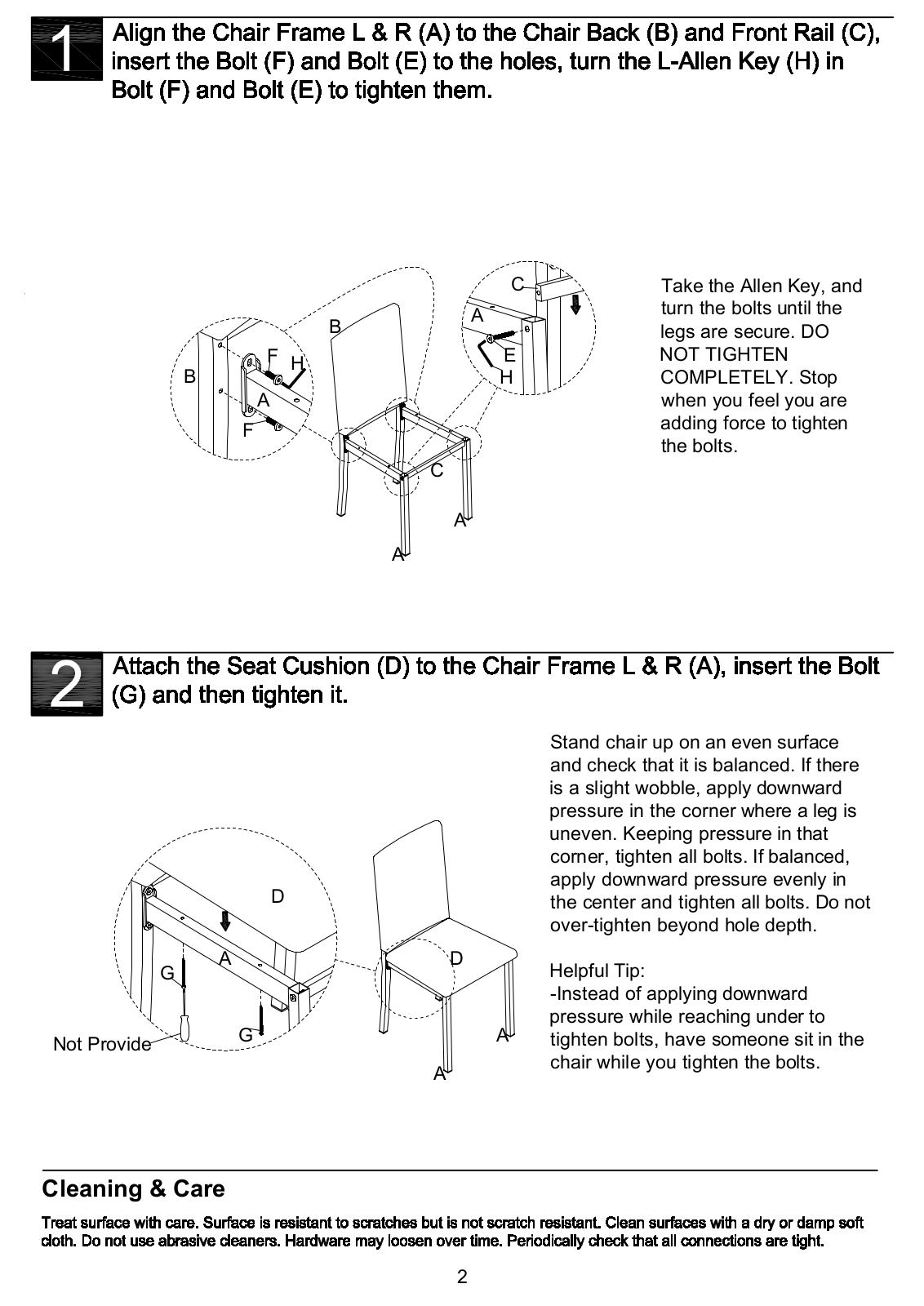

Take the Allen Key, and
turn the bolts until the
legs are secure. DO
NOT TIGHTEN
COMPLETELY. Stop
when you feel you are
adding force to tighten
the bolts.
G
Not Provide
Cleaning & Care
A
G
D
A
D
A
Stand chair up on an even surface
and check that it is balanced. If there
is a slight wobble, apply downward
pressure in the corner where a leg is
uneven. Keeping pressure in that
corner, tighten all bolts. If balanced,
apply downward pressure evenly in
the center and tighten all bolts. Do not
over-tighten beyond hole depth.
Helpful Tip:
-Instead of applying downward
pressure while reaching under to
tighten bolts, have someone sit in the
chair while you tighten the bolts.
2
