Page 1
COFFEE TABLE
ASSEMBLY INSTRUCTIONS
We have designed our furniture with you , the customer in mind . Our clear , easy to follow ,
step by step instructions will guide you through the project from start to finish .
Feel confident that this will be a fun and rewarding project . The final product will be a quality
piece of furniture that will go together smoothly and give years of enjoyment .
Page 2

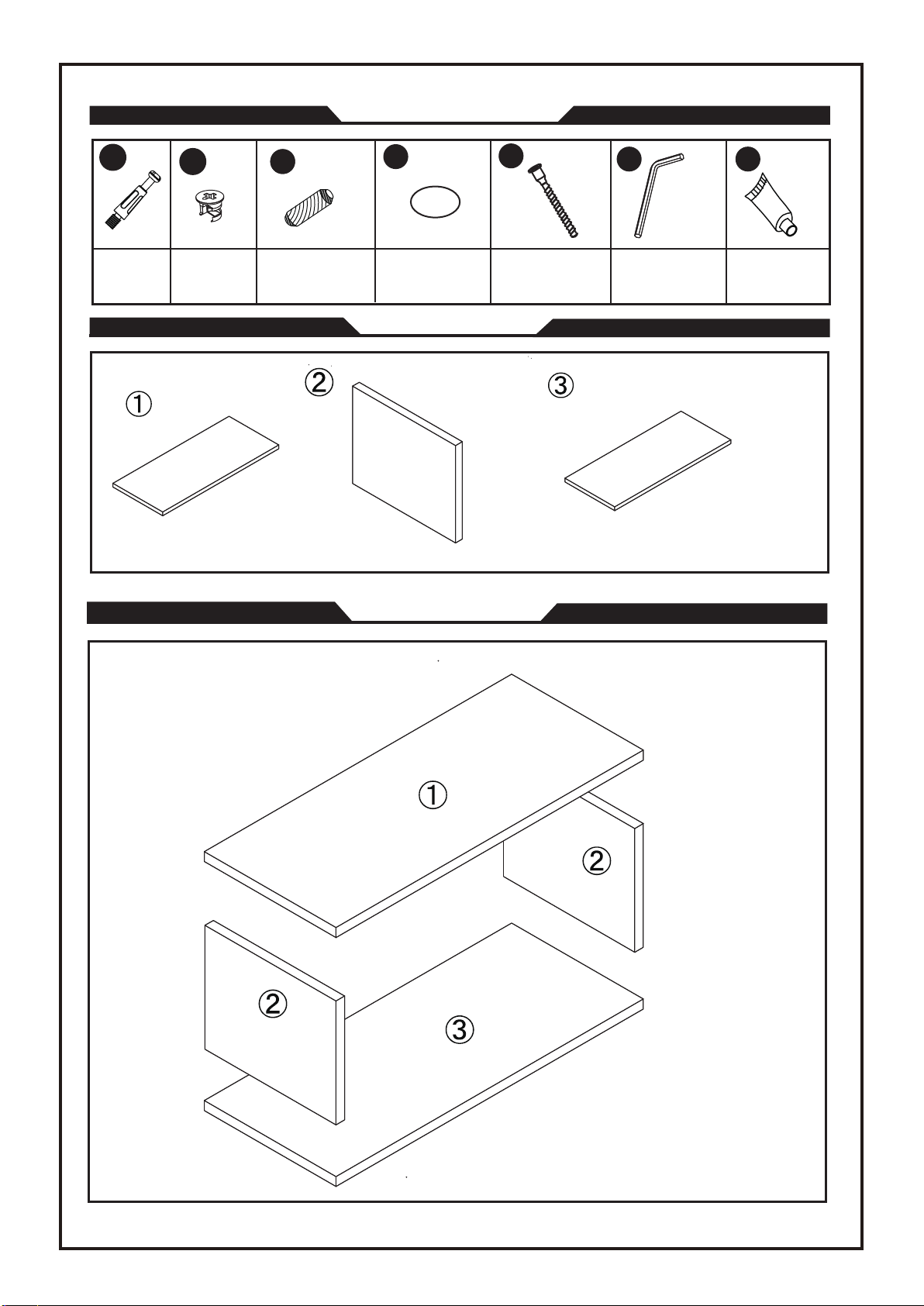

Hardware List
A
Cambolt
( 4pcs )
Top Panel
(1pc)
B
Camlock
( 4pcs )
CC
Wood dowel
( 8pcs )
Side Panel
(2pcs)
Exploded Views
D
Scker
(8pcs)
Panel List
E
Large Screw
(4pcs)
Boom Panel
(1pc)
F
Allen Wrench
(1pc)
G
Glue
( 1pc )
Page 2 of 4
Page 3

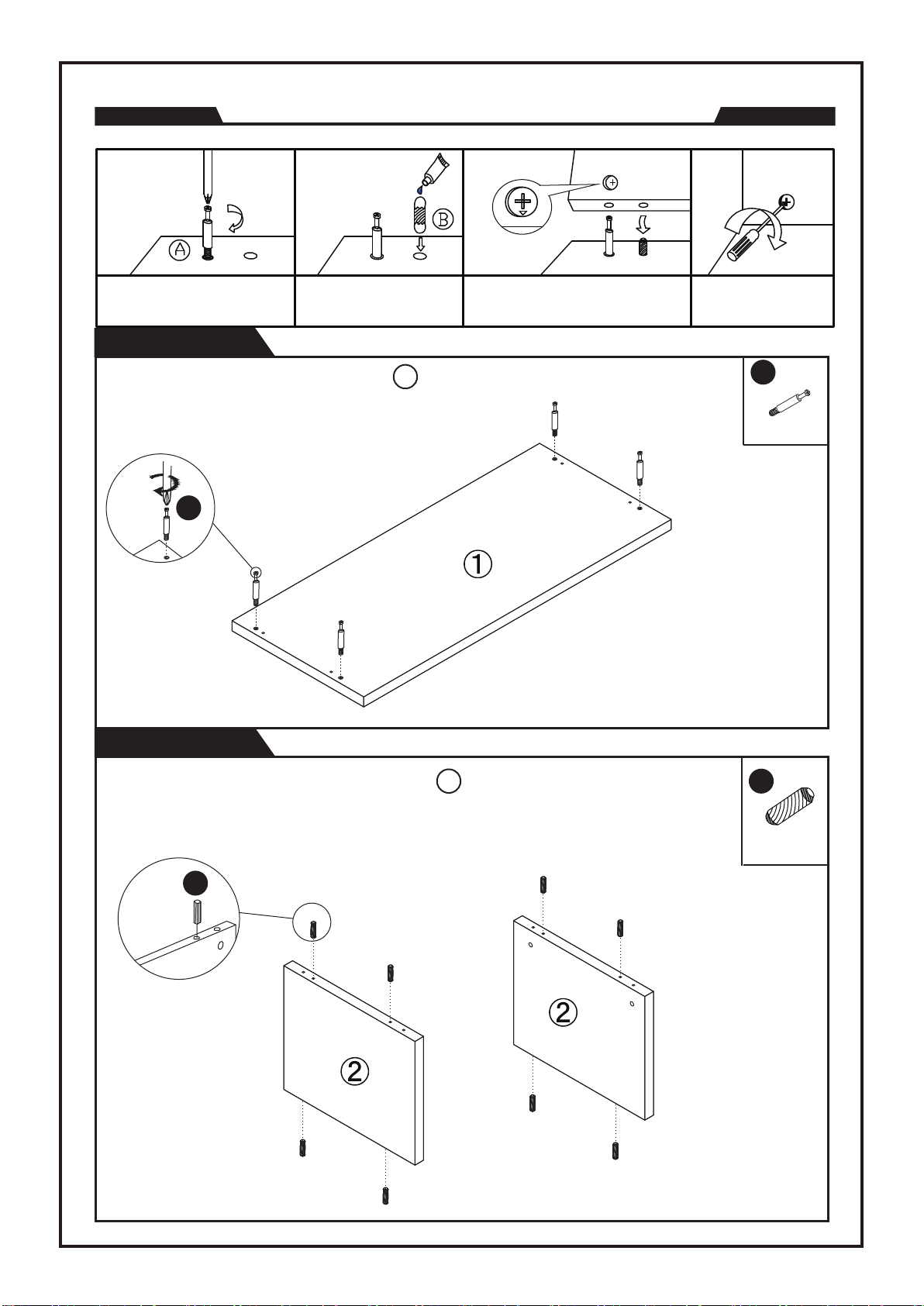

Assembling the unit with camlocks and wood dowels.
Arrow must face hole
Gently screw cam
bolt into the
threaded anchor.
Lightly glue one end of
the wood dowel and tap
halfway into hole.
Lightly glue wood dowel and
connect to second panel by
inserng dowels into holes.
Step 1
1. Screw cambolts (A) into top panel as shown .
A
1
Screw the camlock
firmly into locked
posion.
A
x 4
Step 2
1. Insert wood dowels (C) into side panels as shown .
C
2
C
x 8
Page 3 of 4
Page 4

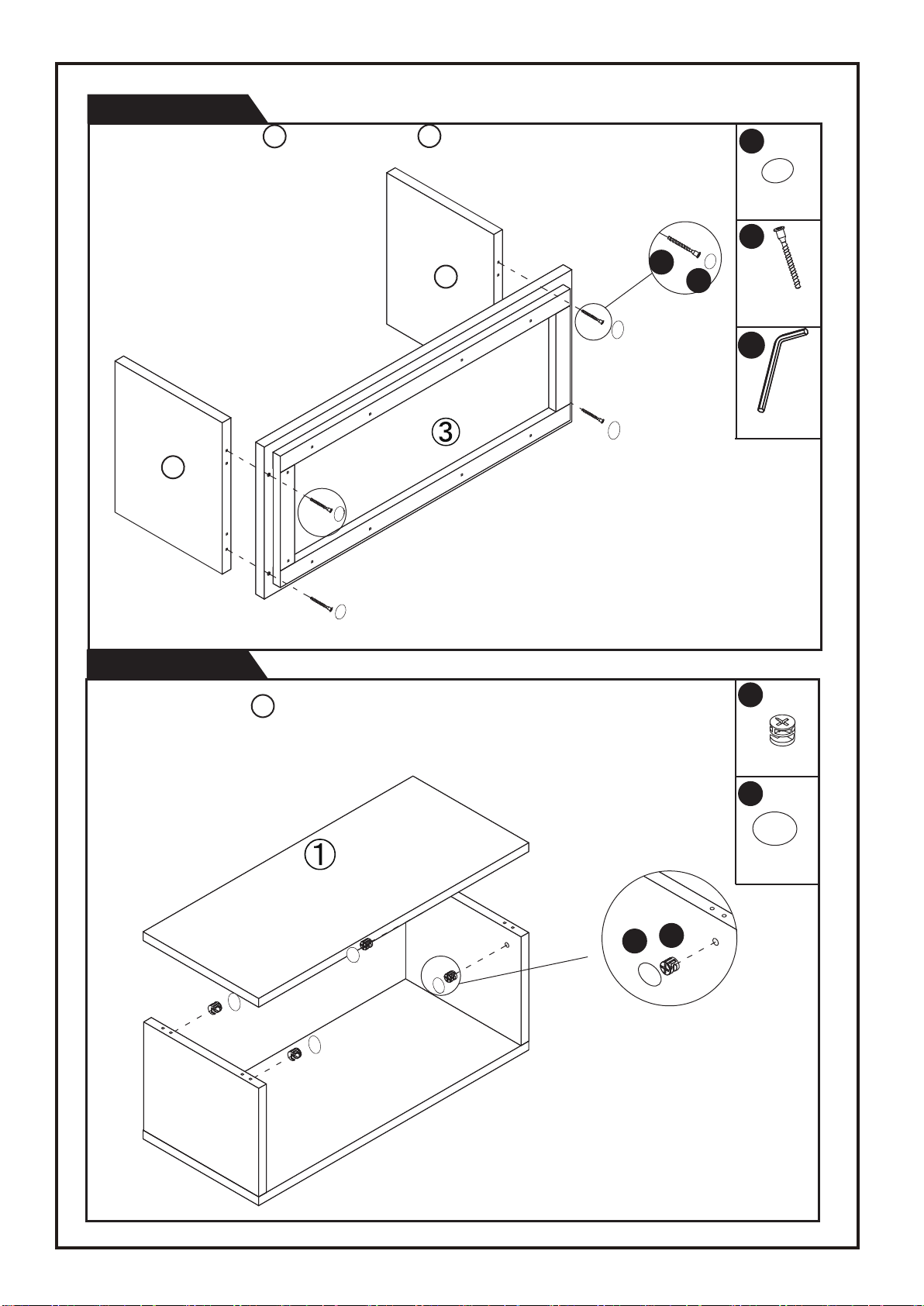

Step 3
1.Aach side panels to boom panel as shown using large screws(E).
2.Place hole sckers (D) over screw holes.
2
2
3
E
2
D
x 4
E
D
x 4
F
x 1
Step 4
1.Aach top panel to assembly as shown using camlocks (B) ,
gently ghten camlocks.
2.Place hole sckers (D) over screw holes.
3.Enjoy
1
D
B
x 4
D
x 4
B
Page 4 of 4
