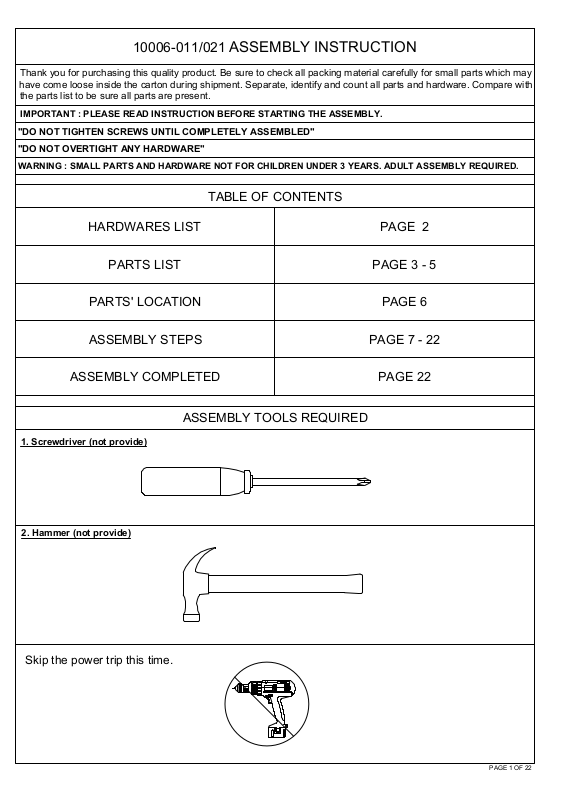

Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts which may
have come loose inside the carton during shipment. Separate, identify and count all parts and hardware. Compare with
the parts list to be sure all parts are present.
IMPORTANT : PLEASE READ INSTRUCTION BEFORE STARTING THE ASSEMBLY.
"DO NOT TIGHTEN SCREWS UNTIL COMPLETELY ASSEMBLED"
"DO NOT OVERTIGHT ANY HARDWARE"
WARNING : SMALL PARTS AND HARDWARE NOT FOR CHILDREN UNDER 3 YEARS. ADULT ASSEMBLY REQUIRED.
Skip the power trip this time.
10006-011/021 ASSEMBLY INSTRUCTION

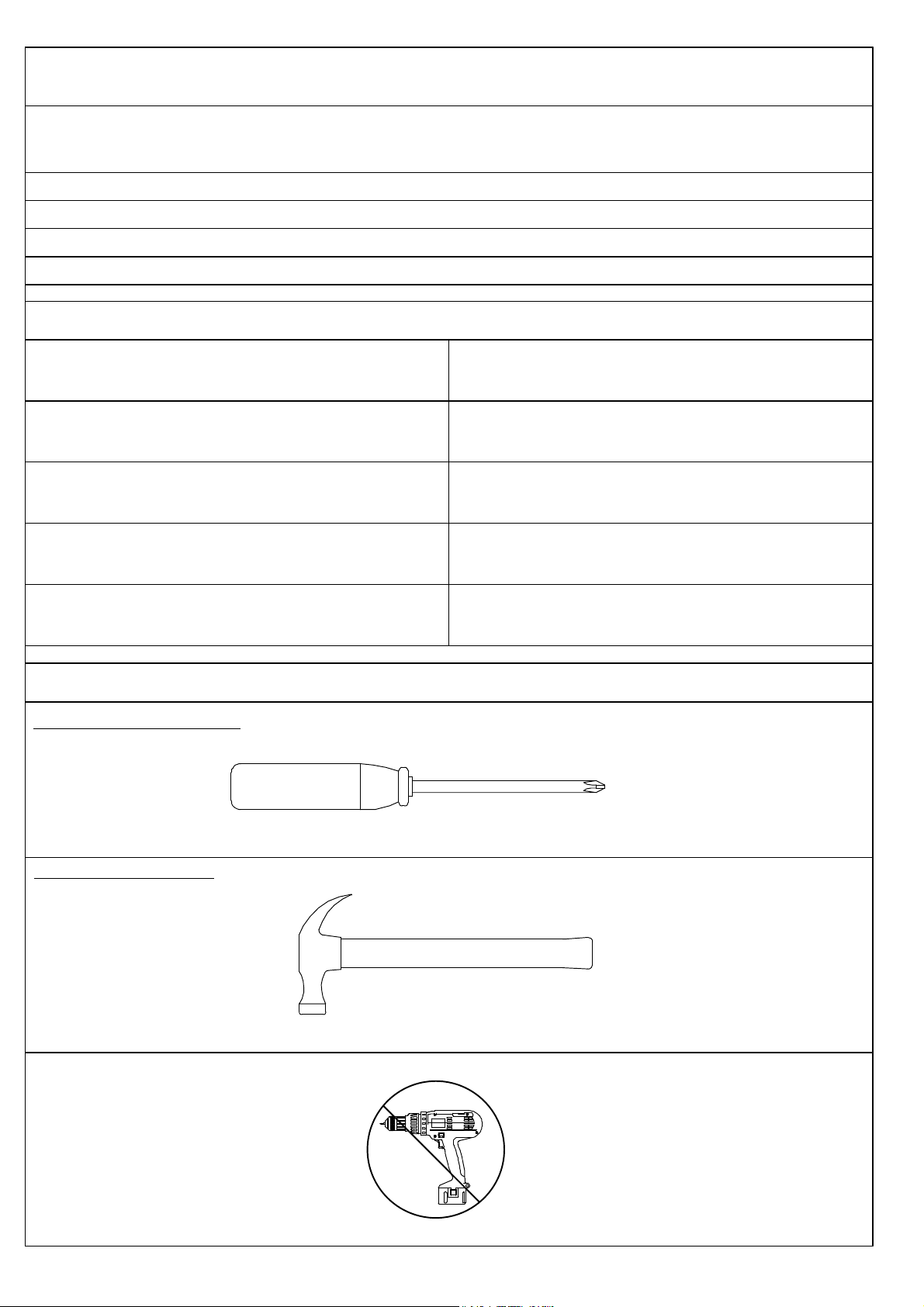

ASSEMBLY TOOLS REQUIRED
1. Screwdriver (not provide)
2. Hammer (not provide)
TABLE OF CONTENTS
HARDWARES LIST
PARTS LIST
PARTS' LOCATION
ASSEMBLY STEPS
ASSEMBLY COMPLETED
PAGE 2
PAGE 3 - 5
PAGE 6
PAGE 7 - 22
PAGE 22
PAGE 1 OF 22
10006-011/021 ASSEMBLY INSTRUCTION
ITEM
A
B
C
D
E
F
G
H
I
DESCRIPTION
MINIFIX CAM LOCK
MINIFIX CAM BOLT
WOOD DOWEL (M8 x 25MM)
WOOD DOWEL (M6 x 25MM)
SHELF SUPPORT
(M5 x 16mm)
TRUSS M-SCREW (20MM)
HANDLE
CSK C/B SCREW (M4 x 25MM)
6/8" NAIL
QTY
28 PCS
28 PCS
41 PCS
12 PCS
4 PCS
2 PCS
1 PC
2 PCS
12 PCS
DRAWING

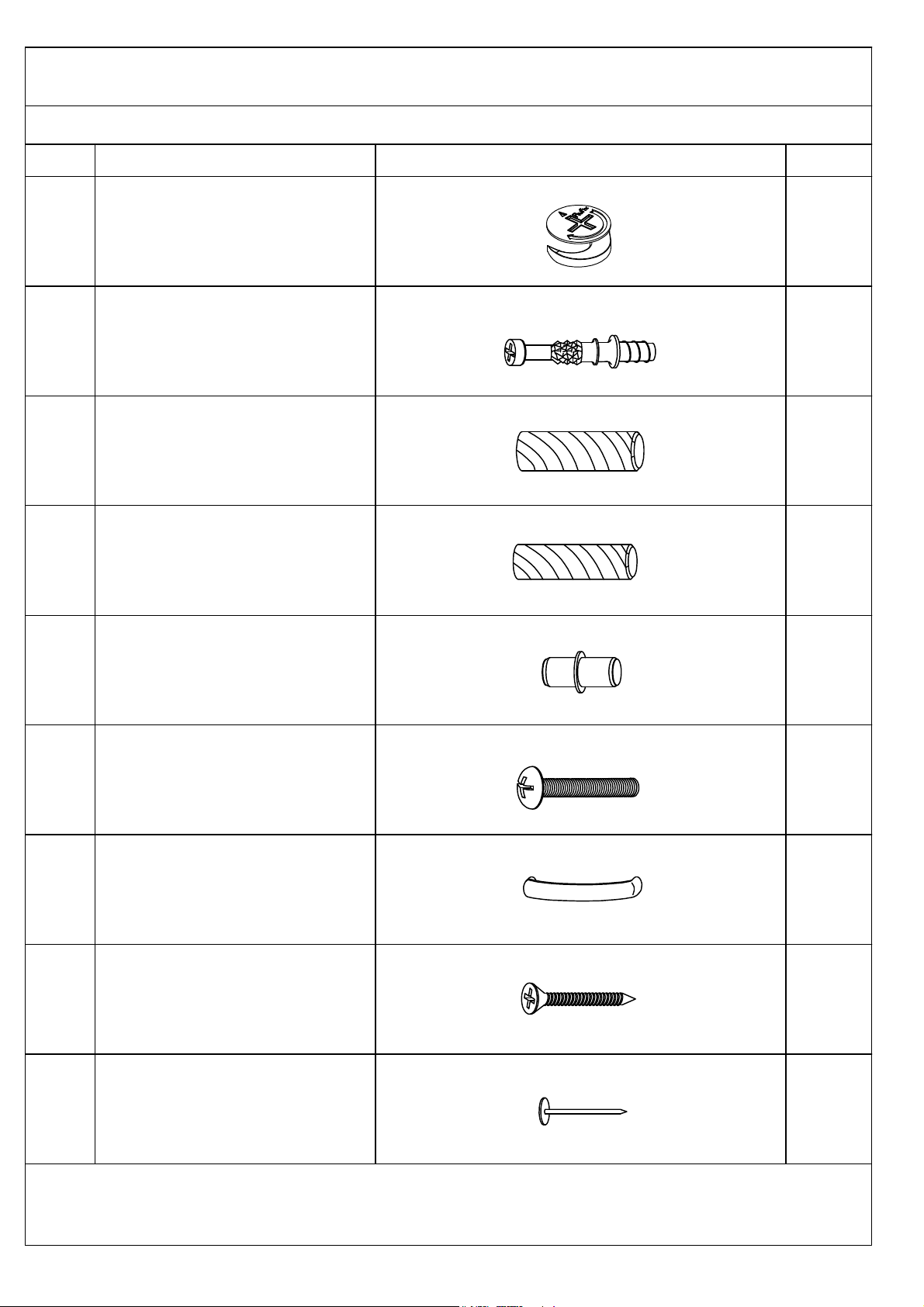

HARDWARES LIST
PAGE 2 OF 22
10006-011/021 ASSEMBLY INSTRUCTION

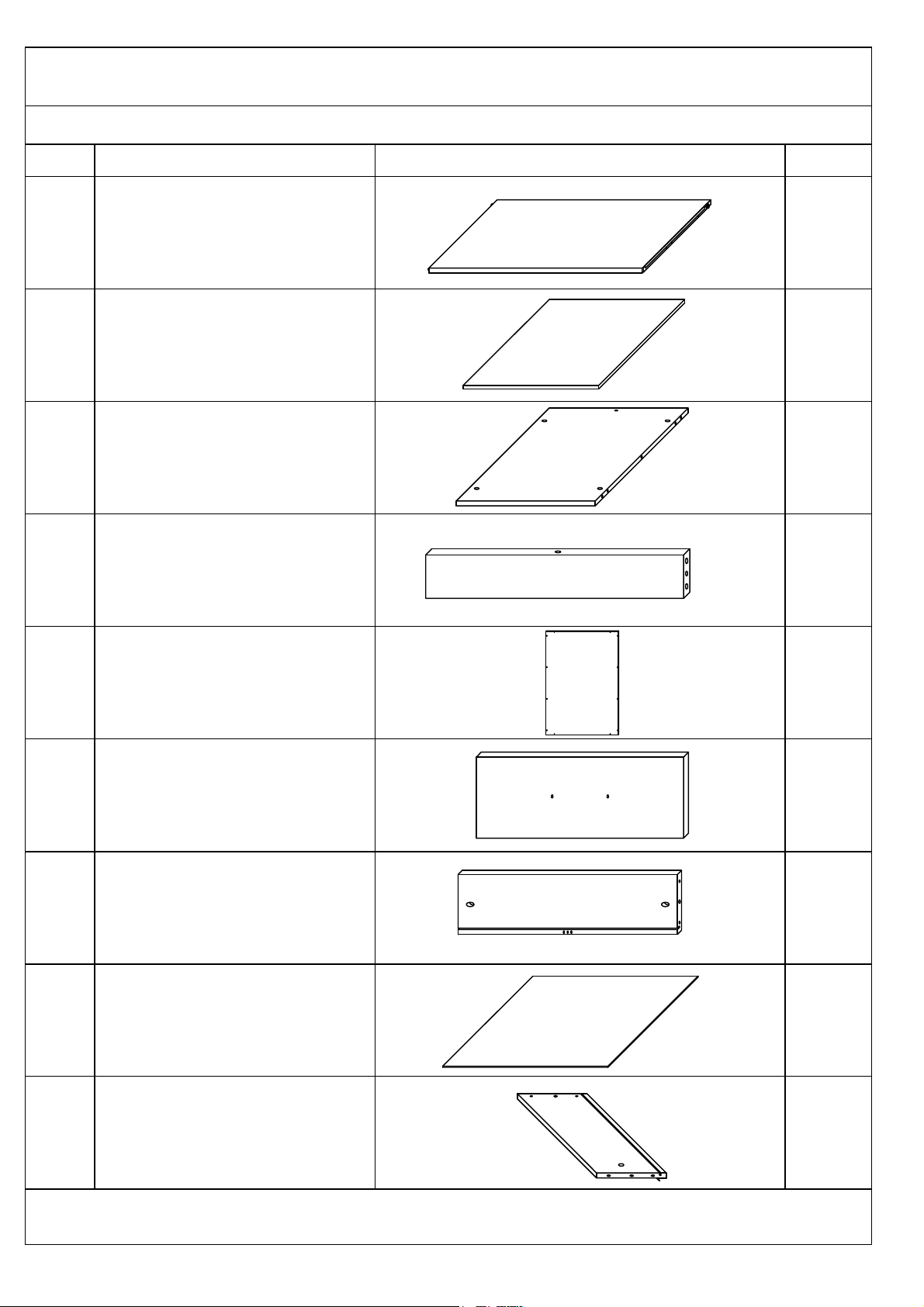

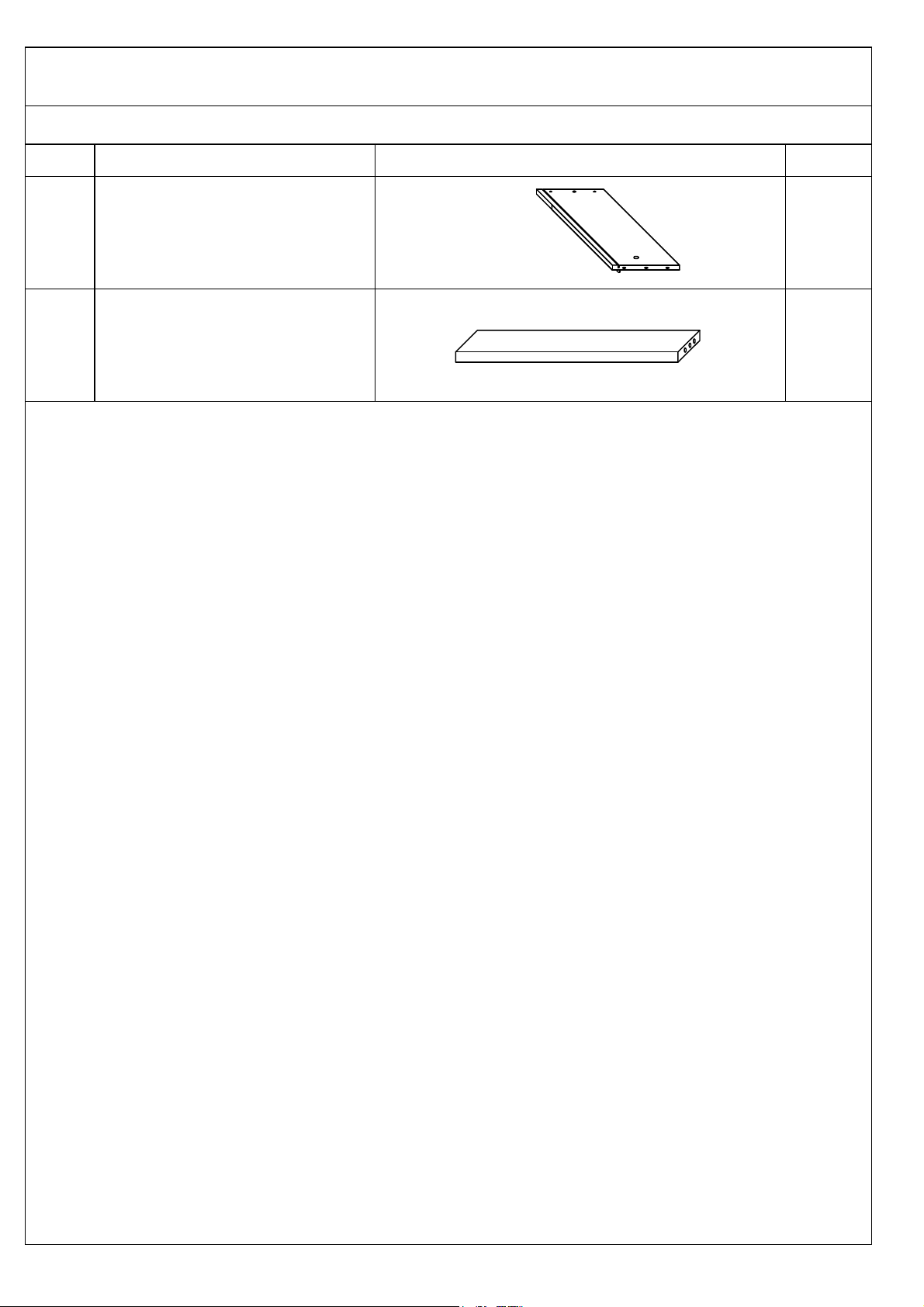

PARTS LIST
ITEM
1
2
3
4
5
6
7
8
9
DESCRIPTION
DESKTOP PANEL
TOP FRAME BOARD (L)
TOP FRAME BOARD (R)
TOP FRAME CENTRE BORAD
TOP FRAME CENTRE PANEL
LEFT PANEL
RIGHT PANEL
CENTRE PANEL
BACK BAFFLE
QTY
1 PC
1 PC
1 PC
1 PC
1 PC
1 PC
1 PC
1 PC
1 PC
DRAWING
PAGE 3 OF 22
MORE PARTS DETAIL IN NEXT PAGE...
10006-011/021 ASSEMBLY INSTRUCTION
PARTS LIST
ITEM
10
11
12
13
14
15
16
25
19
DESCRIPTION
SLIDE PANEL
COMPARTMENT PANEL
INSIDE BOTTOM PANEL
INSIDE BOTTOM SUPPORT RAIL
BACK PANEL
DRAWER HEAD
DRAWER BACK PANEL
DRAWER BOTTOM PANEL
DRAWER LEFT PANEL
QTY
1 PC
1 PC
1 PC
1 PC
1 PC
1 PC
1 PC
1 PC
1 PC
DRAWING
PAGE 4 OF 22
MORE PARTS DETAIL IN NEXT PAGE...
10006-011/021 ASSEMBLY INSTRUCTION
PARTS LIST
ITEM
20
21
DESCRIPTION
DRAWER RIGHT PANEL
DRAWER BOTTOM SUPPORT RAIL
QTY
1 PC
1 PC
DRAWING
PAGE 5 OF 22
10006-011/021 ASSEMBLY INSTRUCTION
PARTS ' LOCATION
2
1
3
4
5
6
7
8
9
10
11
12
13
14
15
16
25
19
20
21
WRITING DESK x 1 PC
DRAWER x 1 PC
PAGE 6 OF 22
R
L
10006-011/021 ASSEMBLY INSTRUCTION
ASSEMBLY STEPS

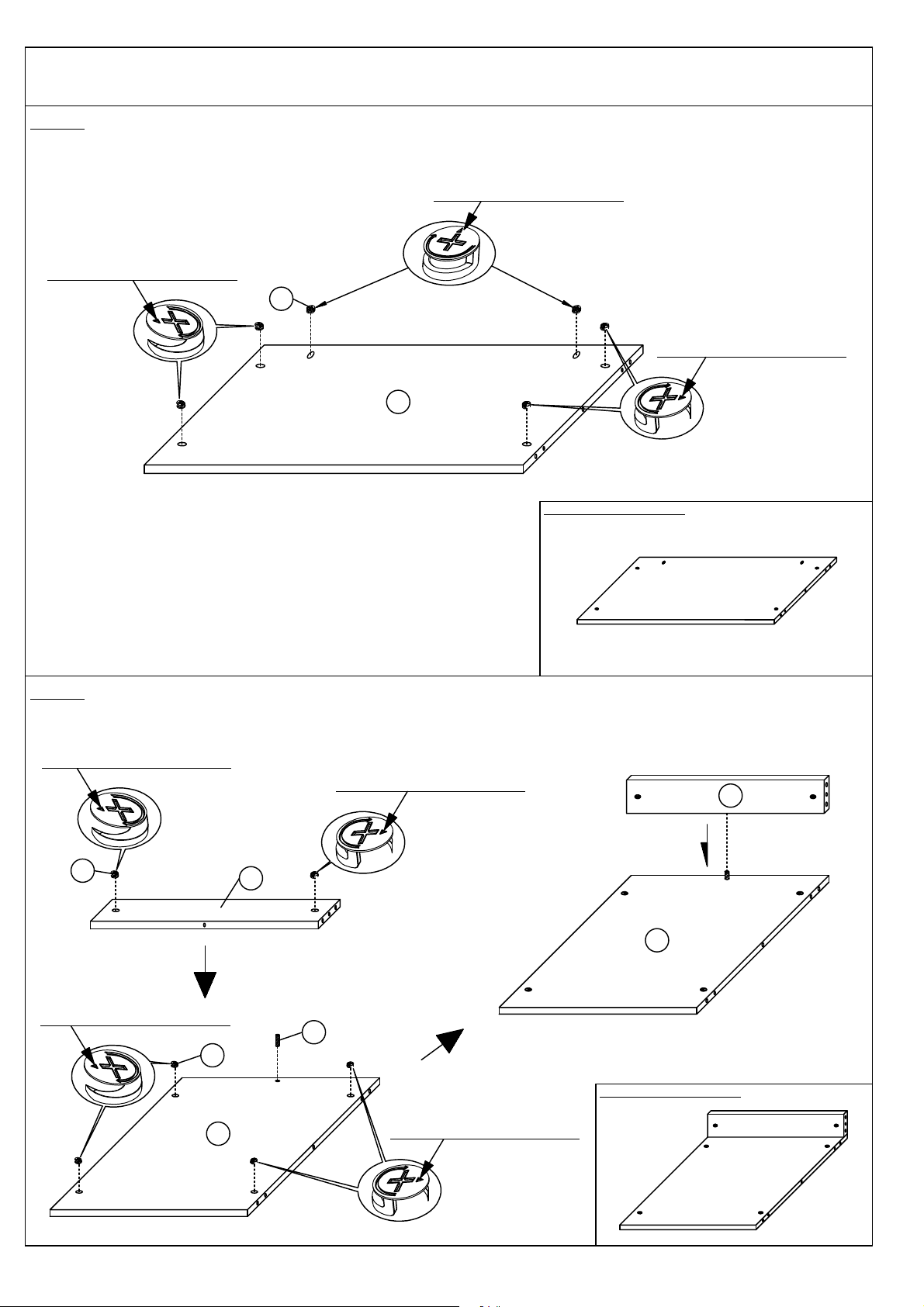

STEP 1
STEP 2
Assembled become like this
Assembled become like this
PAGE 7 OF 22
6
7
A
Arrow need to face upside.
B
C
Arrow need to face upside.
A
E
C
B

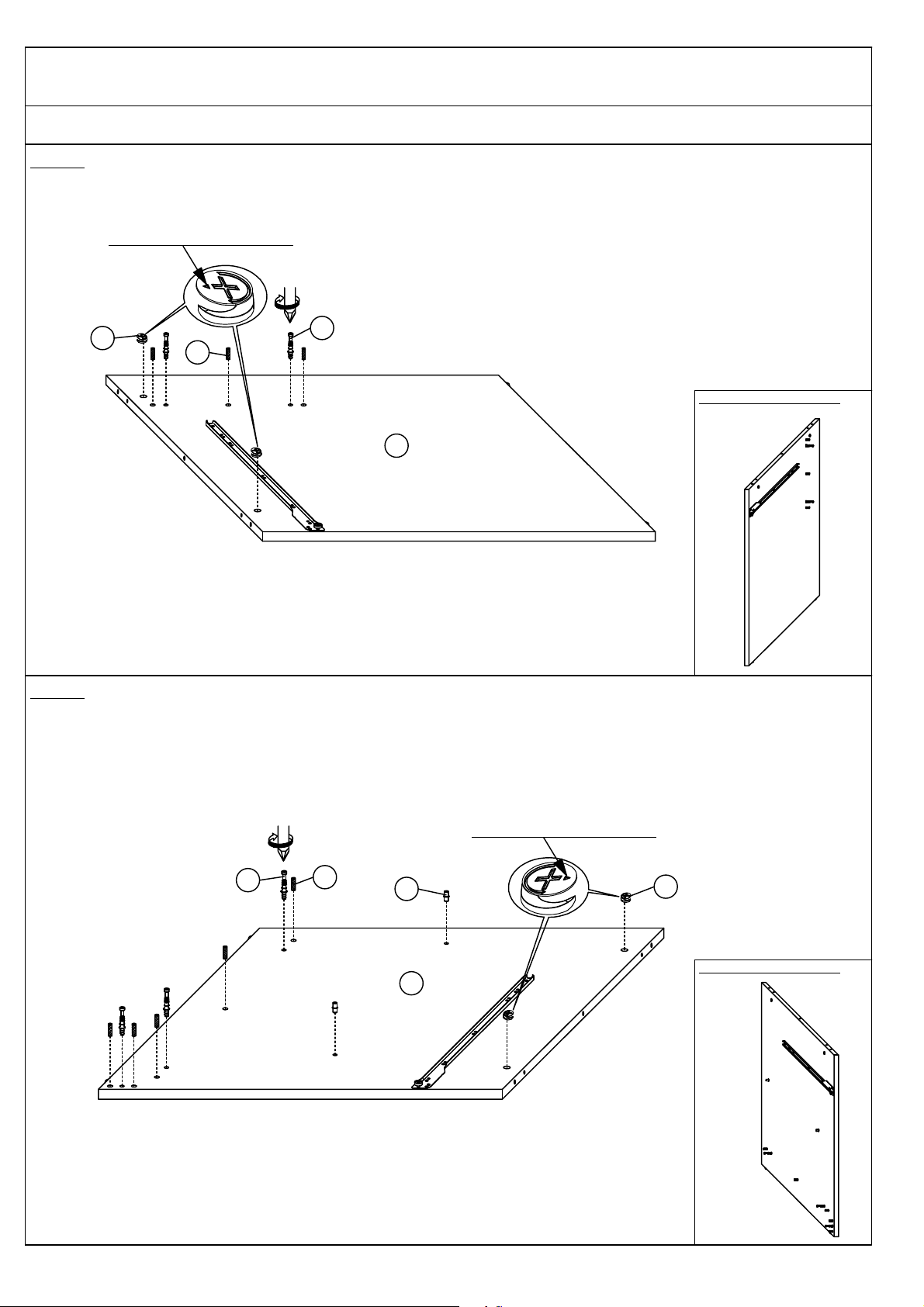

Insert 2 pieces (A) , 2 pieces (B) and 3 pieces (C) to the (6) as shown.
Insert 2 pieces (A) , 3 pieces (B) , 5 pieces (C) and 2 pieces (E) to the (7) as shown.
10006-011/021 ASSEMBLY INSTRUCTION
180 °
STEP 3
Assembled become like this
PAGE 8 OF 22
8
8
RIGHT SIDE
LEFT SIDE
Arrow need to face upside.
A
E
B
C
B
C
Insert 2 pieces (A) , 3 pieces (B) , 5 pieces (C) and 2 pieces (E) to the right side of (8) , then 2 pieces (B) and 3 pieces
(C) to the left side as shown.
10006-011/021 ASSEMBLY INSTRUCTION
STEP 4
STEP 5
PAGE 9 OF 22
Assembled become like this
Assembled become like this
9
12
13
13
12
A
Arrow need to face up side.
Arrow need to face outside.
Arrow need to face outside.
Arrow need to face outside.
Arrow need to face outside.
Arrow need to face outside.
Arrow need to face outside.
A
A
Insert 6 pieces (A) to the (9) as shown.
Insert 2 pieces (A) to the (13) , 4 pieces (A) and 1 piece (C) to the (12) .Then combine together as shown.
C
10006-011/021 ASSEMBLY INSTRUCTION
STEP 6
STEP 7
PAGE 10 OF 22
Assembled become like this
180 °
1
1
UPPER SIDE
LOWER SIDE
6
9
B
C
B
C
Insert 8 pieces (B) and 12 pieces (C) to the lower side of (1) , then 3 pieces (B) and 6 pieces (C) to the upper side as
shown.
Combine the (6) to the (9) then tighten the 2 pieces (A)-(pre insert in step 4) as shown.
9
10006-011/021 ASSEMBLY INSTRUCTION
90 °

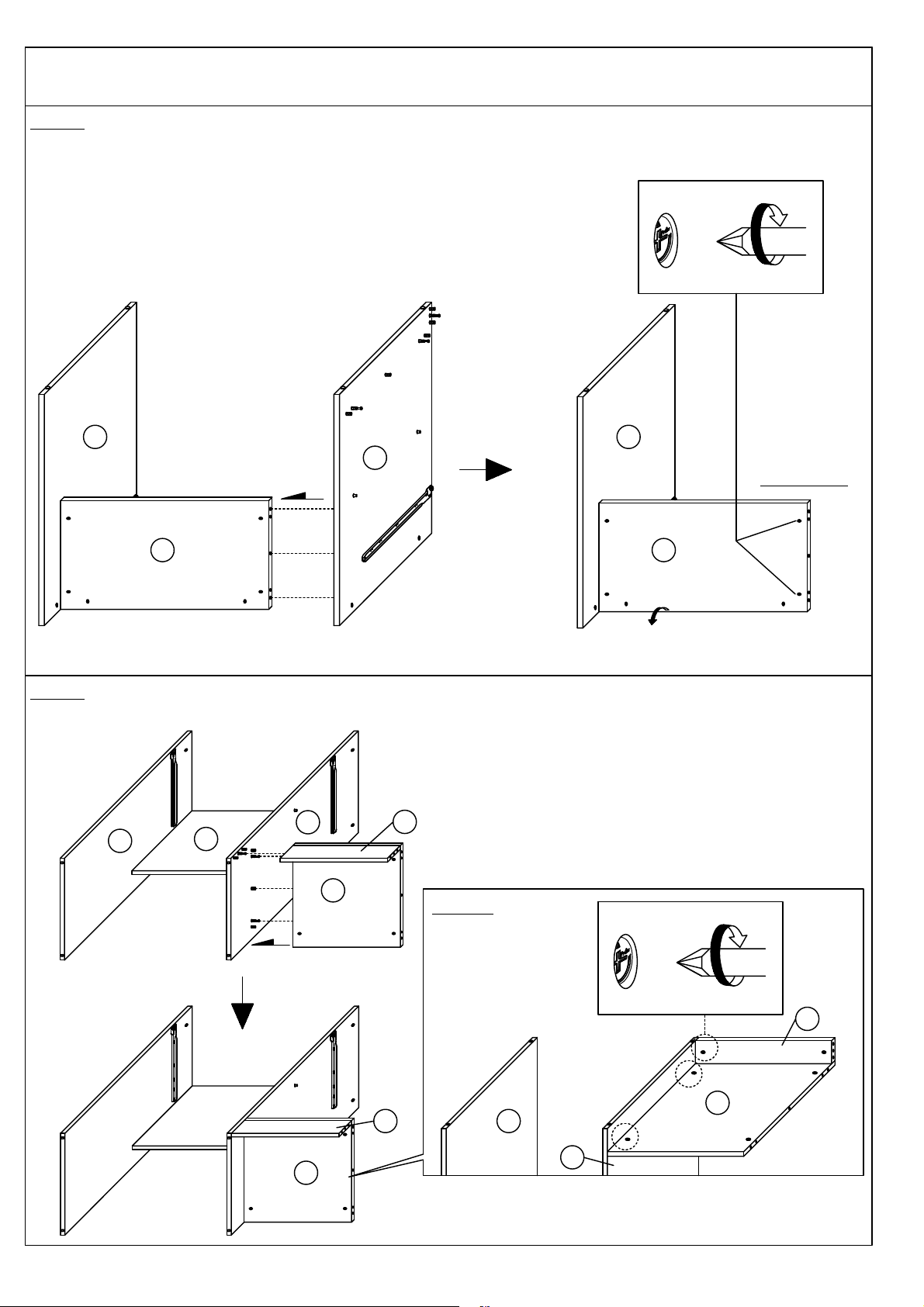

STEP 8
STEP 9
PAGE 11 OF 22
INSIDE VIEW
6
9
8
6
9
6
9
8
12
13
12
13
Combine the (8) to the (9) then tighten the another 2 pieces (A)-(pre insert in step 4) as shown.
Combine the (12) and (13) to the (8) then tighten the 3 pieces (A)-(pre insert in step 5) as shown.
6
8
12
13
BOTTOM
10006-011/021 ASSEMBLY INSTRUCTION
90 °
STEP 10
STEP 11
PAGE 12 OF 22
INSIDE VIEW
12
13
6
9
8
7
12
13
6
9
8
7
1
1
6
8
7
Combine the (7) to the (12) and (13) then tighten the remaining 3 pieces (A)-(pre insert in step 5) as shown.
Combine the (1) to the (6),(7),(8) and (9) then tighten the 6 pieces (A)-(pre insert in step 1 to 3) as shown.
6
8
12
13
BOTTOM
10006-011/021 ASSEMBLY INSTRUCTION
STEP 12
STEP 13
PAGE 13 OF 22
Assembled become like this
9
1
6
8
9
8
6
1
14
2
I
A
Arrow need to face down.
C
B
Tighten the remaining 4 pieces (A)-(pre insert in step 1,3 and 4), then insert the 12 pieces (I) to fix the (14) as shown.
Insert 1 piece (A) , 1 piece (B) and 2 pieces (C) to the (2) as shown.
L
7
10006-011/021 ASSEMBLY INSTRUCTION
STEP 14
STEP 15
PAGE 14 OF 22
Assembled become like this
Assembled become like this
3
4
B
C
A
Arrow need to face down.
Arrow need to face outside.
Arrow need to face outside.
A
Insert 1 piece (A) , 1 piece (B) and 2 pieces (C) to the (3) as shown.
Insert 2 pieces (A) to the (4) as shown.
R
10006-011/021 ASSEMBLY INSTRUCTION

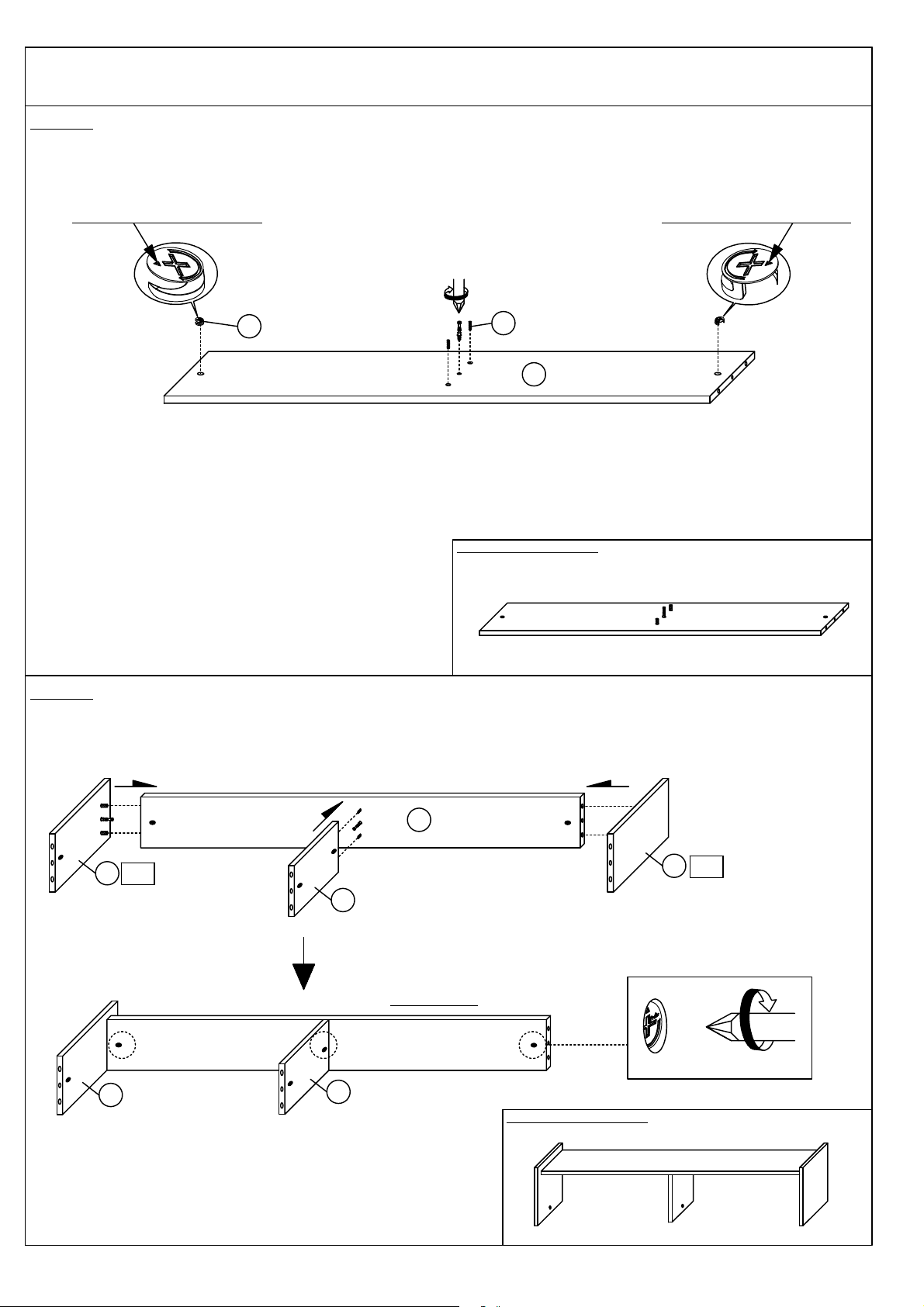

STEP 16
STEP 17
PAGE 15 OF 22
Assembled become like this
Assembled become like this
INSIDE VIEW
5
5
4
3
2
R
L
2
4
A
Arrow need to face outside.
Arrow need to face outside.
C
Insert 2 pieces (A) , 1 piece (B) and 2 pieces (C) to the (5) as shown.
Combine the (2),(3),(4) to the (5) then tighten the 3 pieces (A)-(pre insert in step 13 to 15) as shown.
10006-011/021 ASSEMBLY INSTRUCTION
Assembled become like this
B

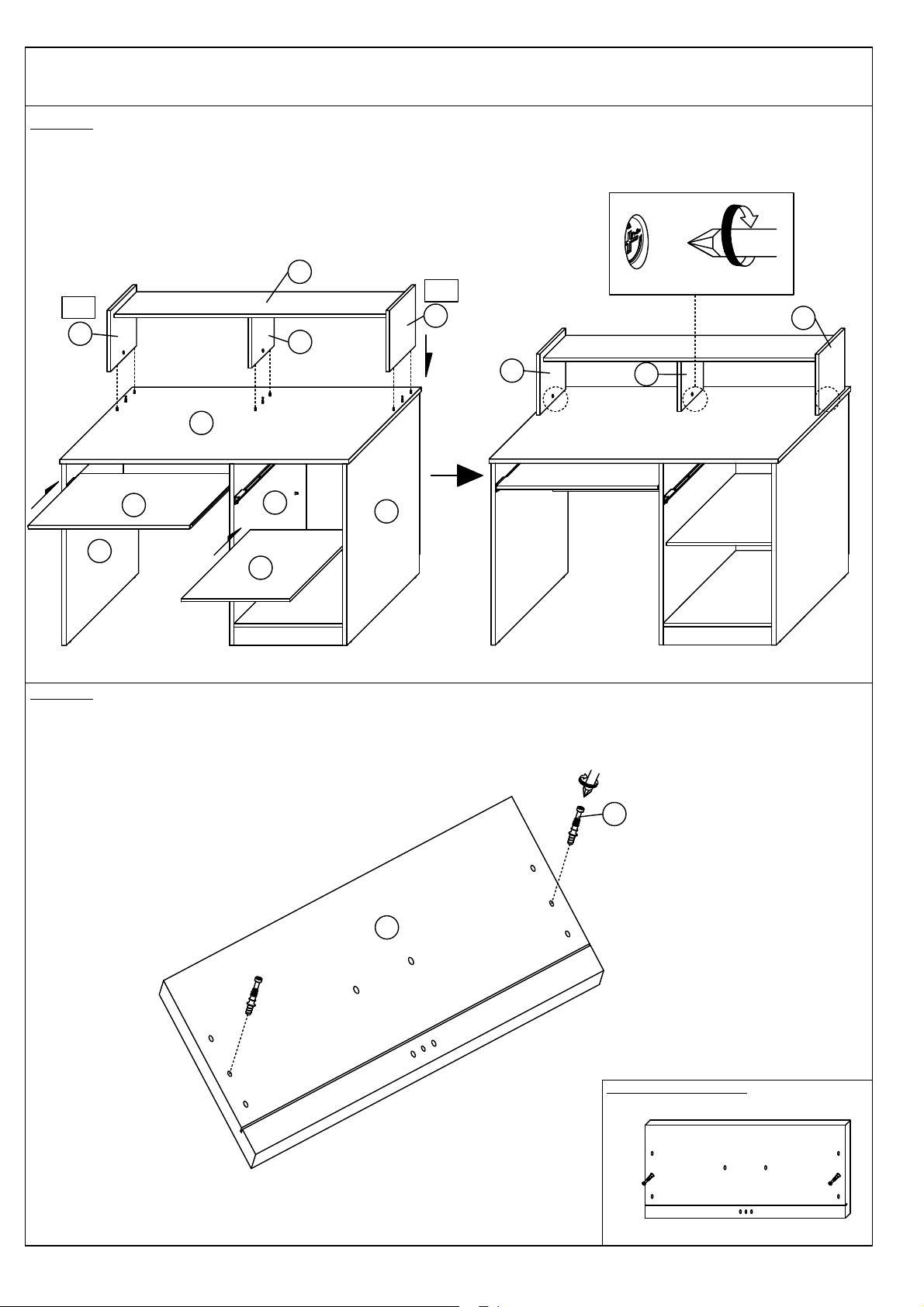

STEP 18
STEP 19
PAGE 16 OF 22
2
4
3
5
3
2
4
15
10
11
1
6
7
L
R
Put the (10) between the (6) and (8), put the (11) on the (E) which between the (7) and (8). Combine the (2),(3),(4) and
(5) to the (1) then tighten the remaining 3 pieces (A)-(pre insert in step 13 to 15) as shown.
Insert 2 pieces (B) to the (15) as shown.
8
10006-011/021 ASSEMBLY INSTRUCTION
Assembled become like this
Arrow need to face front.
19
Assembled become like this
Arrow need to face front.
B
20
STEP 20
STEP 21
PAGE 17 OF 22
B
A
A
D
D
Insert 1 piece (A) , 1 piece (B) and 2 pieces (D) to (19) as shown.
Insert 1 piece (A) , 1 piece (B) and 2 pieces (D) to (20) as shown.
10006-011/021 ASSEMBLY INSTRUCTION
Assembled become like this
D
A
Arrow need to face outside.
Arrow need to face outside.
Assembled become like this
D
21
STEP 22
STEP 23
PAGE 18 OF 22
16
Insert 2 pieces (A) and 4 pieces (D) to (16) as shown.
Insert 4 pieces (D) to (21) as shown.
10006-011/021 ASSEMBLY INSTRUCTION
19
20
19
20
STEP 24
STEP 25
PAGE 19 OF 22
16
16
16
25
25
Combine the (19) and (20) to the (16) . Then tighten the 2 pieces (A)-(pre-insert in step 22) as shown.
Put the (25) into the gap of (19),(20) and (16) as shown.
10006-011/021 ASSEMBLY INSTRUCTION
21
90 °
19
20
Face to (15) Face to (16)
Face to down
Face to (25)
Attention : Please check the direction of item (21) before start doing this step.
INSIDE VIEW
90 °
&
20
21
20
19
19
20
180 °
STEP 26
STEP 27
PAGE 20 OF 22
25
15
25
16
Check the position then combine the (21) to the (16) as shown.
Combine the (15) to the drawer frame. Then tighten the 2 pieces (A)-(pre-insert in step 20 and 21) as shown.
10006-011/021 ASSEMBLY INSTRUCTION
21
G
F
19
20
STEP 28
STEP 29
PAGE 21 OF 22
15
15
16
H
H
Insert 1 piece (H) to the (16) and (21) as shown.
Insert the 2 pieces (F) fix the (G) as shown.
10006-011/021 ASSEMBLY INSTRUCTION
PAGE 22 OF 22
ASSEMBLY COMPLETED
STEP 30
STEP 31
15
1
6
7
Align the position then push the drawer to inside exactly by your hand as shown.
